Technical data
Diameter of work admitted
7 mm
Max. turning length:
with flat cames
60 mm
Spindle hole
8 mm
Max. treading diameter
6 M (Metric)
Number of tool cutters
5
Spindle speeds:
Number of spindle speeds
20
from
1400 rpm
up to
10000 rpm
Voltage 50 Hz 3x
380 Volt
Total power required
2 HP
Machine's weight about
520 kg
Overall dimensions machine:
Length
1200 mm
Width
700 mm
Height
1400 mm
Various accessories:
Bar loader number of bars

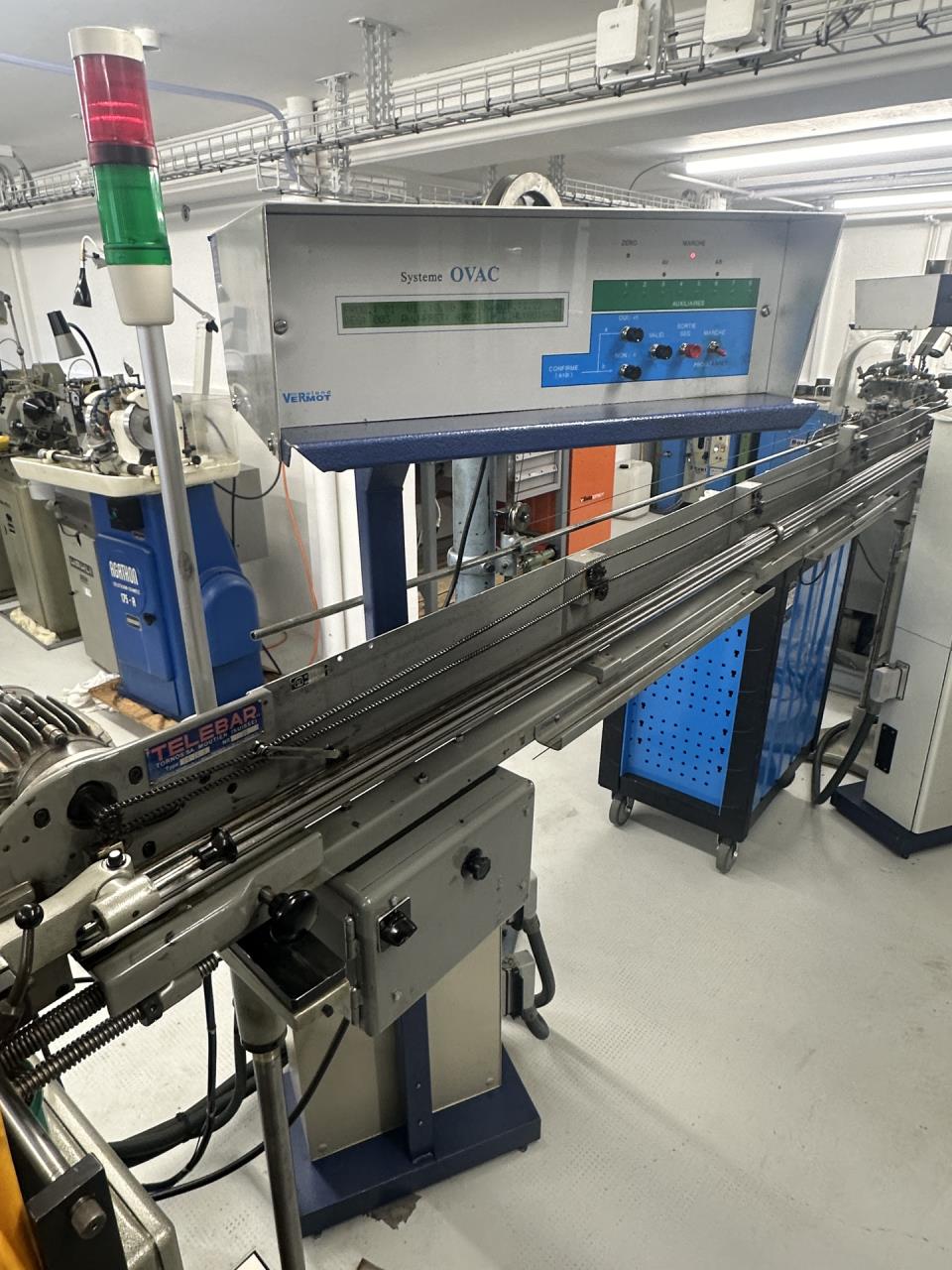

TELEBAR

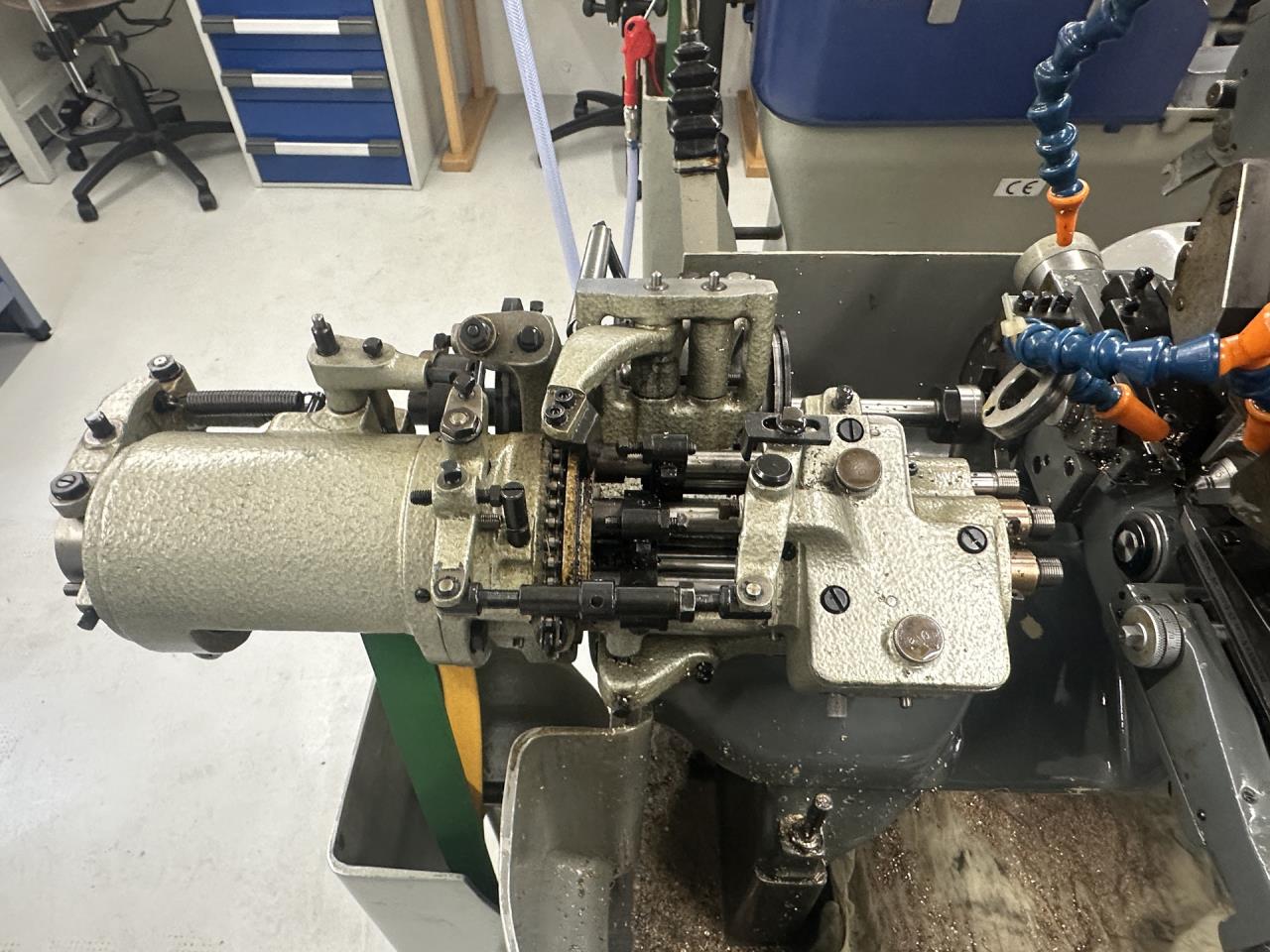

3-spindle drilling attachment
13 Y
Variocam
Lamp
Rocker arm with 1/1000 mm
Protective cover
Technical specifications and pictures without guarantee.
