Technical data
Number of axis total
4
Table length
1500 mm
Table width
800 mm
Longitudinal travel (X-axis)
1400 mm
Transversal travel (y-axis)
800 mm
Vertical travel (z axis)
700 mm

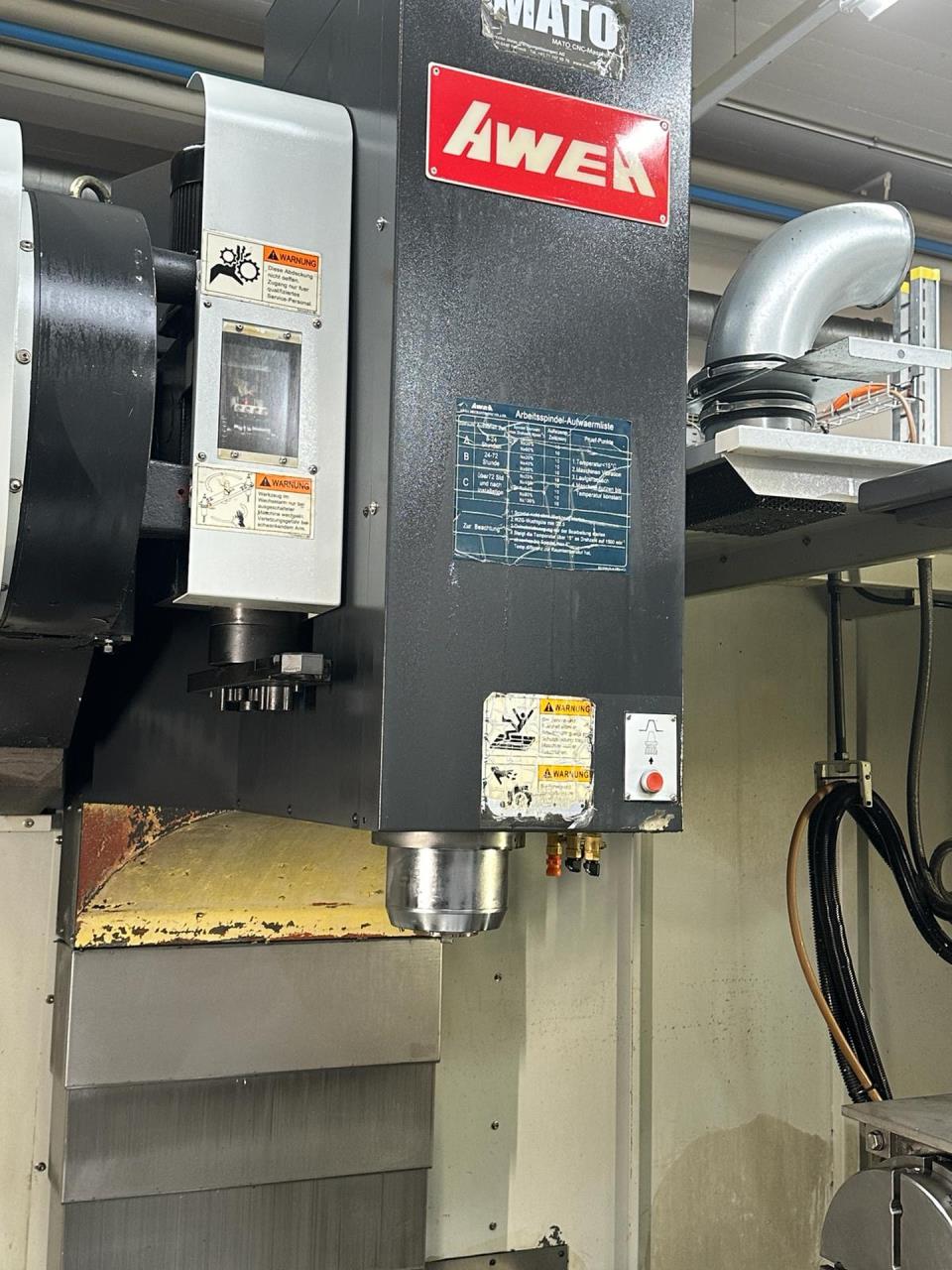

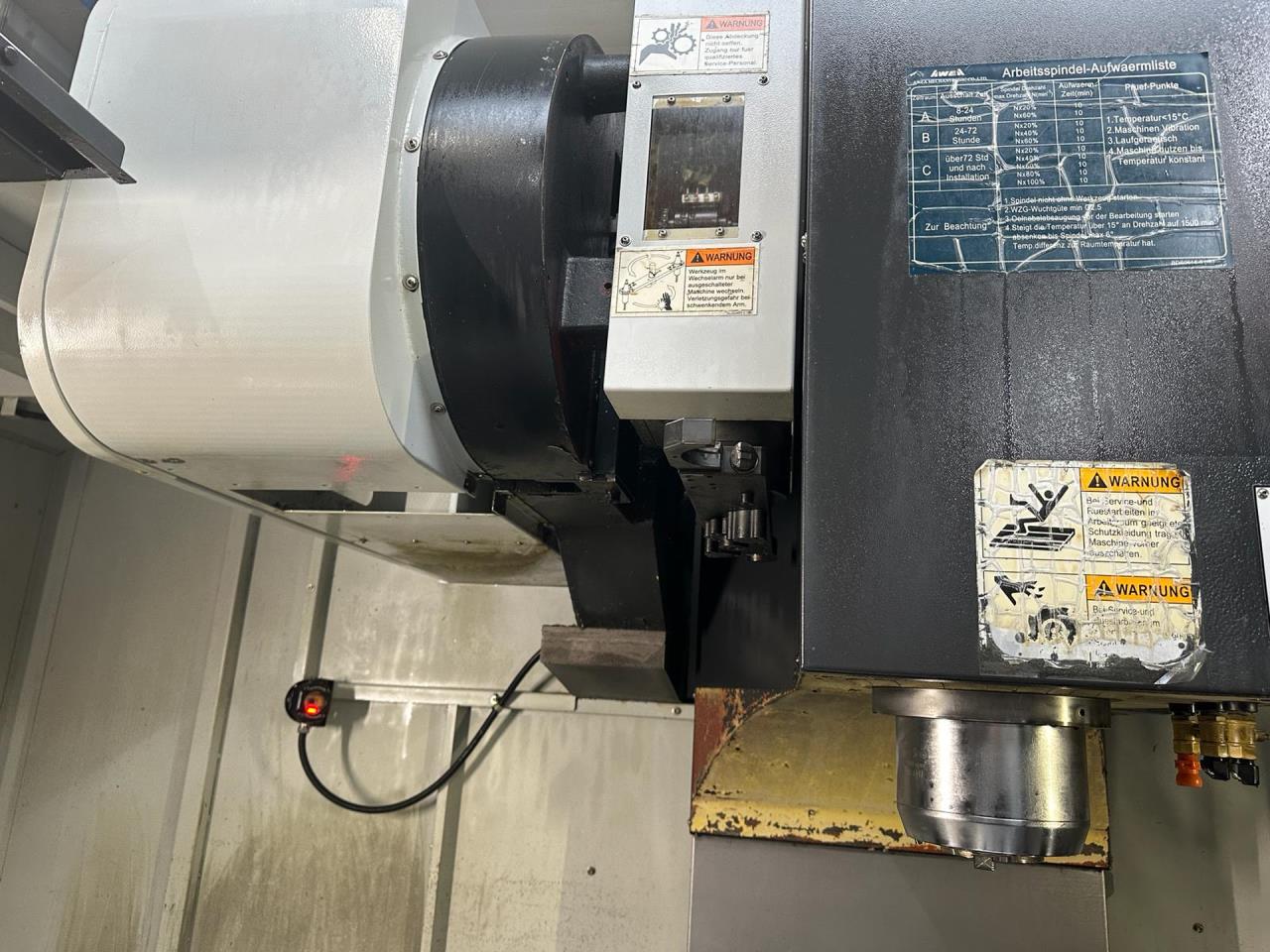

Spindle nose: ISO
40
Spindle speeds:
stepless
from
0 rpm
up to
12000 rpm
Voltage 50 Hz 3x
400 Volt
Total power required
40 kVA
Machine's weight about
12000 kg
Overall dimensions machine:
Length
4800 mm
Width
2850 mm
Height
3100 mm
Various accessories:
Set of toolholders
High pression colant device
40 bar

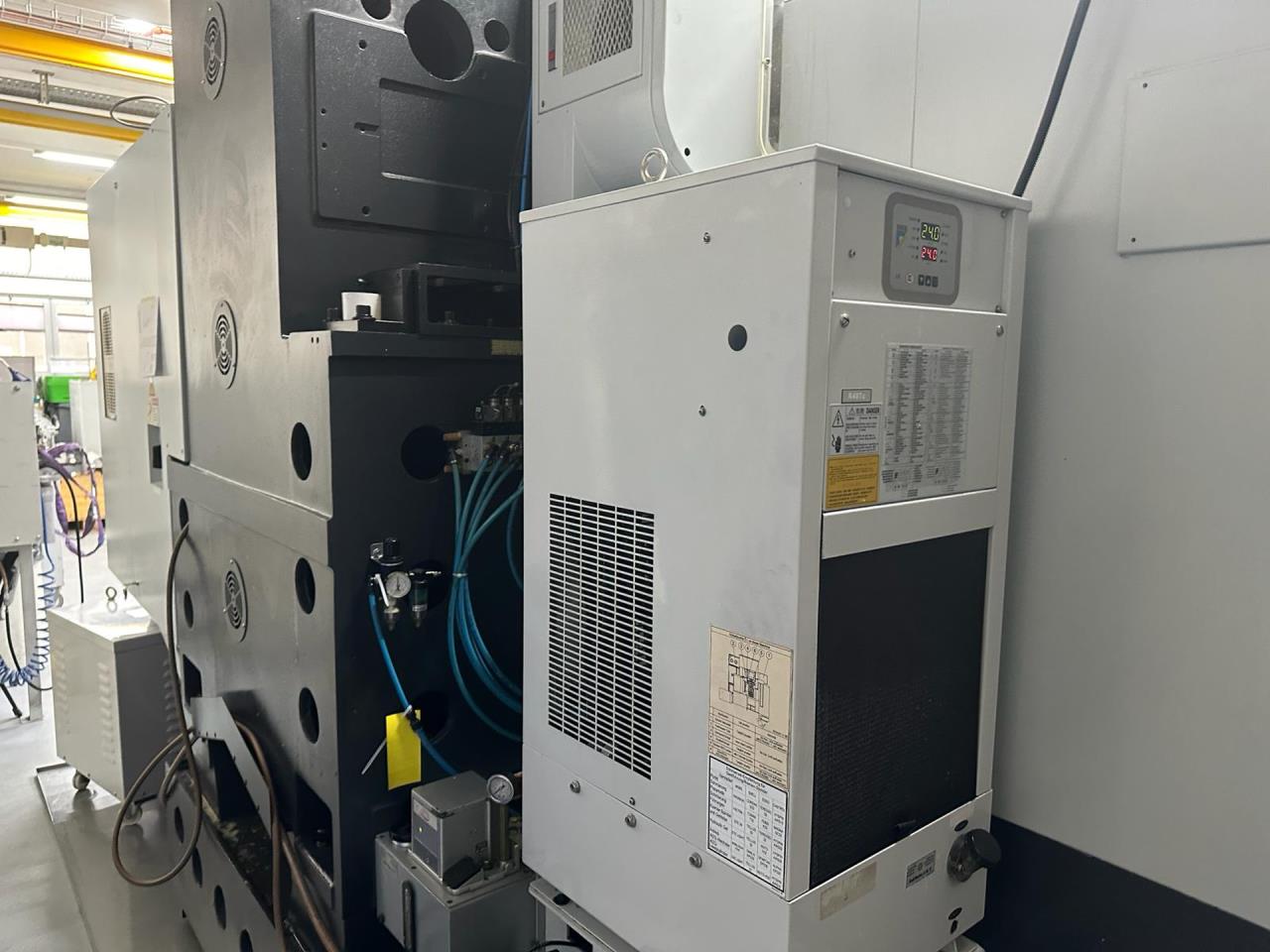

Water cooler
Chip conveyor

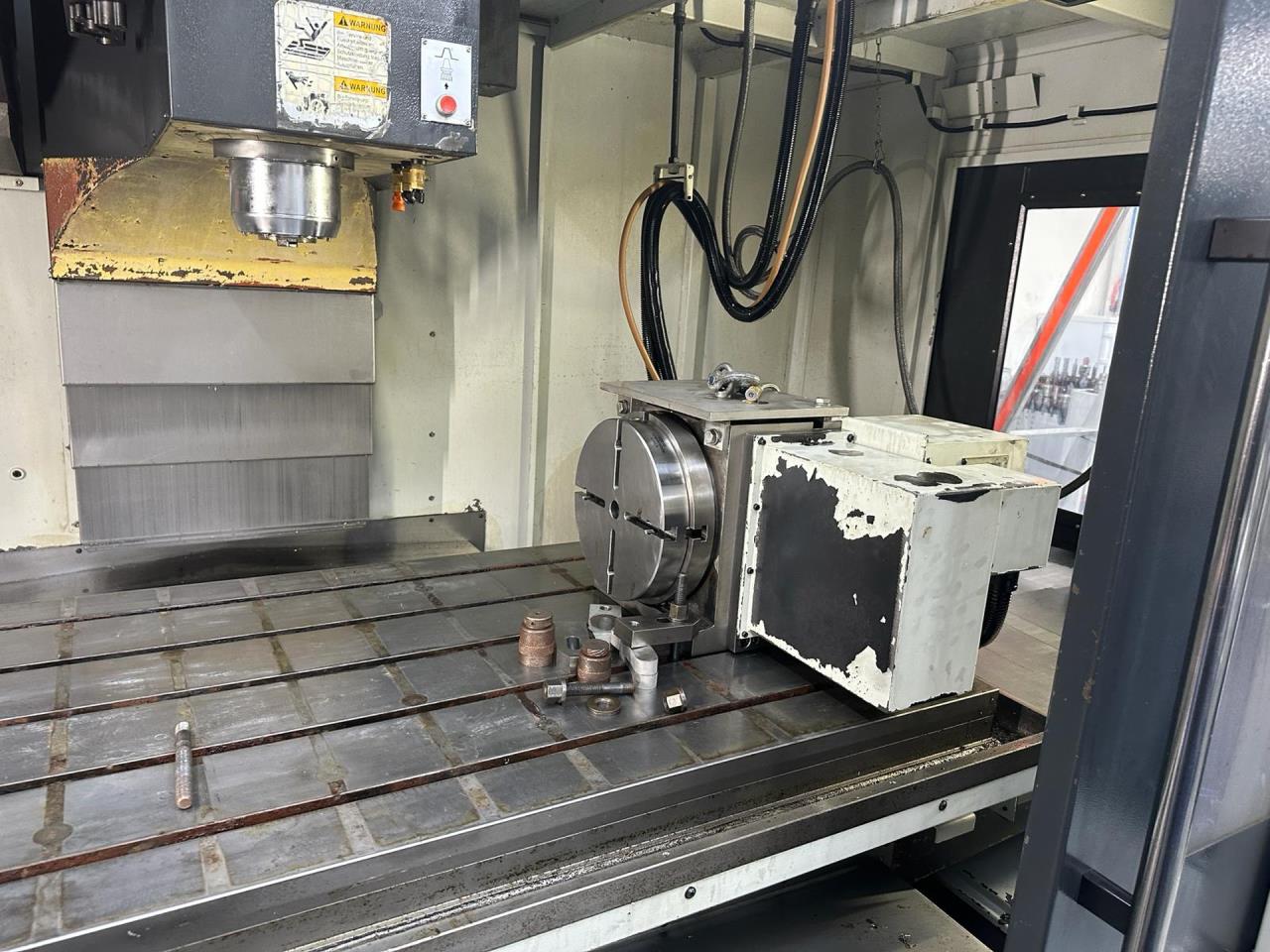

Dividing attachment 4th axis

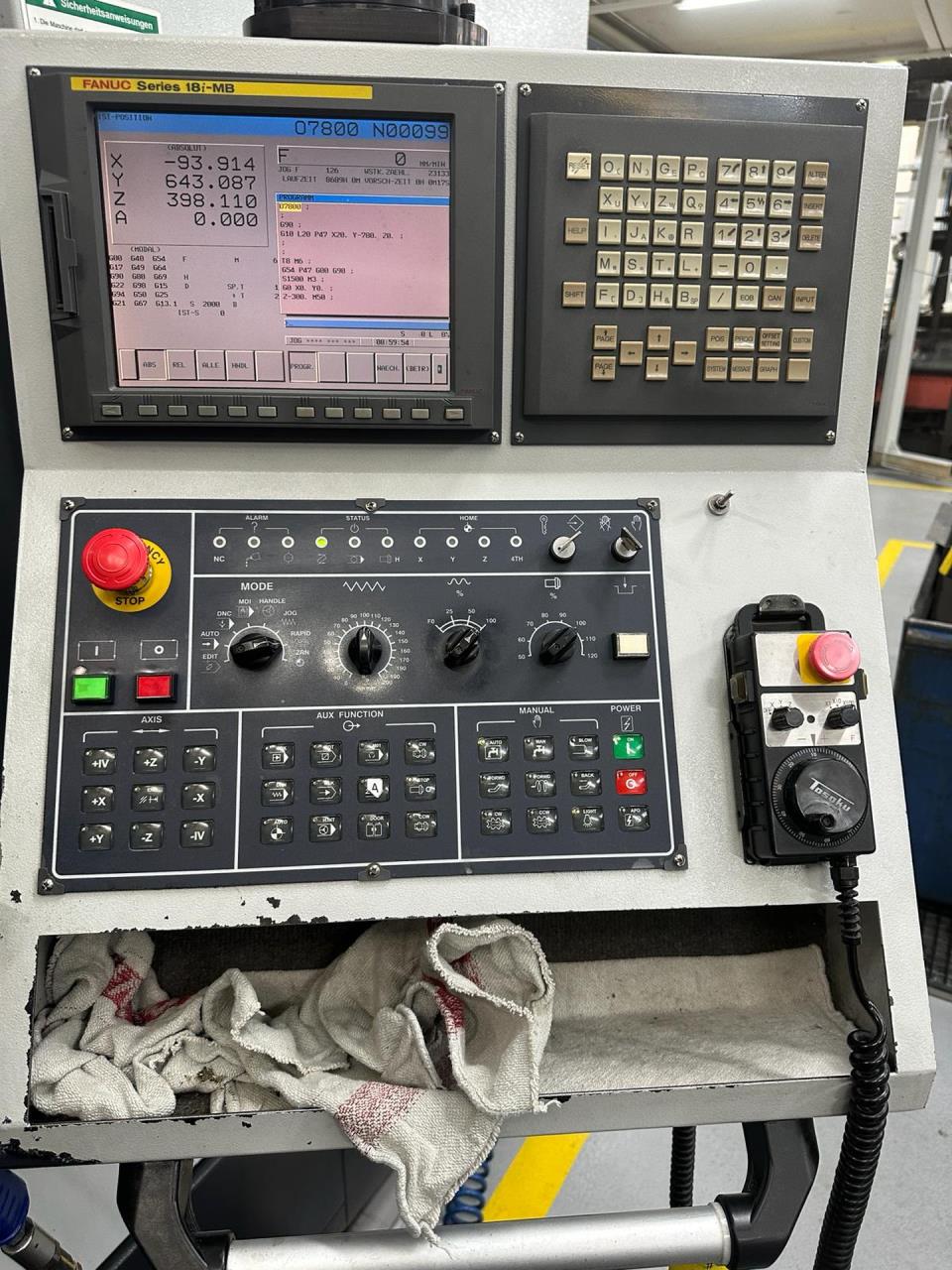

Handwheel electroinic

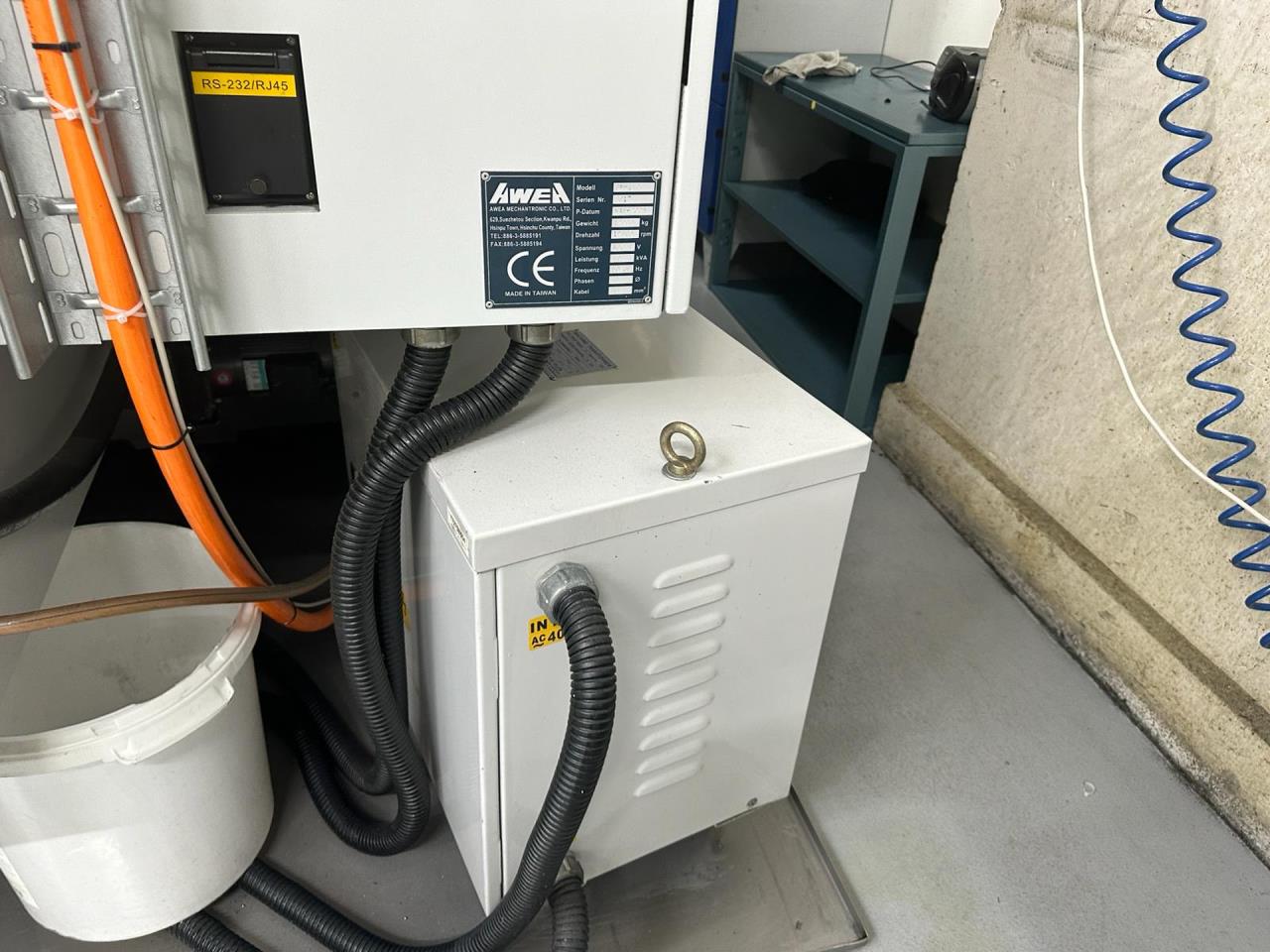

RS-232 Interface
Status light
Technical specifications and pictures without guarantee.
