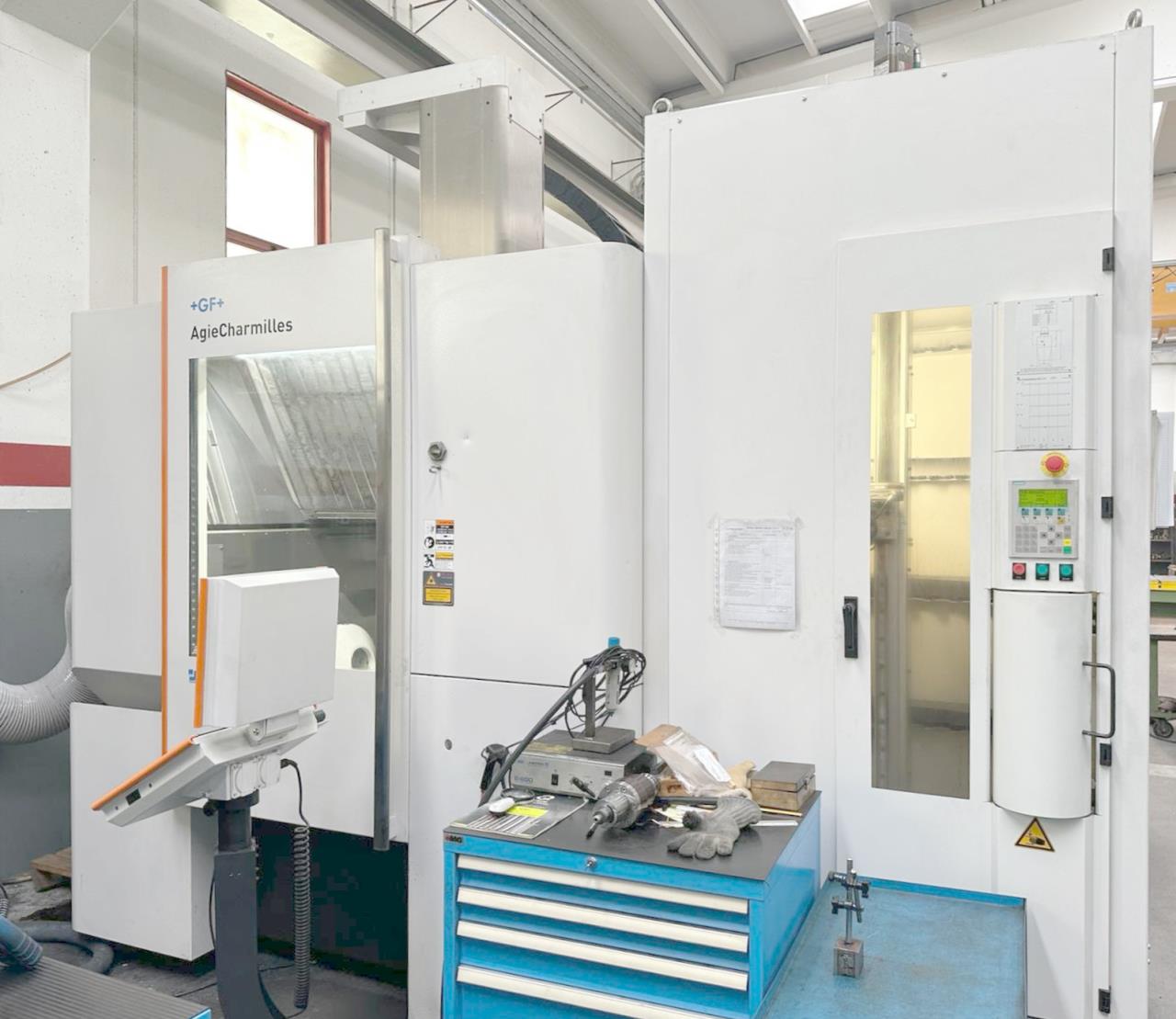

Technical data
Number of axis simultaneous
5

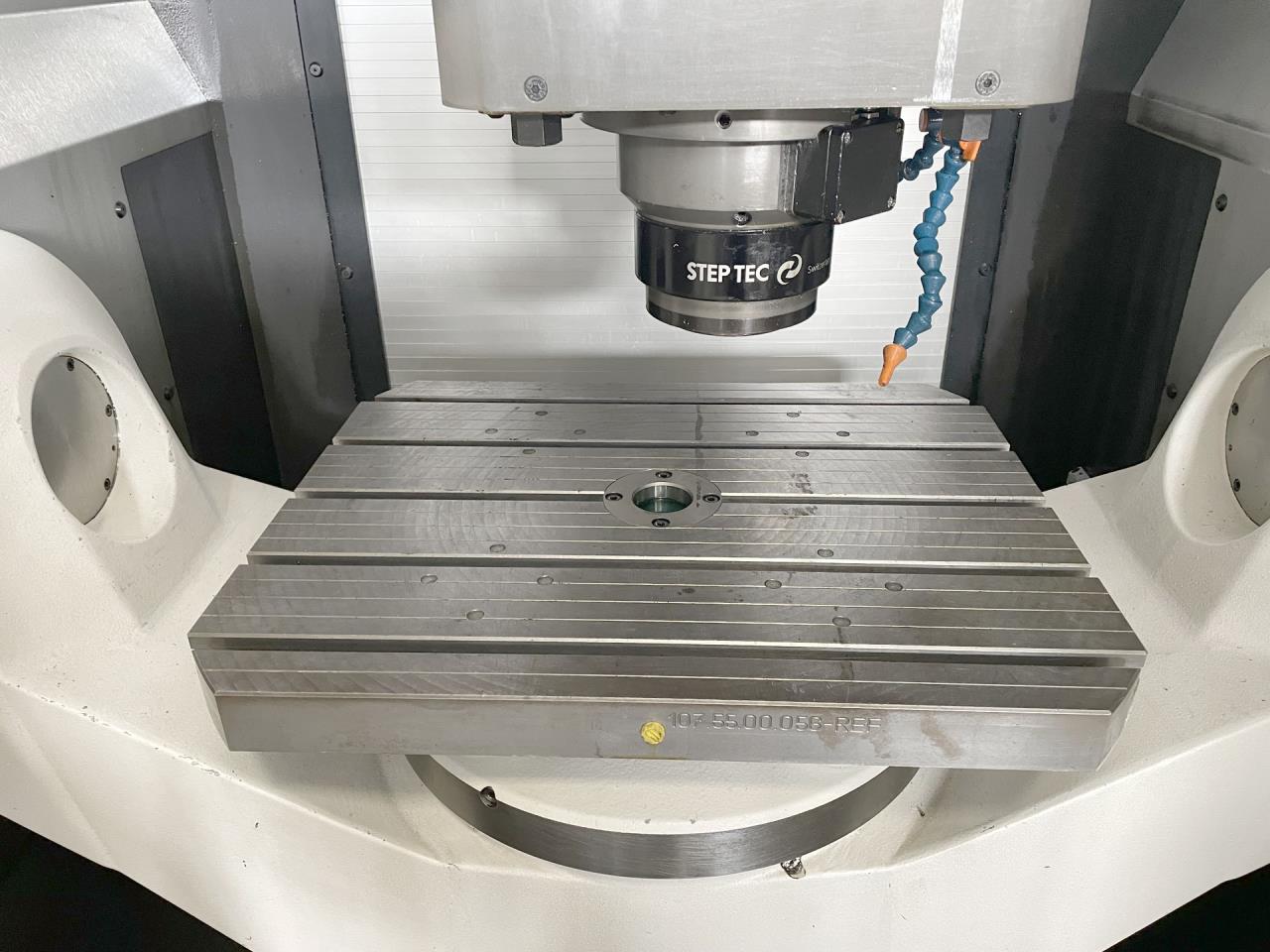

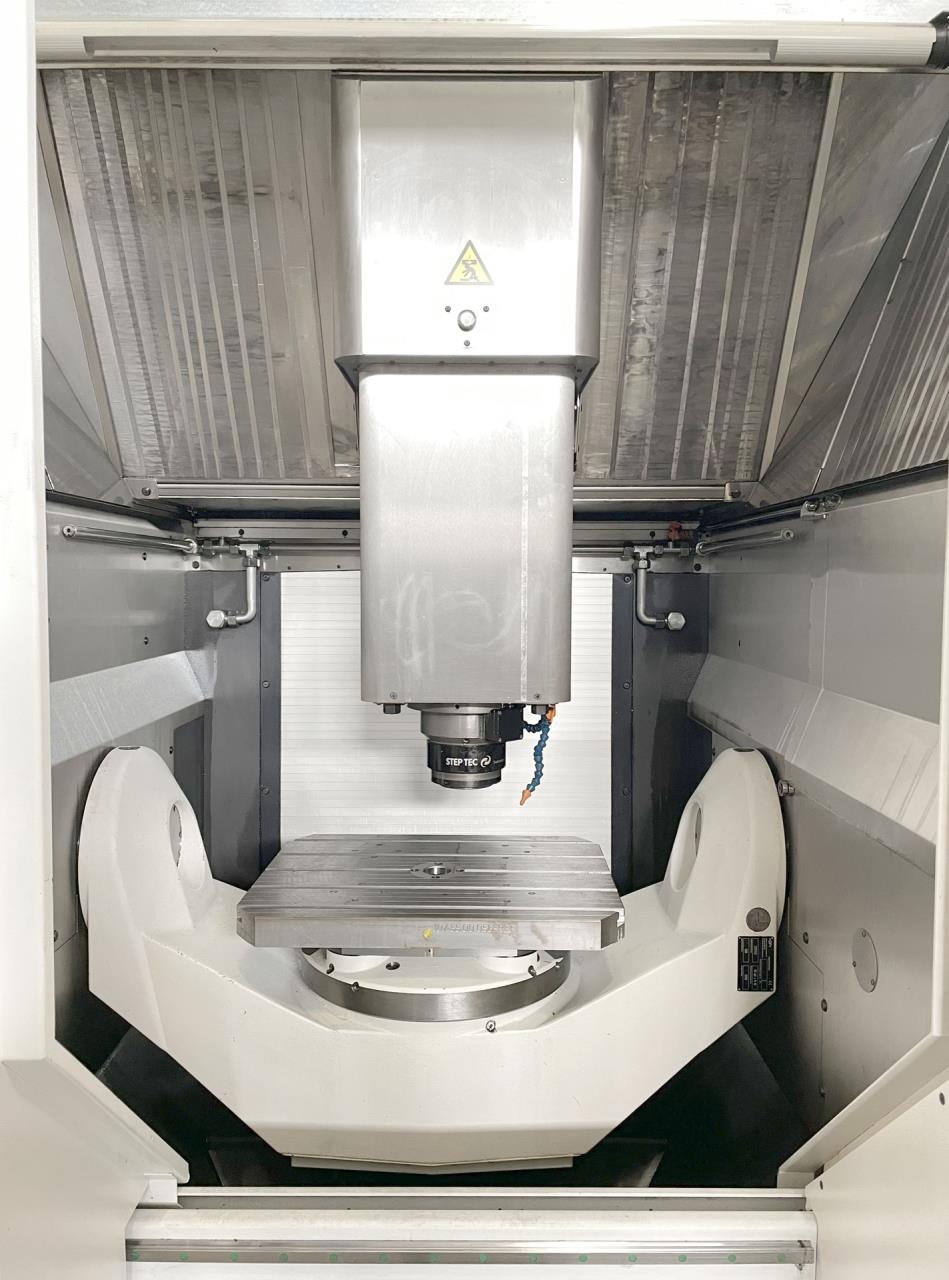

Table length
630 mm
Table width
440 mm
Number of T-channels
5
Distance of the T-slots
100 mm
T-channel width
16 mm
Table load max.
800 kg
Maximum swing circle of up to
800 mm
Longitudinal travel (X-axis)
800 mm
Transversal travel (y-axis)
800 mm
Vertical travel (z axis)
550 mm
A axis
+91 / -121°
C axis
360 °
Resolution
0.001 °

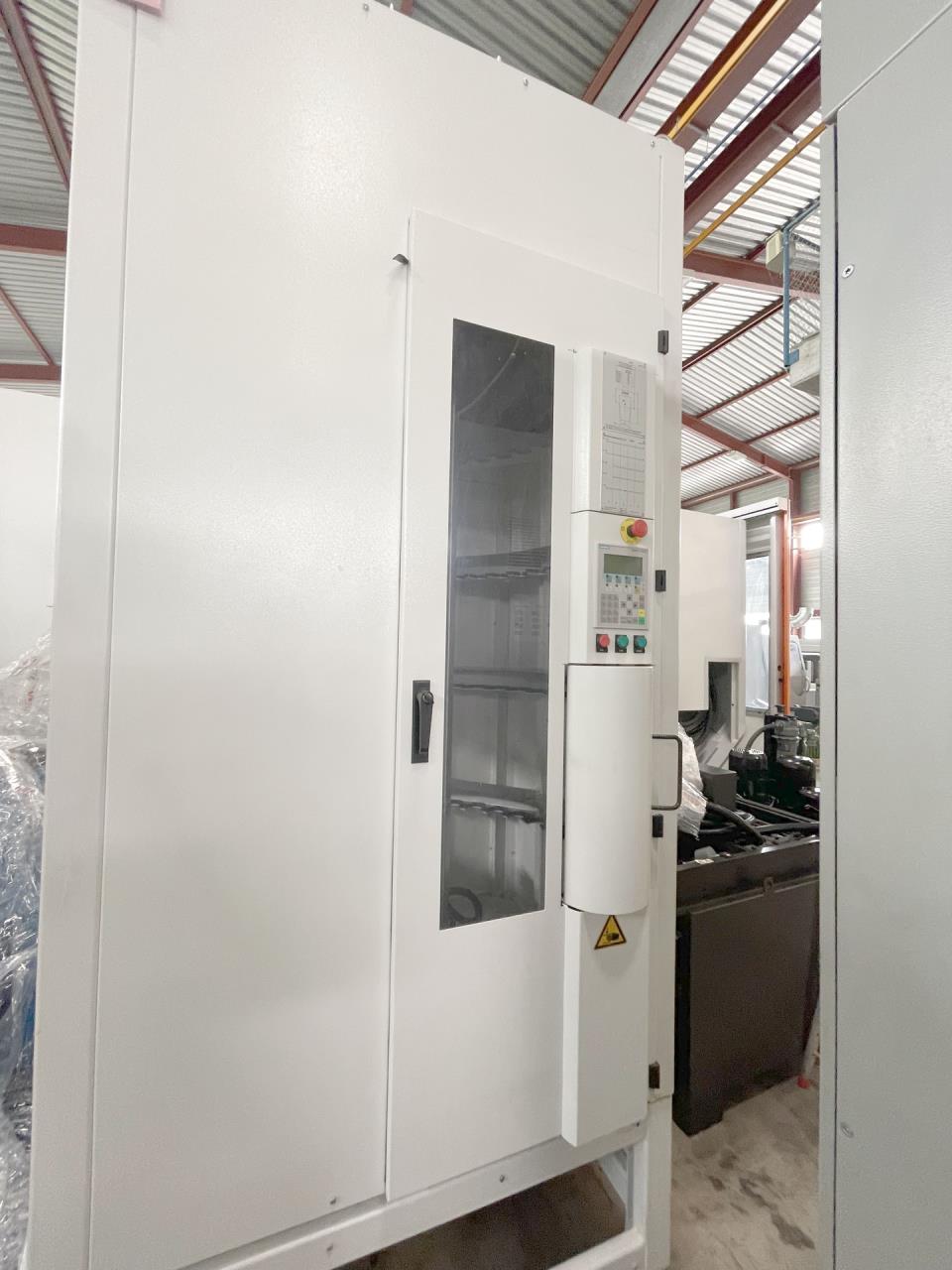

Tool changer:
Number of tools
115
Tool diameter max.
80 mm
Diameter with free adjacent pockets
160 mm
Tool lenght
350 mm
Max. tool-weight
8 kg
Spindle nose: HSK-A
63
Distance spindle nose to table
600 mm
Spindle speeds:
stepless
from
0 rpm
up to
20000 rpm
Feed range
0 - 20000 mm/min
Rapid traverse:
45 m/min
Acceleration
6 m/s
Max. Feed force
6000 N
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Total power required
55 kW
Noise level
75 dB (A)
Machine's weight about
15000 kg
Overall dimensions machine:
Length
3505 mm
Width
3100 mm
Height
2980 mm
Various accessories:

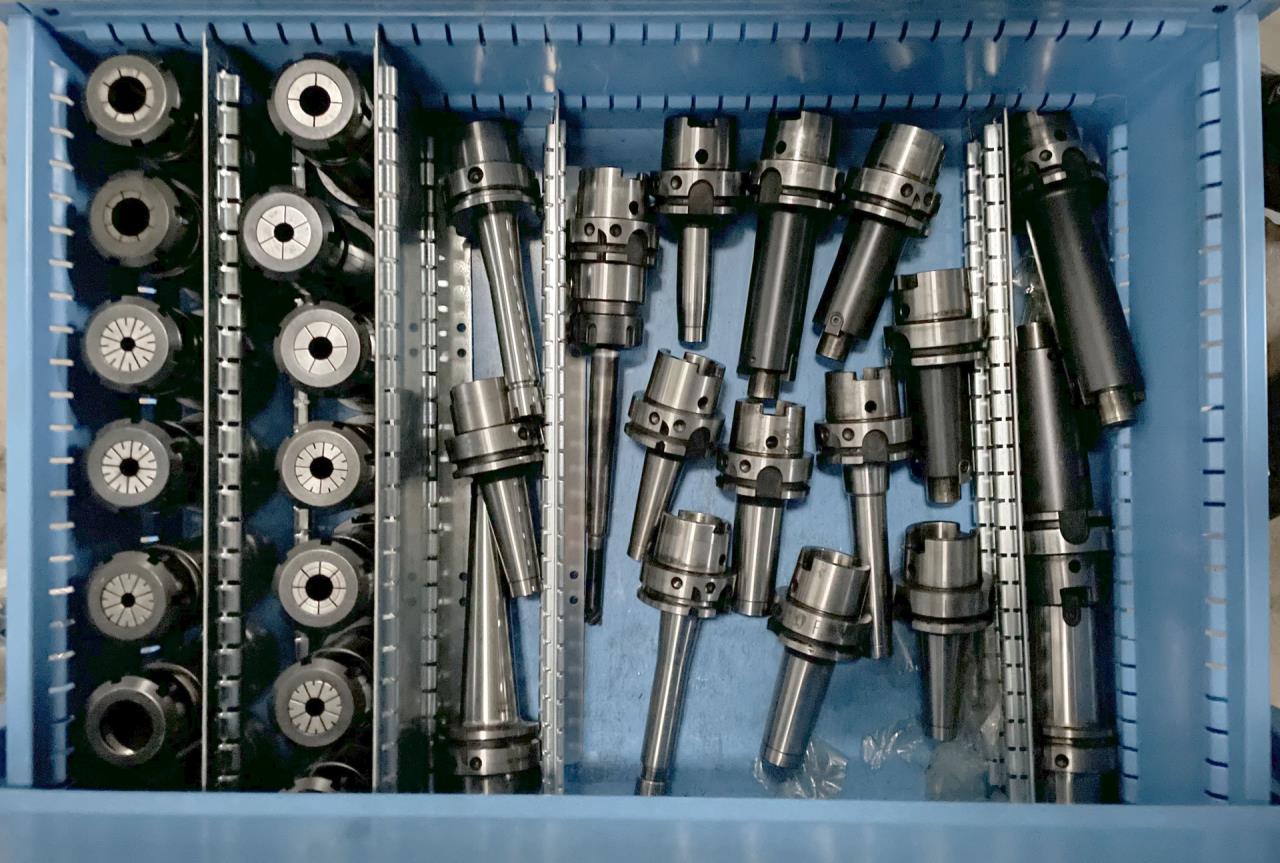

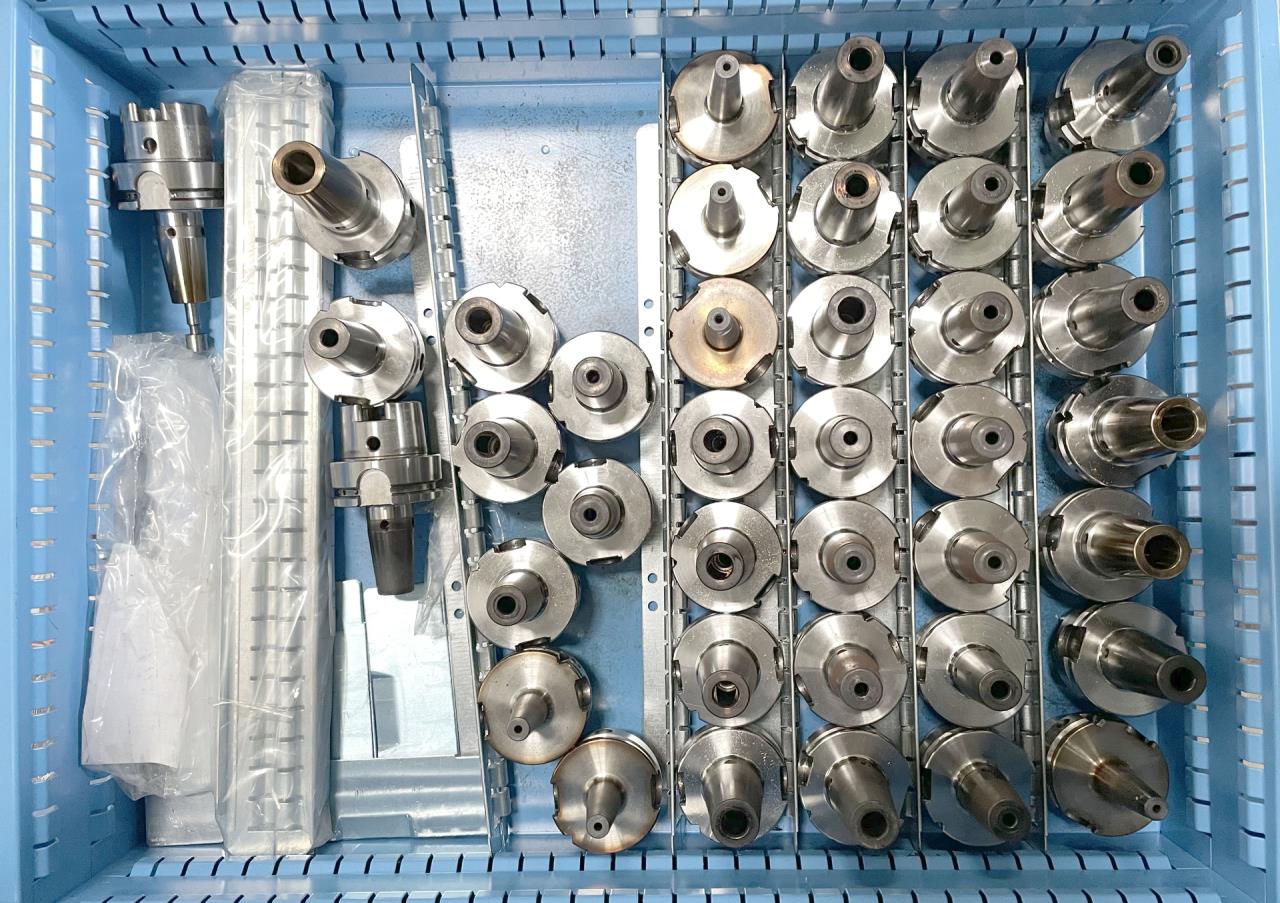

Set of toolholders
Set of shrink tool holders
Set of collet-/ tool holder
Set of collets

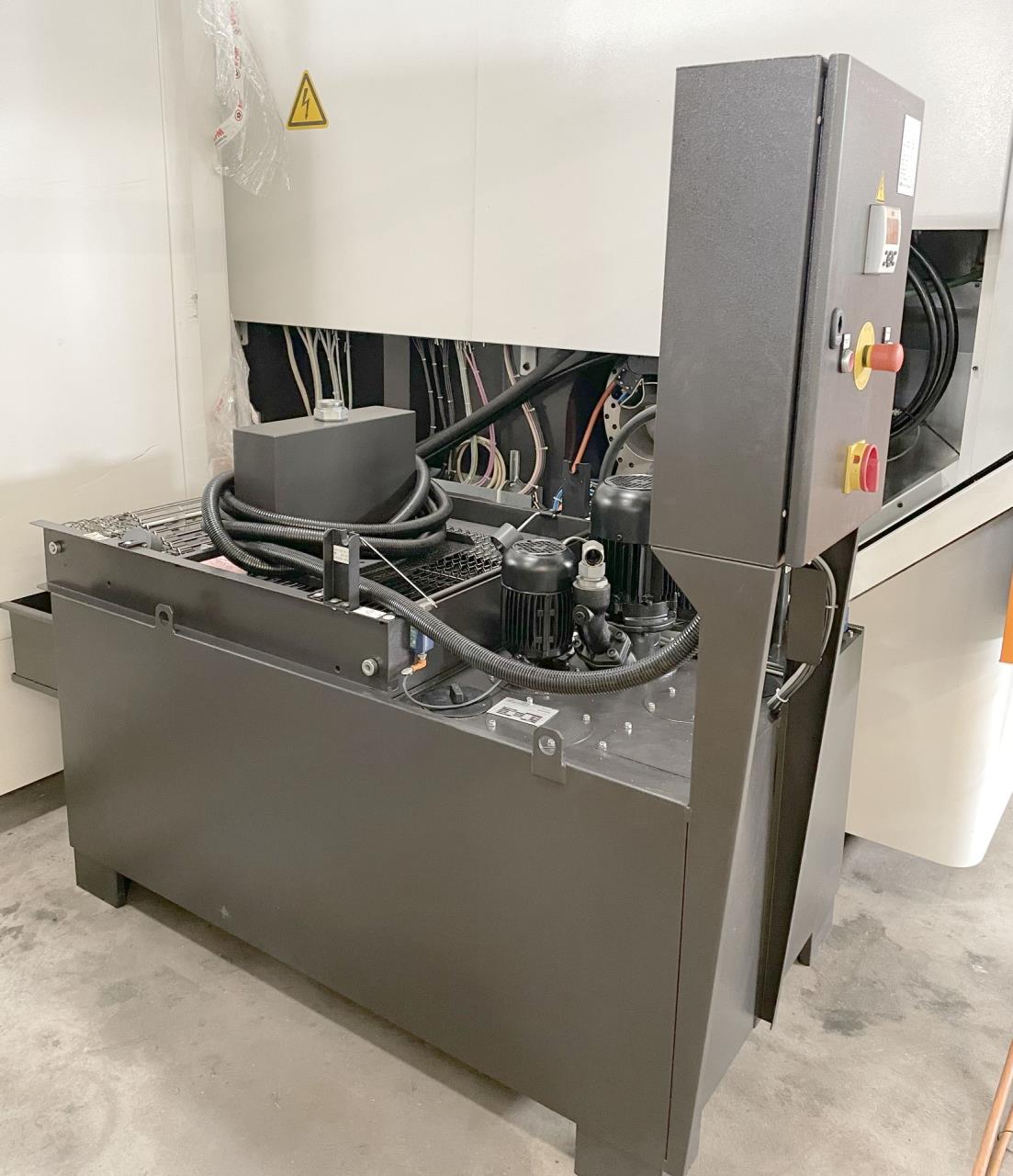

High pression colant device
Paper filtration system
Water cooler

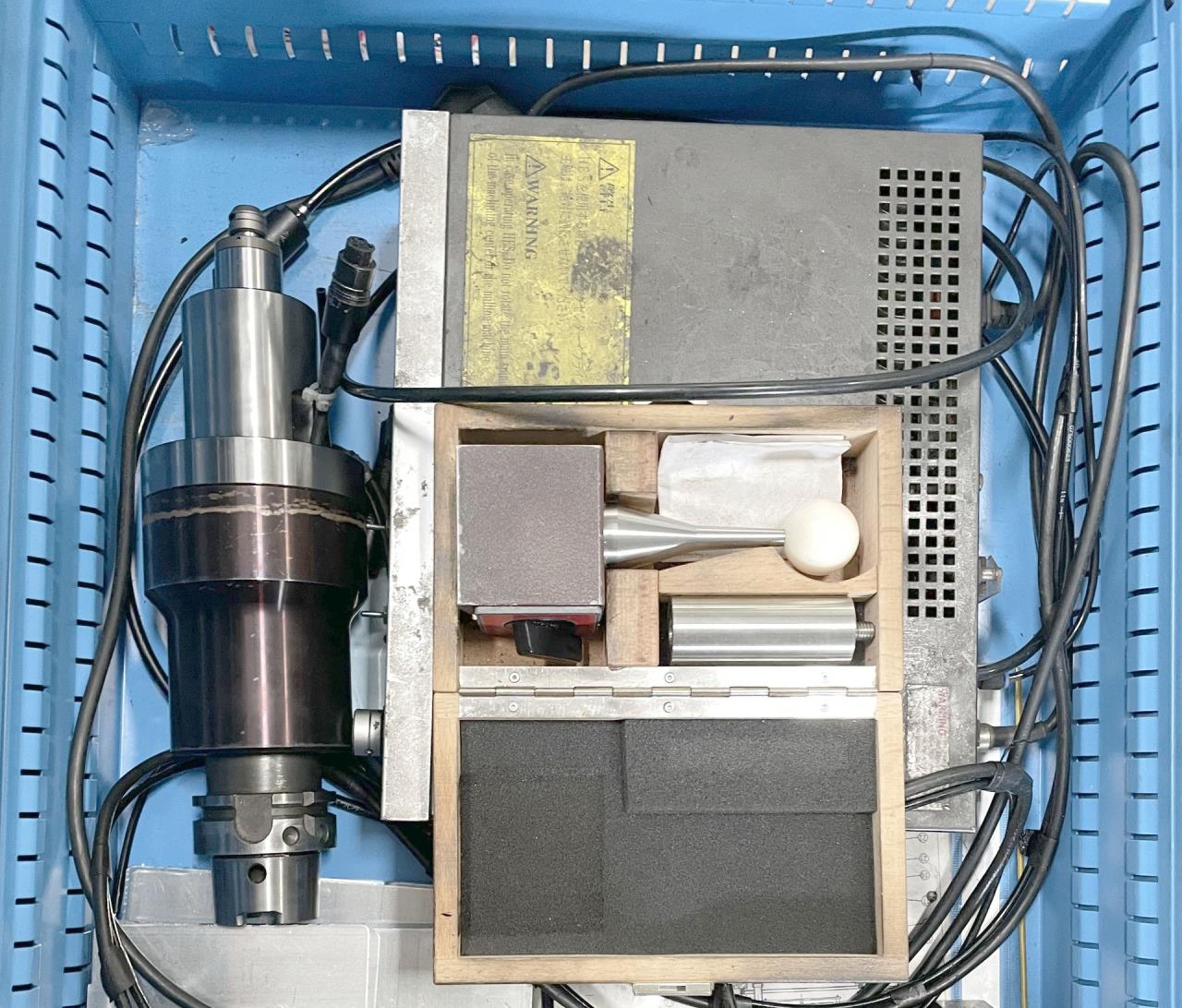

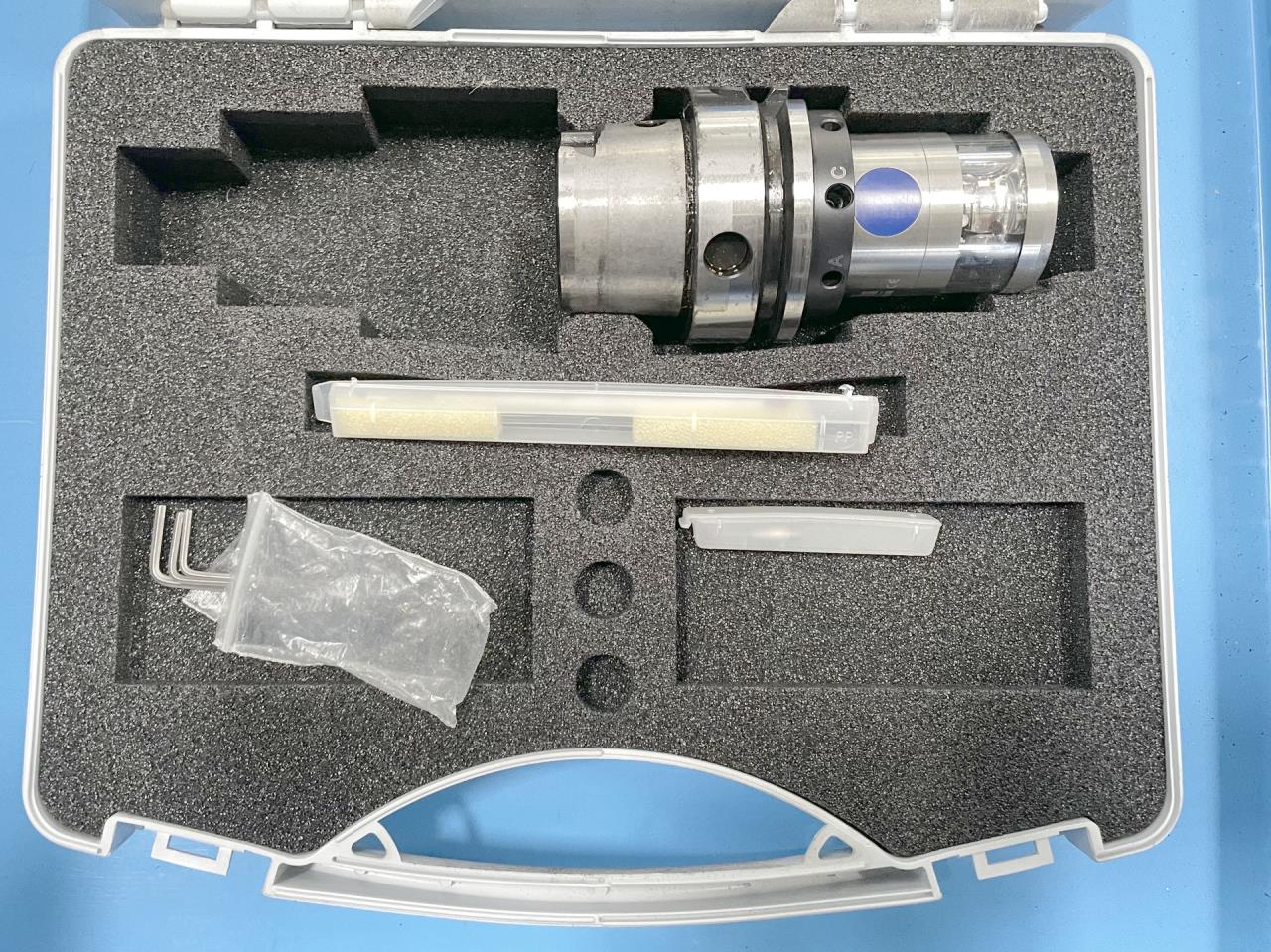

Touch Probe
Laser tool setting system
Chip conveyor

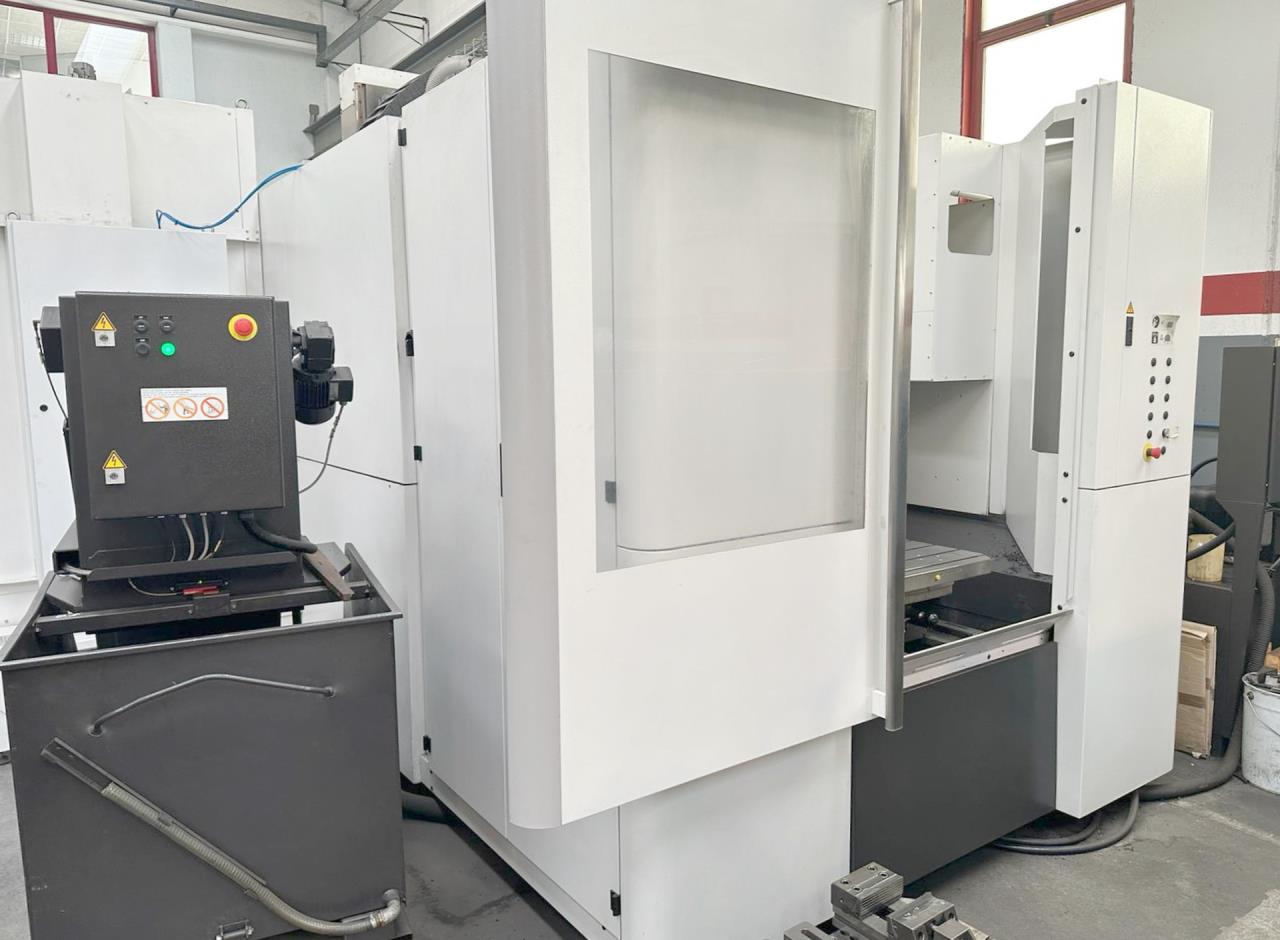

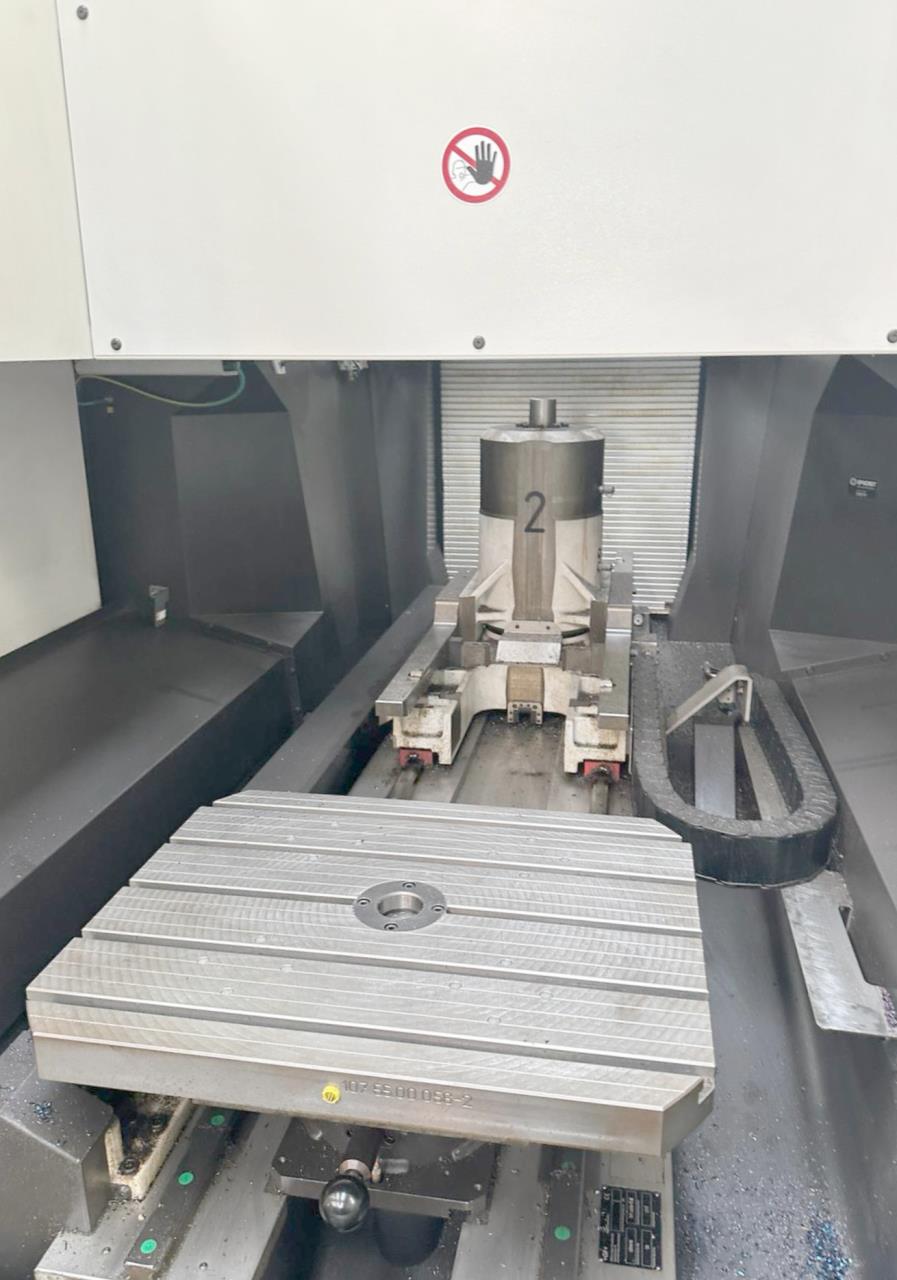

Pallets chanching device:
Pallets: number
2

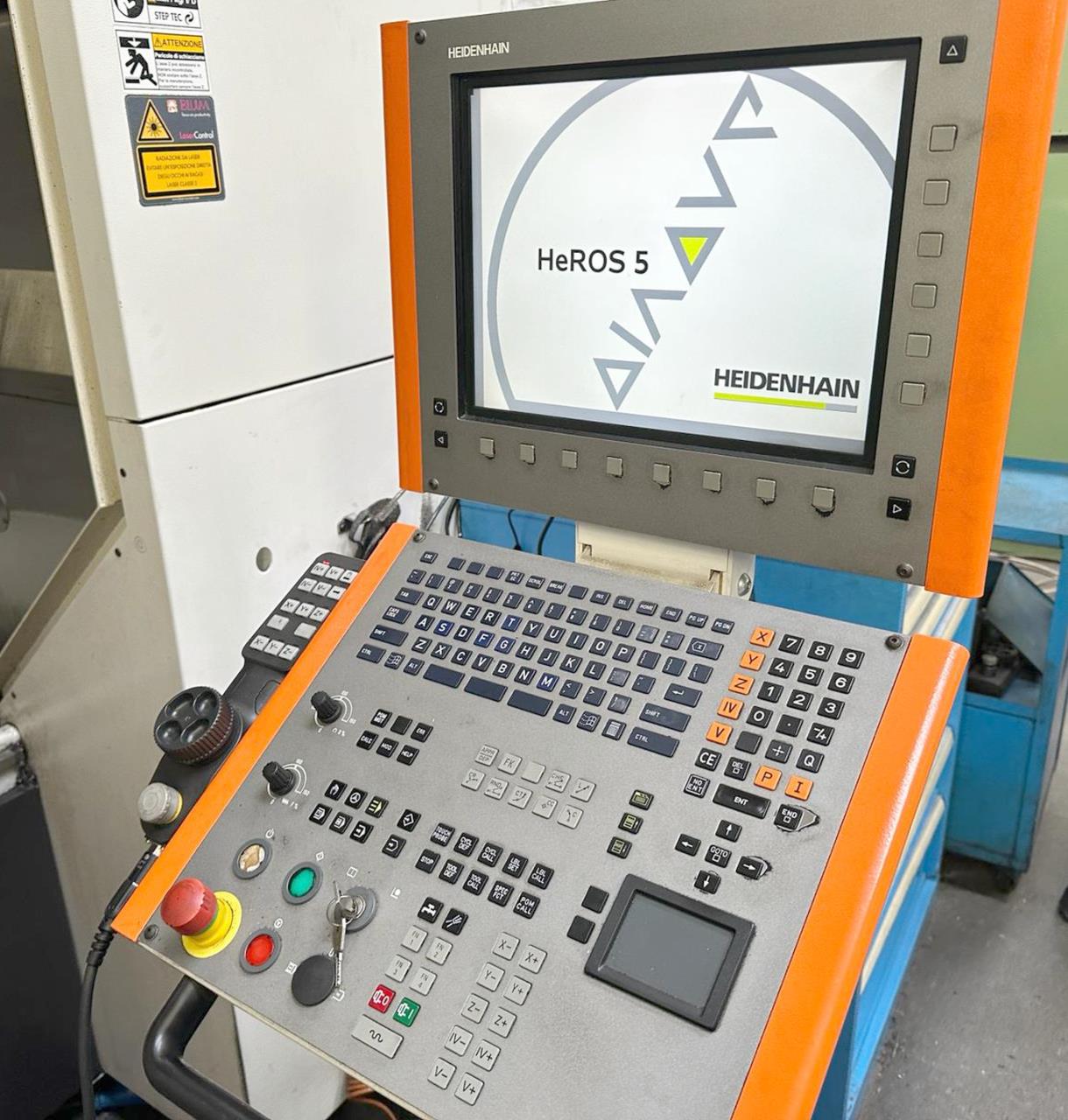

Handwheel electroinic
Tool cabinet
Reference ball
Technical specifications and pictures without guarantee.
