Technical data
Max. drill depth
500 mm
Drill capacity in steel:
from diameter
3 mm
up to diameter
16 mm

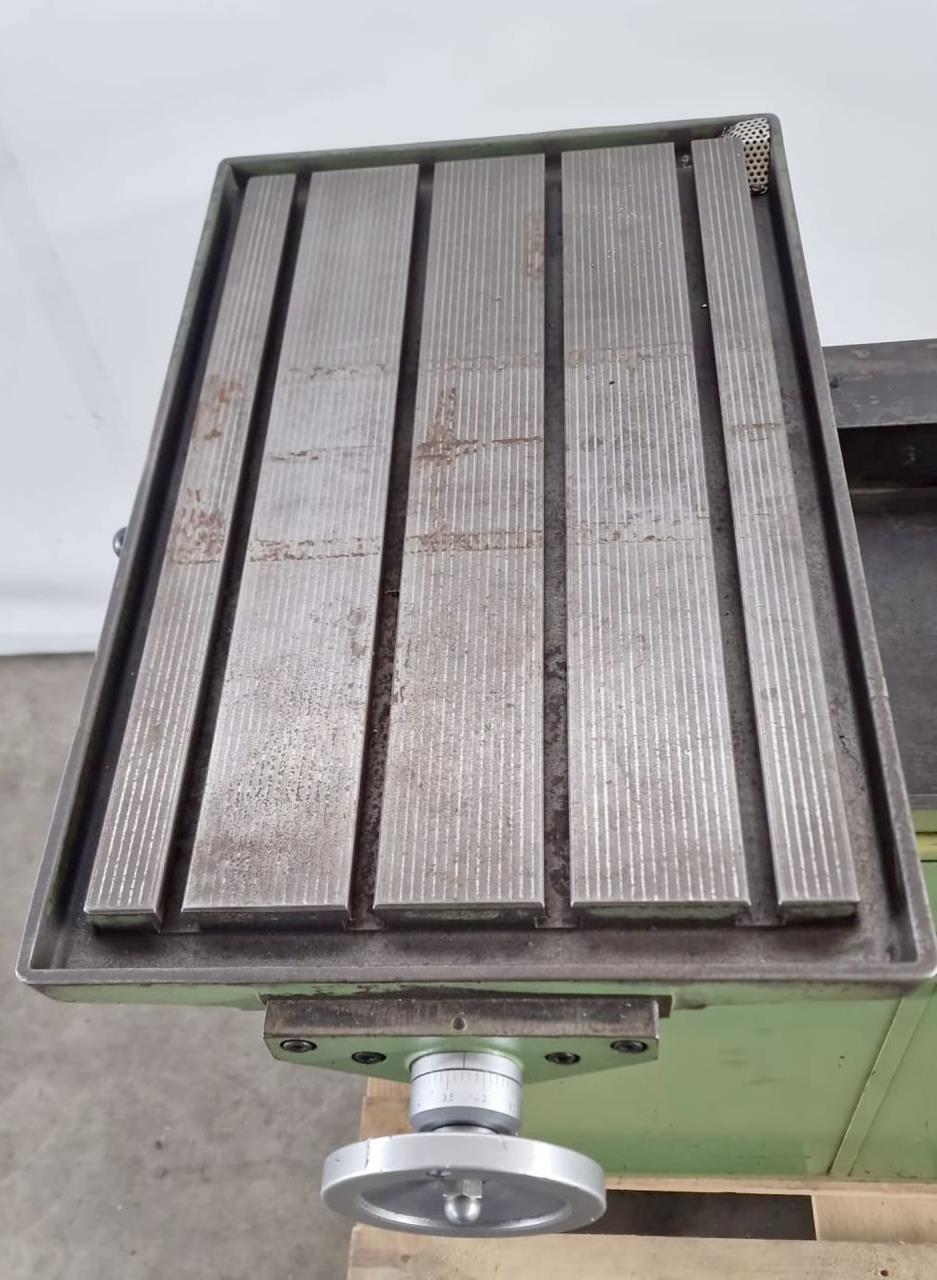

Table length
650 mm
Table width
400 mm
rotatable
360 °
Travel from the table
400 mm
Spindle speeds:
number (steps)
4
from
340 rpm
up to
1600 rpm
Spindle nose: MT
2
Overall dimensions machine:
Length
1400 mm
Width
800 mm
Height
1600 mm
Technical specifications and pictures without guarantee.
