Technical data
Number of axis total
4
Number of axis simultaneous
Number of spindles
2
Max. turning diameter
16 mm
Max. drilling diameter
7 mm
Max. threading diameter
6 M (Metric)
Spindle speeds:
stepless
from
500 rpm
up to
12000 rpm
Spindle power
2.2 kW
C axis (spindle,resolution)
15 °
Back spindle:
speeds:
from
500 rpm
up to
8000 rpm
Max. tapping length
85 mm
Thread drill diameter
3 M (Metric)
Back machining workpiece length max.
85 mm

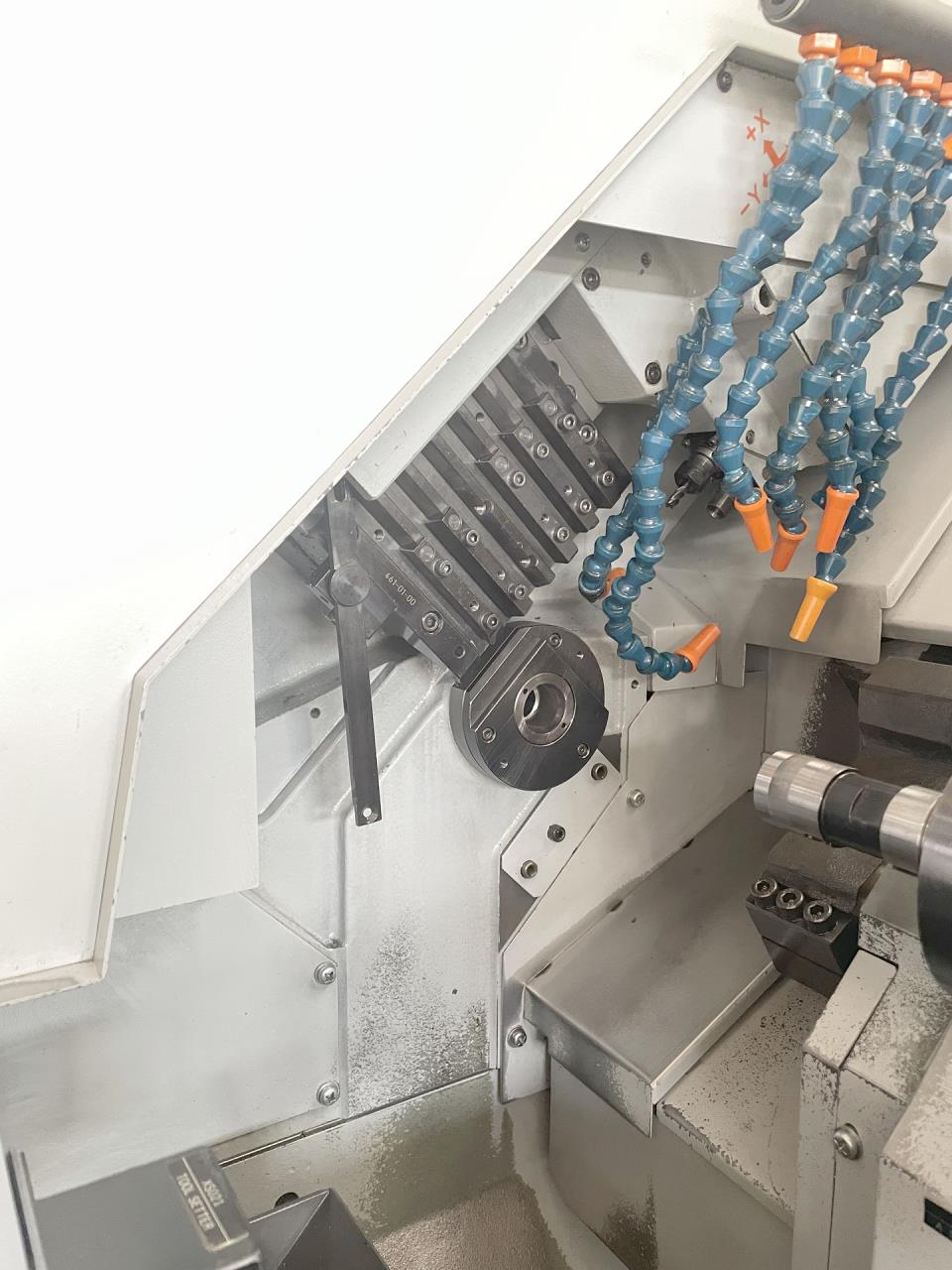

Tool-holder:
Turning tools
6 pce
Drilling tools
2 pce
Spindle speeds (turning tools)
4000 rpm
Counter-operation:
number of tools
4
Rapid traverse:
18 m/min
Cutting speed
10000 mm/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Power of back spindle
0.5 kW
Air connect
5 bar
Total power required
6 kVA
Machine's weight about
1700 kg
Overall dimensions machine:
Length
2090 mm
Width
770 mm
Height
1660 mm
Various accessories:

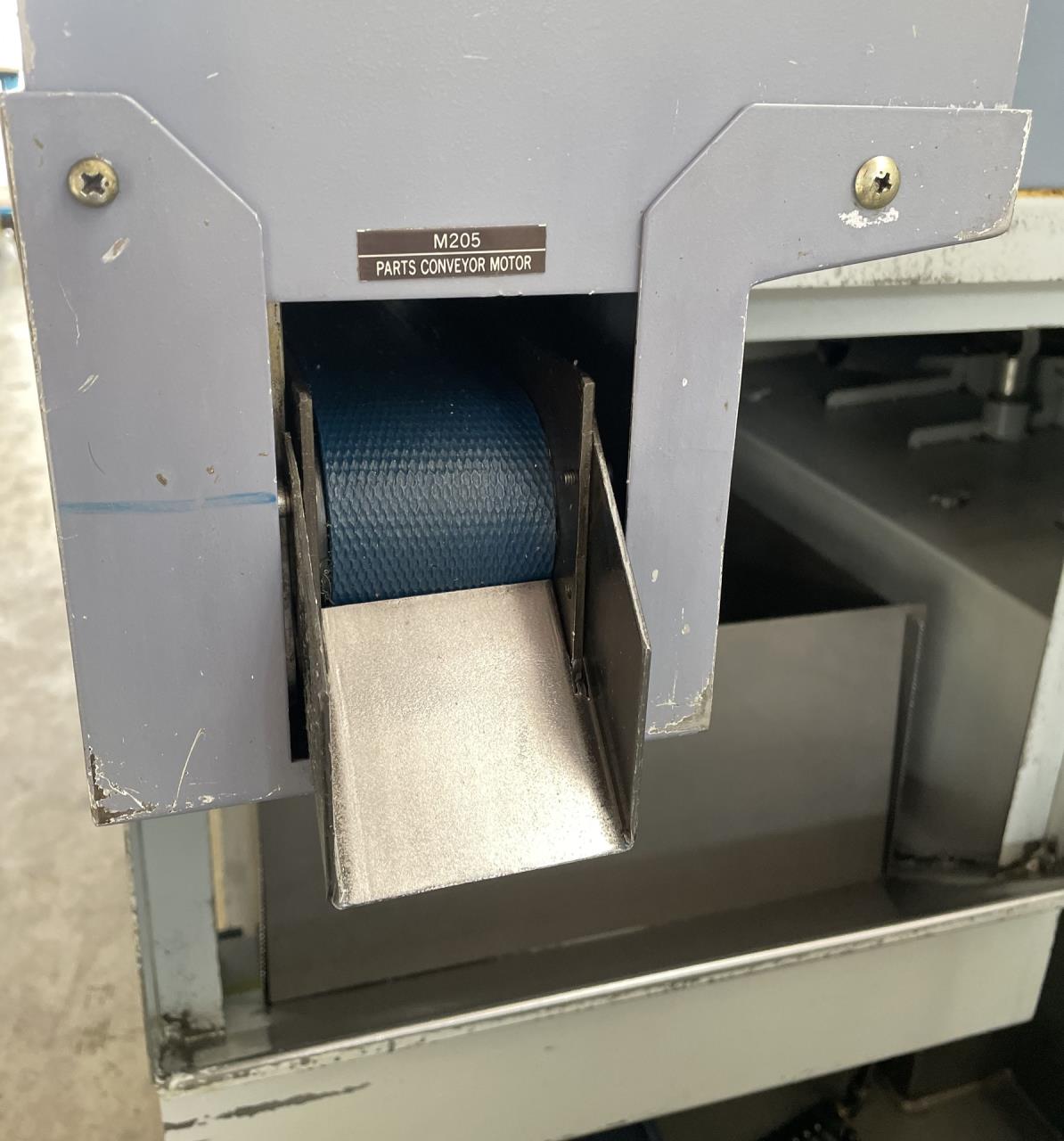

Workpiece conveyor
Lamp
Coolant system
80 l

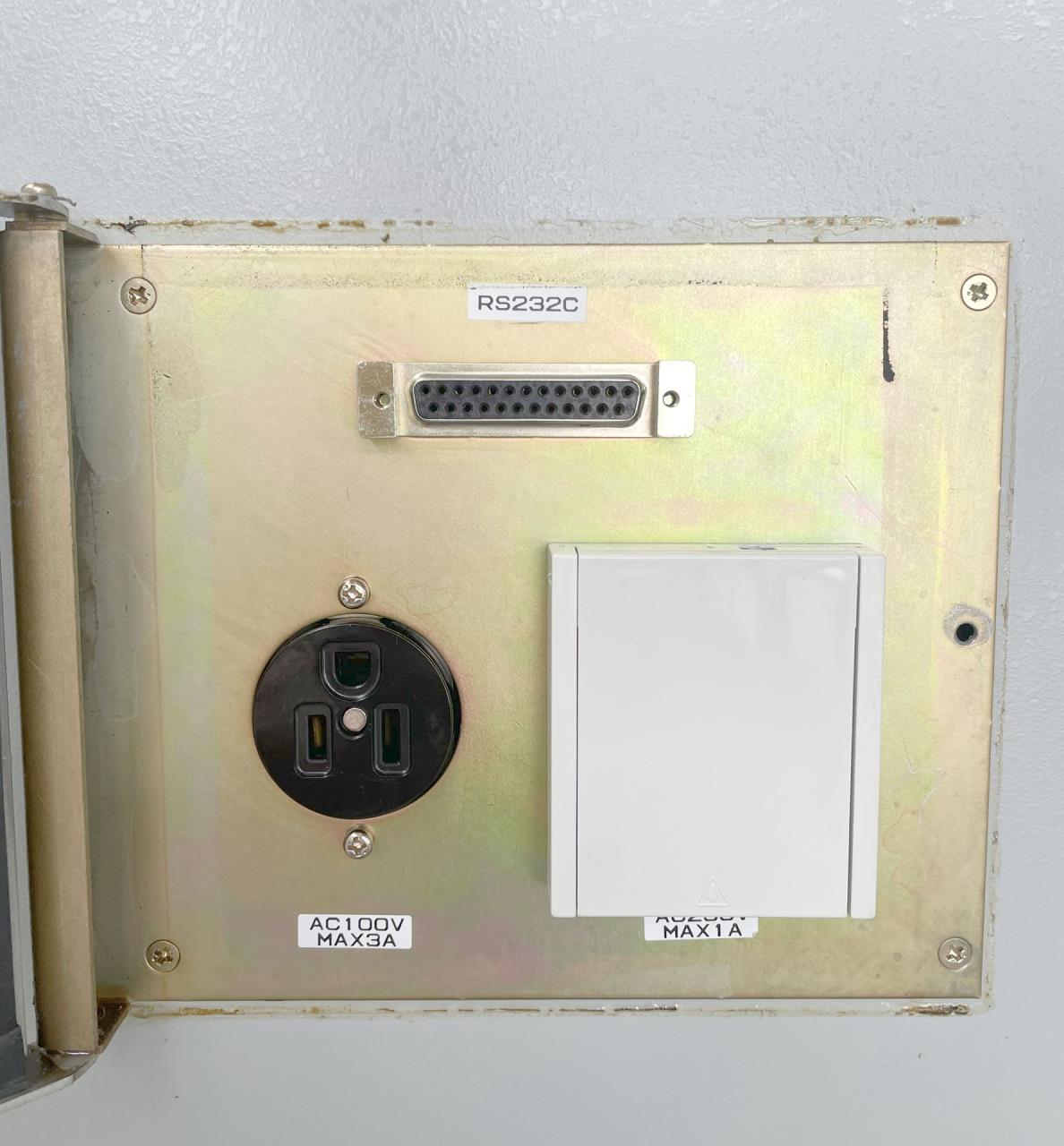

Interface serial port RS 232
Technical specifications and pictures without guarantee.
