stock no. :
22714
Type :
TSUGAMI-MORI BS-12CE(S)-III
Controller :

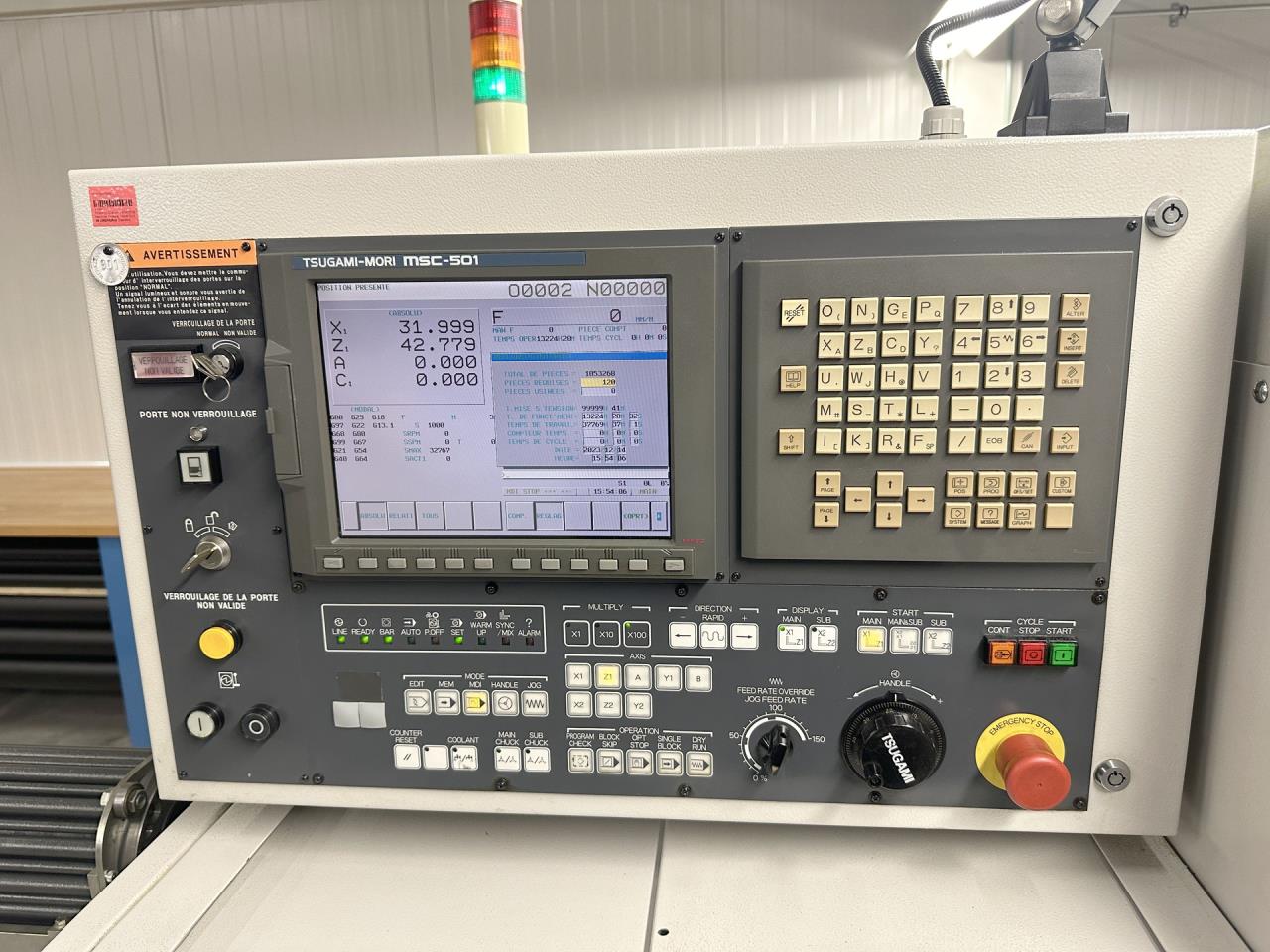

TSUGAMI-MORI MSC-501 (FANUC)
Jahrgang :
2003
TSUGAMI-MORI BS-12CE(S)-III 7 Image(s)
Back
Technical data
Number of axis total
6
Number of spindles
2
Turning diameter
3 - 12 mm
Maximum turning length
210 mm
Max. drilling diameter
12 mm
Max. threading diameter
6 M (Metric)
Spindle speeds:
    stepless
       from
200 rpm
       up to
12000 rpm
Back spindle:
    speeds:
       from
200 rpm
       up to
8000 rpm

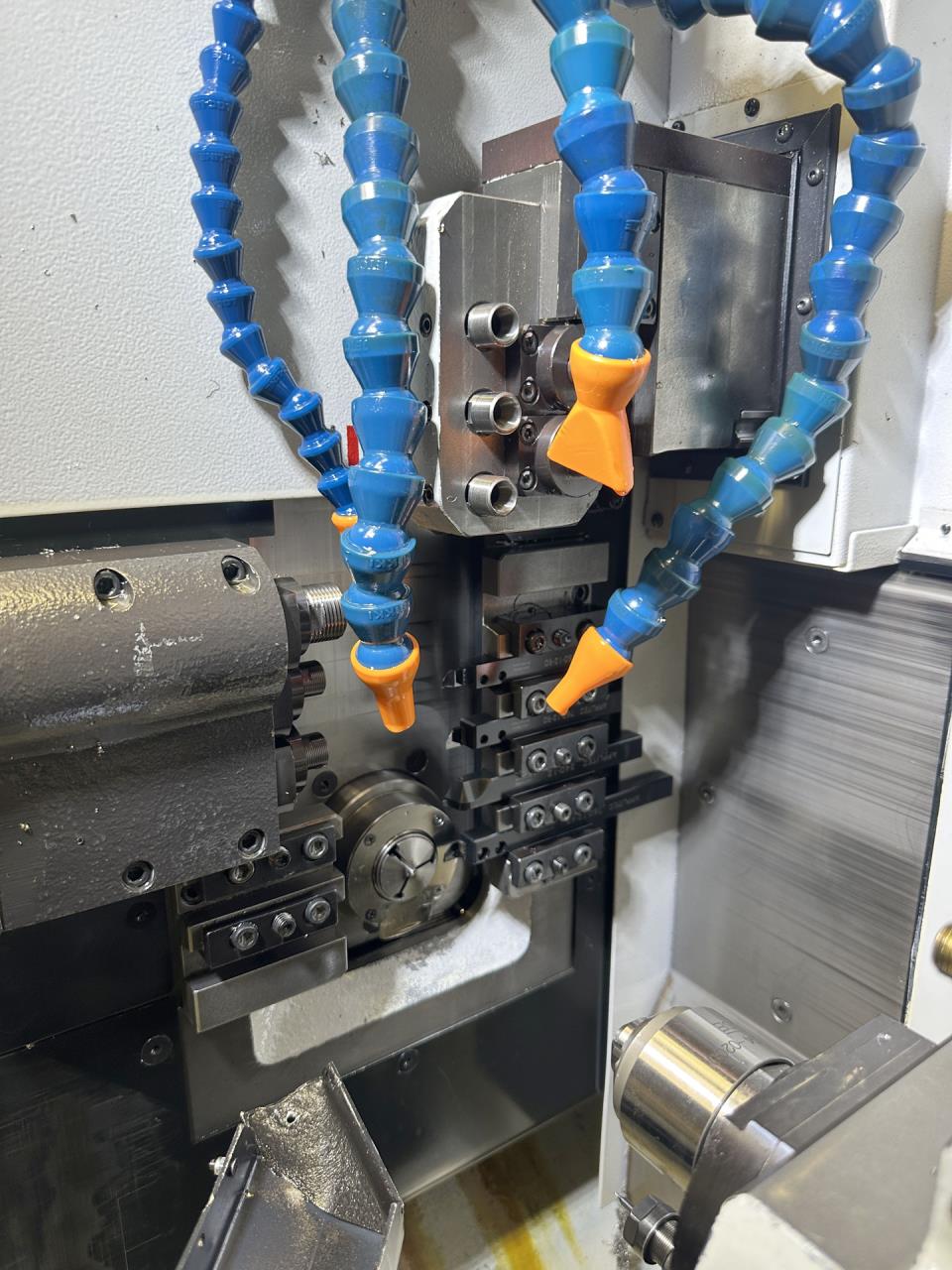

Tool-holder:
    Number of stations
5
    number of tools
13
    Turning tools
7 pce
    Drilling tools
3 pce
    Transverse processing tools
3 pce
    Power of driven tools
0.9 kW
    Tool lenght
85 mm
    Tool shank cross section
12 mm
Counter-operation:
    number of tools
5
    number of driven tools
2
    Turning tools
3 pce
Feeds:
    stepless
       from
1 mm/min
       up to
6000 mm/min
Rapid traverse:
18 m/min
Spindle motor
1.5 / 2.2 kW
Power of back spindle
0.75 / 1.1 kW
Air connect
4 bar
Total power required
9 kVA
Machine's weight about
2200 kg
Overall dimensions machine:
    Length
1870 mm
    Width
1150 mm
    Height
1685 mm
Various accessories:
Parts catcher
Lamp
Oil mist extractor

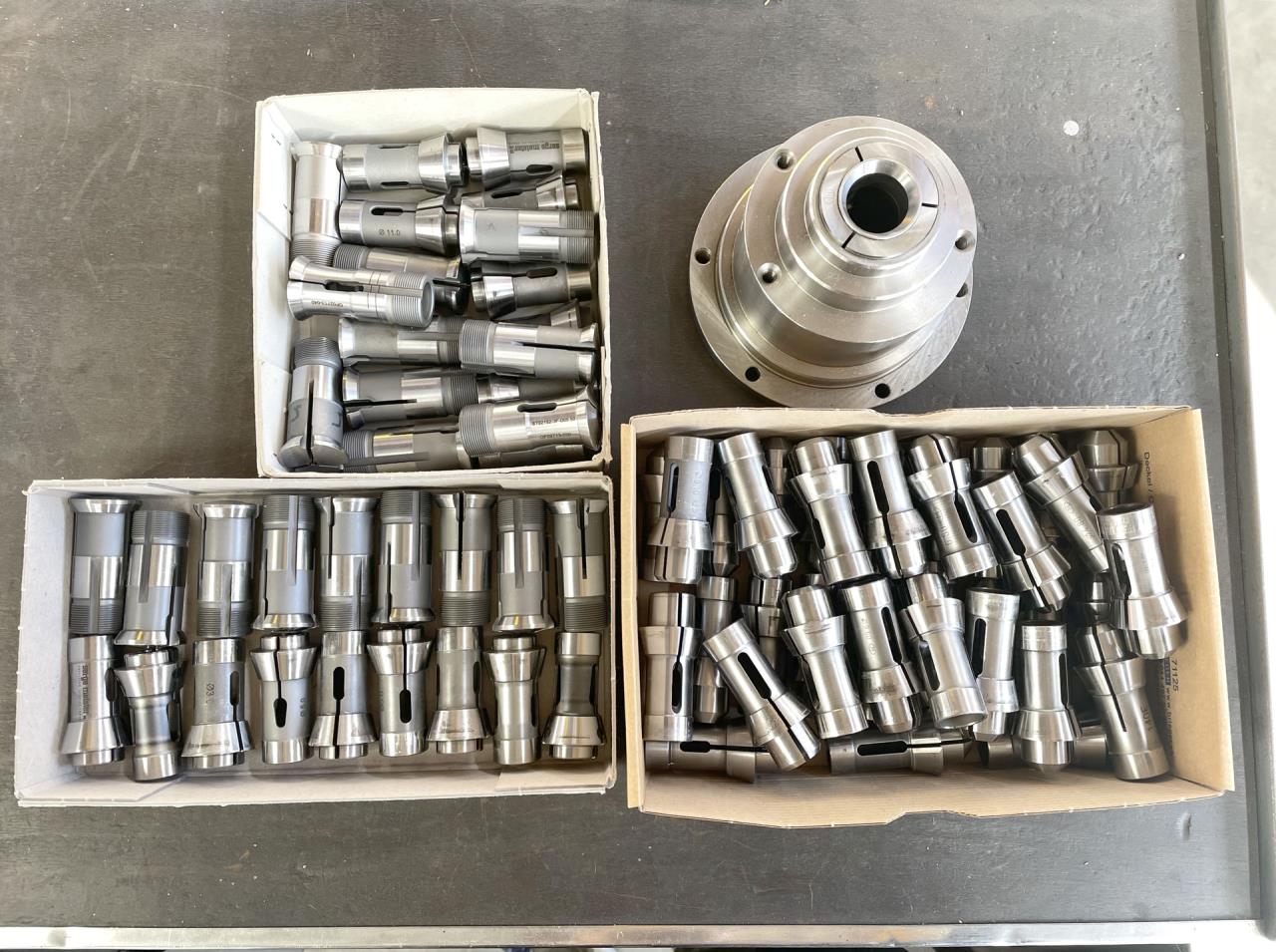

Set of collets
Status light

Technical specifications and pictures without guarantee.
