Technical data
Number of axis total
3

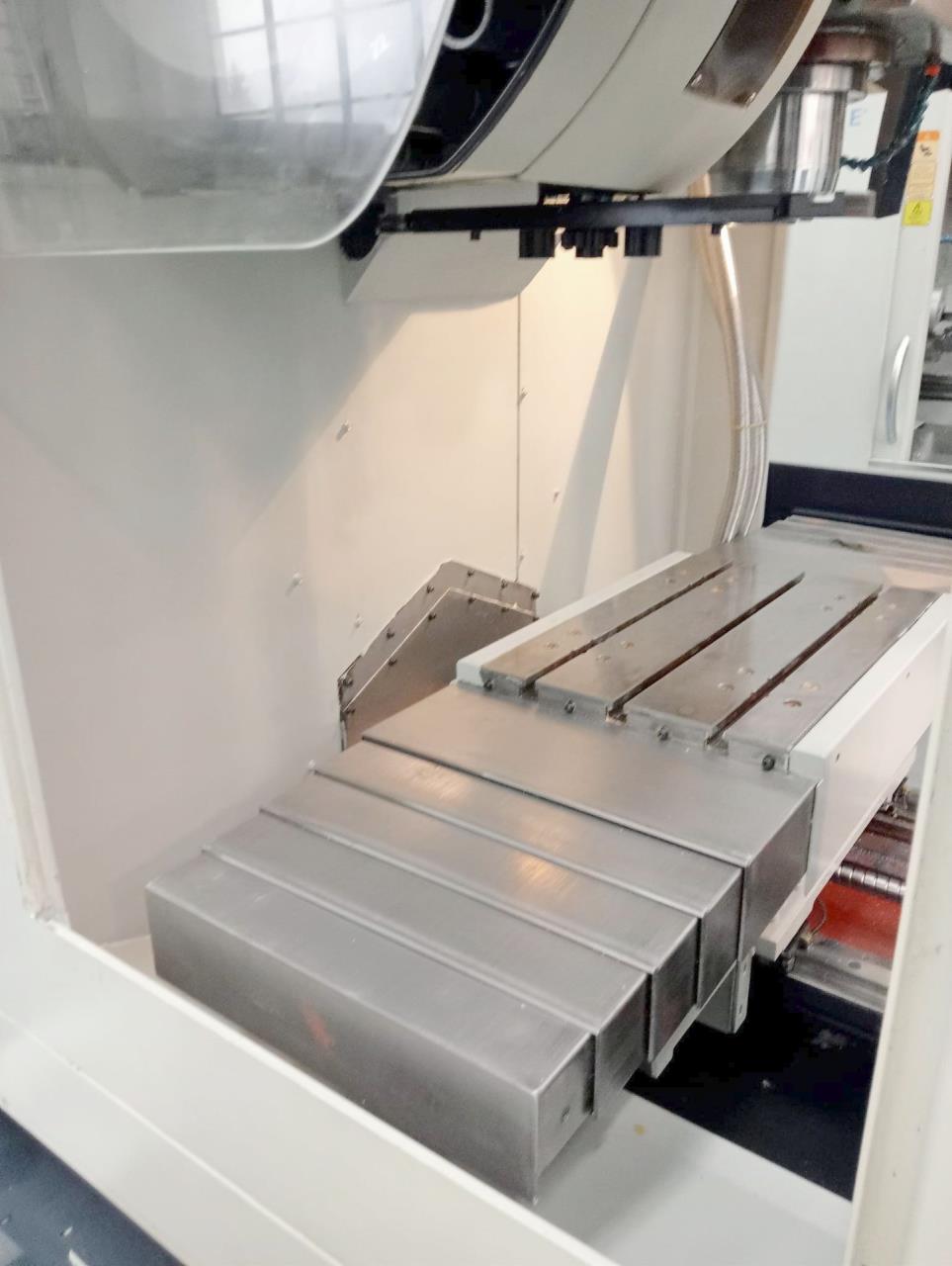

Table length
650 mm
Table width
410 mm
Number of T-channels
3
T-channel width
14 mm
Table load max.
250 kg
Longitudinal travel (X-axis)
560 mm
Transversal travel (y-axis)
410 mm
Vertical travel (z axis)
410 mm
Tool magazine number of tool places
24
Tool diameter max.
77 mm
Diameter with free adjacent pockets
125 mm
Tool lenght
200 mm
Max. tool-weight
5 kg
Time of tool changing
1.3 sec

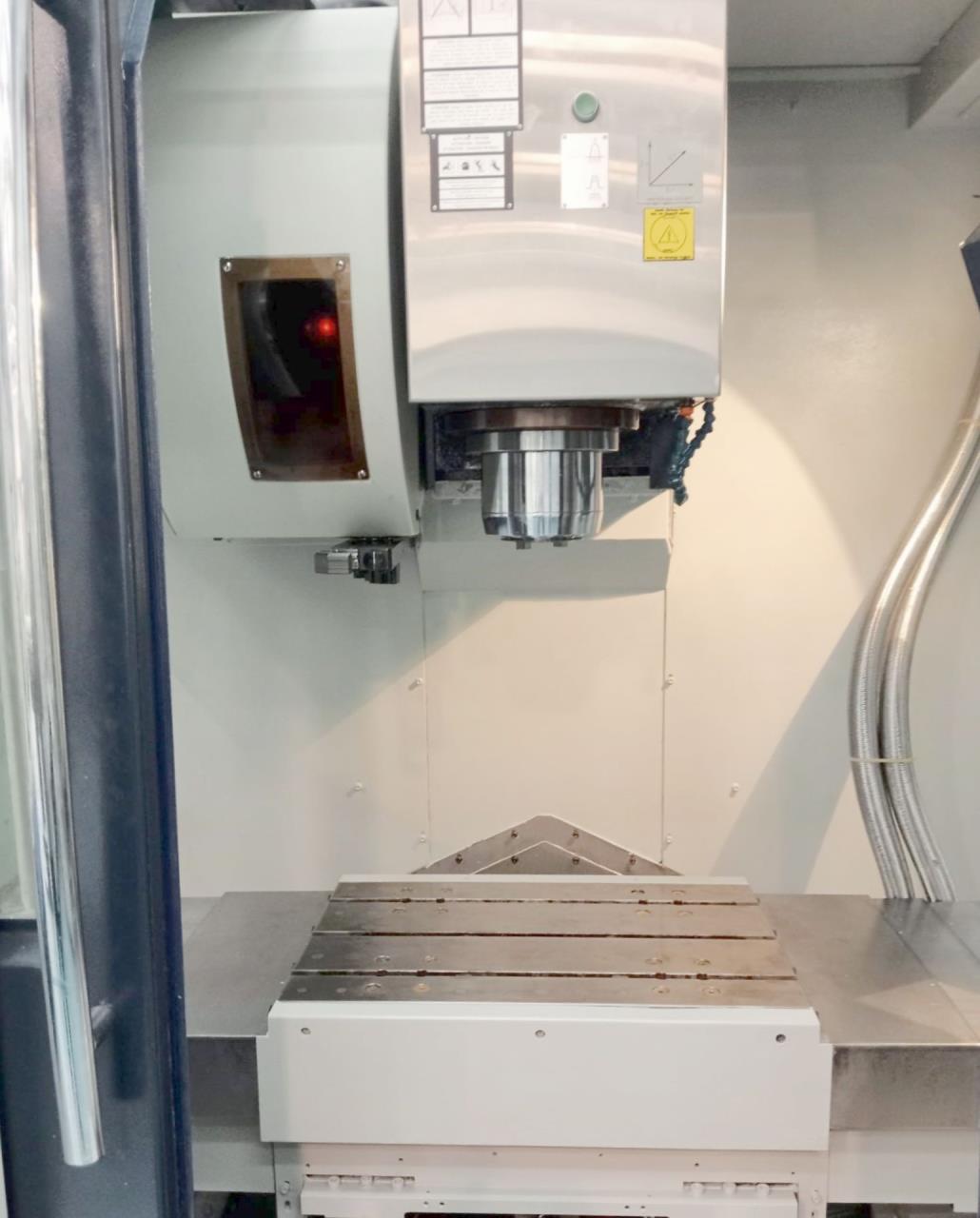

Spindle nose SK
40
Spindle speeds:
stepless
from
0 rpm
up to
12000 rpm
Rapid traverse:
48 m/min
Voltage 50 Hz 3x
400 Volt
Total power required
30 kW
Machine's weight about
4000 kg
Overall dimensions machine:
Length
3000 mm
Width
2000 mm
Height
2500 mm
Technical specifications and pictures without guarantee.
