stock no. :
22680
Machine's group :
Type :

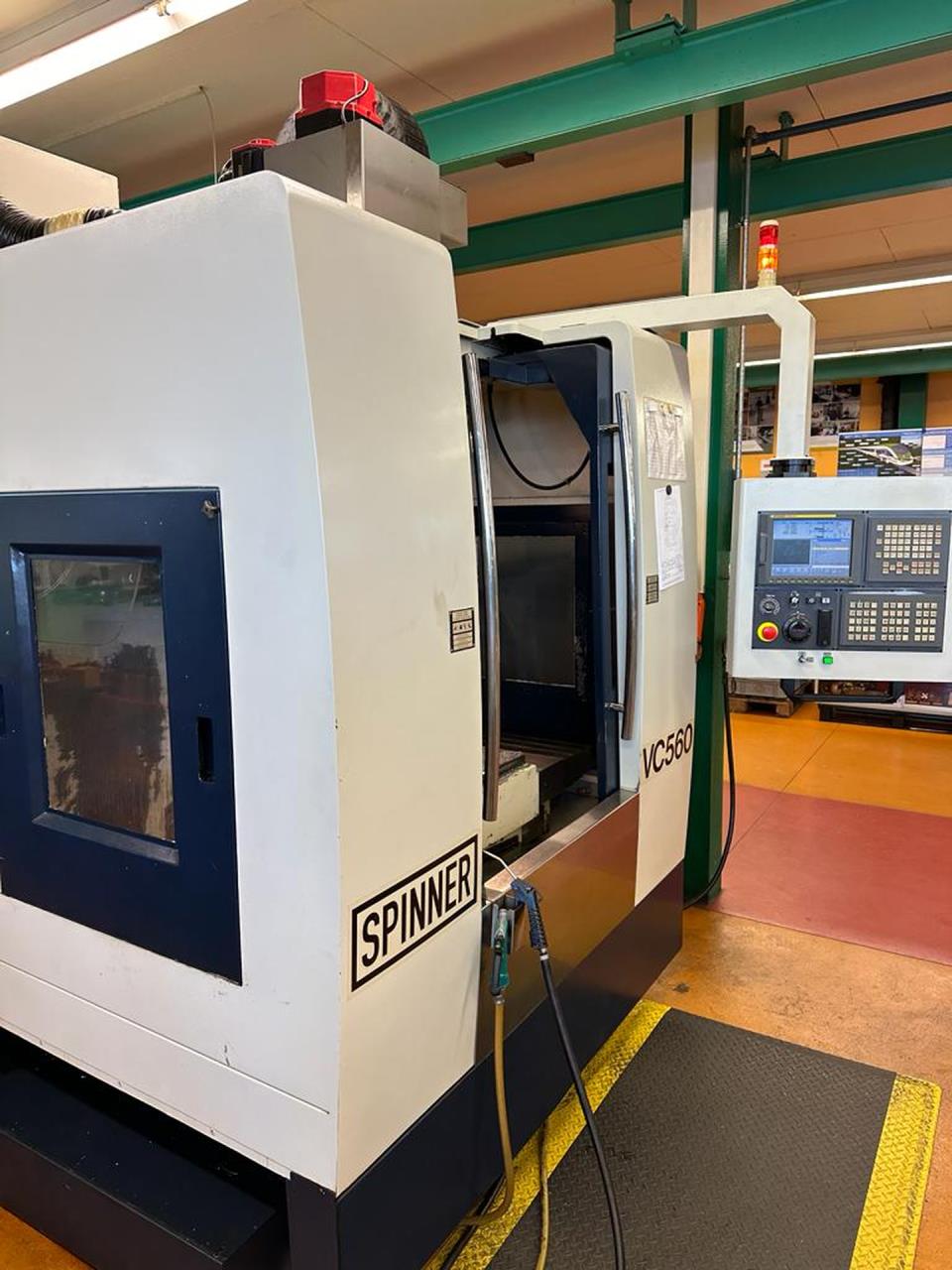

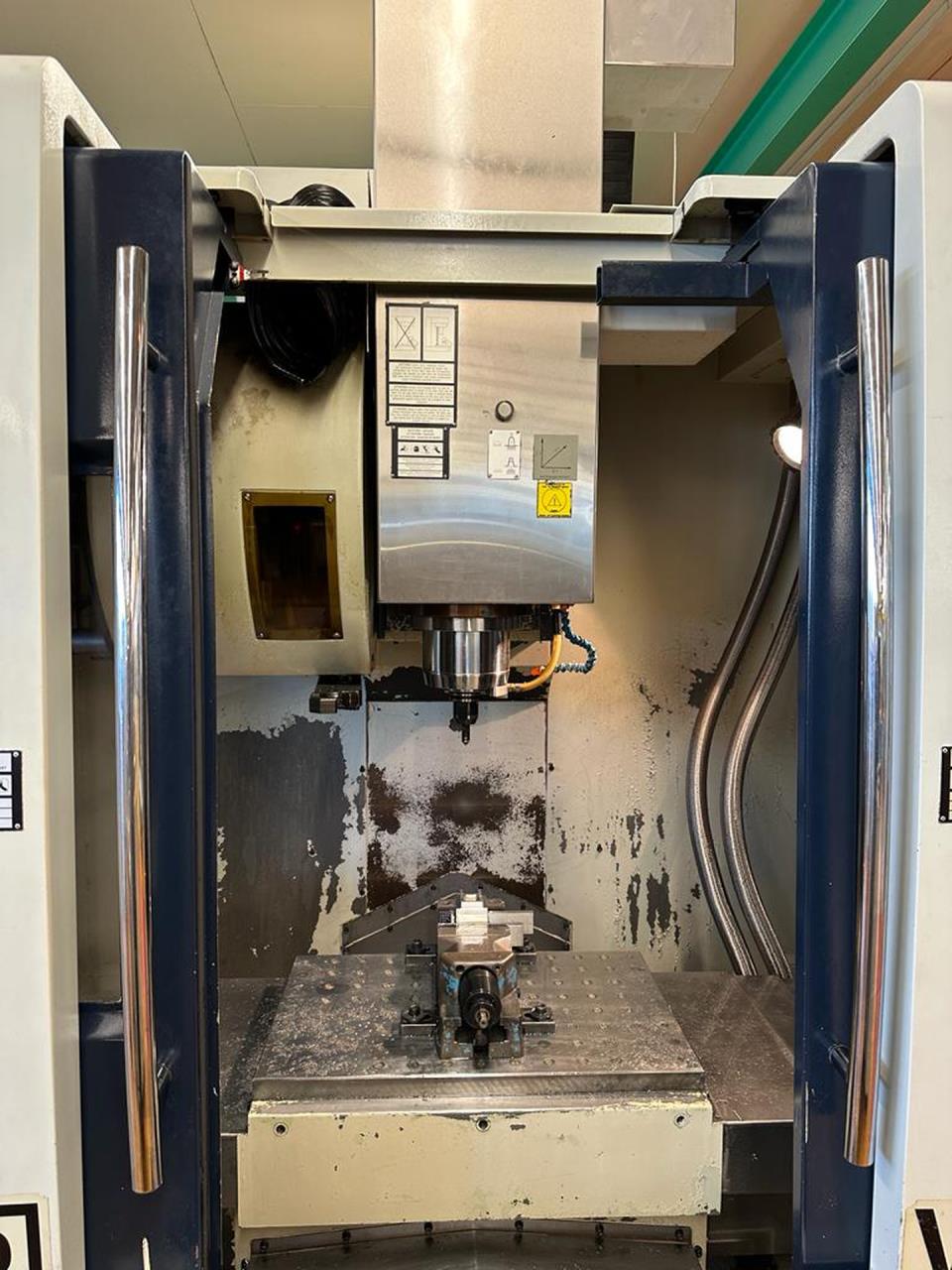

SPINNER VC-560

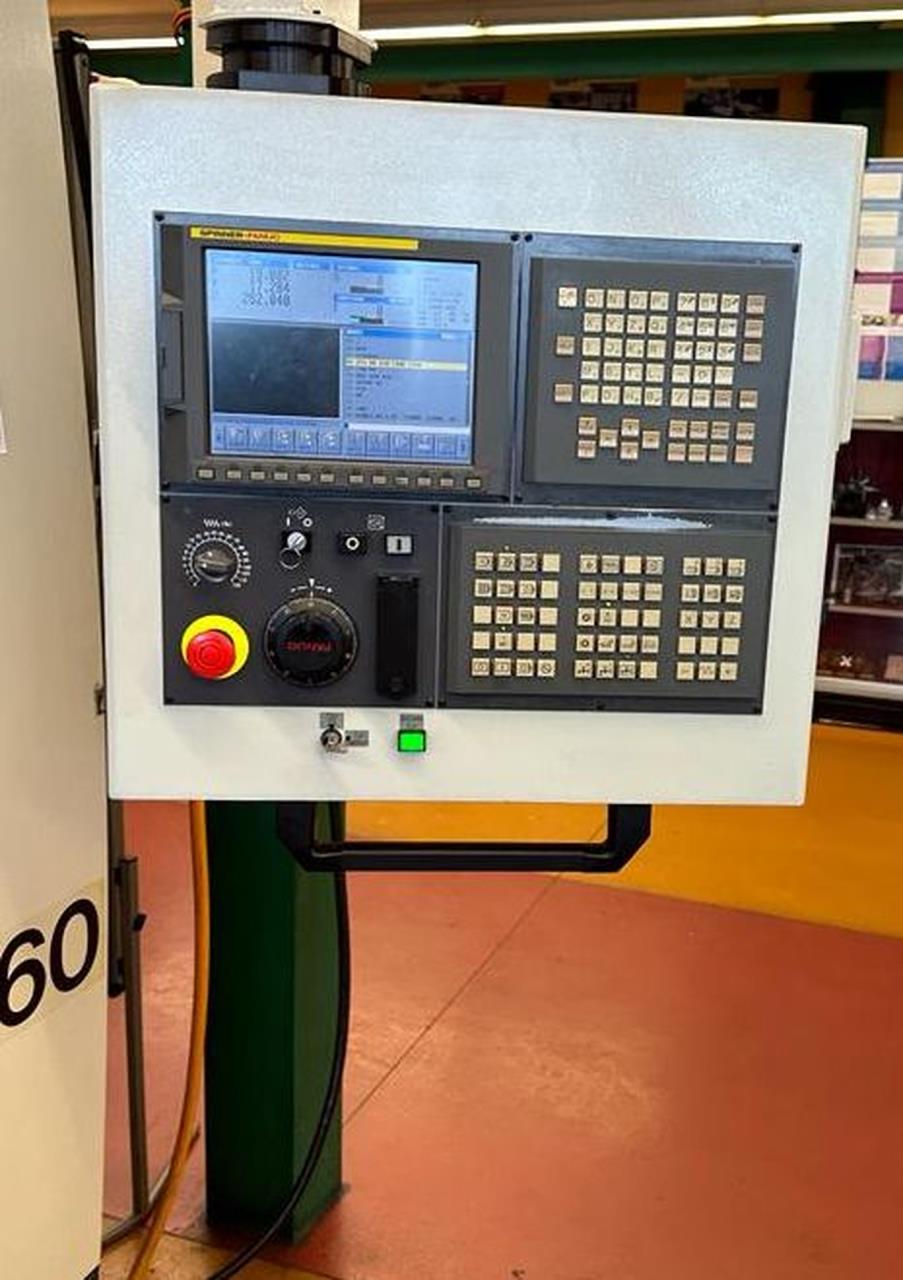

Controller :
SPINNER-FANUC 21iMB
Jahrgang :
2006
Technical data
Number of axis total
3
Table length
650 mm
Table width
410 mm
Number of T-channels
3
T-channel width
14 mm
Table load max.
250 kg
Longitudinal travel (X-axis)
560 mm
Transversal travel (y-axis)
410 mm
Vertical travel (z axis)
410 mm
Tool magazine number of tool places
24
Tool diameter max.
77 mm
Diameter with free adjacent pockets
125 mm
Tool lenght
200 mm
Max. tool-weight
5 kg
Time of tool changing
1.3 sec
Spindle nose SK
40 DIN 69871A
Spindle speeds:
stepless
from
0 rpm
up to
12000 rpm
Rapid traverse:
48 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Total power required
20 kVA
Machine's weight about
5500 kg
Overall dimensions machine:
Length
2400 mm
Width
1800 mm
Height
2500 mm
Space requirement env.
4.32 m2
Various accessories:
Coolant system
250 l
Oil mist extractor
Status light
Technical specifications and pictures without guarantee.
