stock no. :
22602
Machine's group :
Type :

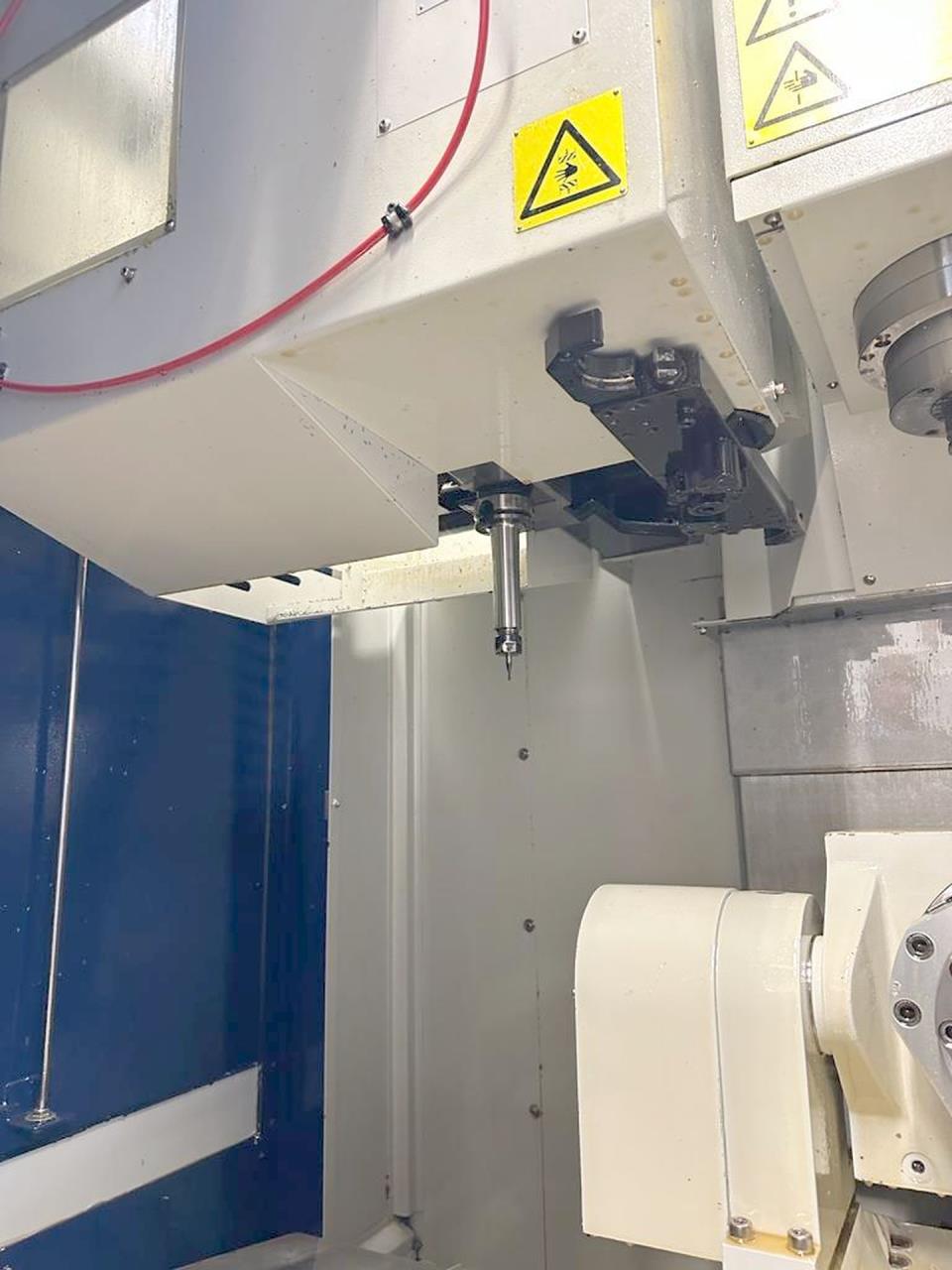

SCHAUBLIN 51 5AX CNC
Controller :
HEIDENHAIN iTNC 530
Jahrgang :
2011
Technical data
Time under power
73217 Hour
Operating time
71454 Hour
Working time
19844 Hour
Spindle run time
18289 Hour
Number of axis simultaneous
5

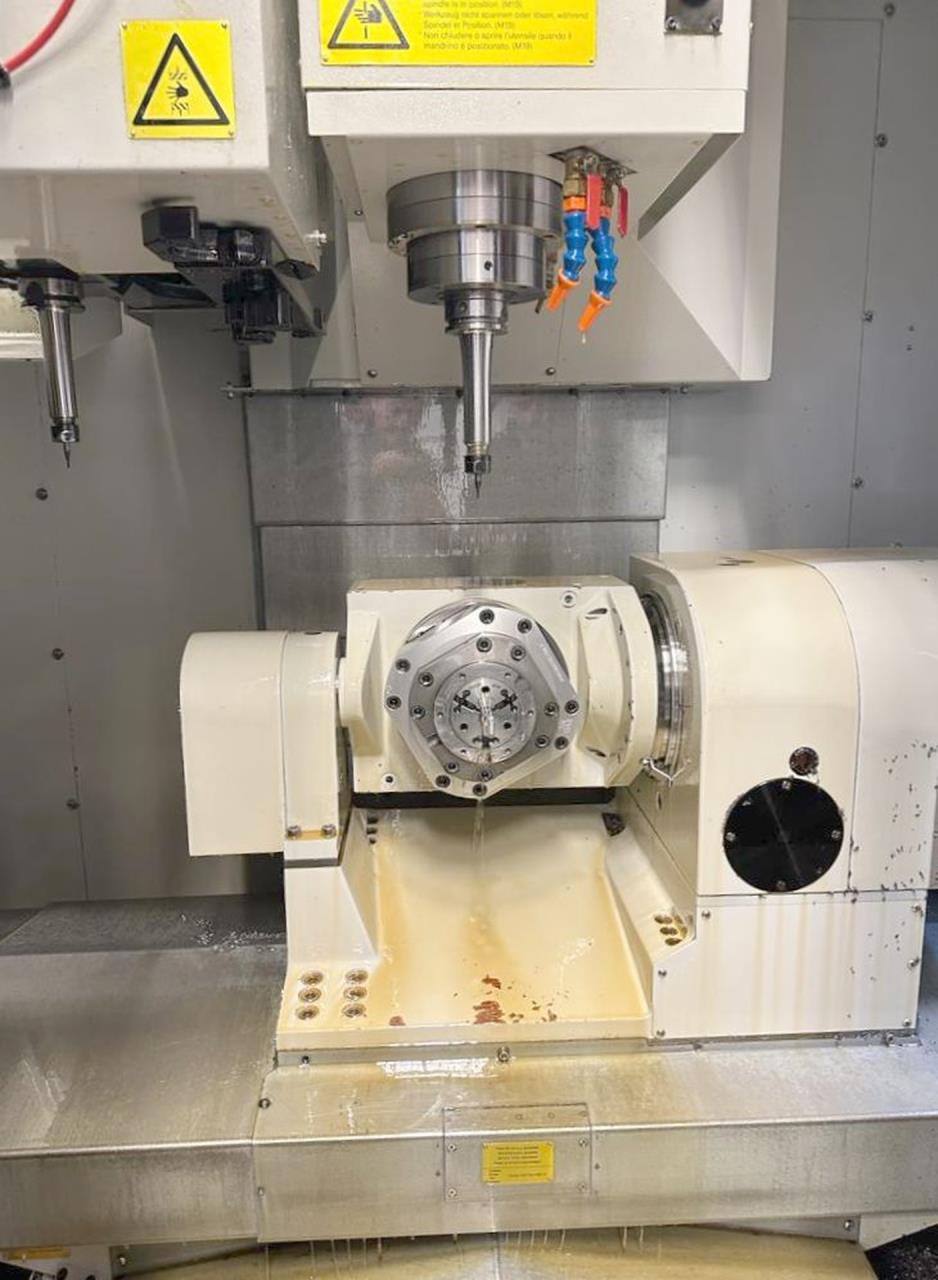

Rotary table:diameter
210 mm
Longitudinal travel (X-axis)
300 mm
Transversal travel (y-axis)
400 mm
Vertical travel (z axis)
430 mm
Position accuracy
0.007 mm
Table load max.:
vertical
50 kg
Horizontal
75 kg
Swivel angle (a-axis)
+ 30 / -120° °
Table rotation angle (c-axis)
360 °
Tool magazine number of tool places
20
Tool diameter
80 mm
Diameter with free adjacent pockets
95 mm
Tool lenght
250 mm
Max. tool-weight
6 kg
Time of tool changing
3 sec
Spindle nose: HSK-A
63
Distance from vertical
spindle to table
45 - 475 mm
Distance from spindle-center to vertical slide
470 mm
Spindle speeds:
stepless
from
0 rpm
up to
20000 rpm
Feed range
12000 mm/min
Rapid traverse:
30 m/min
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle motor
23 kW
Machine's weight about
5750 kg
Overall dimensions machine:
Length
2700 mm
Width
1800 mm
Height
2600 mm
Various accessories:
Coolant system
Water cooler
Oil mist extractor
FX4000
Rinsing Guns
Technical specifications and pictures without guarantee.
