Technical data
Operating time
19467 Hour
Number of axis total
5
Table length
630 mm
Table width
500 mm
Centering bore diameter
50 mm
Table load max.
600 kg
Longitudinal travel (X-axis)
600 mm
Transversal travel (y-axis)
700 mm
Vertical travel (z axis)
550 mm
Table load max.
600 kg
Tool magazine number of tool places
60
Tool diameter max.
100 mm
Diameter with free adjacent pockets
160 mm
Tool lenght
350 mm
Max. tool-weight
10 kg
Spindle nose SK
40 DIN 69871
Spindle speeds:
stepless
from
20 rpm
up to
12000 rpm
Feed range
1 - 10000 mm/min
Voltage 50 Hz 3x
400 Volt
Machine's weight about
9500 kg
Overall dimensions machine:
Length
3902 mm
Width
2687 mm
Height
2484 mm
Various accessories:

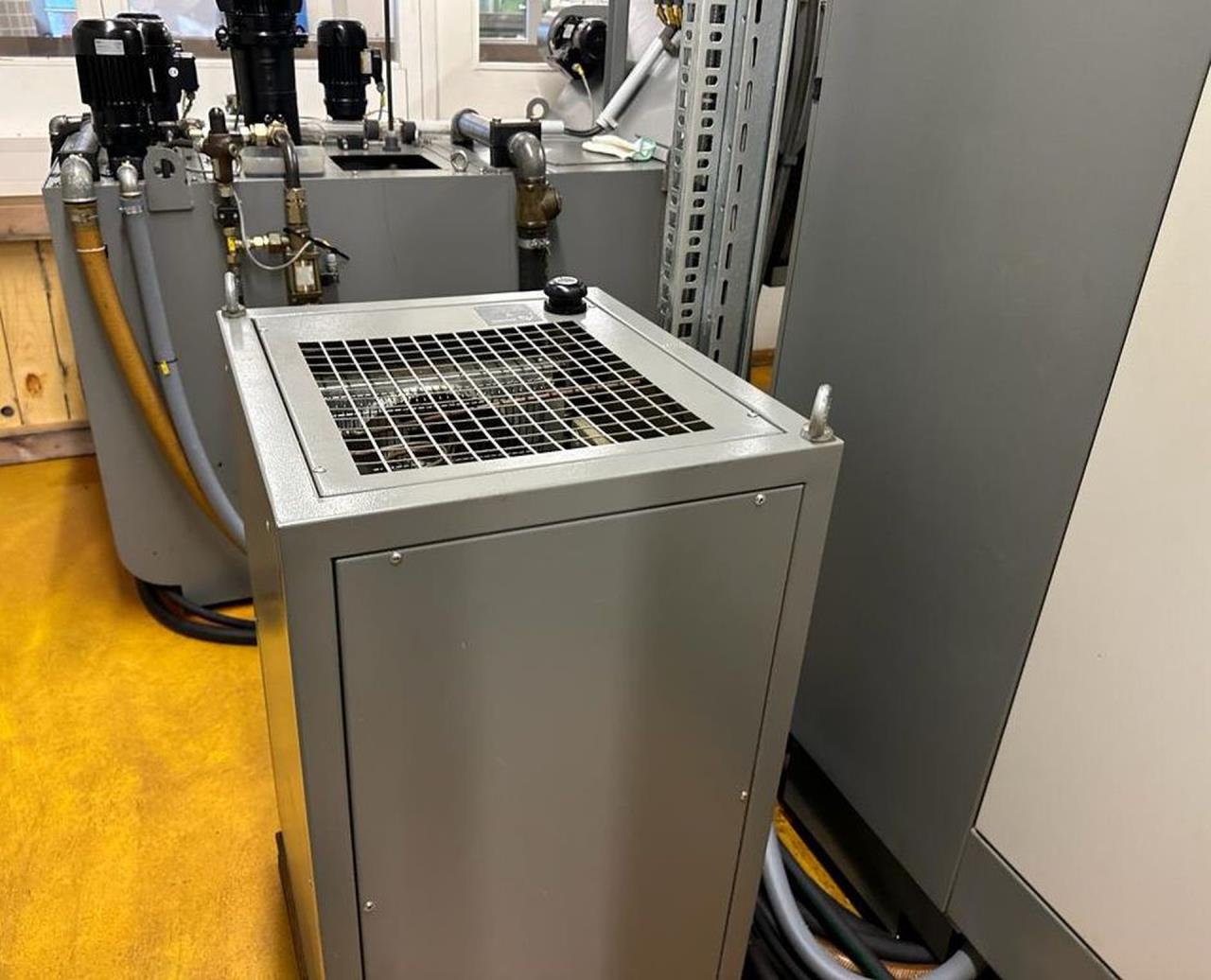

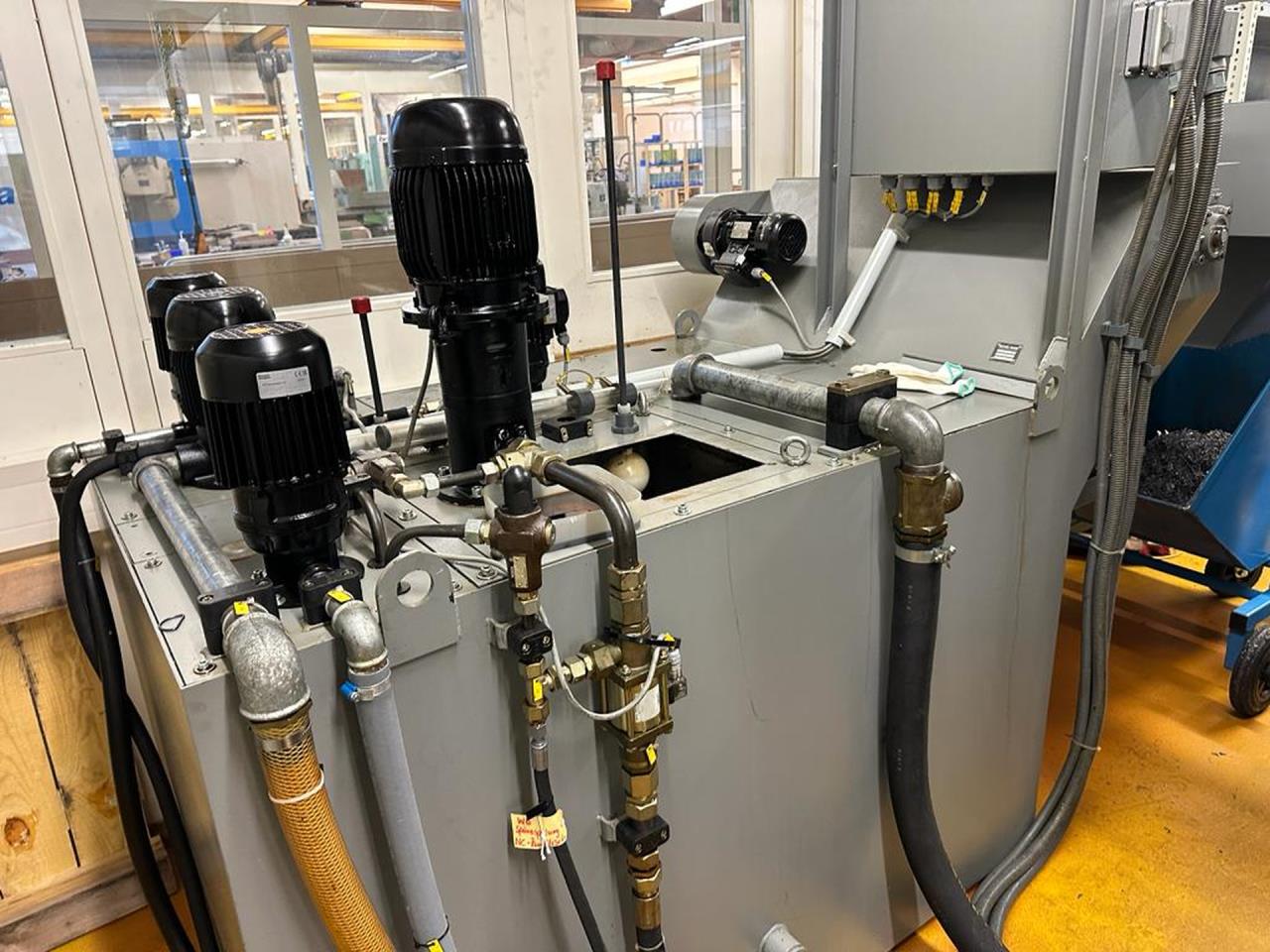

Coolant system
Coolant through spindle (cts)
17 bar

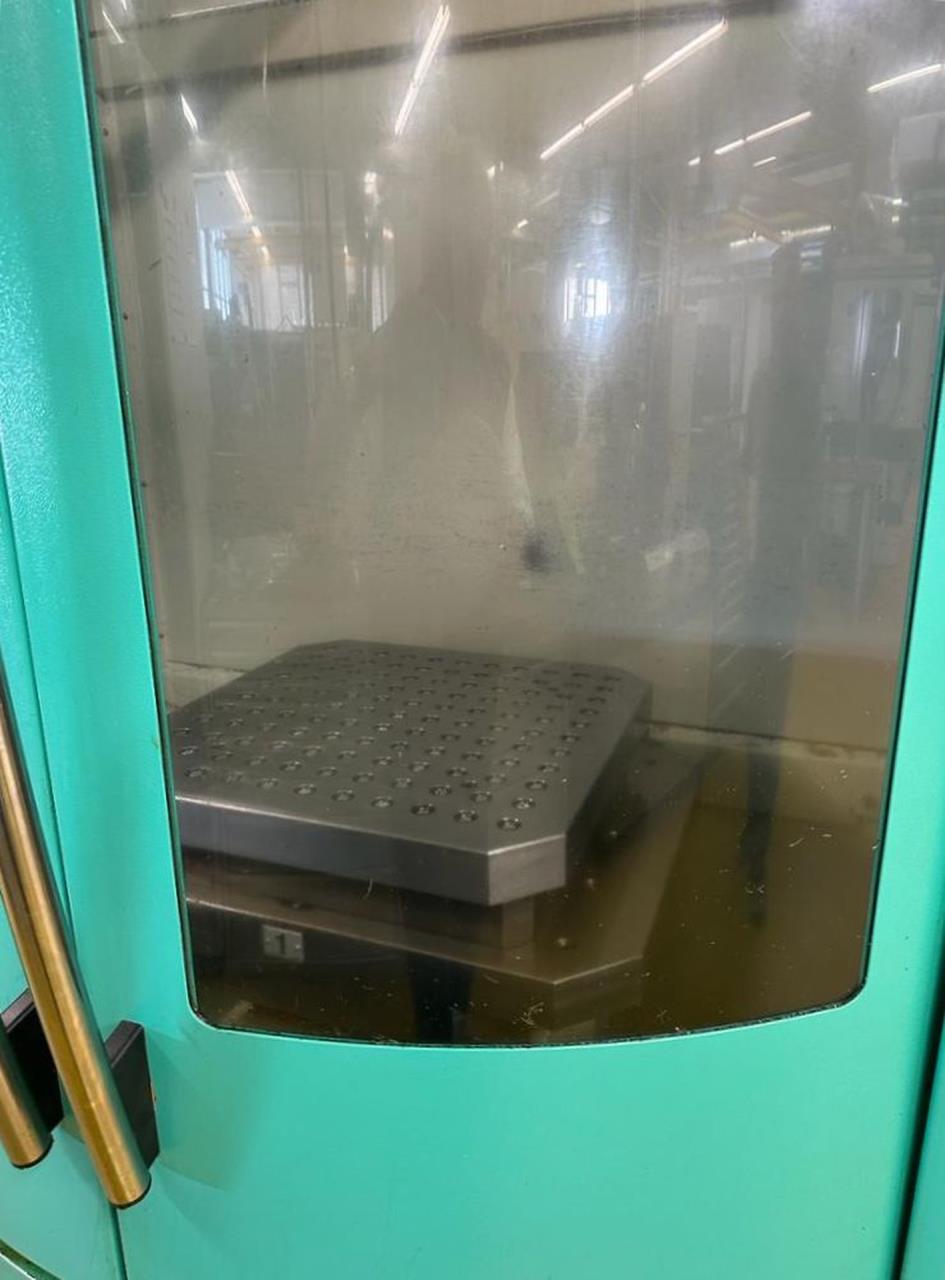

Pallets chanching device:
Pallets: number
2
Length
500 mm
Width
500 mm
Max. Load
600 kg
Lamp
Rotating viewing window
Notes:
Spindle changed
2016
Technical specifications and pictures without guarantee.
