Technical data

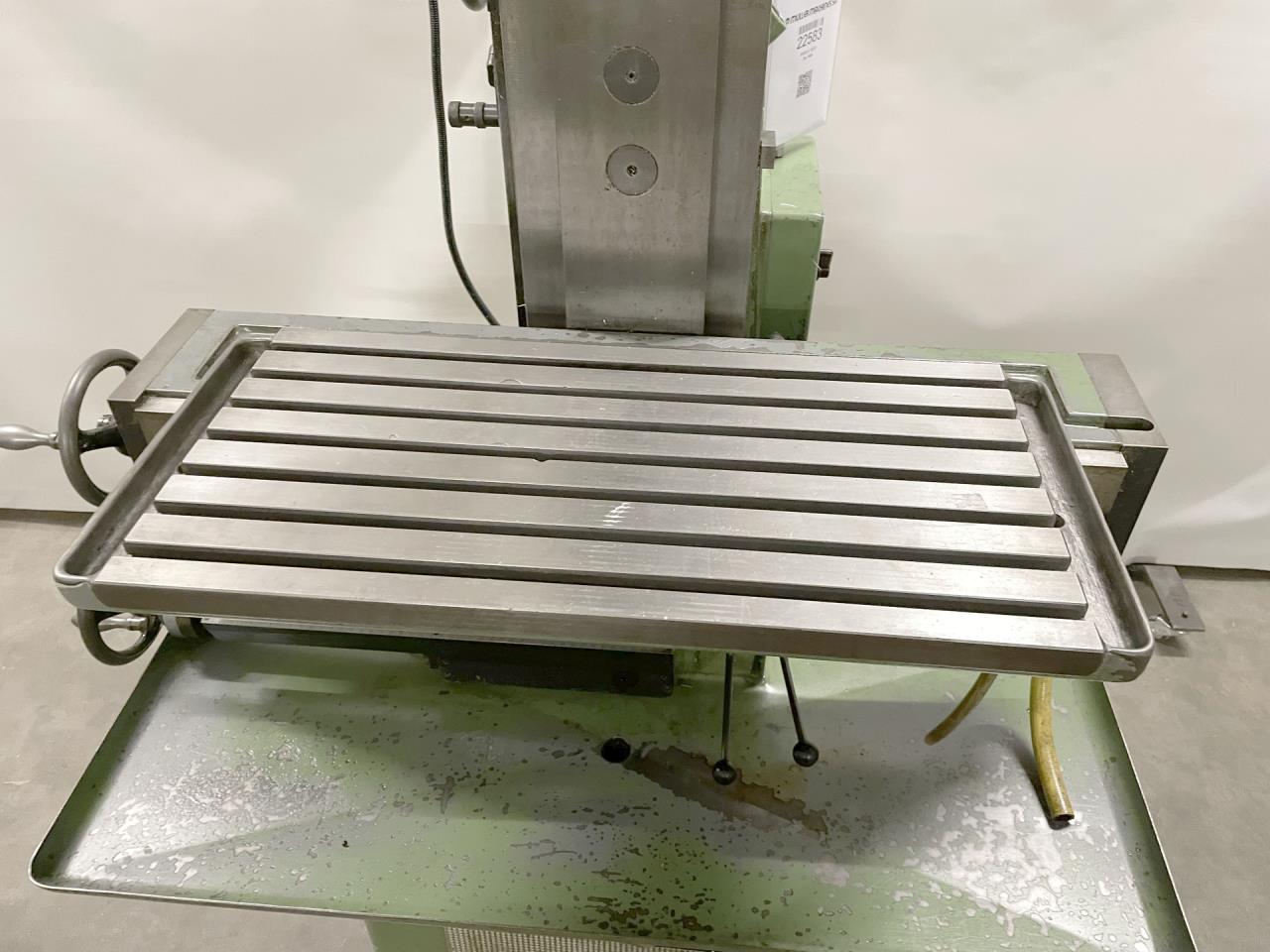

Table length
600 mm
Table width
210 mm
Number of T-channels
5
T-channel width
12H7 mm
Distance of the T-slots
40 mm
Longitudinal travel (X-axis)
300 mm
Transversal travel (y axis)
175 mm
Vertical travel (z axis)
400 mm
Distance from vertical spindle to table
320 mm
Spindle speeds:
number (steps)
9
from
60 rpm
up to
1200 rpm
Taper in spindle
30 ISO
Feeds steps:
8
longitudinal from
12 mm/min
up to
216 mm/min
vertical from
6 mm/min
up to
108 mm/min
Rapid traverse:
longitudinal
1 m/min
vertical
0.5 m/min
Voltage 50 Hz 3x
380 Volt
Motor output
1.5 HP
Total power required
2 HP
Machine's weight about
880 kg
Overall dimensions machine:
Length
1100 mm
Width
1100 mm
Height
1600 mm
Various accessories:

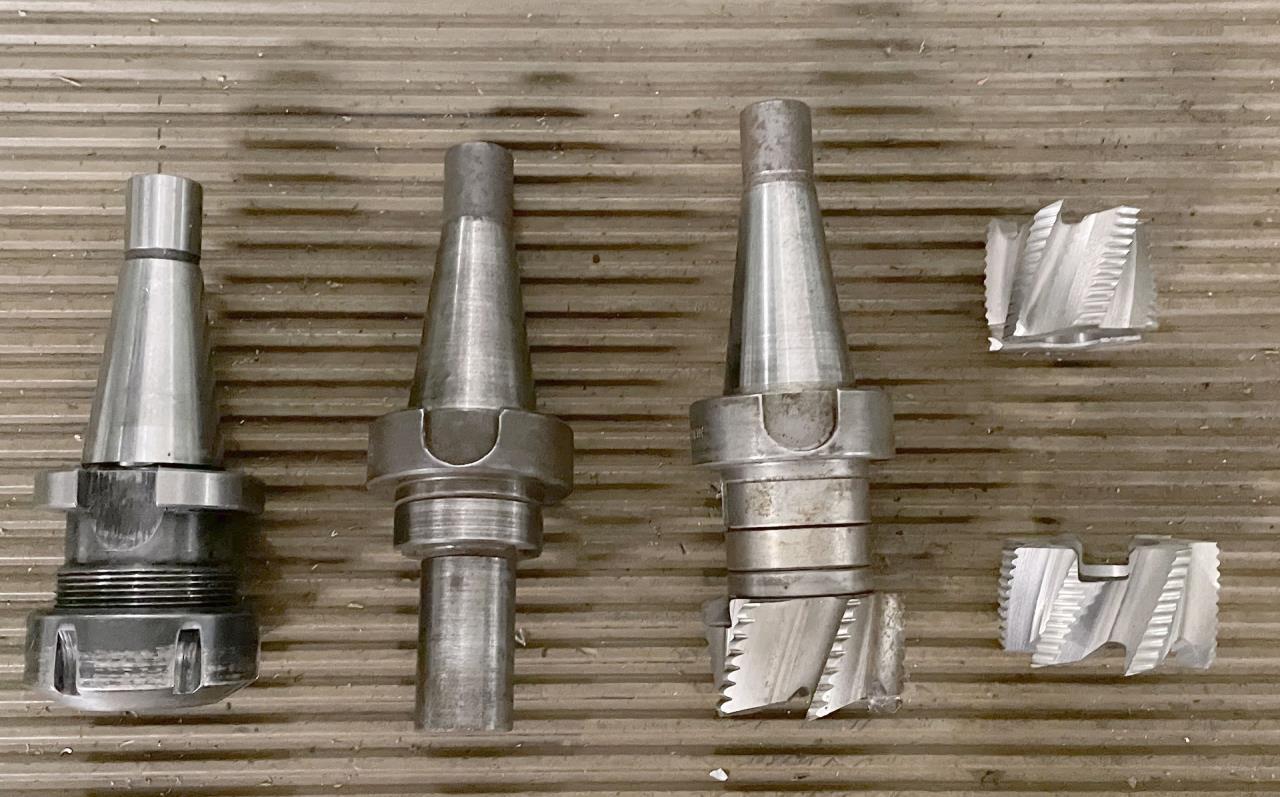

Set of toolholders
Swivelling protection device
Technical specifications and pictures without guarantee.
