stock no. :
22557
Machine's group :
Type :

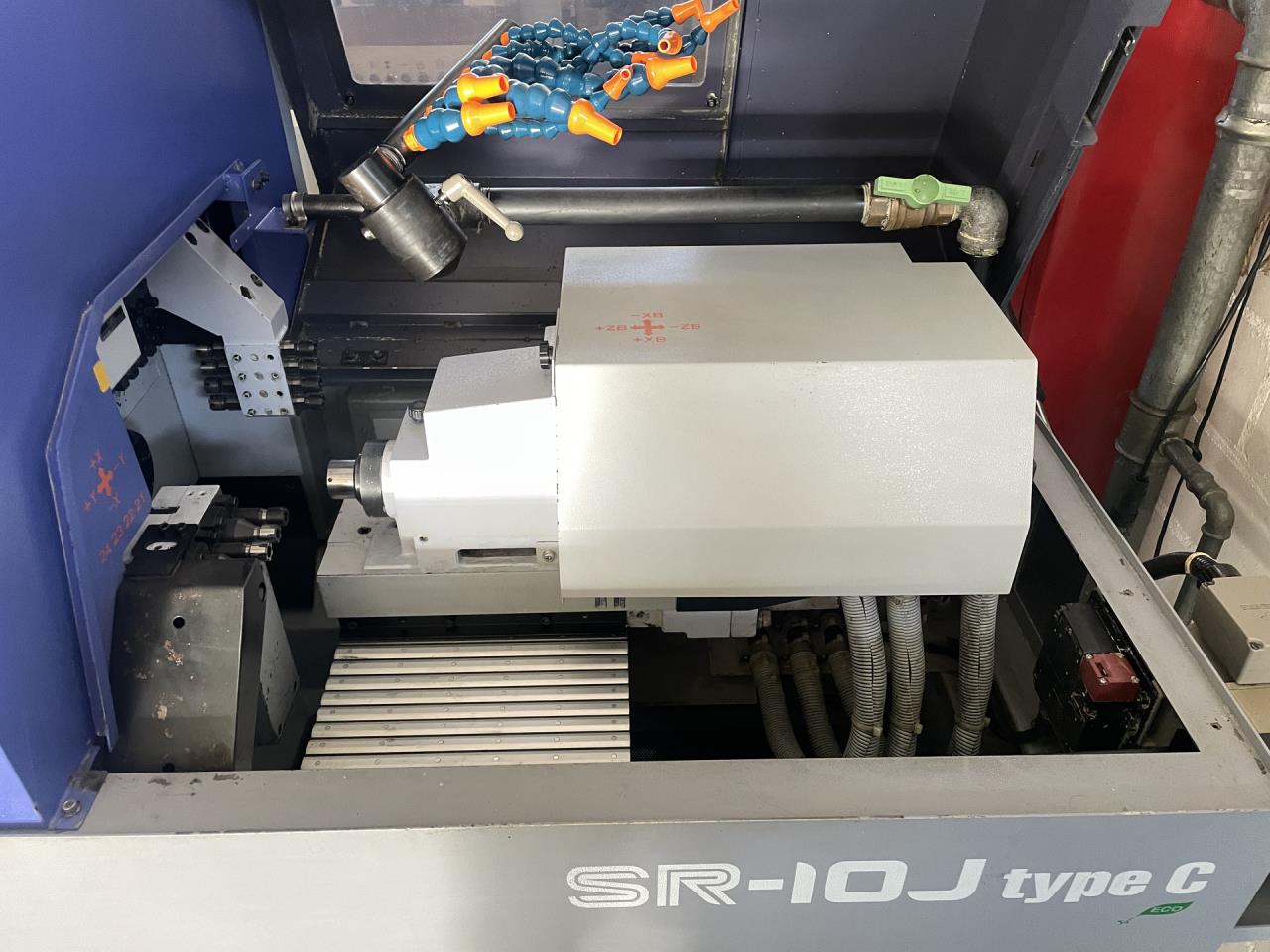

STAR SR-10 J type C
Controller :
FANUC Series 32i-Model B
Jahrgang :
2015
Technical data

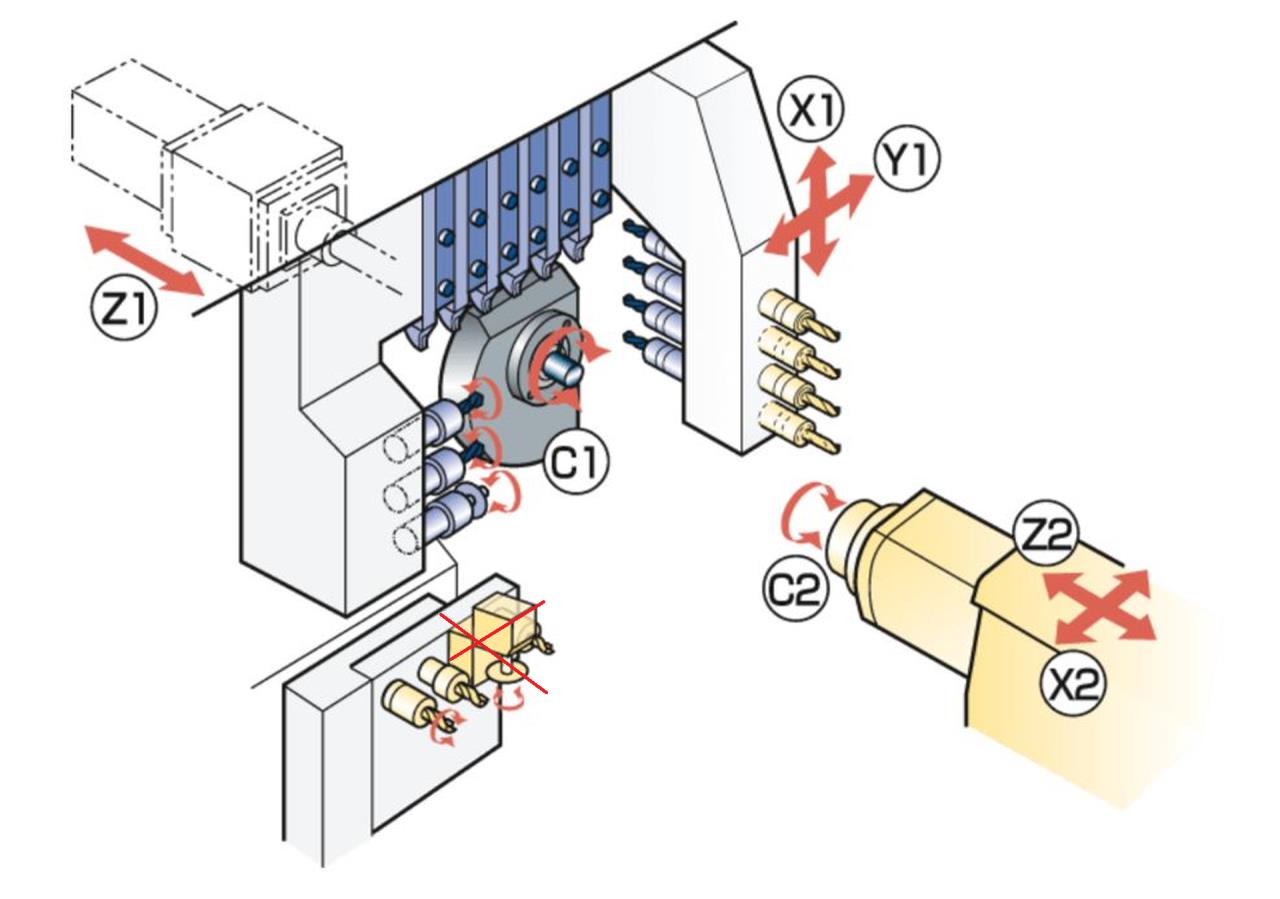

Number of axis total
7
Number of spindles
2
Machining diameter max.
10 mm
Maximum turning length
135 mm
Spindle speeds:
stepless
from
1 rpm
up to
15000 rpm
Spindle power
3.7 kW
C axis (spindle,resolution)
0.001 °

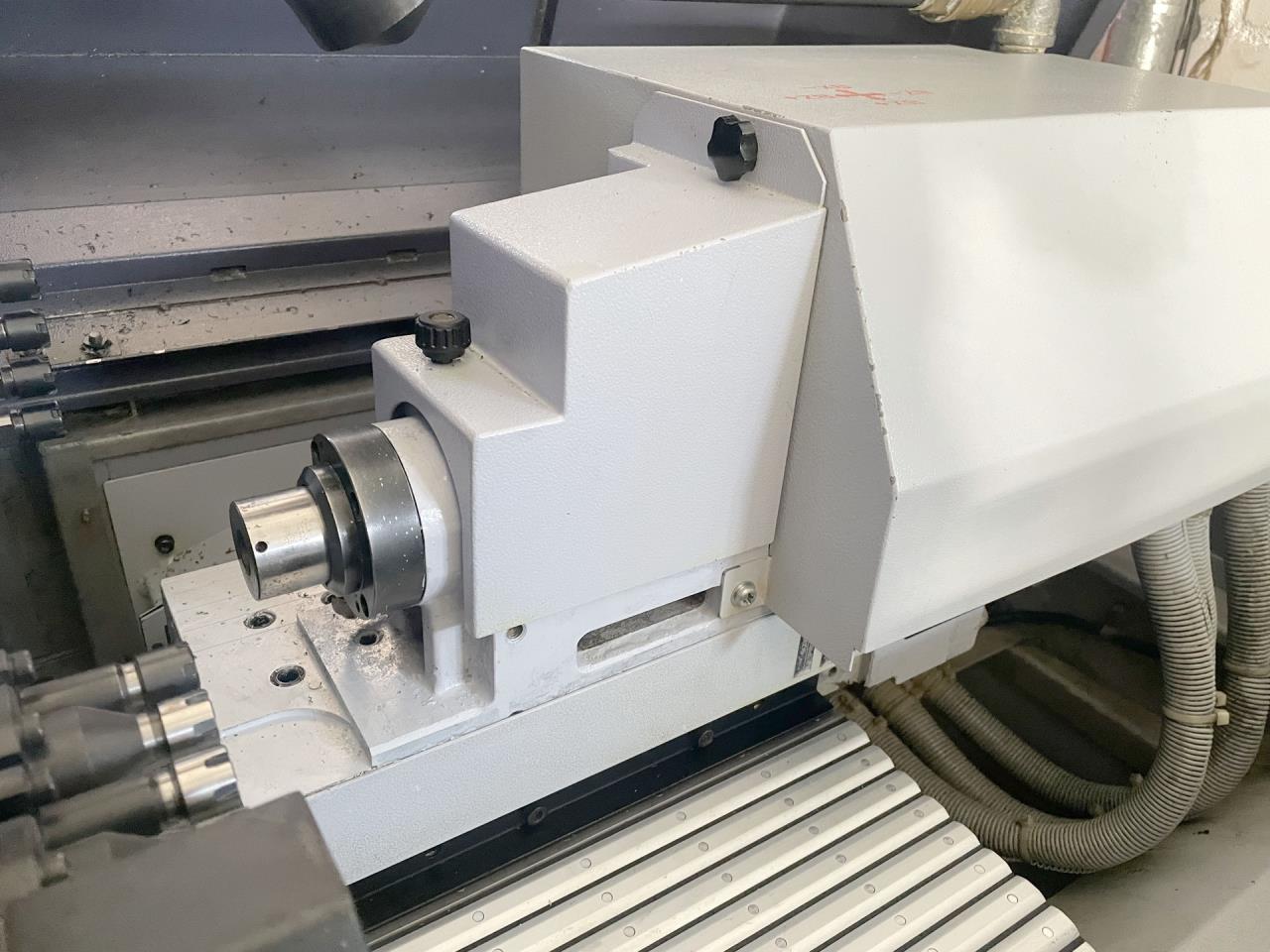

Back spindle:
speeds:
from
1 rpm
up to
10000 rpm
C axis (spindle,resolution)
0.001 °

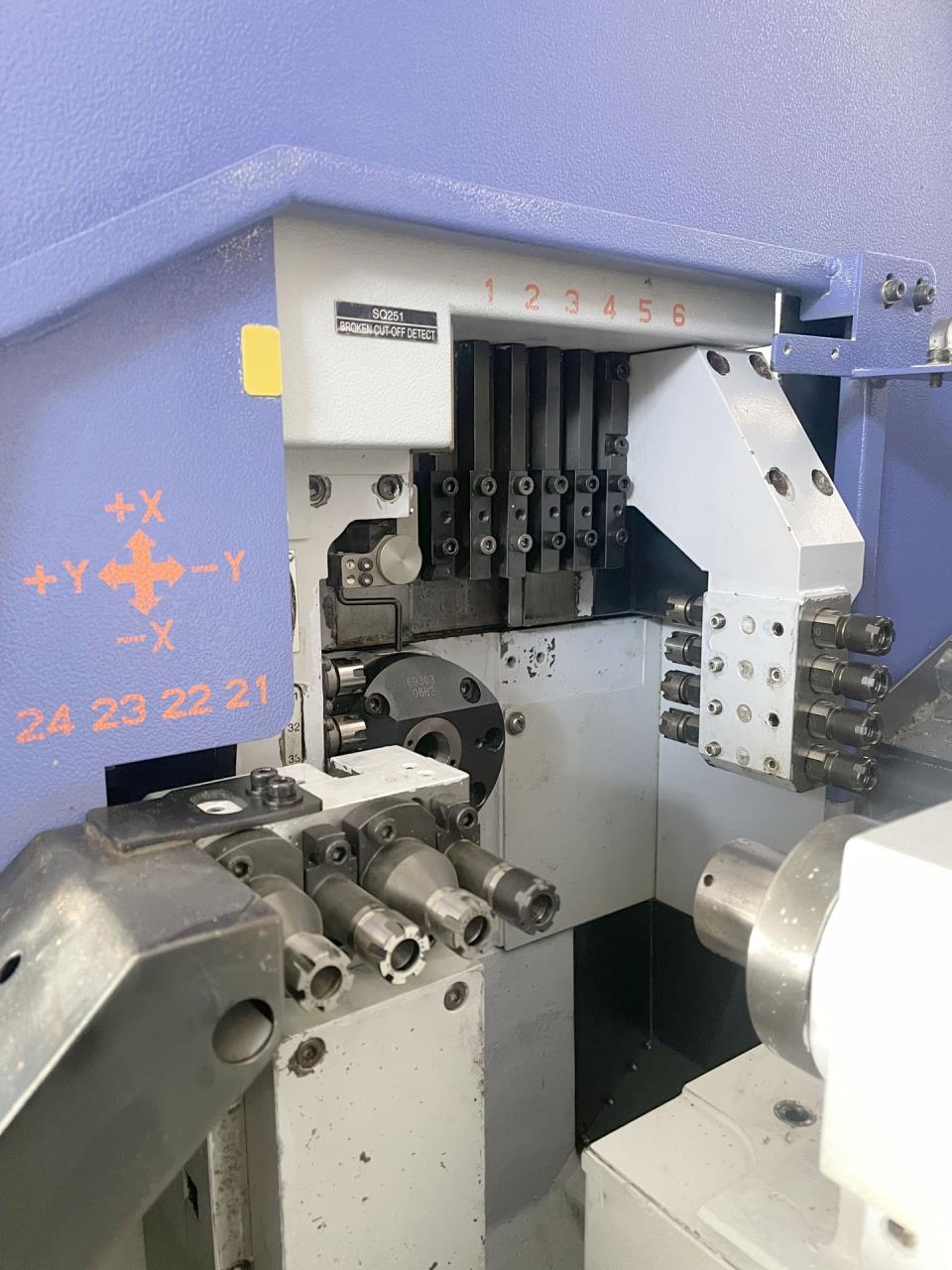

Tool-holder:
number of tools
13
Turning tools
6 pce
Drilling tools
4 pce
Transverse processing tools
3 pce
Spindle speeds (turning tools)
250 - 8000 rpm
Counter-operation:
Drilling tools
8 pce
Rapid traverse:
35 m/min
Voltage 50 Hz 3x
400 Volt
Power of back spindle
1.1 kW
Total power required
3.1 kVA
Machine's weight about
1400 kg
Overall dimensions machine:
Length
2000 mm
Width
820 mm
Height
1800 mm
Various accessories:
Spindle blow out (backspindle)
Parts catcher
Workpiece conveyor
Lamp
Tool break control
Coolant system
89 l
Interface for bar loader
Central lubrification
Set of service tools
Technical specifications and pictures without guarantee.
