stock no. :
22552
Machine's group :
Type :
MIKRON UCP 600 VARIO

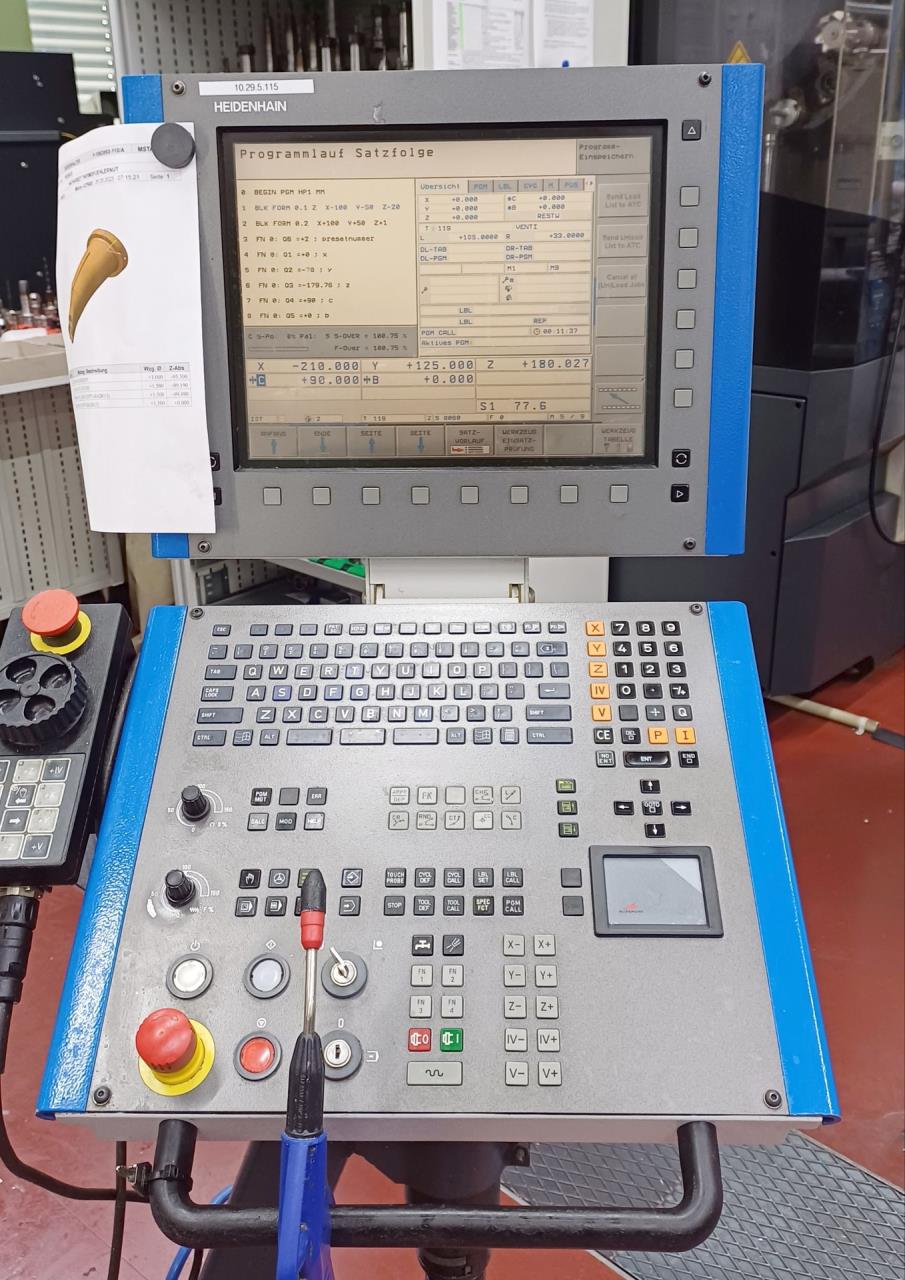

Controller :
HEIDENHAIN iTNC 530
Jahrgang :
2005
Technical data
Number of axis total
5
Longitudinal travel (X-axis)
600 mm
Transversal travel (y-axis)
450 mm
Vertical travel (z axis)
450 mm
Table load max.
200 kg
Milling head divisions (B)
-115/+30 °
Spindle nose:
HSK-A 63
Spindle speeds:
stepless
from
0 rpm
up to
20000 rpm
Feeds:
Voltage 50 Hz 3x
400 Volt
Total power required
18 kW
Noise level
75 dB (A)
Machine's weight about
7700 kg
Overall dimensions machine:
Total
Length
6820 mm
Width
4800 mm
Height
2540 (2810) mm
Various accessories:
Chip conveyor

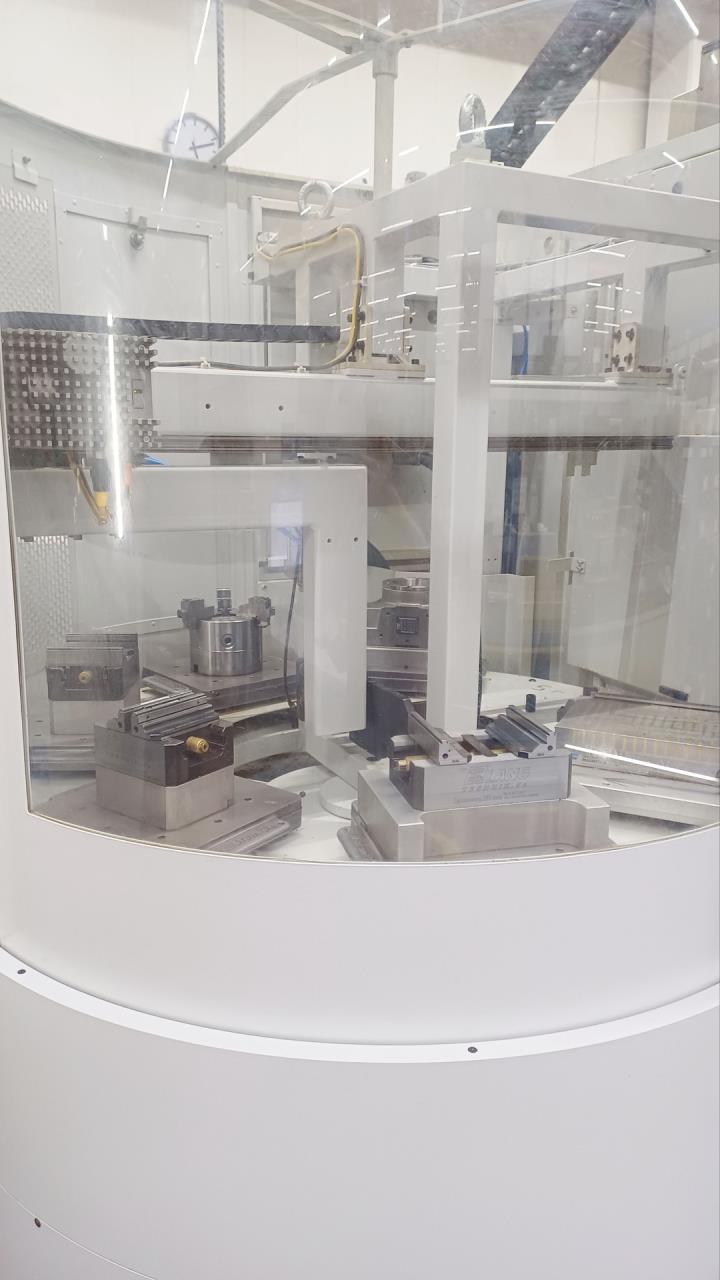

Pallets chanching device:
Pallets: number
7
Handwheel electroinic
Lamp
Rotating viewing window
Technical specifications and pictures without guarantee.
