Technical data
Centre height
175 mm
Distance between centres
650 mm
Workpiece weight on centres max.
80 kg
Grinding wheel:
Diameter
500 mm
Width
63 mm
Bore
203 mm
max. width
80 mm

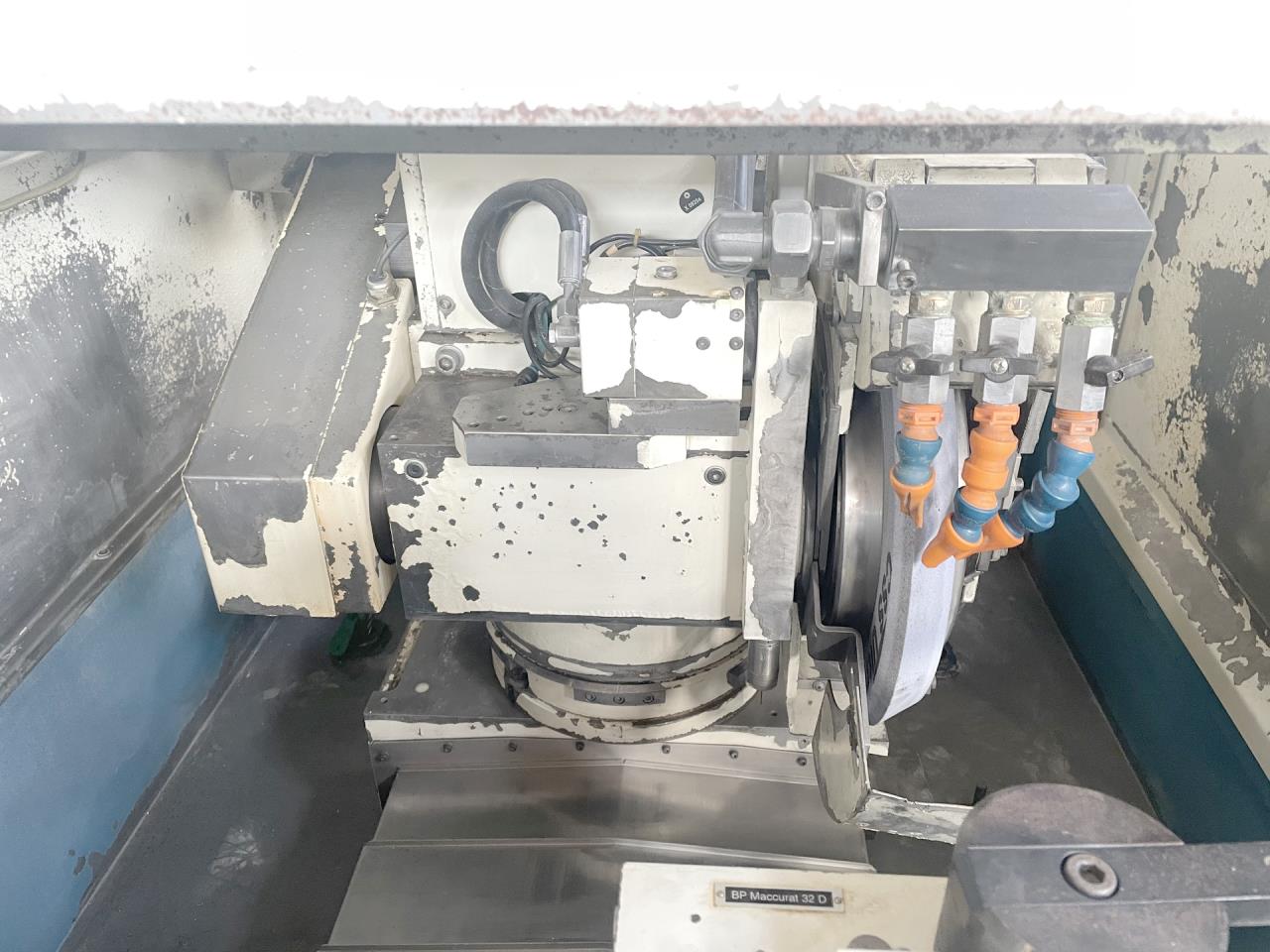

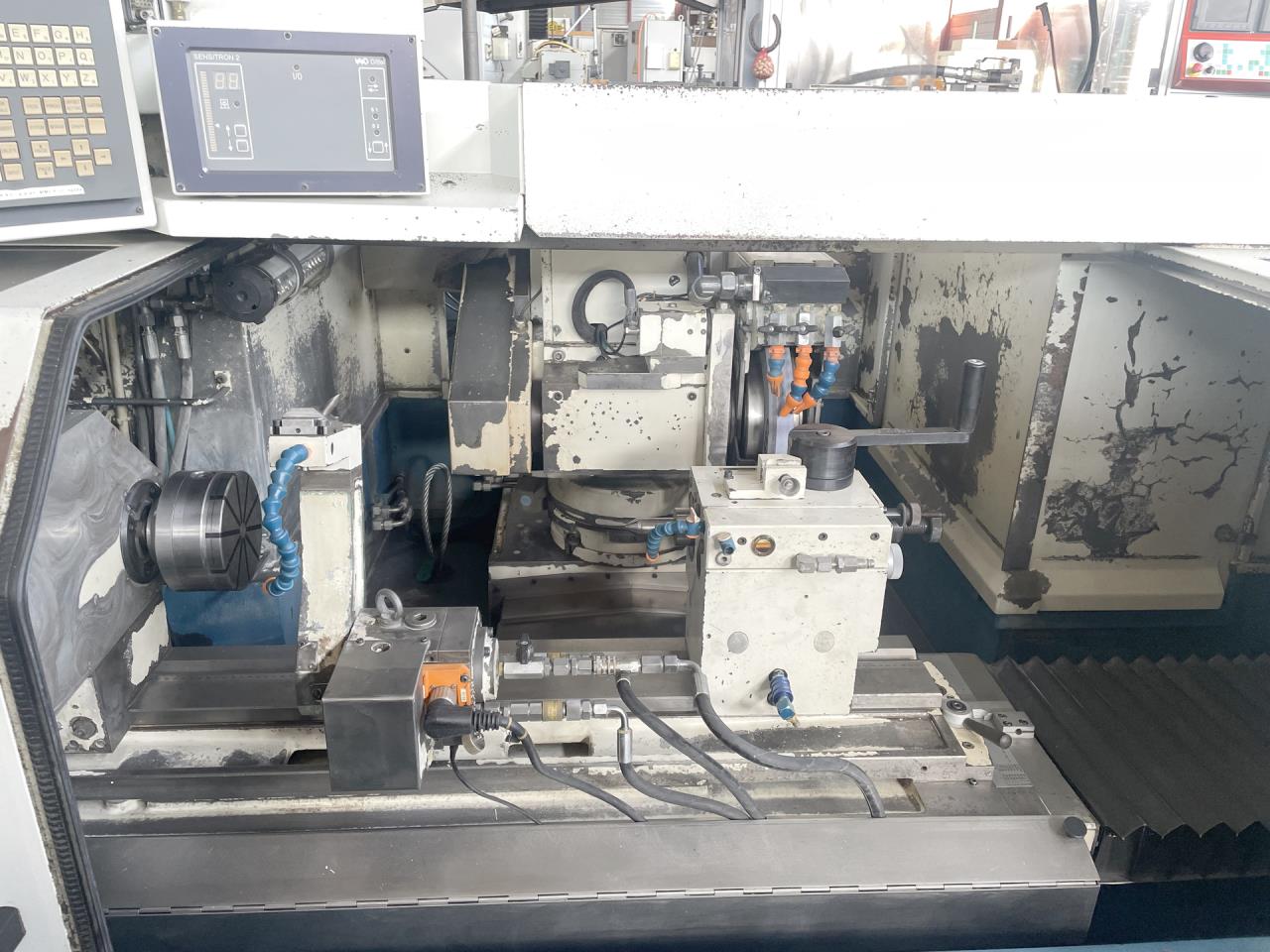

Grinding spindle head:
Revolving unit with Hirth serration
Swivelling range
-15 / 195 °
Automatic swivelling axis Hirth (B1)
1 °
Peripheral speed
50 m/s
Longitudinal slide:
Max. travel
285 mm
Transversal slide:
Max. travel
800 mm
Work piece spindle head:
speeds:
from
1 rpm
up to
1500 rpm
Holding taper:
5 MT
Typing speed
1 - 50 rpm
C axis
0.005 °
Tailstock:
Taper in tailstock:
3 MT
Tailstock travel of barrel
35 mm
Spindle stroke
35 mm
Spindle diameter
50 mm
Max. table angular displacement
8.5 °
Air connect
5.5 bar
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
7.5 kW
Workpiece spindle motor
3 kW
Total power required
20 kVA
Machine's weight about
5000 kg
Overall dimensions machine:
Length
2620 mm
Width
2090 mm
Height
2000 mm
Various accessories:
C axis
Touch probe MARPOSS
Swivellable redressing device

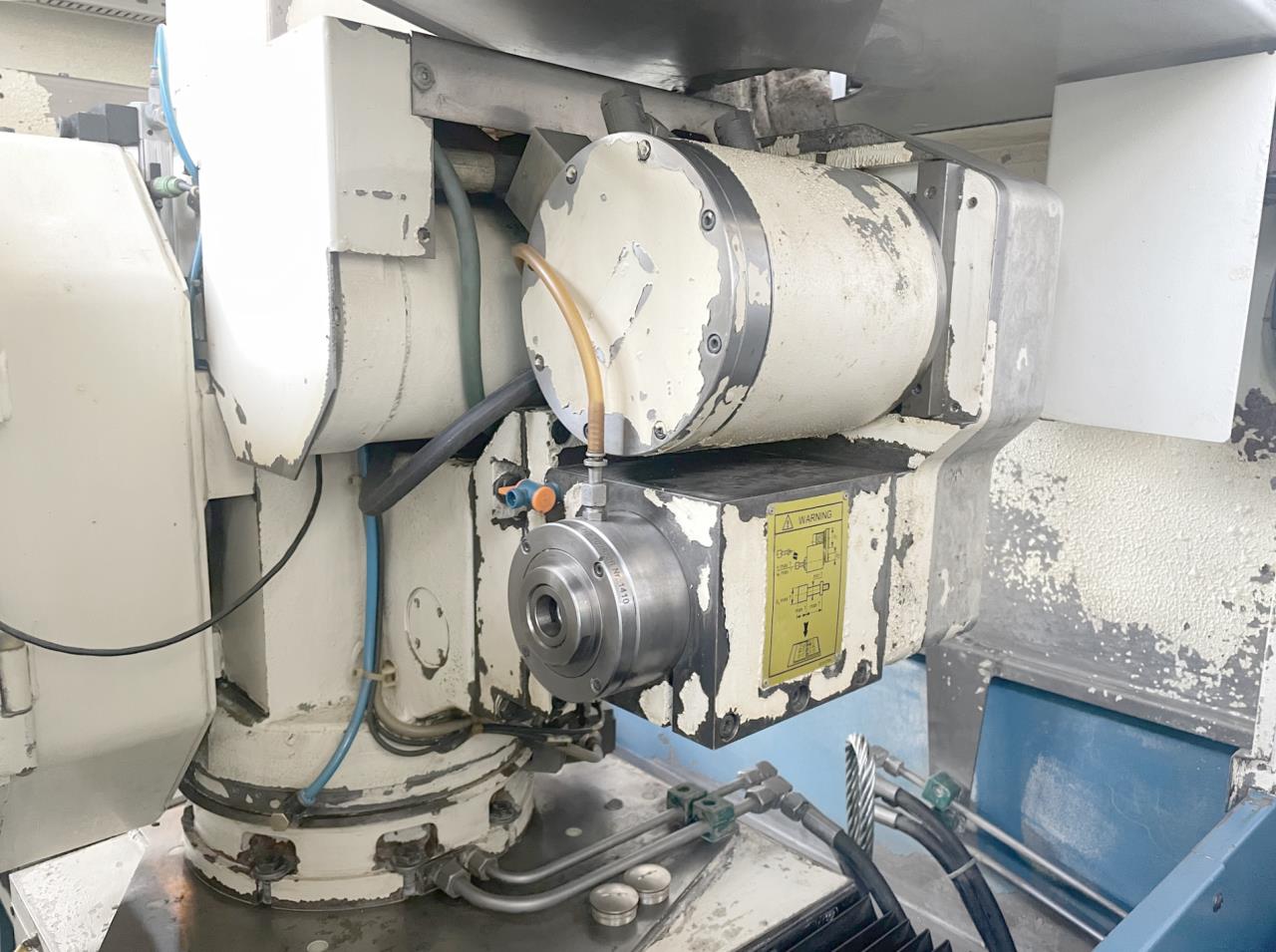

Internal grinding attachment:
Rotation speed
up to
40000 rpm

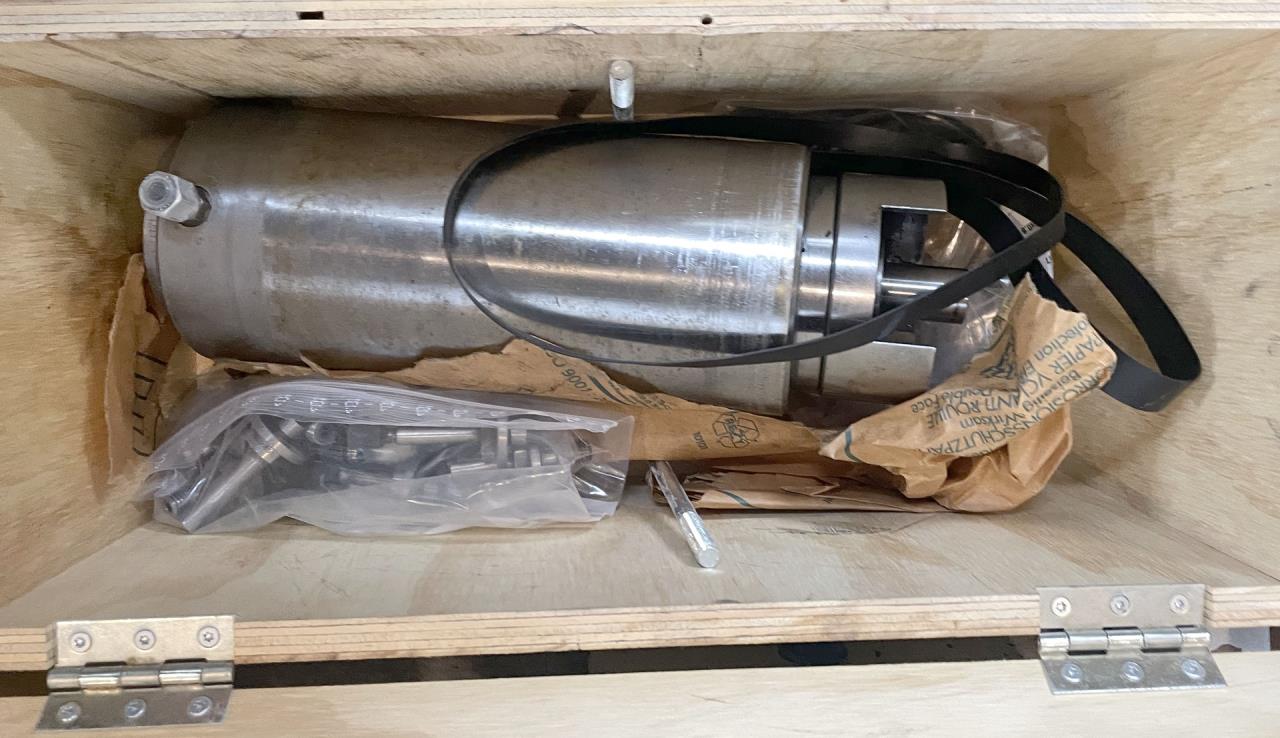

Extra spindle:
Rotation speed
up to
60000 rpm
Grinding wheel with flange

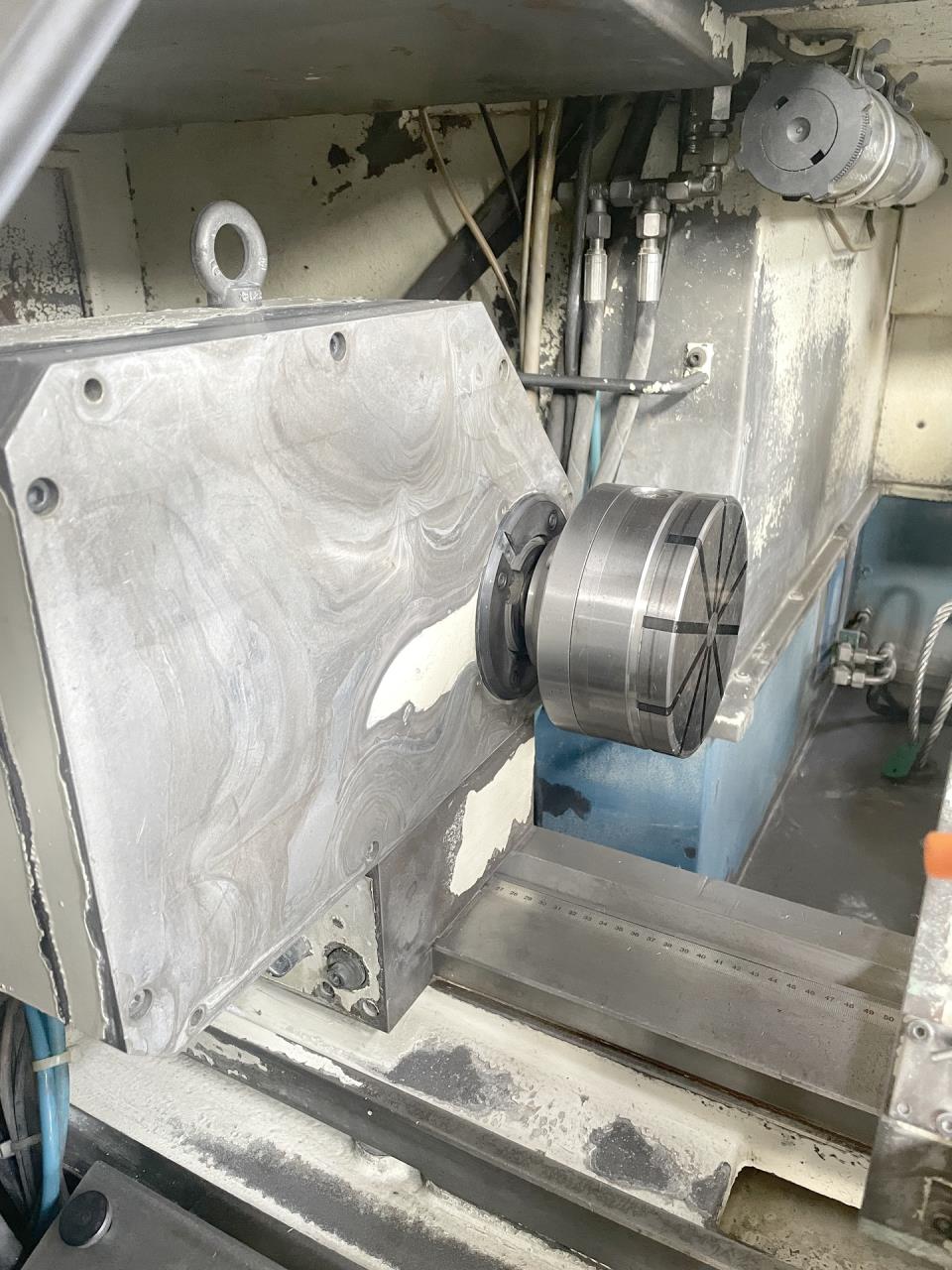

Macnetic chuck diameter
150 mm
Tailstock with fine adjustement

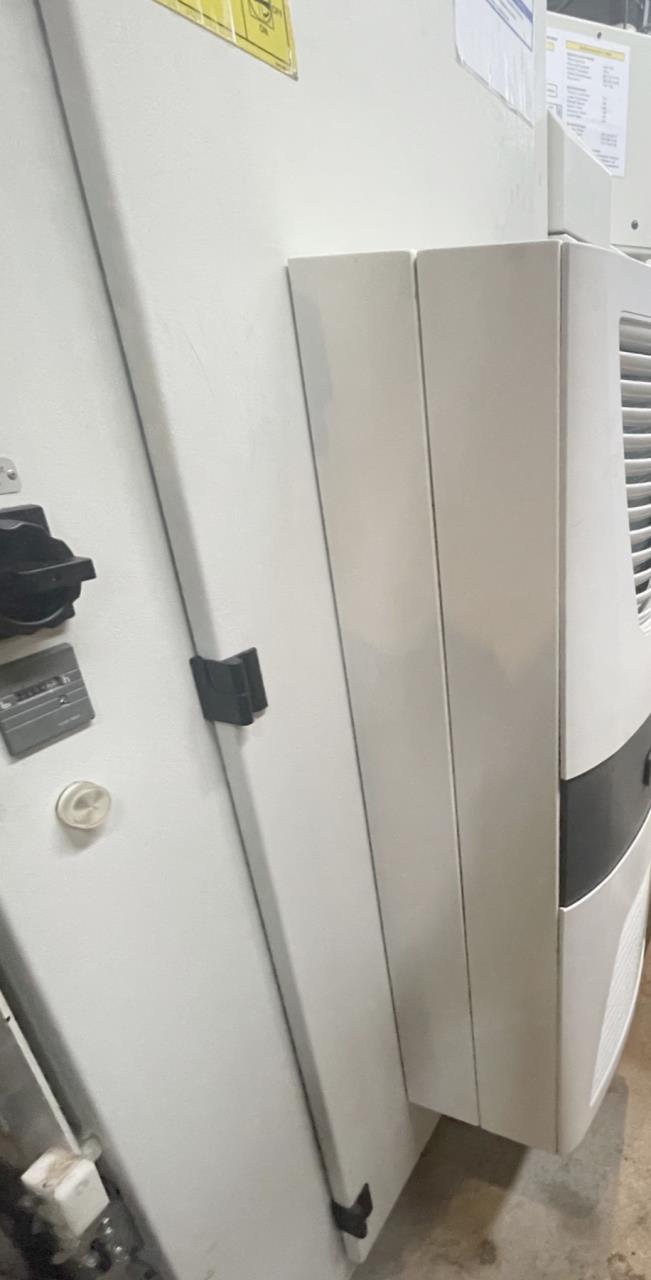

Switch cabinet Air conditioner
DITTEL Sensitron Proximity System
Technical specifications and pictures without guarantee.
