stock no. :
22538
Machine's group :
Type :
WILLEMIN MACODEL W 401S

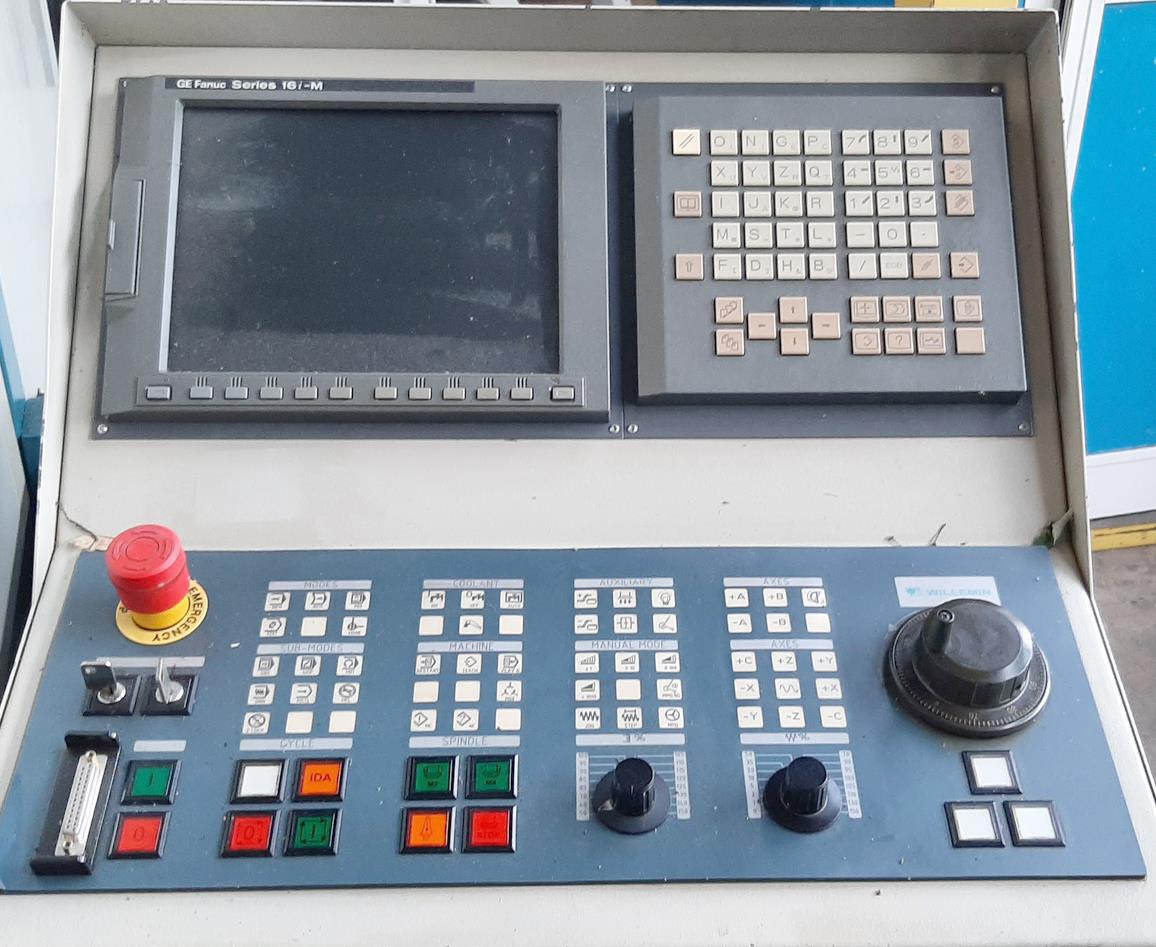

Controller :
GE FANUC Series 16i-M
Jahrgang :
2000
Technical data
Number of axis total
3
Table length
400 mm
Table width
250 mm
Number of T-channels
3
Distance of the T-slots
80 mm
T-channel width
14 mm
Longitudinal travel (X-axis)
250 mm
Transversal travel (y-axis)
200 mm
Vertical travel (z axis)
300 mm
Tool changer:
Tool magazine number of tool places
48

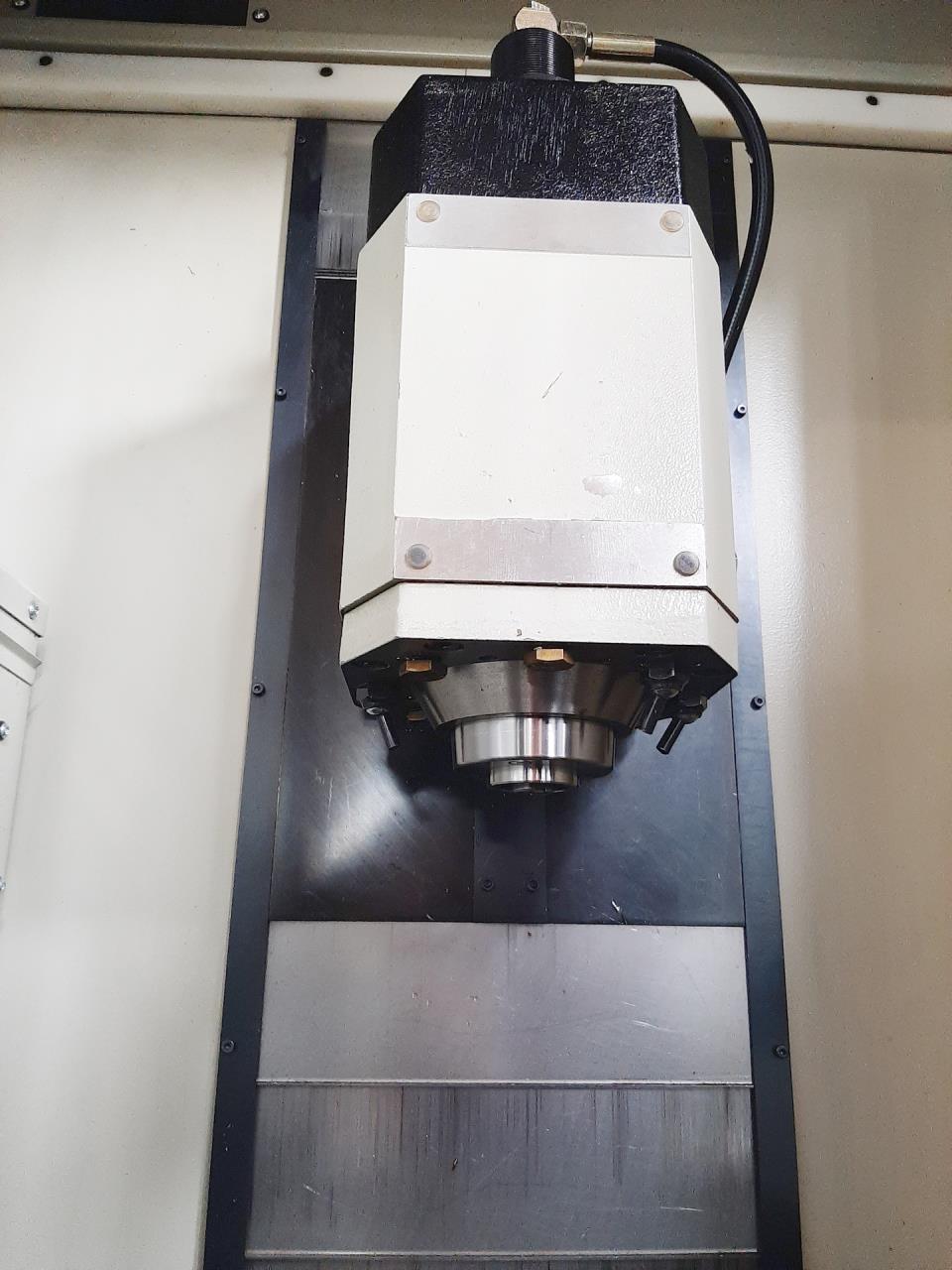

Spindle nose: HSK
E40
Spindle speeds:
stepless
up to
30000 rpm
Work feed rate
20 m/min
Rapid traverse:
30 m/min
Max. Feed force
3700 N
Resolution
1 µm
Air connect
6 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
10.4 kW
Total power required
18 kVA
Machine's weight about
1700 kg
Overall dimensions machine:
Length
2100 mm
Width
1630 mm
Height
2265 mm
Space requirement env.
2 m2
Various accessories:

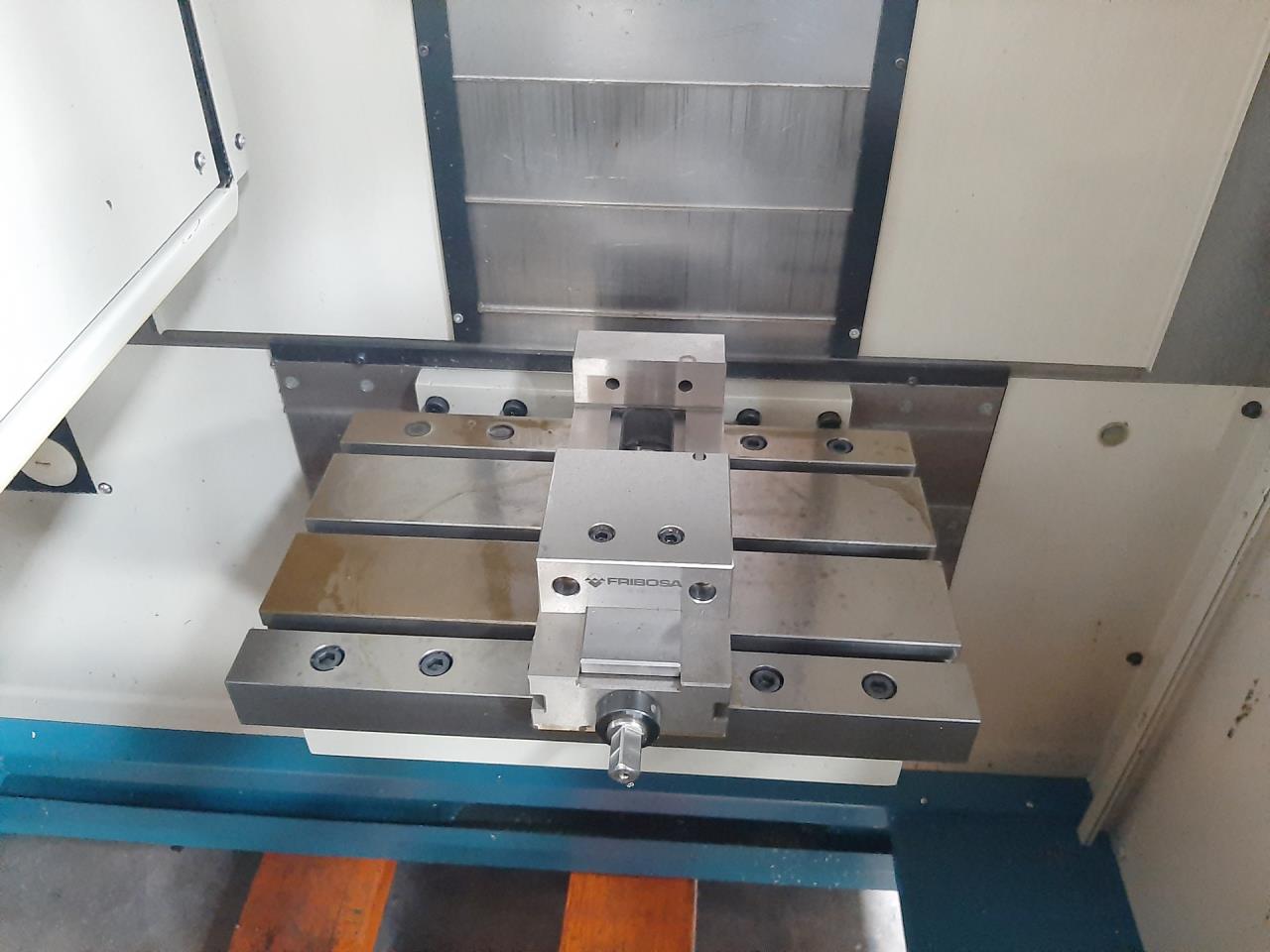

Vice: width
100 mm

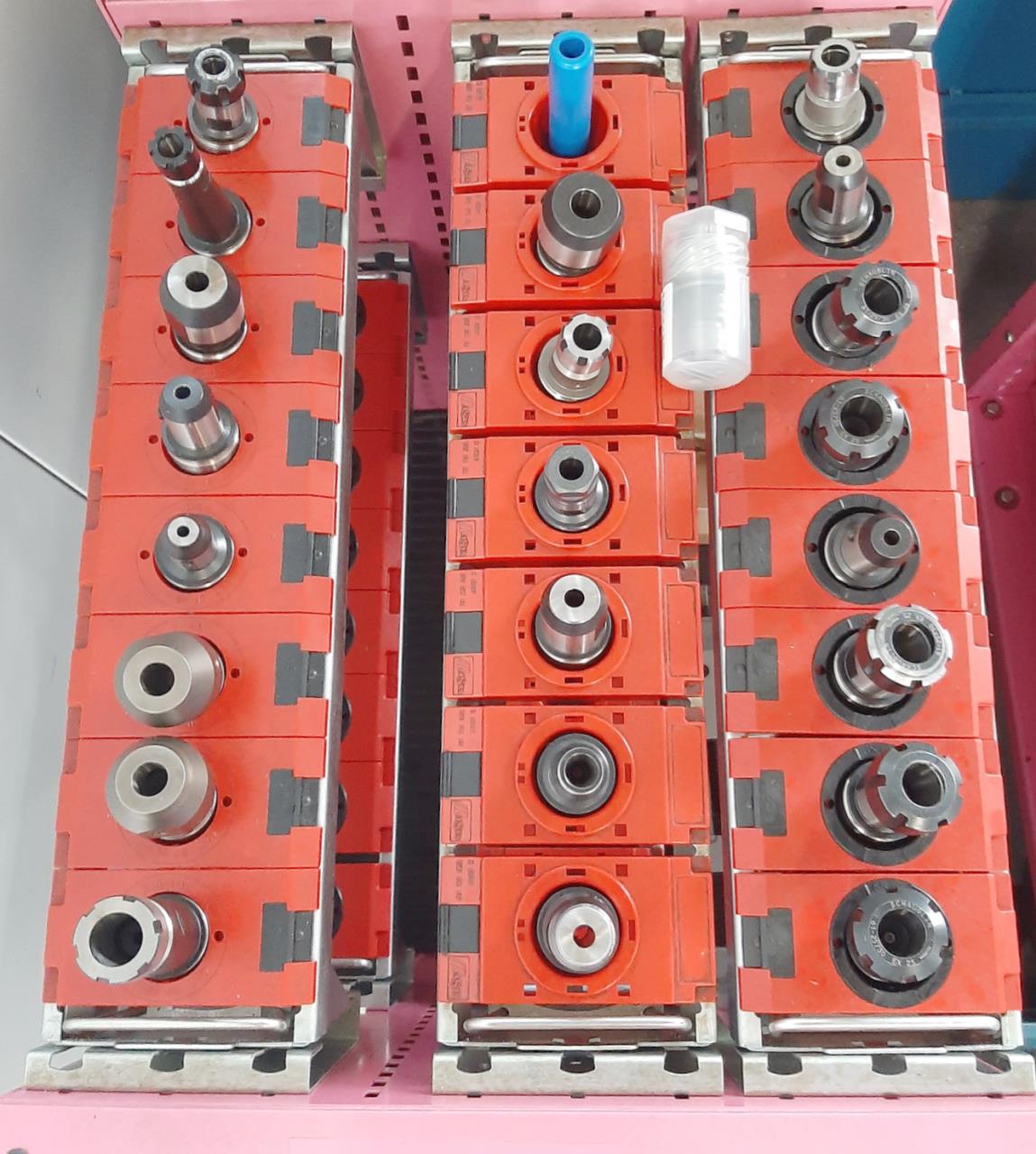

Set of toolholders
Coolant system
Lamp
Technical specifications and pictures without guarantee.
