Technical data
Max. turning diameter
32 mm
Maximum turning length
300 mm
Max. threading diameter
12 M (Metric)
Thread drill diameter
12 M (Metric)
Inner taper type
F37
Spindle speeds:
stepless
from
280 rpm
up to
7000 rpm
Spindle power
5.5 / 7.5 kW
C axis (spindle,resolution)
0.001 °
Turret slide:
Number of positions
10

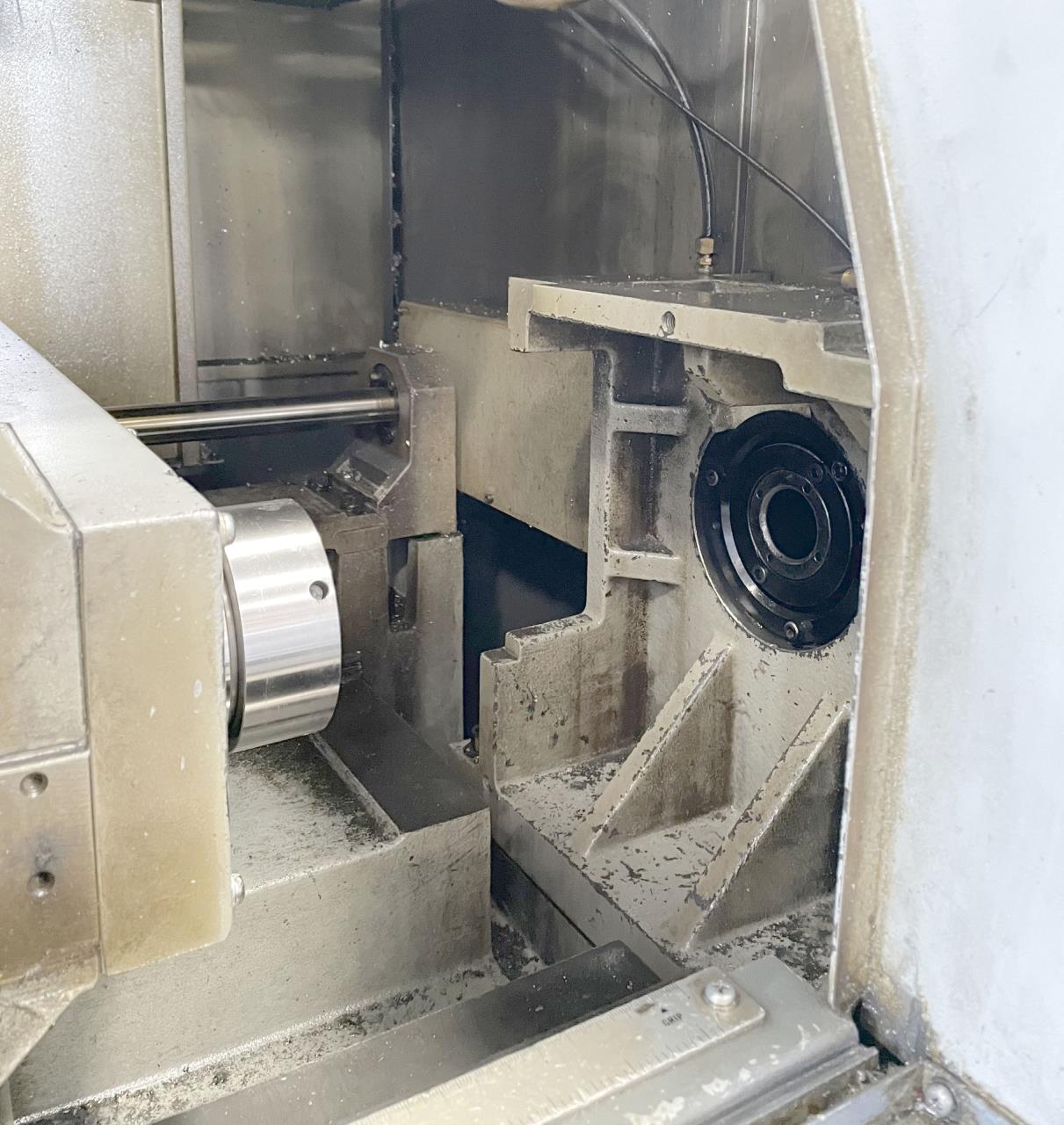

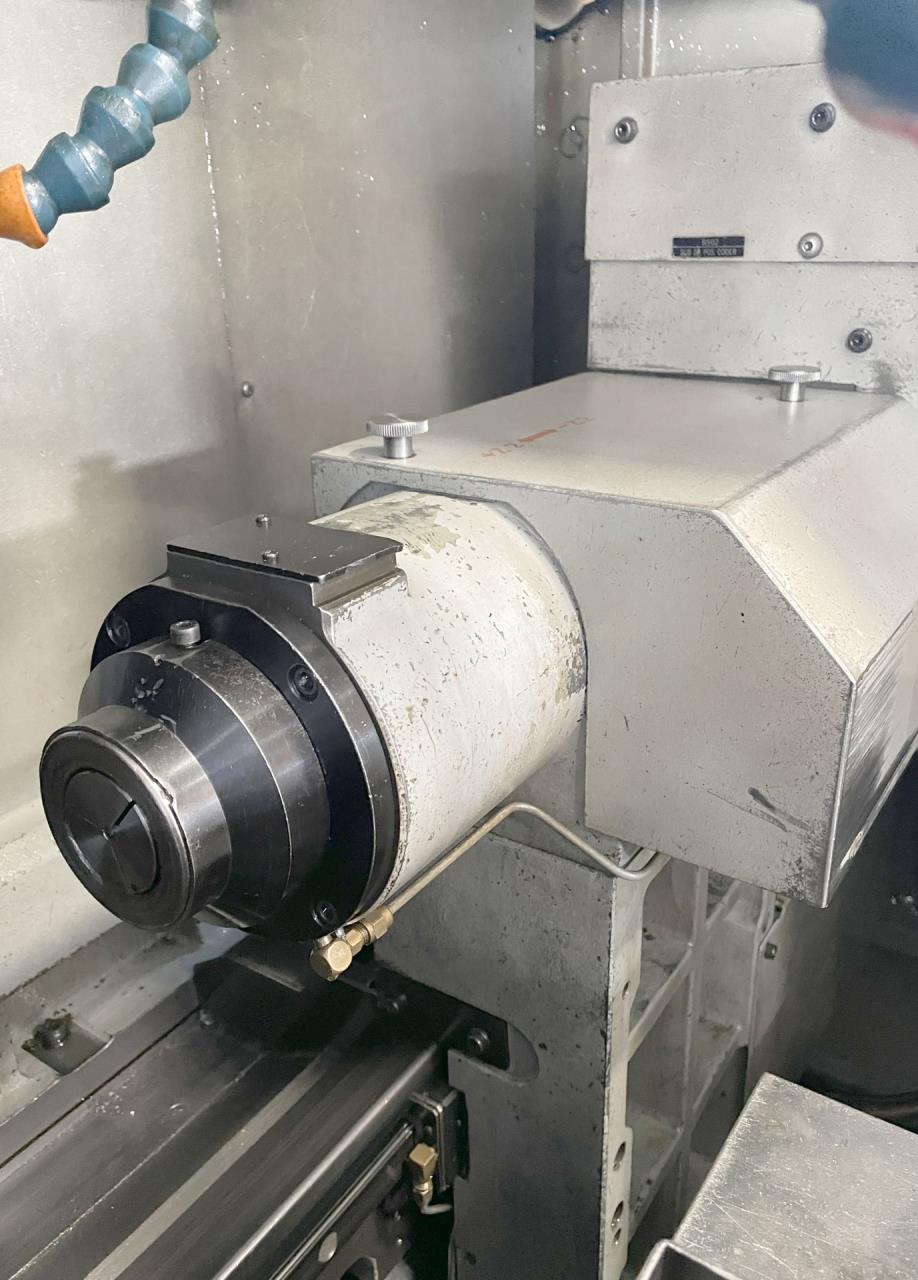

Back spindle:
speeds:
from
280 rpm
up to
7000 rpm
Max. tapping length
150 mm
Thread drill diameter
12 M (Metric)

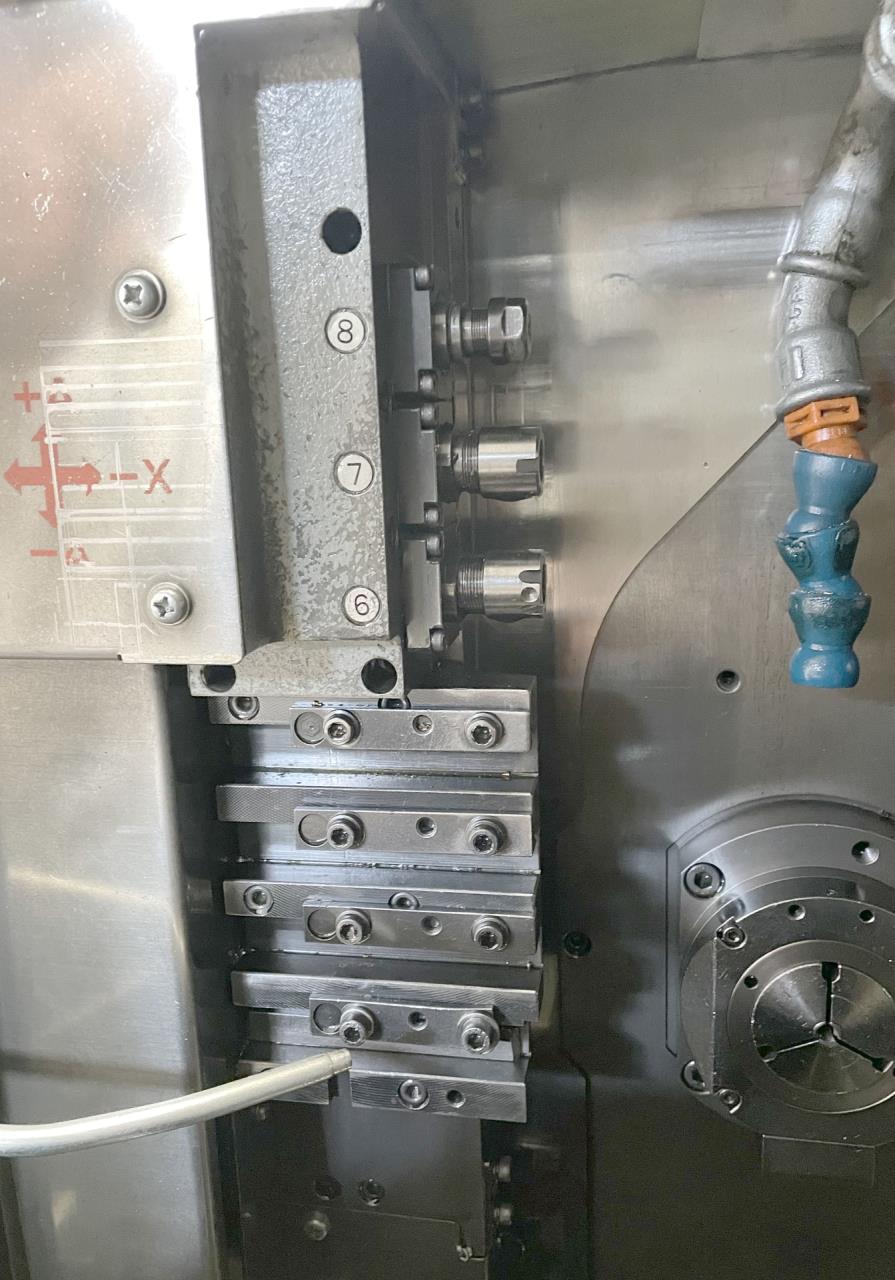

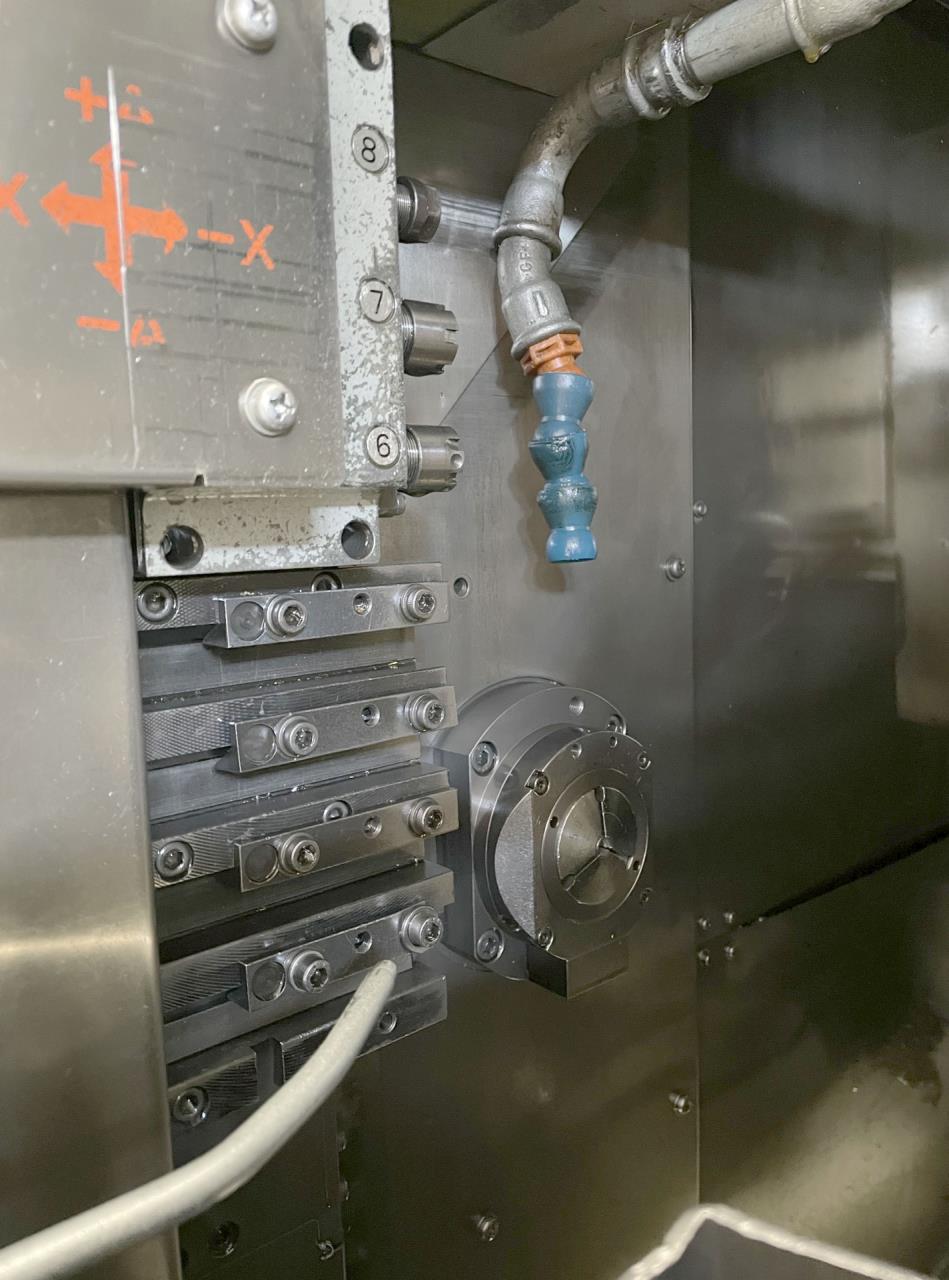

Tool-holder:
numbers
2
Number of stations
7
number of driven tools
3
Turning tools
4 pce
Rapid traverse X
15 m/min
Rapid traverse Y
15 m/min
Rapid traverse Z
18 m/min
Voltage 50 Hz 3x
380 Volt
Power of back spindle
2.2 / 3.7 kW
Air connect
5 bar
Machine's weight about
3800 kg
Overall dimensions machine:
Length
2645 mm
Width
1405 mm
Height
1680 mm
Various accessories:
Spindle blow out (backspindle)

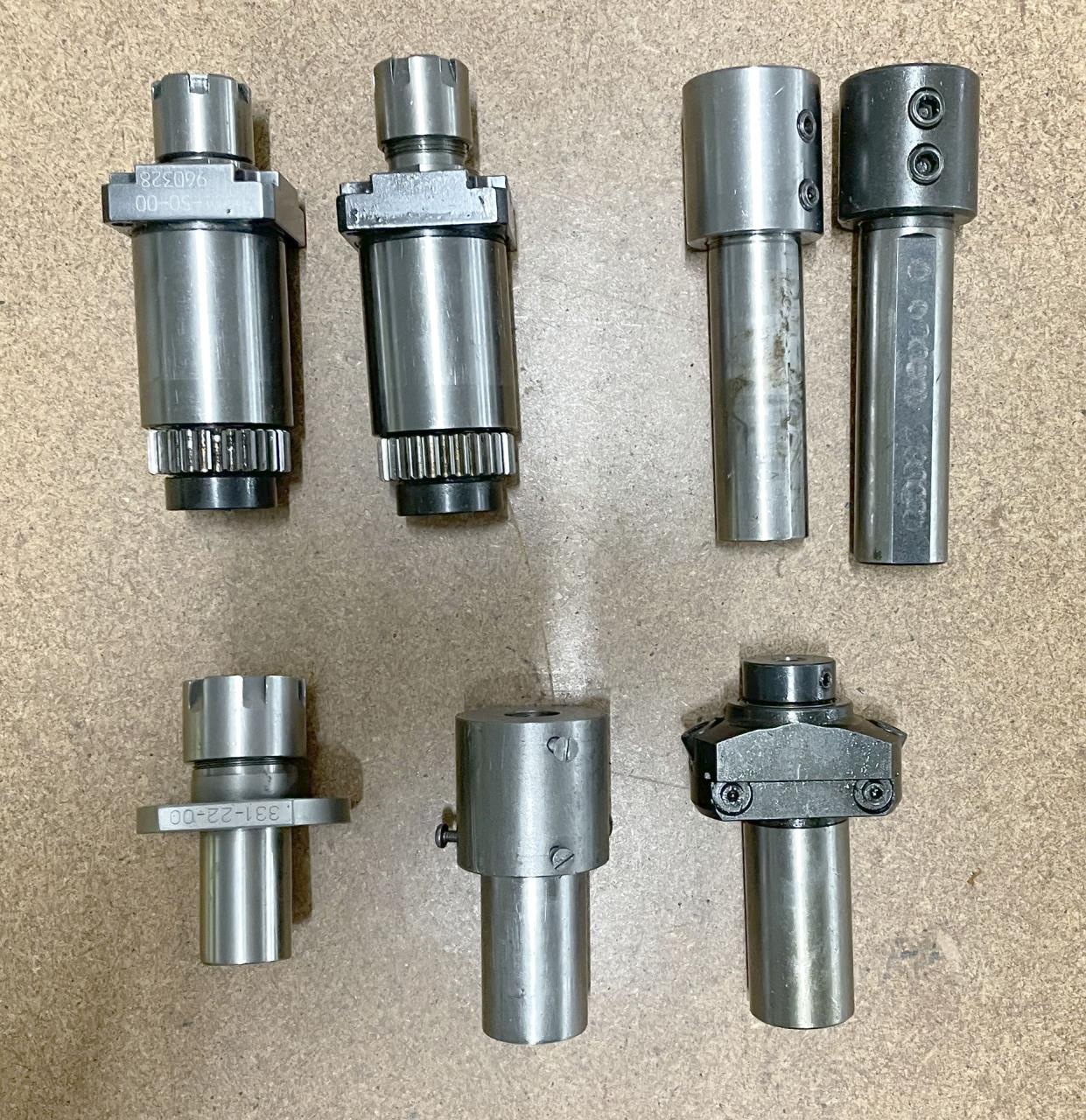

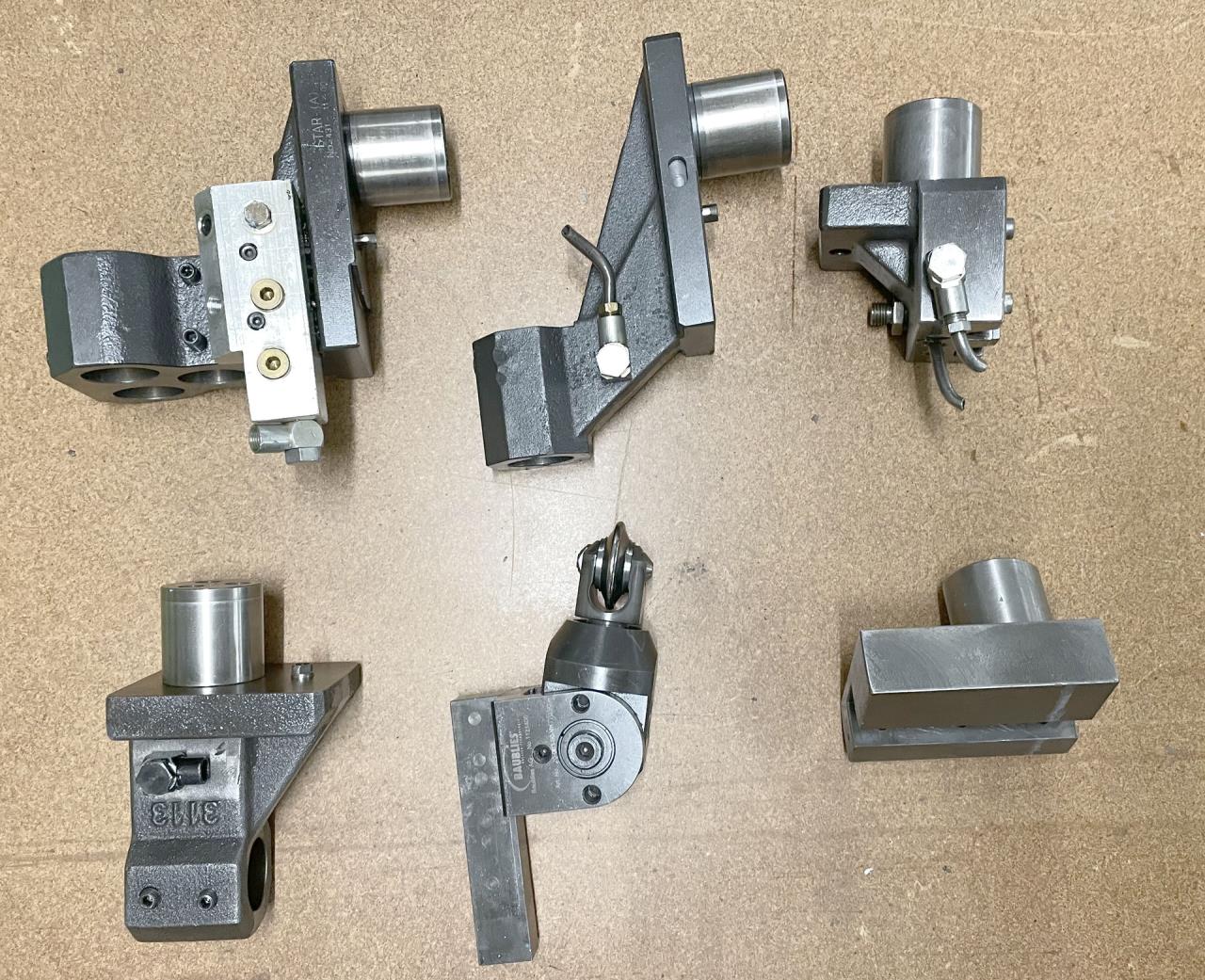

Set of toolholders

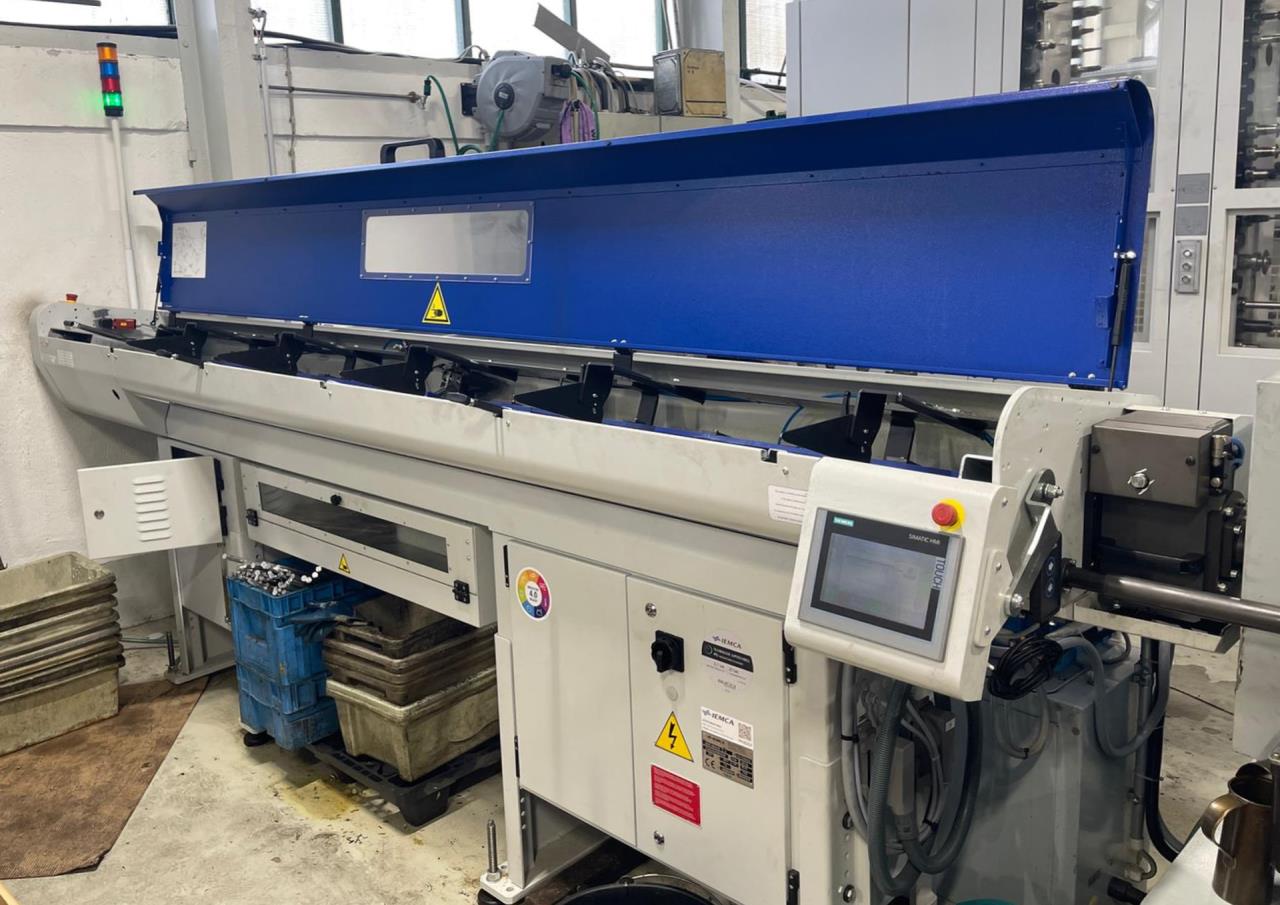

Bar feeder
IEMCA
Type
BOSS 338/32

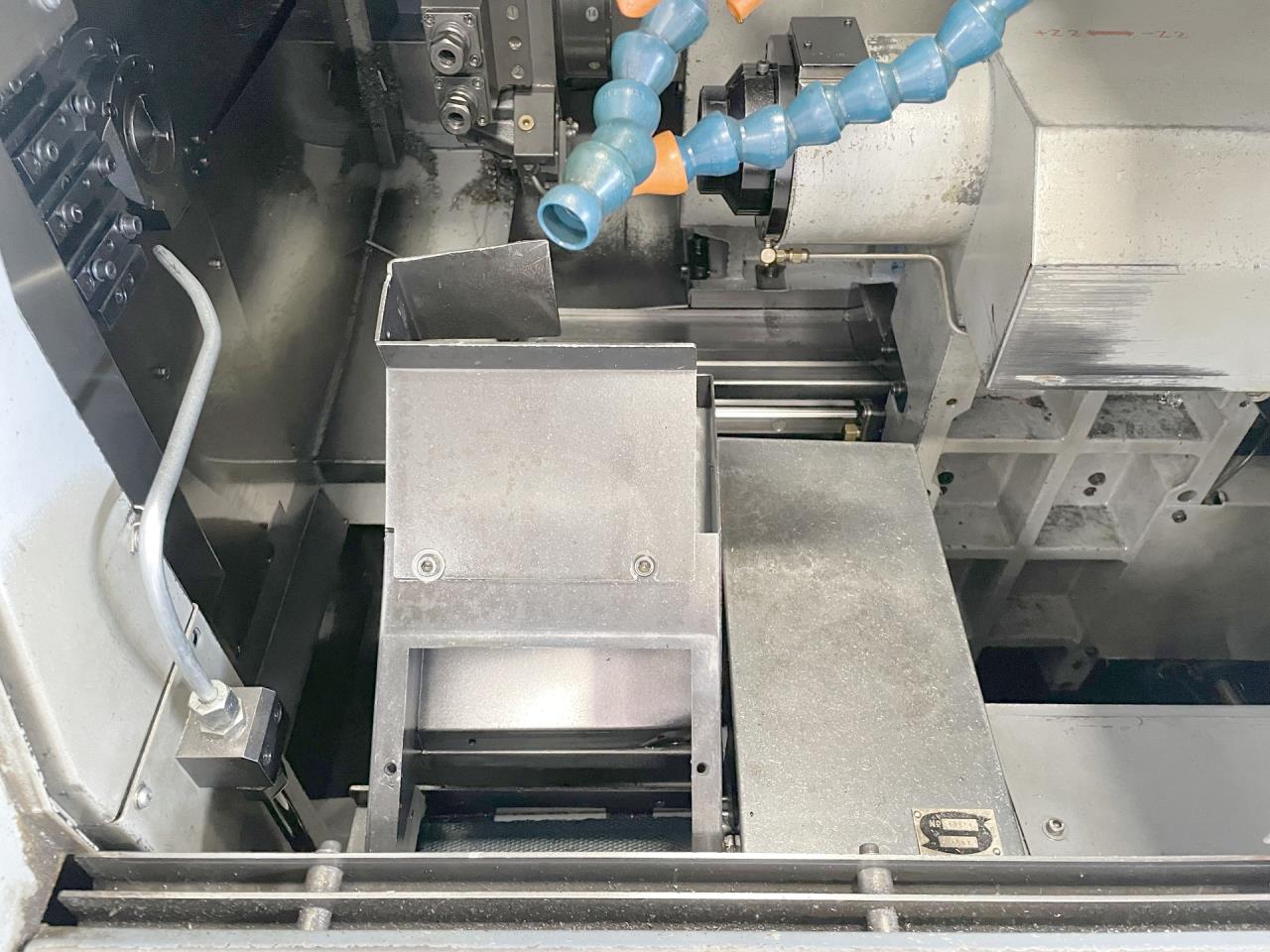

Parts catcher
Workpiece conveyor
Coolant system
180 l

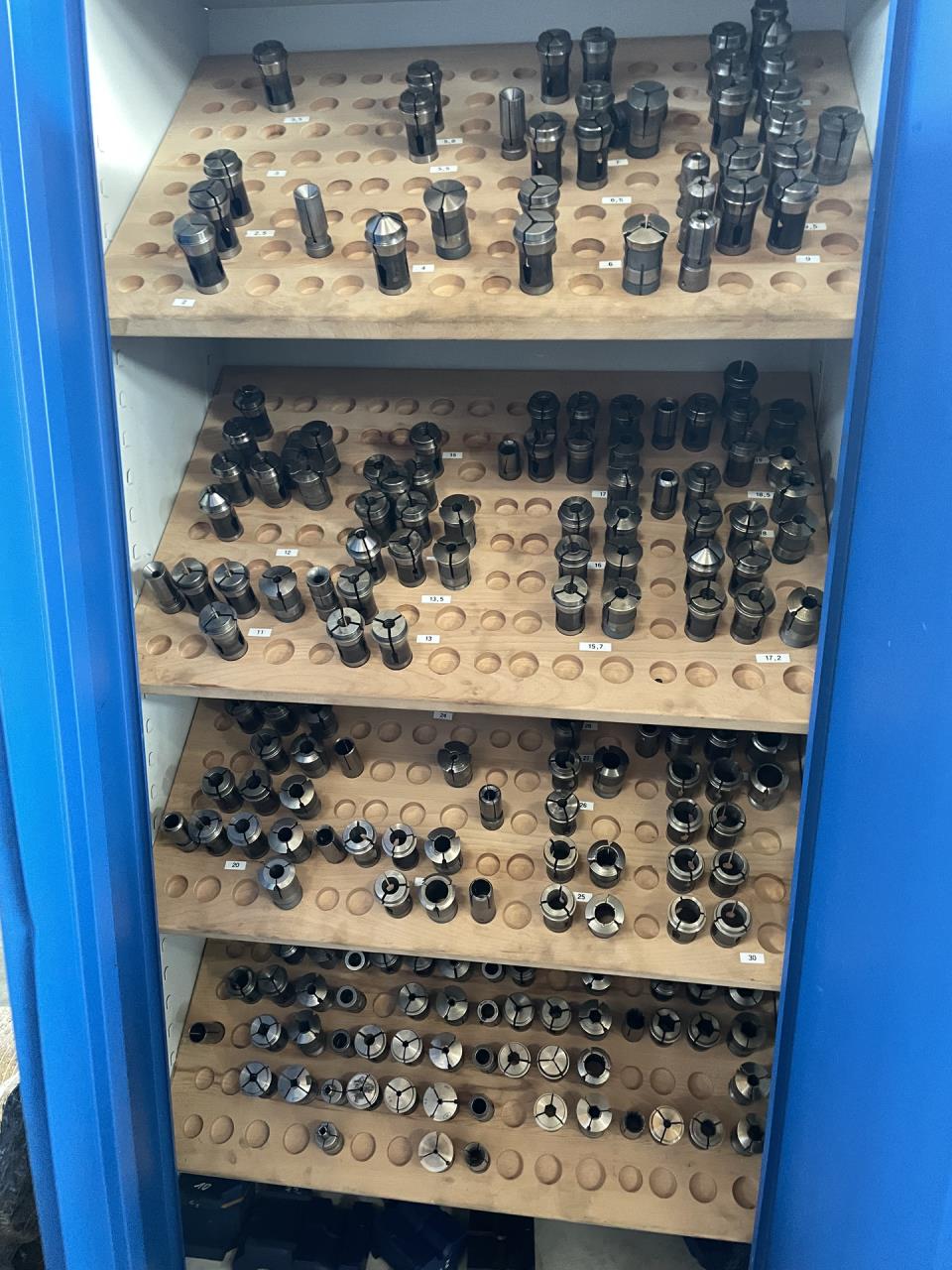

Set of collets
Tool cabinet
Central lubrification
Fire extinguishing system
Status light
Technical specifications and pictures without guarantee.
