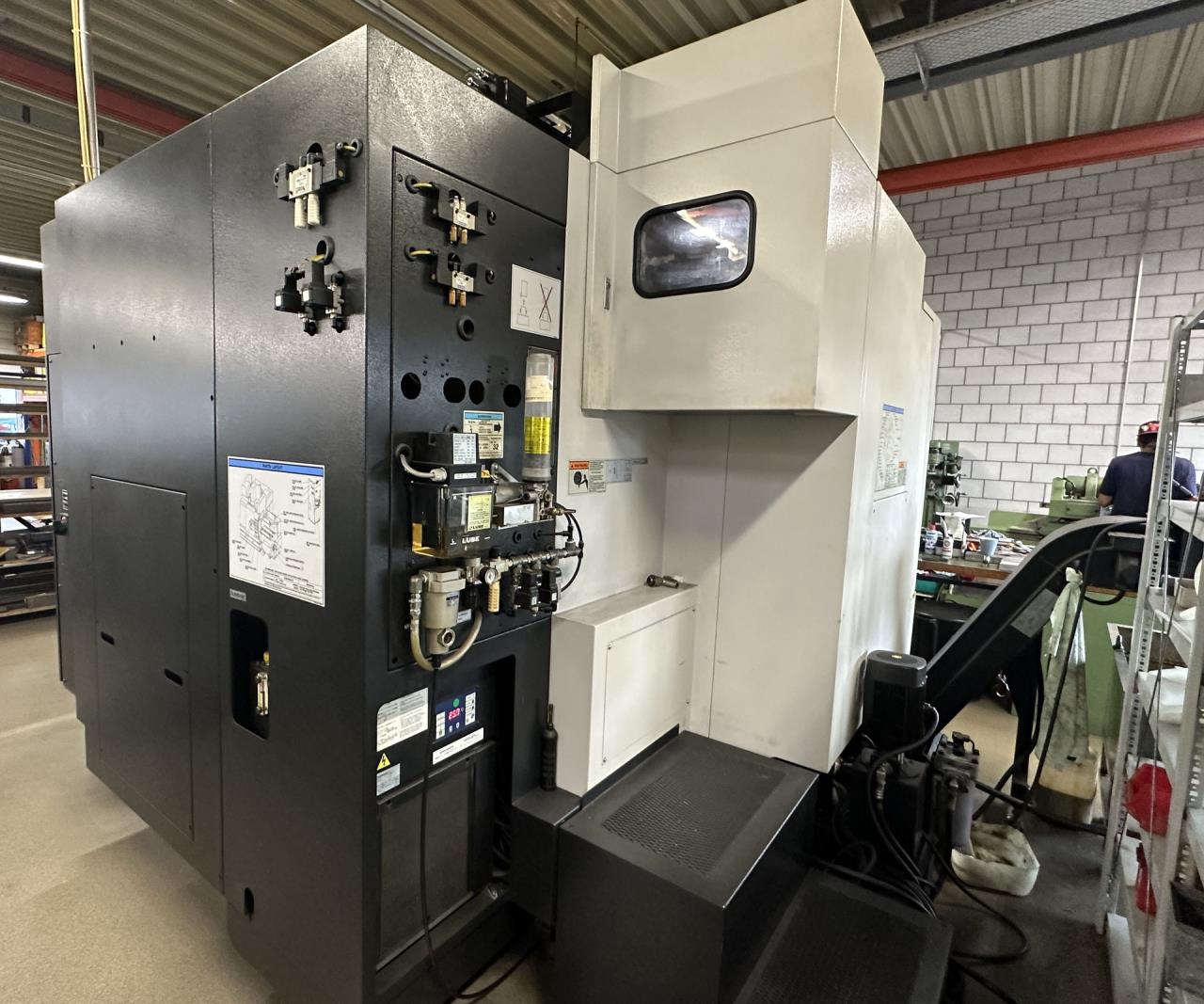

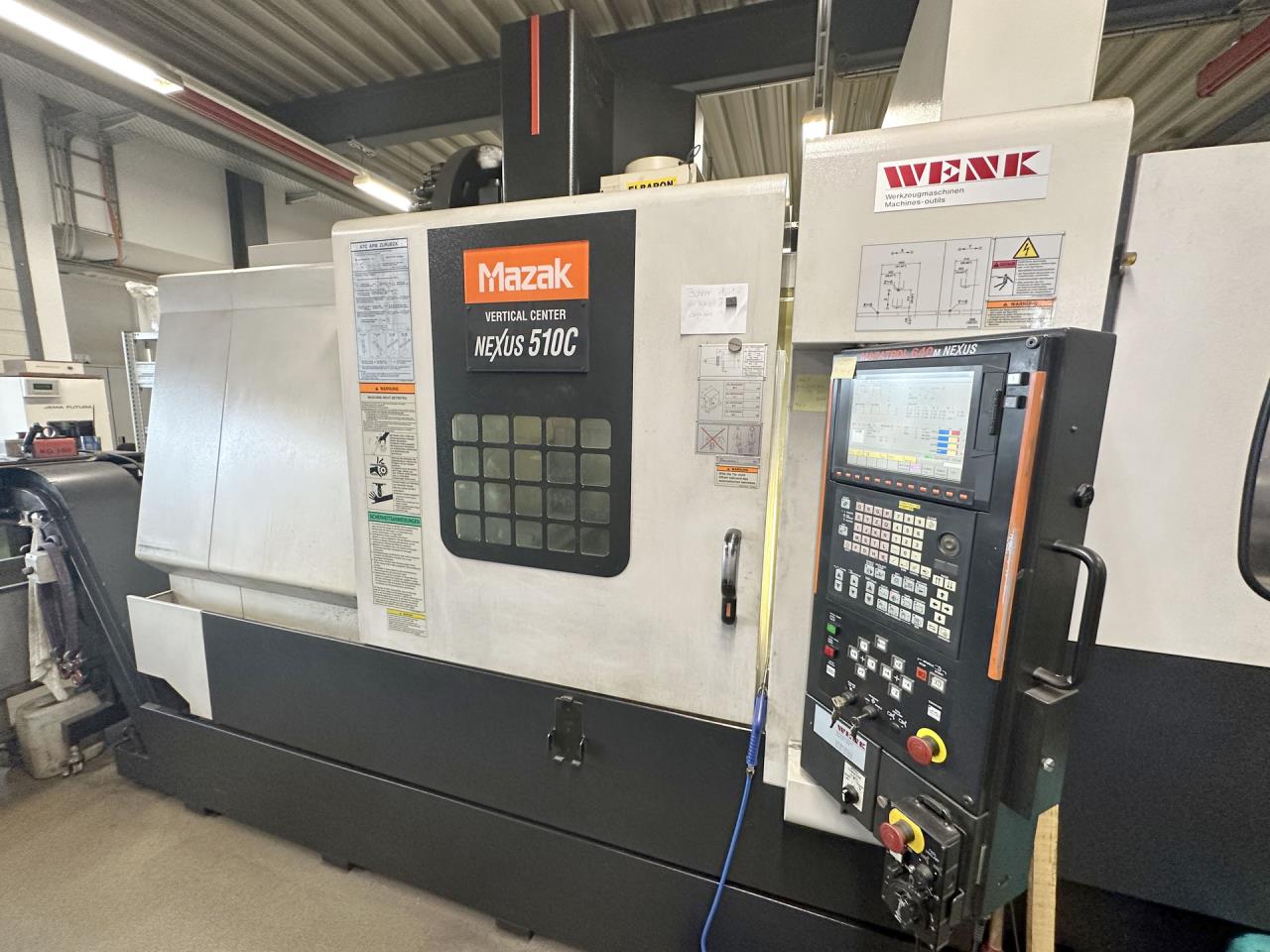

Technical data
Number of axis total
3
Number of tables
2

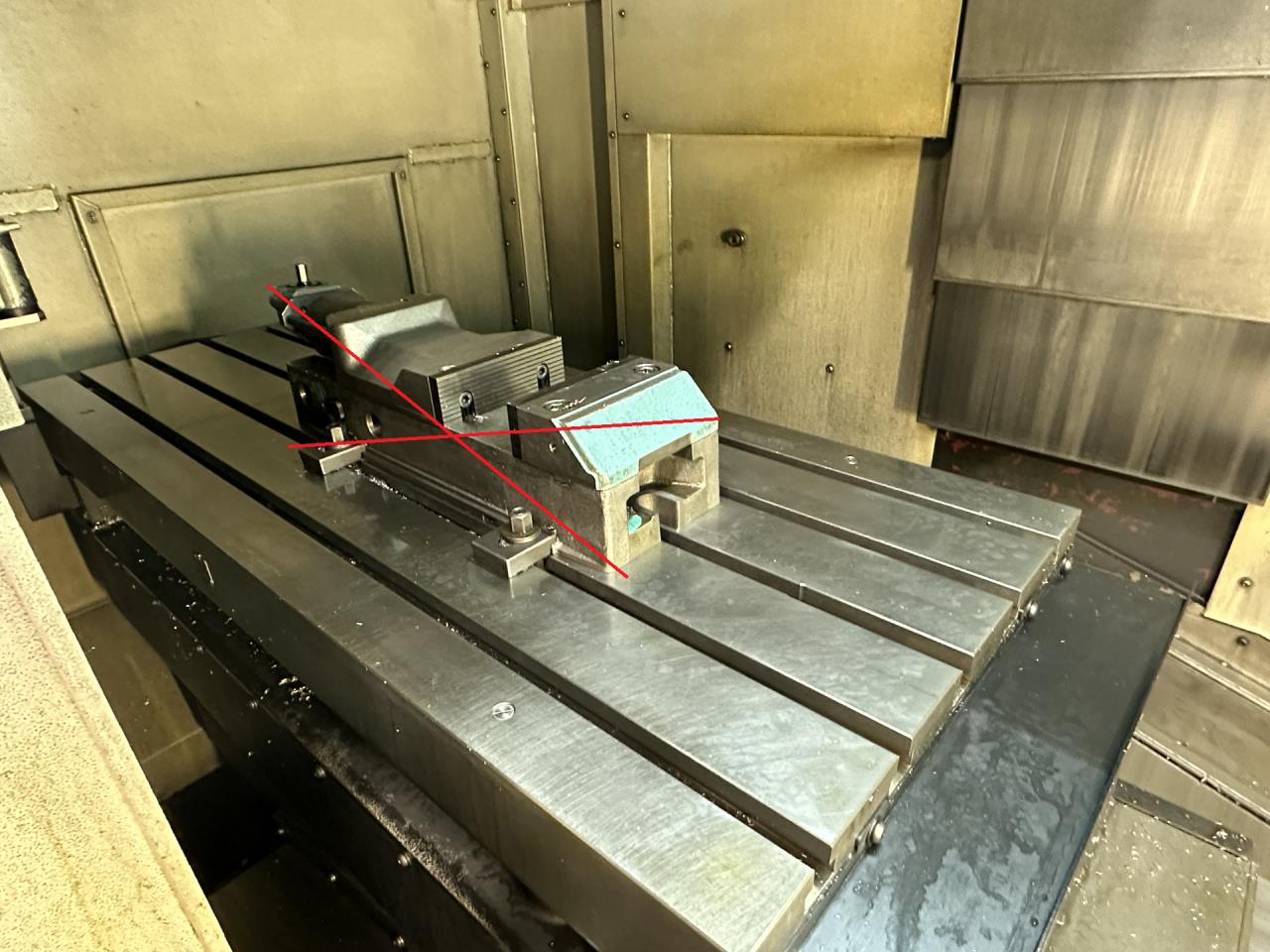

Table length
1300 mm
Table width
550 mm
Number of T-channels
5
Distance of the T-slots
100 mm
T-channel width
18 mm
Table load max.
1200 kg

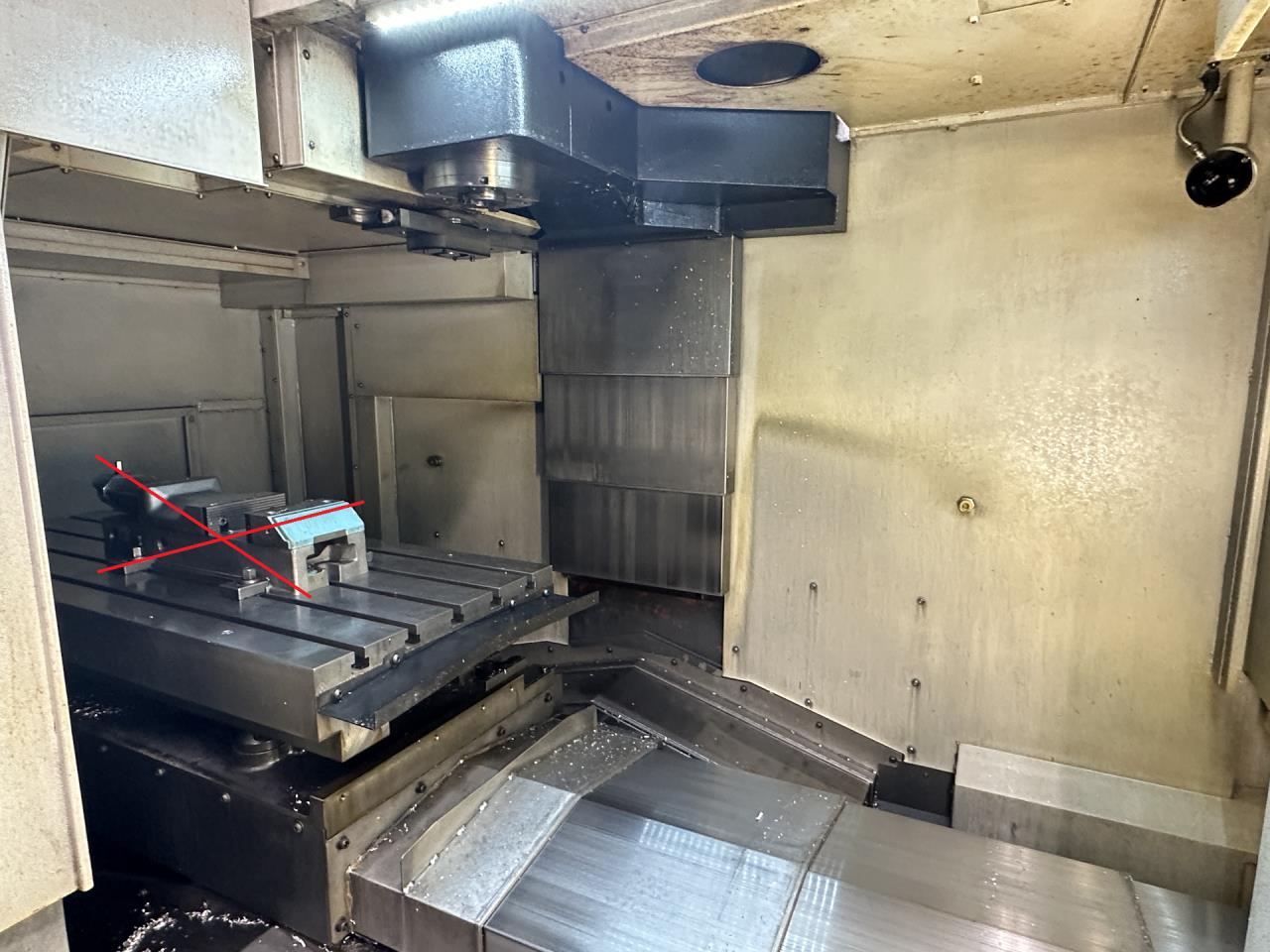

Longitudinal travel (X-axis)
1050 mm
Transversal travel (y-axis)
510 mm
Vertical travel (z axis)
510 mm

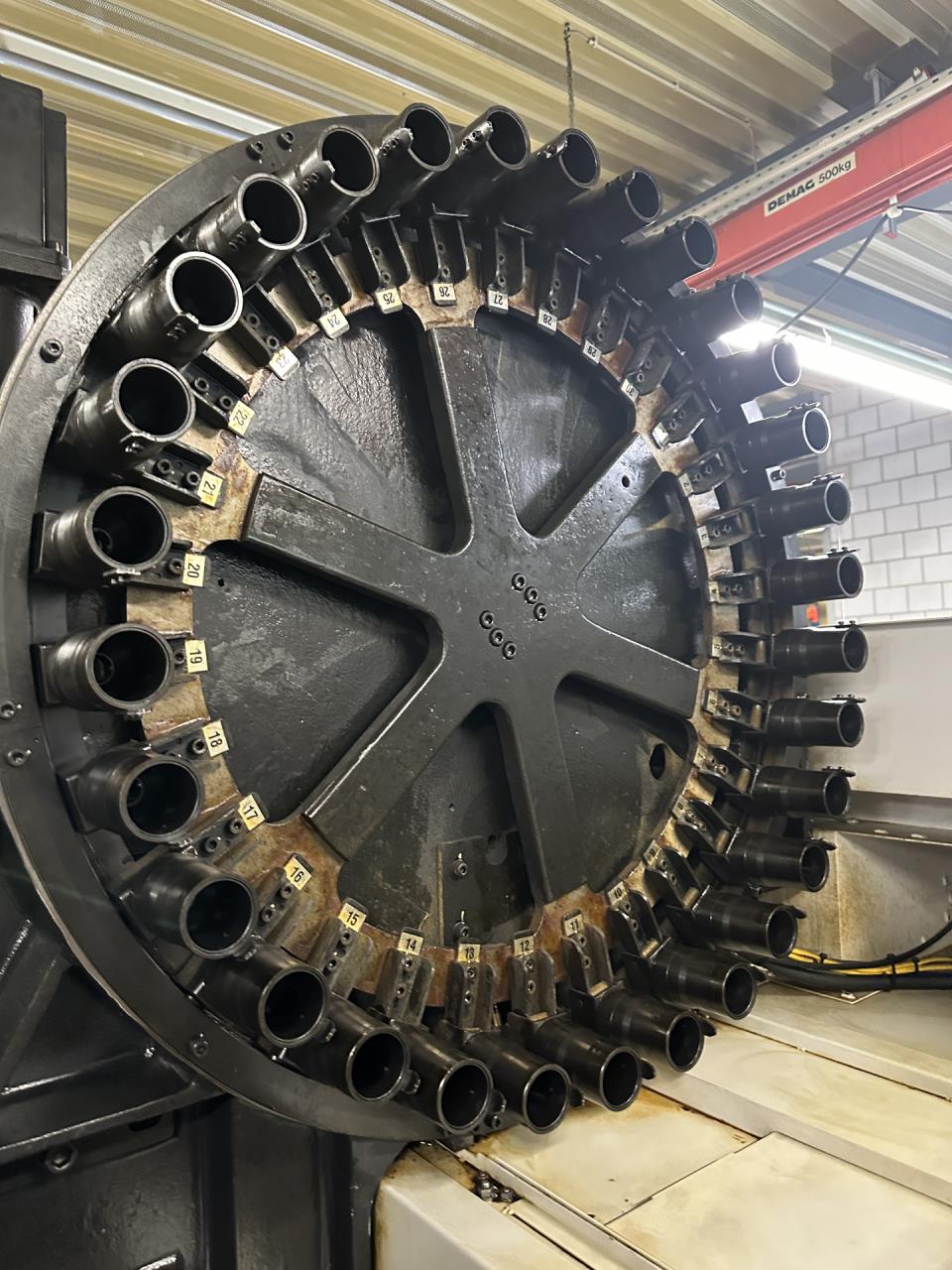

Tool changer:
Number of tools
30
Tool diameter max.
80 mm
Diameter with free adjacent pockets
125 mm
Tool lenght
350 mm
Max. tool-weight
8 kg
Average chip-to-chip time
2.9 sec

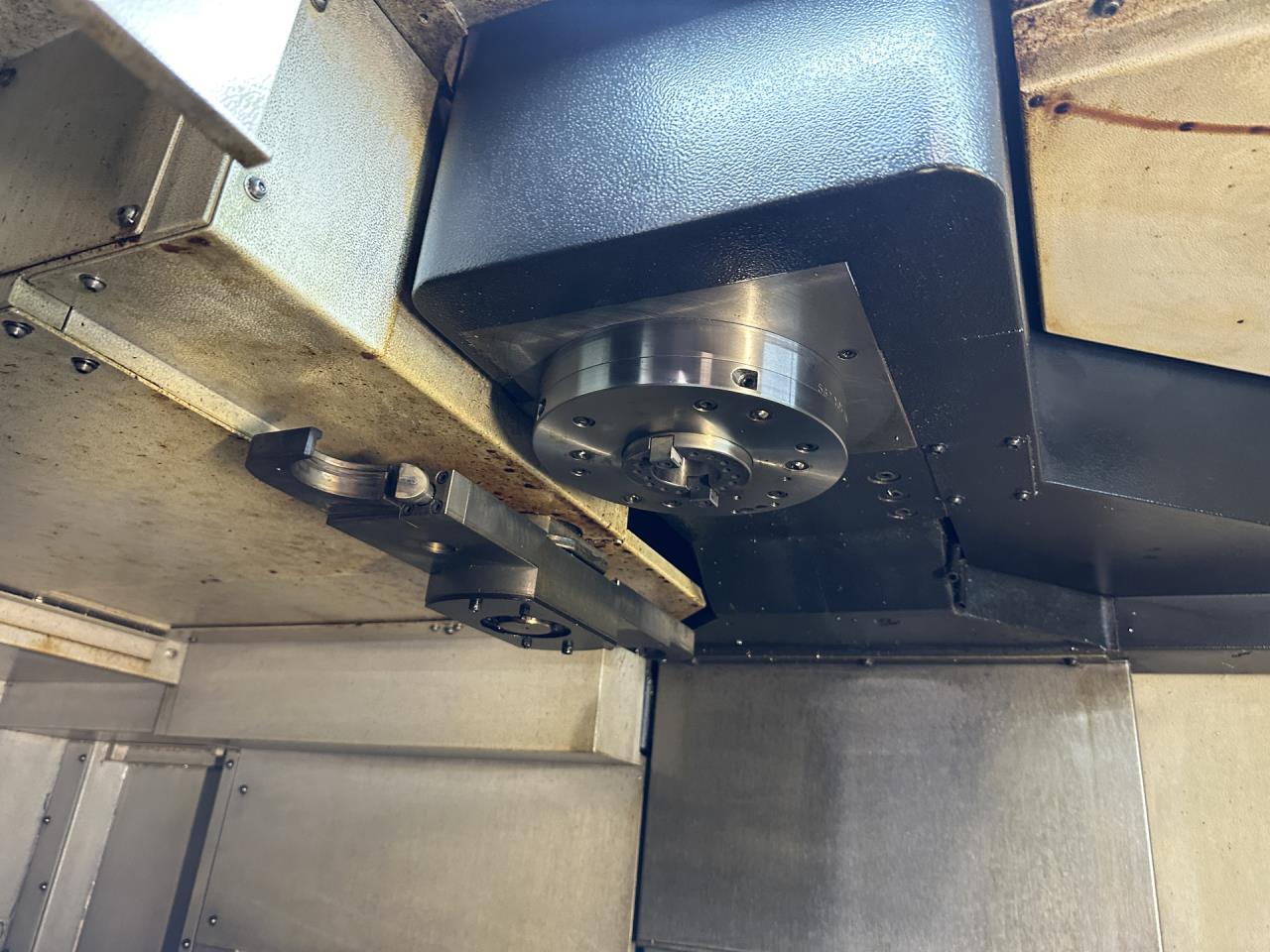

Spindle nose: ISO
40
Distance spindle nose to table
150 - 660 mm
Spindle speeds:
stepless
from
35 rpm
up to
12000 rpm
Feed range
1 - 8000 mm/min
Rapid traverse:
36 m/min
Air connect
5 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
18.5 / 7.5 kW
Total power required
32 kVA
Machine's weight about
6900 kg
Overall dimensions machine:
Length
2880 mm
Width
2835 mm
Height
2783 mm
Various accessories:
Linear scale system (X-,Y-,Z-axis)

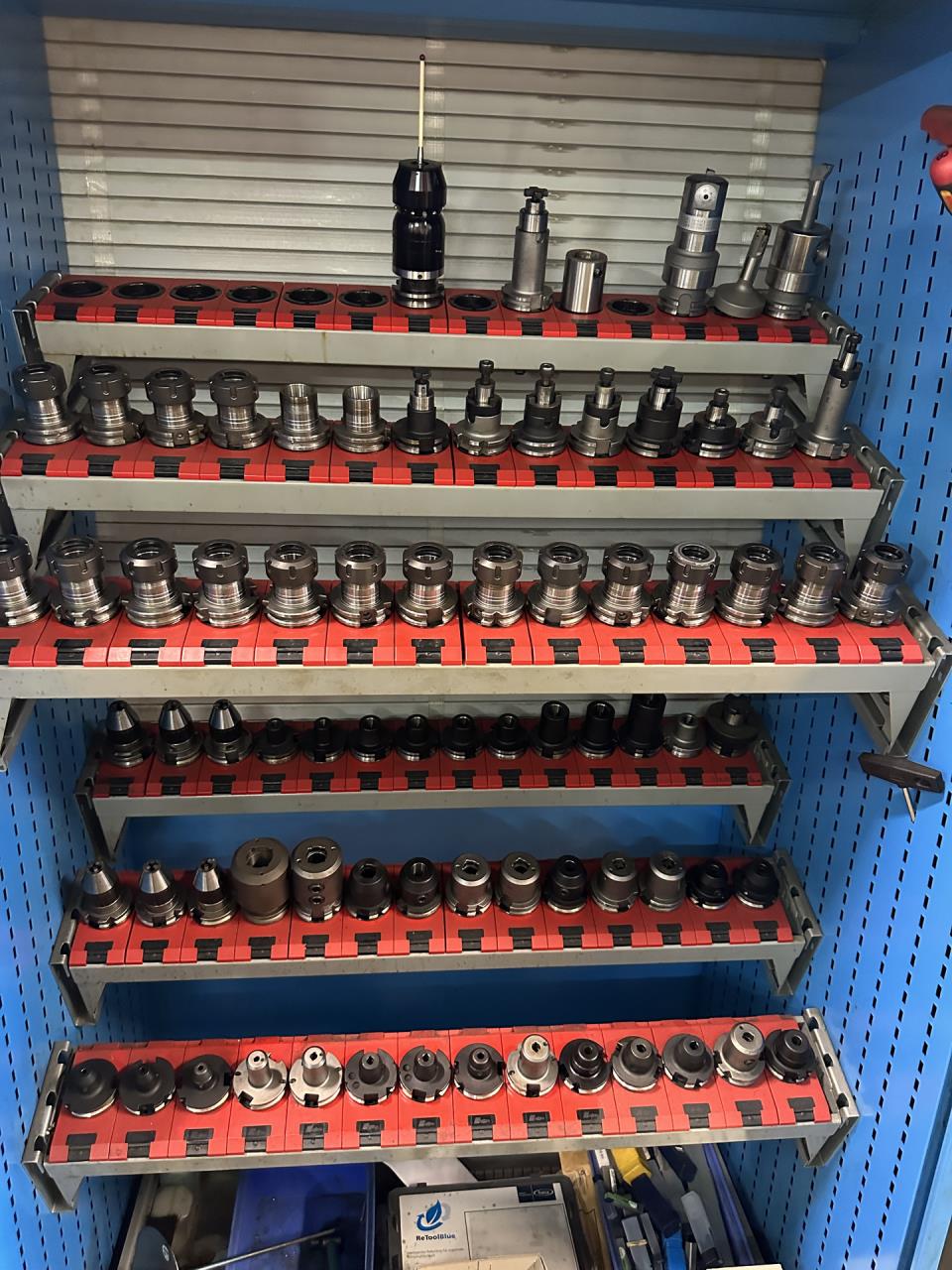

Set of toolholders

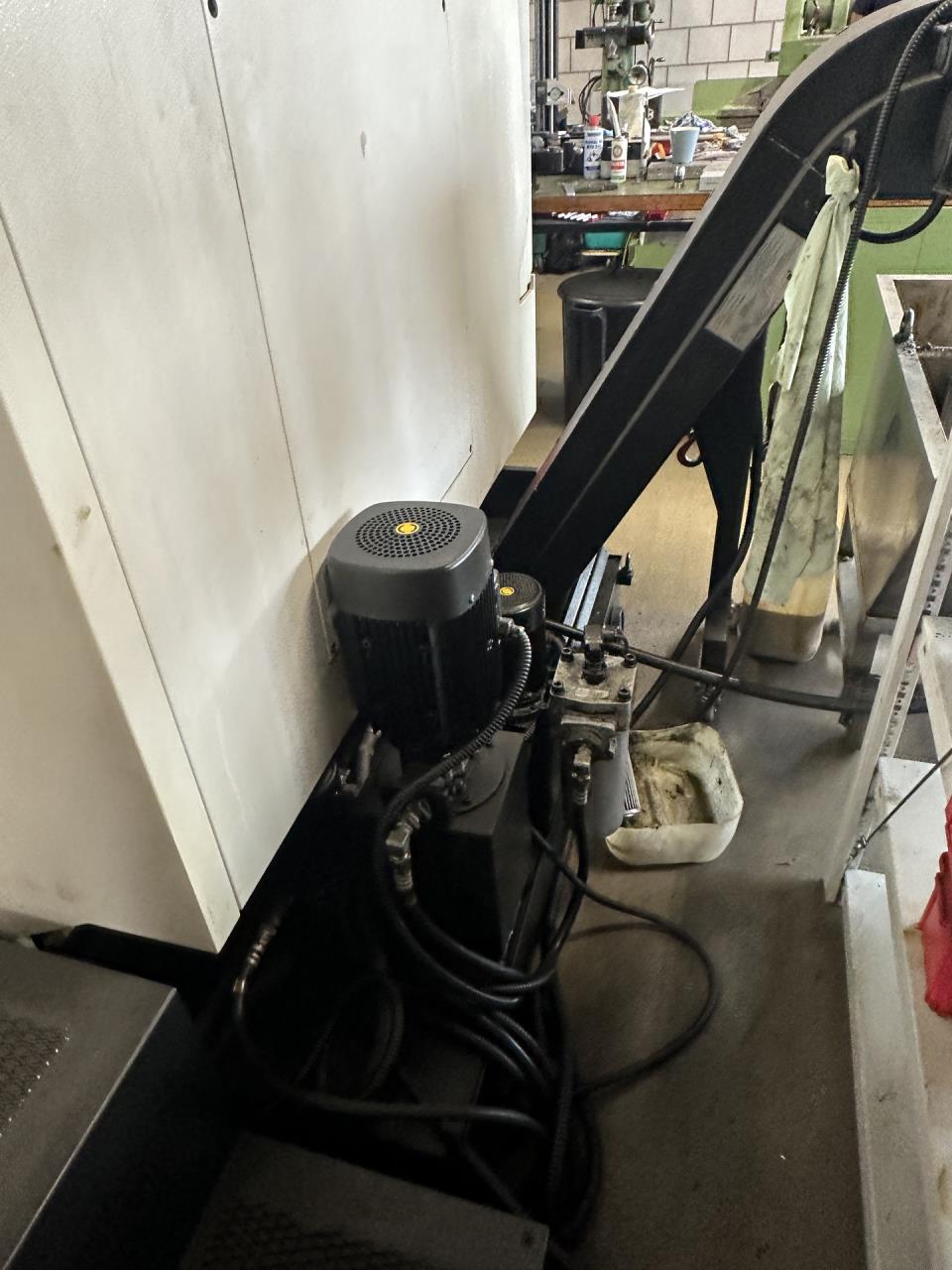

Coolant system
250 l
Coolant through spindle (cts)
15 bar

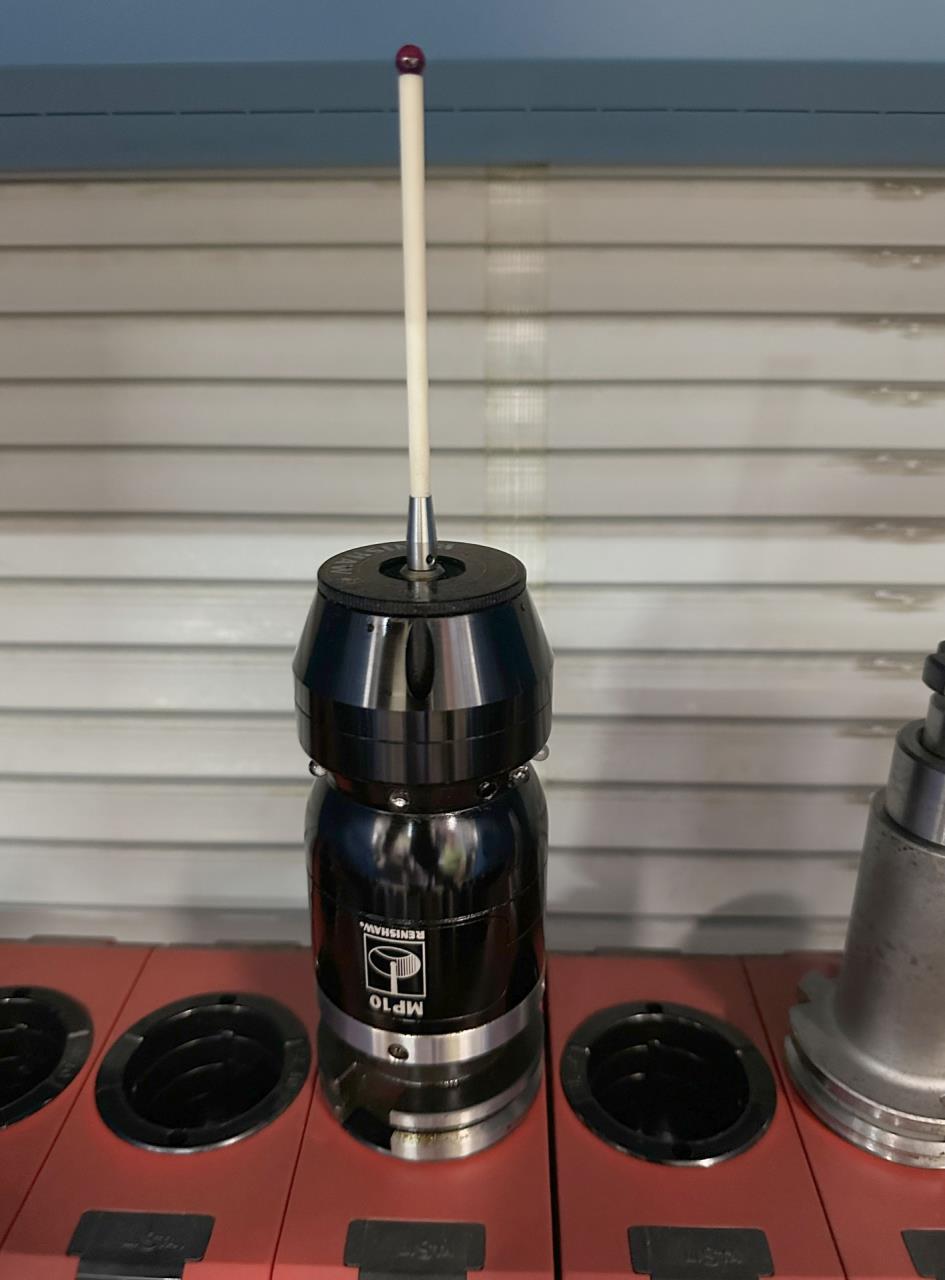

Measuring feeler gauge Renishaw
Tool break control
Chip conveyor

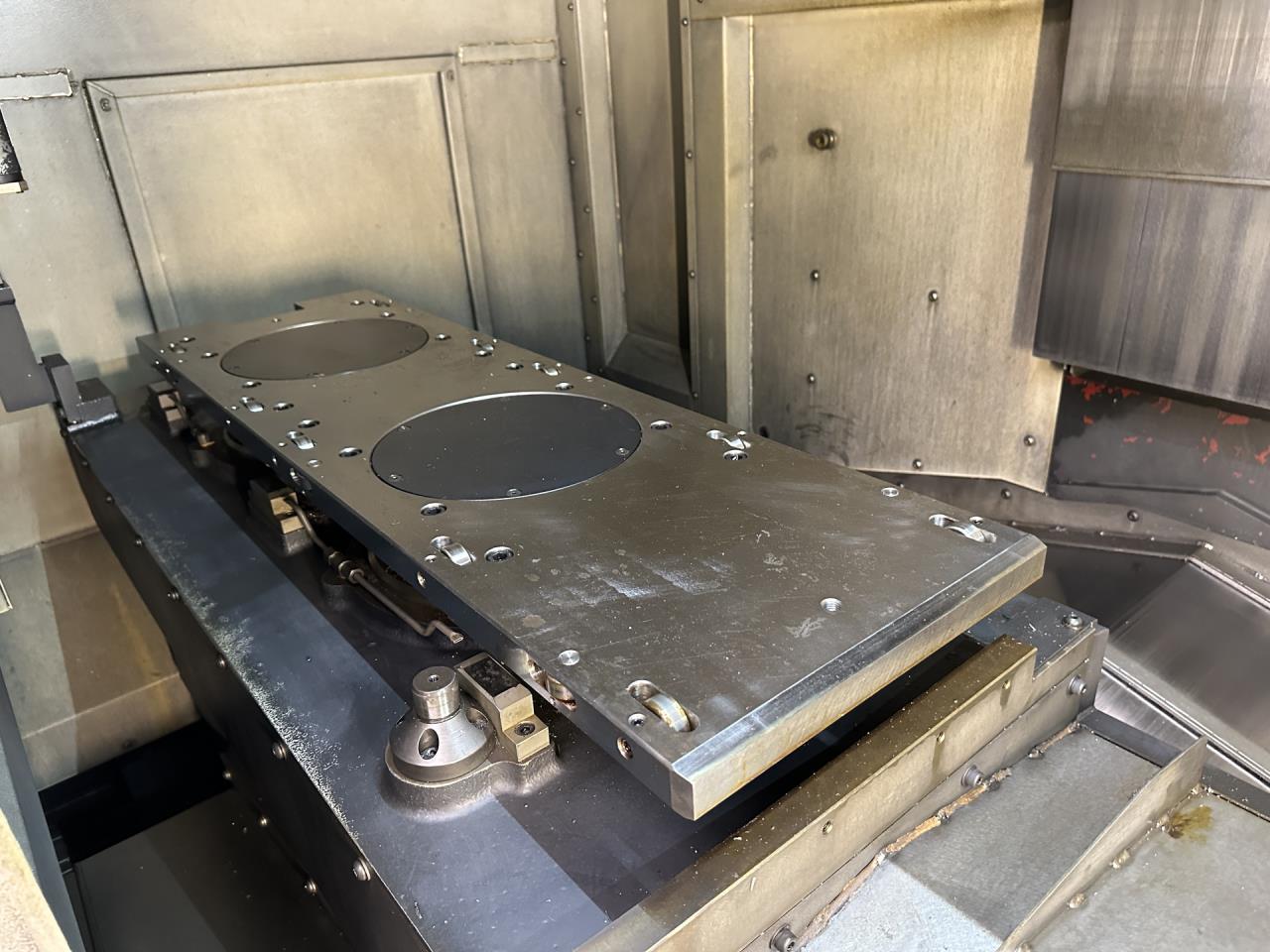

2-way pallet changer
Lamp
Oil mist extractor
Tool measuring device
Automatic switch off

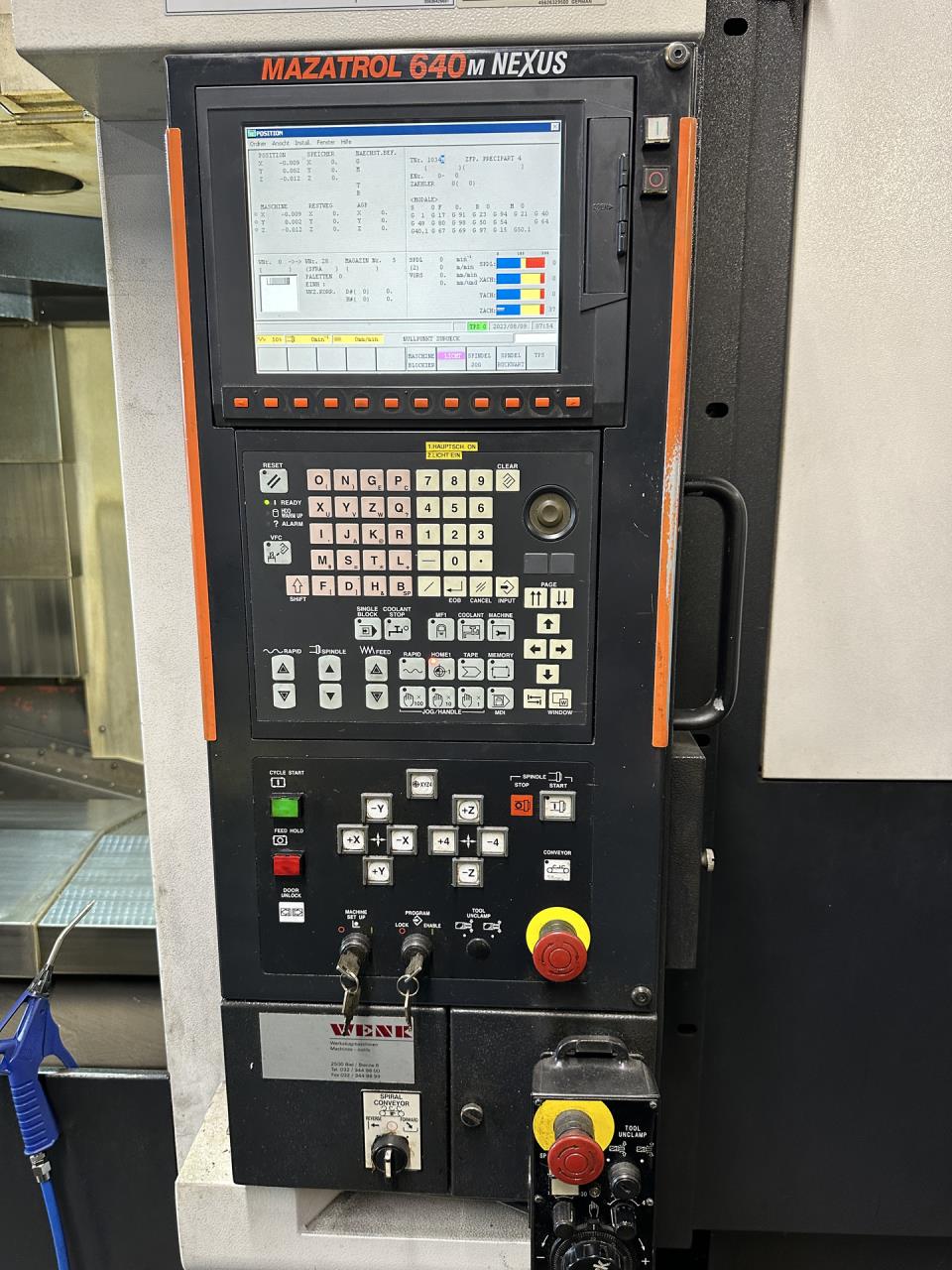

Interface PCMCIA card
Synchronized tapping
Technical specifications and pictures without guarantee.
