stock no. :
22529
Machine's group :
Type :

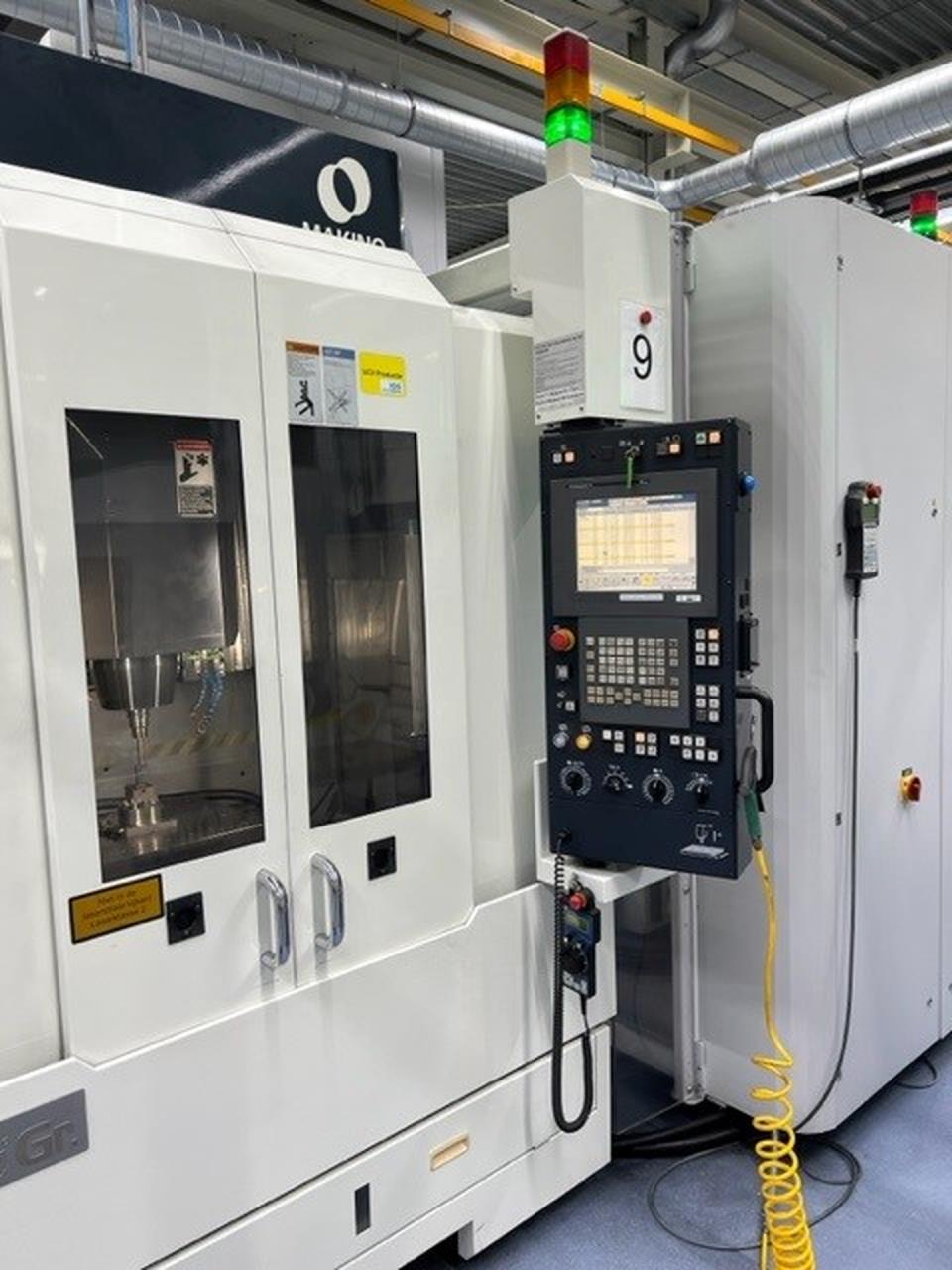

MAKINO V 33i Graphite
Controller :
MAKINO PROFESIONAL 5
Jahrgang :
2014
Technical data
Spindle run time
50952 Hour
Number of axis total
3
Table length
750 mm
Table width
450 mm
Number of T-channels
4
Distance of the T-slots
100 mm
T-channel width
18H8 mm
Table load max.
300 kg
Longitudinal travel (X-axis)
650 mm
Transversal travel (y-axis)
450 mm
Vertical travel (z axis)
350 mm
Dimension of the workpice:
Length
750 mm
Width
635 mm
Height
250 mm
Tool magazine number of tool places
60
Tool diameter max.
80 mm
Tool lenght
250 mm
Max. tool-weight
7 kg
Time of tool changing
4.8 sec
Spindle nose: HSK
E50
Distance spindle nose to table
150 - 500 mm
Spindle speeds:
stepless
from
300 rpm
up to
30000 rpm
Torque max.
23.1 Nm
Feed range
1 - 20000 mm/min
Rapid traverse:
20 m/min
Air connect
4 - 8 bar
Voltage 50 Hz 3x
400 Volt
Spindle power
17/13 kW
Total power required
50 kVA
Machine's weight about
8200 kg
Overall dimensions machine:
Length
3150 mm
Width
2600 mm
Height
2800 mm
Various accessories:
High column z-axis
100 mm
Handwheel electroinic
Lamp
Air dryer
Automatic setting tool
MARPOSS
Automatic non-contact measuring device
BLUM
Spindlecooling
Coolant temperature controller
Automatic sliding door
Interface Ethernet
Interface USB
Loader interface
Status light
Notes:
Spindle refurbished
2022
Technical specifications and pictures without guarantee.
