Technical data
Table length
1360 mm
Table width
590 mm
Number of T-channels
1
T-channel width
16 mm
Grinding length
800 mm
Grinding width
600 mm
Grinding height
400 mm
Table load max.
900 kg
Longitudinal travel (X-axis)
900 mm
Cross travel (z-axis)
540 mm
Vertical travel (Y-axis)
400 mm
Automatic longitudinal feeds:
stepless
from
0 m/min
up to
26 m/min
Automatic cross-feed:
stepless
from
0 mm/min
up to
2000 mm/min
Automatic Vertical feed:
stepless
from
0 mm/min
up to
300 mm/min
Grinding wheel speeds fix
1440 rpm
Diameter of grinding wheel
400 mm
Width of the grinding wheel
100 mm
Drilling cap. of grind.wheel
127 mm
Spindle cone
60 mm
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
20 kW
Total power required
18.5 kW
Machine's weight about
5400 kg
Overall dimensions machine:
Length
3800 mm
Width
2900 mm
Height
2500 mm

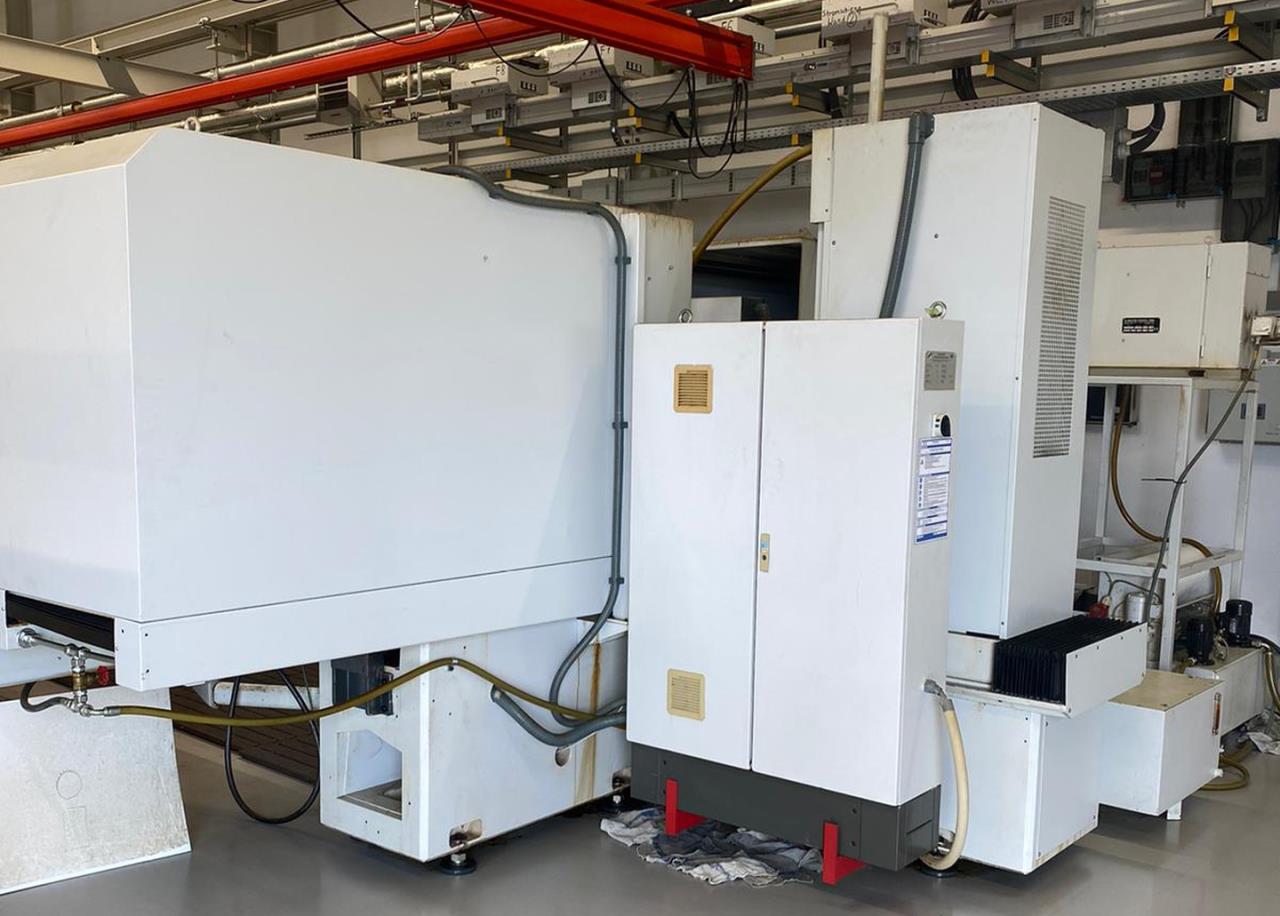

Dimensions electric cabinet:
Length
1200 mm
Width
500 mm
Height
1900 mm
Various accessories:

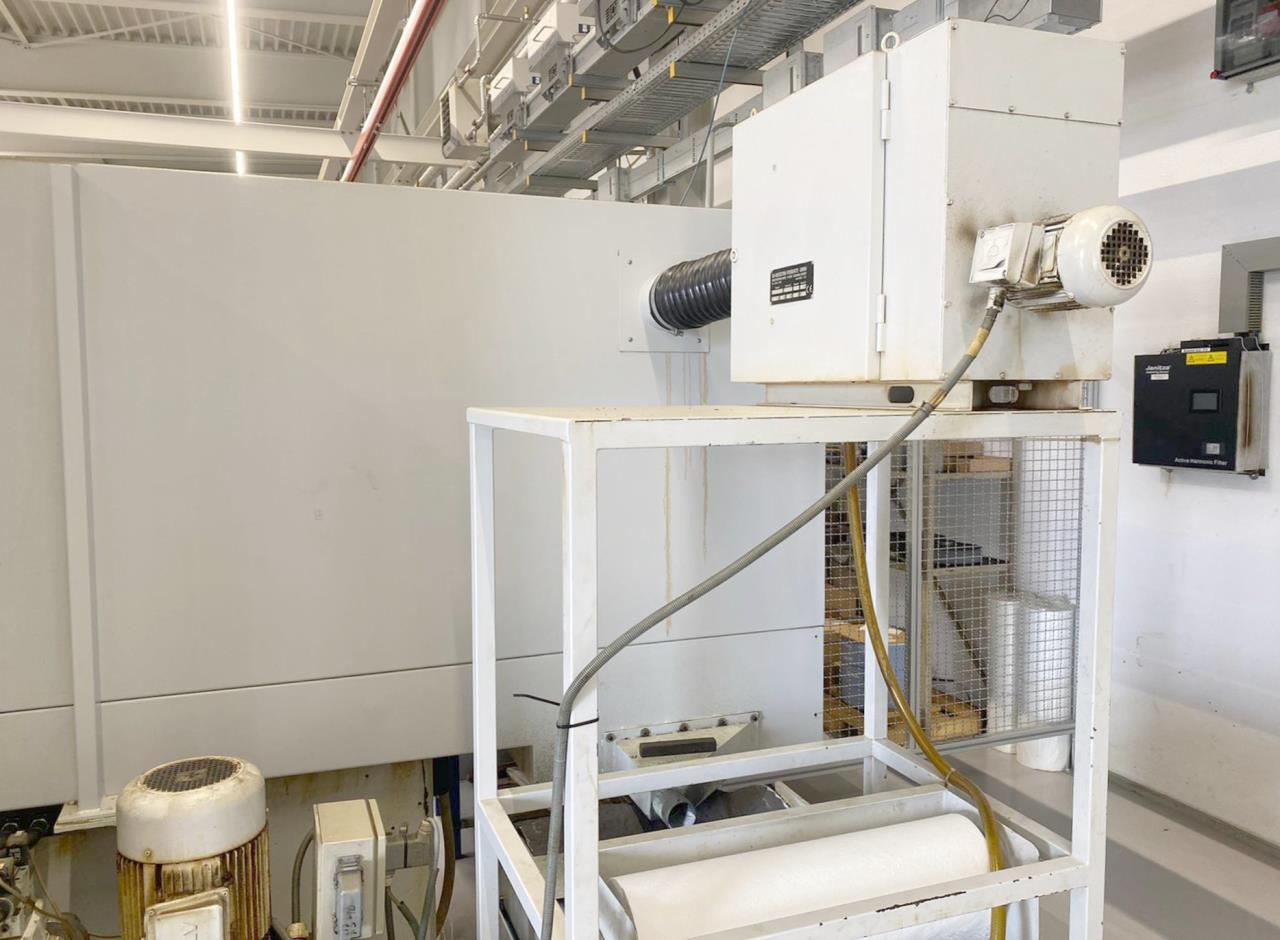

Paper filtration system

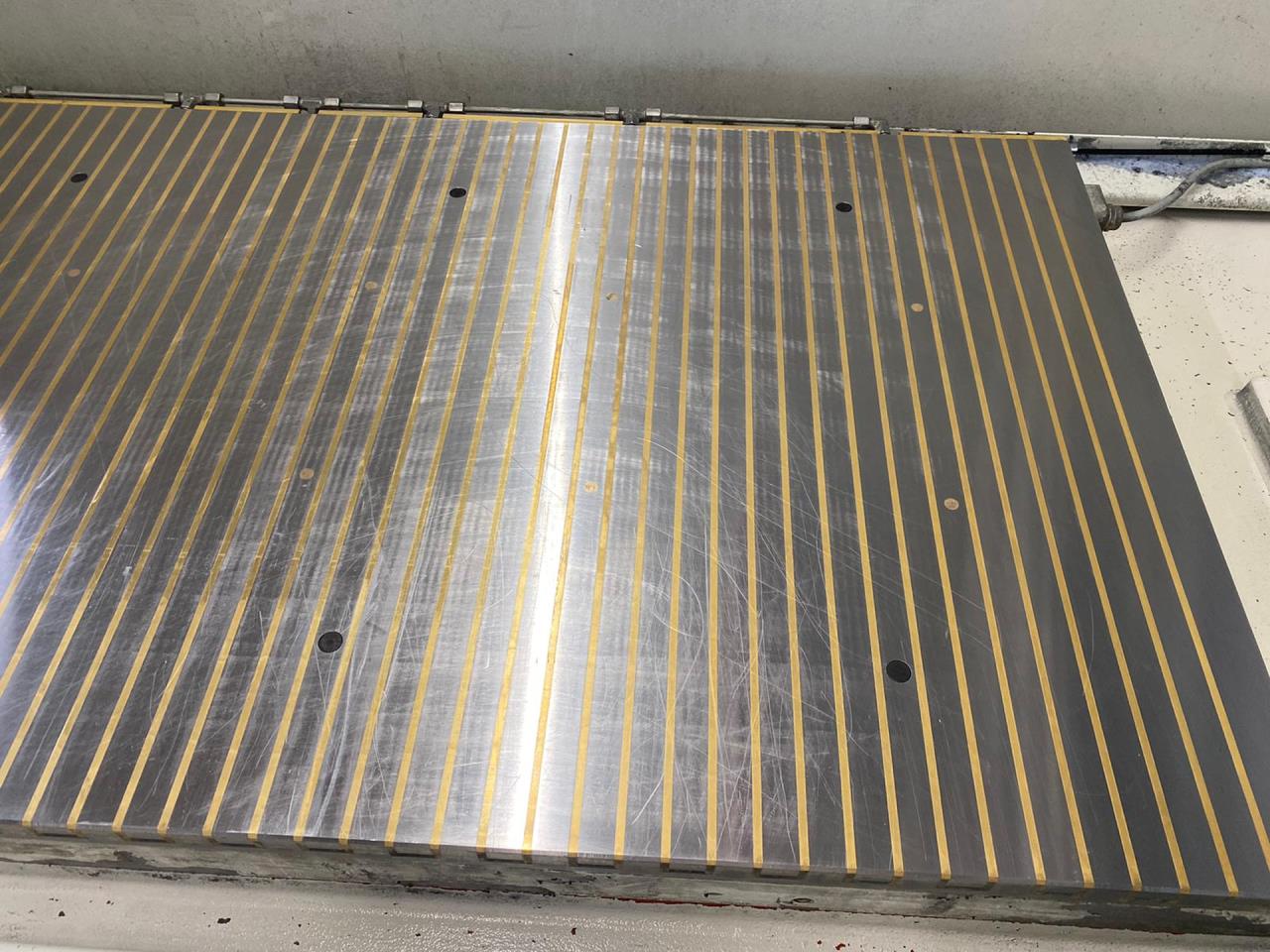

Electrical magnetic chuck
Length
1200 mm
Width
600 mm
Redressing device
Lamp
Central lubrification
Technical specifications and pictures without guarantee.
