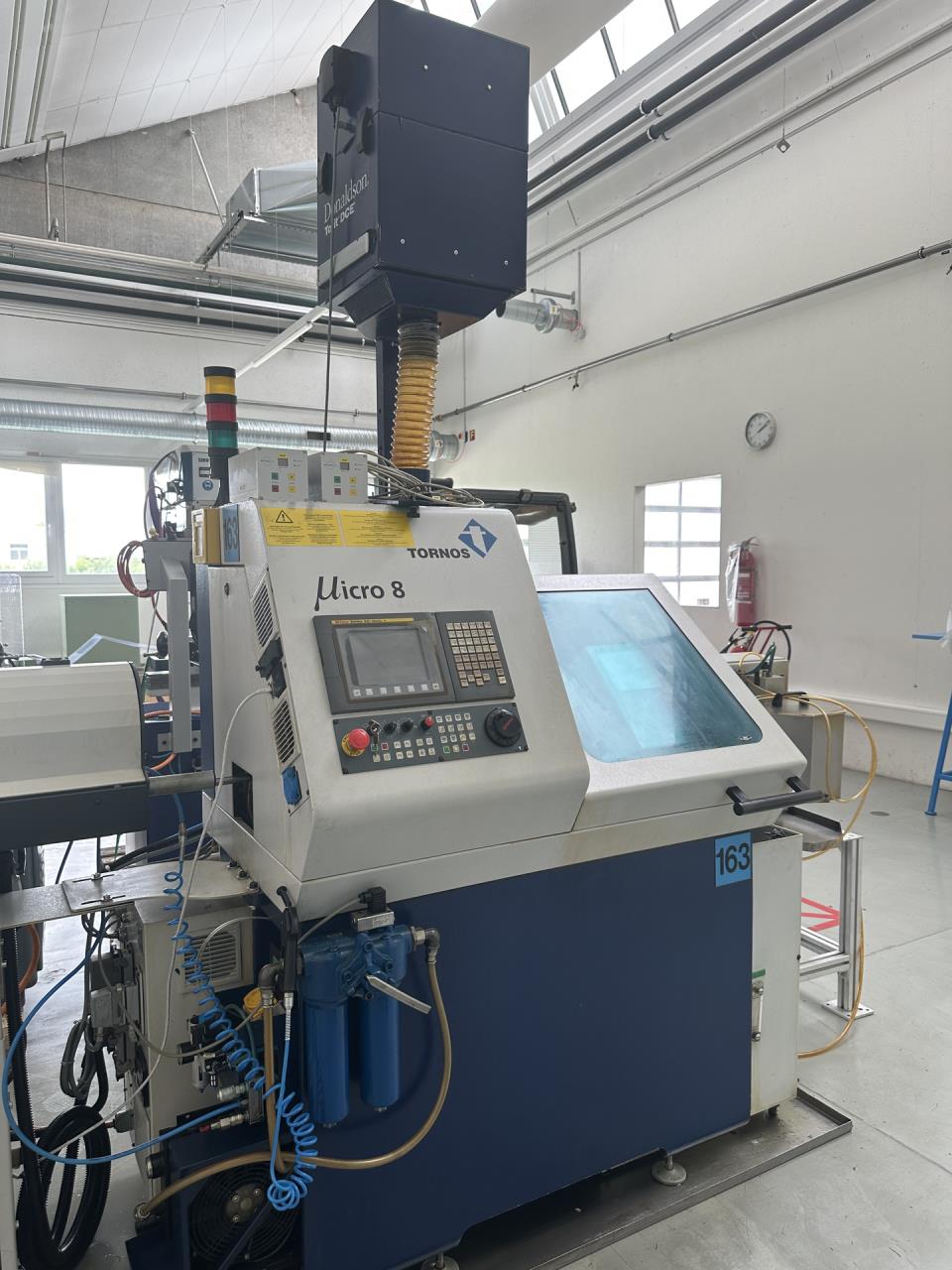

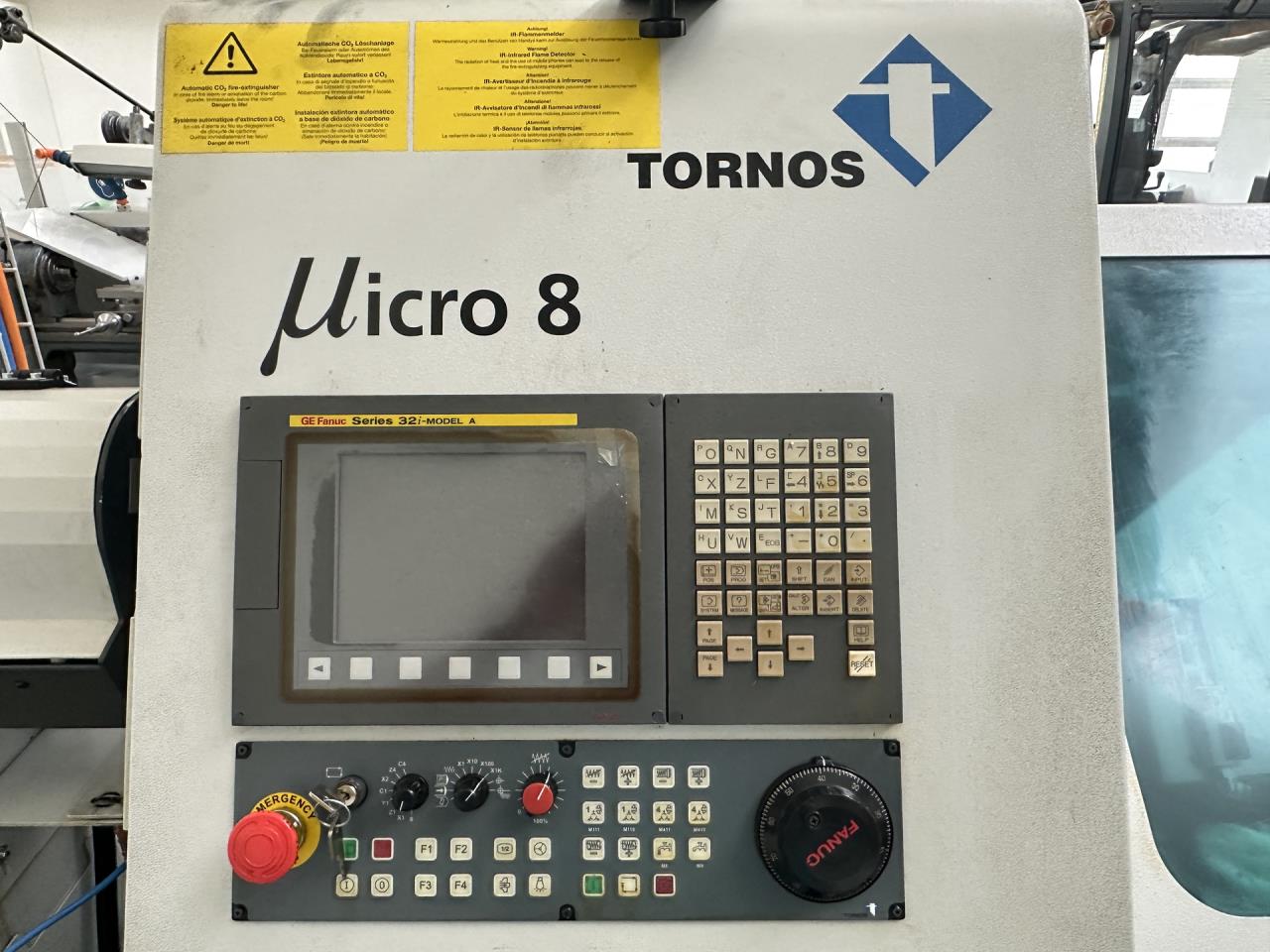

022524 - TORNOS Micro 8
Number of axis total | 7 |
Workpiece length max. | 20 mm |
Max. bar diameter | 10 mm |
Inner taper type | W15 |
Spindle speeds: | |
stepless | |
from | 0 t/min |
up to | 12000 t/min |
C axis (spindle,resolution) | ° |
Back spindle: | |
speeds: | |
from | t/min |
up to | 12000 t/min |
Inner taper type | F13 |
Rapid traverse X | 20 m/min |
Rapid traverse Y | 40 m/min |
Rapid traverse Z | 20 m/min |
Voltage 50 Hz 3x | 400 Volt |
Spindle motor | 2.2 / 3.7 kW |
Power of back spindle | 2.2 / 3.7 kW |
Total power required | 8 kVA |
Machine's weight about | 1600 kg |
Overall dimensions machine: | |
Length | 1670 mm |
Width | 870 mm |
Height | 1650 mm |
Various accessories: | |
Bar feeder | |
Manufacturer | LNS |
Type | TRYTEX 08 |
year of manufacture | 2009 |

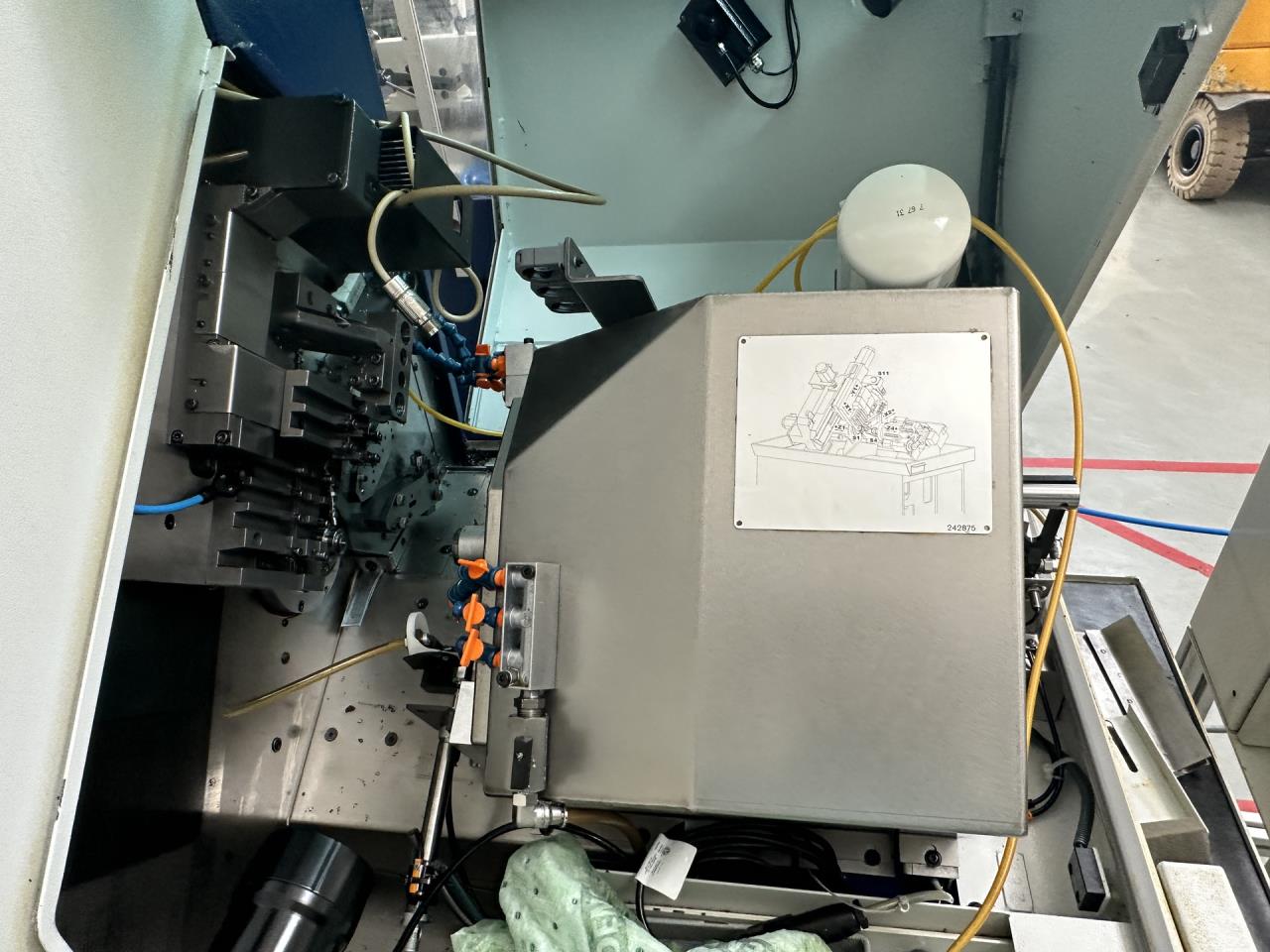

Part separator | |
Coolant system | |

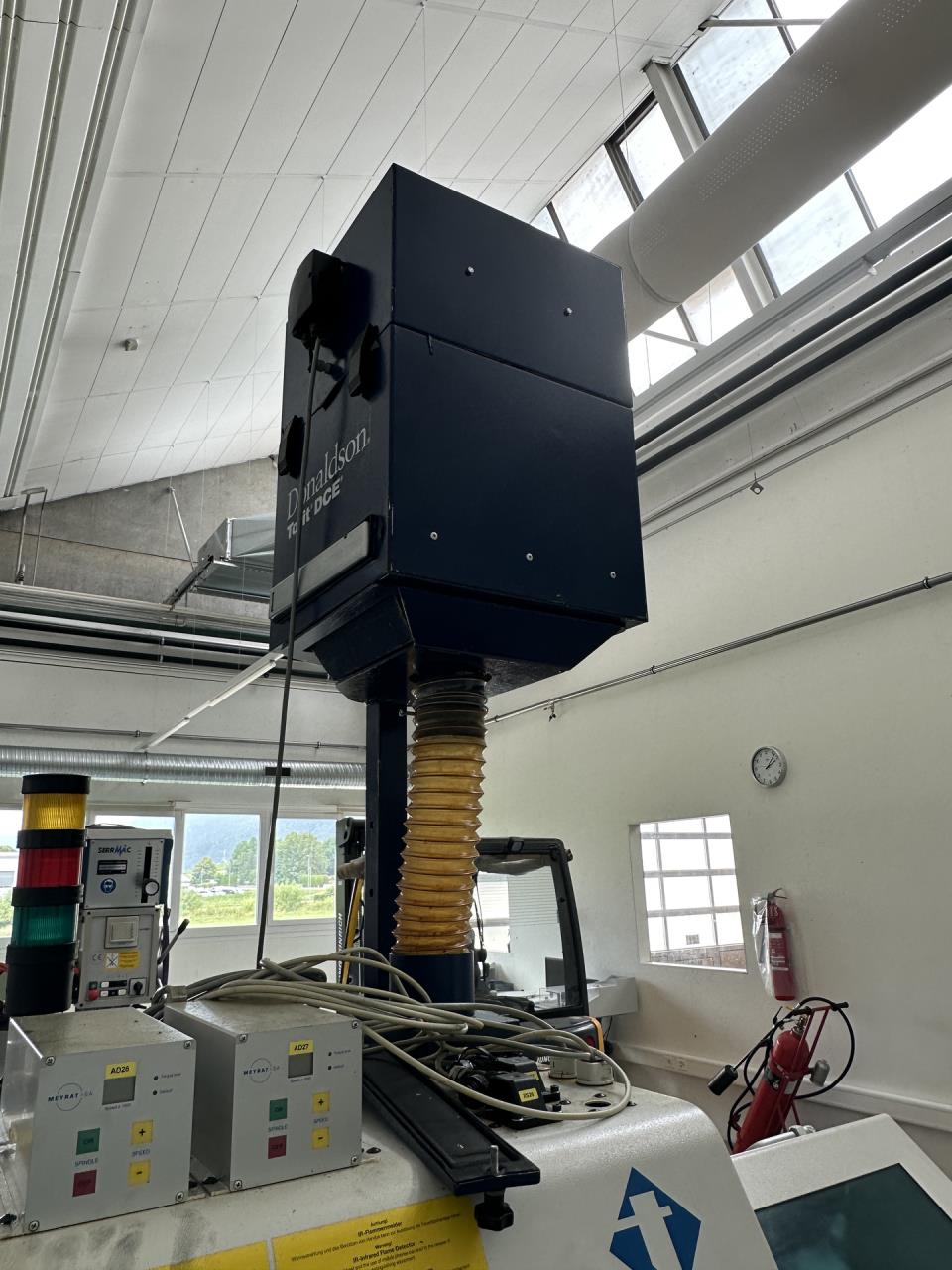

Oil mist extractor | Donaldson |

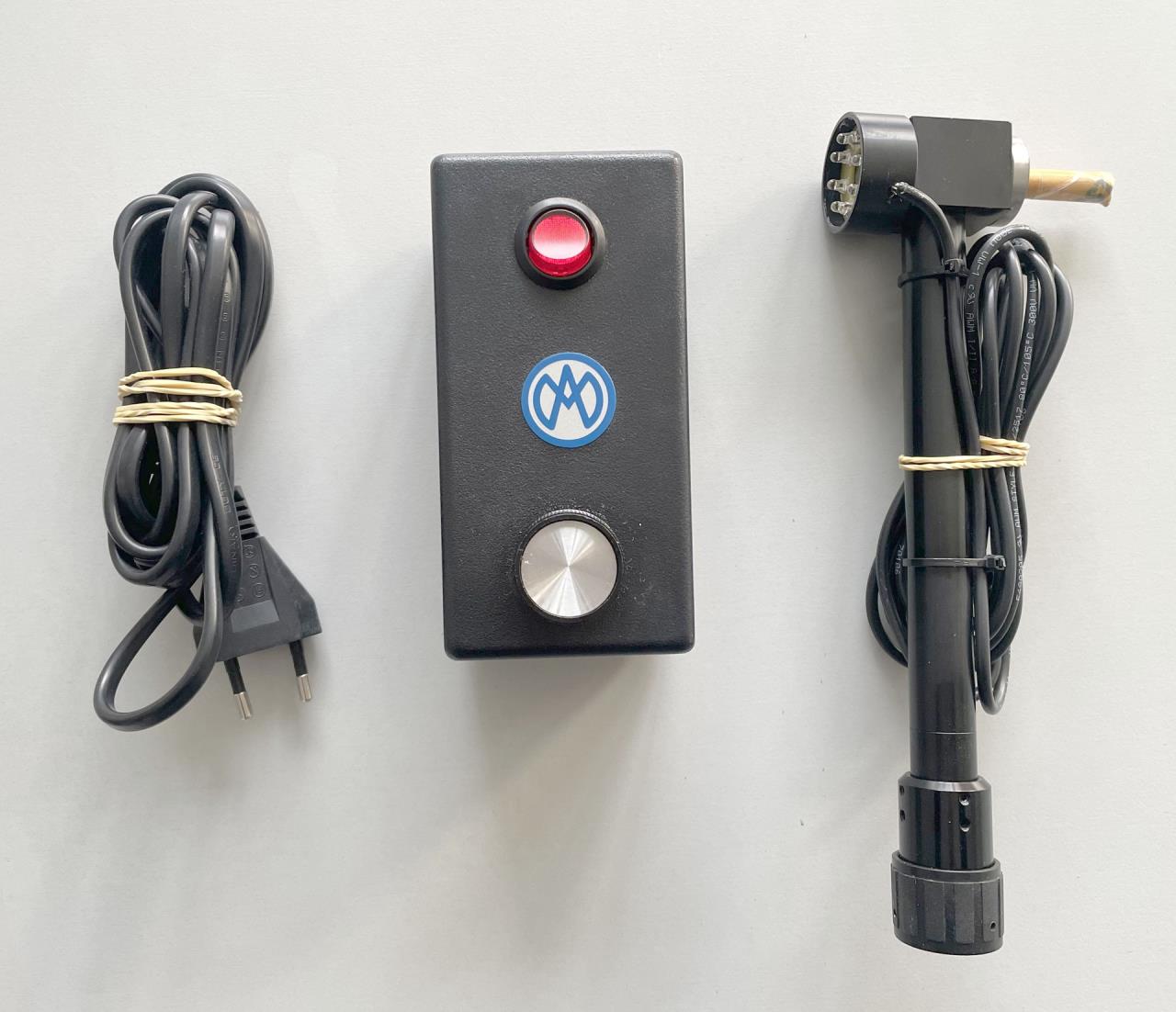

Centering microscop | |

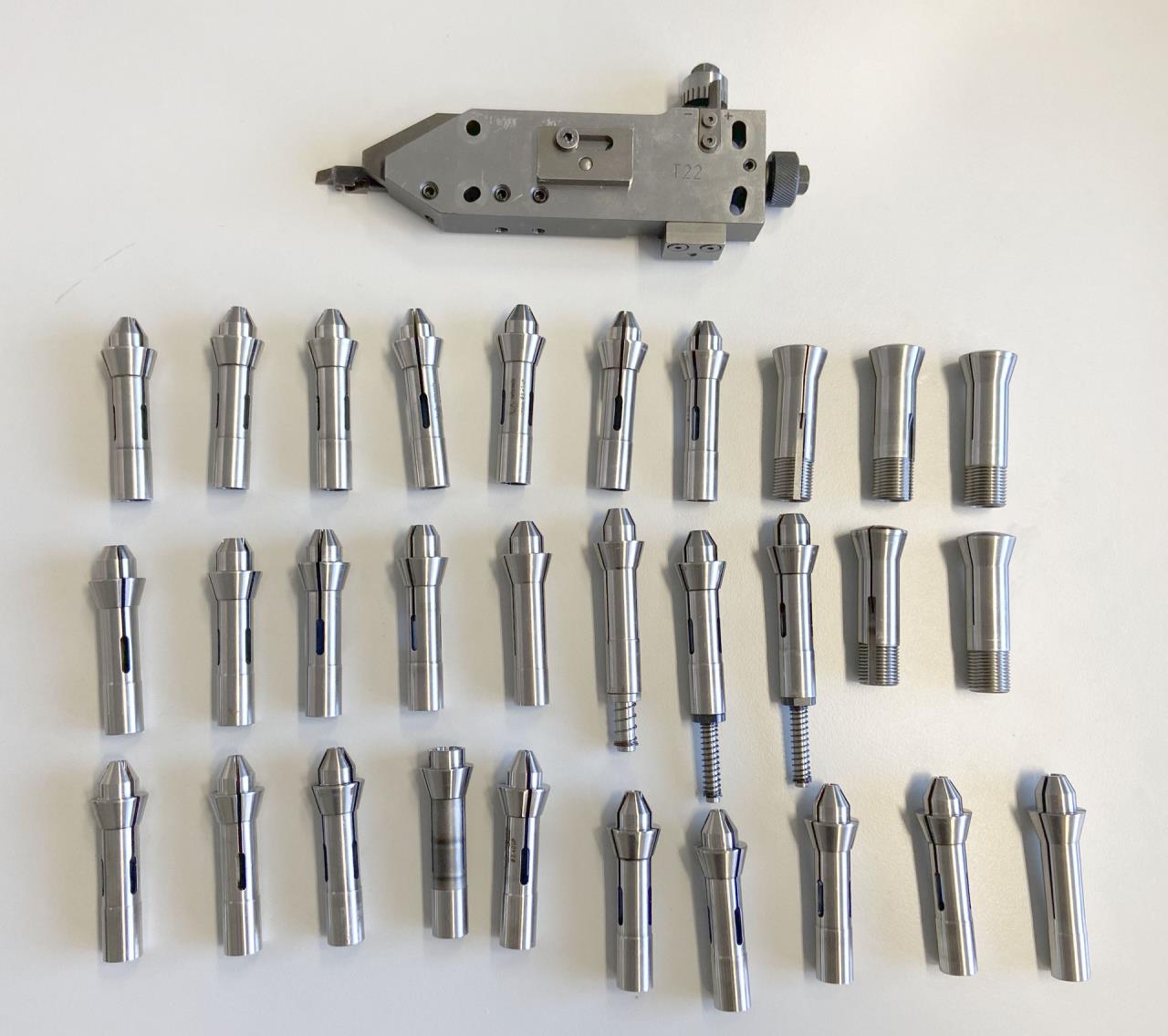

Set of collets | |
Interface serial port RS 232 | |
High frequency spindle | 2X |
Status light |
