stock no. :
22521
Machine's group :
Type :

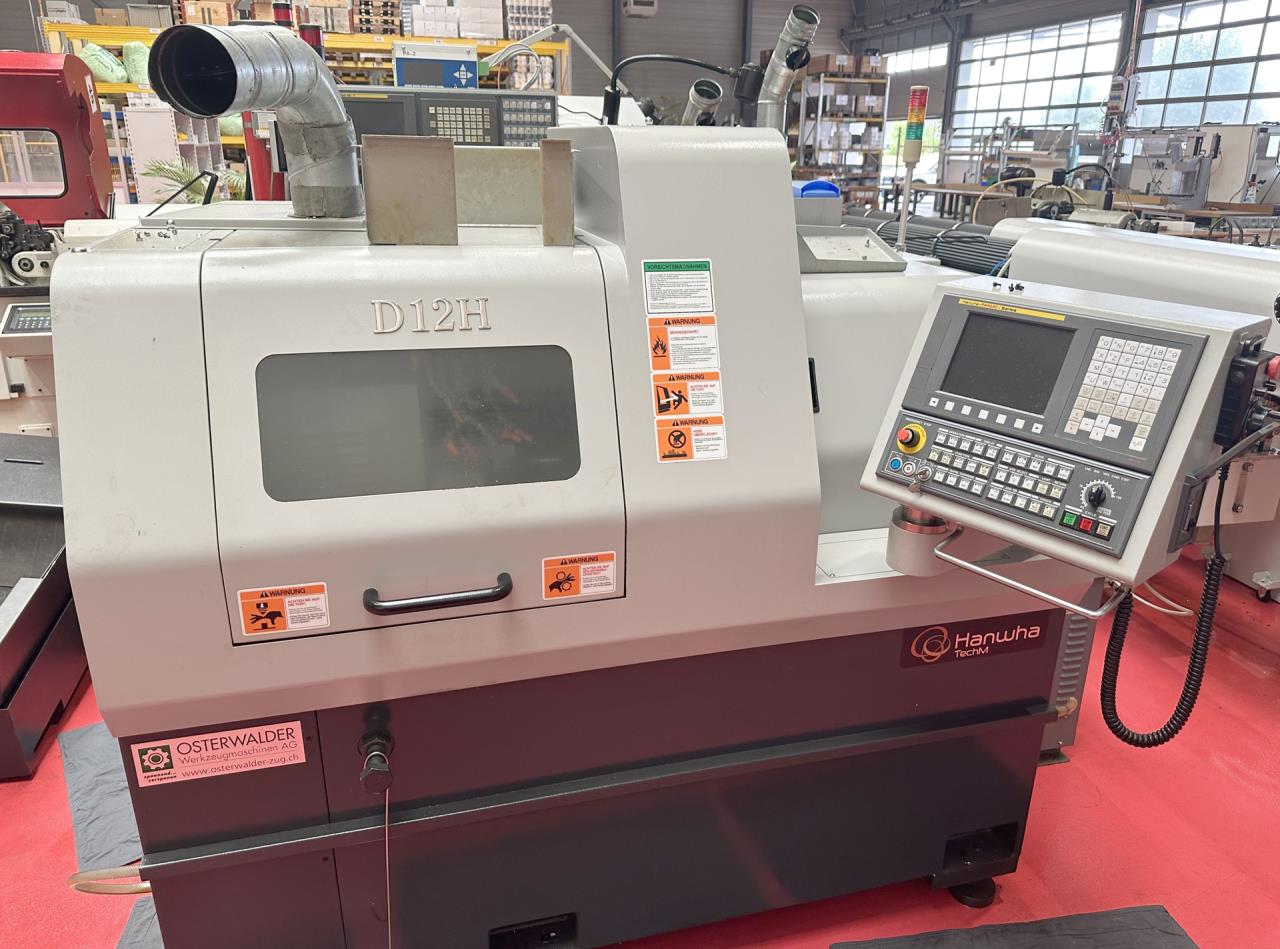

HANWHA XD12H
Controller :

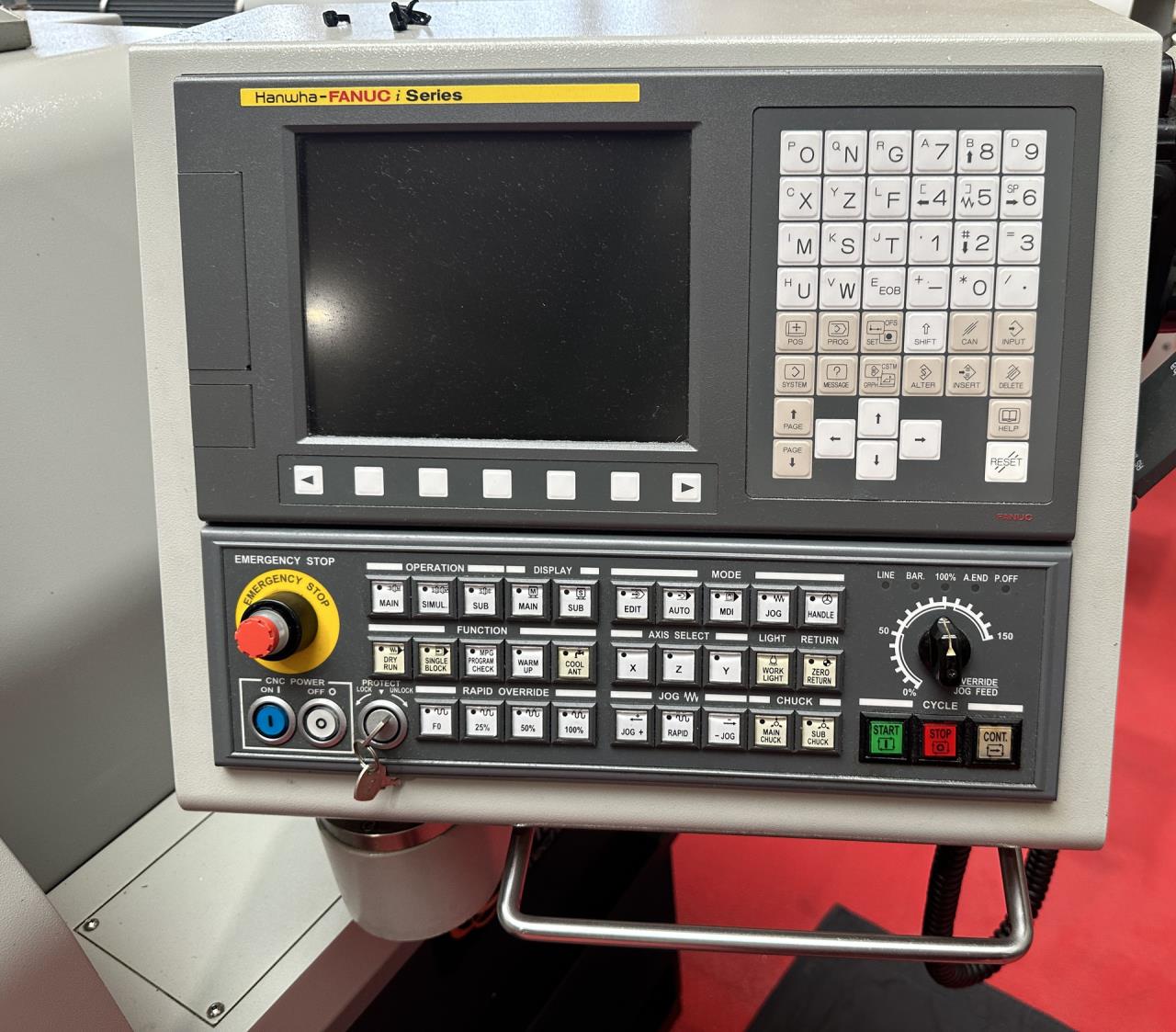

Hanwha FANUC i Series
Jahrgang :
2013
HANWHA XD12H 6 Image(s)
Back
Technical data
Number of axis total
9
Max. turning diameter
12 mm
Maximum turning length
140 mm
Max. drilling diameter
6 mm
Max. threading diameter
6 M (Metric)
Internal spindle diameter
14 mm
Inner taper type
TF16
Spindle speeds:
    stepless
       from
200 rpm
       up to
12000 rpm
Spindle power
1.5 / 2.2 kW
C axis (spindle,resolution)
0.001 °
Back spindle:
    speeds:
       from
200 rpm
       up to
10000 rpm
    C axis (spindle,resolution)
0.001 °
Tool-holder:
    number of tools
12
    number of driven tools
4
    Turning tools
5 pce
    Drilling tools
3 pce
    Transverse processing tools
4 pce
    Spindle speeds (turning tools)
200 - 5000 rpm
    Spindle speeds (turning tools)
0.4 rpm
    Tool shank cross section
12 mm
Counter-operation:
    number of tools
4
Voltage 50 Hz 3x
400 Volt
Power of back spindle
0.55 / 1.1 kW
Air connect
4 - 6 bar
Machine's weight about
2150 kg
Overall dimensions machine:
    Length
1750 mm
    Width
1090 mm
    Height
1600 mm
Various accessories:

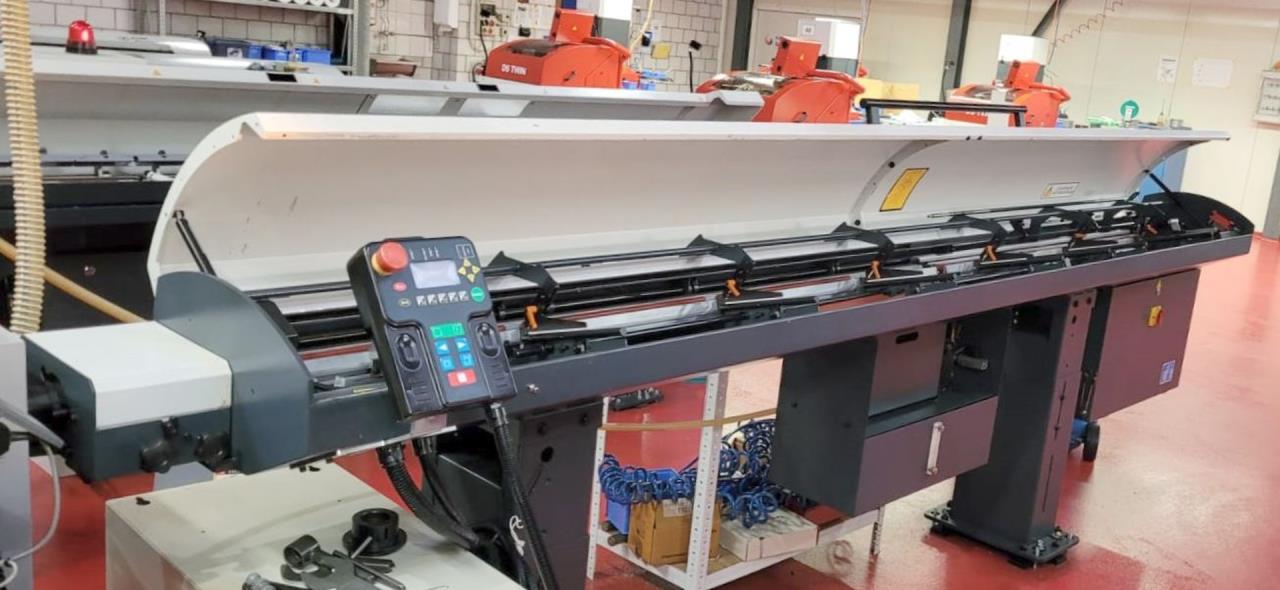

Bar feeder
    Manufacturer
LNS
    Type
Alpha ST320
    year of manufacture
2013
    Length of bars max.
3000 mm
    Bar diameter
3 - 20 mm
Status light
Coolant system
140 l
Interface serial port RS 232

Technical specifications and pictures without guarantee.
