Technical data
Number of axis total
7
Number of spindles
2
Machining diameter max.
10 mm
Maximum turning length
135 mm
Spindle speeds:
stepless
from
1 rpm
up to
15000 rpm
Spindle power
2.2 / 3.7 kW
C axis (spindle,resolution)
0.001 °

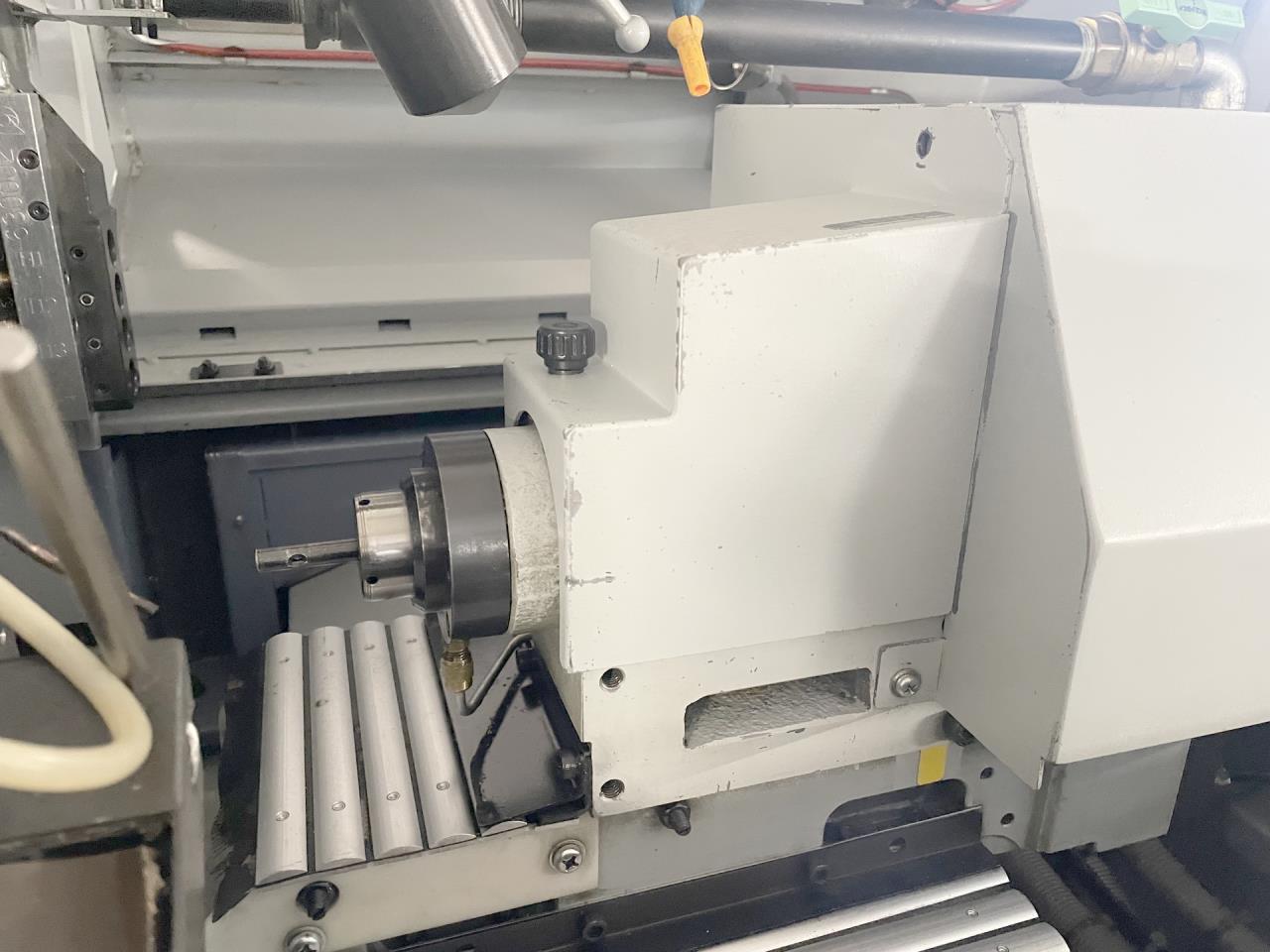

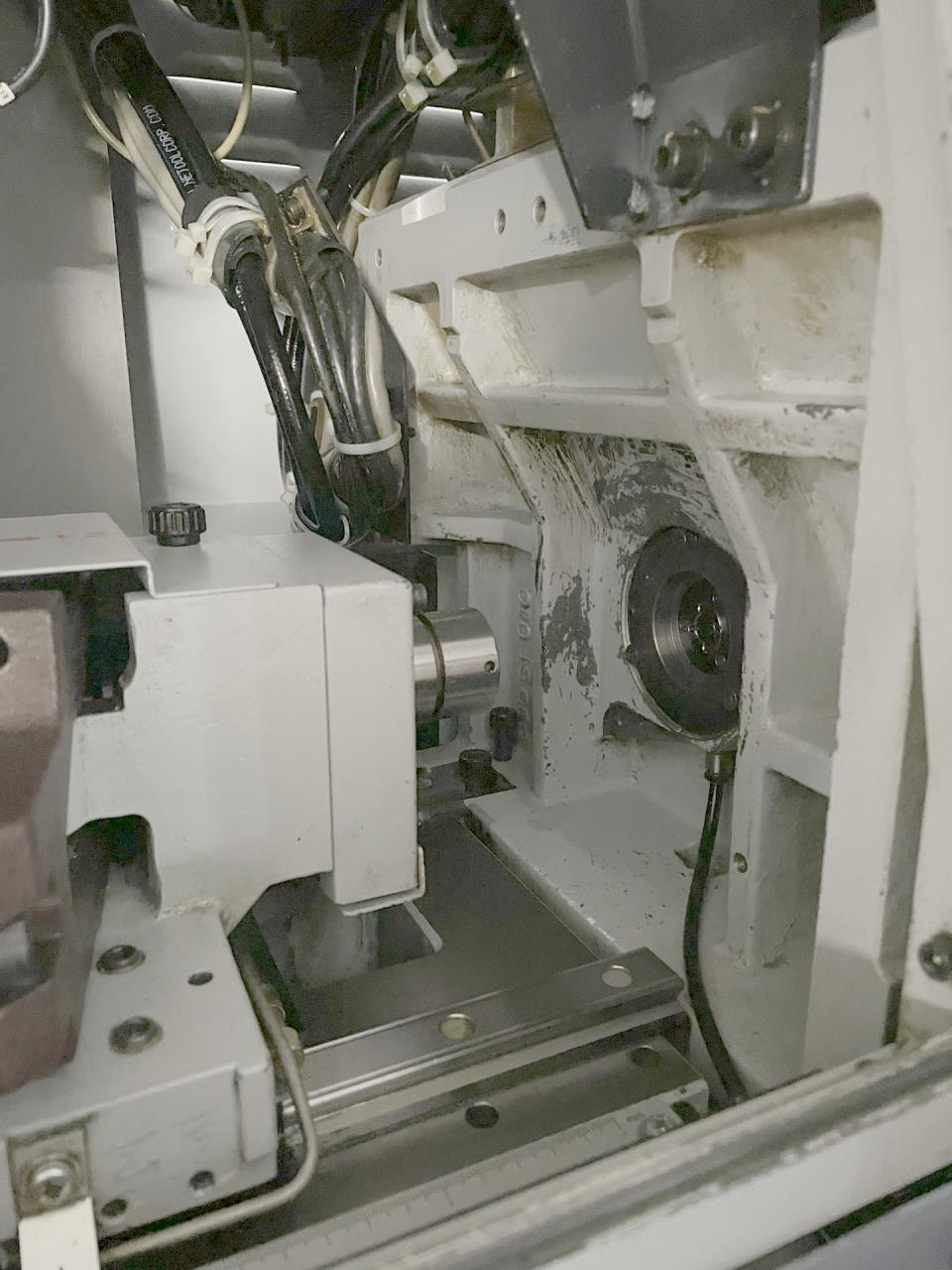

Back spindle:
speeds:
from
1 rpm
up to
10000 rpm
C axis (spindle,resolution)
15 °

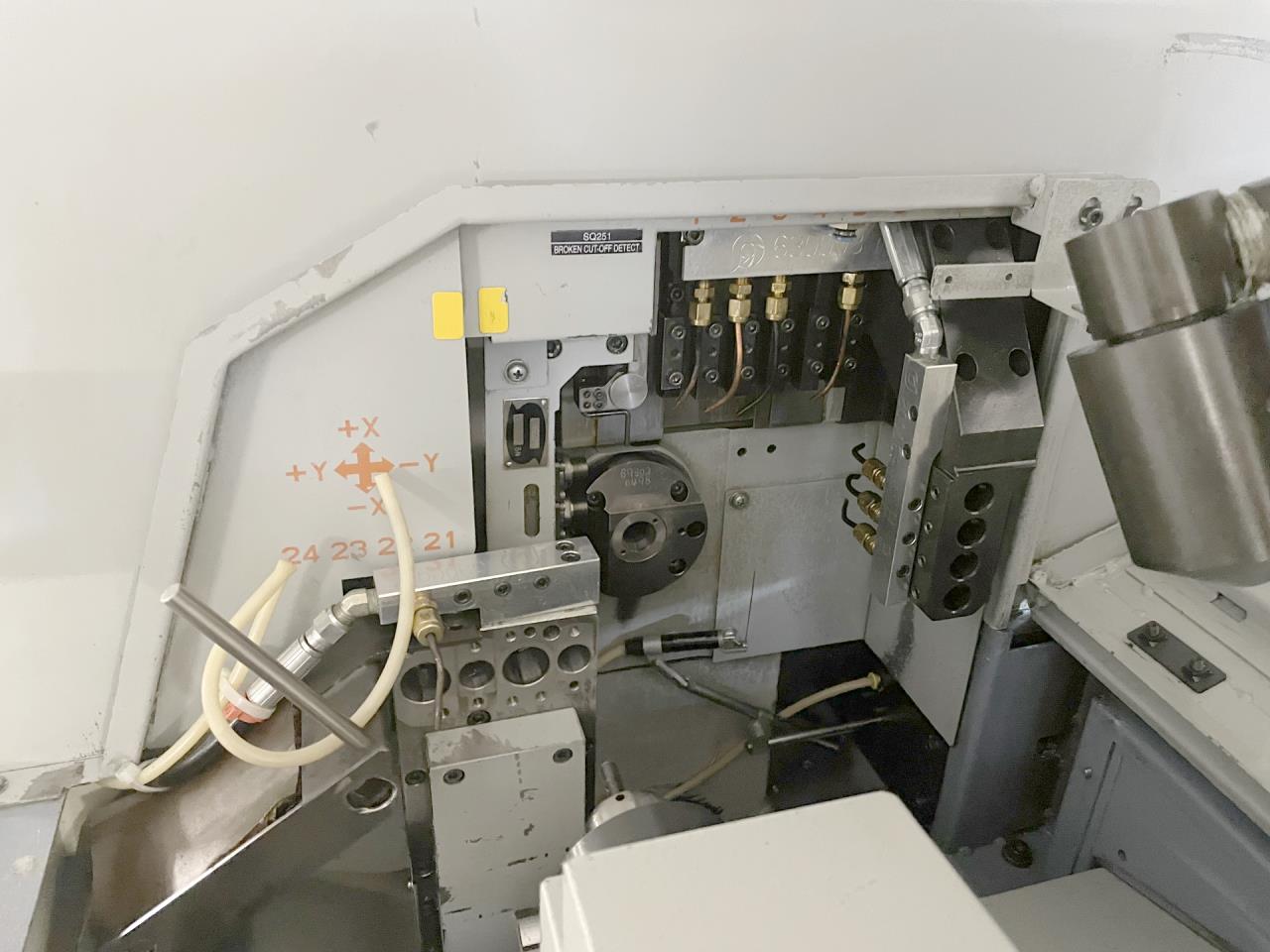

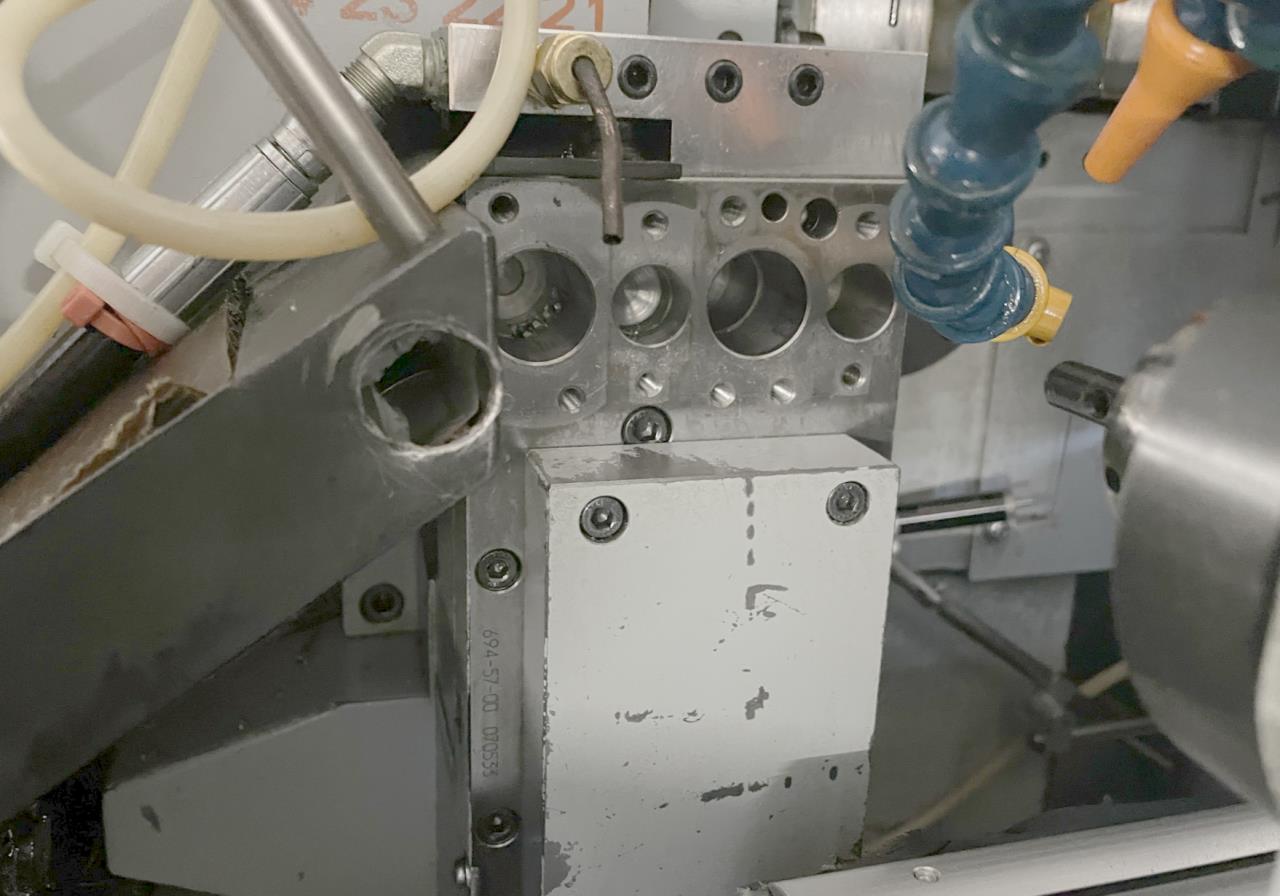

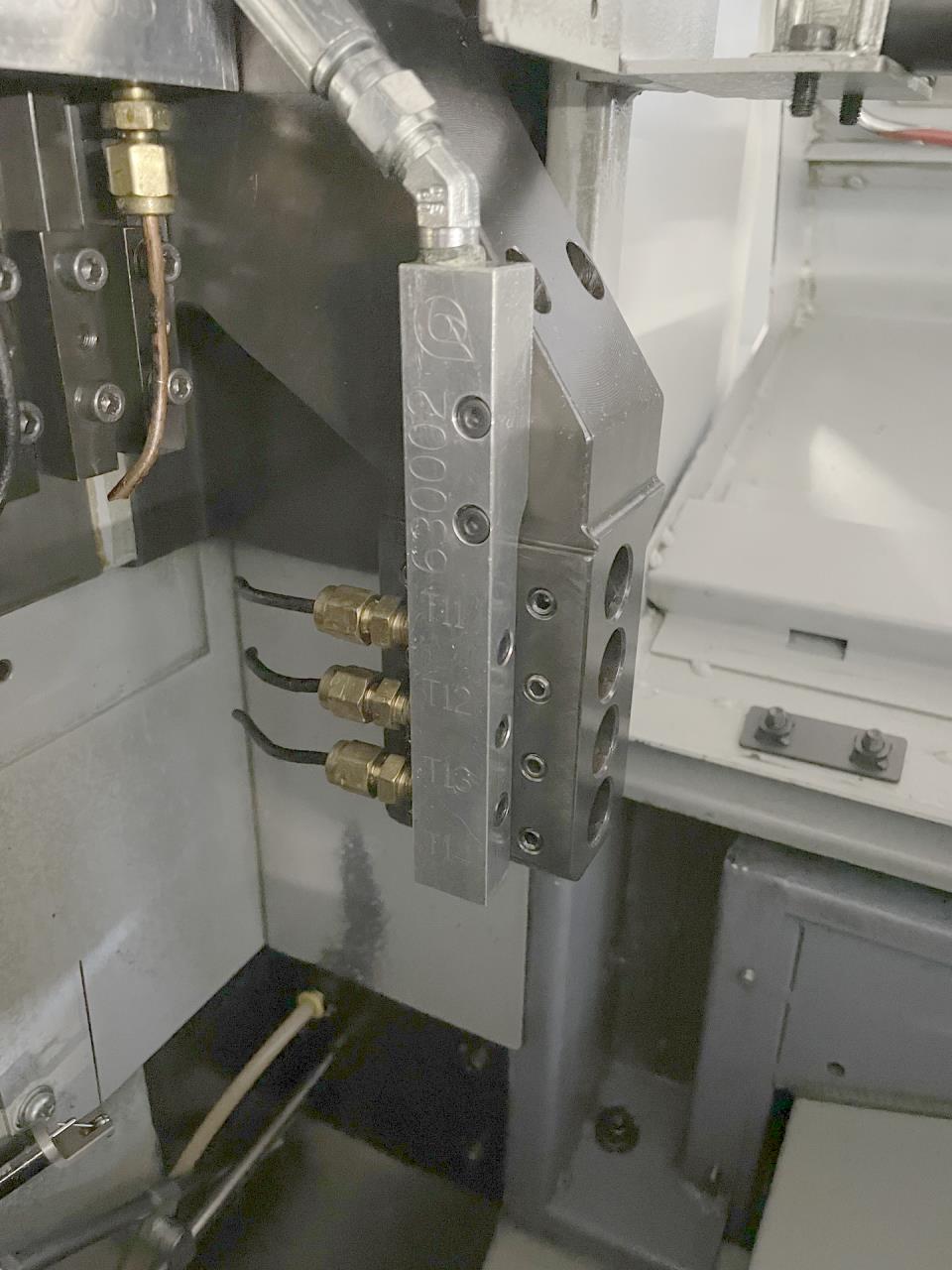

Tool-holder:
numbers
3
number of driven tools
3
Turning tools
5 pce
Transverse processing tools
3 pce

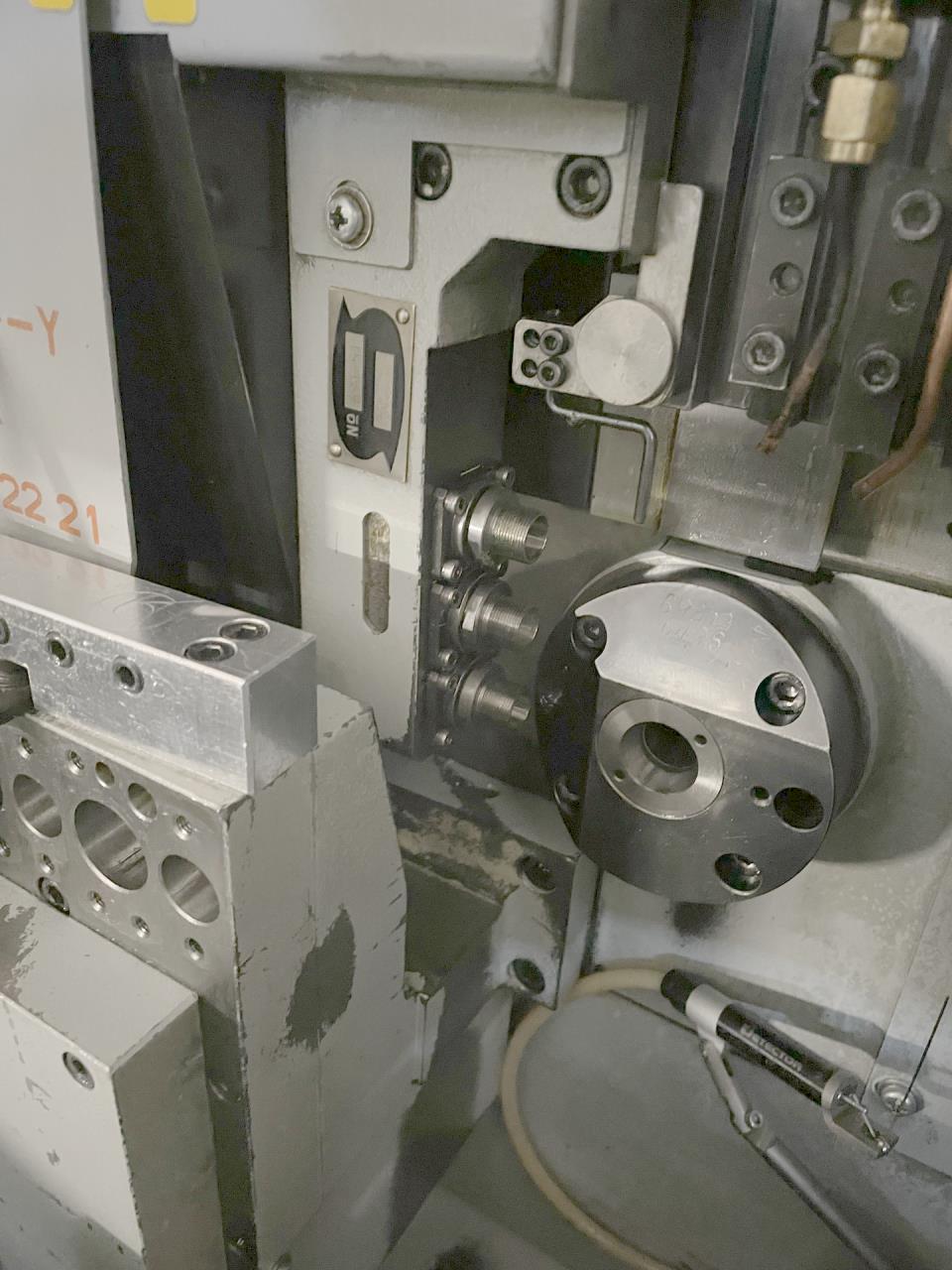

Counter-operation:
number of tools
4
Rapid traverse:
35 m/min
Voltage 50 Hz 3x
400 Volt
Power of back spindle
1.1 kW
Machine's weight about
1400 kg
Overall dimensions machine:
Length
1865 mm
Width
775 mm
Height
1695 mm
Various accessories:

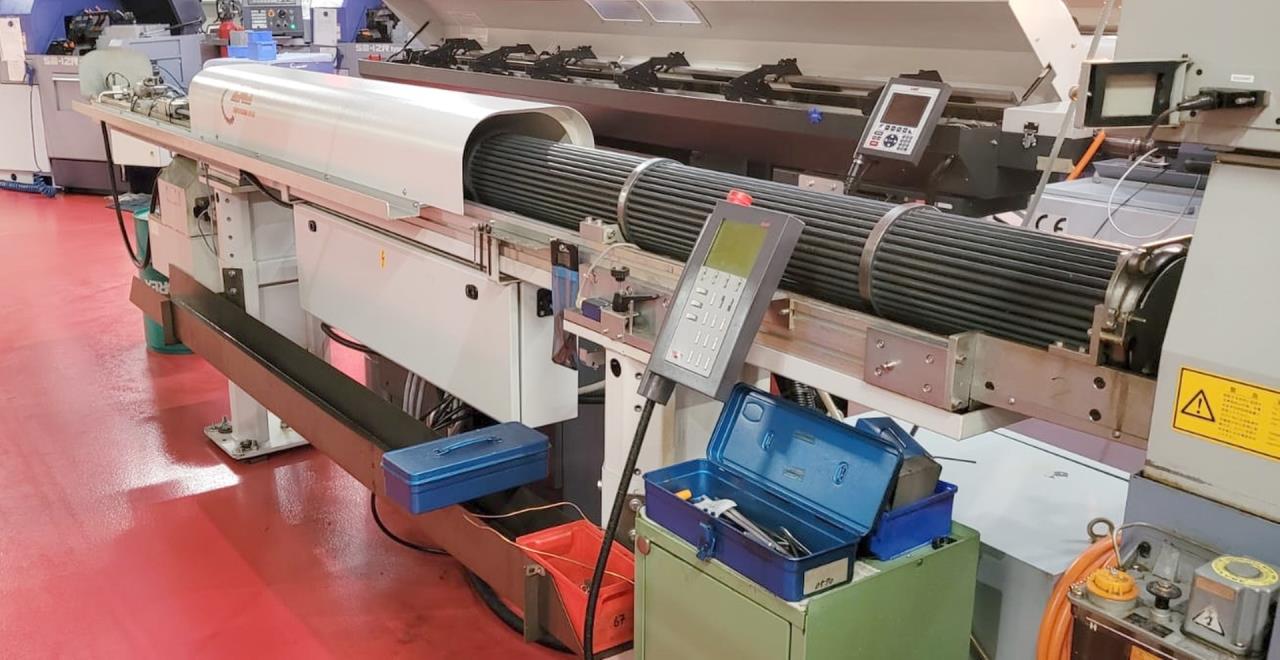

Bar feeder
Manufacturer
LNS
Type
TRYTON 112
year of manufacture
2007
Bar diameter
1 - 12 mm
Parts catcher

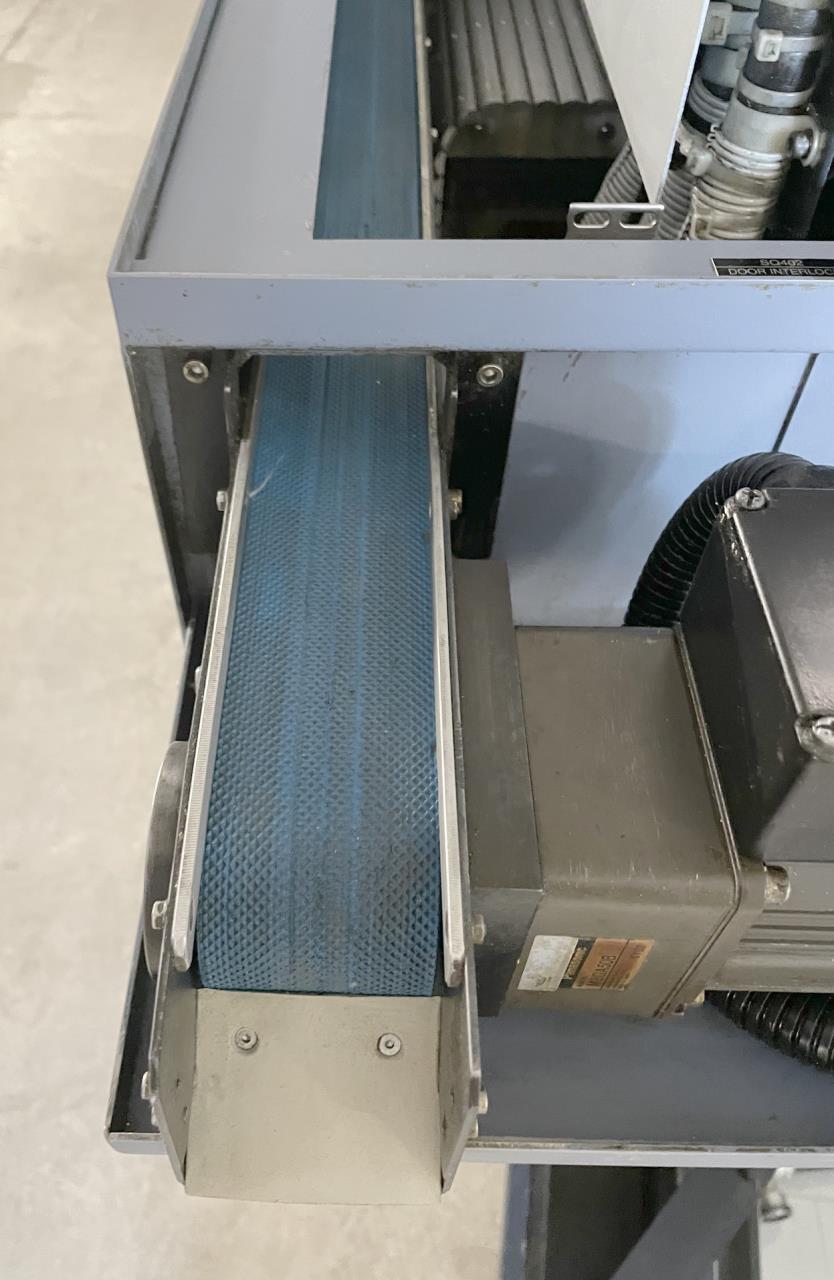

Workpiece conveyor
Lamp

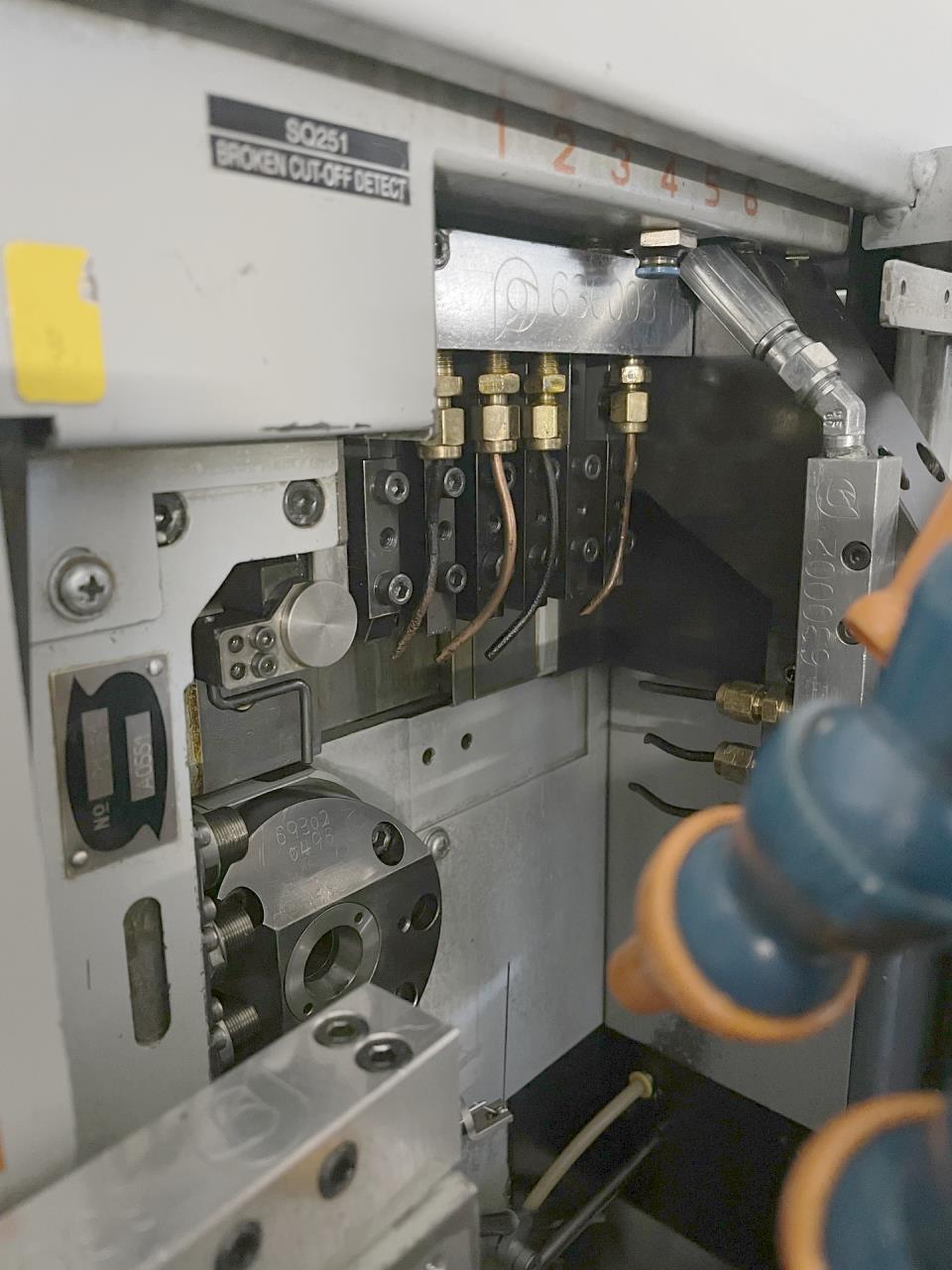

Tool break control

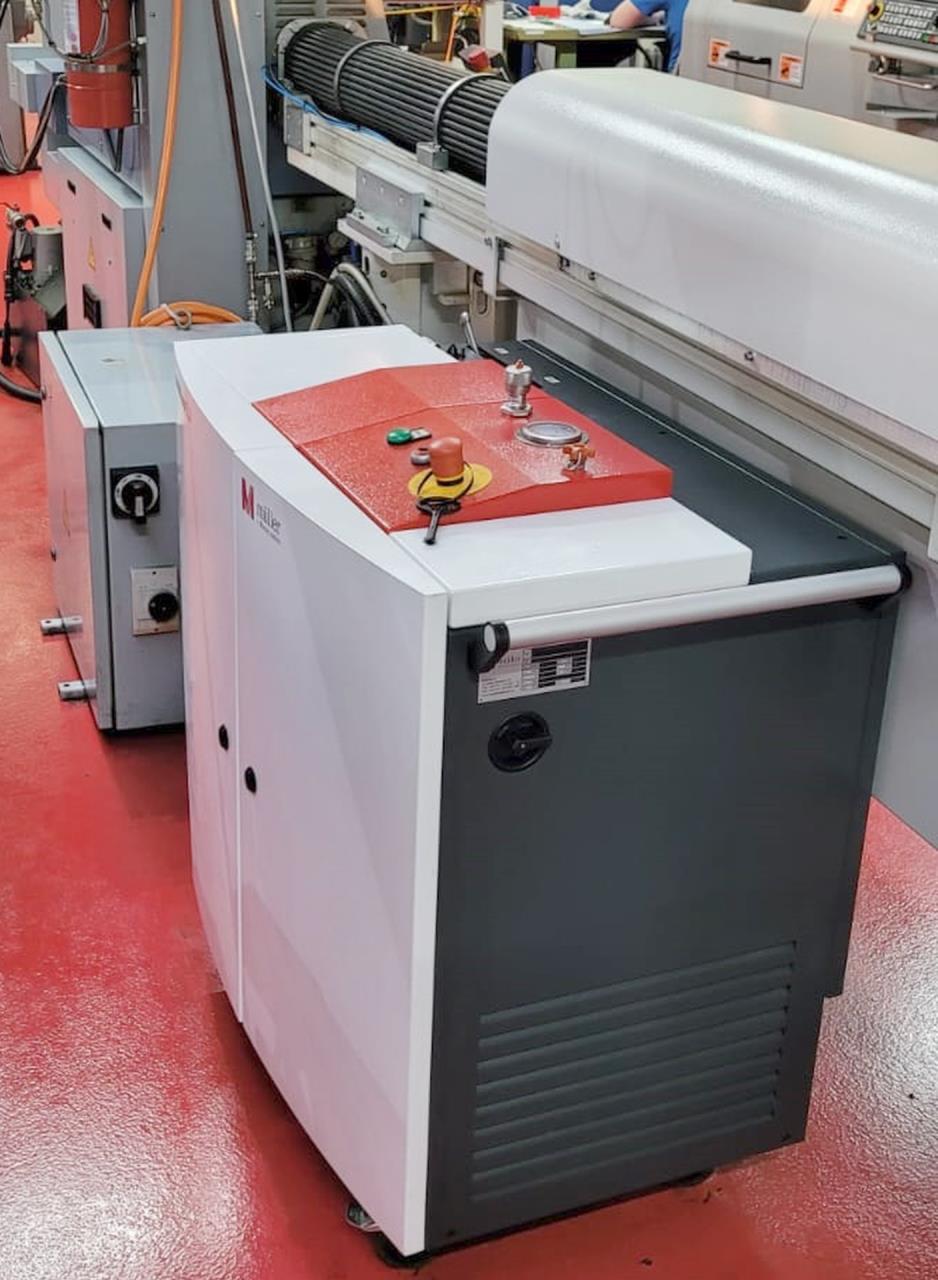

High pression colant device:
Manufacturer
Müller
Type
CL2
year of manufacture
2019
Maximum pressure
70 bar

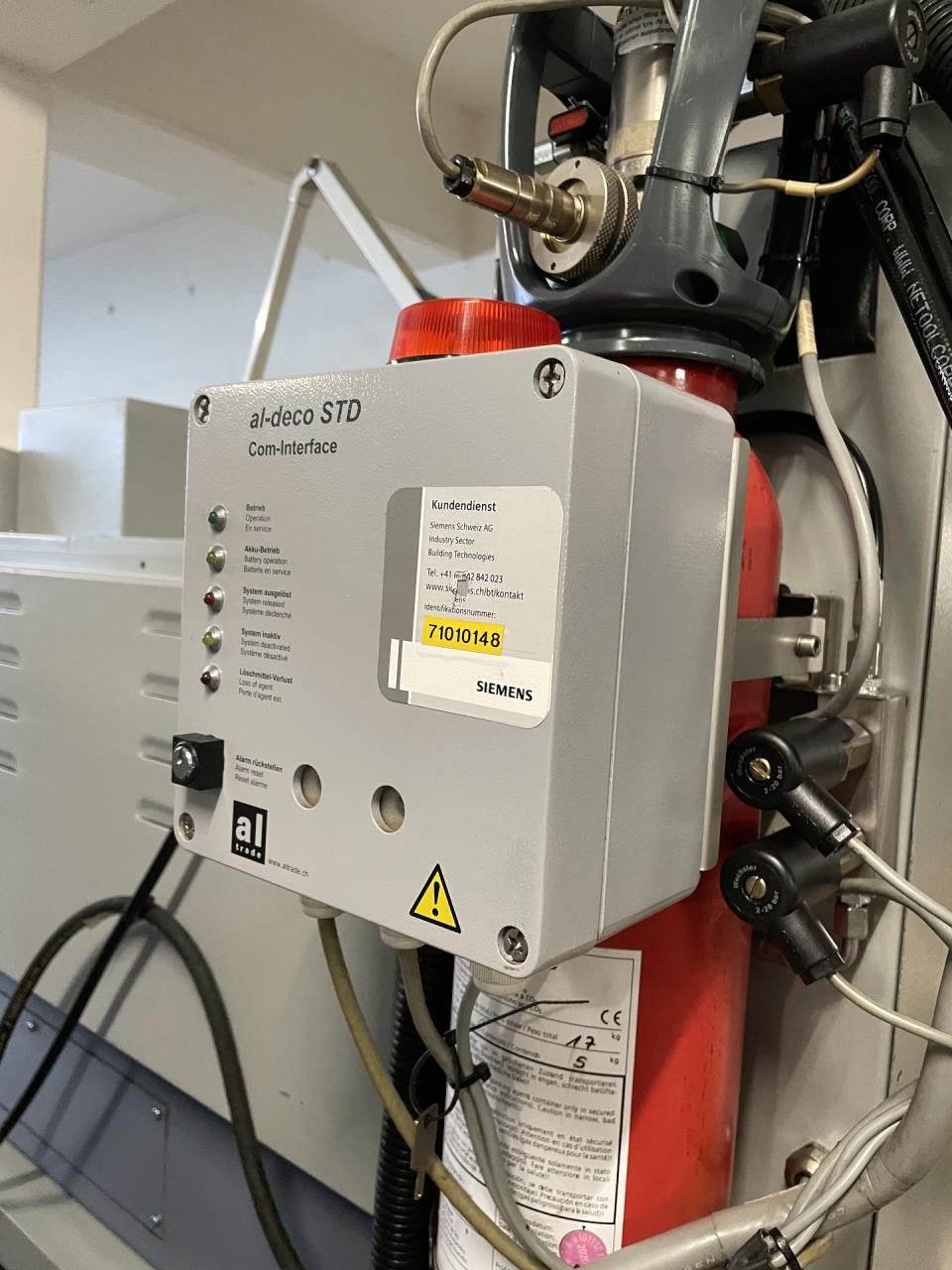

Fire extinguishing system
SIEMENS
Status light
Technical specifications and pictures without guarantee.
