stock no. :
22519
Machine's group :
Type :
STAR SR-20 R
Controller :

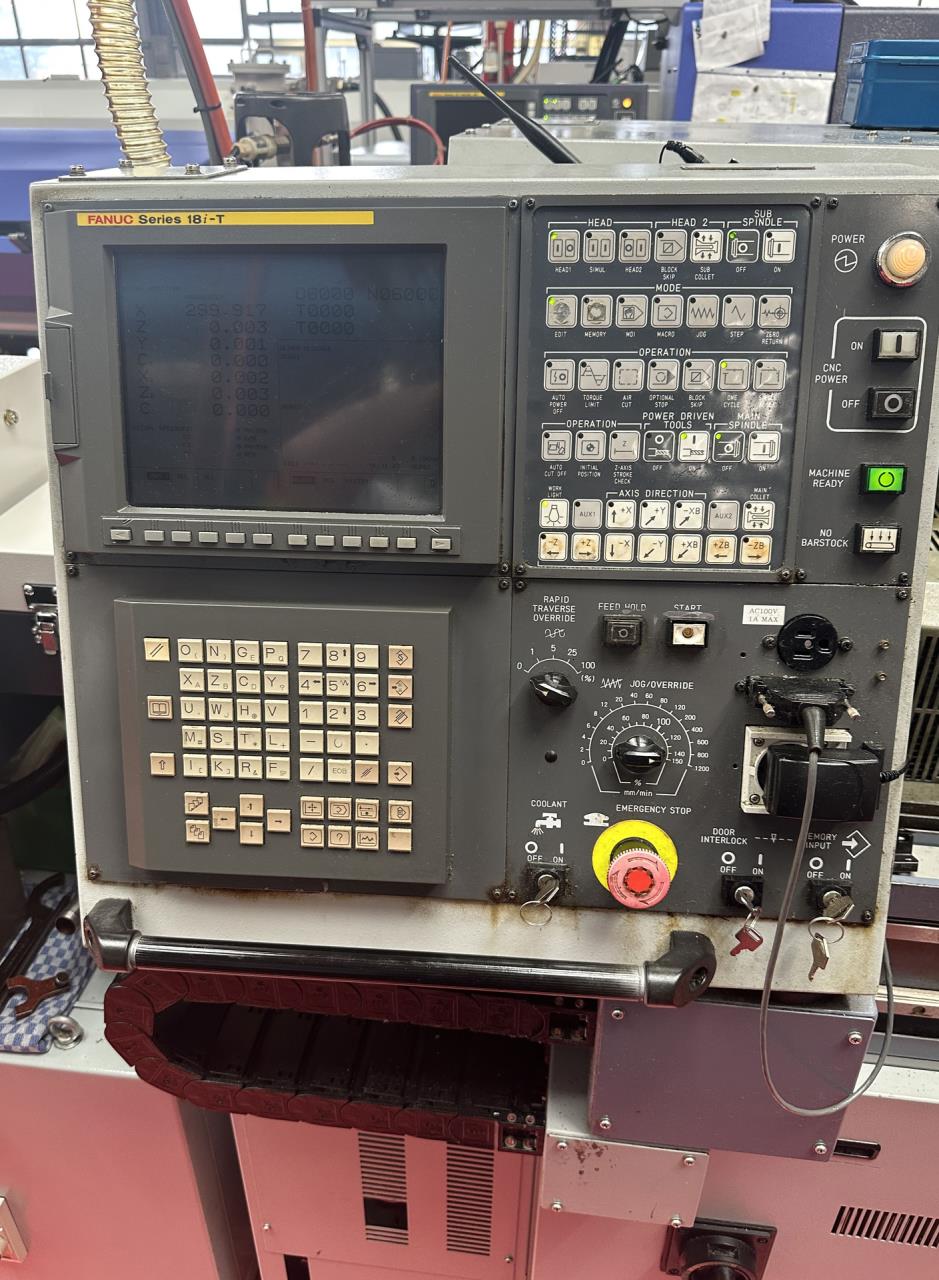

FANUC Serie 18i-T
Jahrgang :
2004
Technical data
Number of axis total
7
Number of spindles
2
Max. turning diameter
20 mm
Maximum turning length
195 mm
Max. drilling diameter
7 mm
Max. threading diameter
6 M (Metric)
Inner taper type
ER16
Spindle speeds:
stepless
from
500 rpm
up to
10000 rpm
Spindle power
2.2 / 3.7 kW
C axis (spindle,resolution)
0.001 °

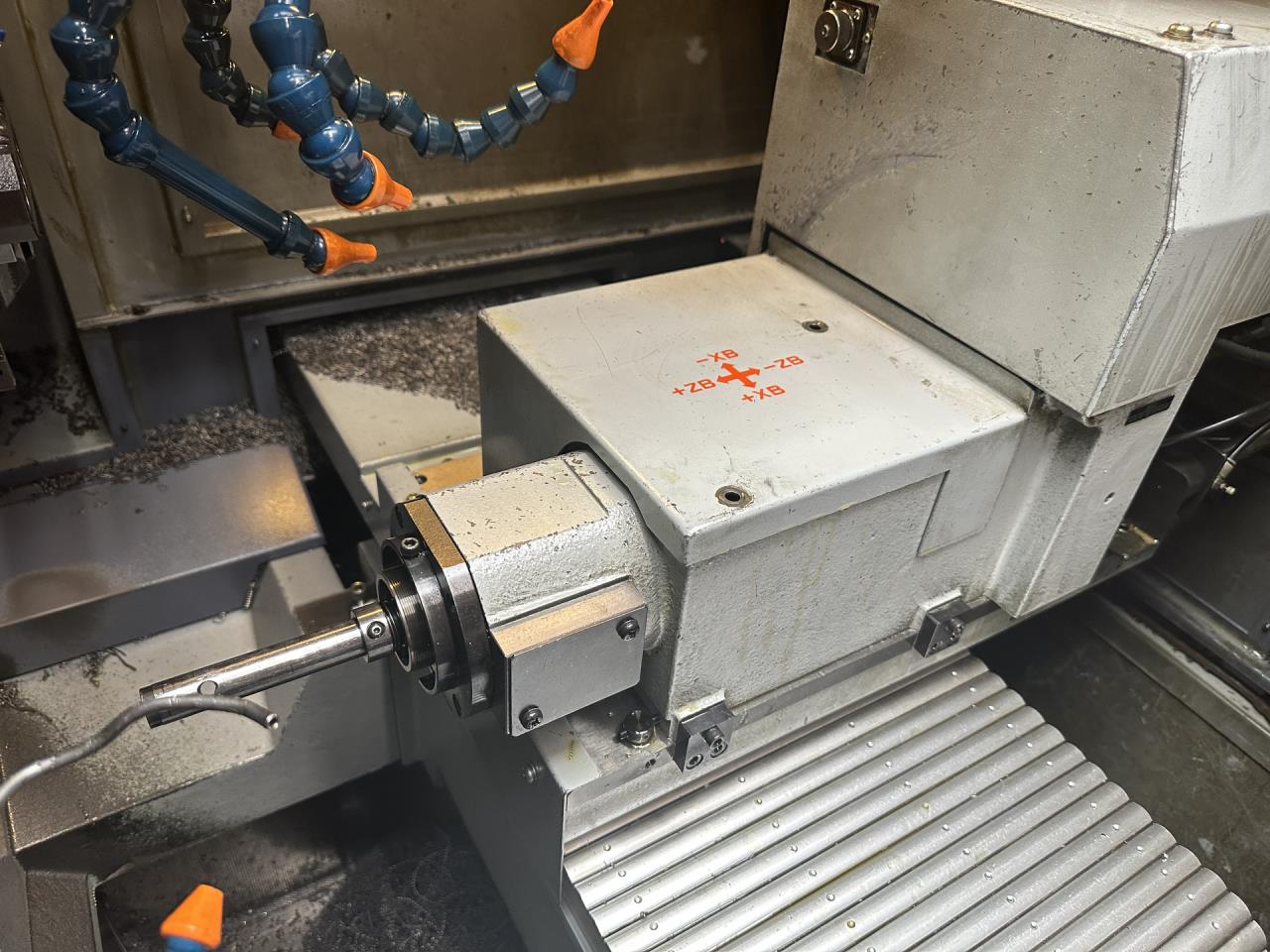

Back spindle:
speeds:
from
500 rpm
up to
8000 rpm
Max. tapping length
75 mm
C axis (spindle,resolution)
15 °
Thread drill diameter
3 M (Metric)
Back machining workpiece length max.
85 mm

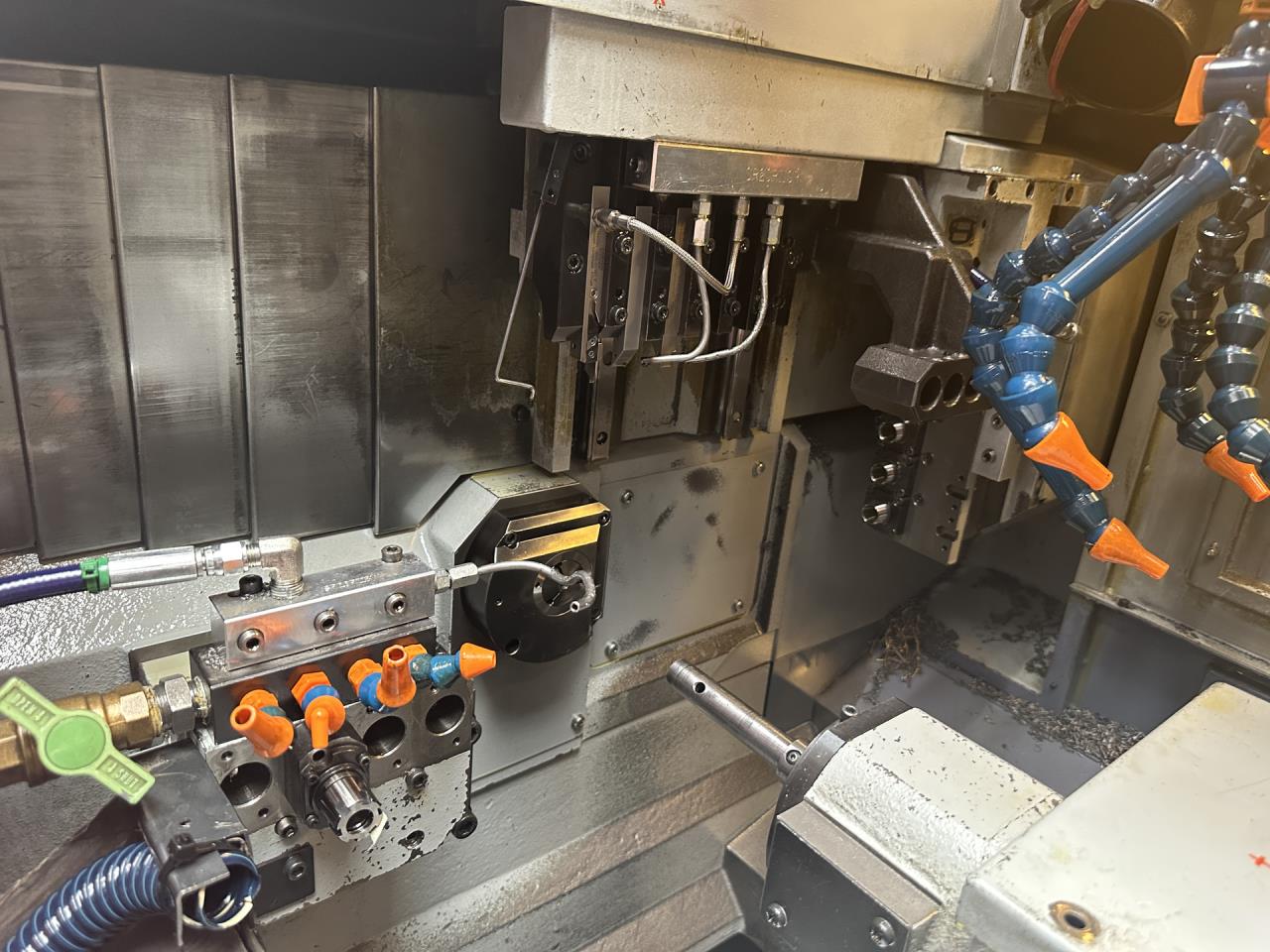

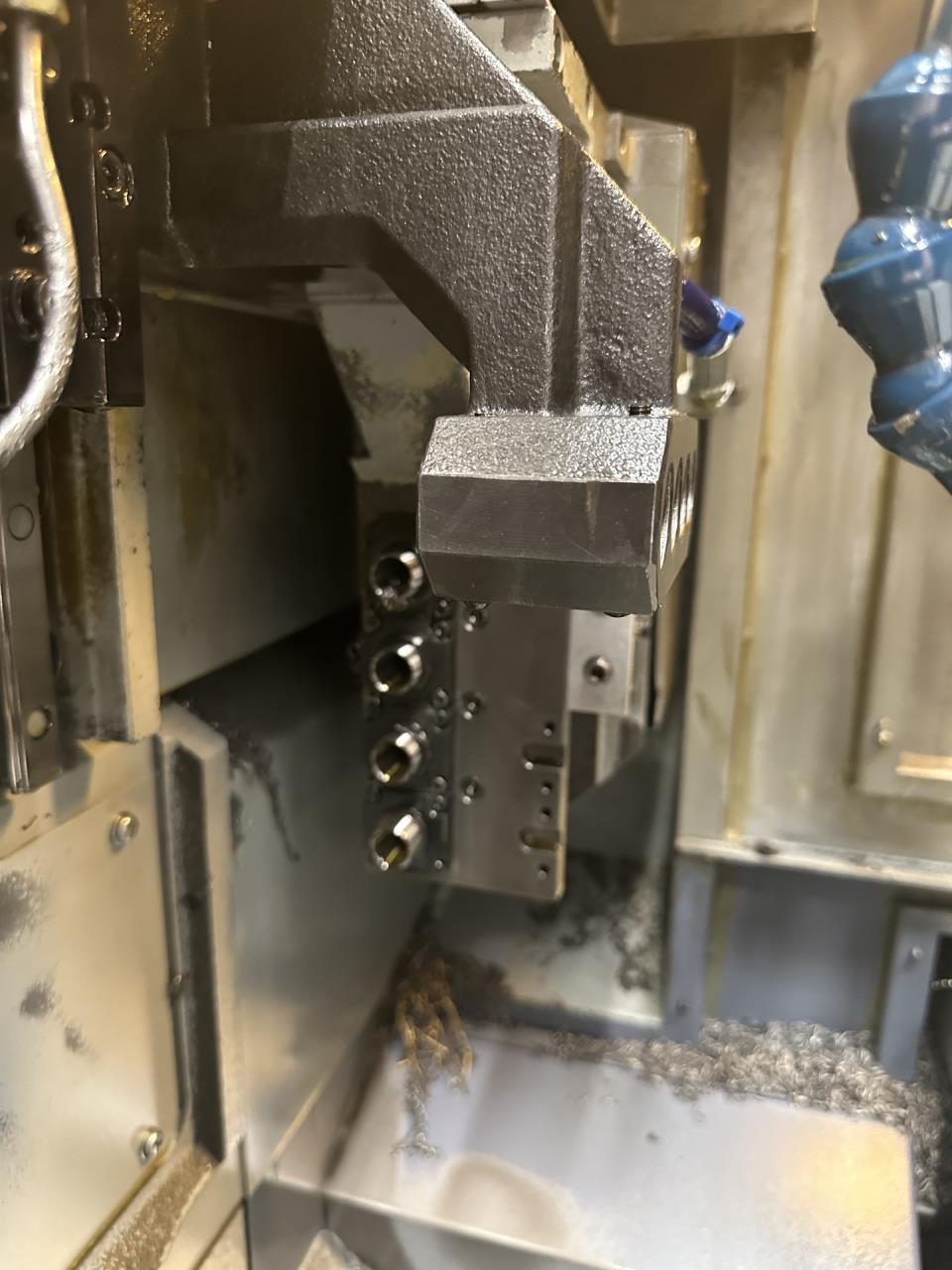

Tool-holder:

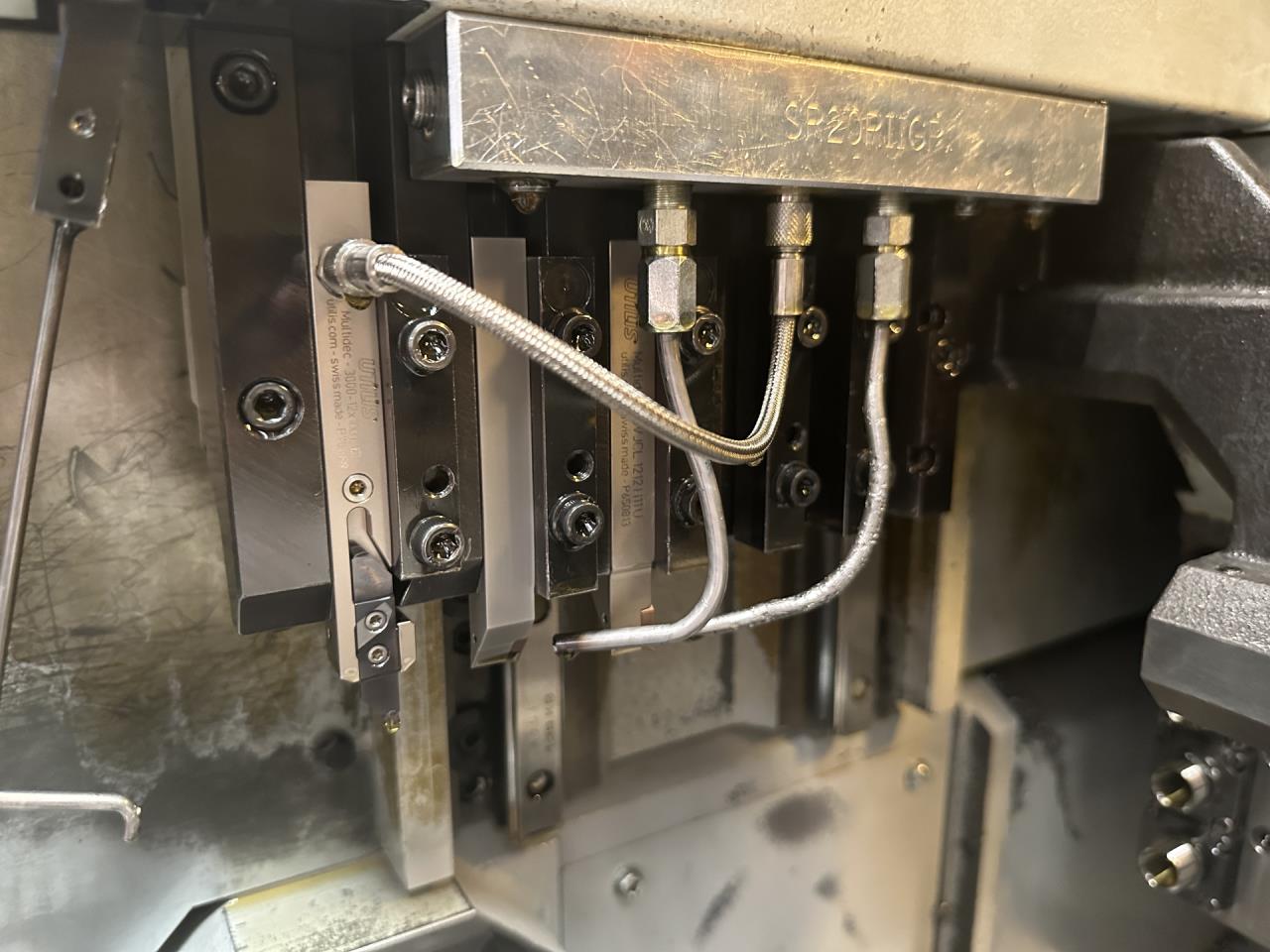

Turning tools
6 pce
Drilling tools
4 pce
Spindle speeds (turning tools)
8000 rpm
Power of driven tools
0.9 kW

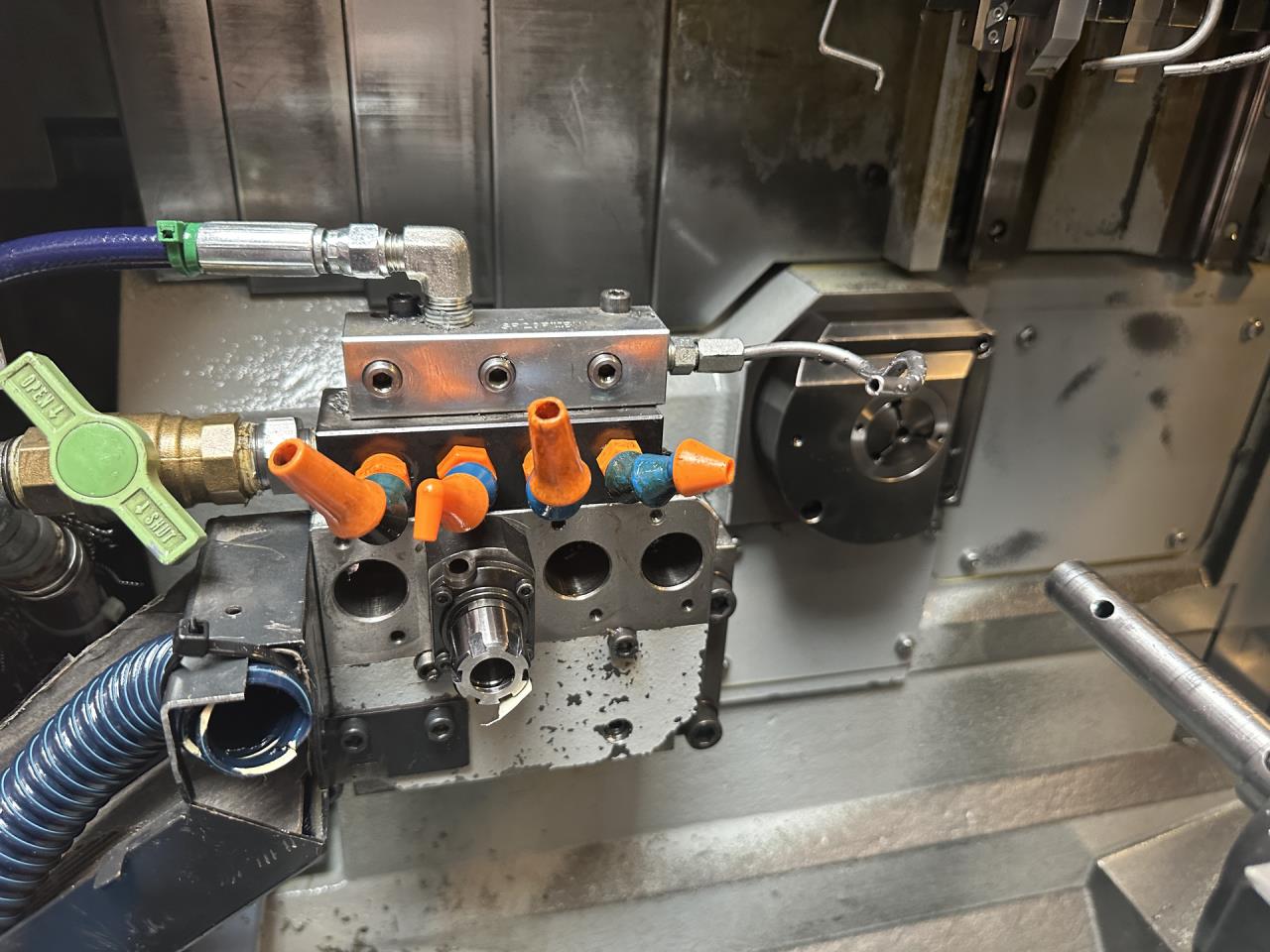

Counter-operation:
number of tools
4
Rapid traverse:
20 m/min
Cutting speed
10000 mm/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Power of back spindle
0.5 kW
Air connect
5 bar
Total power required
6 kVA
Machine's weight about
2000 kg
Overall dimensions machine:
Length
2207 mm
Width
1080 mm
Height
1700 mm
Various accessories:

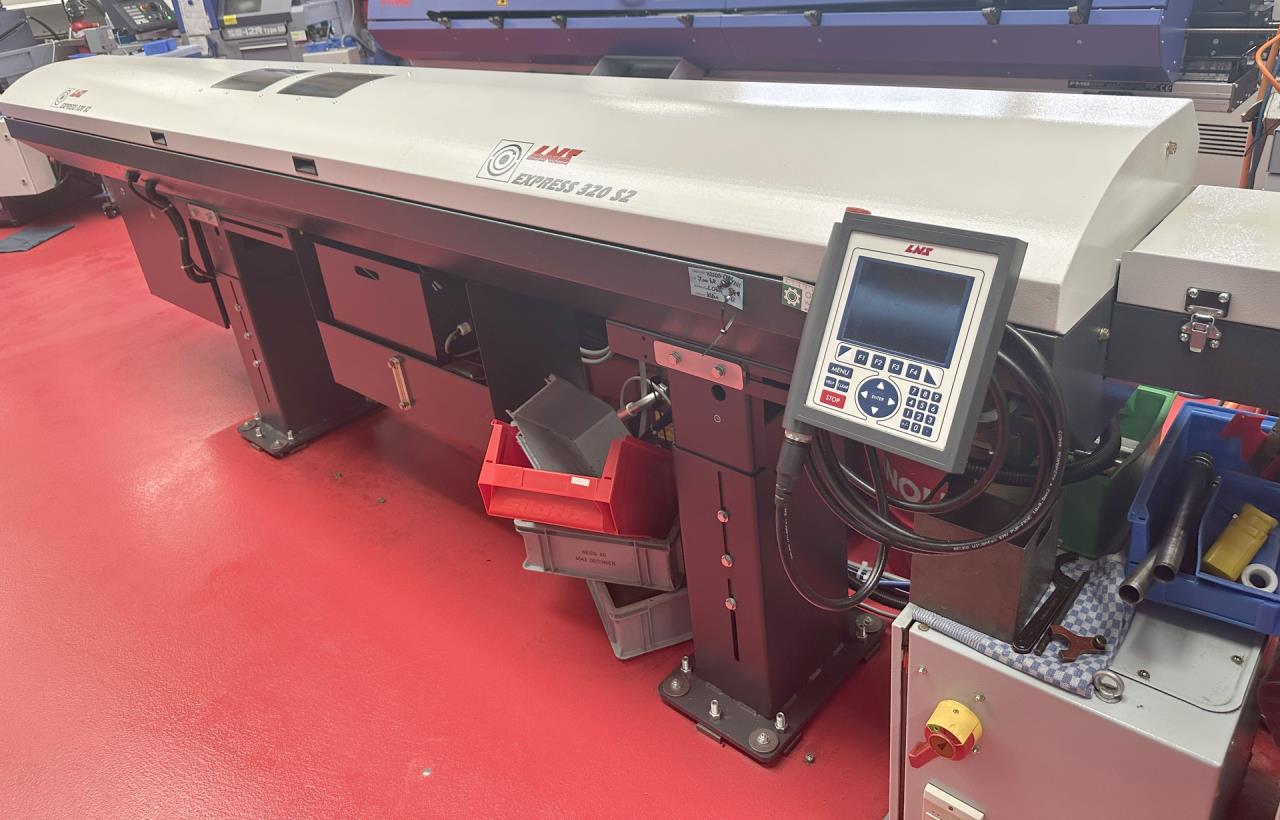

Bar feeder
Manufacturer
LNS
Type
EXPRESS 320 S2
year of manufacture
2017
Length of bars max.
3200 mm
Bar diameter
3 - 20 mm
Parts catcher
Workpiece conveyor

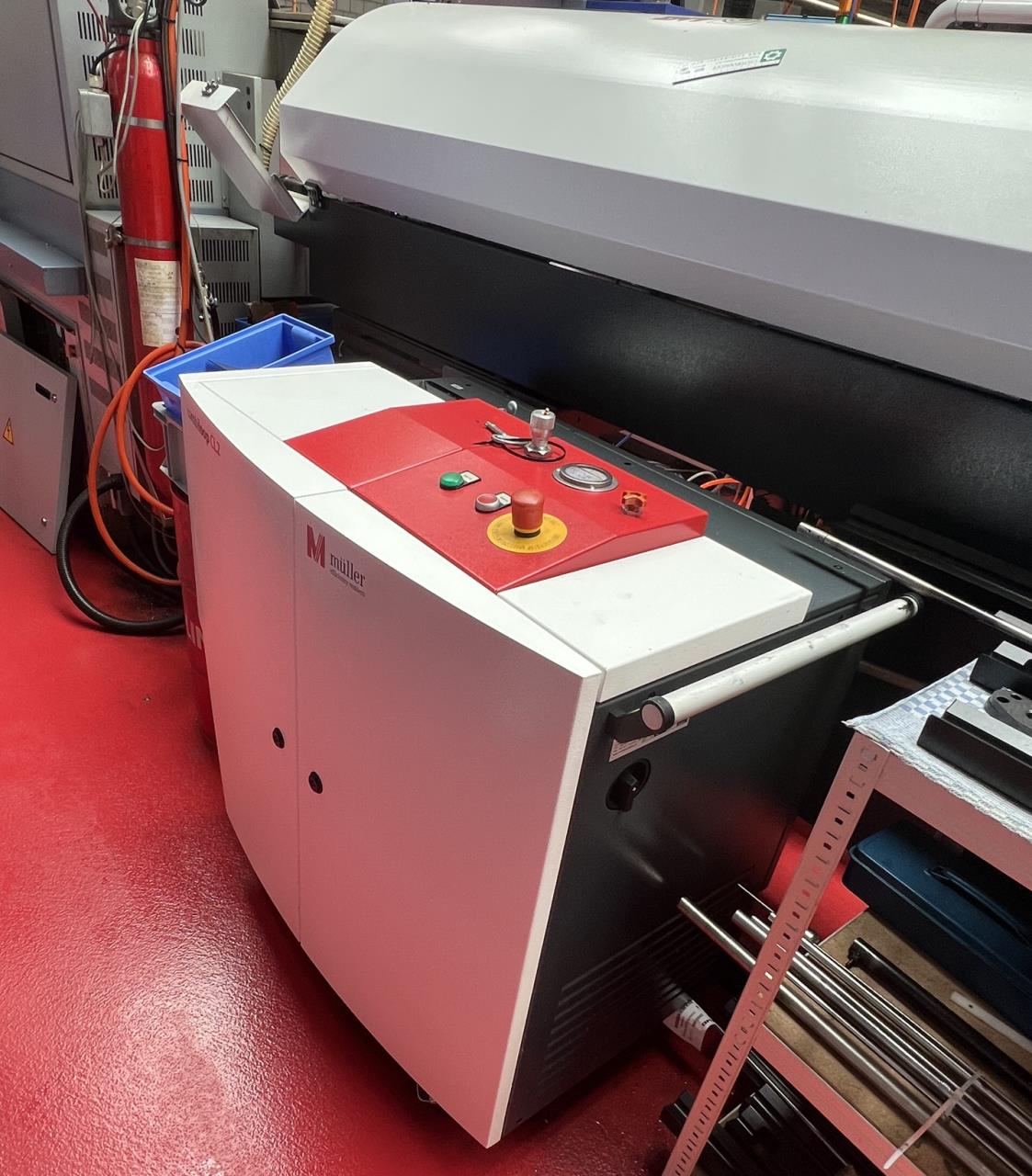

High pression colant device:
Manufacturer
Müller
Type
CL2
year of manufacture
2018
Maximum pressure
70 bar
Coolant system
145 l
Fire extinguishing system
SIEMENS
Technical specifications and pictures without guarantee.
