stock no. :
22518
Machine's group :
Type :
STAR SA-16 R
Controller :
FANUC Serie 18i-T
Jahrgang :
2002
Technical data
Number of axis total
5
Number of spindles
2
Max. turning diameter
16 mm
Max. drilling diameter
7 mm
Max. threading diameter
6 M (Metric)
Spindle speeds:
stepless
from
500 rpm
up to
12000 rpm
Spindle power
2.2 kW
C axis (spindle,resolution)
0.001 °
Back spindle:
speeds:
from
500 rpm
up to
8000 rpm
C axis (spindle,resolution)
15 °
Thread drill diameter
3 M (Metric)
Tool-holder:
Turning tools
6 pce
Drilling tools
2 pce
Transverse processing tools
3 pce
Spindle speeds (turning tools)
7500 rpm
Counter-operation:
number of tools
4
Rapid traverse:
18 m/min
Cutting speed
10000 mm/min
Voltage 50 Hz 3x
400 Volt
Spindle motor
2.2 / 3.7 kW
Power of back spindle
0.5 kW
Air connect
5 bar
Total power required
6 kVA
Machine's weight about
1700 kg
Overall dimensions machine:
Length
2090 mm
Width
770 mm
Height
1660 mm
Various accessories:

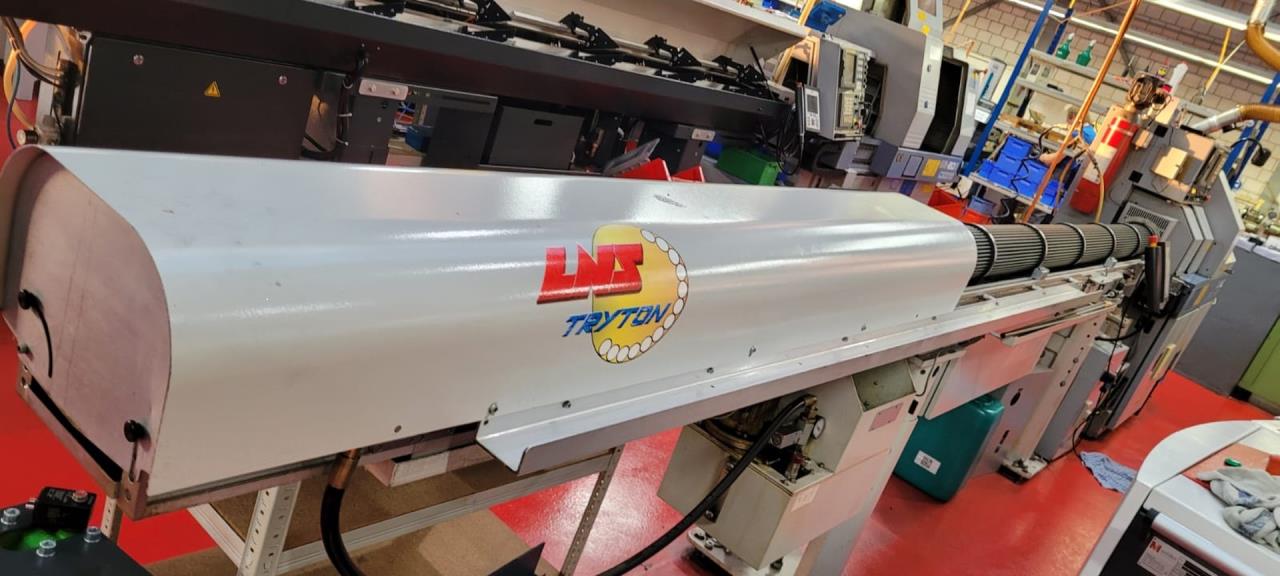

Bar feeder
Manufacturer
LNS
Type
TRYTON 112
Bar diameter
1 - 12 mm
Parts catcher
Workpiece conveyor
Lamp
Coolant system
80 l
Fire extinguishing system
SIEMENS
Technical specifications and pictures without guarantee.
