Technical data
Number of axis total
5 + 2
Number of spindles
2
Workpiece length max.
195 mm
Max. bar diameter
25.4 mm
Spindle speeds:
stepless
from
0 rpm
up to
10000 rpm
Spindle power
8.2 kW

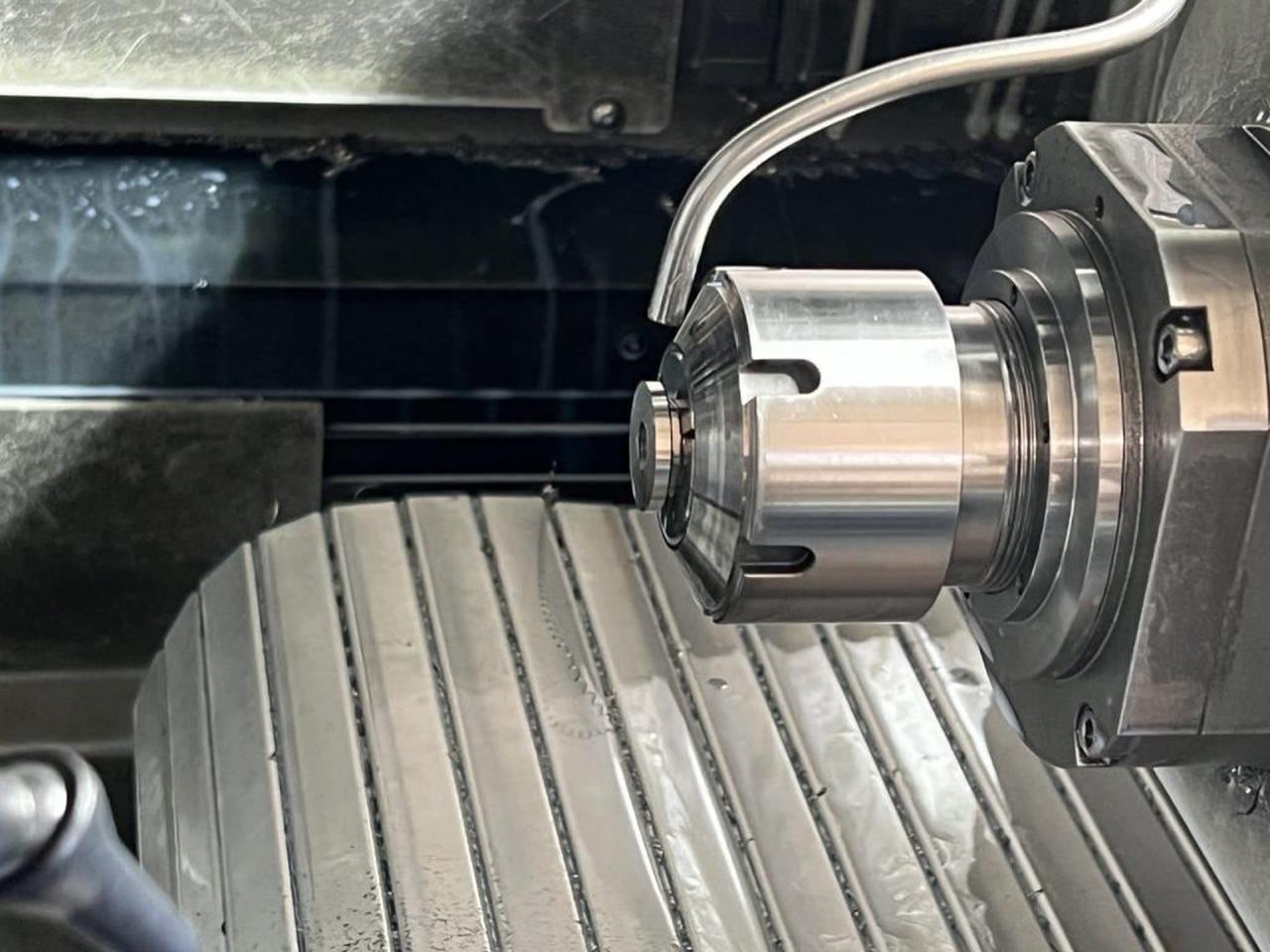

Back spindle:
speeds:
from
0 rpm
up to
10000 rpm

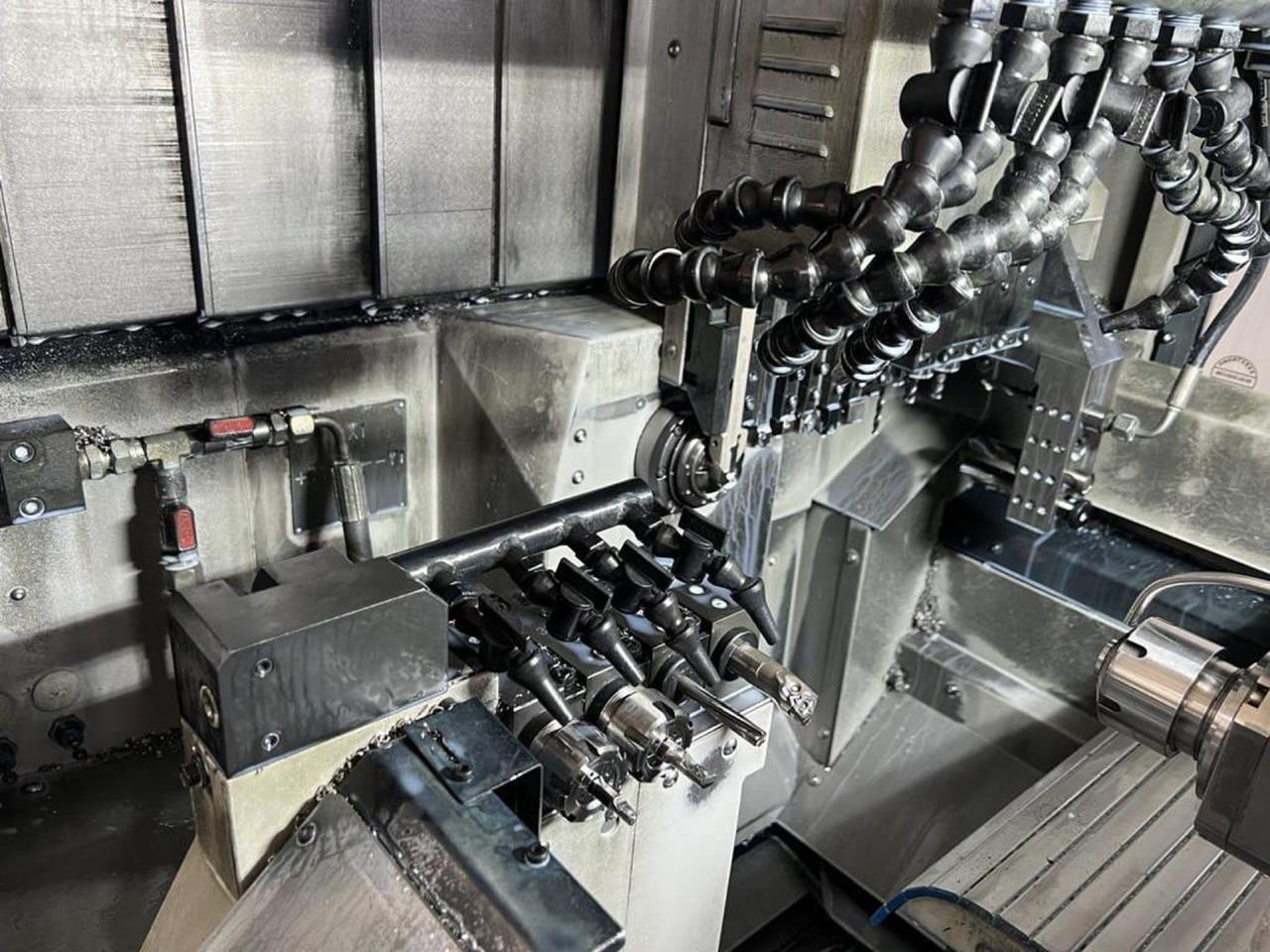

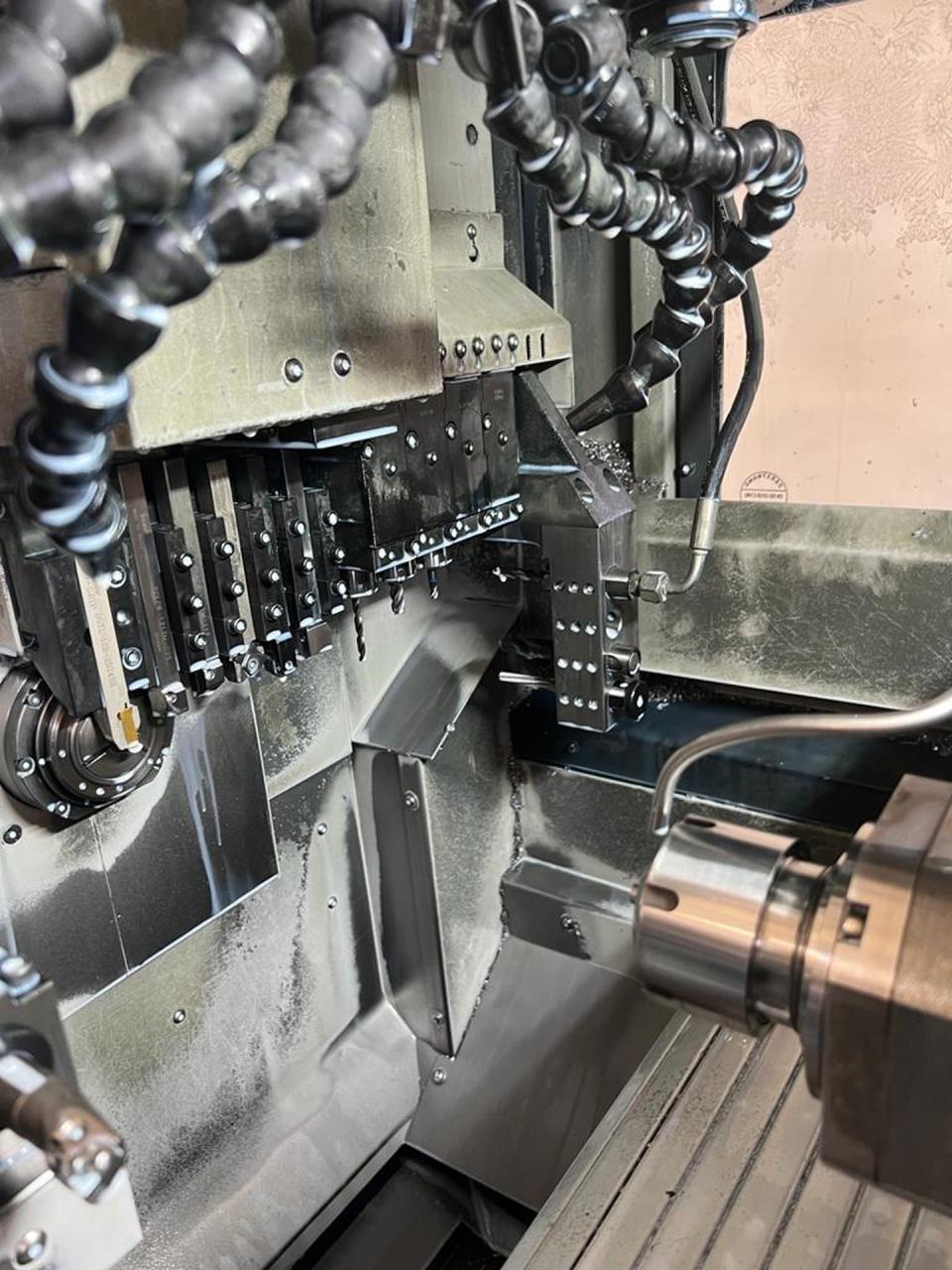

Tool-holder:
numbers
2
Number of stations
22
Spindle speeds (turning tools)
5000 rpm
Power of driven tools
1 kW
Counter-operation:
number of tools
8
number of driven tools
4
Turning tools
4 pce
Drilling tools
4 pce
Rapid traverse:
32 m/min
Power of back spindle
8.2 kW
Machine's weight about
2400 kg
Overall dimensions machine:
Length
2912 mm
Width
1300 mm
Height
1720 mm
Various accessories:
C axis
Blow out device

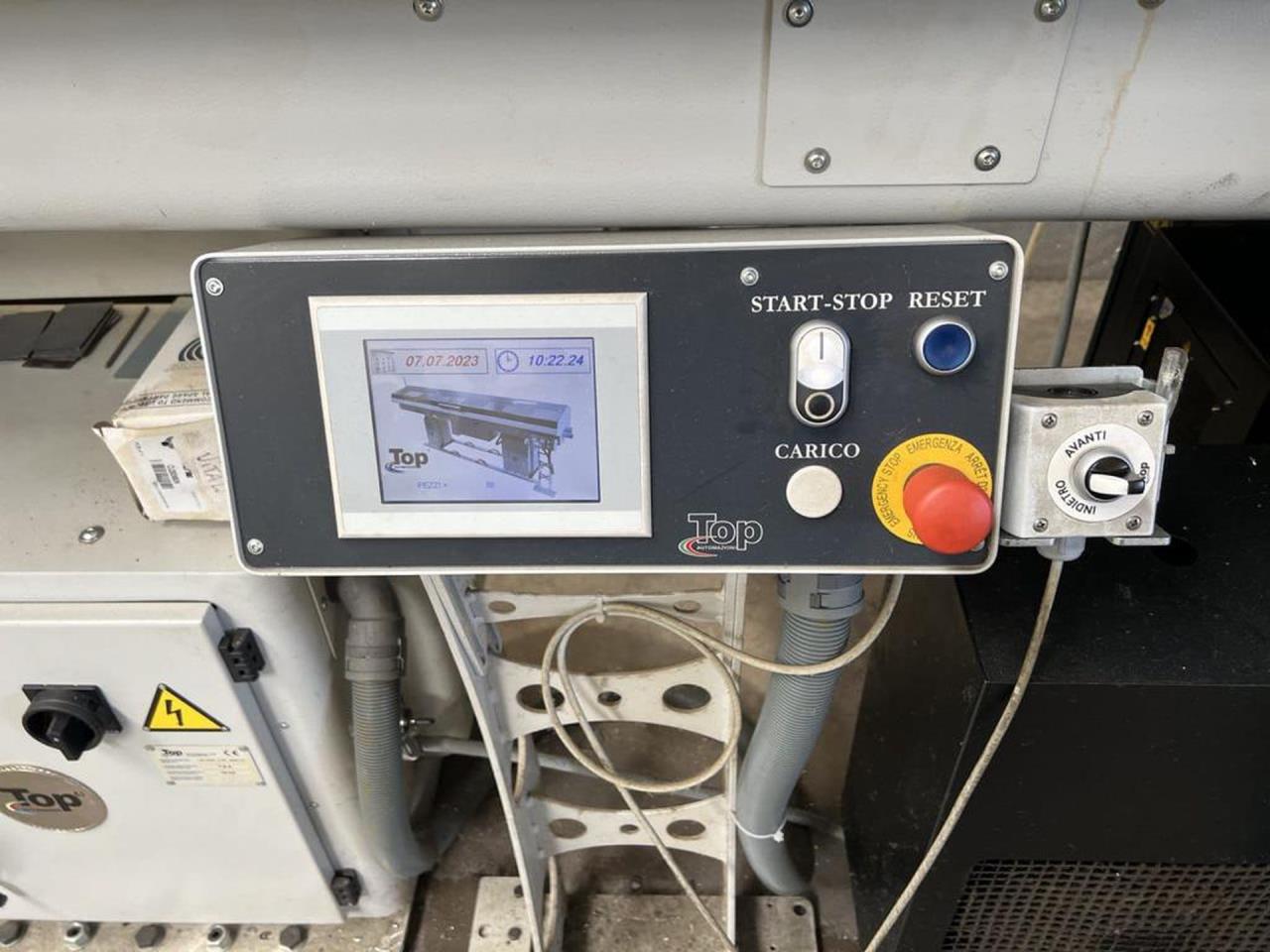

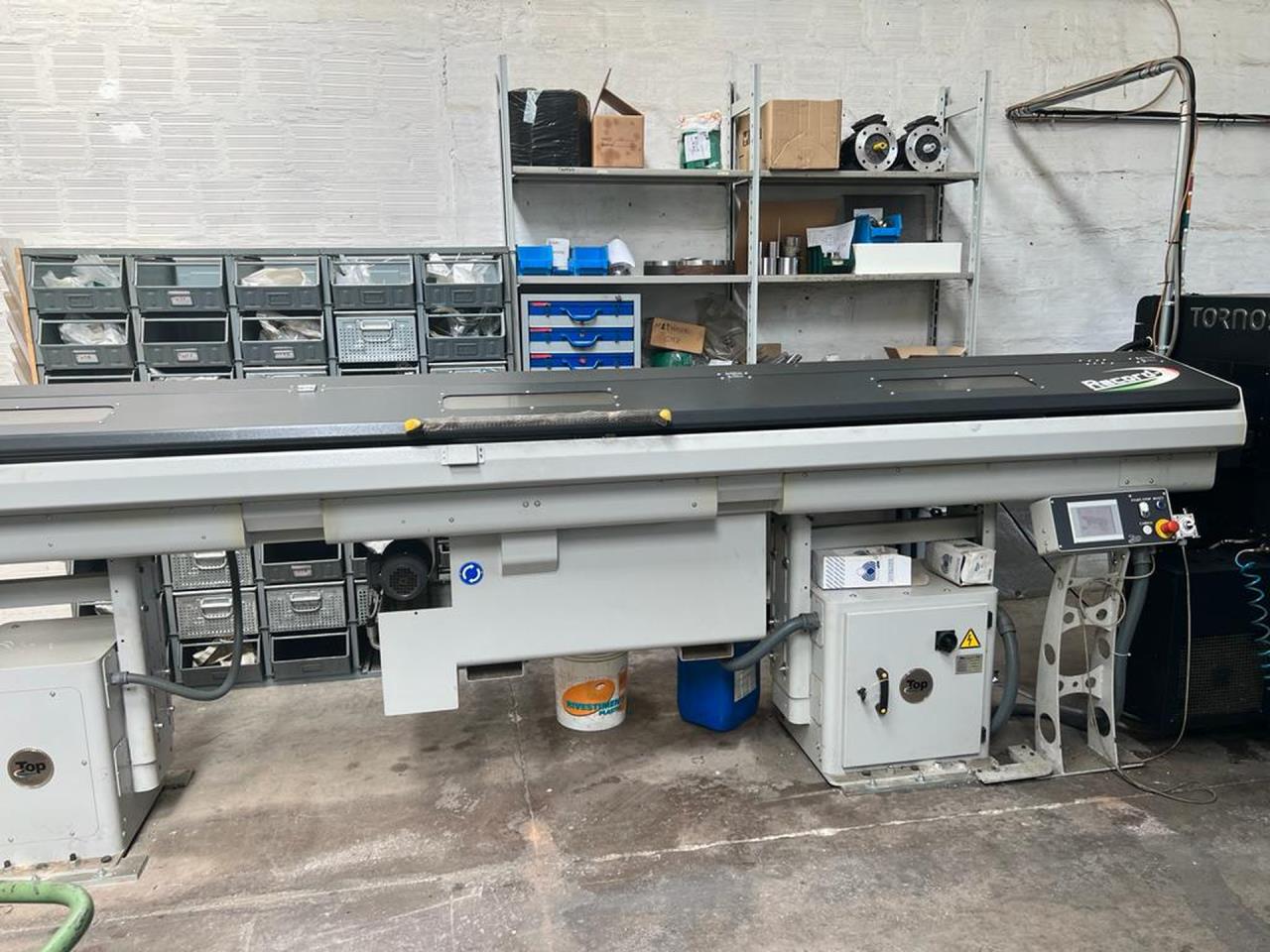

Bar loader number of bars
Top Automazioni
Workpiece conveyor

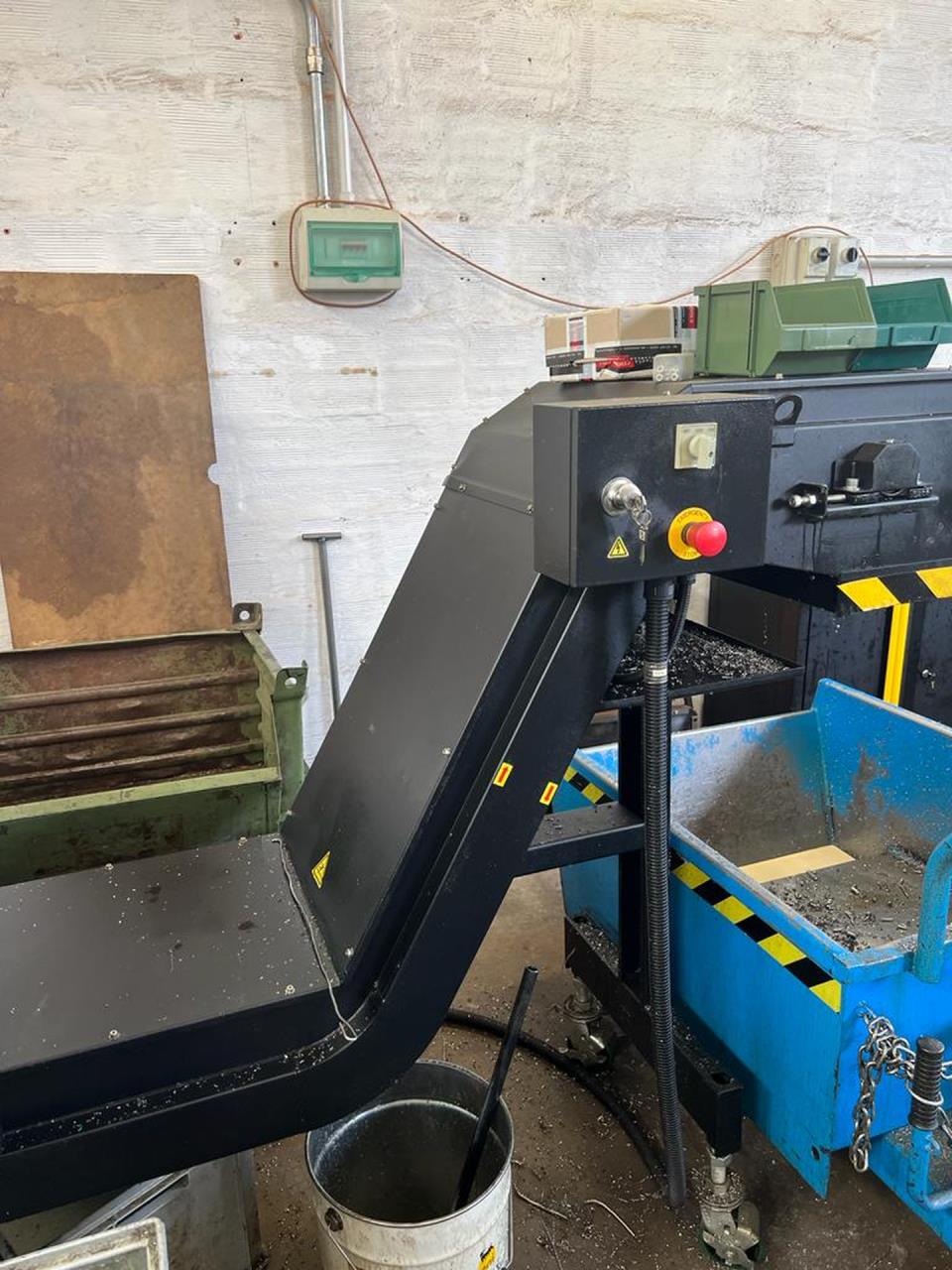

Chip conveyor

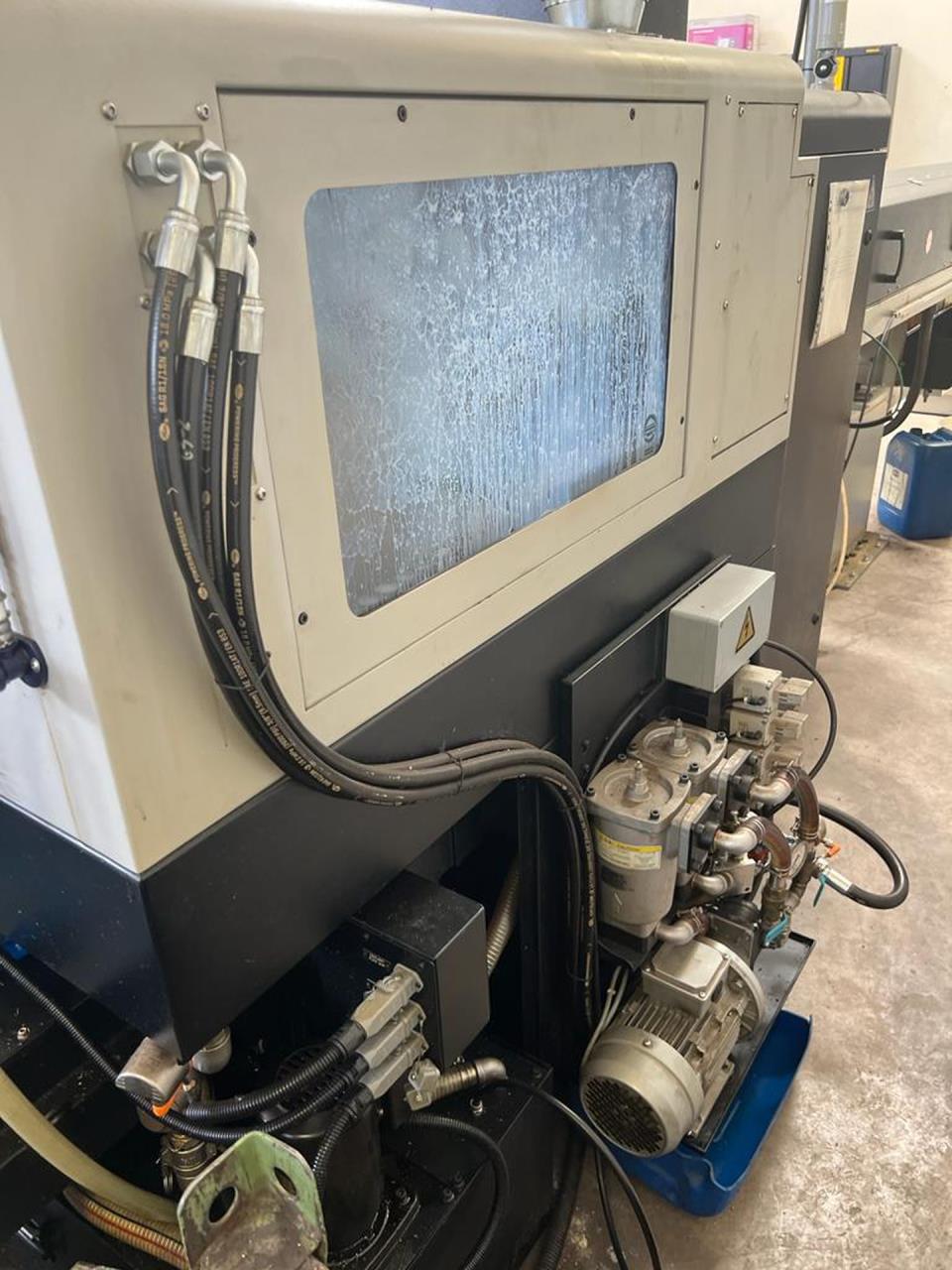

High pression colant device
20 bar
Central lubrification
Status light
Technical specifications and pictures without guarantee.
