stock no. :
22513
Type :

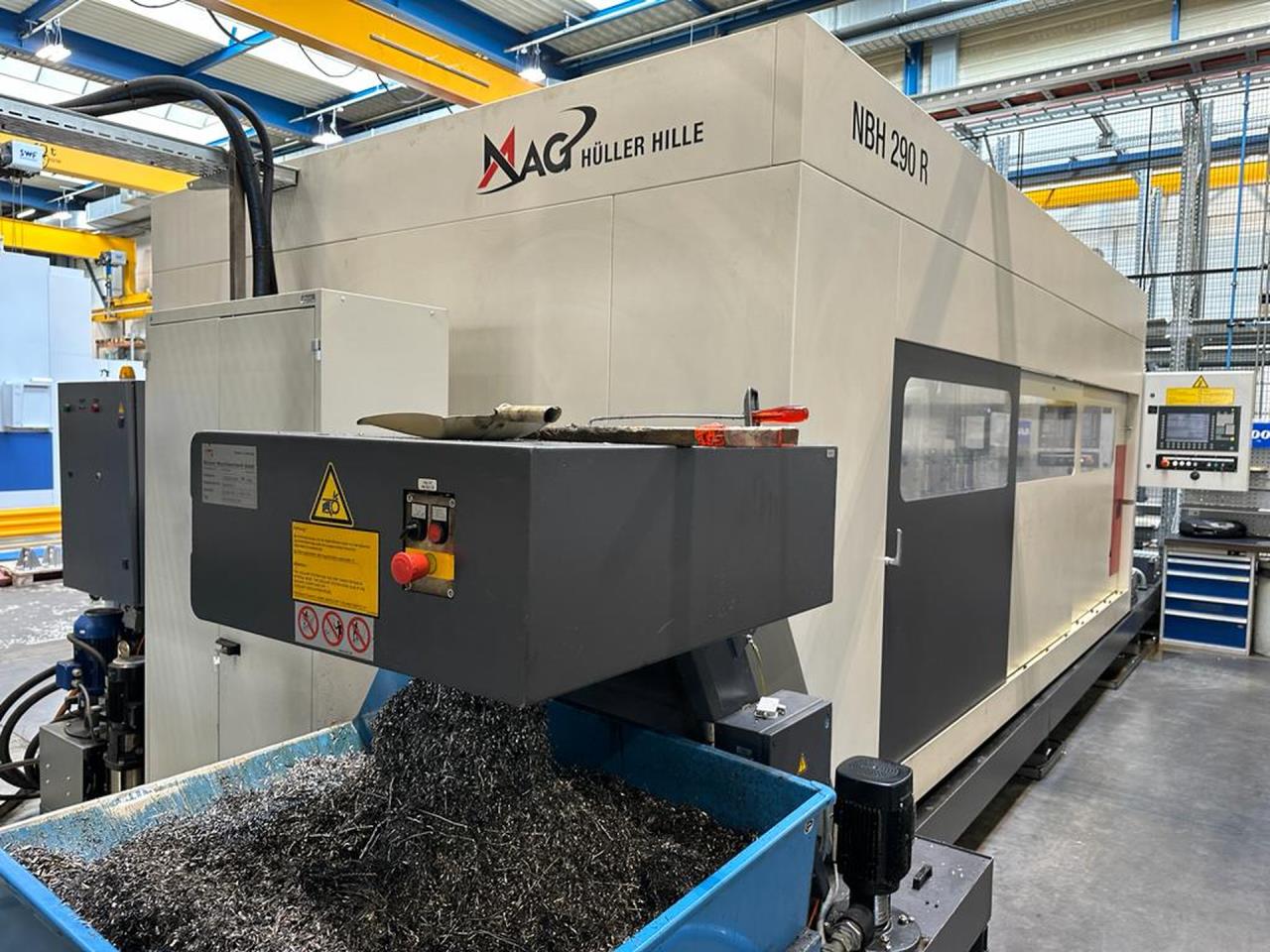

HÜLLER HILLE NBH 230 / NBH 290 R

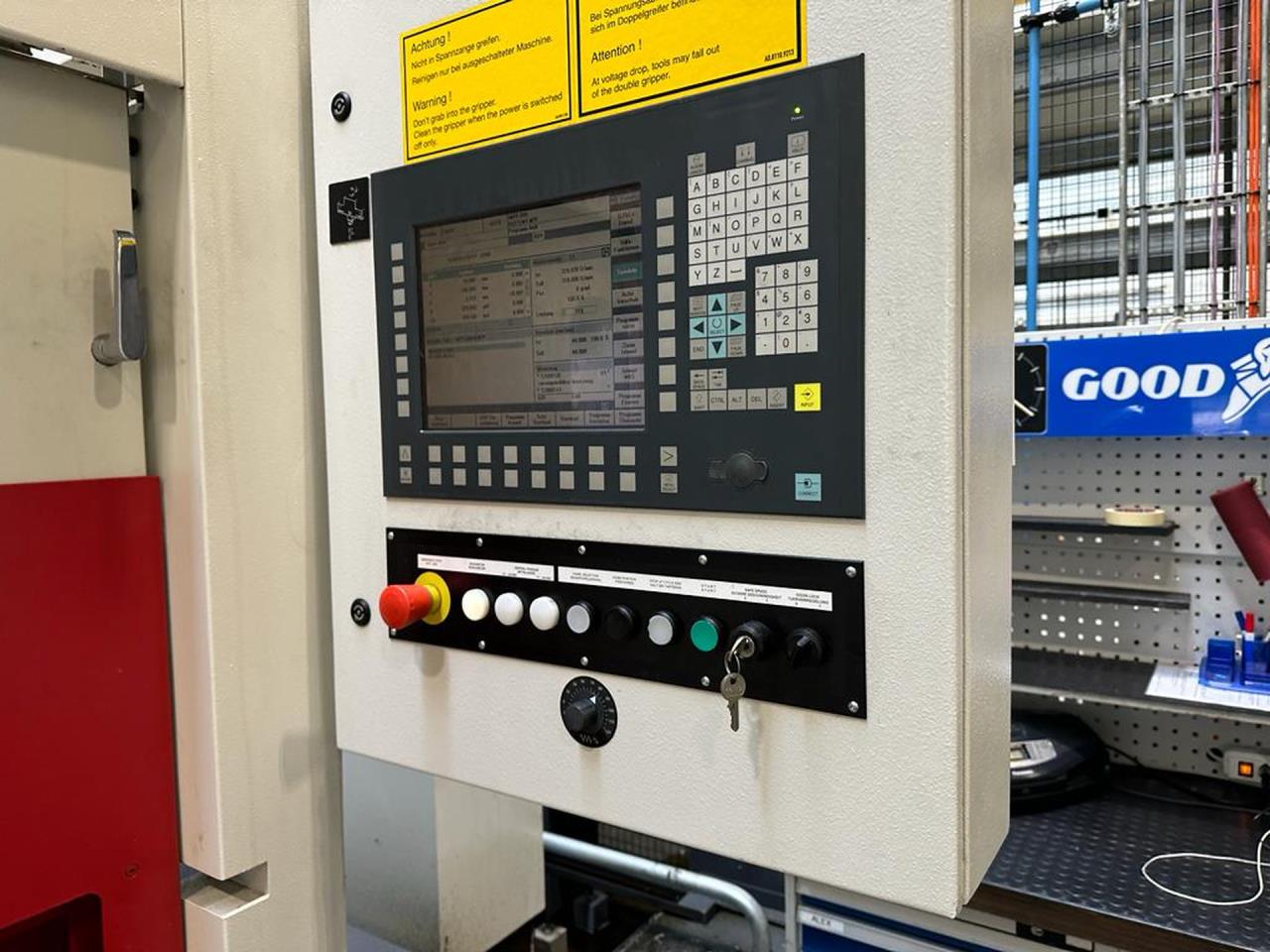

Controller :
SIEMENS SINUMERIK 840 D
Jahrgang :
2009
HÜLLER HILLE NBH 230 / NBH 290 R 20 Image(s)
Back
Technical data

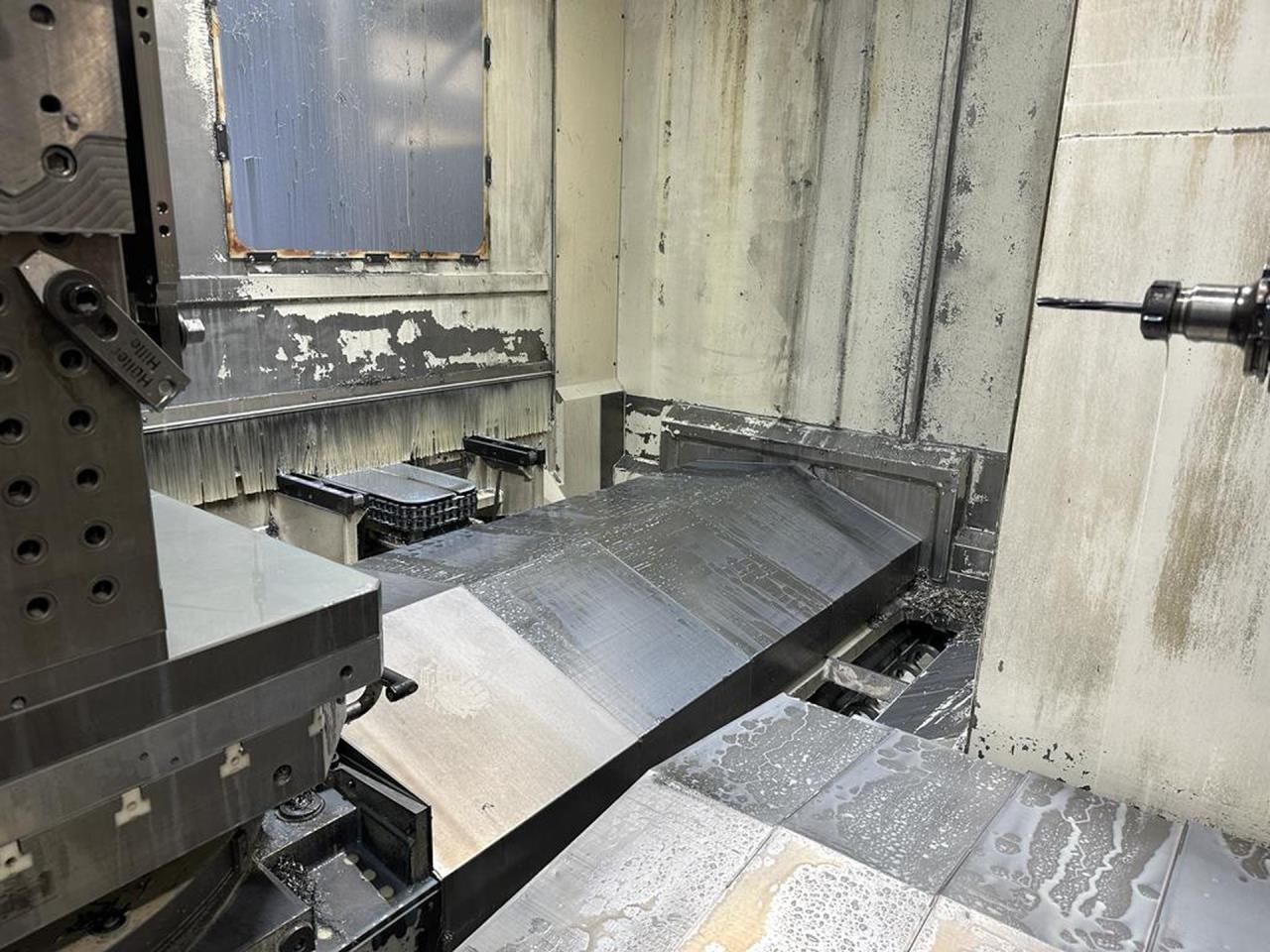

Longitudinal travel (X-axis)
1200 / 1460 mm
Transversal travel (y-axis)
800 / 1000 mm
Vertical travel (z axis)
1200 / 1200 mm
B axis
9999 °
Table speed
15 rpm
Holding torque of the table
10000 Nm
Tilting moment
29000 Nm

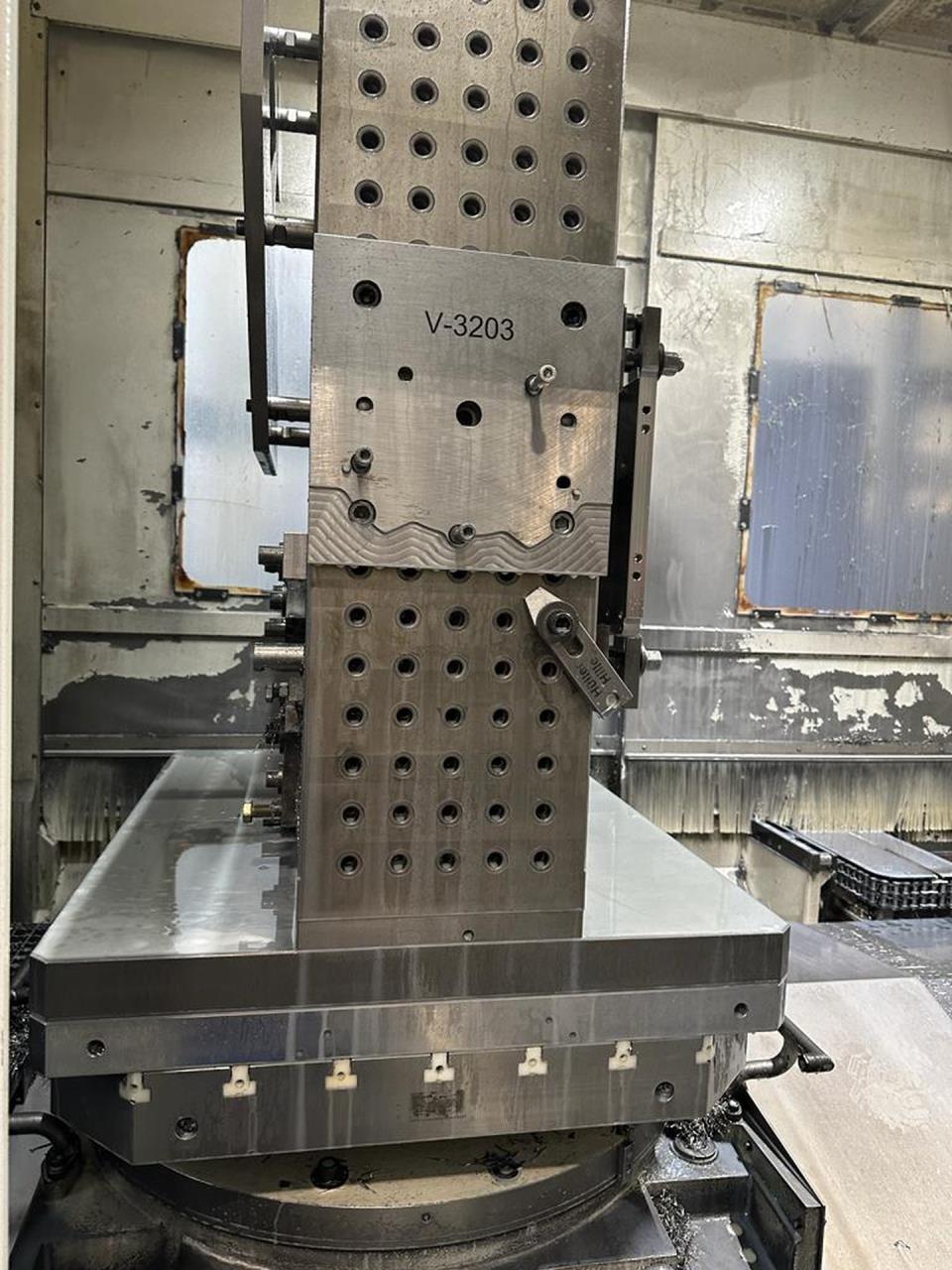

Pallets:
    numbers
10 / 10
    Length
630 / 1000 mm
    Width
630 / 800 mm
    Maximum workpiece weight
2500 kg

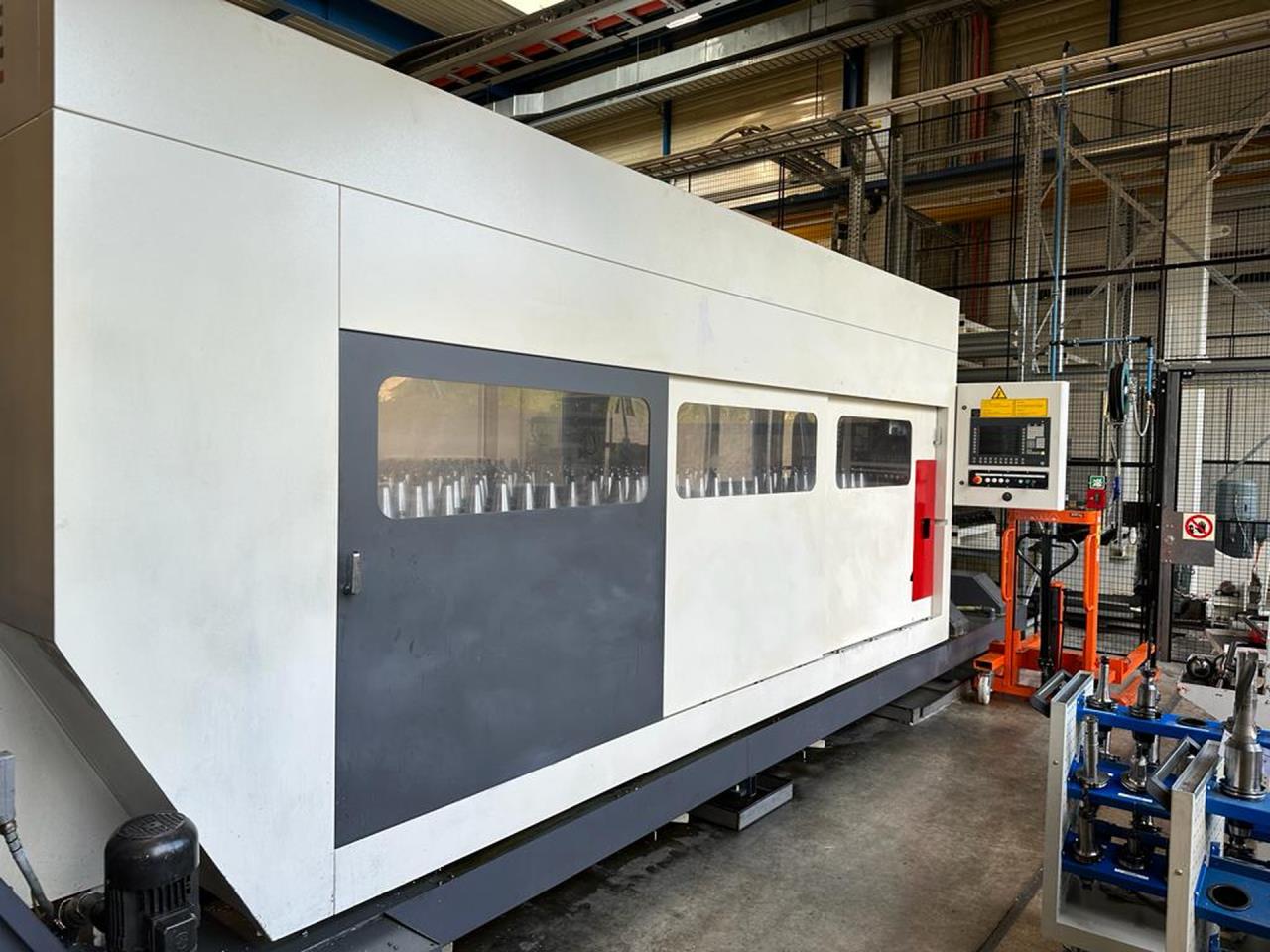

Tool changer:
    Number of tools
300
    Tool diameter max.
125 mm
    Diameter with free adjacent pockets
250 mm
    Tool lenght
650 mm
    Max. tool-weight
40 kg
    Time of tool changing
2.5 - 4.5 sec
    Average chip-to-chip time
7 - 9 sec
Spindle nose SK
50 DIN69871
Distance spindle nose to table
130 mm

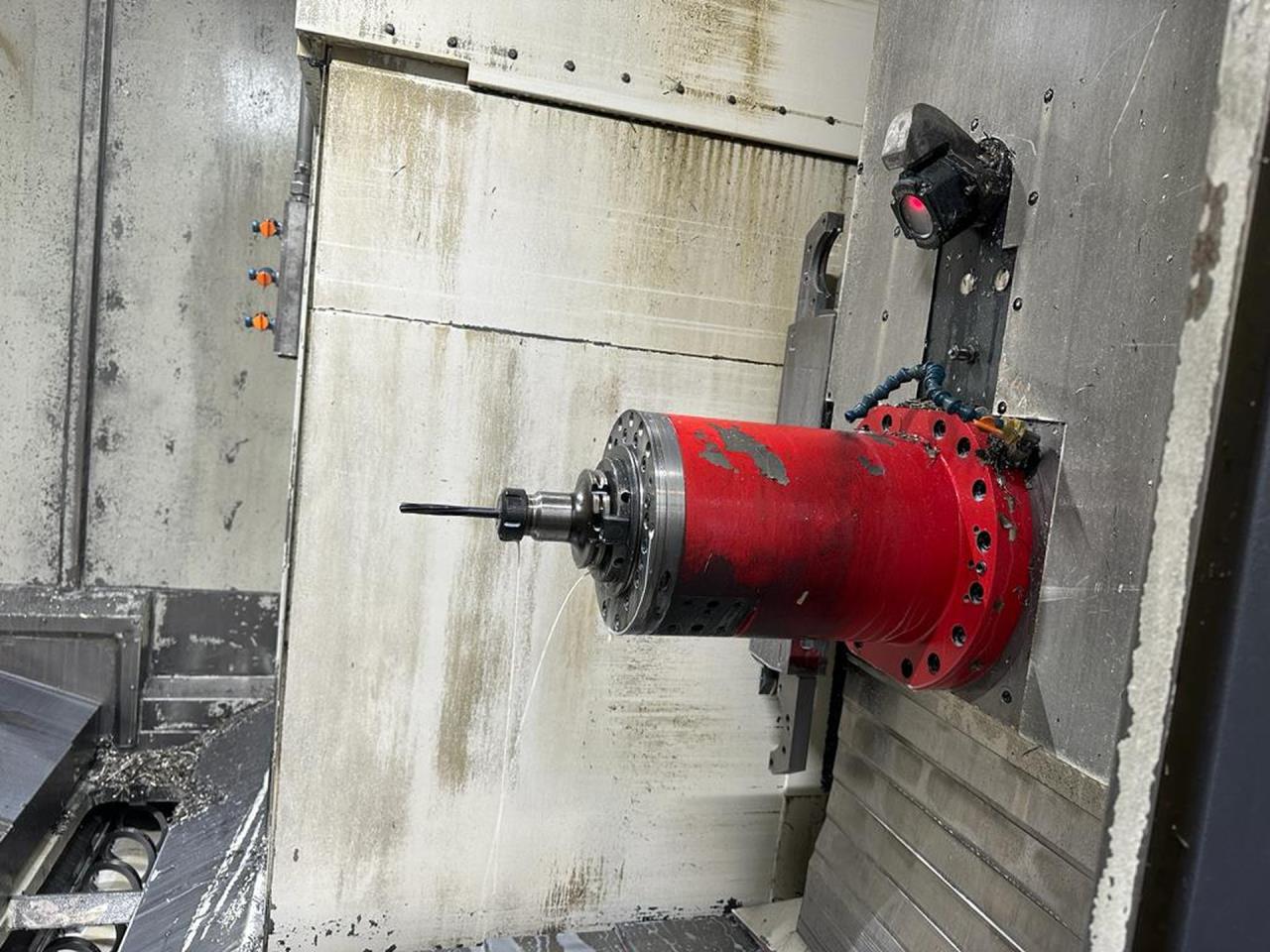

Spindle speeds:
    stepless
       from
25 rpm
       up to
6000 rpm
Torque max.
900 / 1130 Nm
Feed range
1 - 36000 mm/min
Rapid traverse:
36 m/min
Voltage 50 Hz 3x
400 Volt
Machine's weight about
30000 kg
Overall dimensions machine:
    Length
10000 mm
    Width
6000 mm
    Height
3800 mm
Space requirement env.
25 X 12 m2
Various accessories:

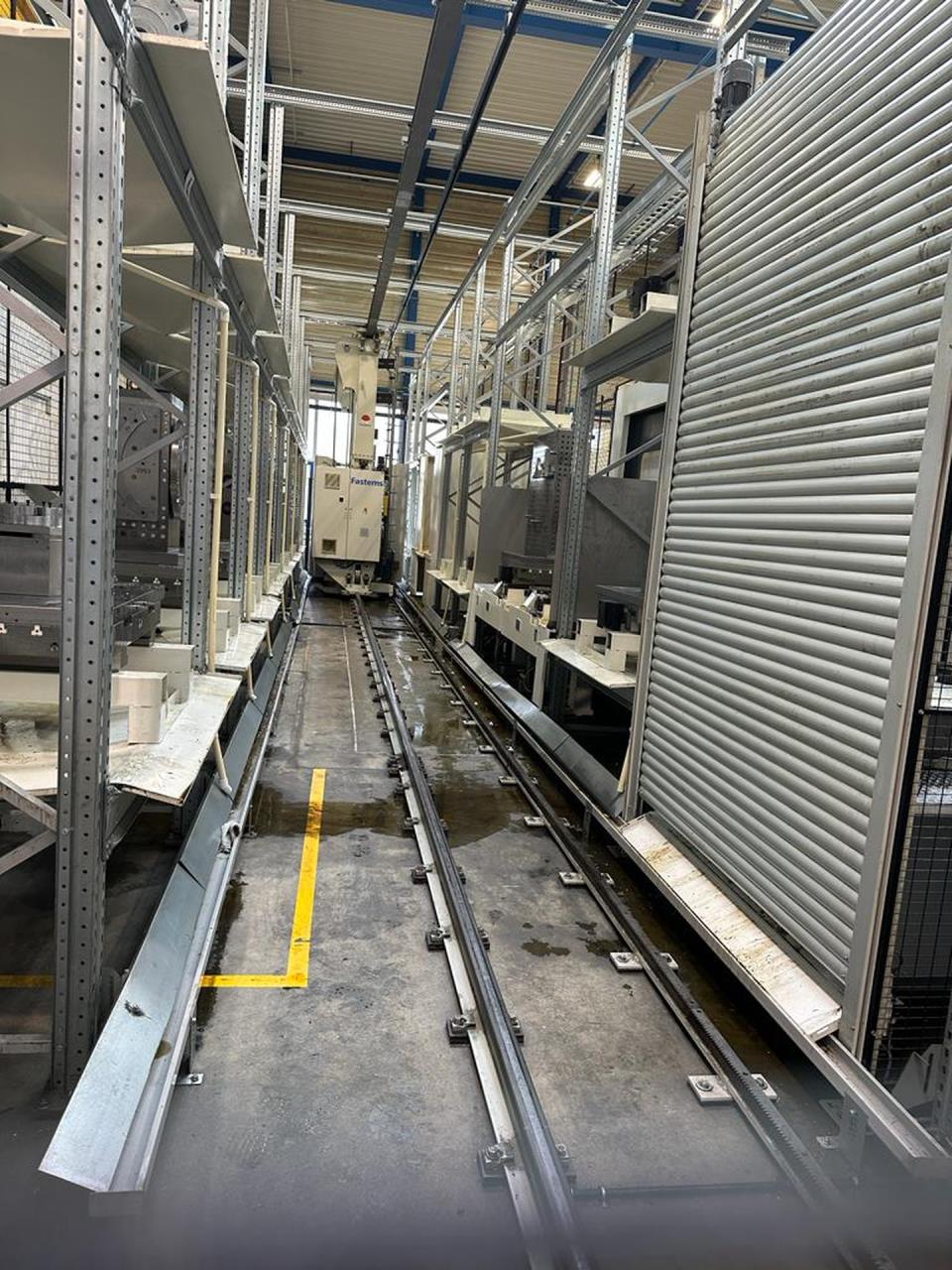

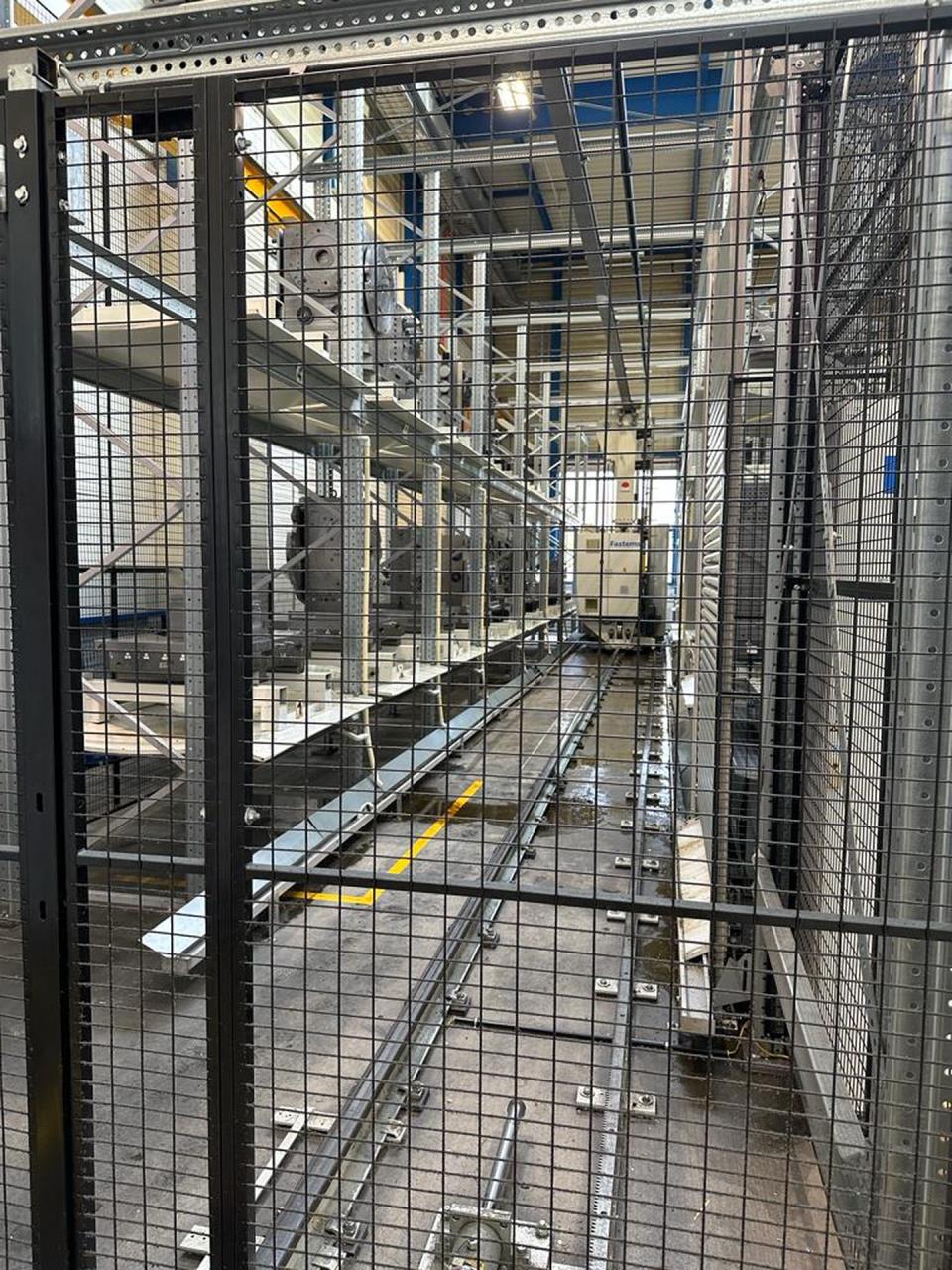

FMS system (flexible manufacturing system)

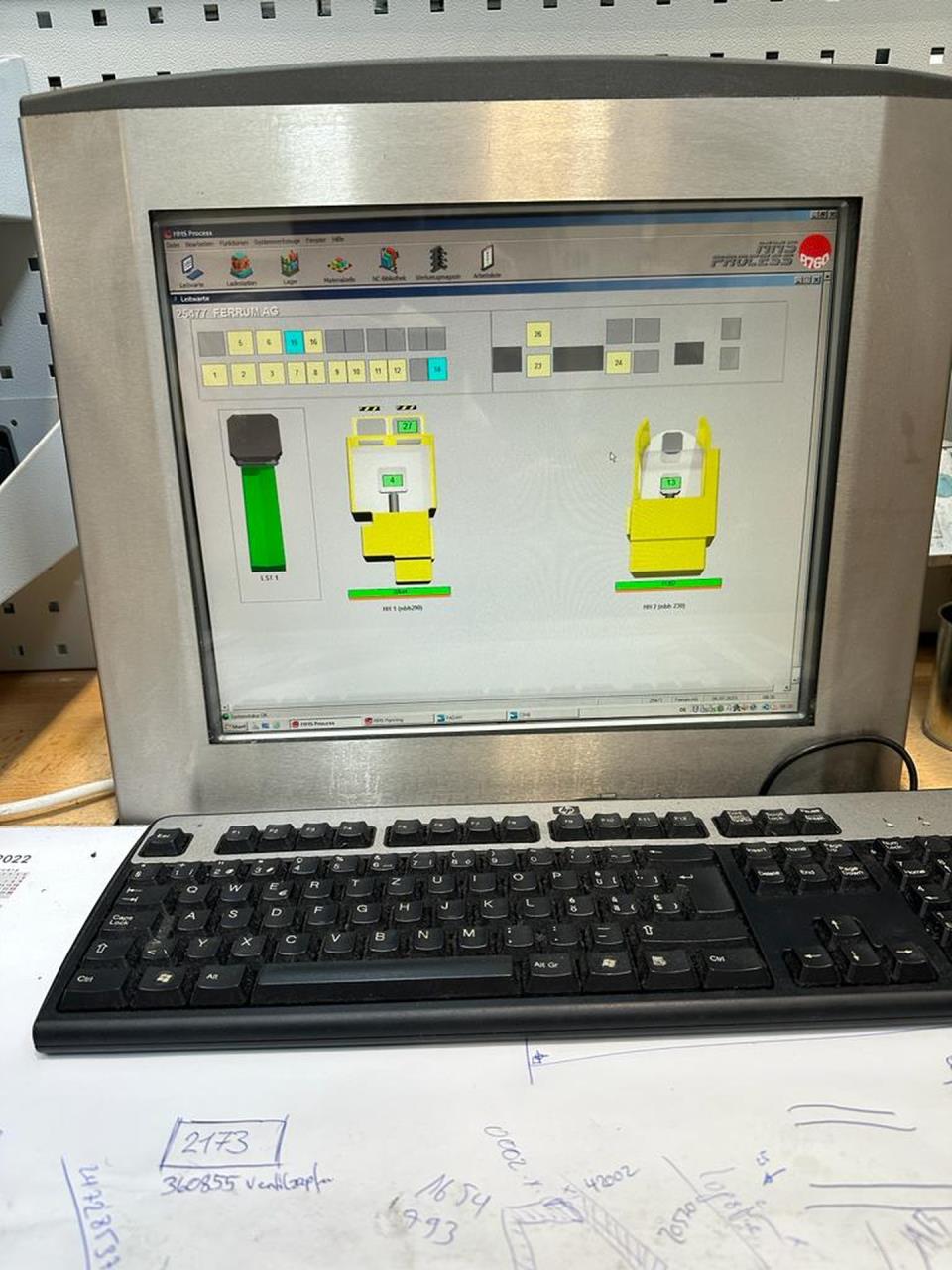

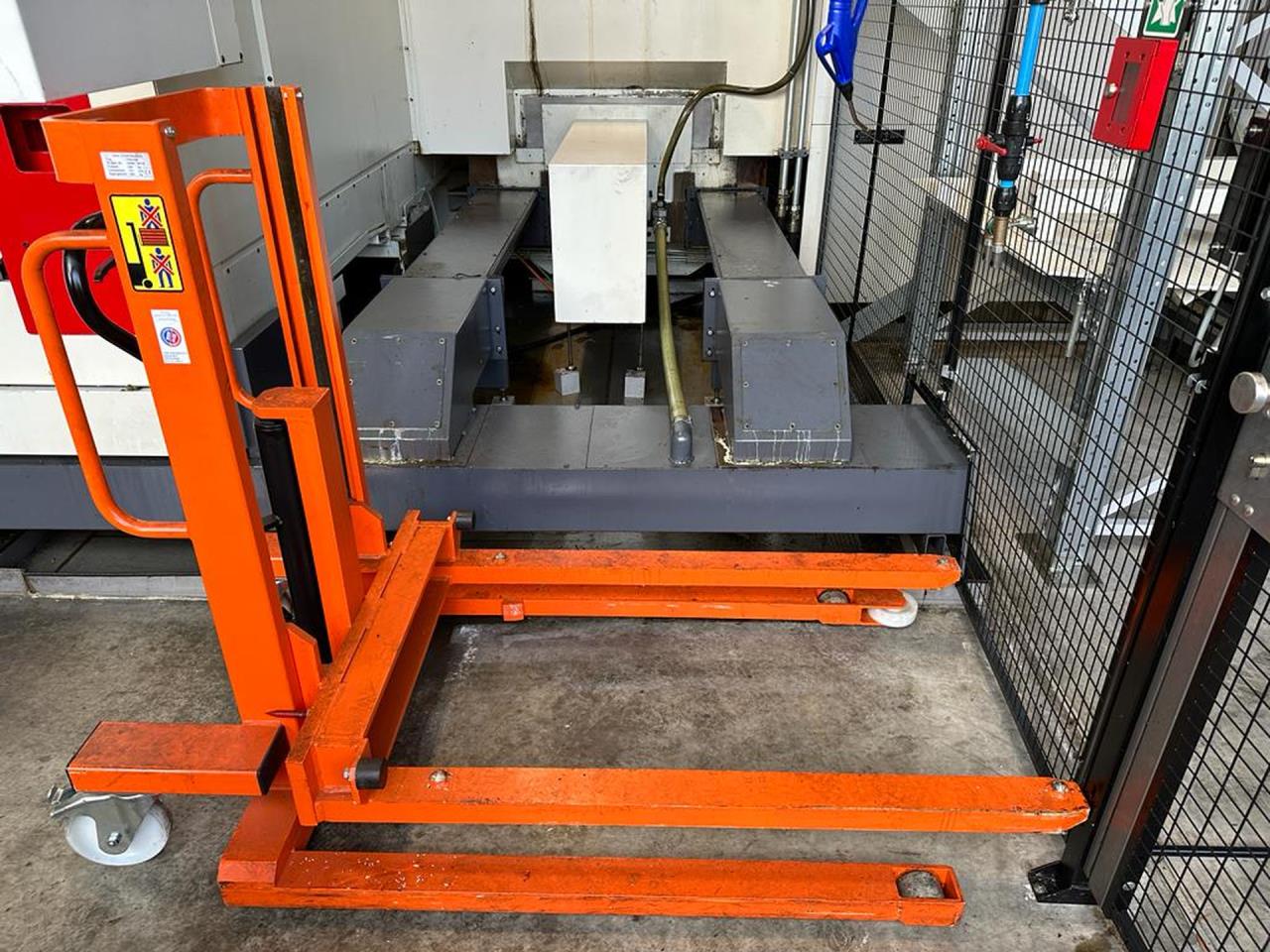

LPP (Pallet changing system)
Zero-point clamping system
EROWA

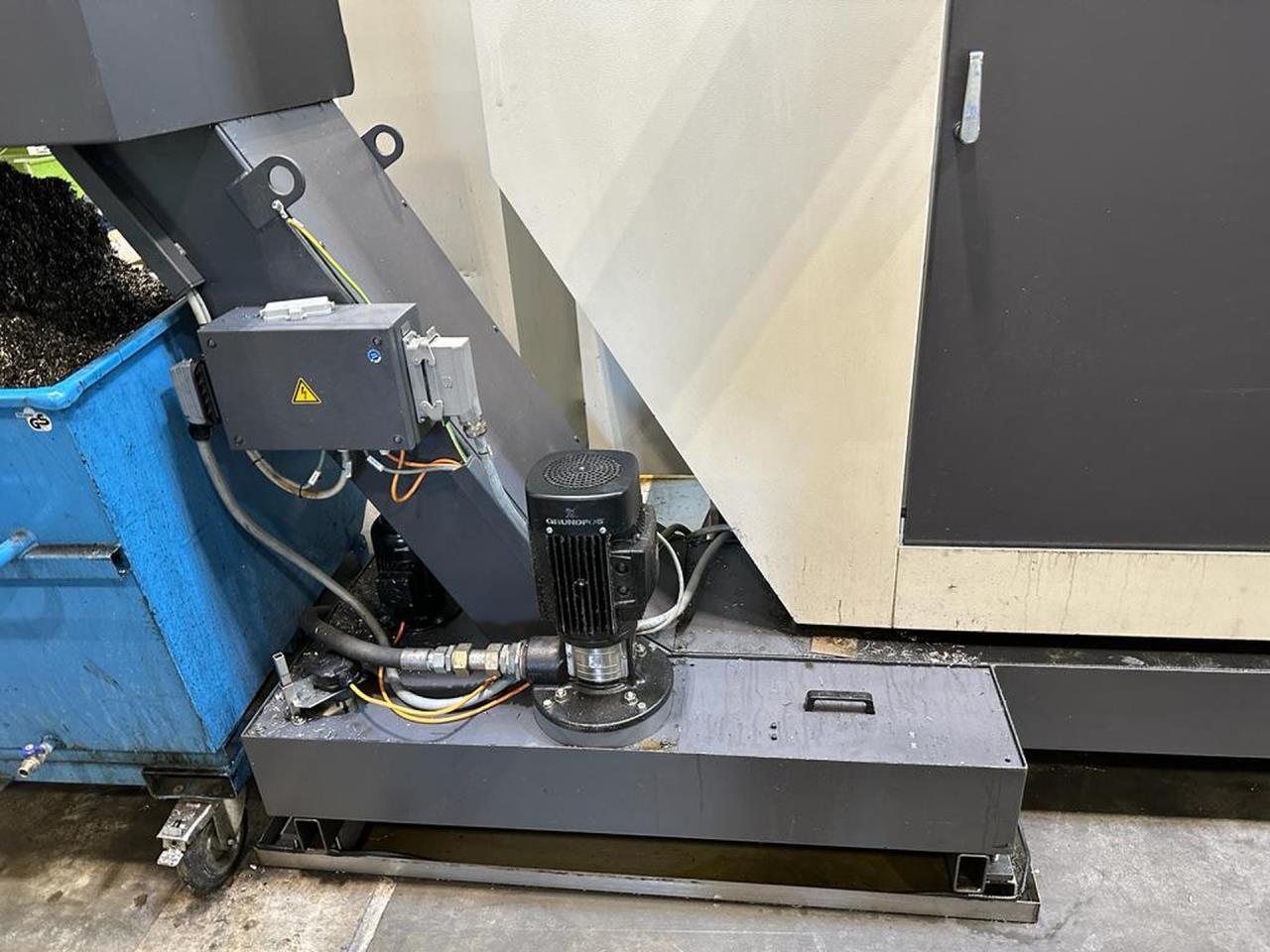

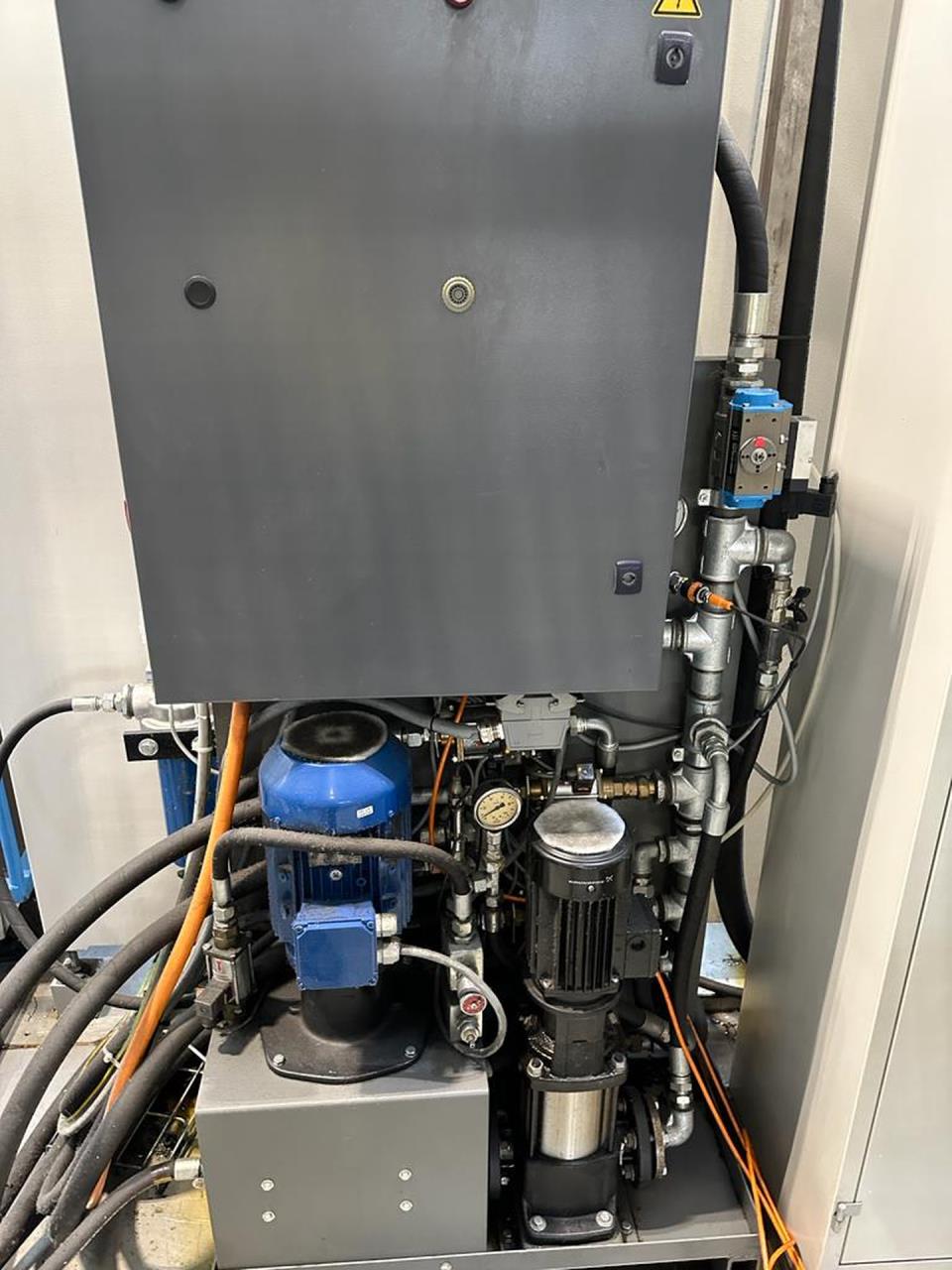

Coolant system
1250 l

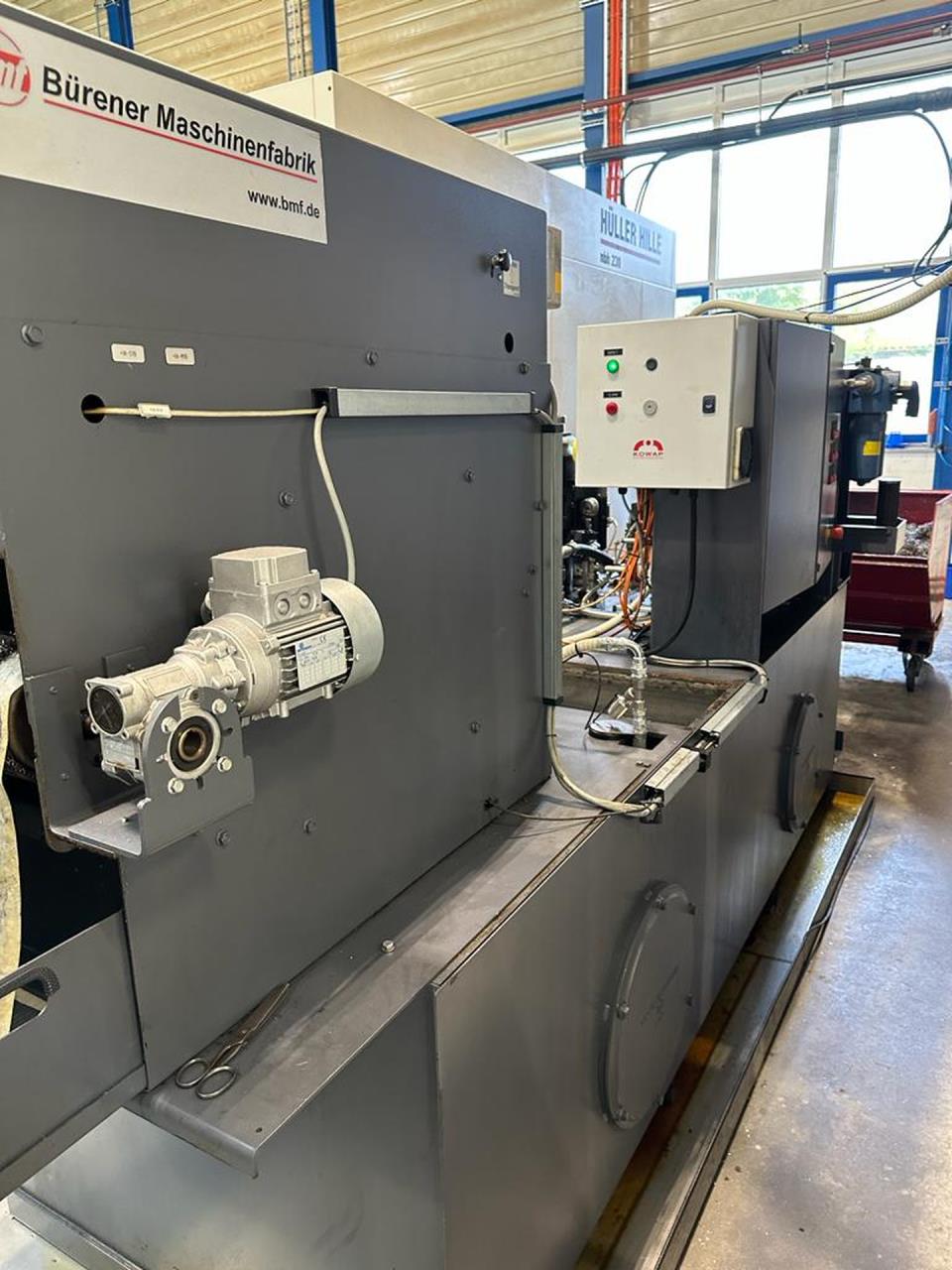

Paper filtration system
Tool break control

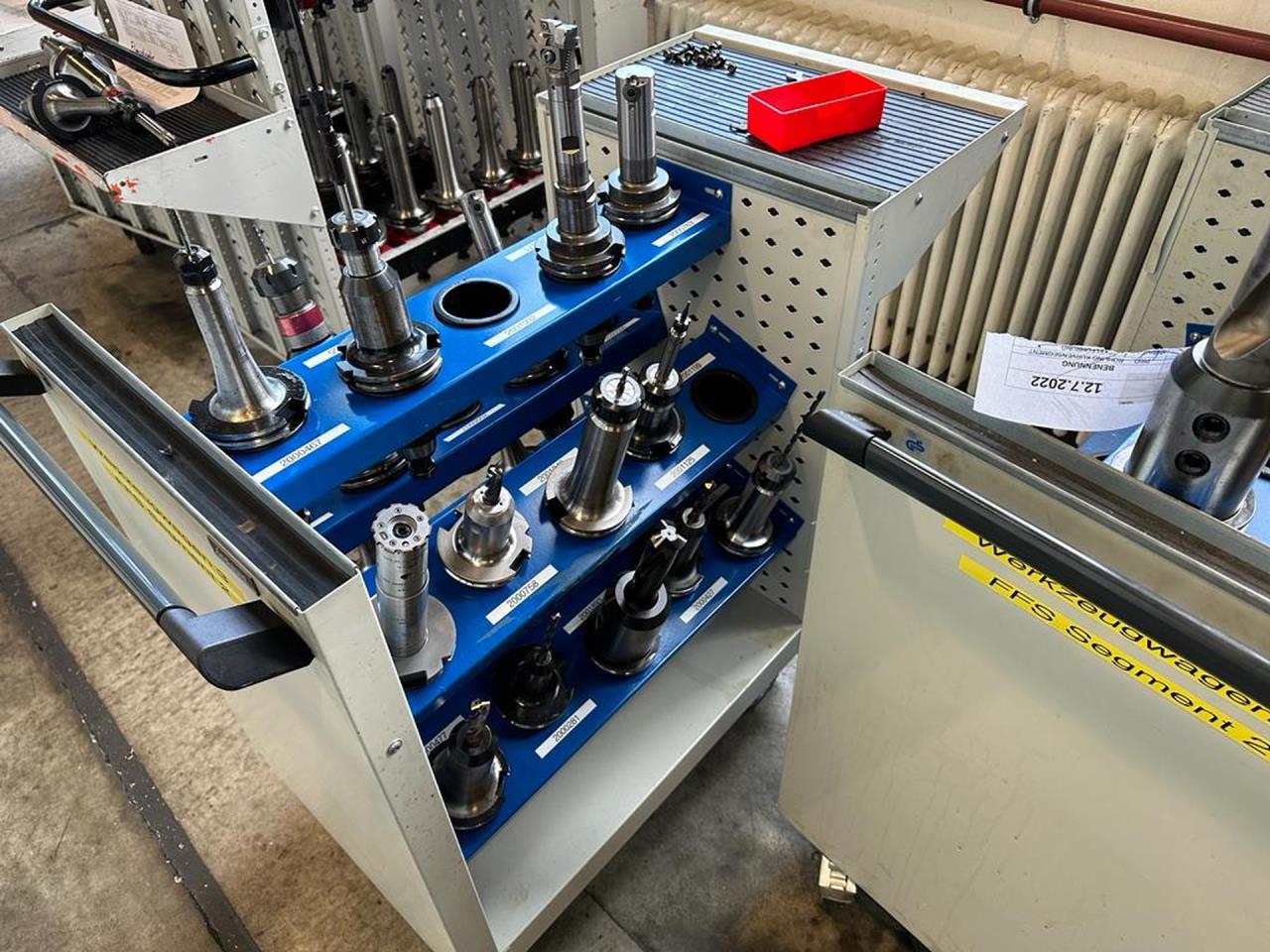

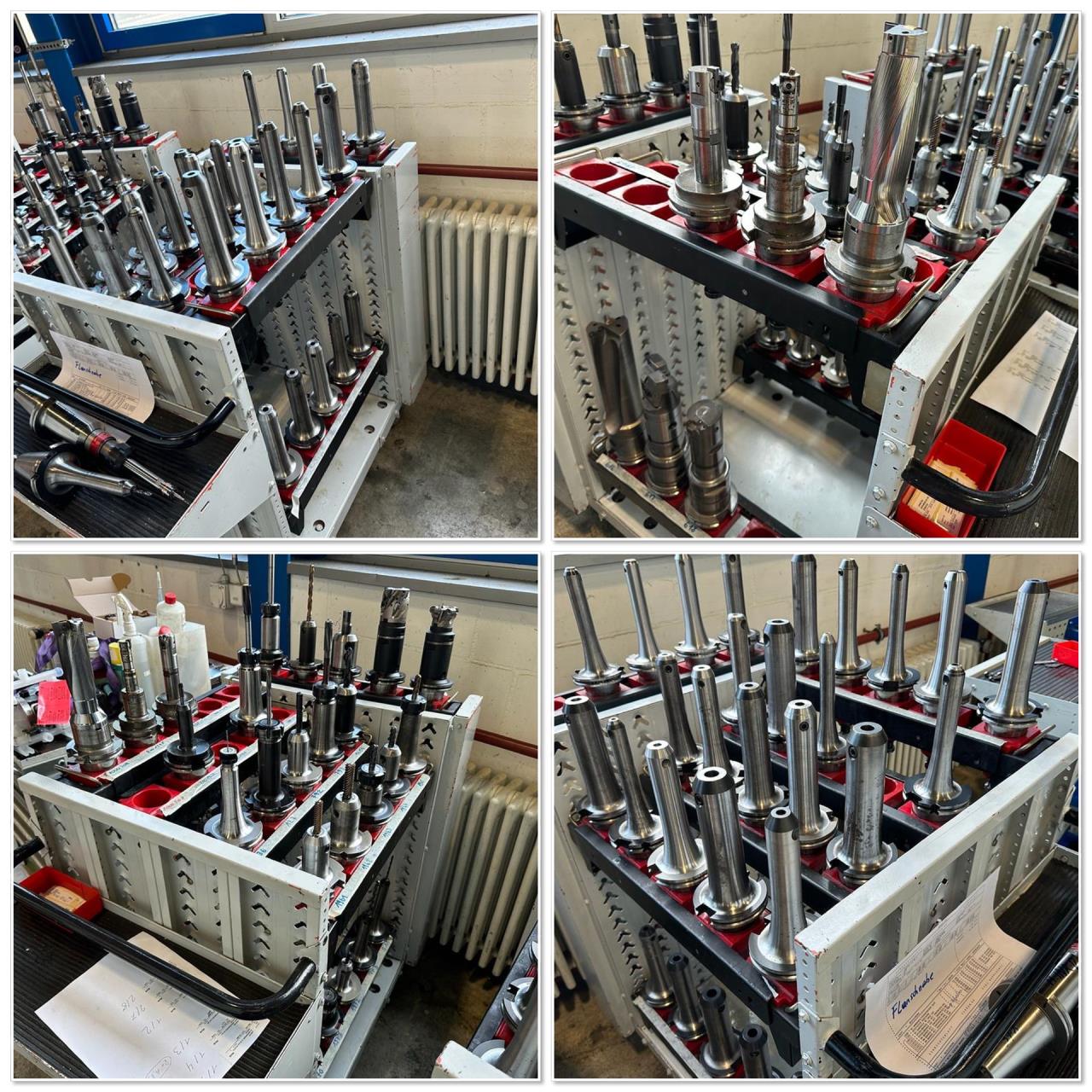

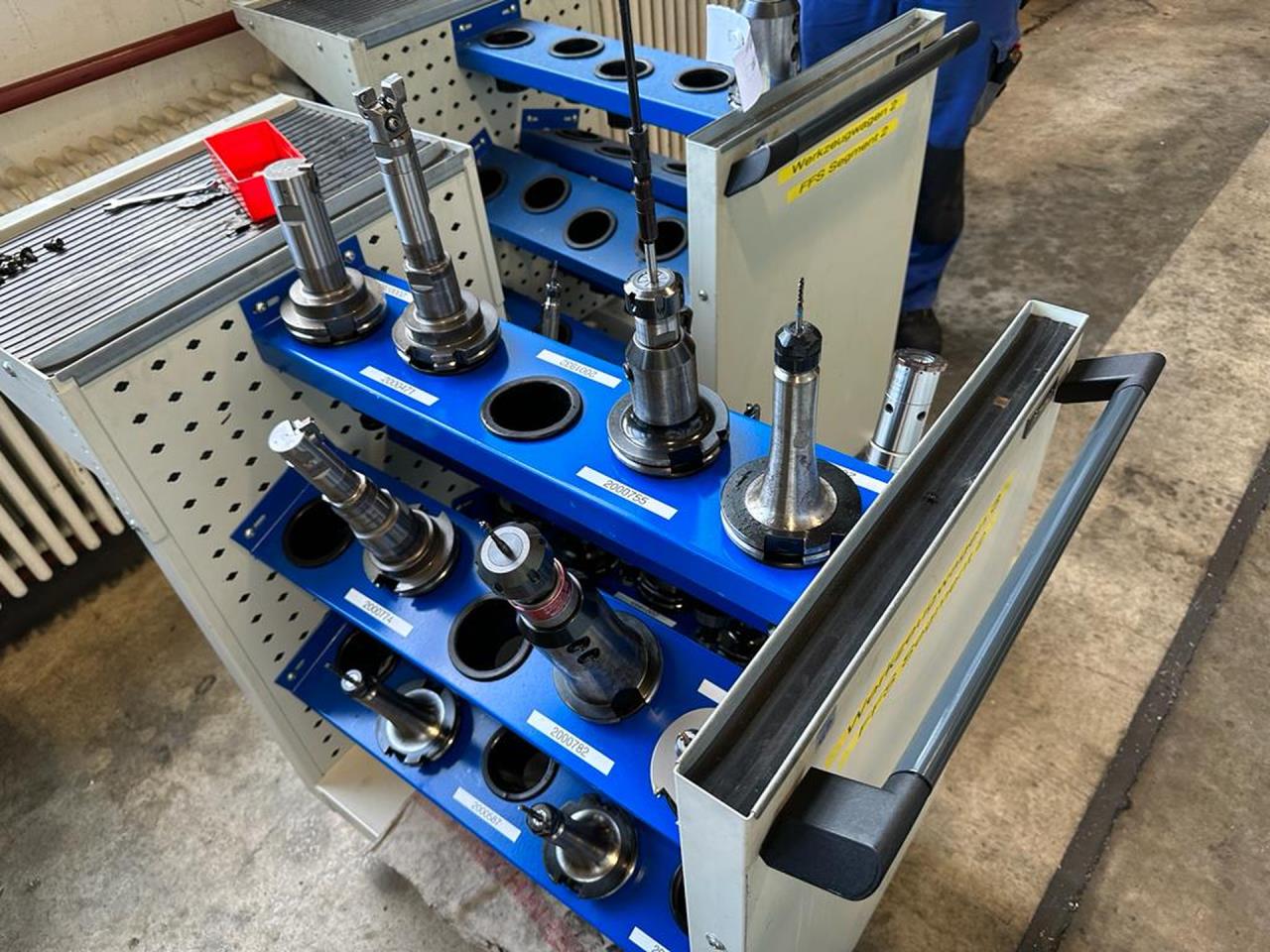

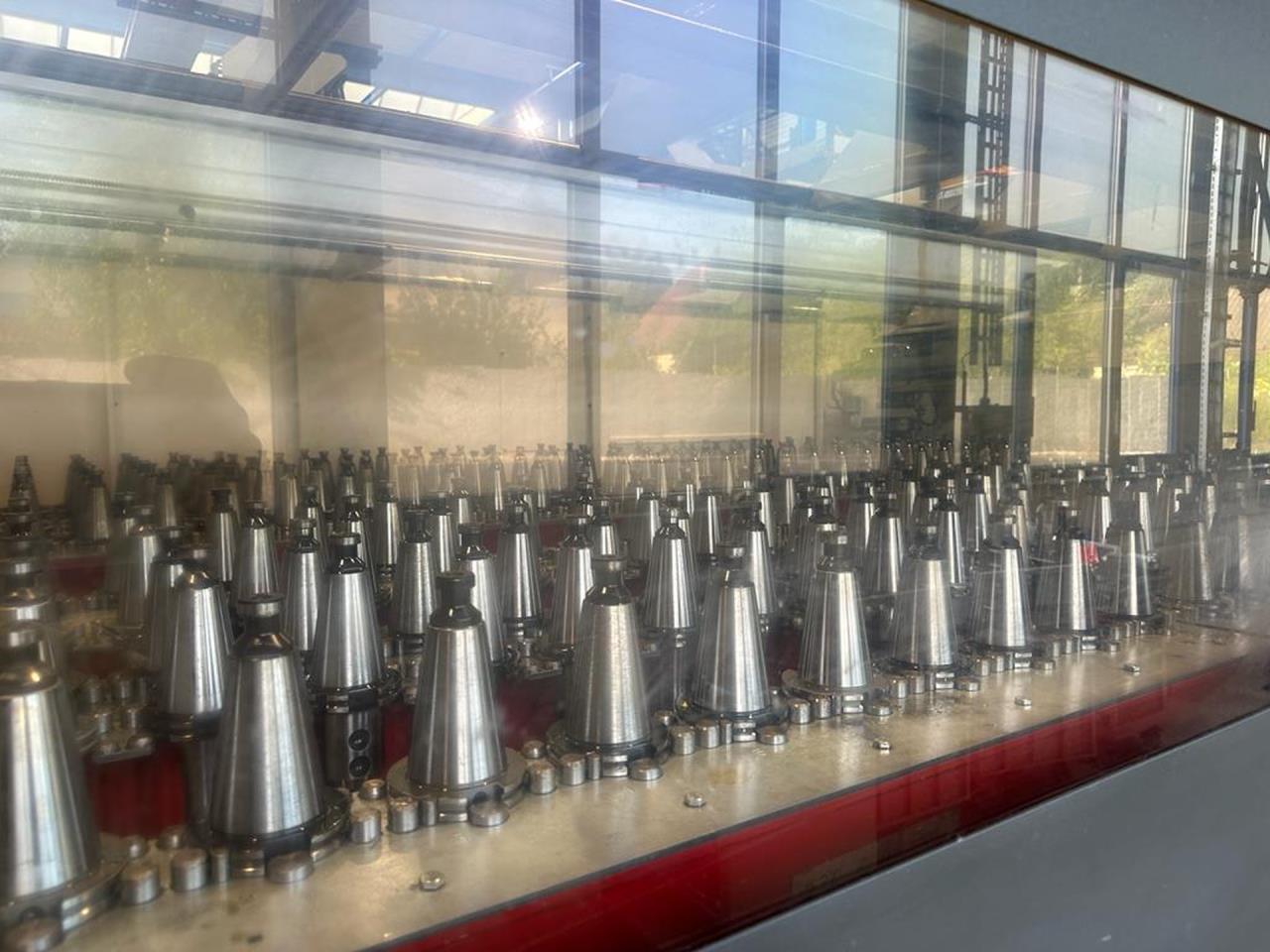

Set of toolholders
ca. 700x
Oil mist extractor

Technical specifications and pictures without guarantee.
