Technical data
Centre height
102 mm
Distance between centres
470 mm
Swing over cross-slide
120 mm
Swing over bed
200 mm
Bar passage
25 mm
Inner taper type
W25
Taper spindle threaded
Spindle speeds:
stepless
from
50 rpm
up to
5000 rpm
Taper in tailstock:
2 MT
Spindle stroke
80 mm
Voltage 50 Hz 3x
400 Volt
Spindle motor
3 kW
Machine's weight about
560 kg
Overall dimensions machine:
Length
1500 mm
Width
510 mm
Height
1550 mm
Various accessories:
Speed potentiometer

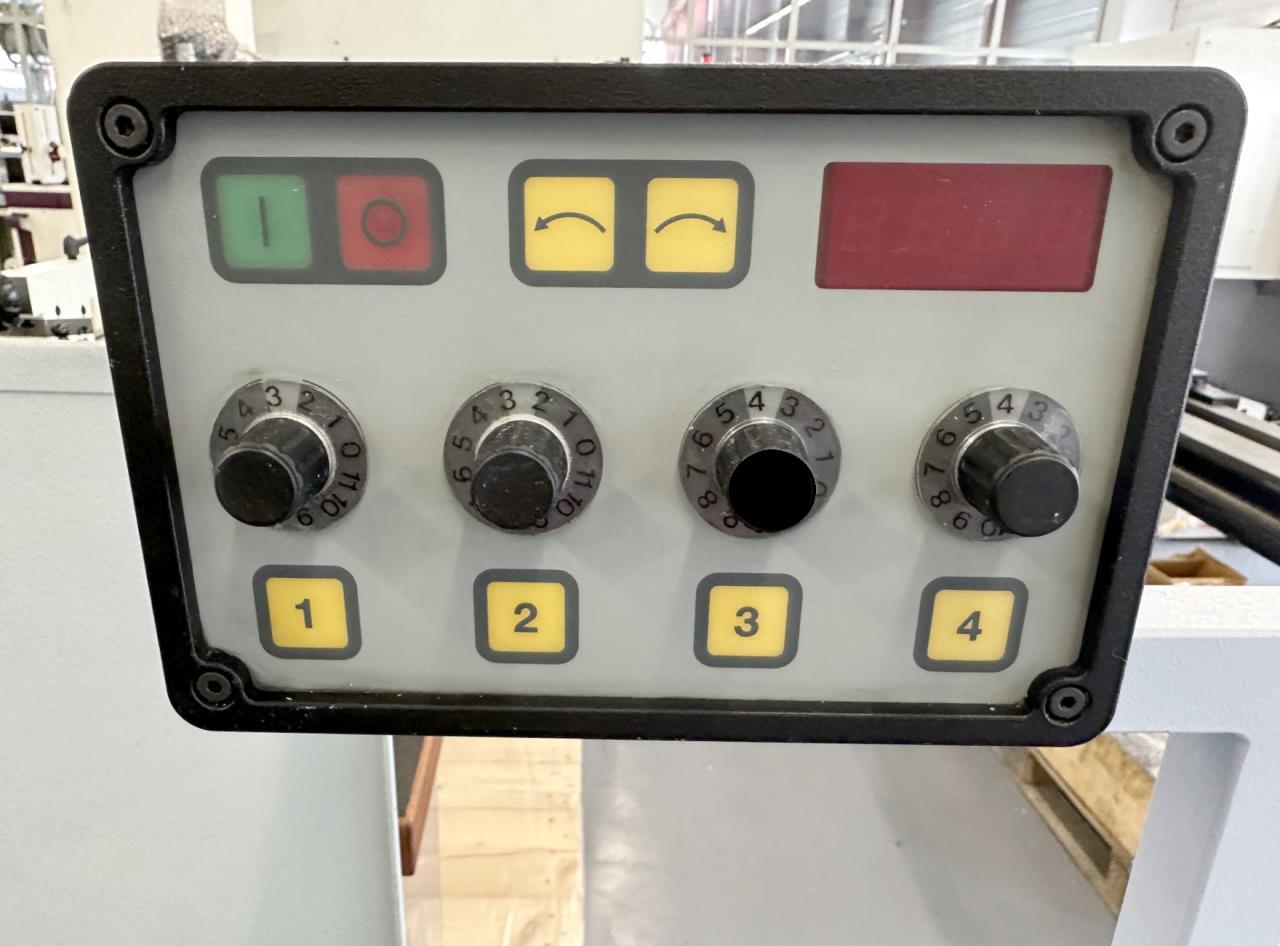

Preselection of 4 spindle speeds
Affichage digital de la vitesse de broche
Base-mounted type:
Foot pedal for left-right run and start/stop

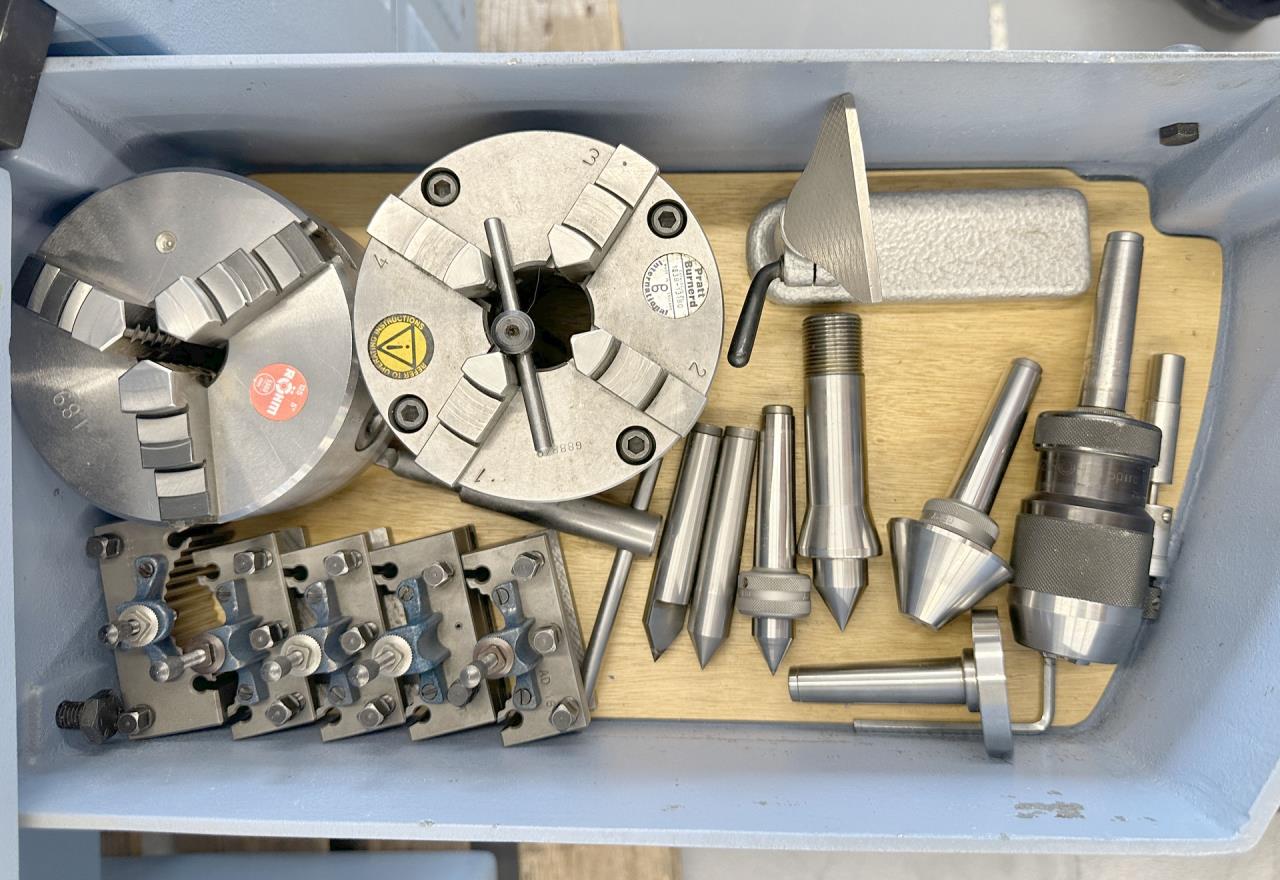

3-jaw chuck diameter
125 mm
4-jaw chuck diameter
125 mm
Set of hard jaws
Quick closing attachment

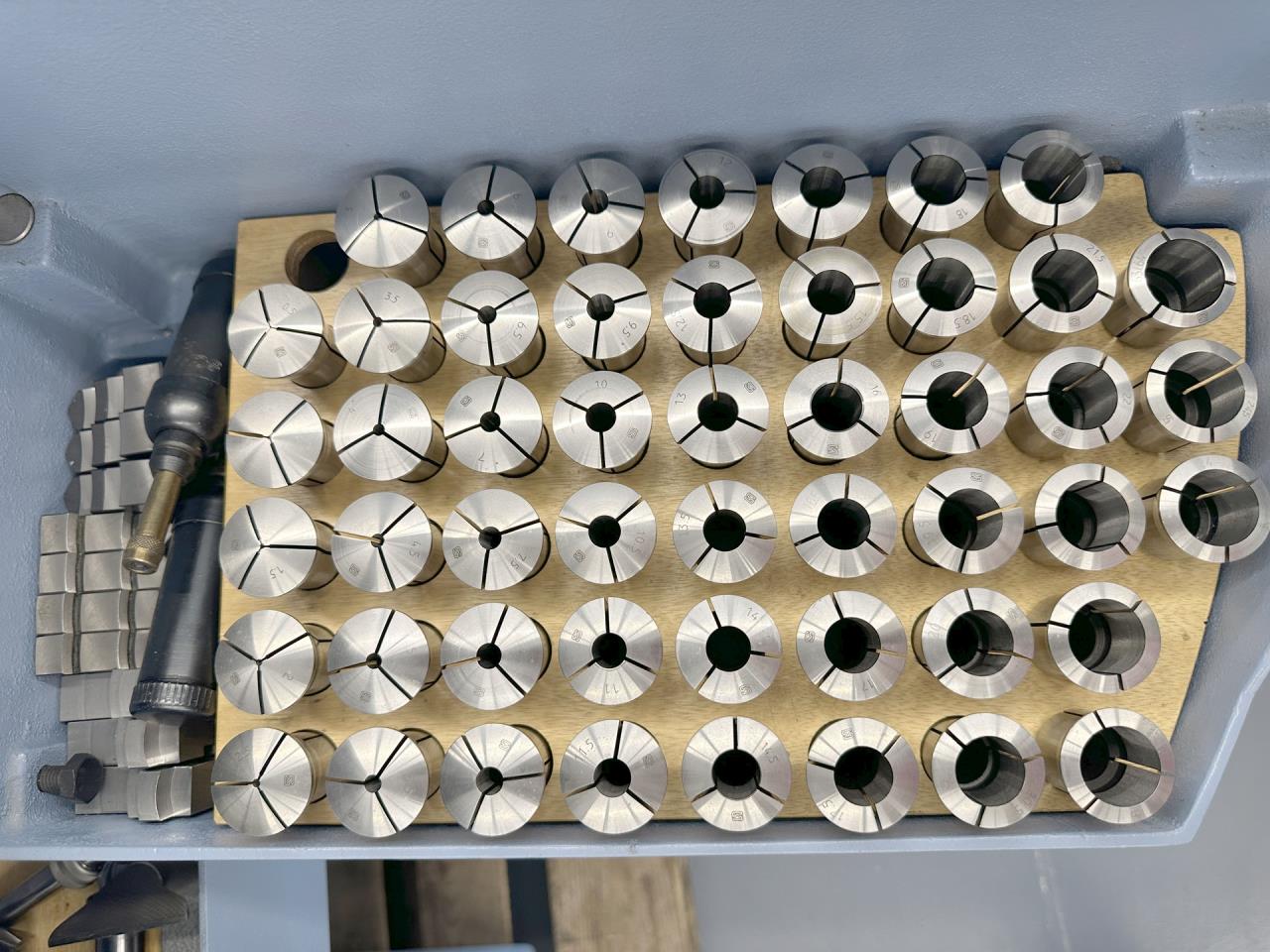

Set of collets
Drilling tailstock
Rotary centre
Set of centres
Drill chuck
Quick change tool
MULTIFIX
Set of steel holders
Hand rest
Technical specifications and pictures without guarantee.
