stock no. :
22504
Machine's group :
Type :

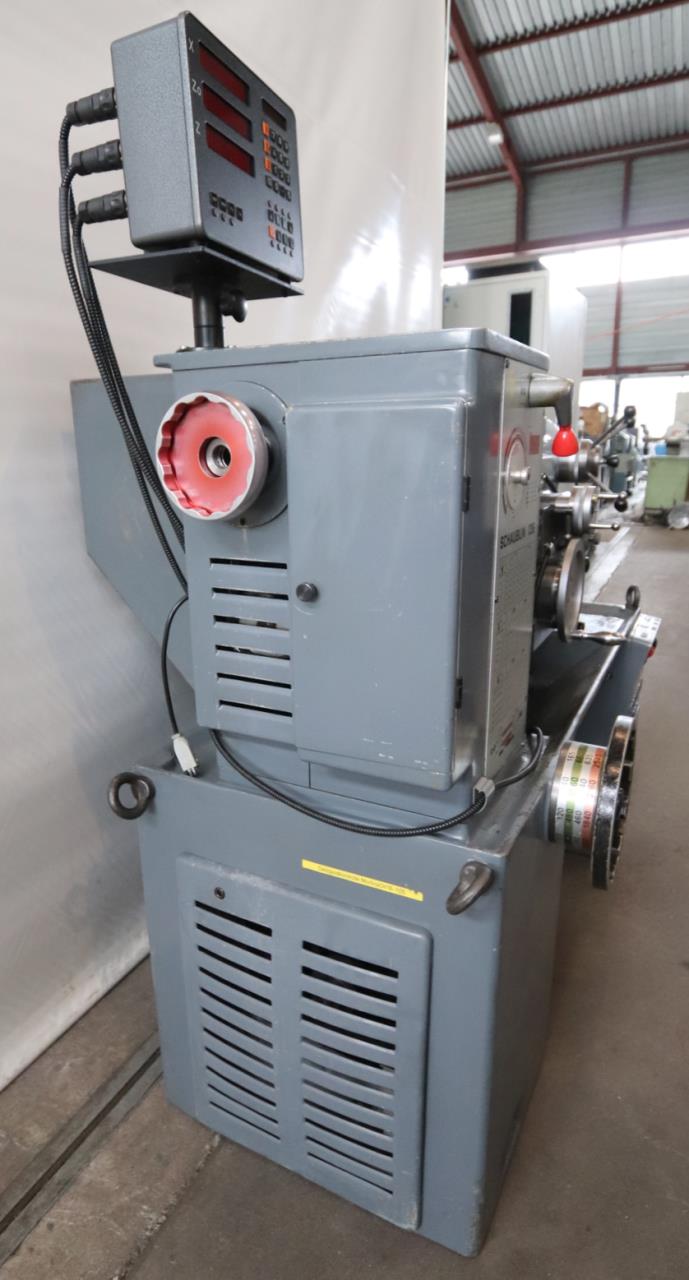

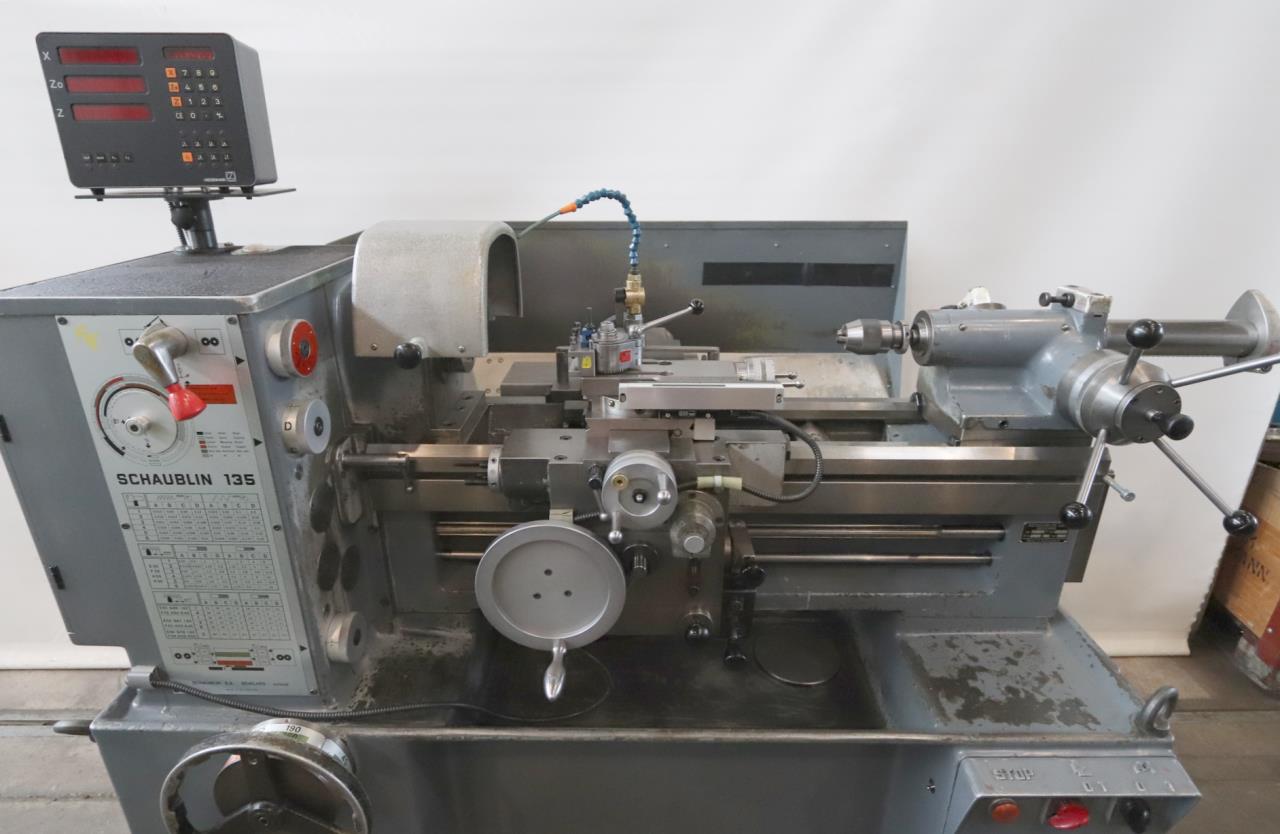

SCHAUBLIN 135 16 Image(s)
Back
Technical data
Centre height
135 mm
Distance between centres
630 mm
Swing over cross-slide
150 mm
Swing over bed
315 mm
Spindle hole
40 mm
Taper in spindle:
    Camlock
Spindle speeds:
    stepless
       from
55 rpm
       up to
3000 rpm
Taper in tailstock:
3 MT

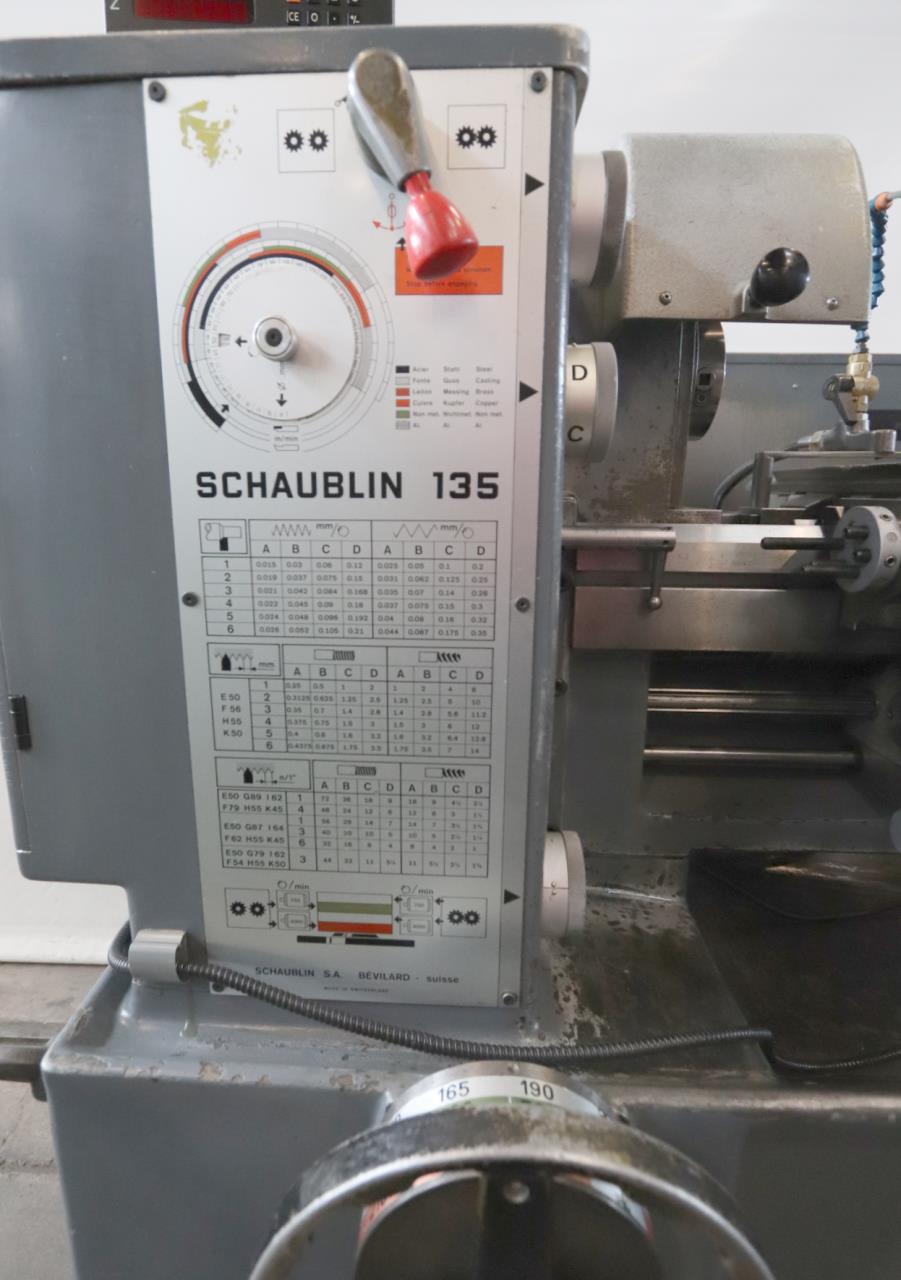

Feeds:
    number (steps)
24
    length:
       from
0.015 mm/r
       up to
0.35 mm/r
    Frontal:
       from
0.015 mm/r
       up to
0.35 mm/r
Voltage 50 Hz 3x
380 Volt
Spindle motor
4.00 HP
Total power required
6.00 HP
Machine's weight about
1400 kg
Overall dimensions machine:
    Length
1700 mm
    Width
850 mm
    Height
1280 mm
Various accessories:

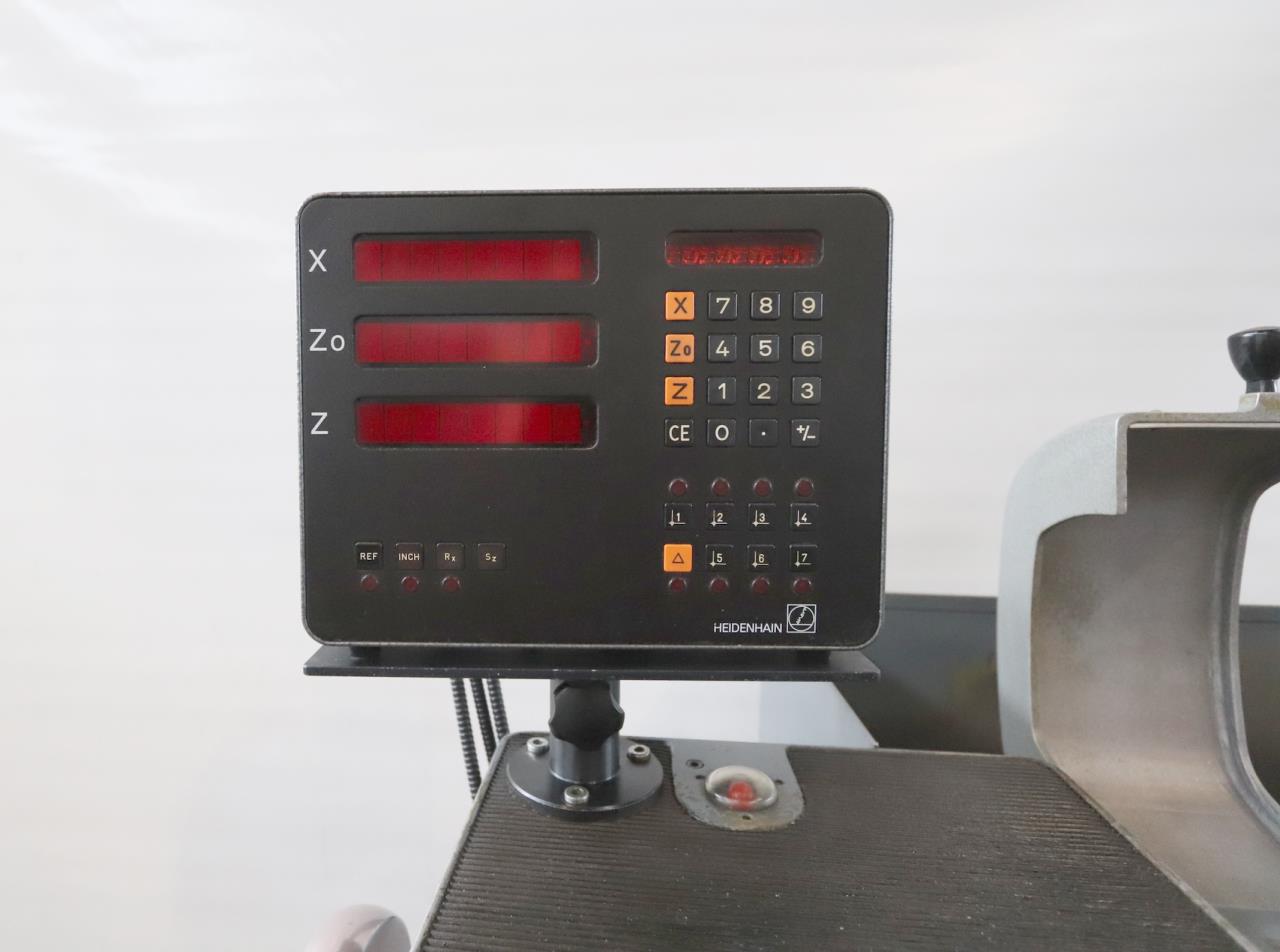

Digital readout number of axis:
3
    Manufacturer
HEIDENHAIN

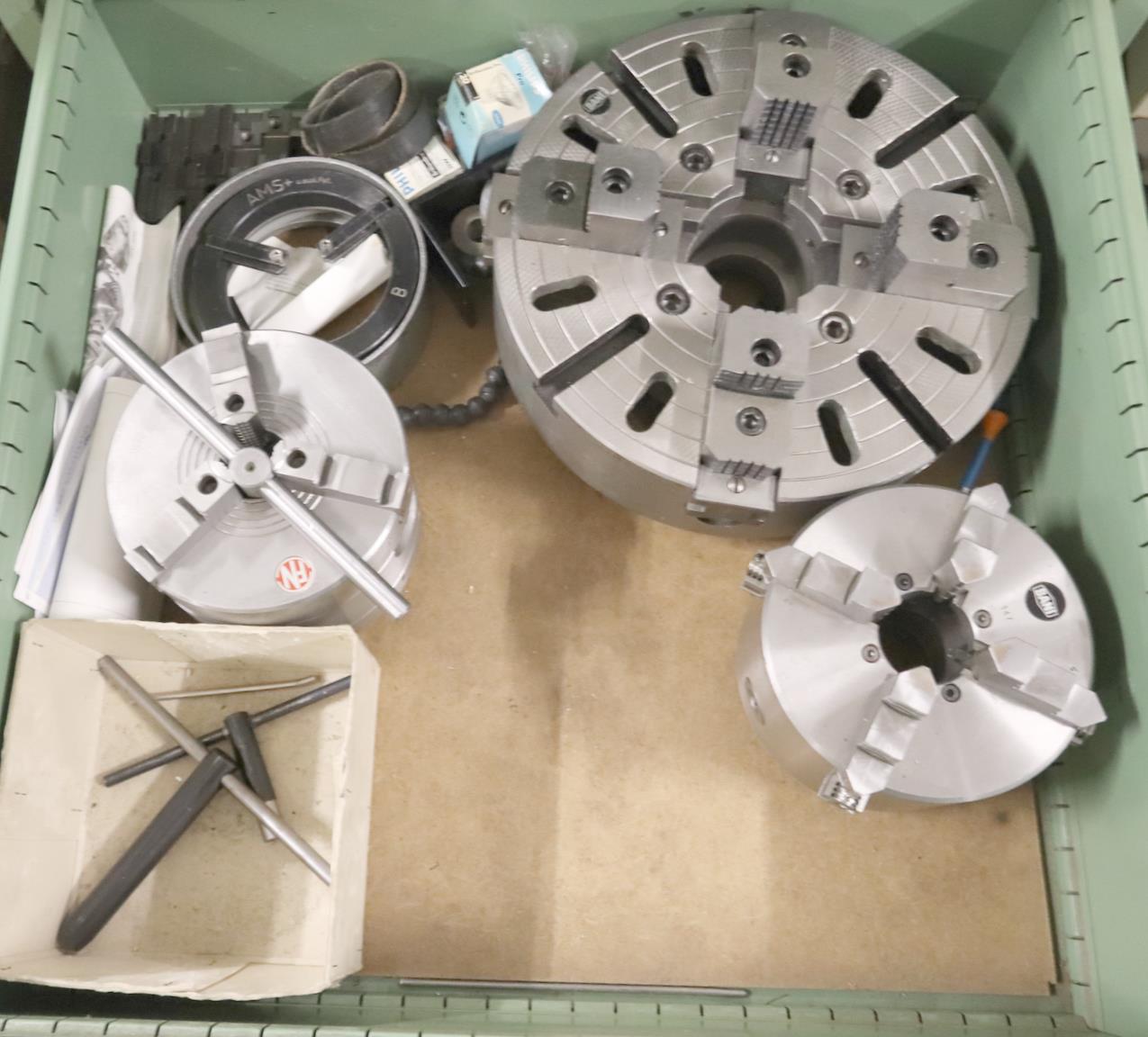

3-jaw chuck diameter
170 mm
4-jaw chuck diameter
165 mm
4-jaw chuck diameter
315 mm

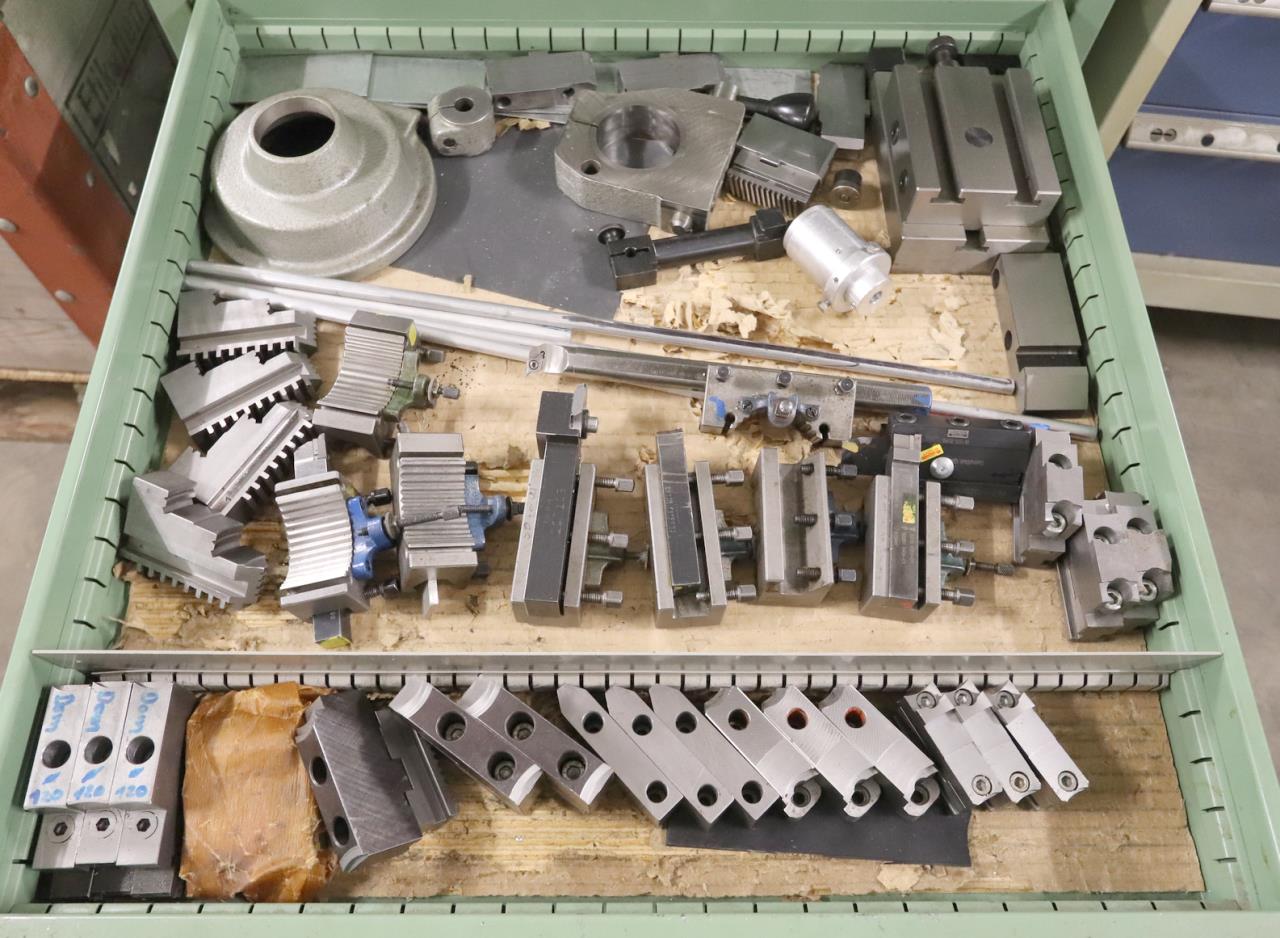

Set of jaws hard
Set of jaws
Three-jaw bezel folds open

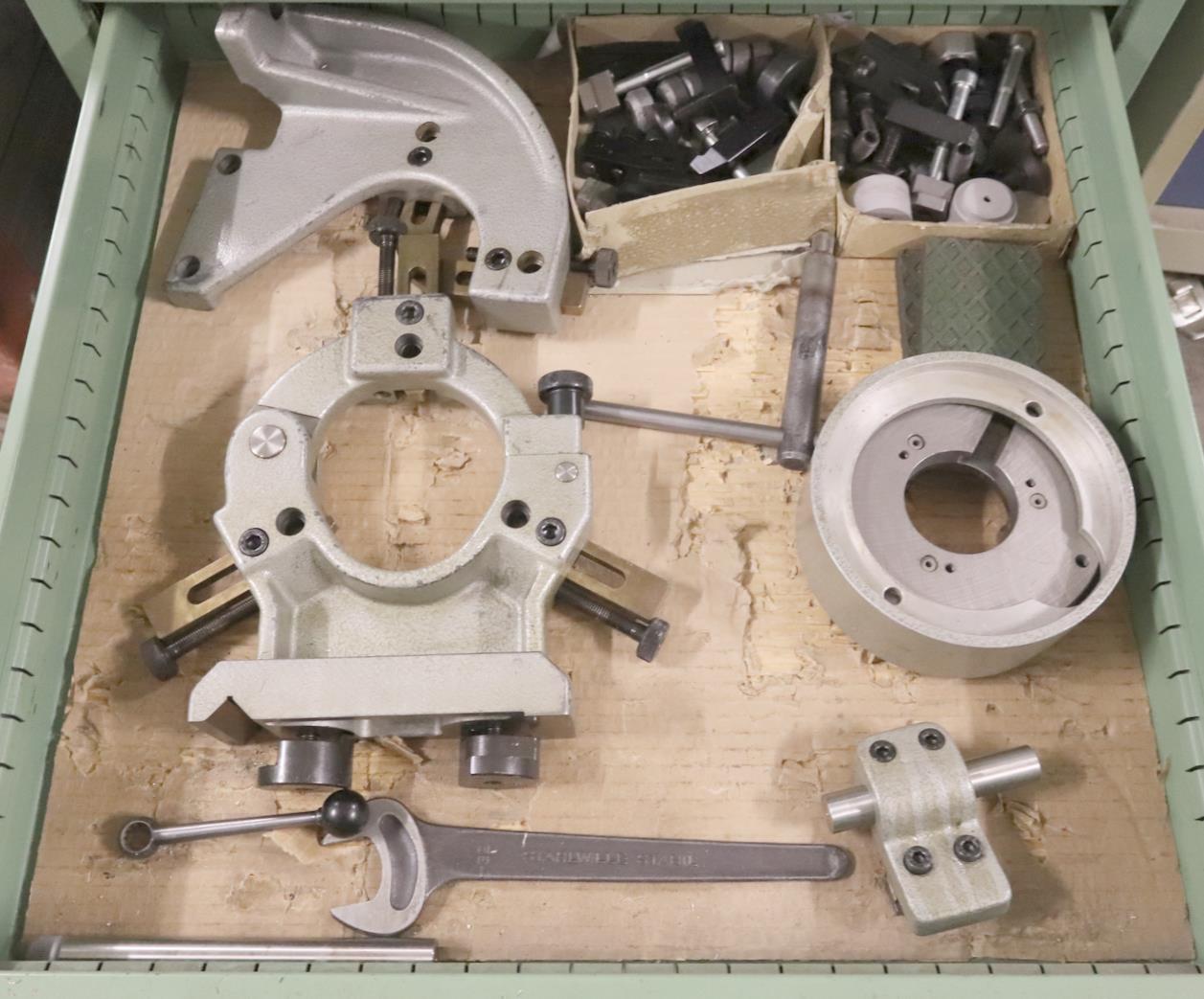

Steady
Coolant system
Quick closing attachment
Chuck adaptor
Travelling steady
Fixed steady

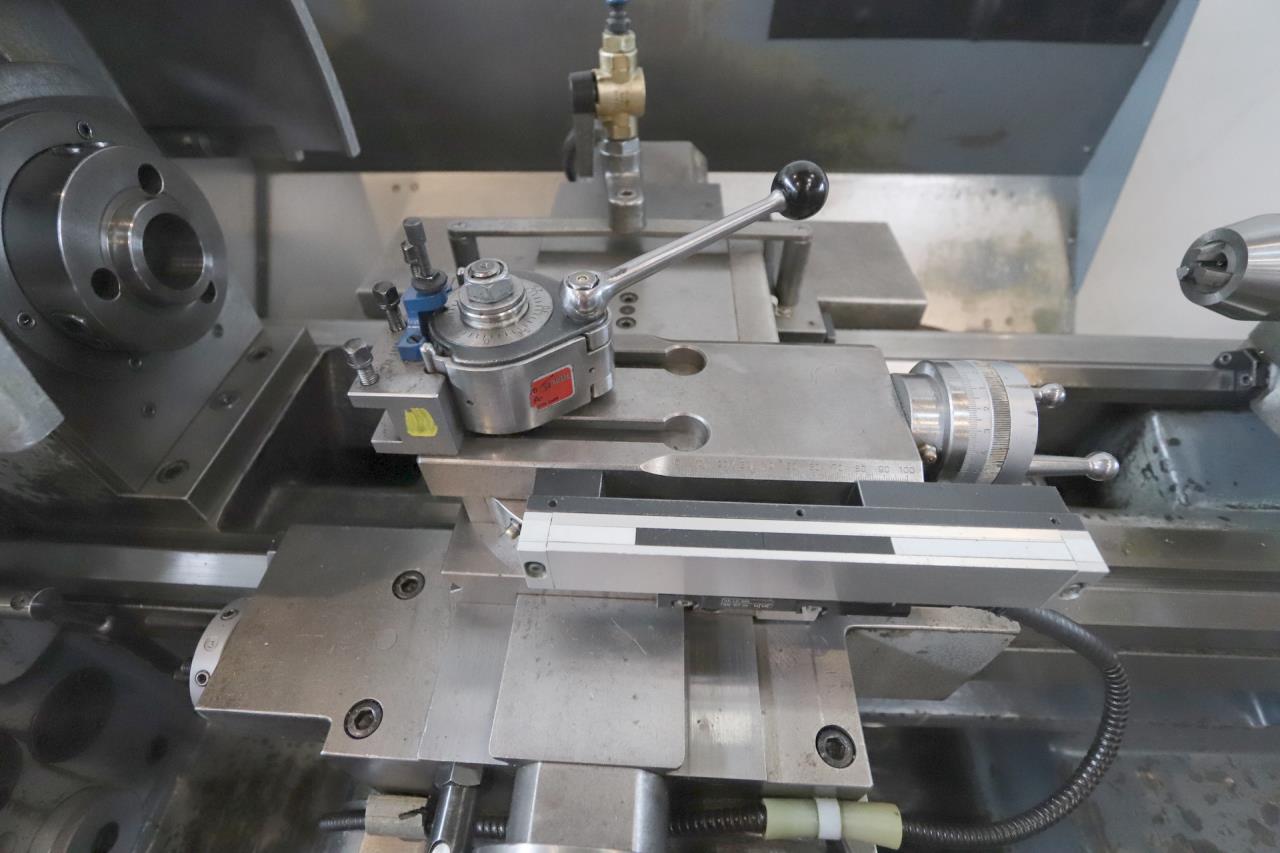

Quick change tool
MULTIFIX
Set of steel holders

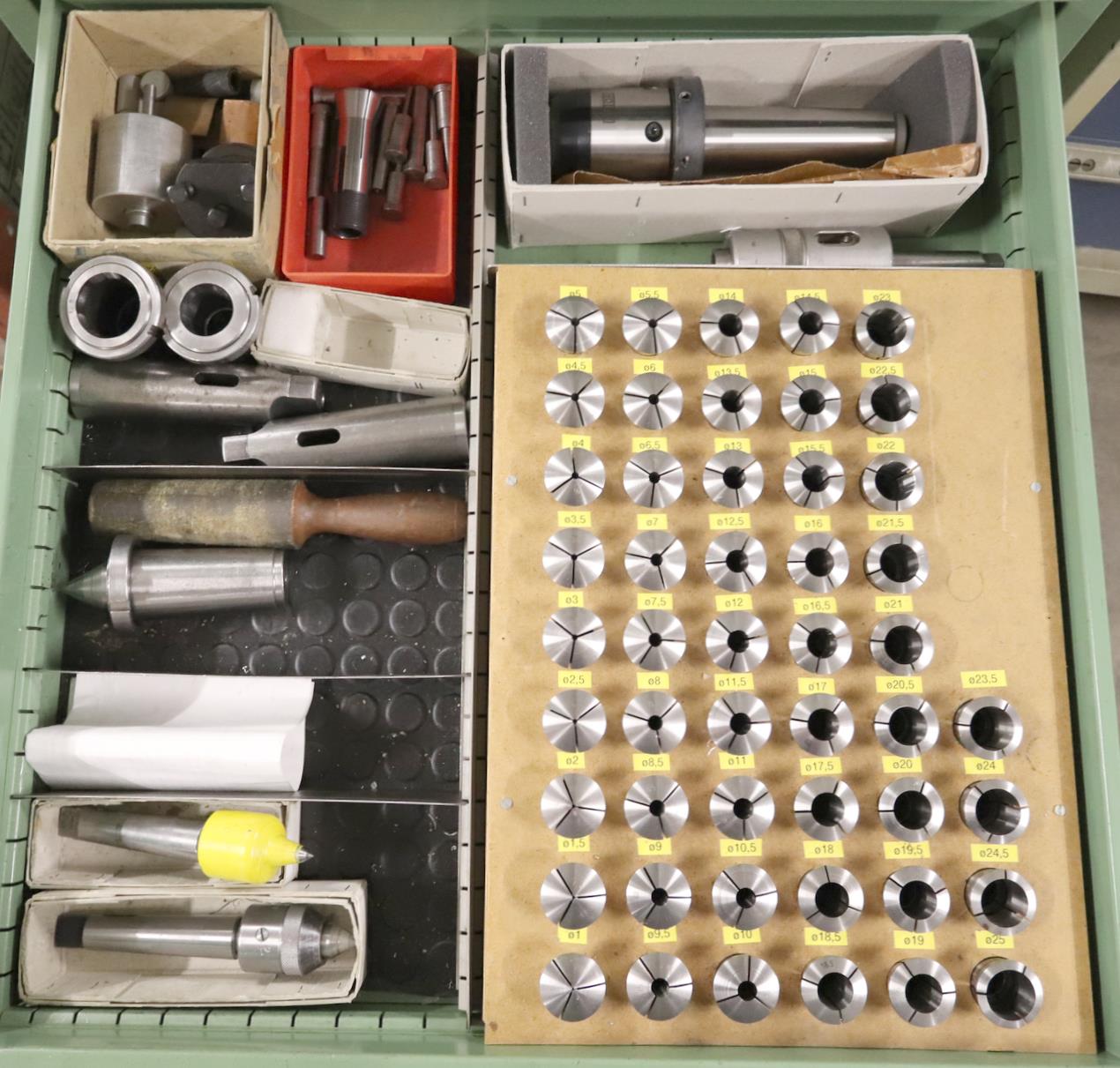

Set of collets
Set of centers
Rotary centre
Drill chuck
Lamp

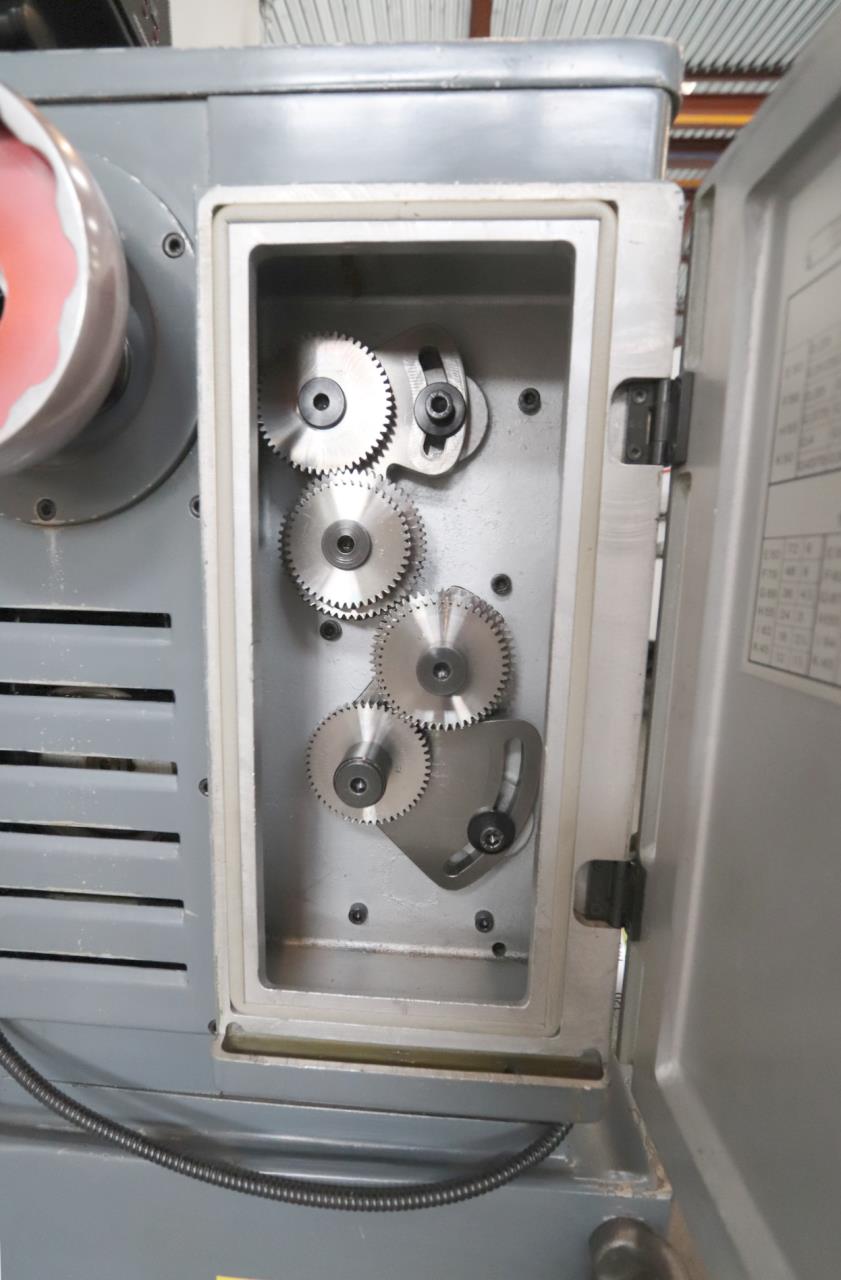

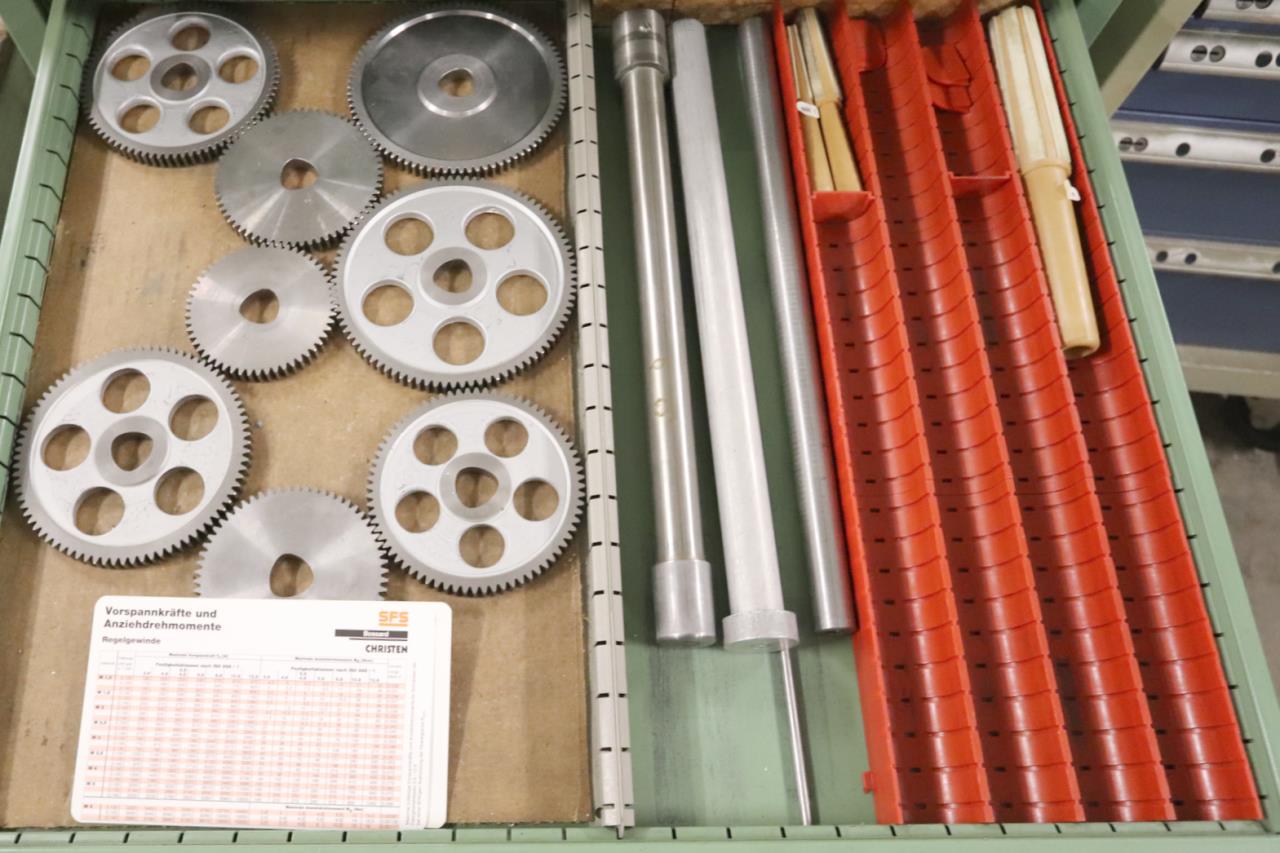

Set of gears
Starwheel-operatet tailstock

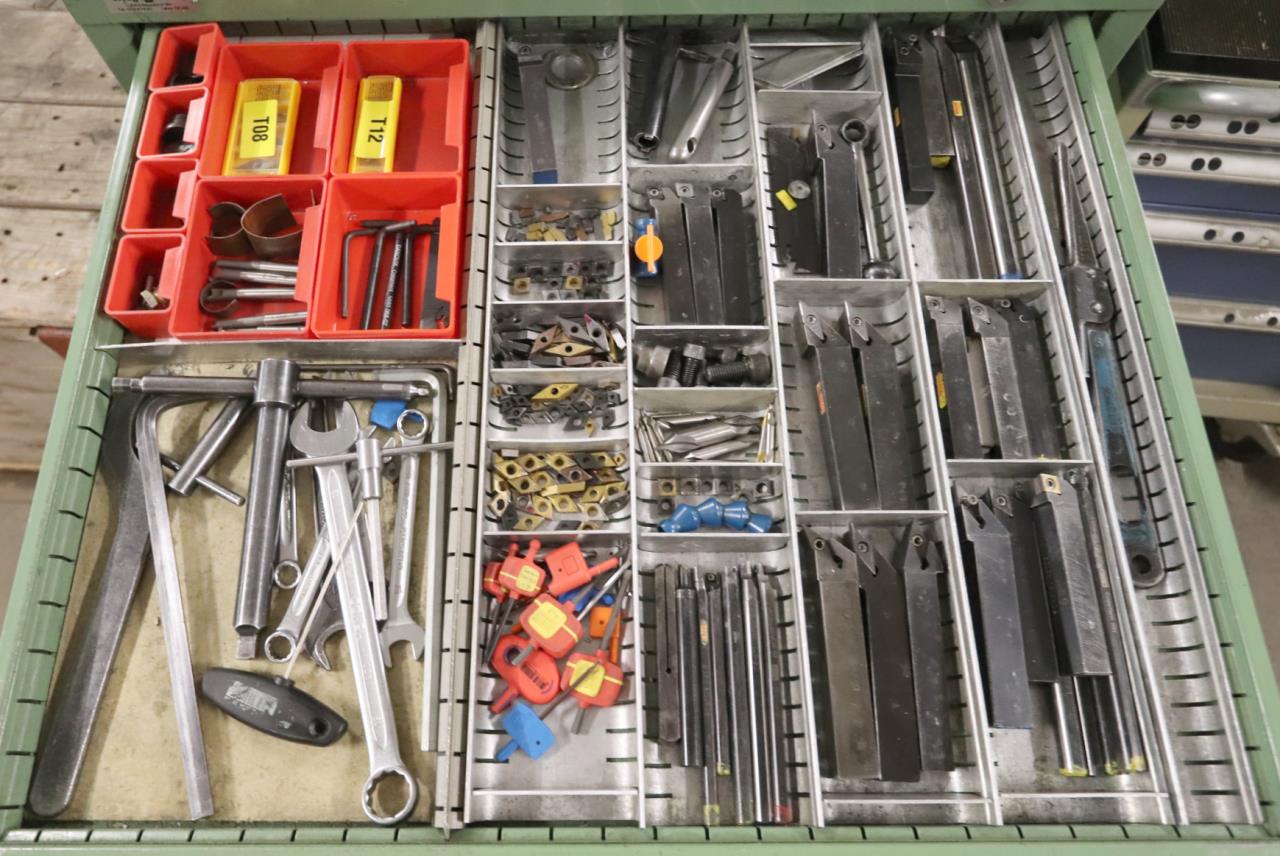

Set of tools

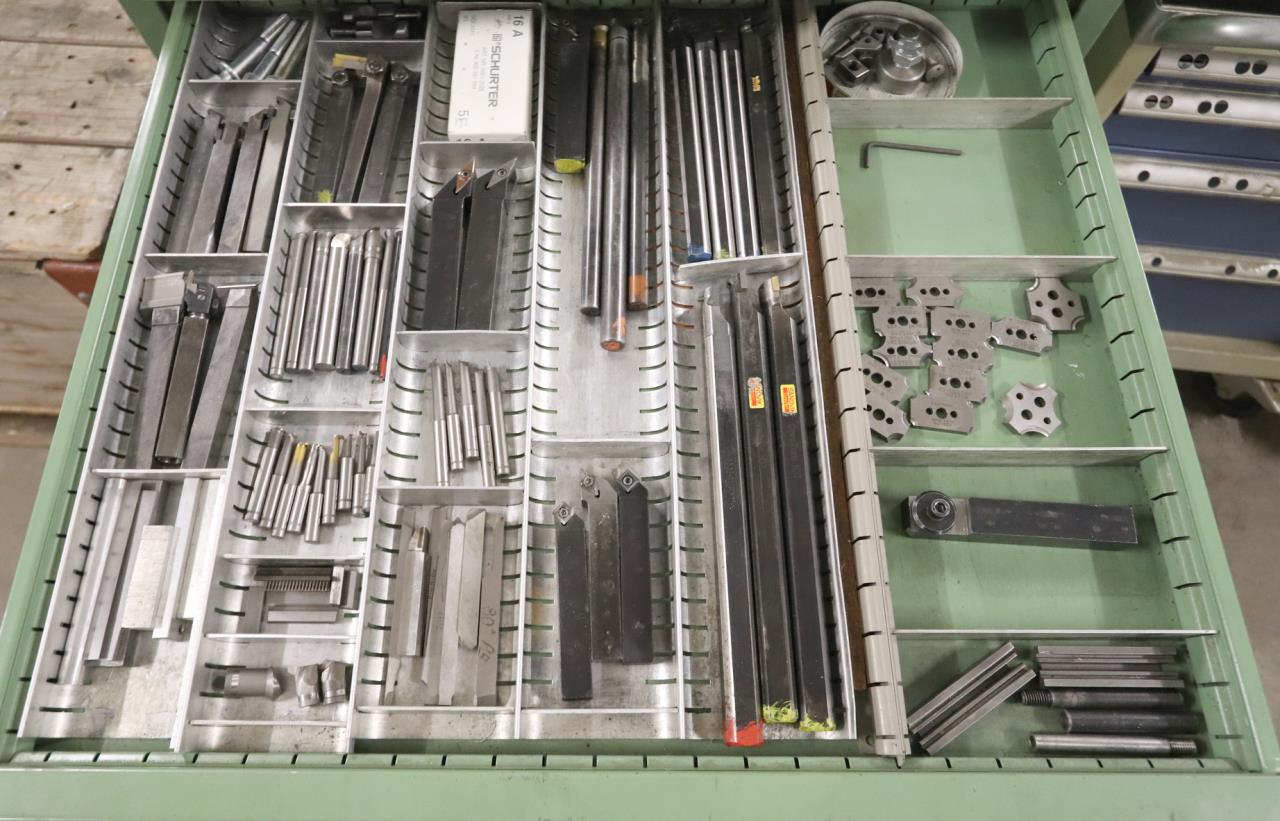

Set of boring tools

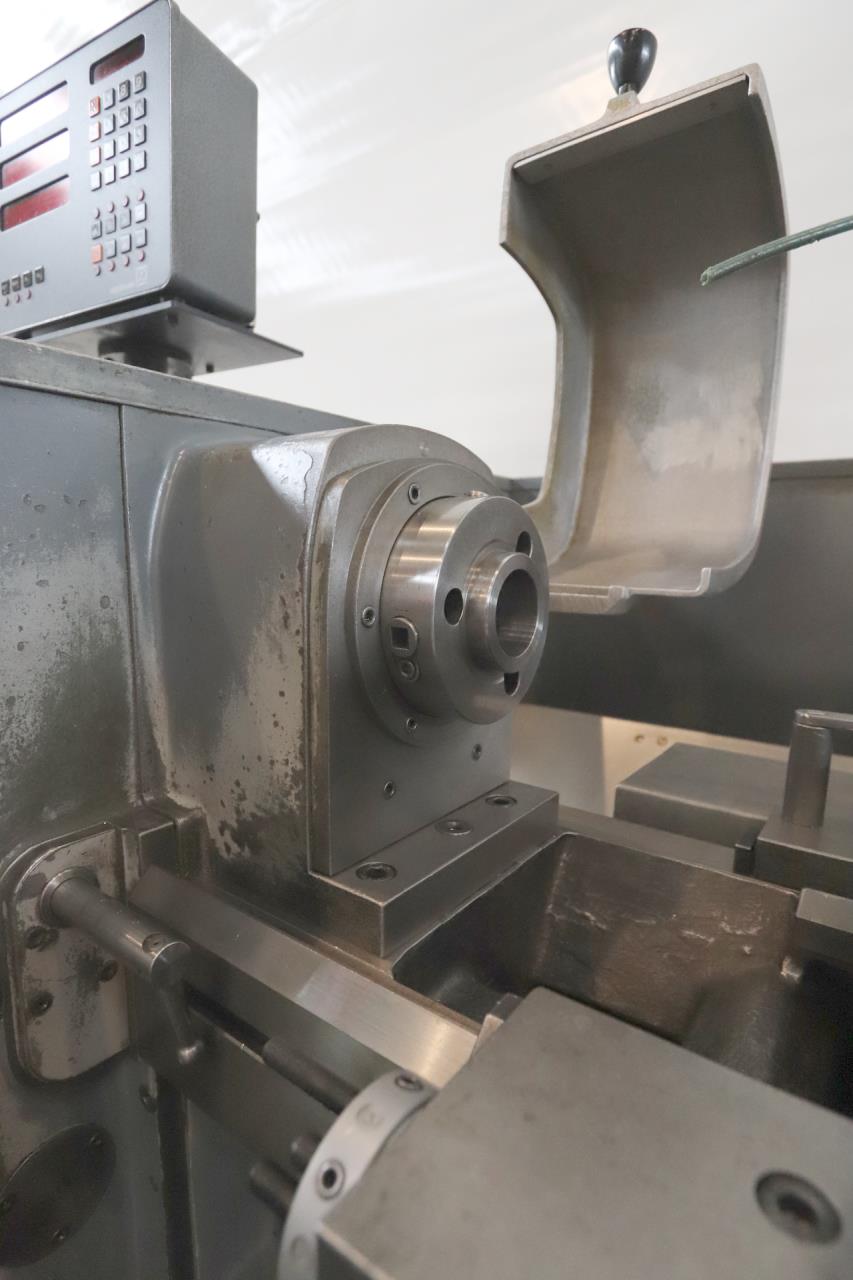

Lathe chuck protection
