Technical data
Table length
450 mm
Table width
150 mm
Grinding length
400 mm
Grinding width
200 mm
Longitudinal travel (X-axis)
620 mm
Transversal travel (y axis)
200 mm
Vertical travel (z axis)
250 mm
Table speeds:
stepless
from
2 m/min
up to
33 m/min
Diameter of grinding wheel
225 mm
Width of the grinding wheel
25 mm
Wheel int. diameter
51 mm
Grinding wheel speeds:
stepless
up to
4000 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
12.6 kW
Machine's weight about
2000 kg
Overall dimensions machine:
Length
1800 mm
Width
1700 mm
Height
2100 mm
Various accessories:
Coolant system

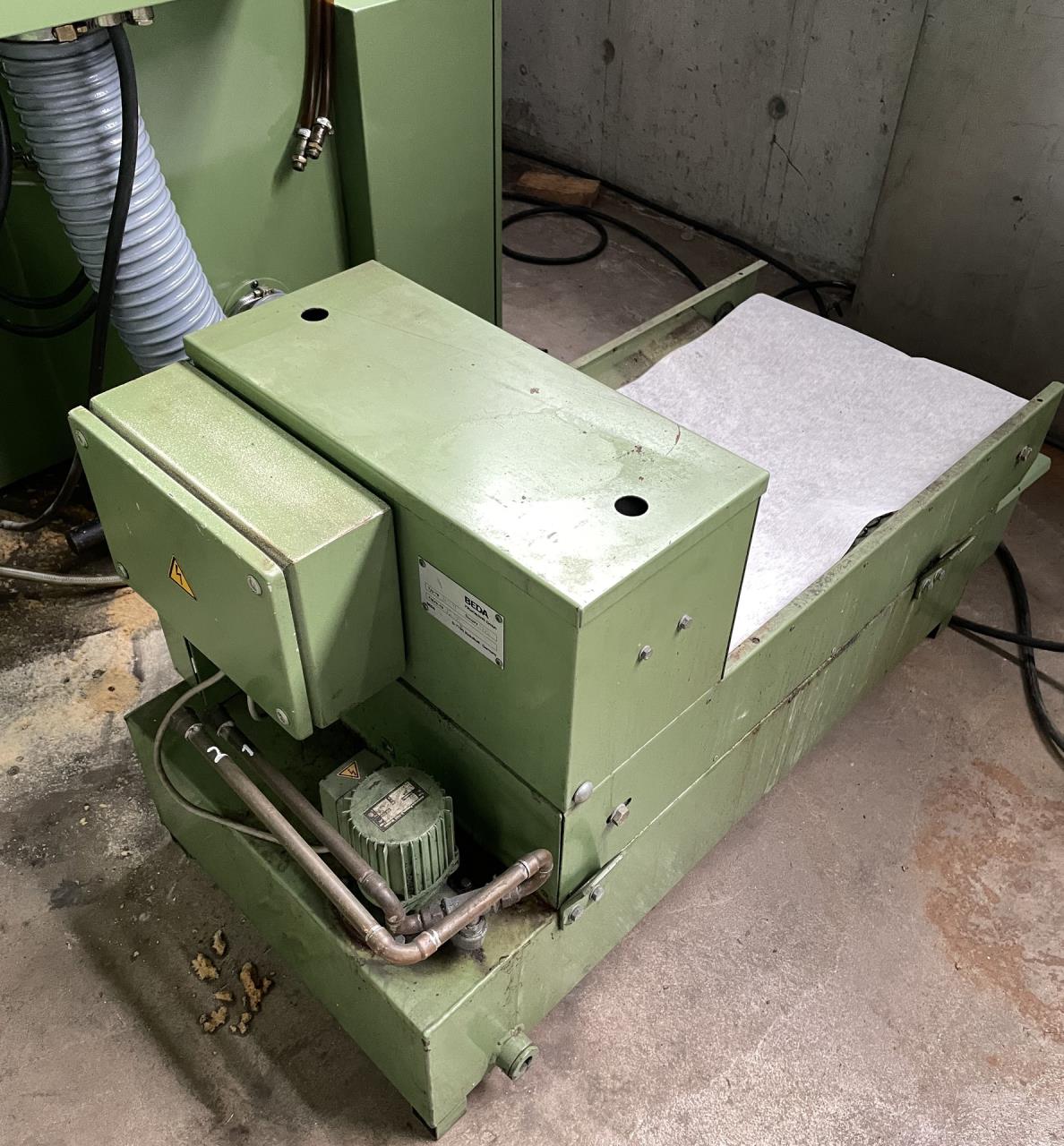

Paper filtration system

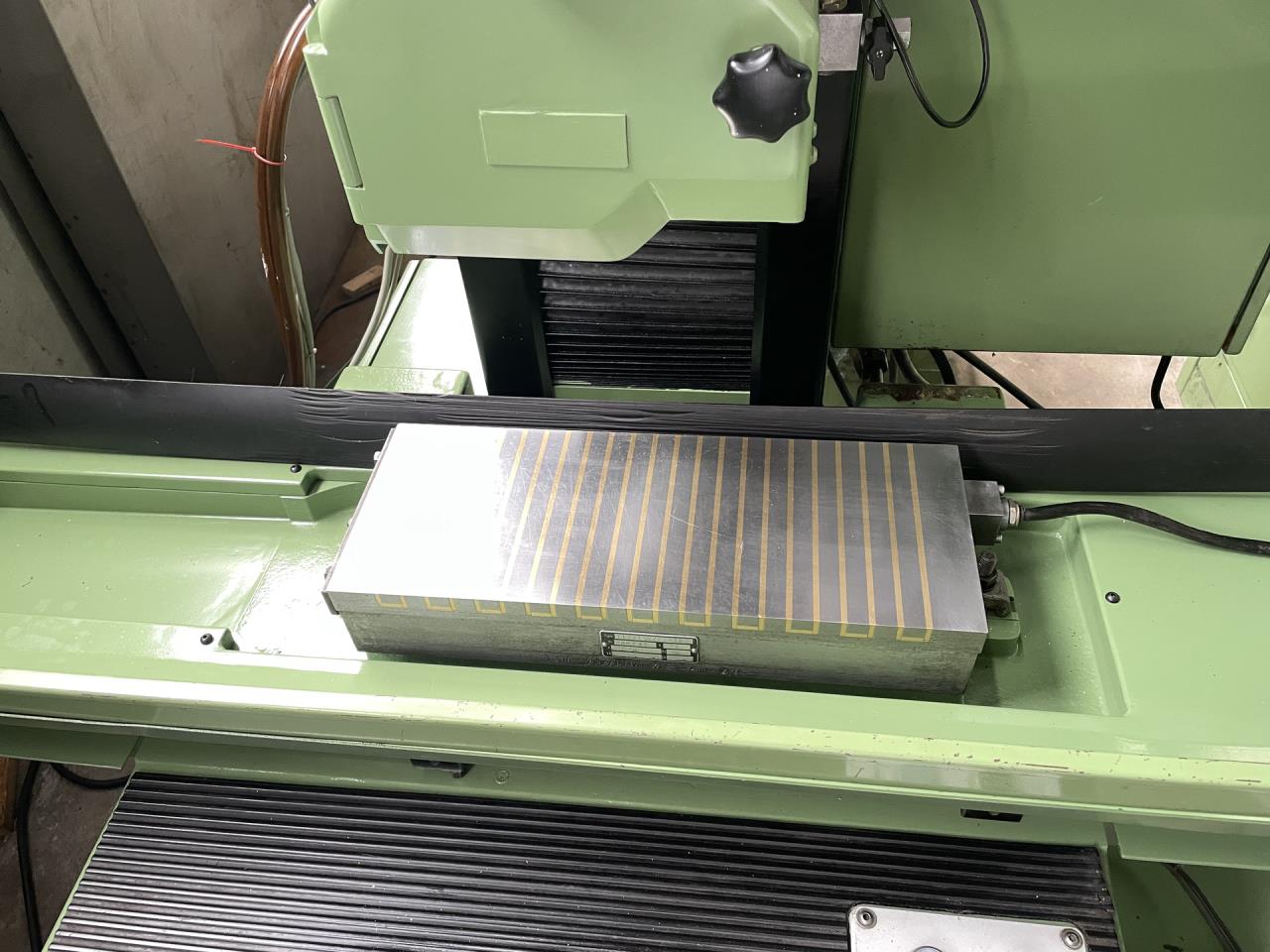

Magnetic plate:
Length
450 mm
Width
170 mm
Redressing device
New grinding wheel (number)
1
Technical specifications and pictures without guarantee.
