Technical data
Table length
135 mm
Table width
130 mm
Number of T-channels
3
T-channel width
10 mm
Distance of the T-slots
40 mm
grinding diameter
20 - 200 mm
Grinding length
45 mm
Grinding-wheel diameter
150 mm
Width of the grinding wheel
10 mm
Drilling cap. of grind.wheel
20 mm

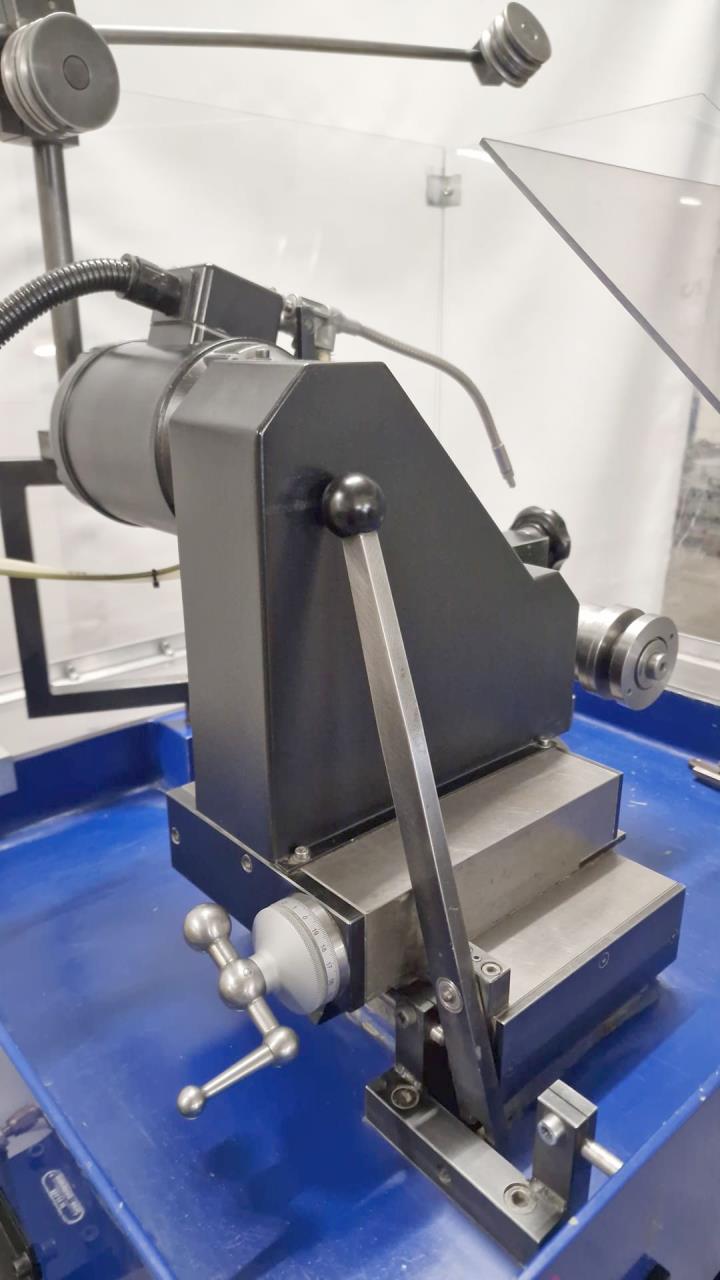

Grinding head:
Spindle inclination (A-axis)
0 - 180 °
Voltage 50 Hz 3x
400 Volt
motor speeds
2700 rpm
Grinding spindle motor
0.37 kW
Machine's weight about
200 kg
Overall dimensions machine:
Length
1000 mm
Width
700 mm
Height
1600 mm
Various accessories:
Coolant system
Full splash cabin
Technical specifications and pictures without guarantee.
