Technical data
Table length
500 mm
Table width
200 mm
Table load max.
160 kg
Longitudinal travel (X-axis)
610 mm
Cross travel (z-axis)
192 mm
Vertical travel (Y-axis)
410 mm
Automatic longitudinal feeds:
stepless
from
1 m/min
up to
25 m/min
Automatic Vertical feed:
stepless
from
0.06 mm/min
up to
3000 mm/min
Diameter of grinding wheel
250 mm
Width of the grinding wheel
20 mm
Wheel int. diameter
76 mm
Grinding wheel speeds:
stepless
from
1000 rpm
up to
4000 rpm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
2.2 kW
Machine's weight about
1500 kg
Overall dimensions machine:
Length
1600 mm
Width
1600 mm
Height
2400 mm

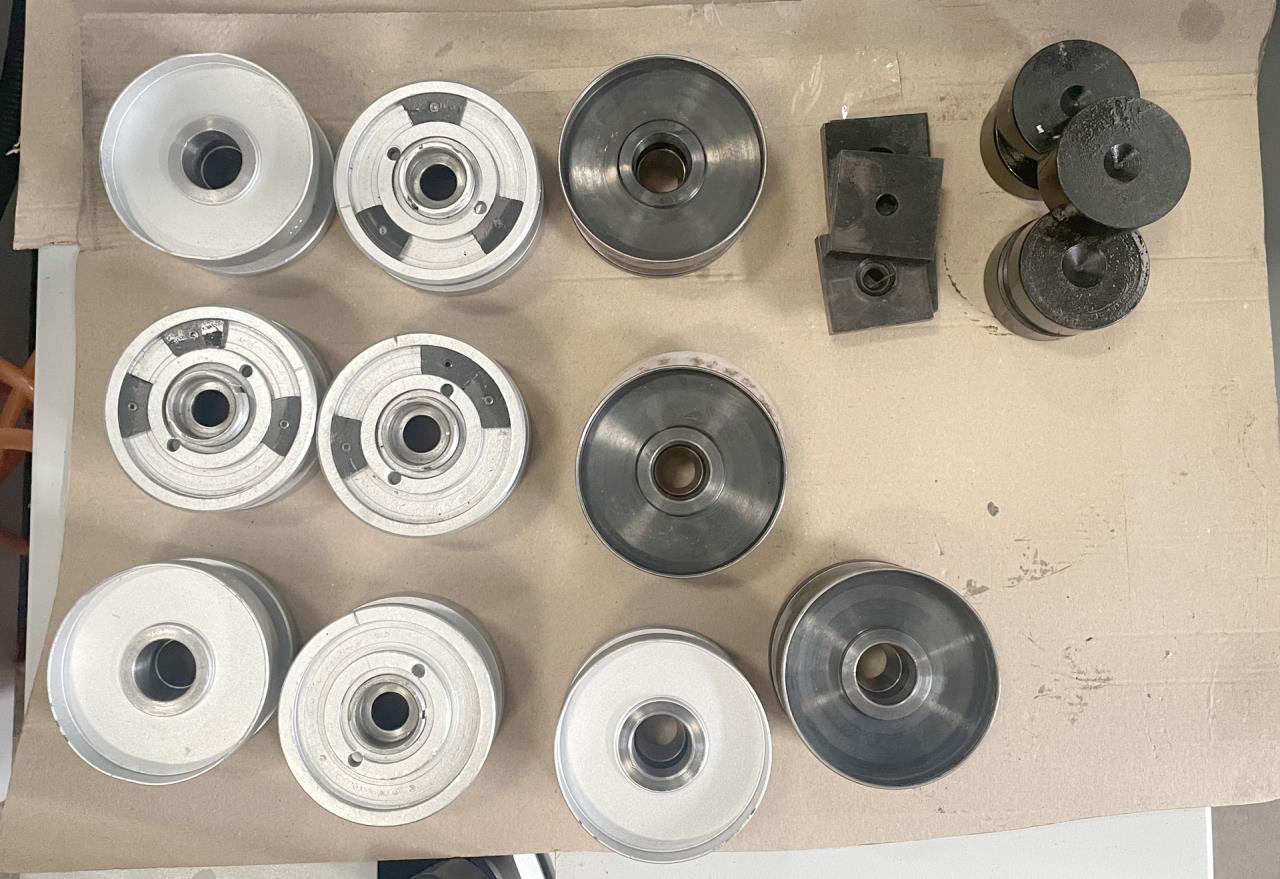

Various accessories:
Paper filtration system

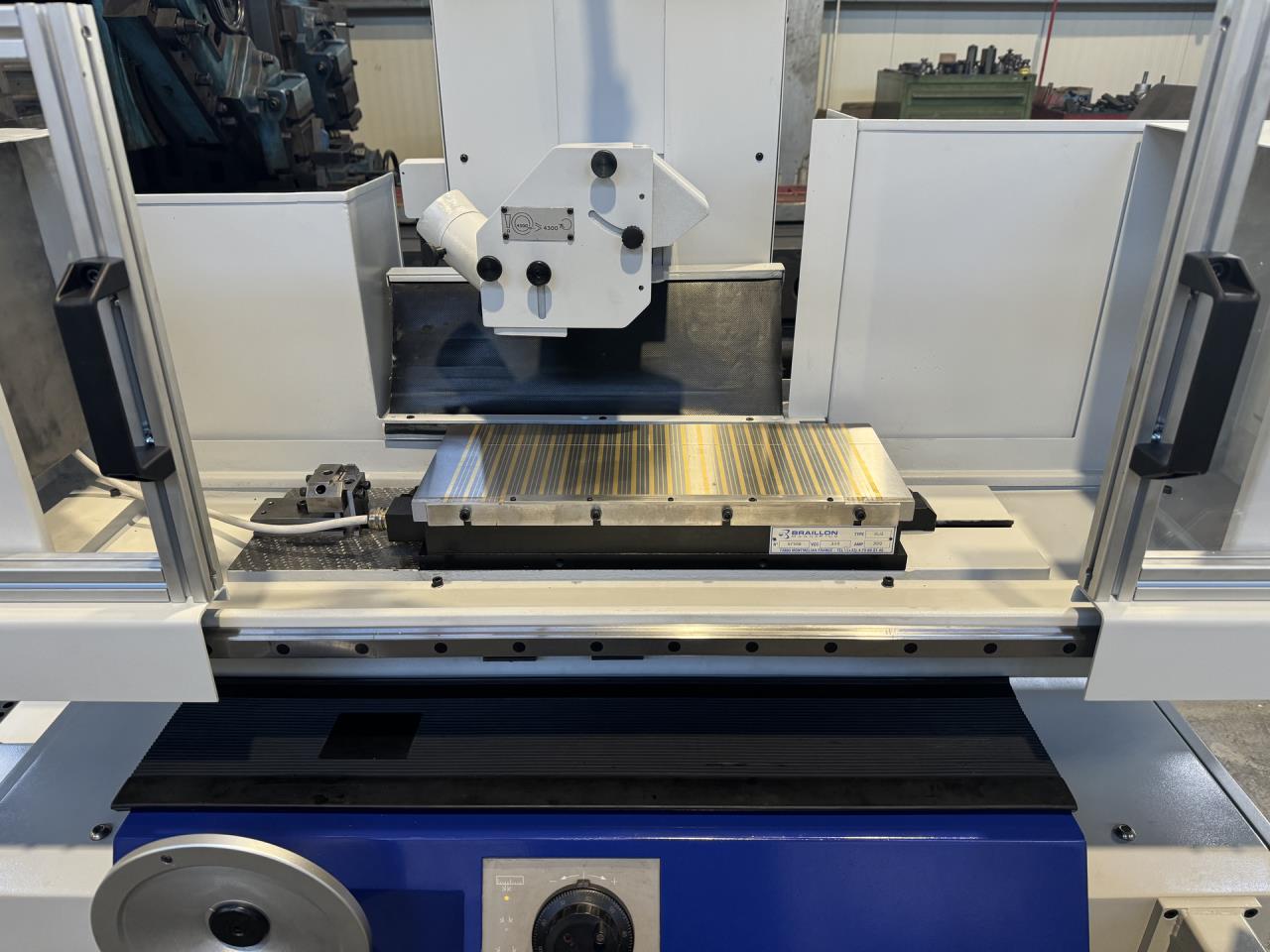

Magnetic plate:
BRAILLON BLU
Length
500 mm
Width
200 mm
Lamp
Technical specifications and pictures without guarantee.
