Technical data
Centre height
125 mm
Distance between centres
550 mm
Table length
900 mm
Table width
130 mm
Max. grinding diameter
250 mm
Grinding-wheel diameter
200 mm
Longitudinal way of table
400 mm
Transversal way of grinding head
200 mm
Grinding spindle speeds:
stepless
from
2200 rpm
up to
6400 rpm
Voltage 50 Hz 3x
380 Volt
Overall dimensions machine:
Length
1400 mm
Width
1300 mm
Height
1700 mm
Various accessories:

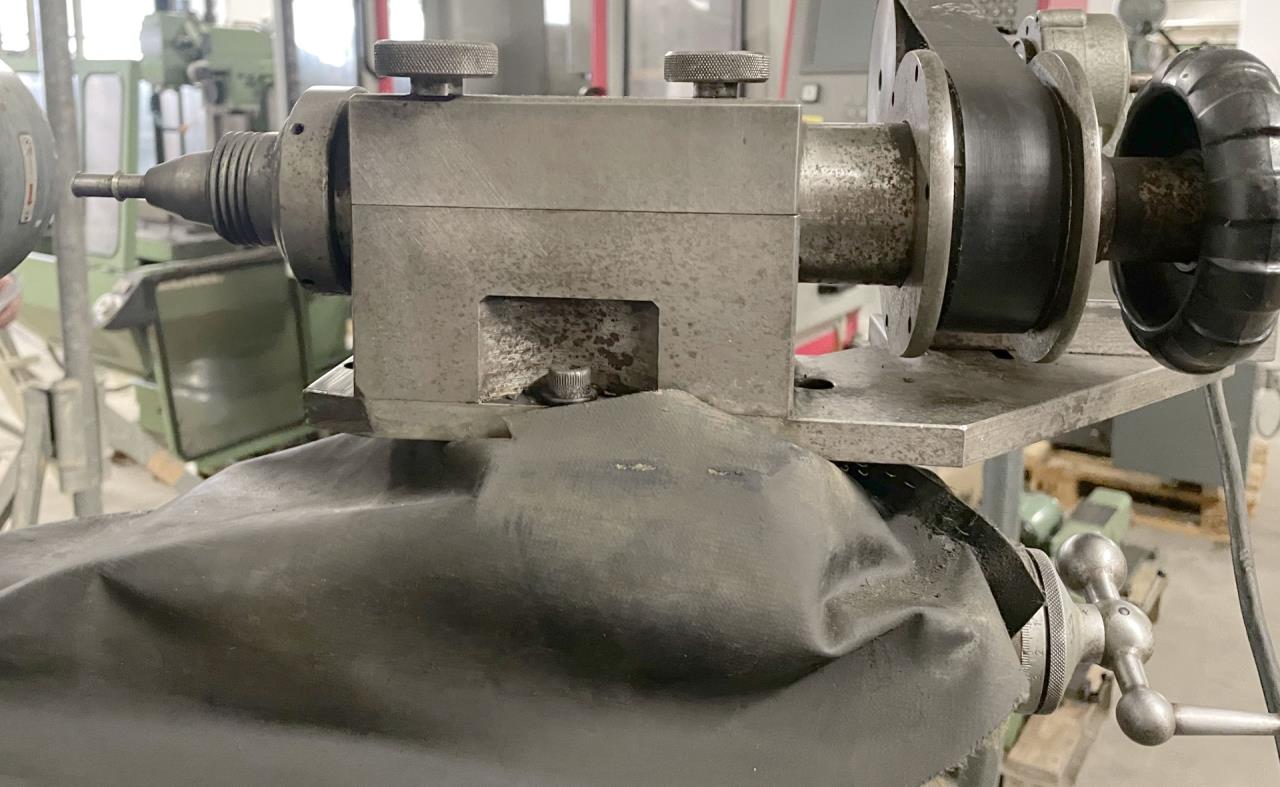

Dividing attachment

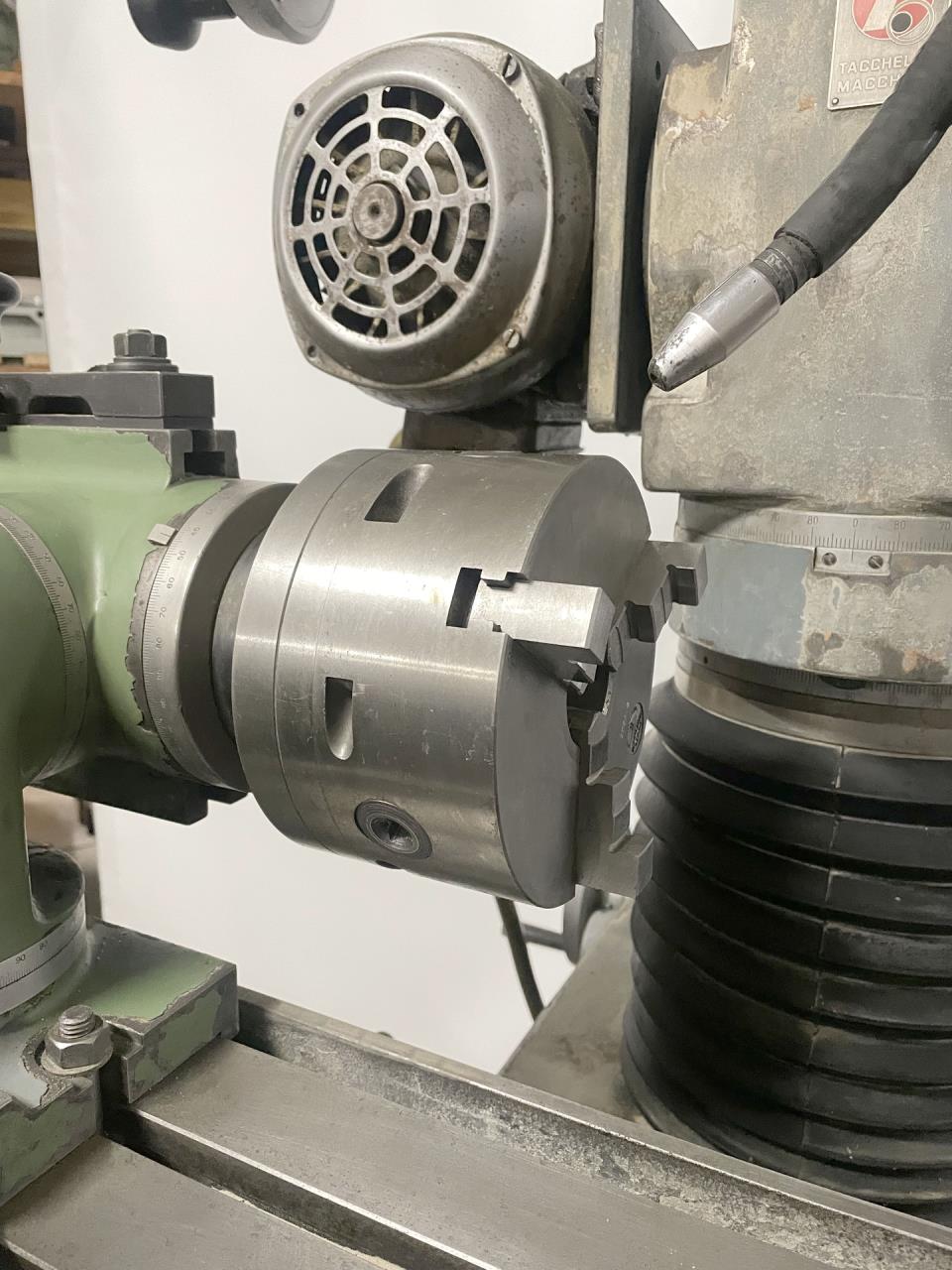

3-jaw chuck diameter
160 mm
Technical specifications and pictures without guarantee.
