Technical data
Centre height
170 mm
Distance between centres
650 mm
Swing over cross-slide
196 mm
Swing over bed
350 mm
Swing in gap
535 mm
Length of the gap
165 mm
Spindle hole
42 mm
Taper in spindelstock MK
3
Taper in spindle:
Camlock
D 1-4"
Spindle speeds:
stepless
from
0 rpm
up to
3250 rpm
Pitch of leadscrew
6 mm
Diameter of leadscrew
32 mm

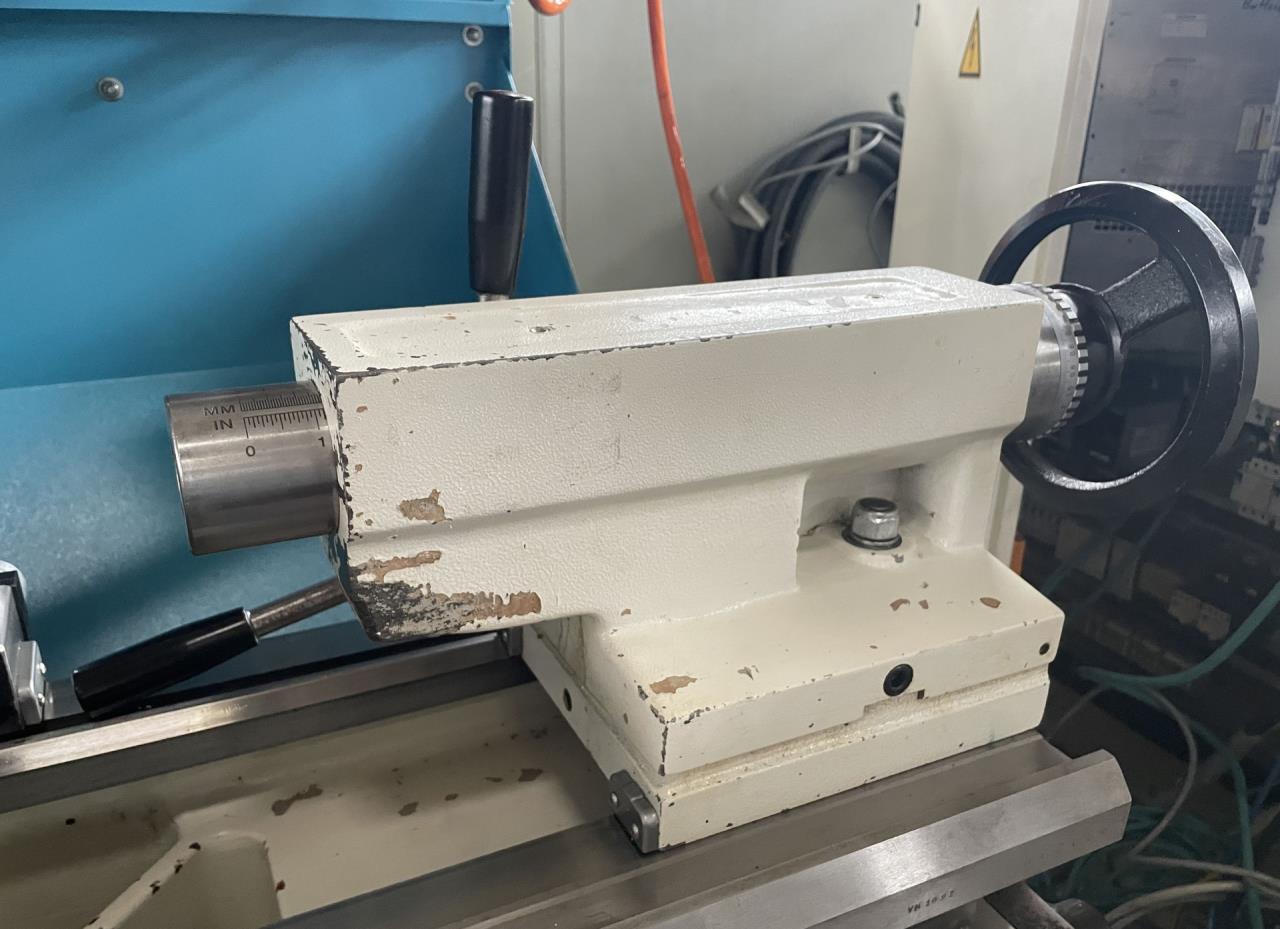

Taper in tailstock:
4 MT
Spindle diameter
63 mm
Spindle stroke
140 mm
Feeds:
length:
from
0.018 mm/r
up to
1.200 mm/r
Frontal:
from
0.009 mm/r
up to
0.600 mm/r
Voltage 50 Hz 3x
400 Volt
Spindle motor
7.5 kW
Machine's weight about
1450 kg
Overall dimensions machine:
Length
2000 mm
Width
1230 mm
Height
1600 mm
Various accessories:

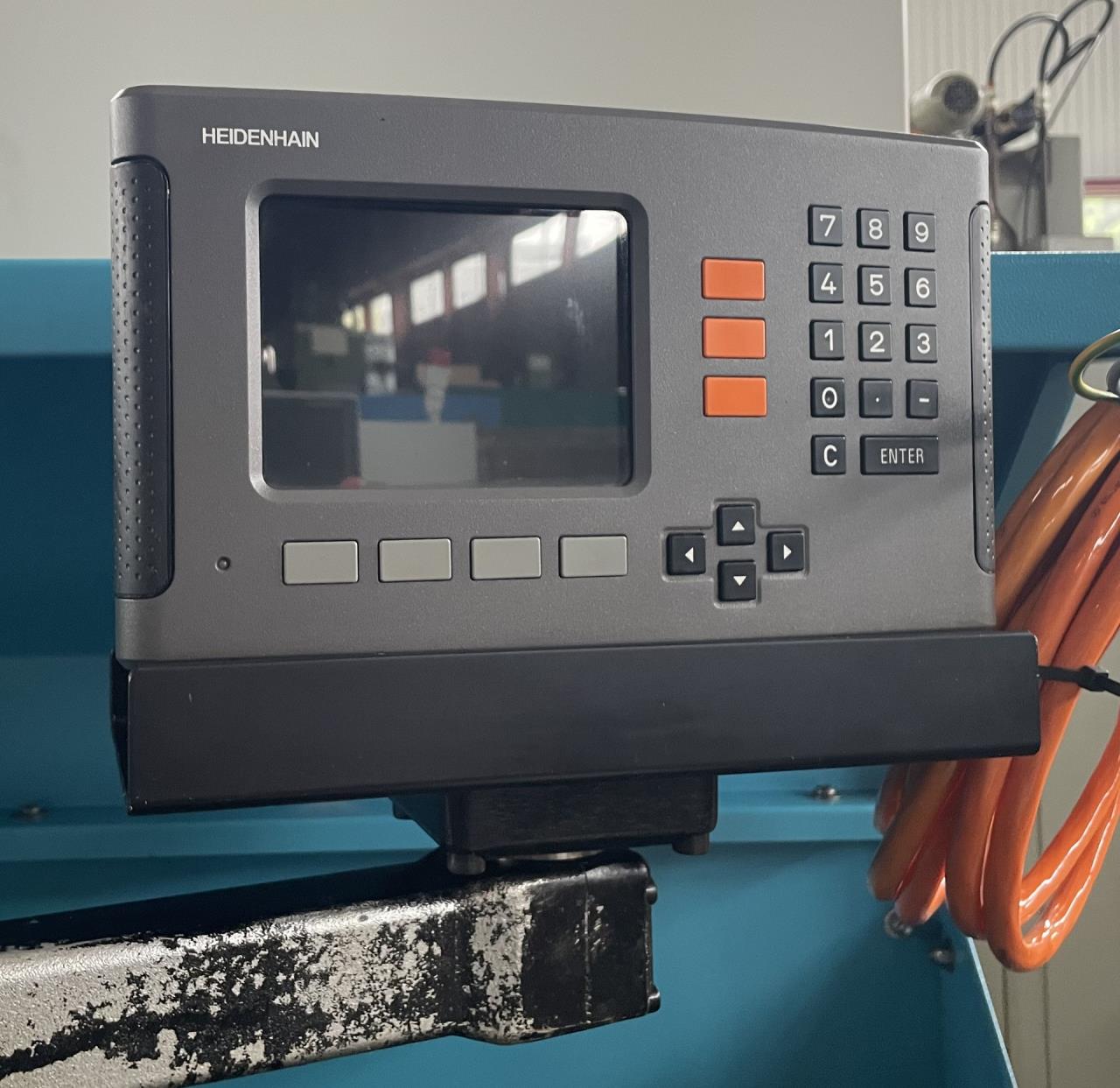

Digital readout number of axis:
3
Manufacturer
HEIDENHAIN

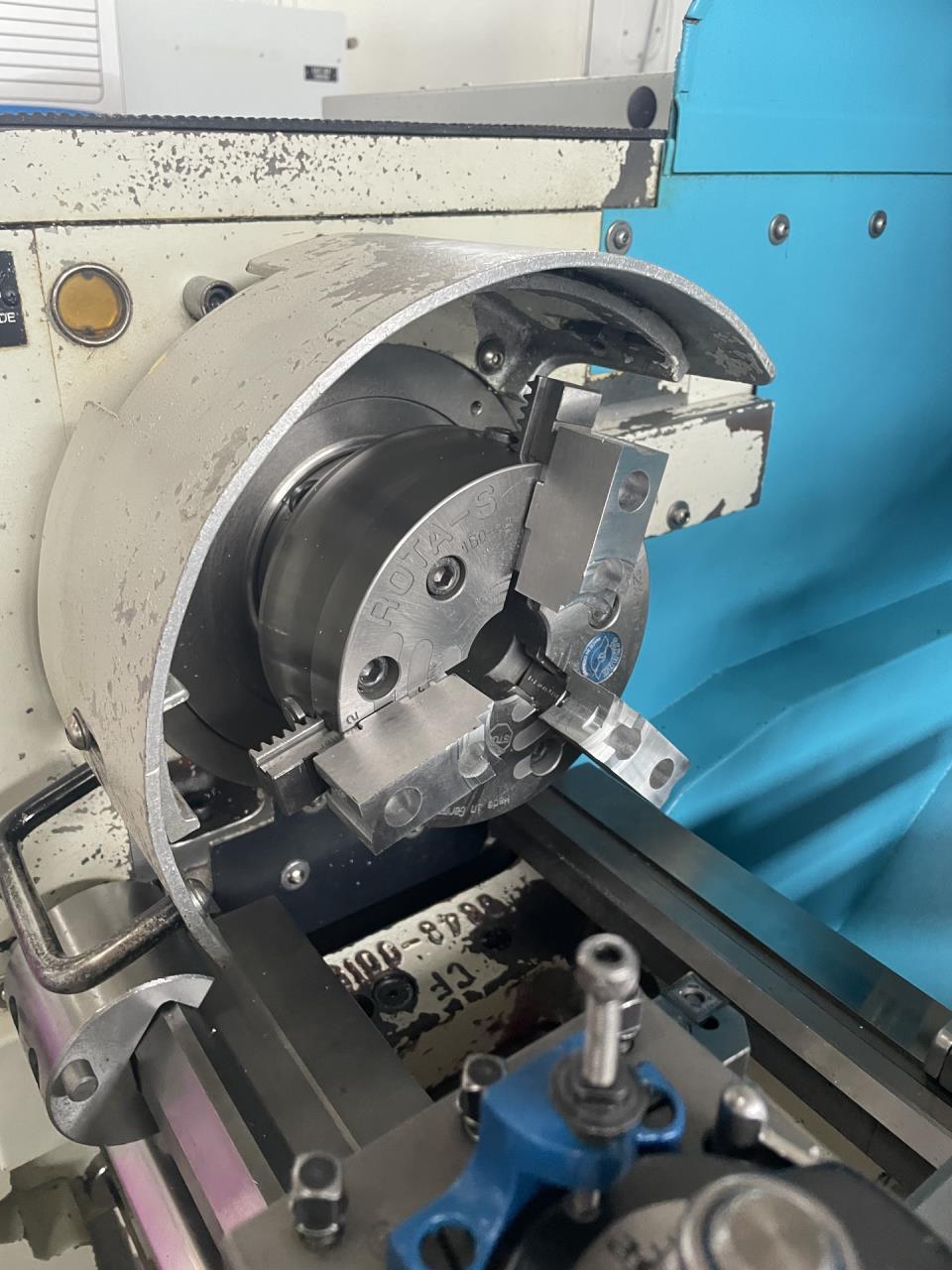

3-jaw chuck diameter
160 mm
3-jaw chuck diameter
160 mm

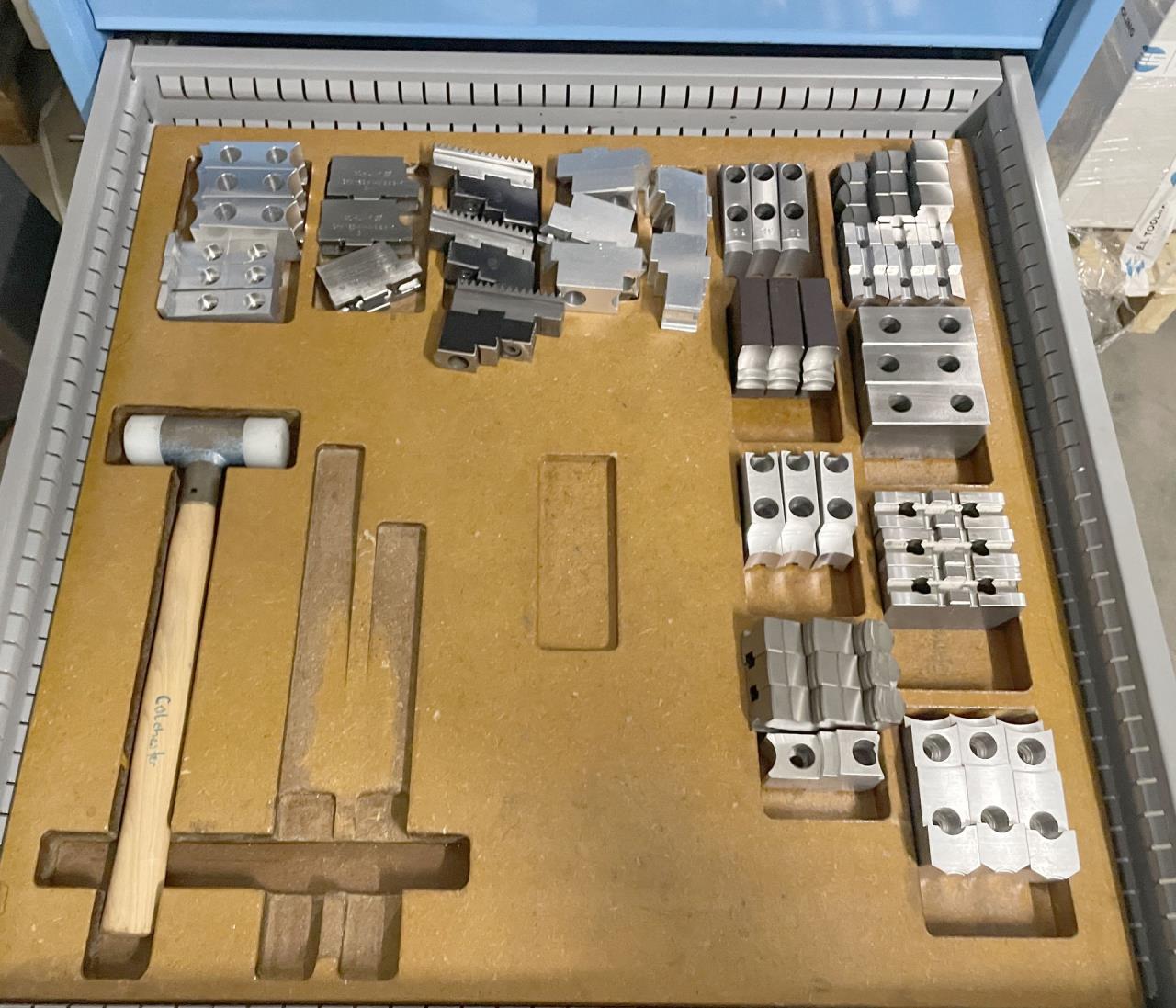

Set of jaws hard
Set of jaws

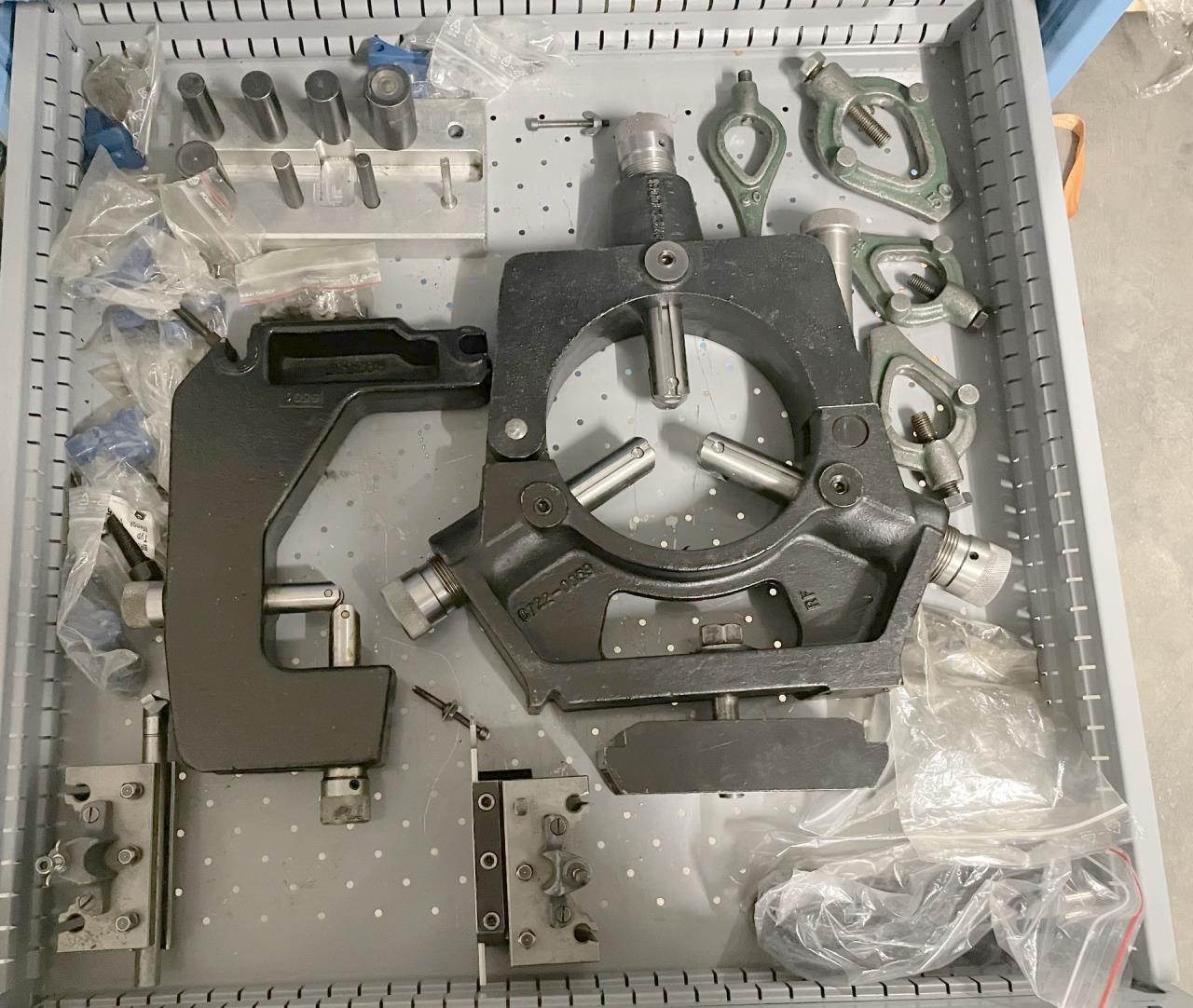

Three-jaw bezel folds open
Steady

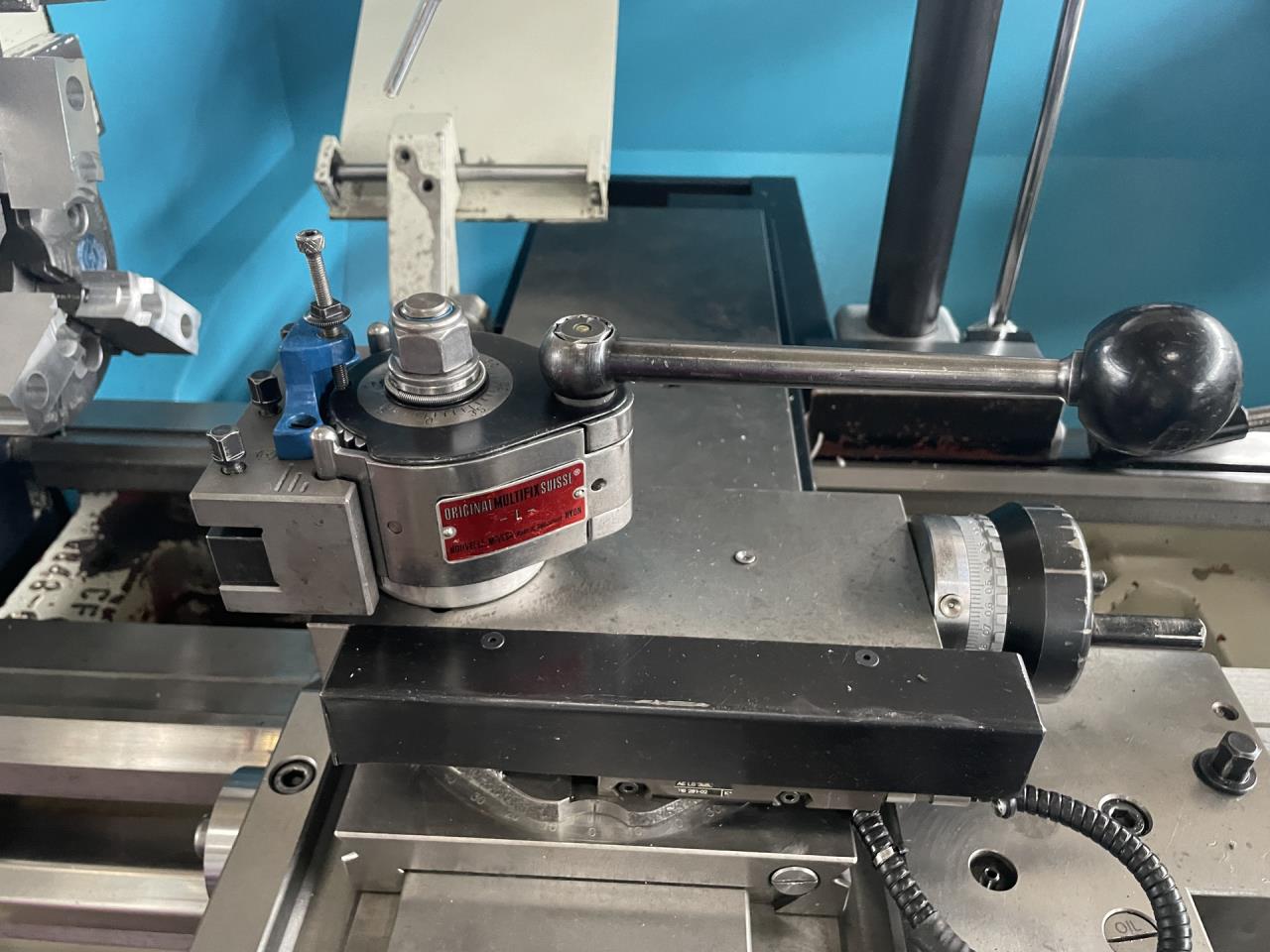

Quick change tool
MULTIFIX

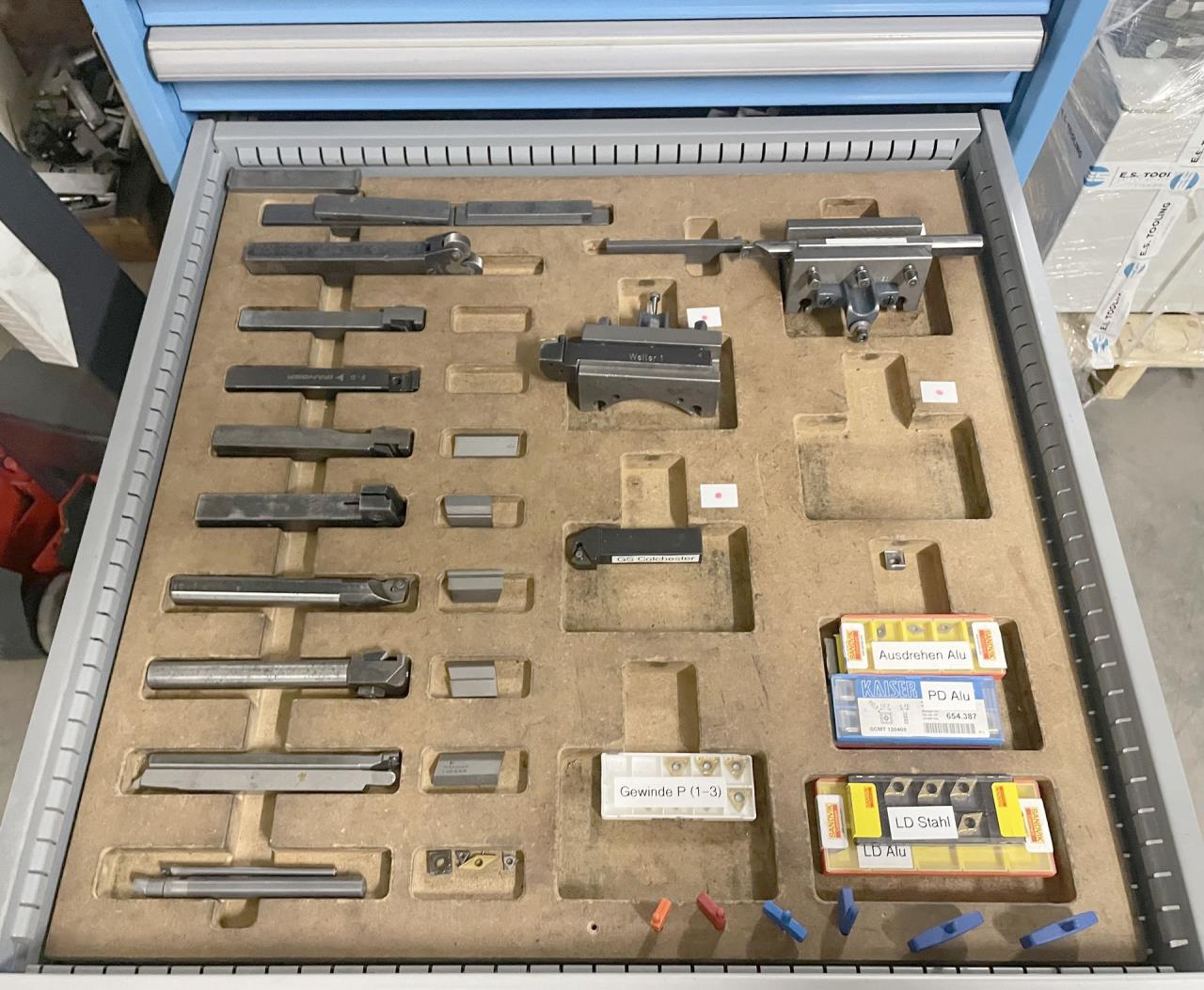

Set of steel holders

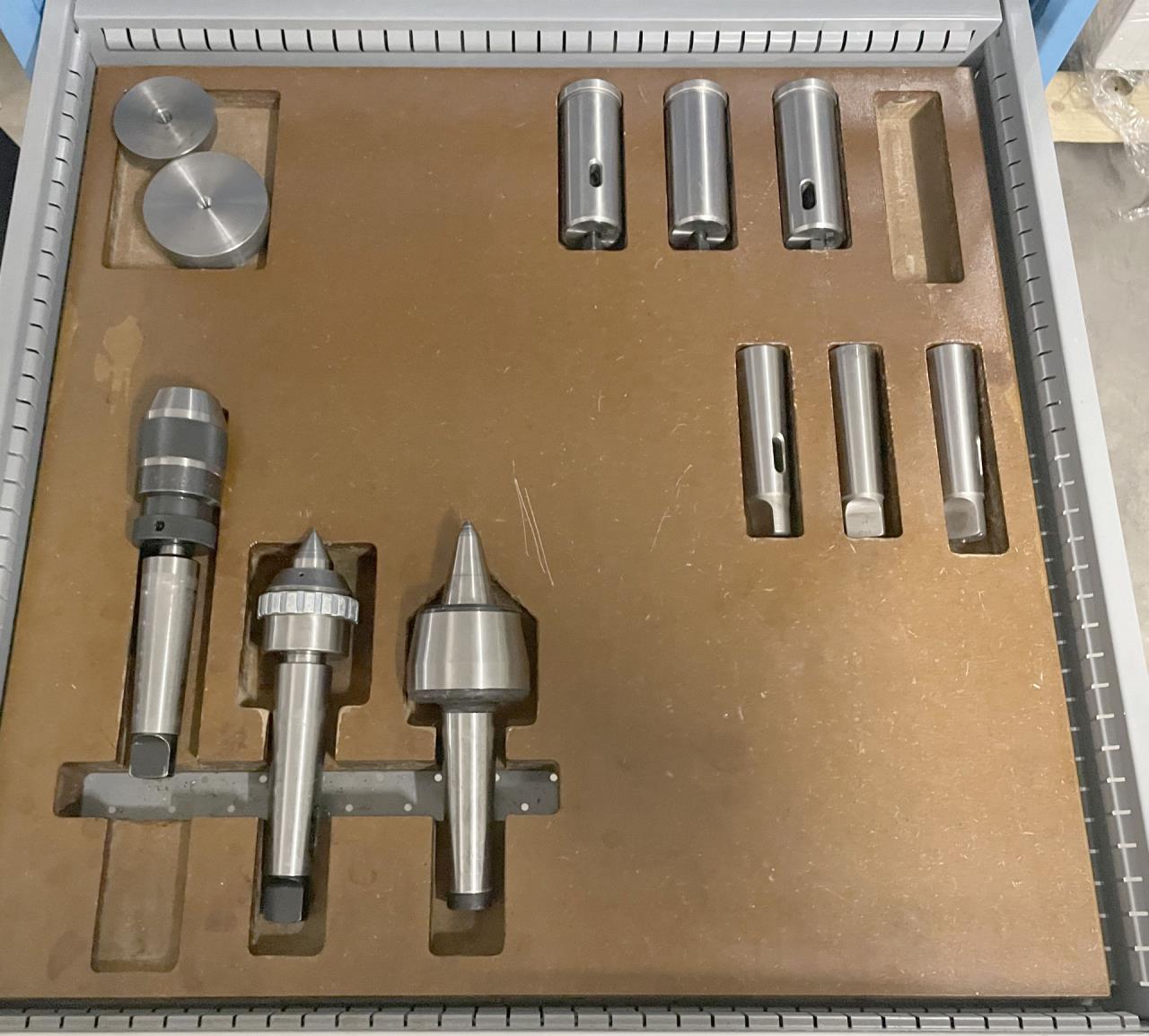

Set of reducing bushes
Set of centers
Rotary centre
Drill chuck
Lamp
Tool cabinet
Drilling tailstock

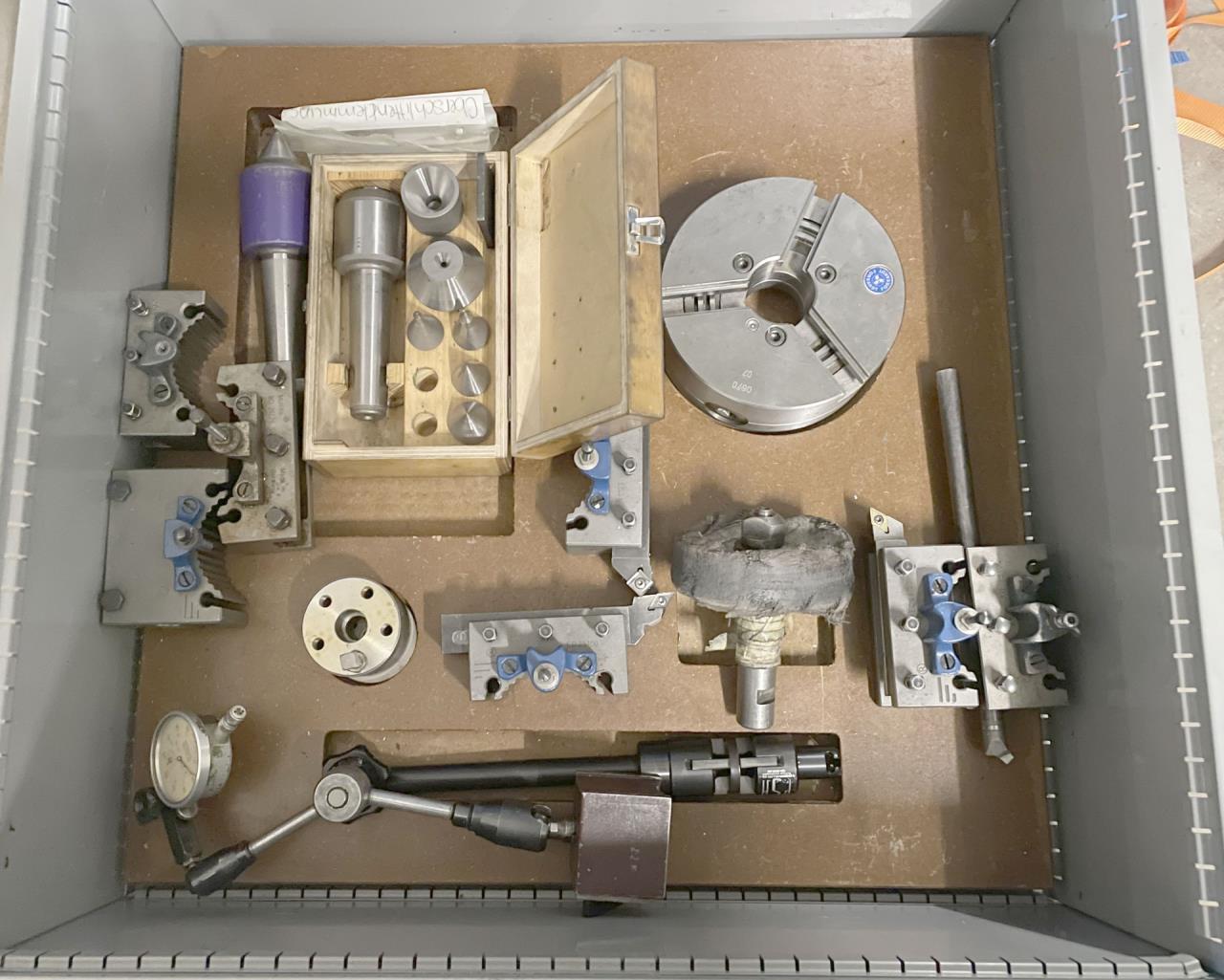

Magnetic measuring stand with dial gauge
Lathe chuck protection

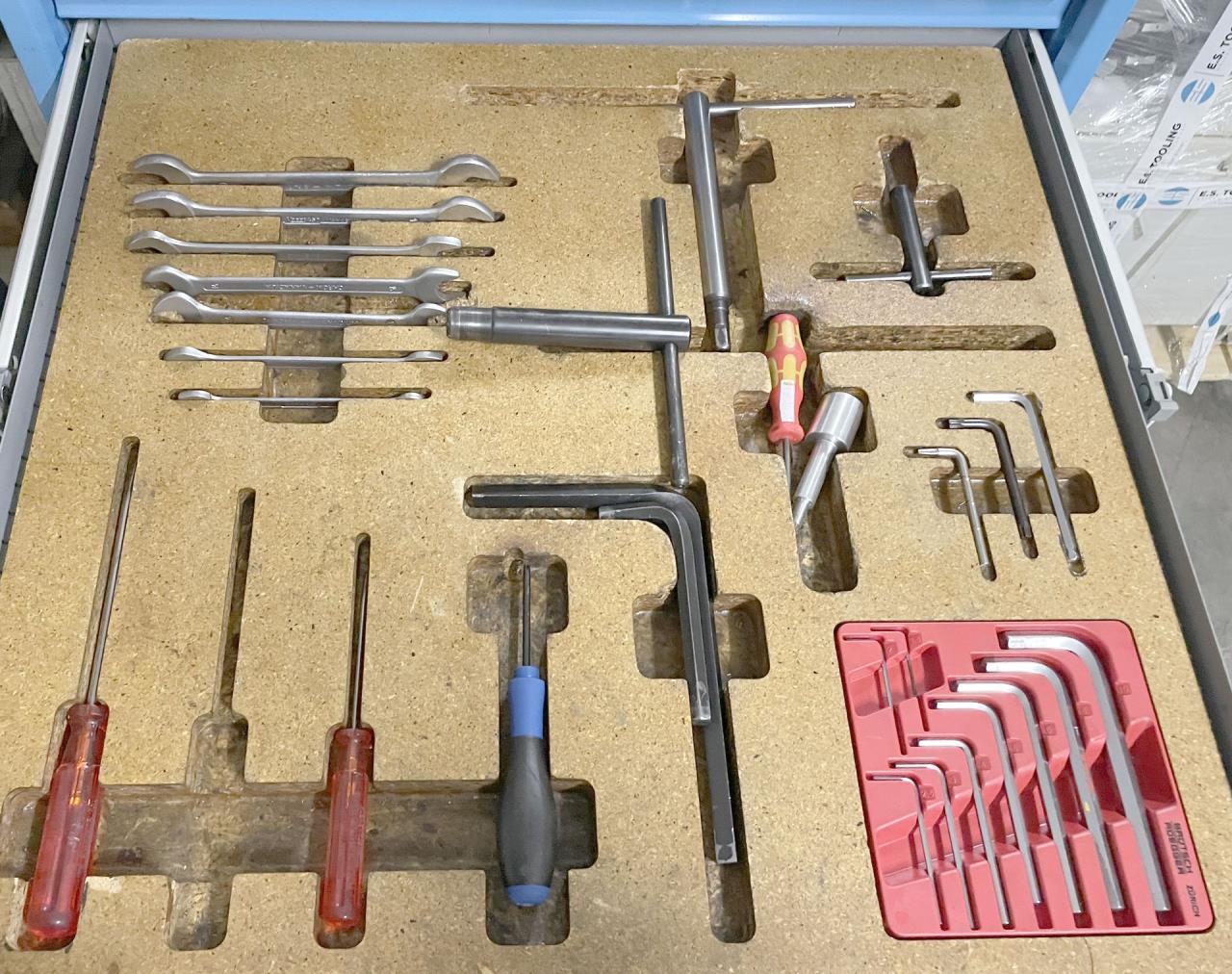

Set of service tools
Chip protector
Technical specifications and pictures without guarantee.
