Technical data
Table length
300 mm
Table width
120 mm
Number of T-channels
3
T-channel width
8 mm
Distance of the T-slots
40 mm
Longitudinal travel (X-axis)
150 mm
Transversal travel (y axis)
100 mm
Vertical travel (z axis)
150 mm
Spindle speeds:
number (steps)
6
from
125 rpm
up to
4000 rpm
Taper in spindle:
12 W
Voltage 50 Hz 3x
380 Volt
Motor output
0.3 HP
Total power required
0.5 HP
Machine's weight about
150 kg
Overall dimensions machine:
Length
1100 mm
Width
750 mm
Height
1400 mm
Various accessories:
Vice: width
80 mm

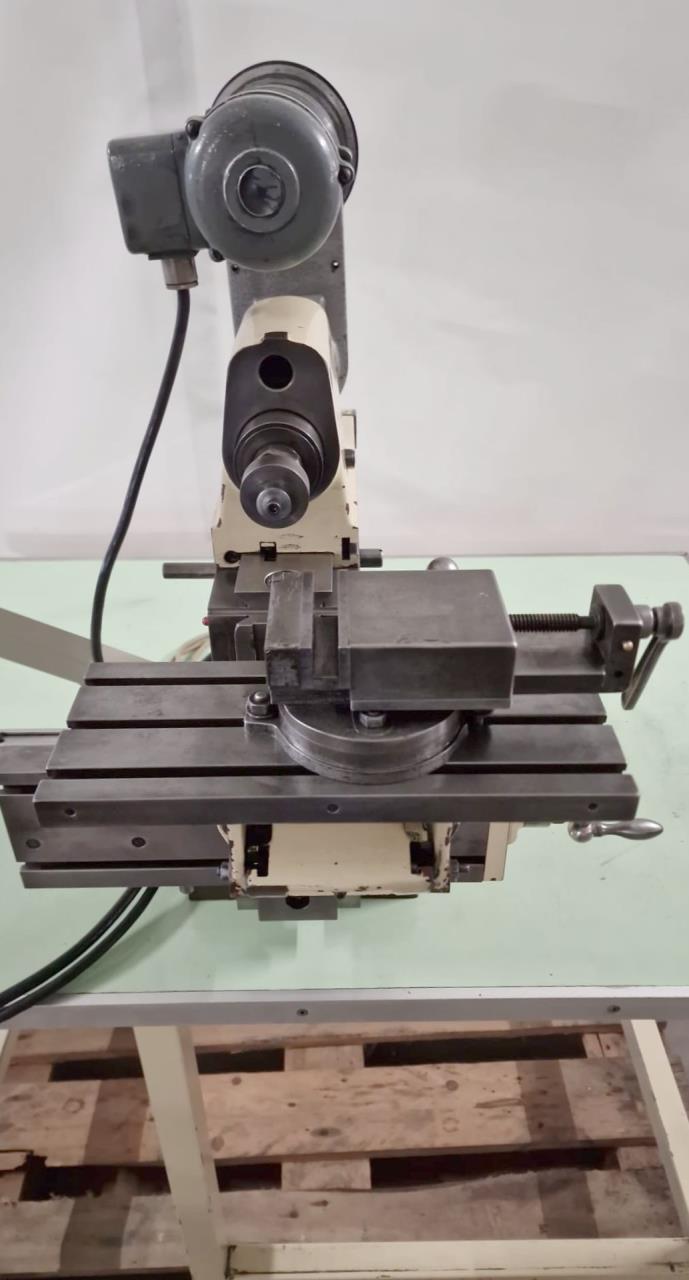

Tilting and swivel table
Lamp
Technical specifications and pictures without guarantee.
