stock no. :
22436
Machine's group :
Type :

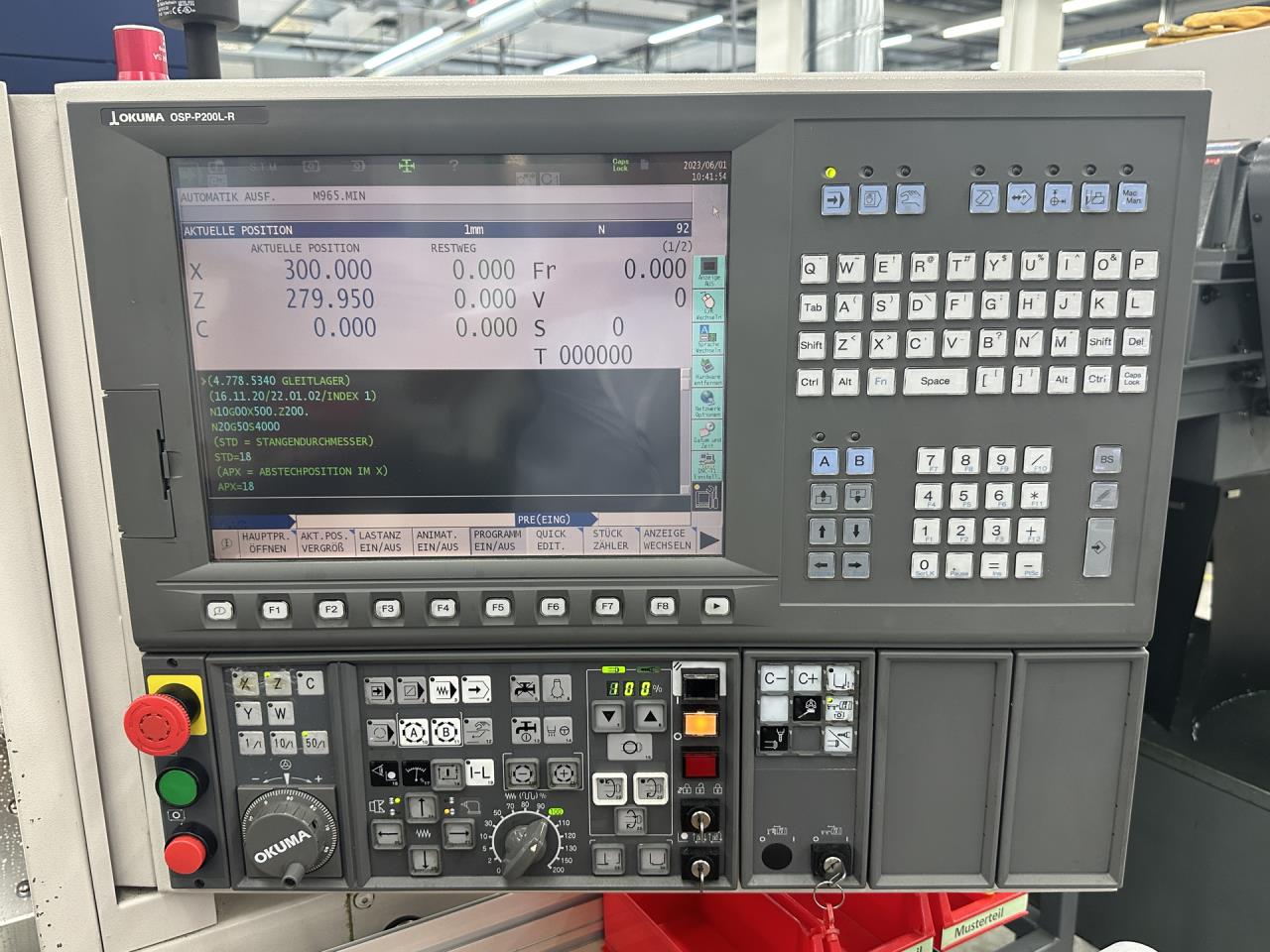

Controller :
OKUMA OSP-P200L-R
Jahrgang :
2011
OKUMA - TATUNG L200E-M 11 Image(s)
Back
Technical data
Number of axis total
3
Number of spindles
1
Number of revolvers
1
Swing diameter over bed
450 mm
Spindle hole
65 mm
Maximum turning length
380 mm
Max. turning diameter
200 mm

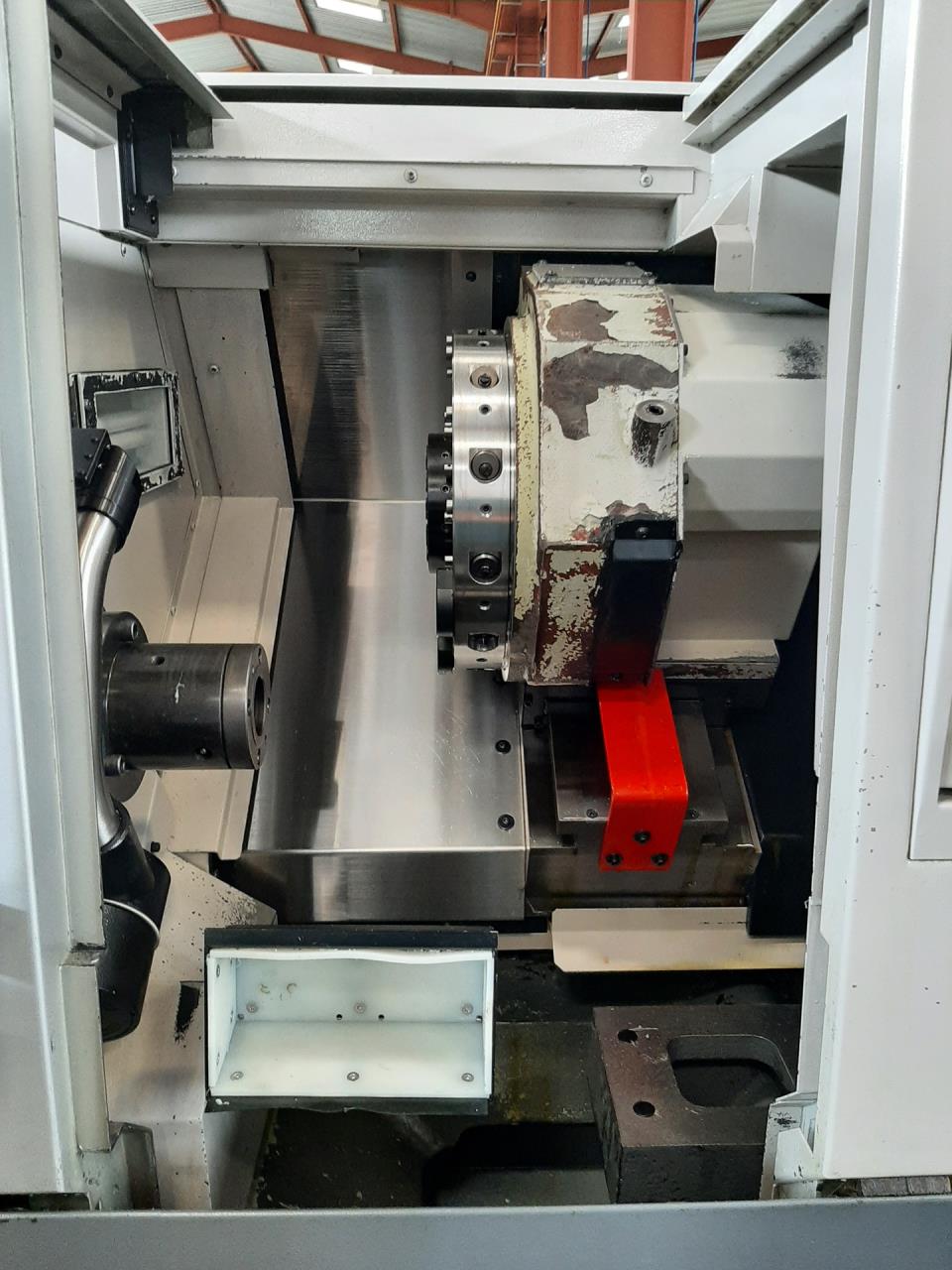

Turret carriage:
Travels:
    Longitudinal travel (Z-axis)
400 mm
    Longitudinal travel (X-axis)
165 mm
    Rapid traverse Z
25 m/min
    Rapid traverse X
20 m/min

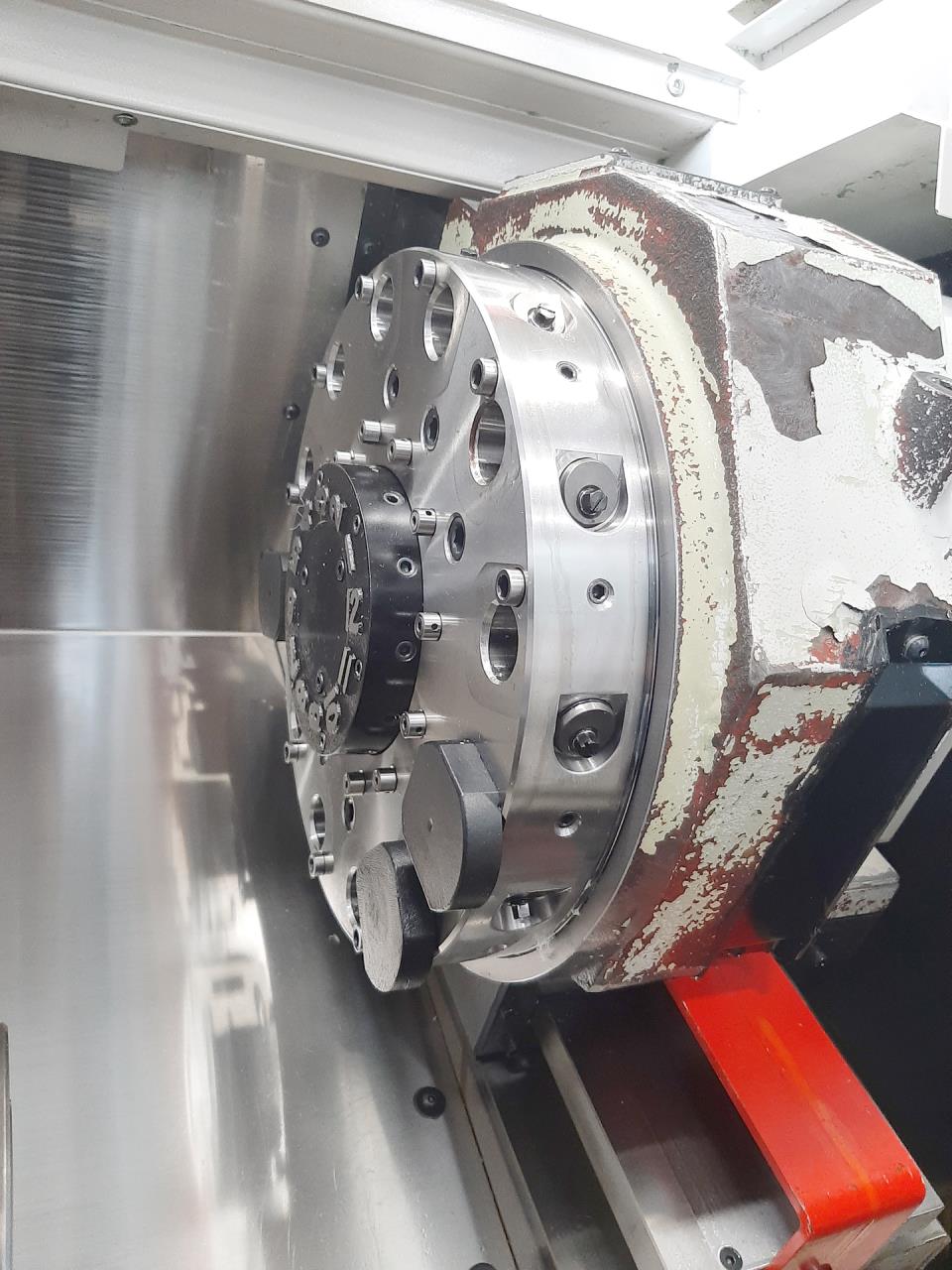

Turret slide:
    Number of positions
12
       Spindle speeds
50- 6000 rpm
    Power of driven tools
4 kW
    Spindle nose: VDI
30

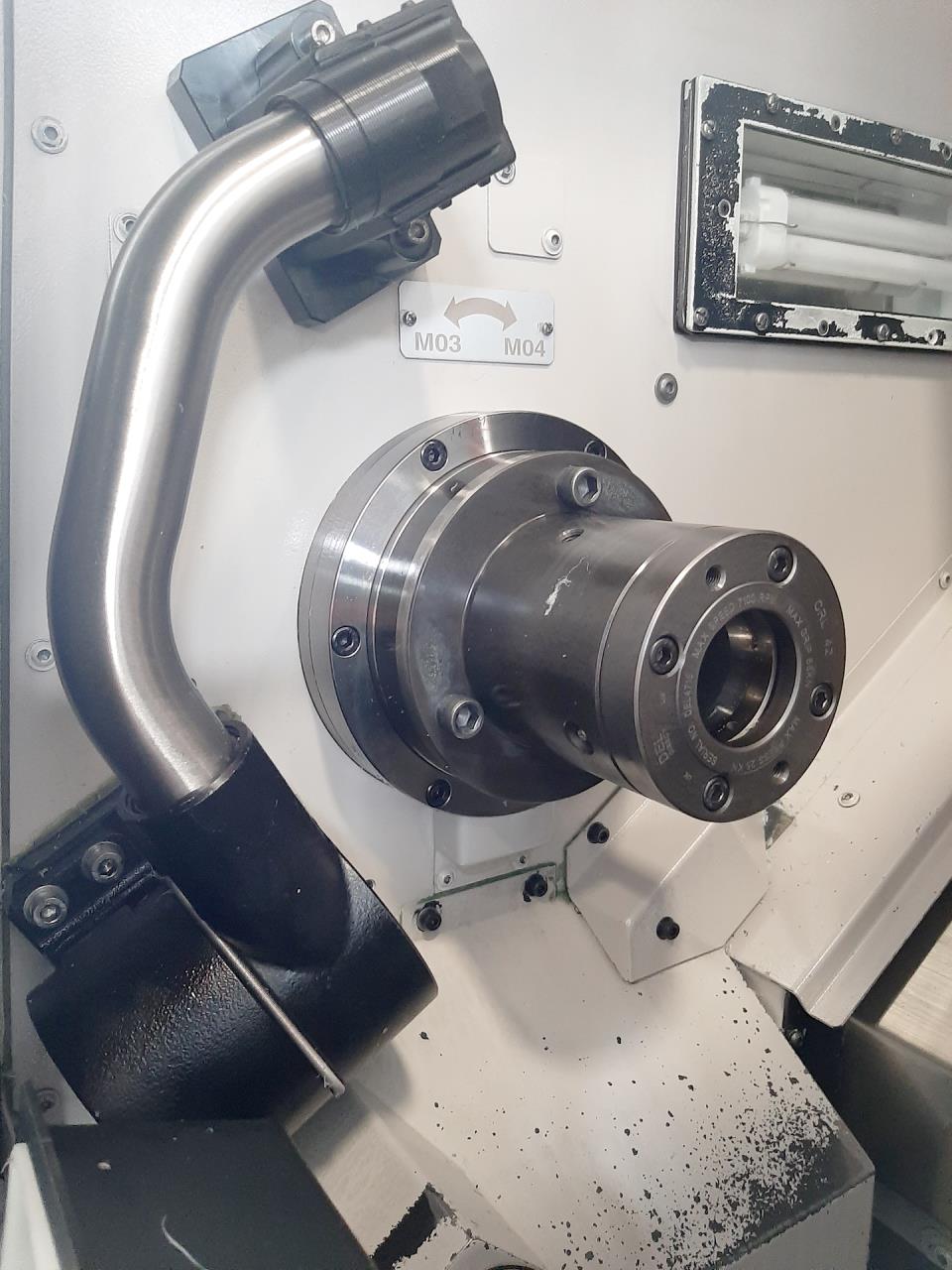

Main spindle:
    C axis (spindle,resolution)
0.001 °
    Spindle speeds:
       stepless
       from
100 rpm
       up to
4500 rpm
    Spindle power
11 / 7.5 kW
Voltage 50 Hz 3x
400 Volt
Machine's weight about
3900 kg
Overall dimensions machine:
    Length
2200 mm
    Width
1700 mm
    Height
2200 mm
Various accessories:

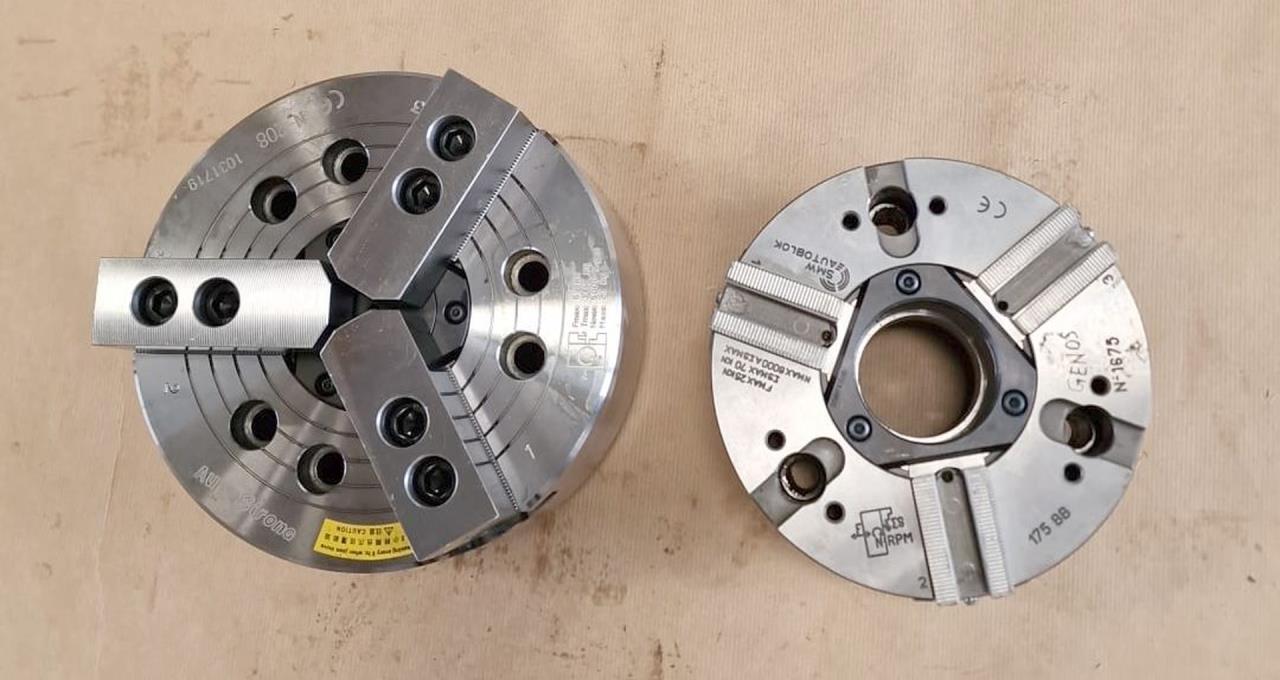

3-jaw chuck diameter
175 mm
3-jaw chuck diameter
200 mm
Collet device
Lamp
Interface serial port RS 232
Interface USB
Parts catcher
Chip conveyor
Foot pedal

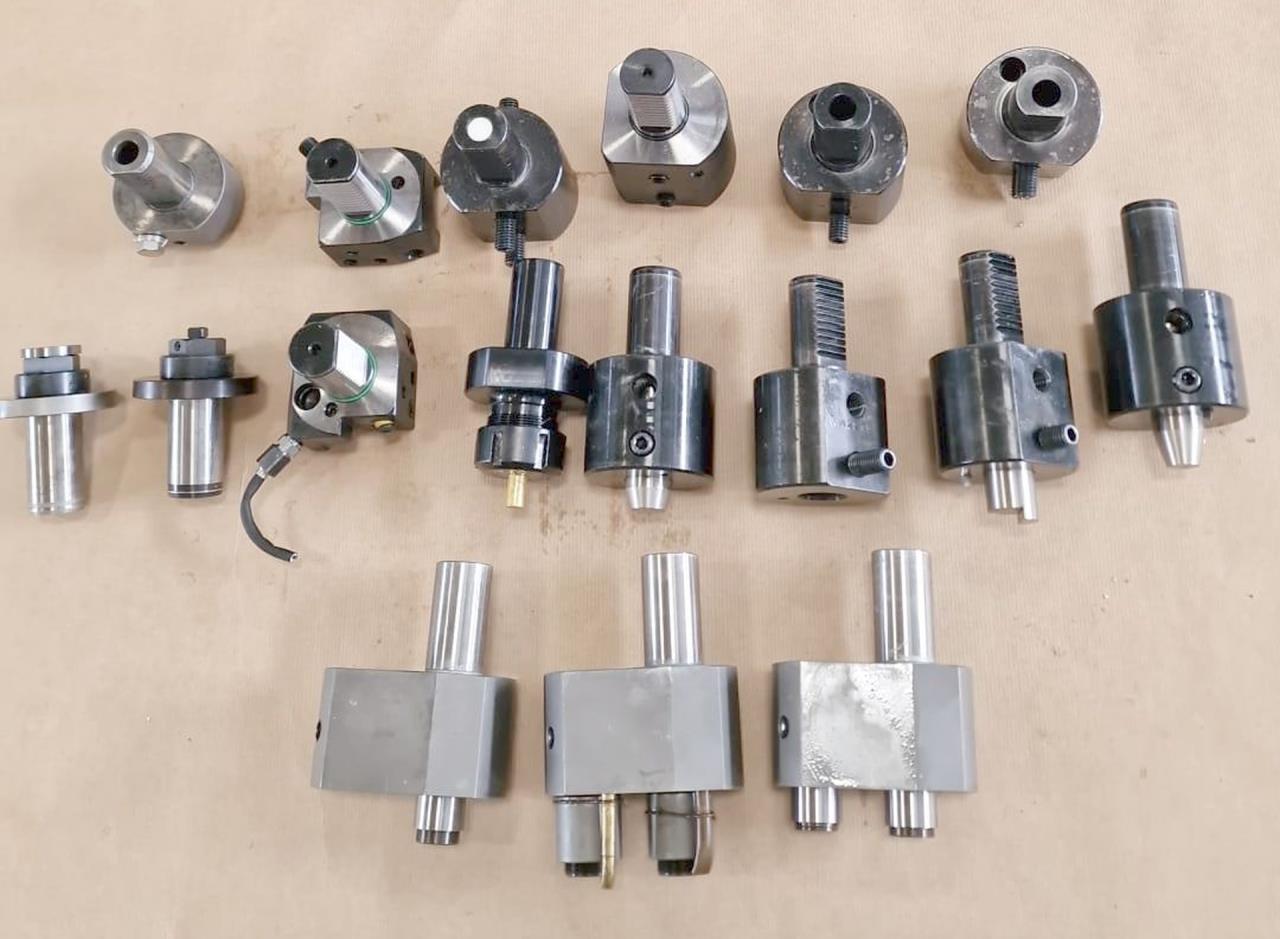

Set of toolholders
Measuring arm Renishaw
Status light
Notes:
without tailstock
without driven tools

Technical specifications and pictures without guarantee.
