Technical data
Number of axis total
3
Table length
650 mm
Table width
350 mm
Number of T-channels
5
T-channel width
14 mm
Distance of the T-slots
63 mm
Table load max.
250 kg
Longitudinal travel (X-axis)
400 mm
Transversal travel (y axis)
320 mm
Vertical travel (z axis)
400 mm
Distance from vertical
spindle to table
140 - 540 mm
Spindle speeds:
stepless
from
50 rpm
up to
3300 rpm
Swivel range Vertical milling head
+/-90 °
Spindle nose: ISO
40 DIN 69871
Feeds:
stepless
longitudinal from
0 mm/min
up to
1000 mm/min
transversal from
0 mm/min
up to
1000 mm/min
Rapid traverse: long.
4 m/min
Rapid traverse: transversal
4 m/min
Rapid traverse: vertical
3 m/min
Vertical quill travel
60 mm
Voltage 50 Hz 3x
400 Volt
Milling spindle motor
5.5 kW
Total power required
15 kVA
Time under power
6652 Hour
Operating time
1584 Hour
Working time
940 Hour
Noise level
78 dB (A)
Machine's weight about
1300 kg
Overall dimensions machine:
Length
2000 mm
Width
1950 mm
Height
1900 mm
Various accessories:

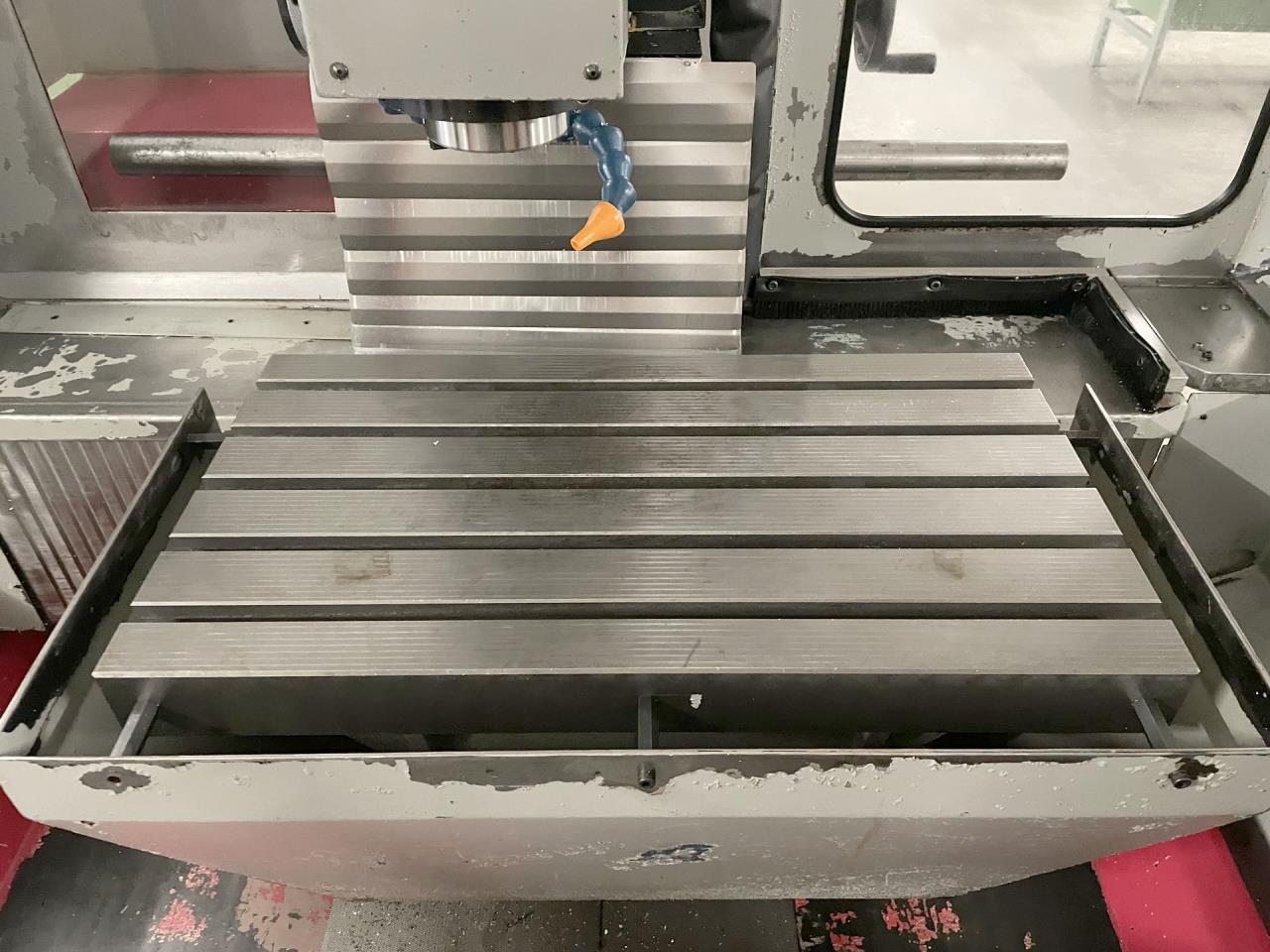

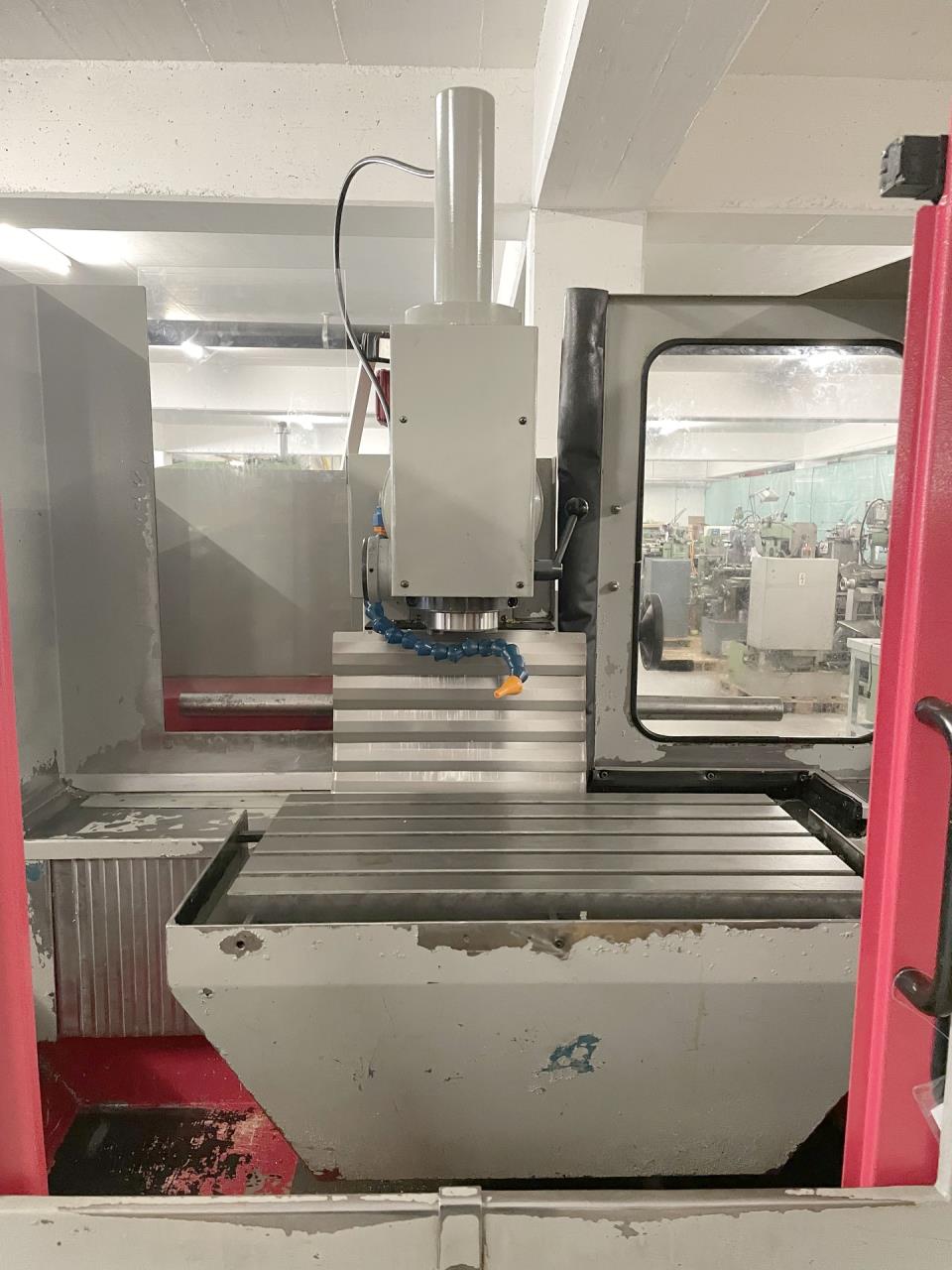

Rigide table

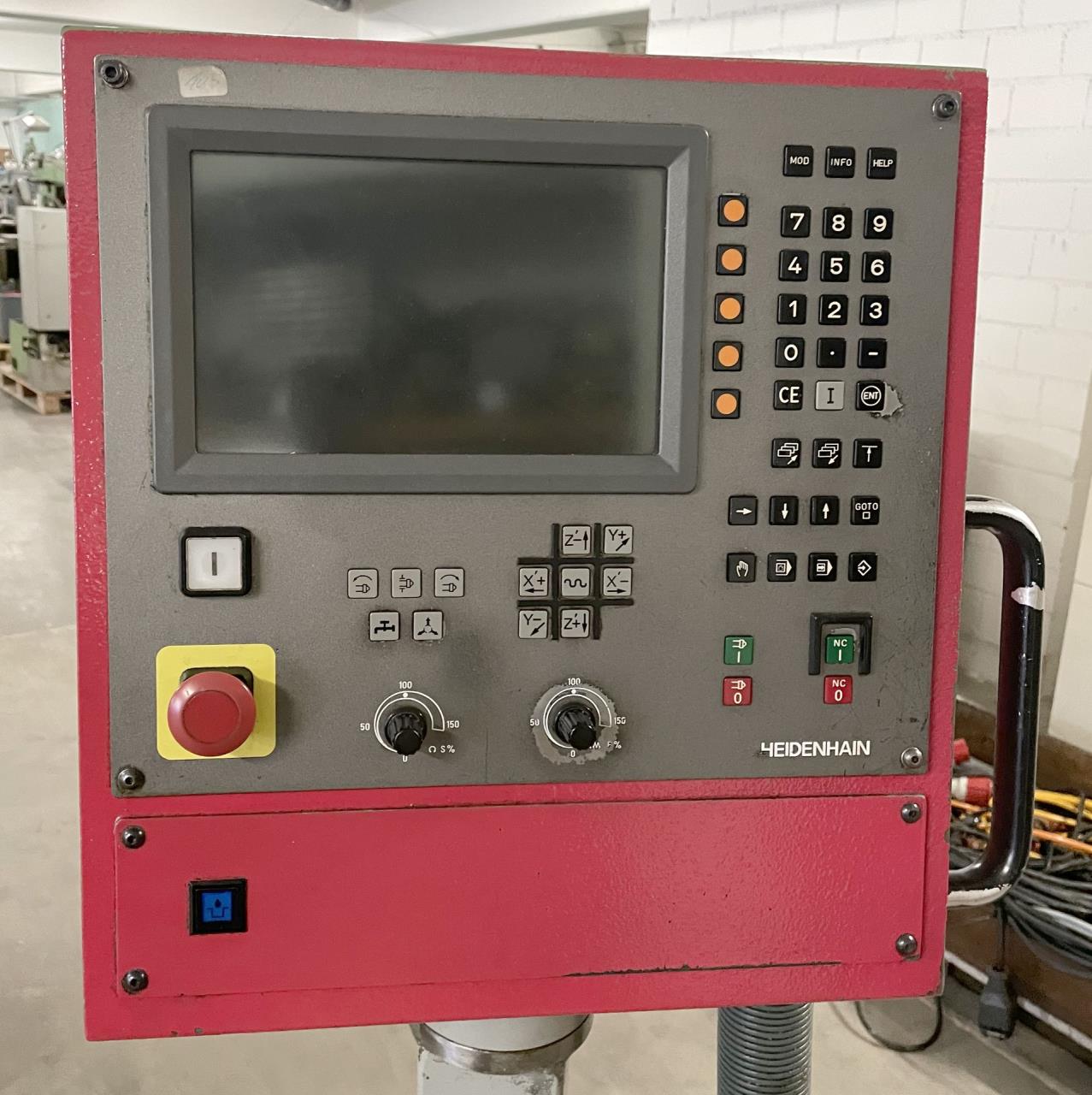

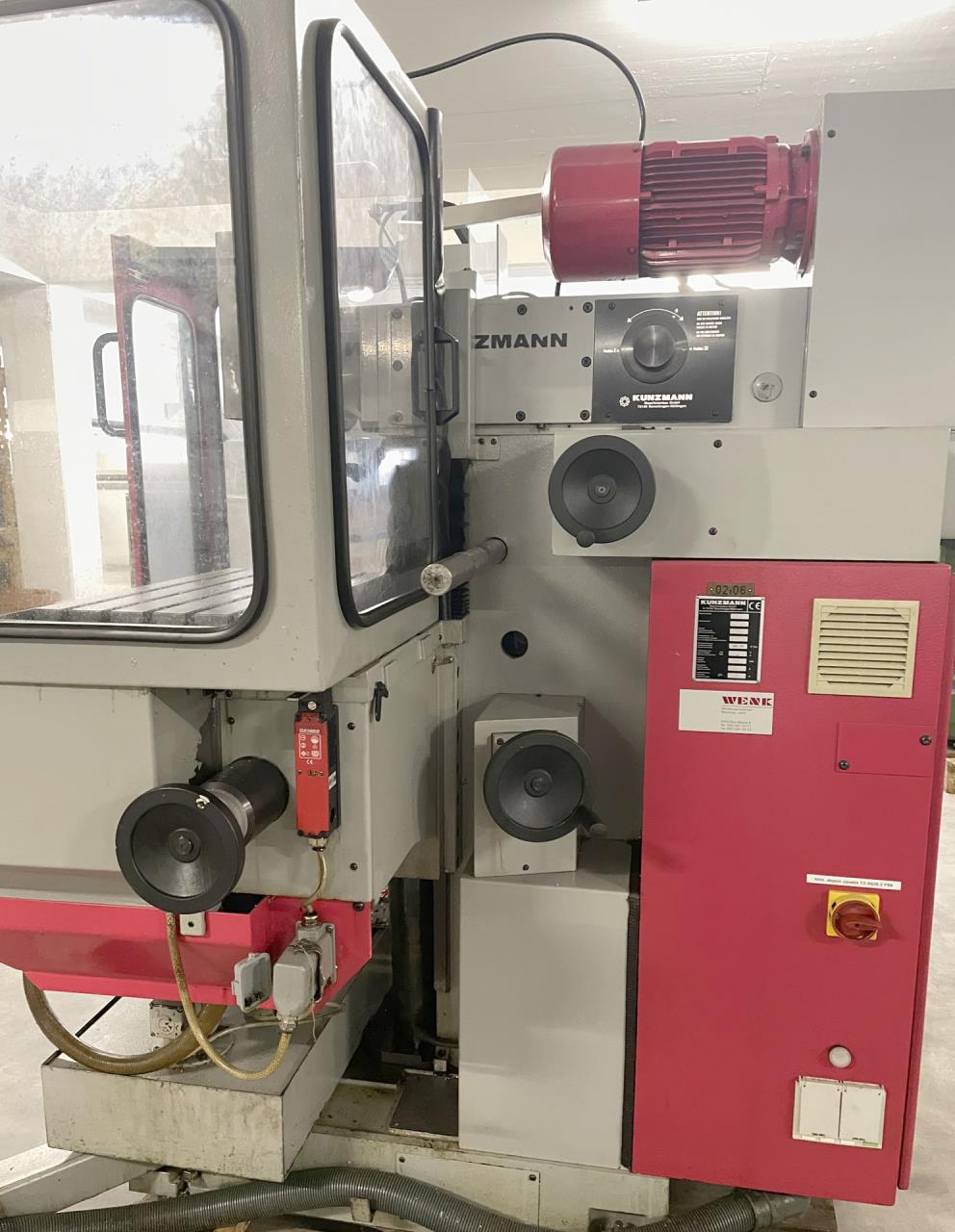

Electronic hand held control
Mechanical handwheels
Full splash cabin

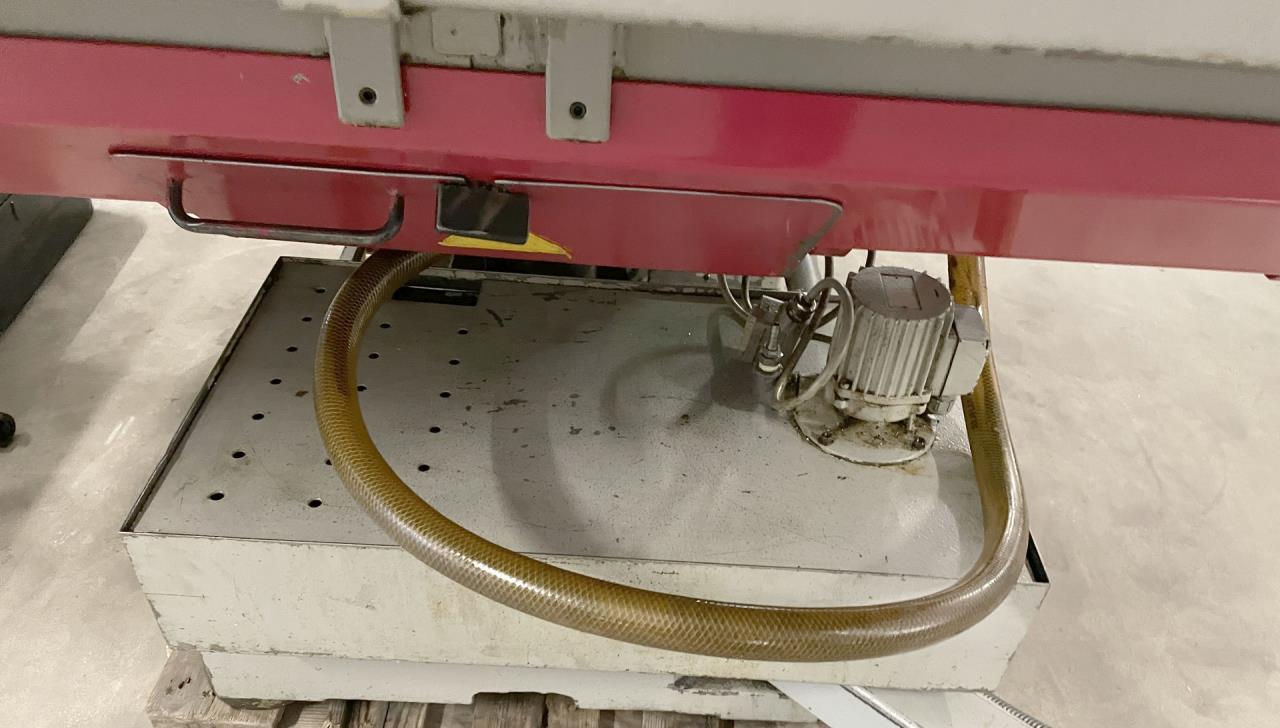

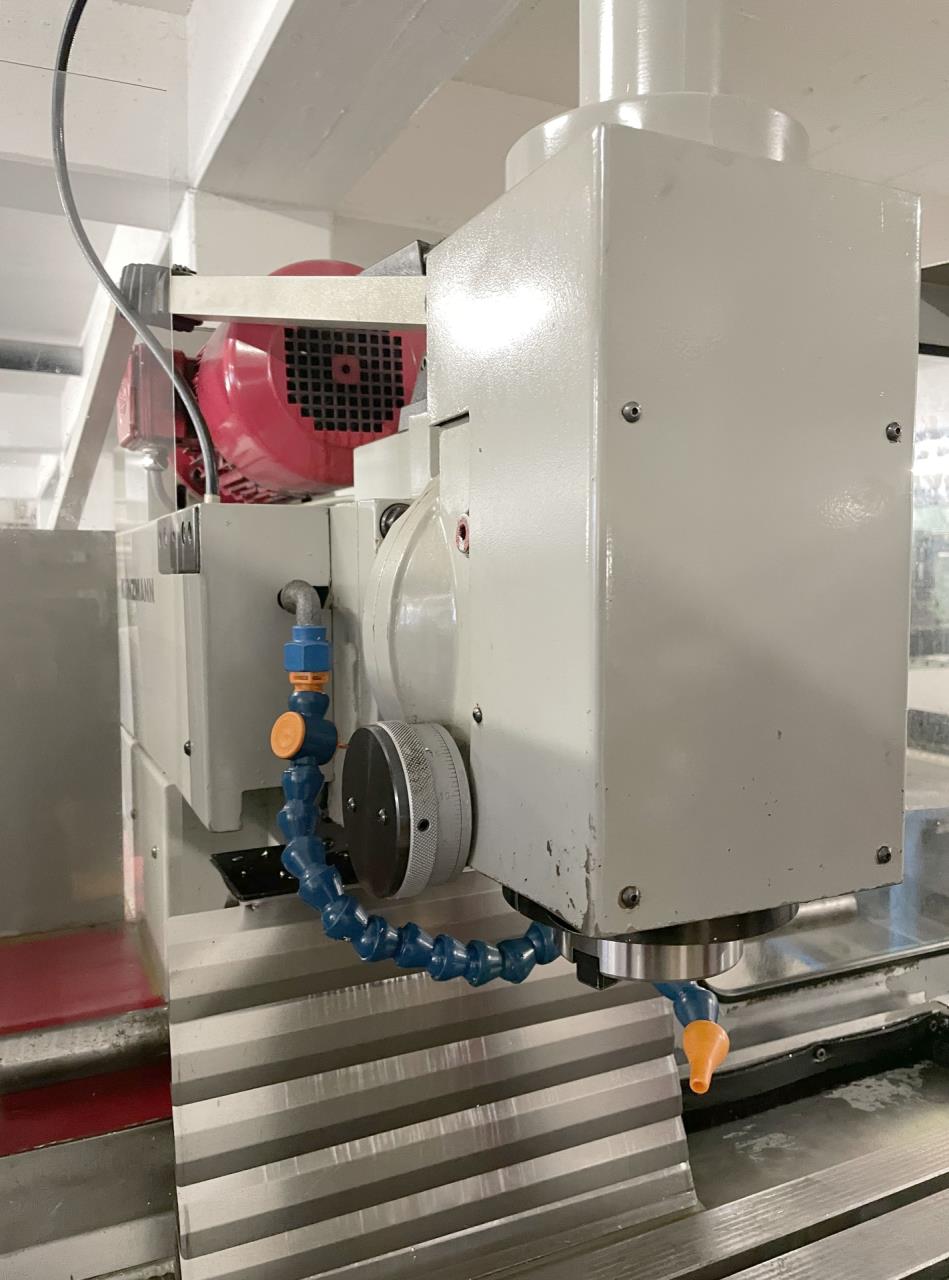

Coolant system
Automatic central lubrication
Interface serial port RS 232
Technical specifications and pictures without guarantee.
