stock no. :
22424
Machine's group :
Type :
MORI SEIKI CL-153

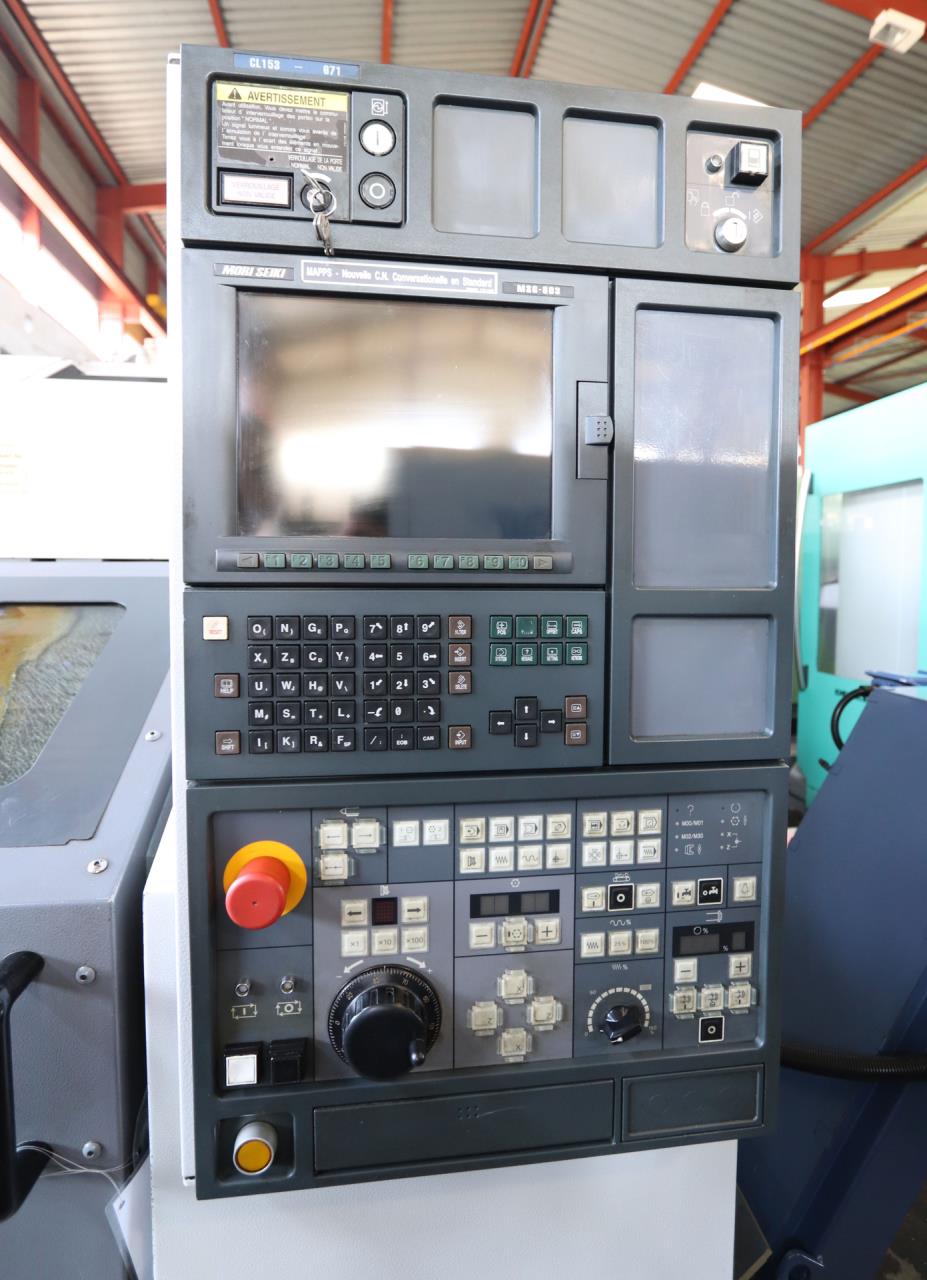

Controller :
MORI SEIKI MSG-803
Jahrgang :
2001
MORI SEIKI CL-153 7 Image(s)
Back
Technical data
Number of axis total
2
Swing over bed
515 mm
Spindle nose
JIS A2-5
Spindle hole
43 mm
Maximum turning length
176 mm
Max. turning diameter
400 mm
Turret carriage:
Travels:
    Longitudinal travel (Z-axis)
310 mm
    Transversal strocke (X axis)
235 mm

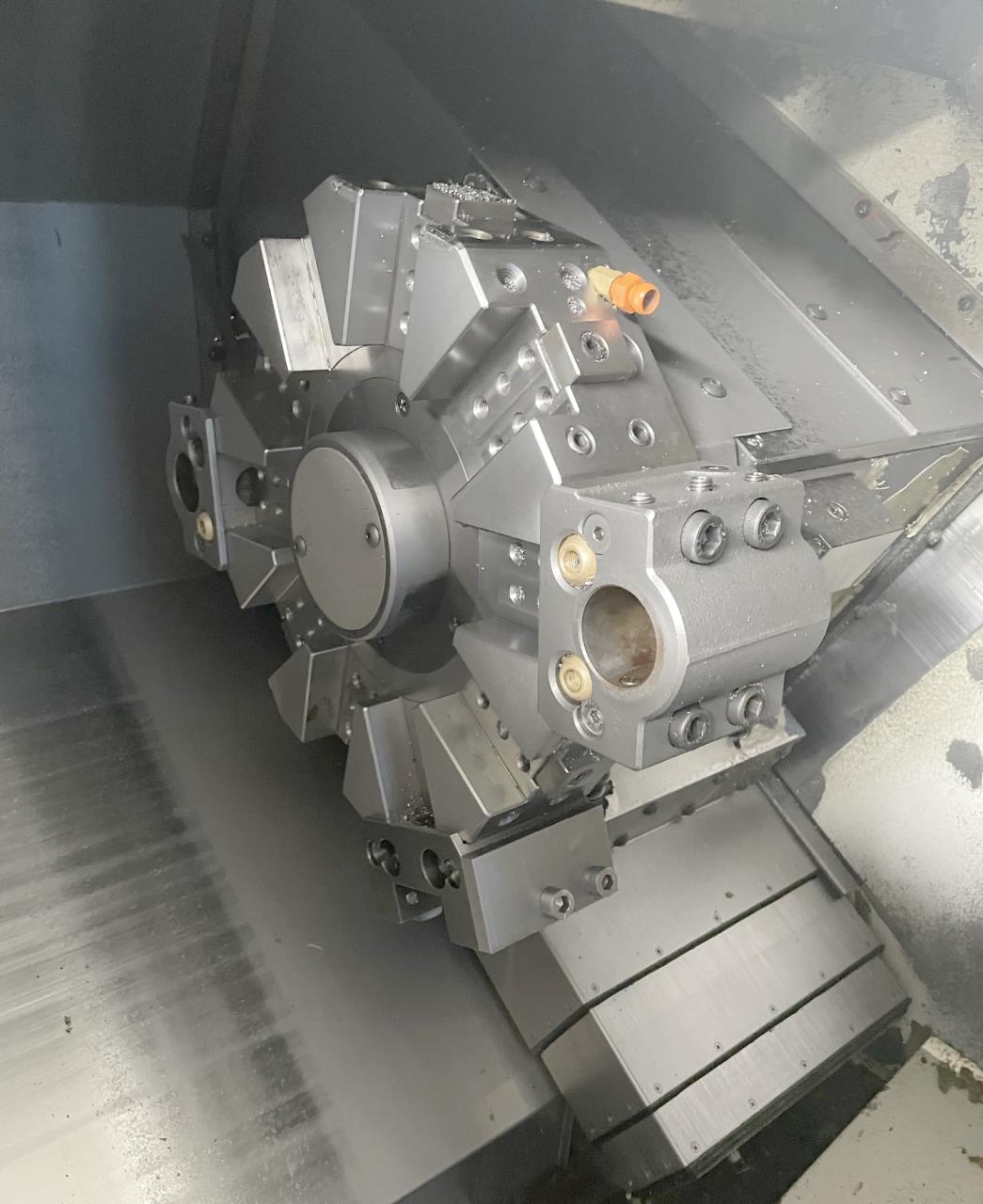

Turret slide:
    Number of positions
12
    Tool shank cross section
20 mm
    Spindle speeds:
       stepless
       from
6 rpm
       up to
6000 rpm
    Rapid traverse:
30 m/min
Spindle motor
7.5 / 5.5 kW
Total power required
19 kVA
Machine's weight about
2450 kg
Overall dimensions machine:
    Length
1700 mm
    Width
1450 mm
    Height
1800 mm
Various accessories:
3-jaw chuck diameter
165 mm
Coolant system
Chip conveyor

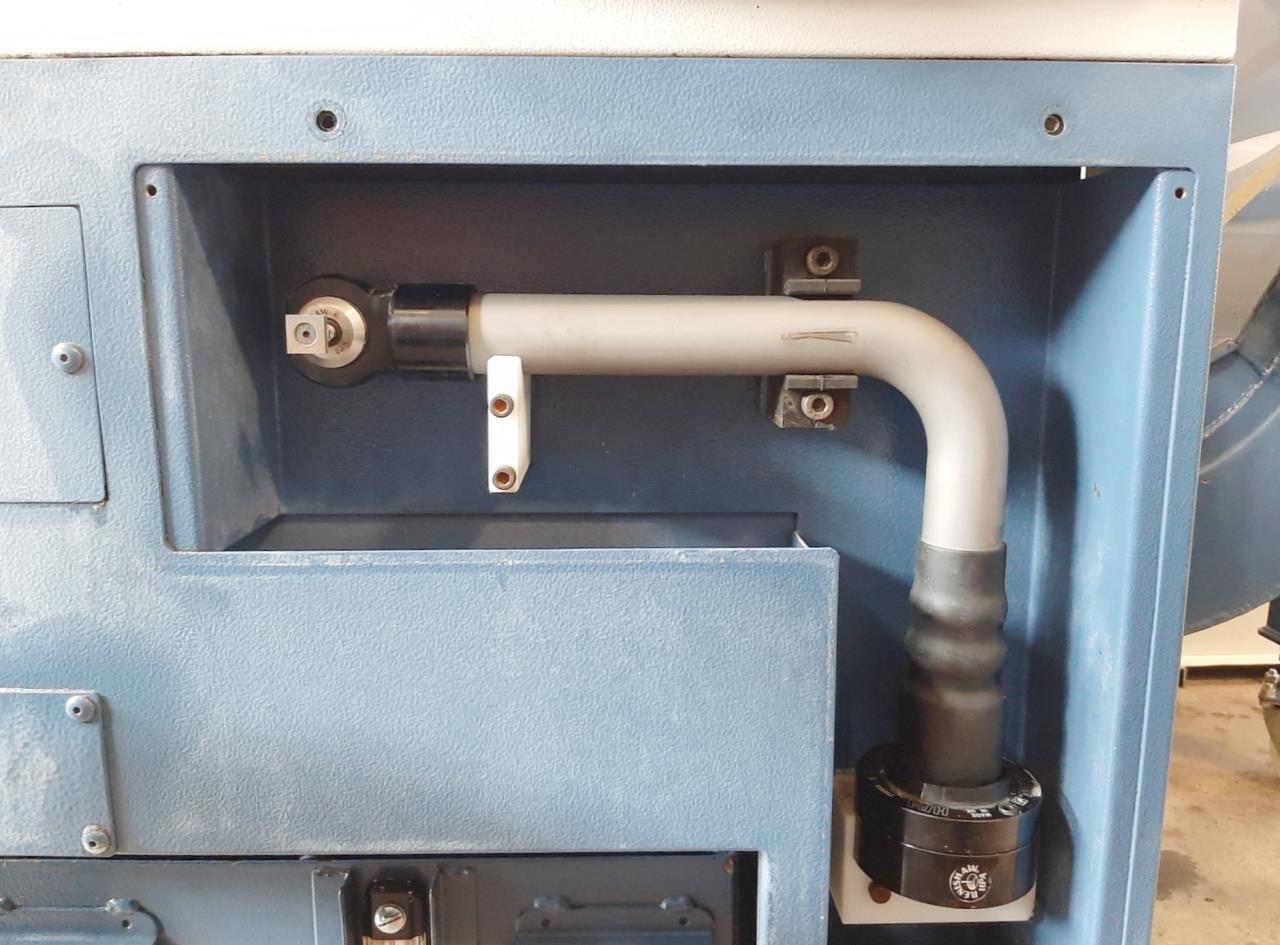

Measuring arm Renishaw

Technical specifications and pictures without guarantee.
