Technical data
Table length
300 mm
Table width
135 mm
Number of T-channels
1
T-channel width
8 mm
Max. distance from table
to spindle-centreline
315 mm
Longitudinal travel (X-axis)
330 mm
Cross travel (z-axis)
160 mm
Vertical travel (Y-axis)
240 mm
Automatic cross-feed:
stepless
from
30 m/min
up to
300 m/min
Table speeds:
stepless
from
0 m/min
up to
18 m/min
Grinding wheel speeds fix
3000 rpm

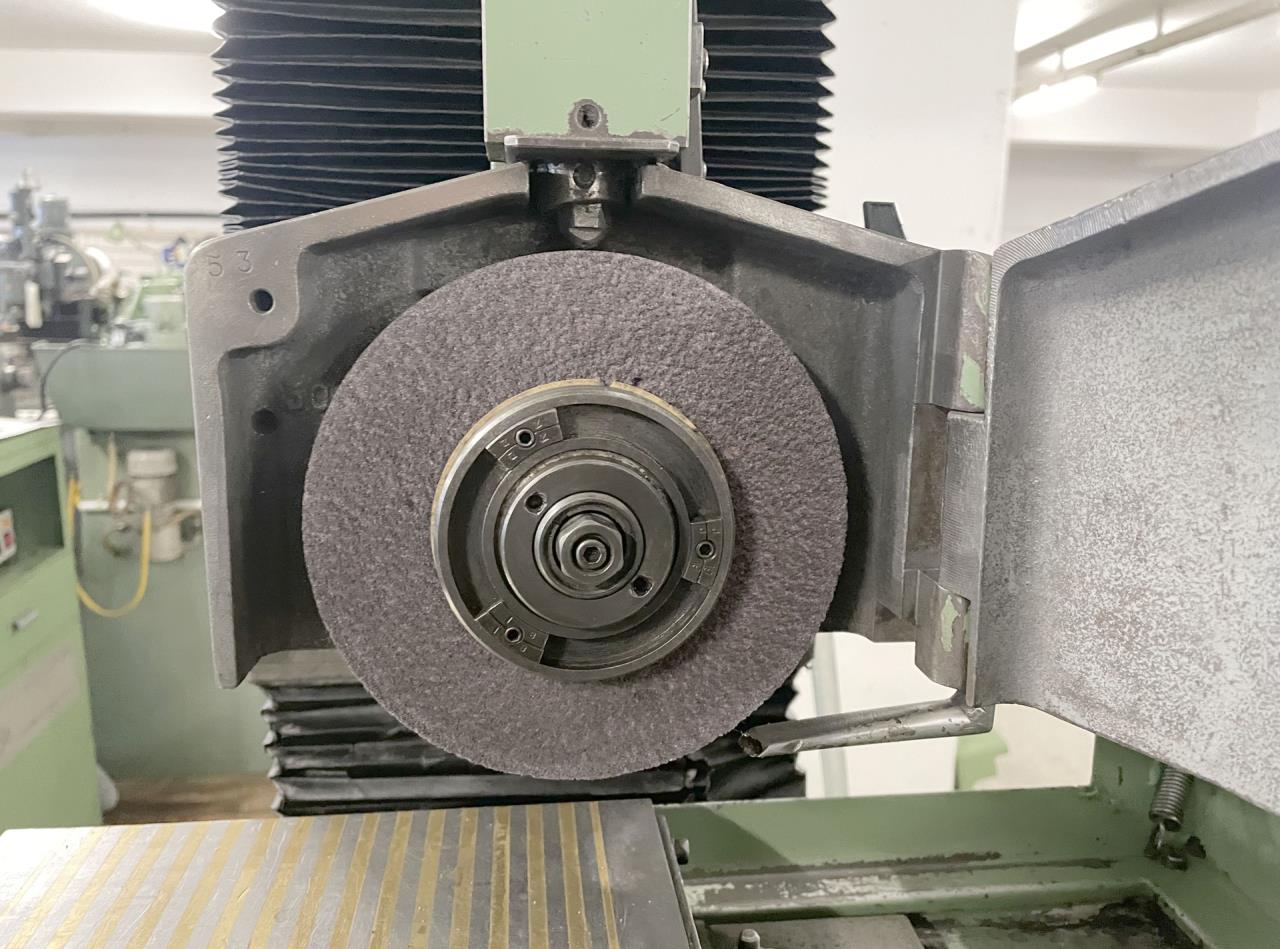

Diameter of grinding wheel
180 mm
Width of the grinding wheel
16 mm
Drilling cap. of grind.wheel
31.75 mm
Voltage 50 Hz 3x
380 Volt
Grinding spindle motor
1.1 kW
Machine's weight about
400 kg
Overall dimensions machine:
Length
1280 mm
Width
960 mm
Height
1680 mm
Various accessories:

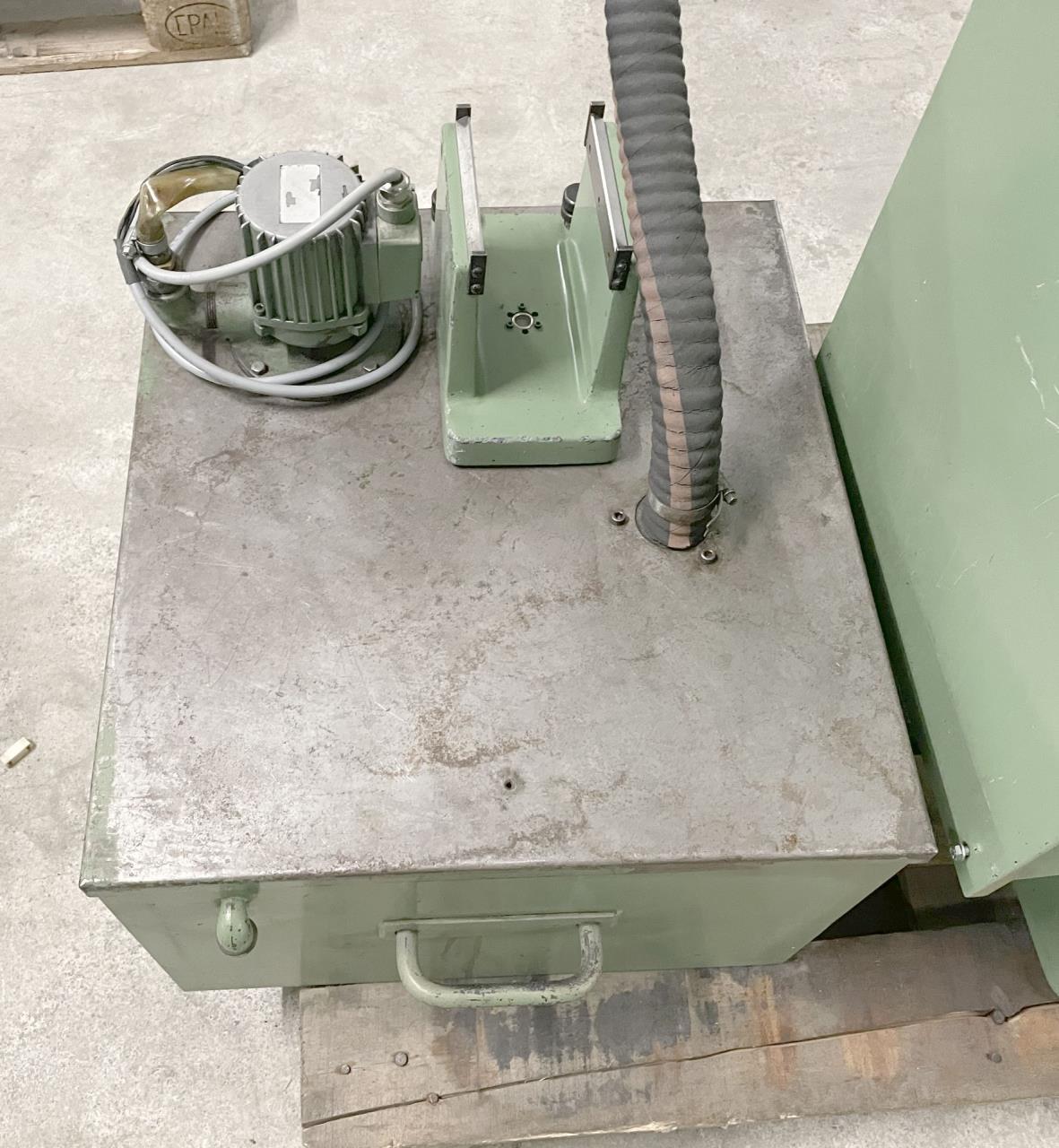

Coolant system

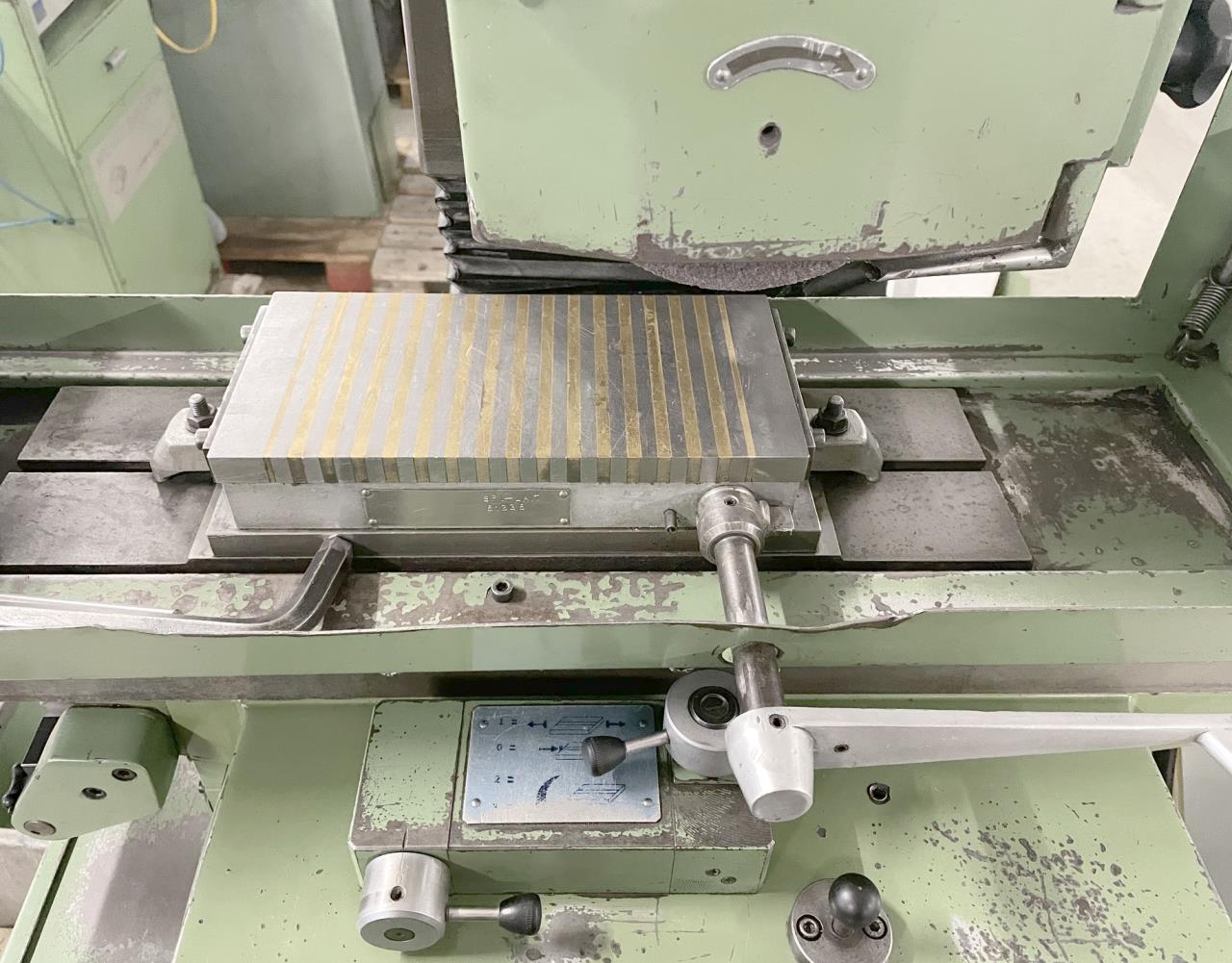

Magnetic plate:
Length
255 mm
Width
130 mm
Redressing device

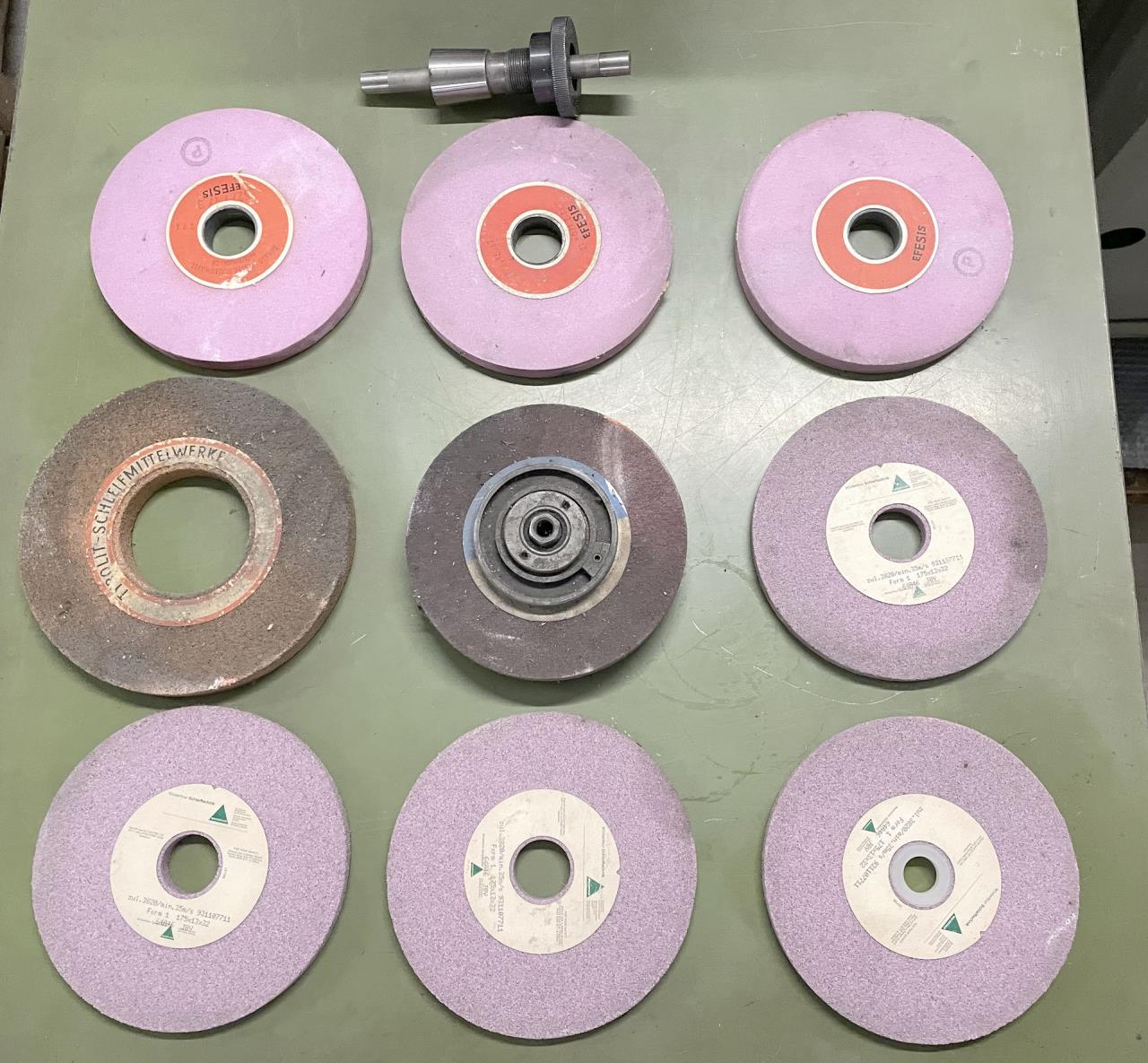

Set of grinding wheels
Grinding wheel with flange
Balancing arbor
Technical specifications and pictures without guarantee.
