stock no. :
22381
Machine's group :
Type :
DMG DMU 35M

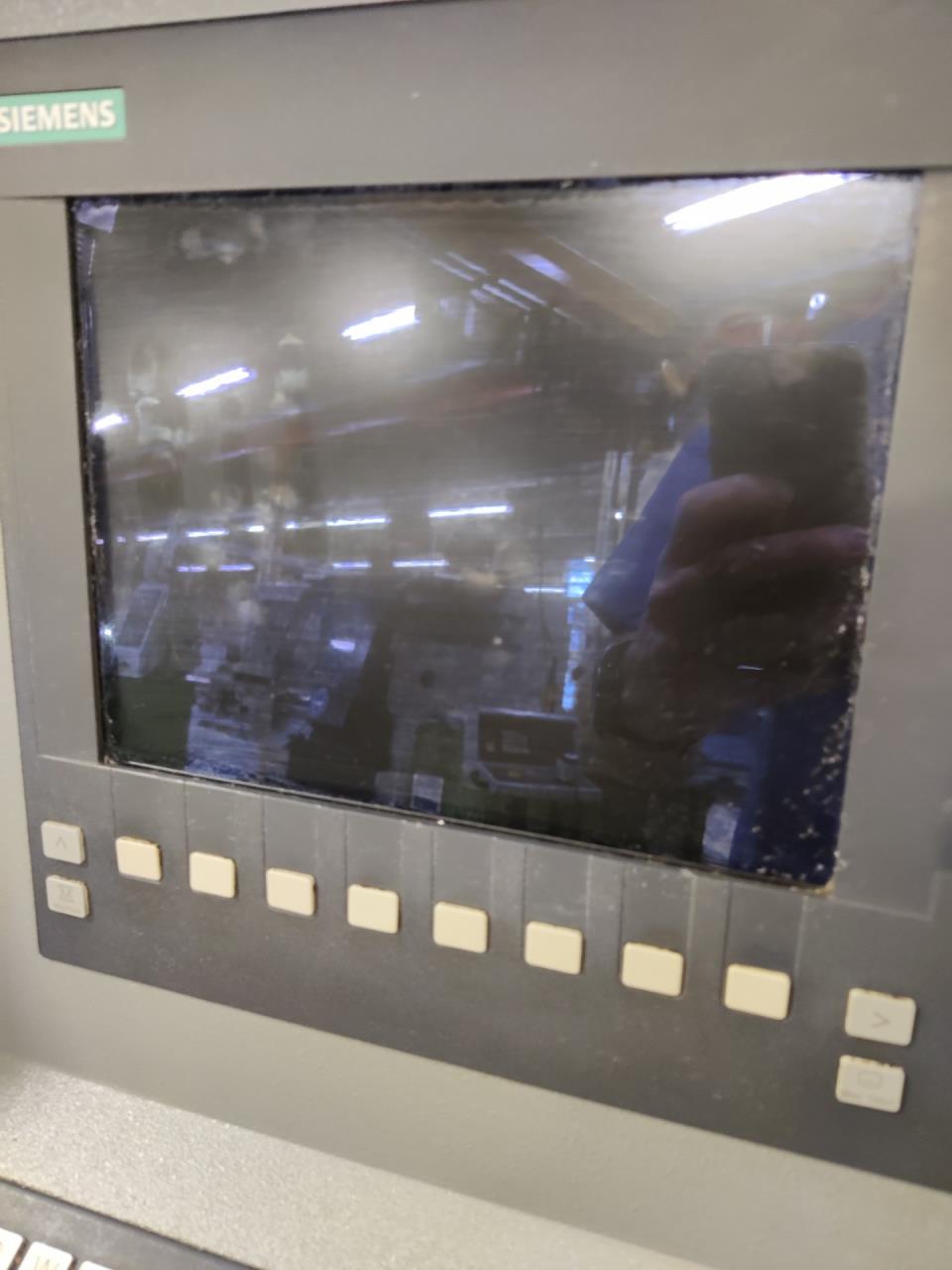

Controller :
SIEMENS SINUMERIK 810 D
Jahrgang :
2000
Technical data
Number of axis total
5 (3+2)

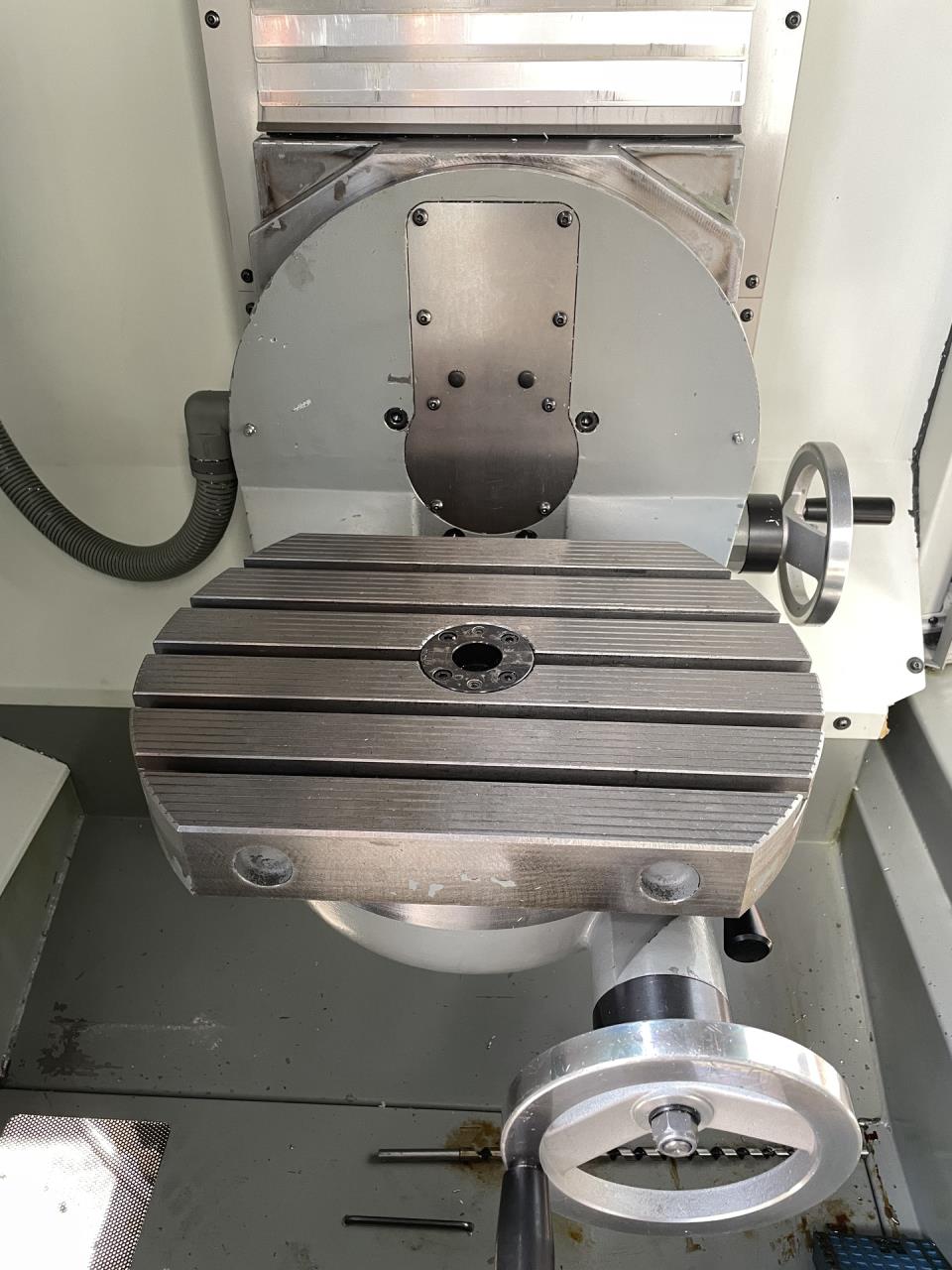

Table length
400 mm
Table width
280 mm
Number of T-channels
5
T-channel width
12H7 mm
Distance of the T-slots
50 mm
Centering bore diameter
30H6 mm
Rotation range
360 °
Swivelling range
+ 105 / -15 °
Table load max.
100 kg
Longitudinal travel (X-axis)
350 mm
Transversal travel (y axis)
240 mm
Vertical travel (z axis)
340 mm
Spindle speeds:
stepless
from
20 rpm
up to
6300 rpm

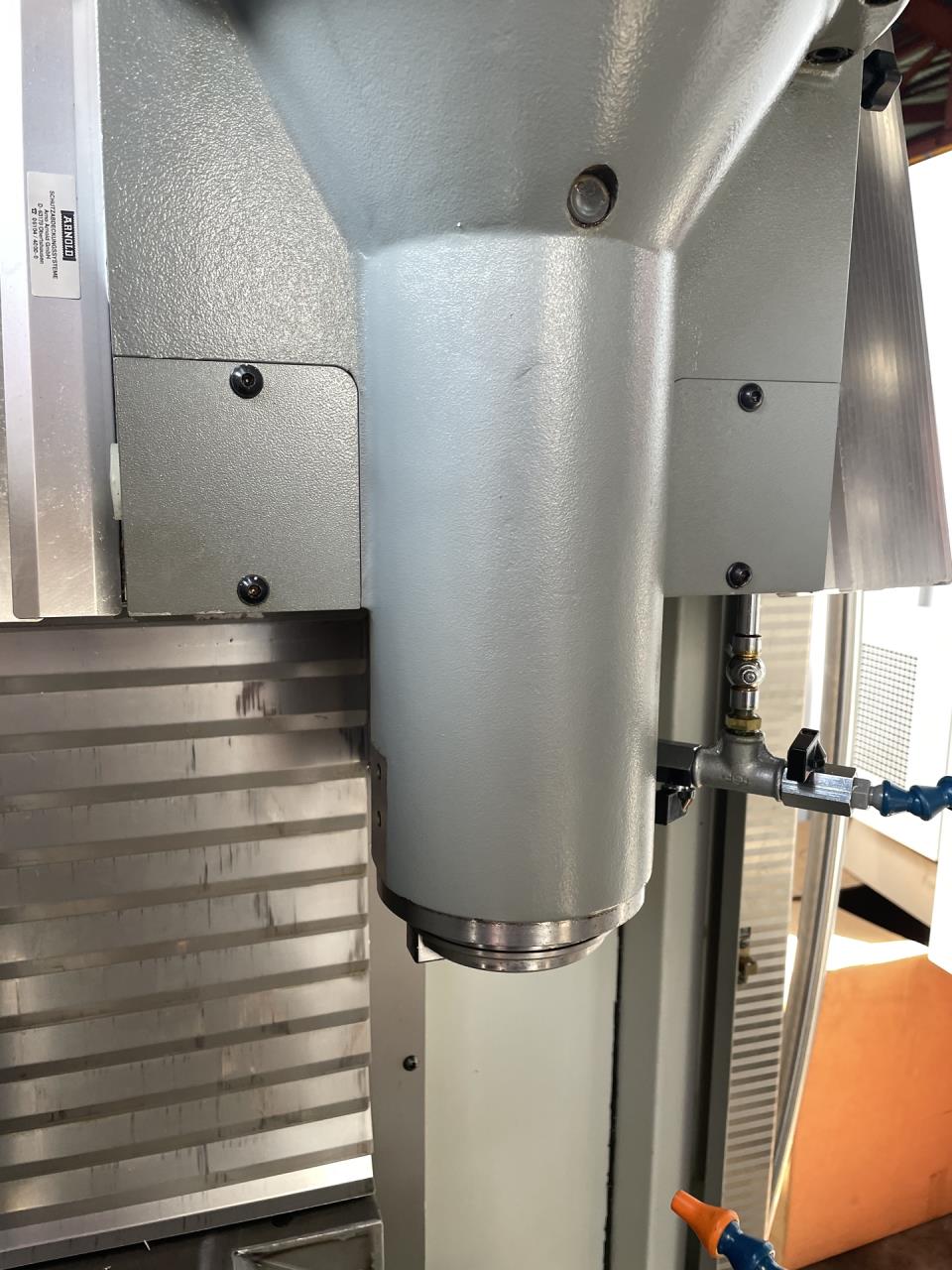

Spindle nose SK
40 DIN 69871
Pull-Studs
DIN 69872
Feeds (X, Y, Z)
5000 mm/min
Rapid traverse:
5 m/min
Air connect
5.5 bar
Voltage 50 Hz 3x
400 Volt
Milling spindle motor
6.3 / 10 kW
Total power required
15 kVA
Machine's weight about
1600 kg
Overall dimensions machine:
Length
1860 mm
Width
1700 mm
Height
2100 mm
Various accessories:
4+5 axis manual
Handwheel electroinic
Coolant system
Lamp
Technical specifications and pictures without guarantee.
