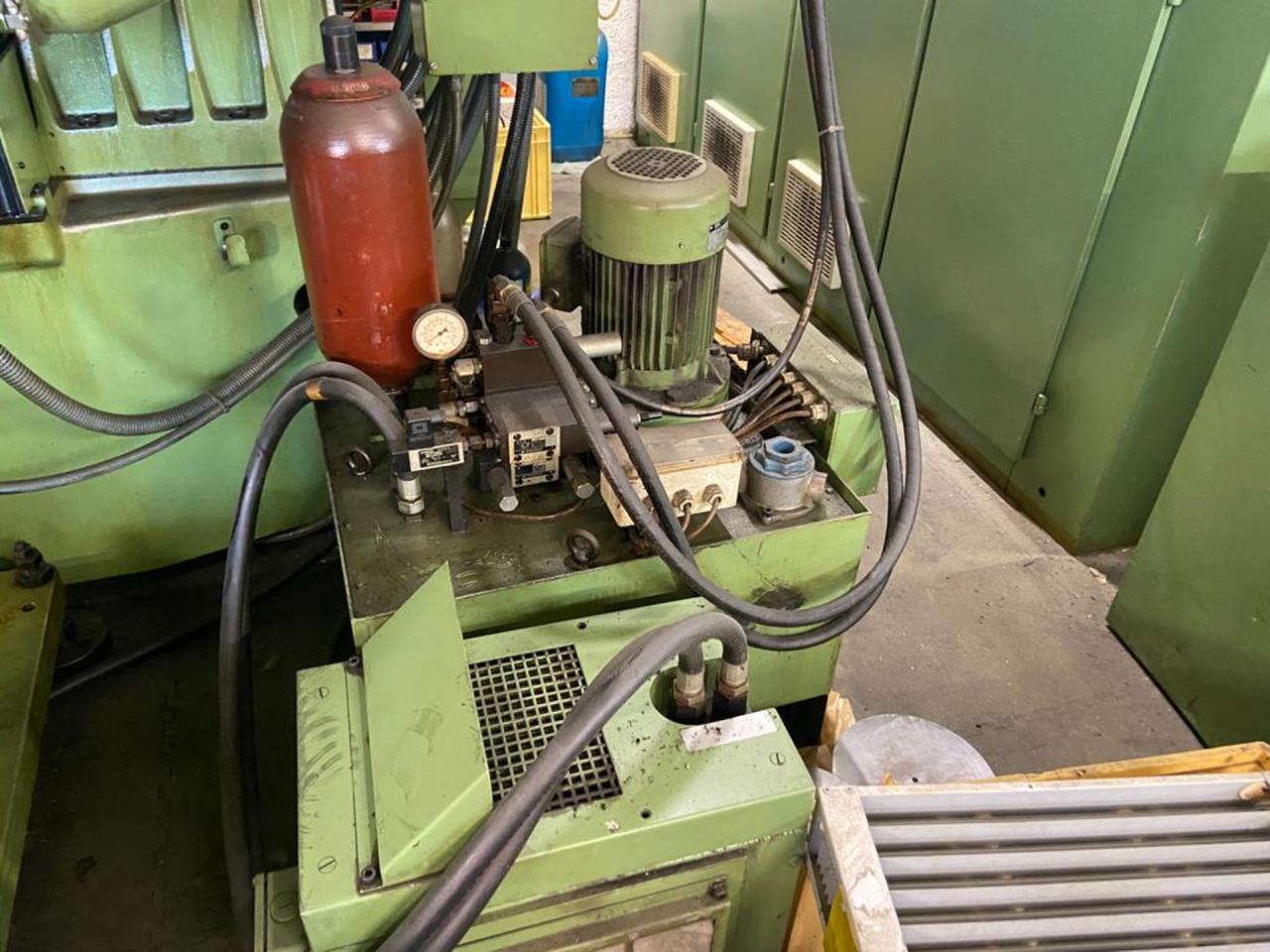

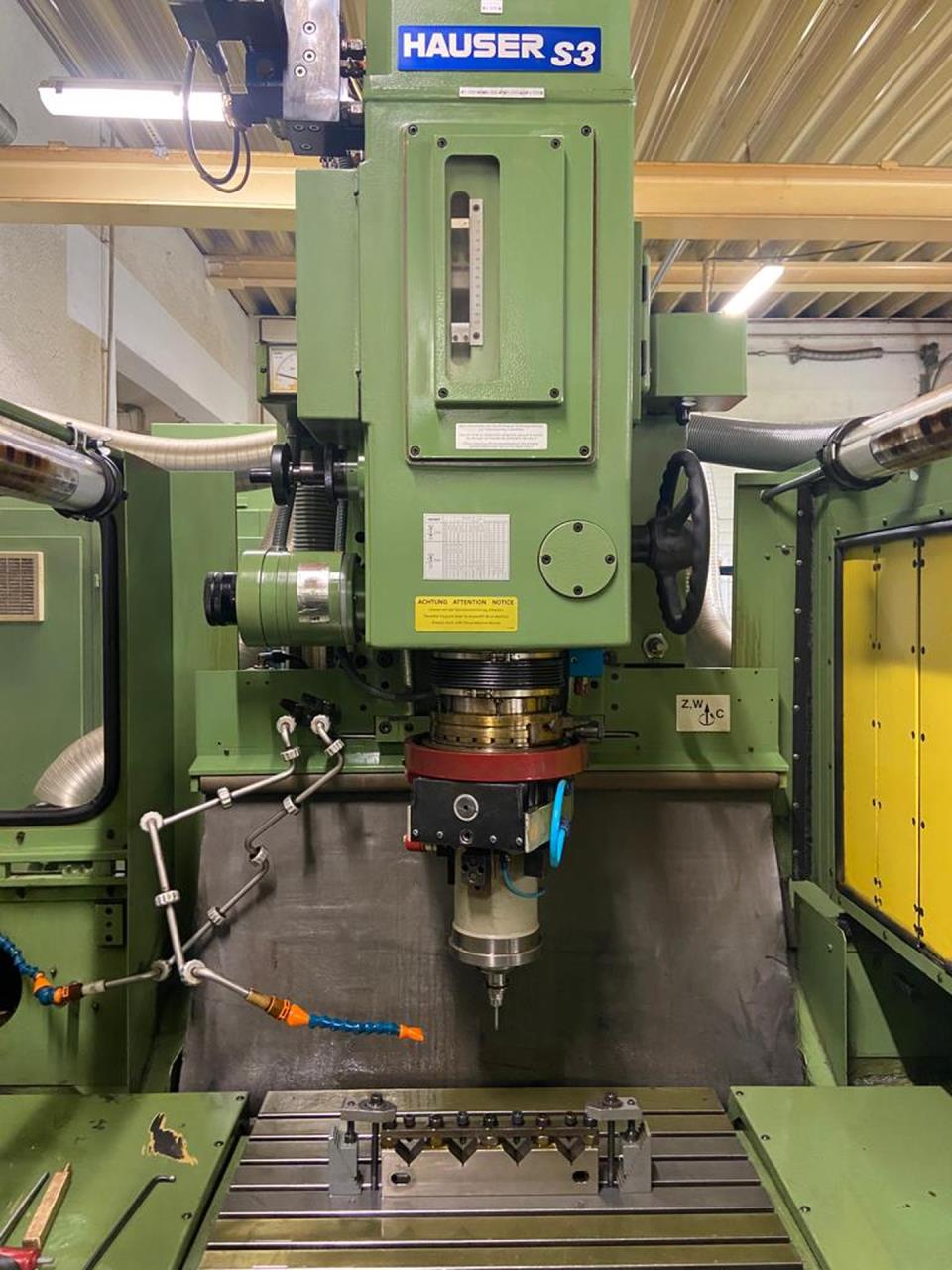

Technical data
1 column execution
Table length
600 mm
Table width
380 mm
Longitudinal travel (X-axis)
400 mm
Transversal travel (y-axis)
250 mm
Travel of the vertical slide
450 mm
Passage from grinding motor to table
485 mm
Max. grinding diameter
230 mm
with display-plate
360 mm
Stroke of spindle-nose
340 mm
Max. angle with taper grinding:
up to
16 °
Vertical travel of grinding spindle:
stepless from
1 mm
up to
110 mm
Travel speeds:
stepless
from
0.5 m/min
up to
12 m/min
Planetary motion speeds: c axis
stepless
from
5 rpm
up to
250 rpm
Voltage 50 Hz 3x
400 Volt
Total power required
10.2 HP
Machine's weight about
4000 kg
Overall dimensions machine:
Length
2700 mm
Width
1700 mm
Height
2850 mm
Notes:

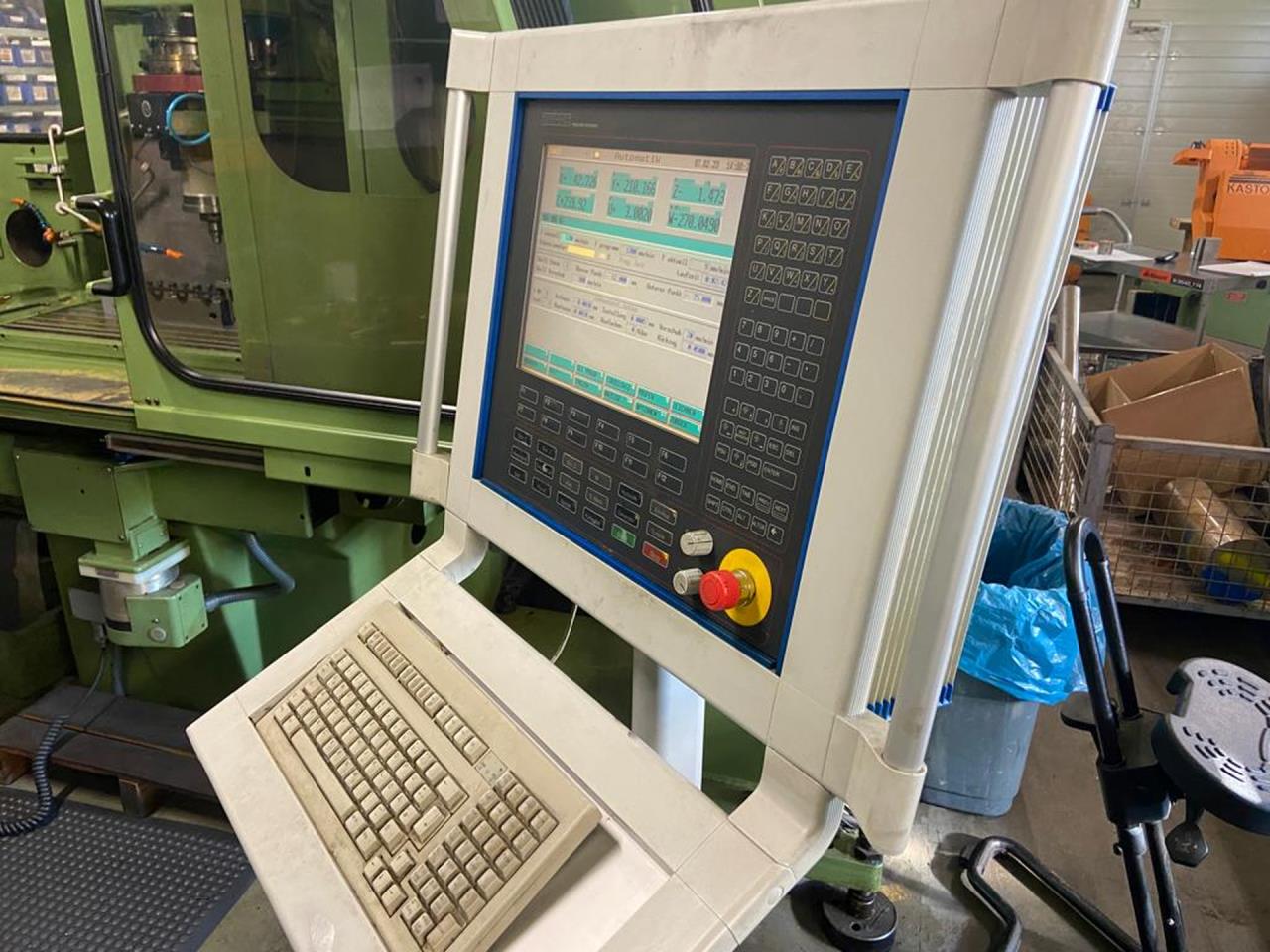

Retrofited control
2012
Technical specifications and pictures without guarantee.
