Technical data
1 column execution

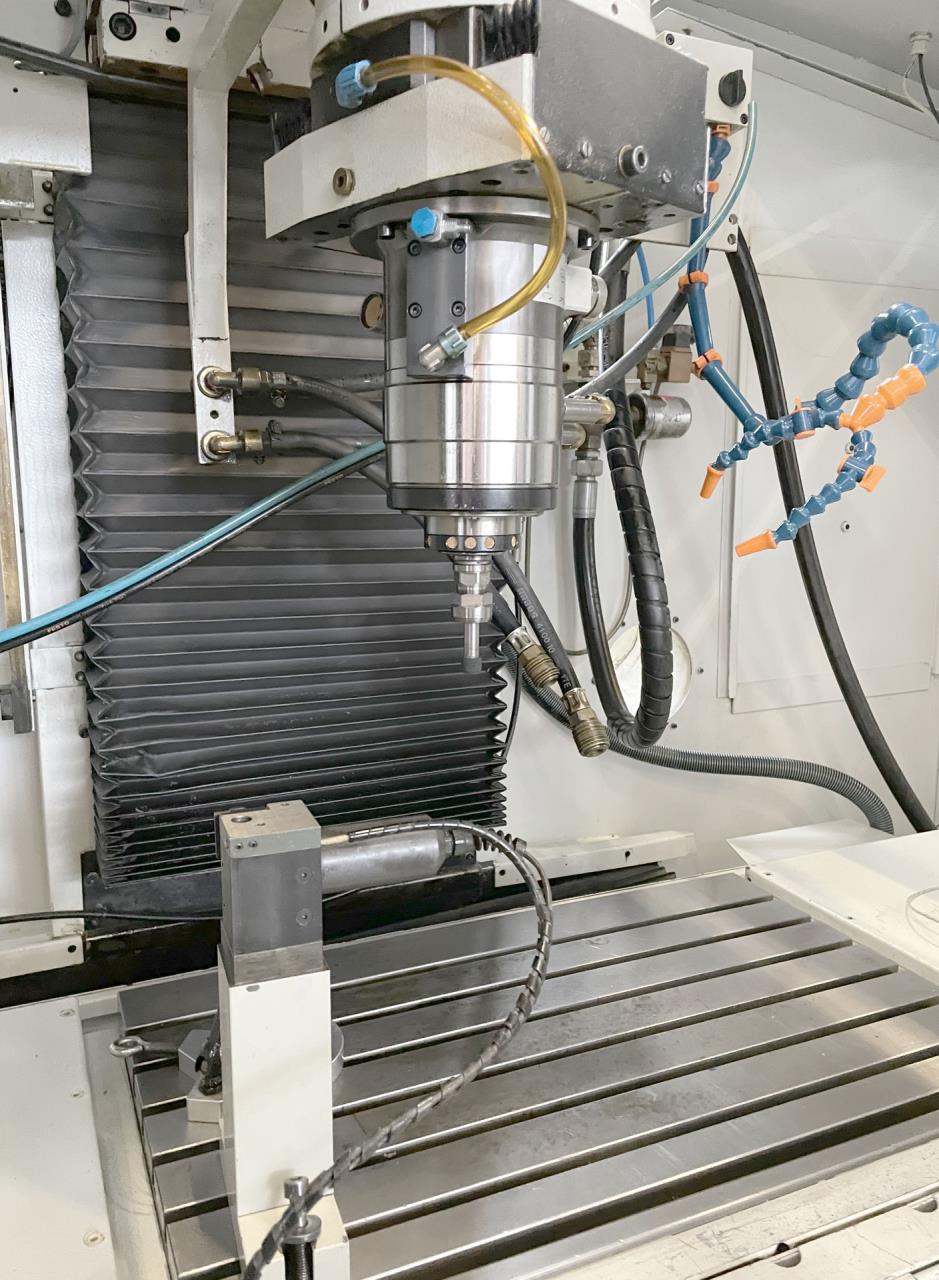

Table:
Table length
600 mm
Table width
380 mm
T-channel width
10 mm
Number of spline
6
Distance of the T-slots
50 mm
Table load max.
200 kg
Carriage:
Longitudinal travel (X-axis)
500 mm
Transversal travel (y-axis)
300 mm
Travel of the vertical slide
450 mm
Passage from grinding motor to table
485 mm
Max. grinding diameter
230 mm
with display-plate
360 mm
Stroke of spindle-nose
340 mm
Max. angle with taper grinding:
up to
16 °
Vertical travel of grinding spindle:
stepless from
1 mm
up to
110 mm
Travel speeds:
stepless
from
0.5 m/min
up to
12 m/min
Planetary motion speeds: c axis
stepless
from
5 rpm
up to
250 rpm
Feeds:
X axis
0 - 12 m/min
Y axis
0 - 12 m/min
W axis
900 mm/min
Voltage 50 Hz 3x
380 Volt
Spindle motor
7.5 kW
Machine's weight about
4000 kg
Overall dimensions machine:
Length
2700 mm
Width
1700 mm
Height
2850 mm

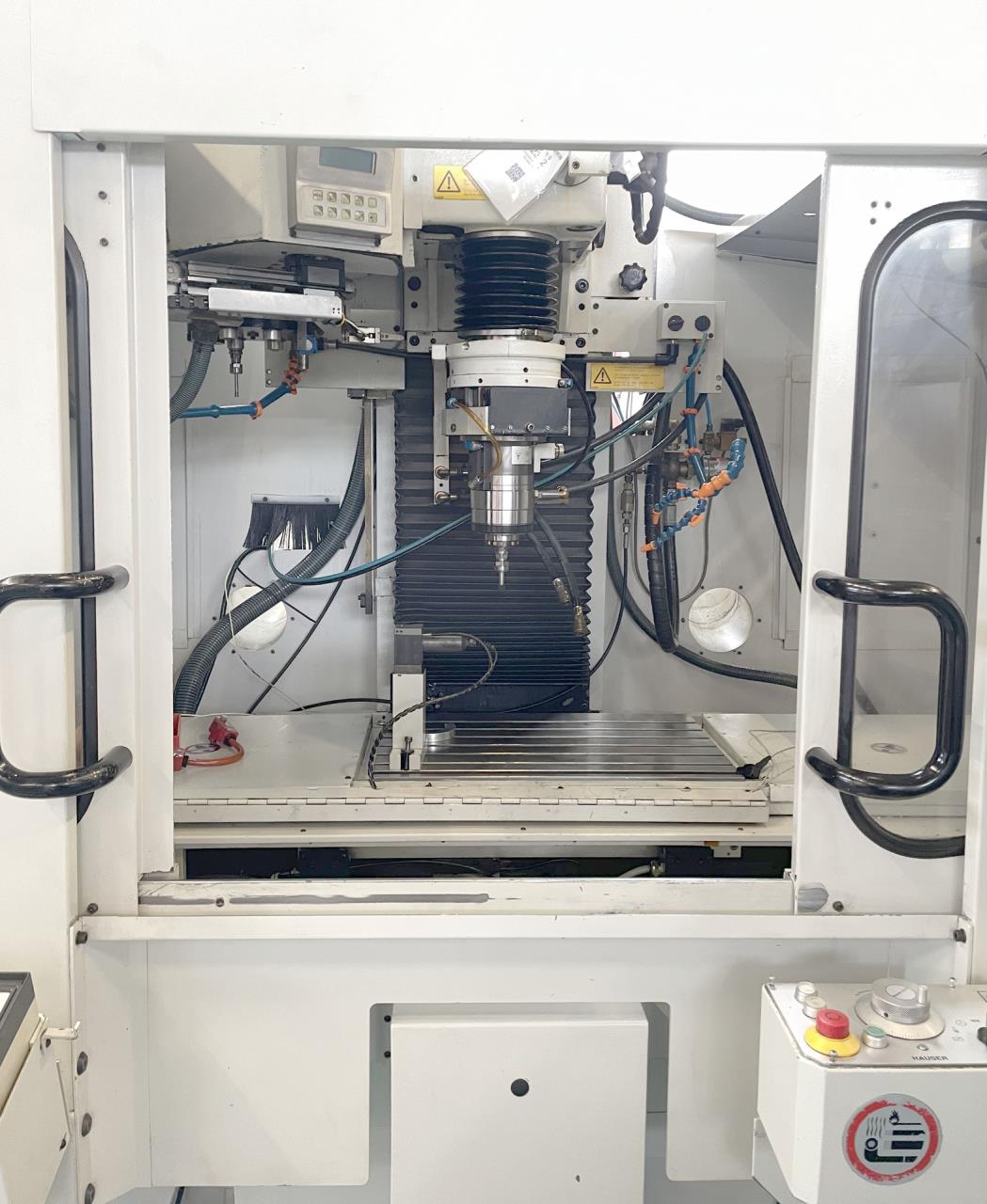

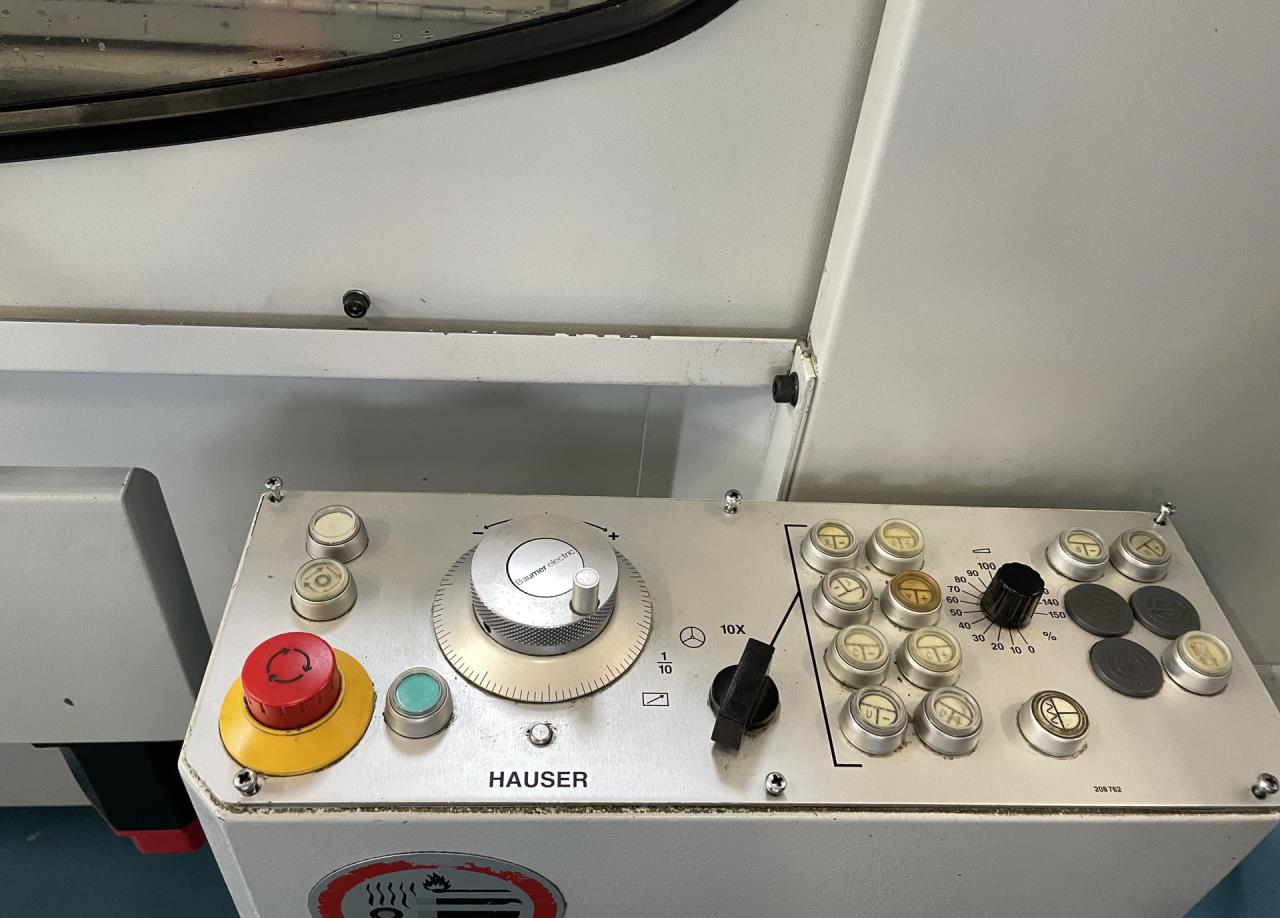

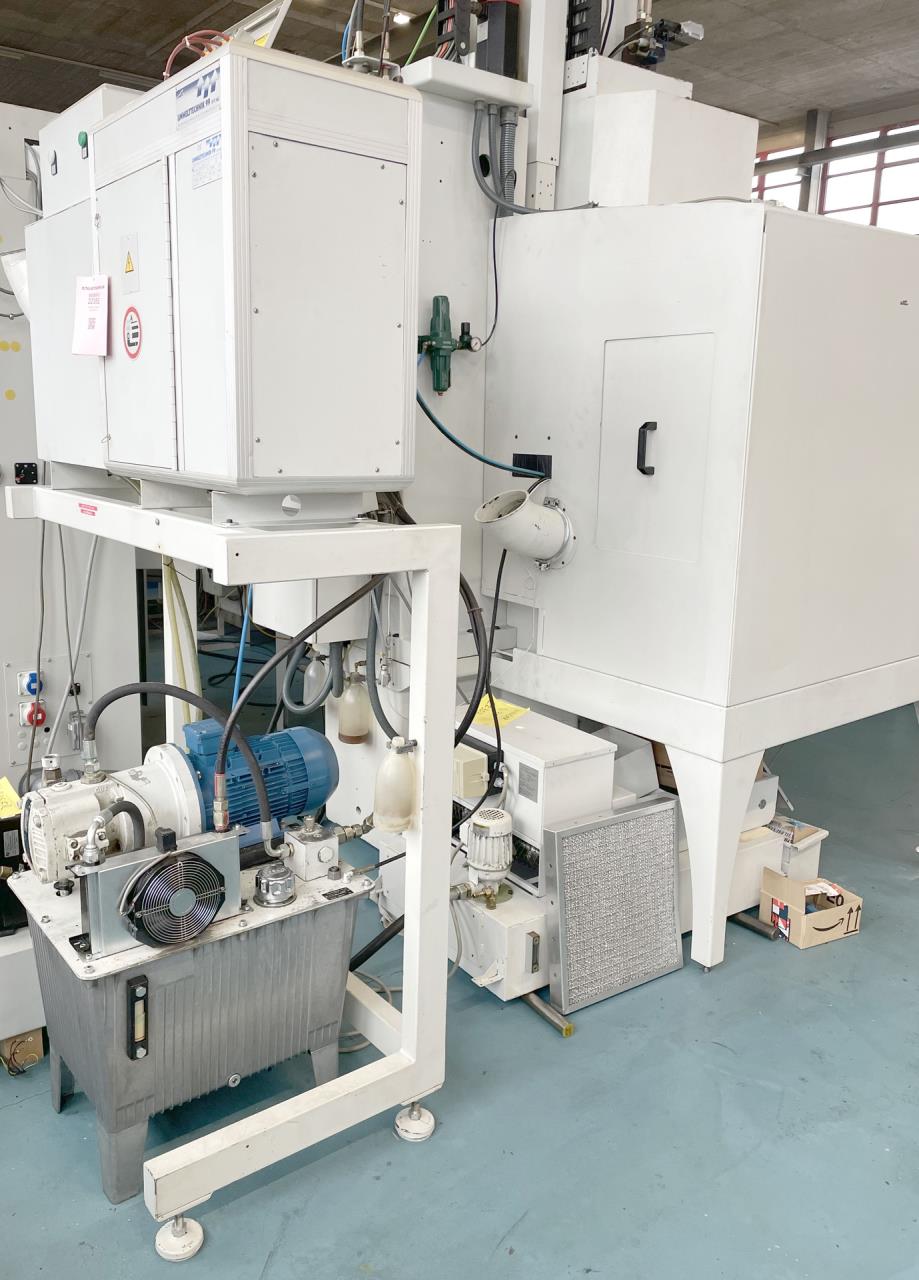

Various accessories:
Coolant system
Paper filtration system
Oil mist extractor

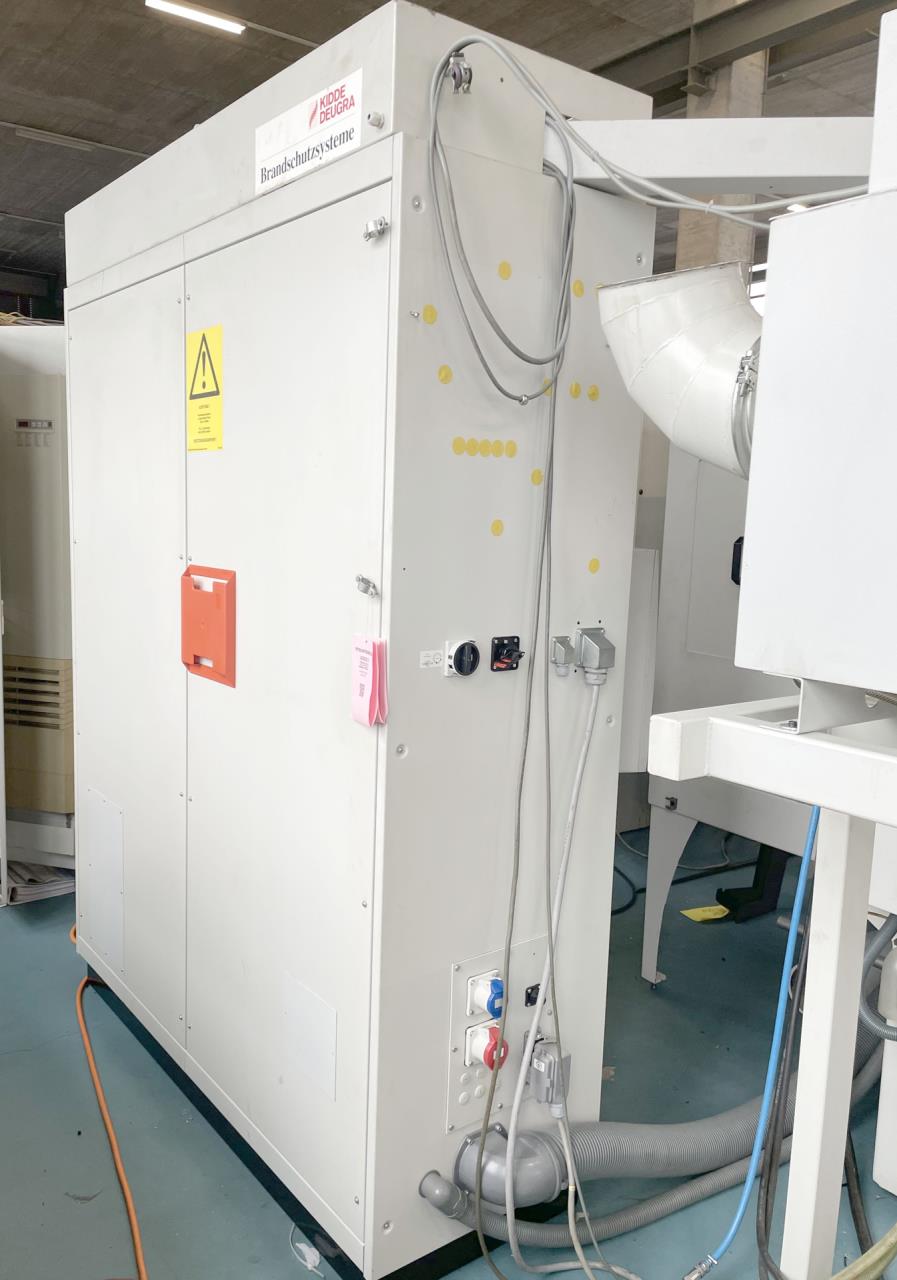

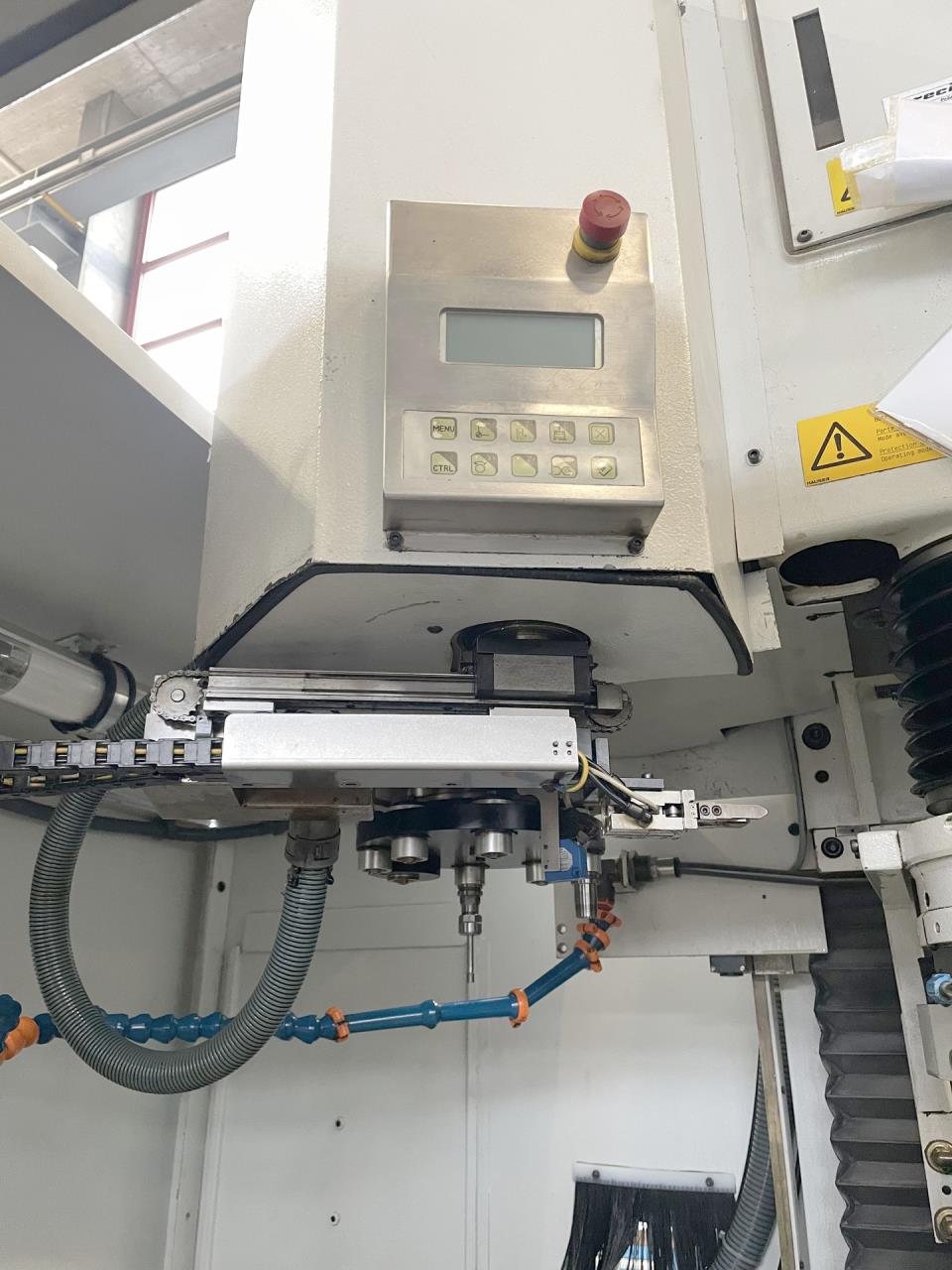

Tool changer: (number of tools)
8
Type
EROWA

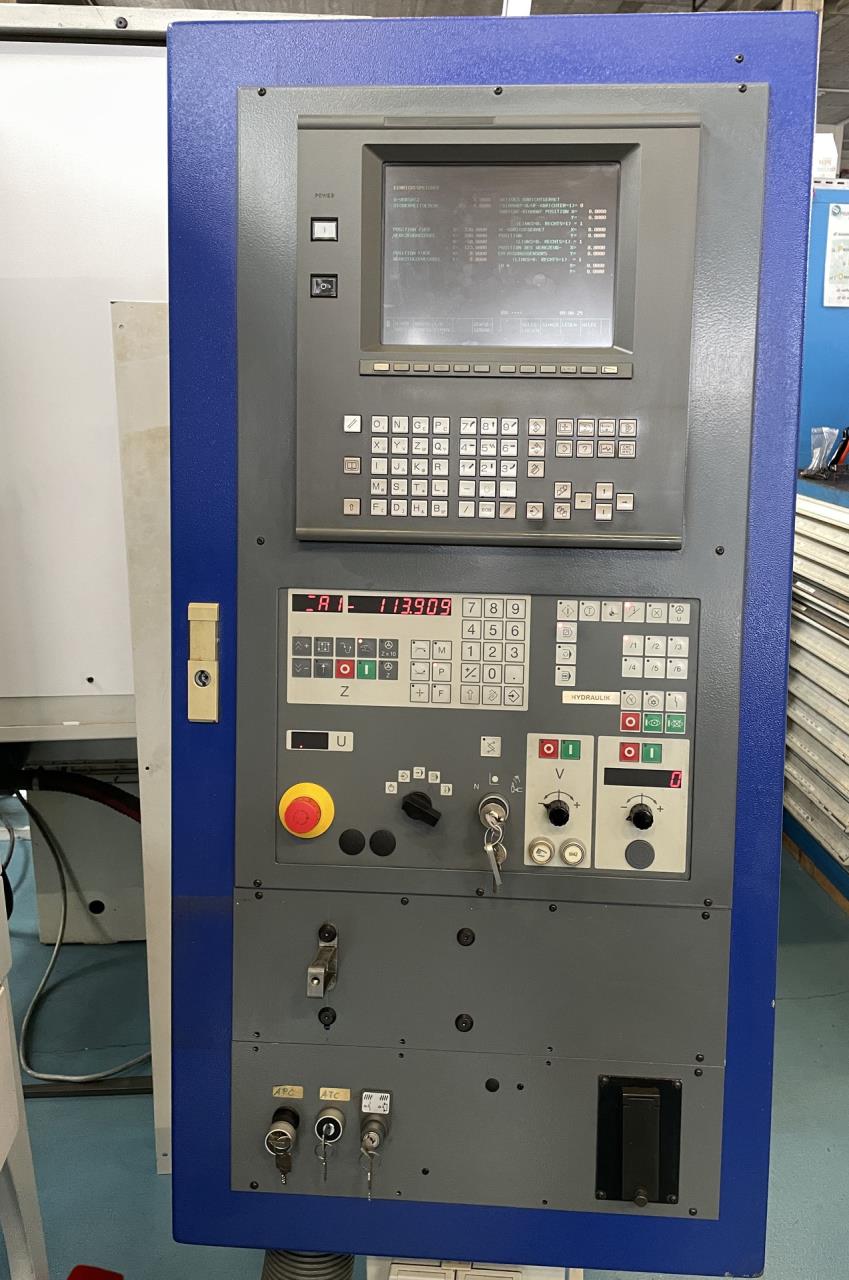

RS-232 Interface
Technical specifications and pictures without guarantee.
