stock no. :
22346
Machine's group :
Type :

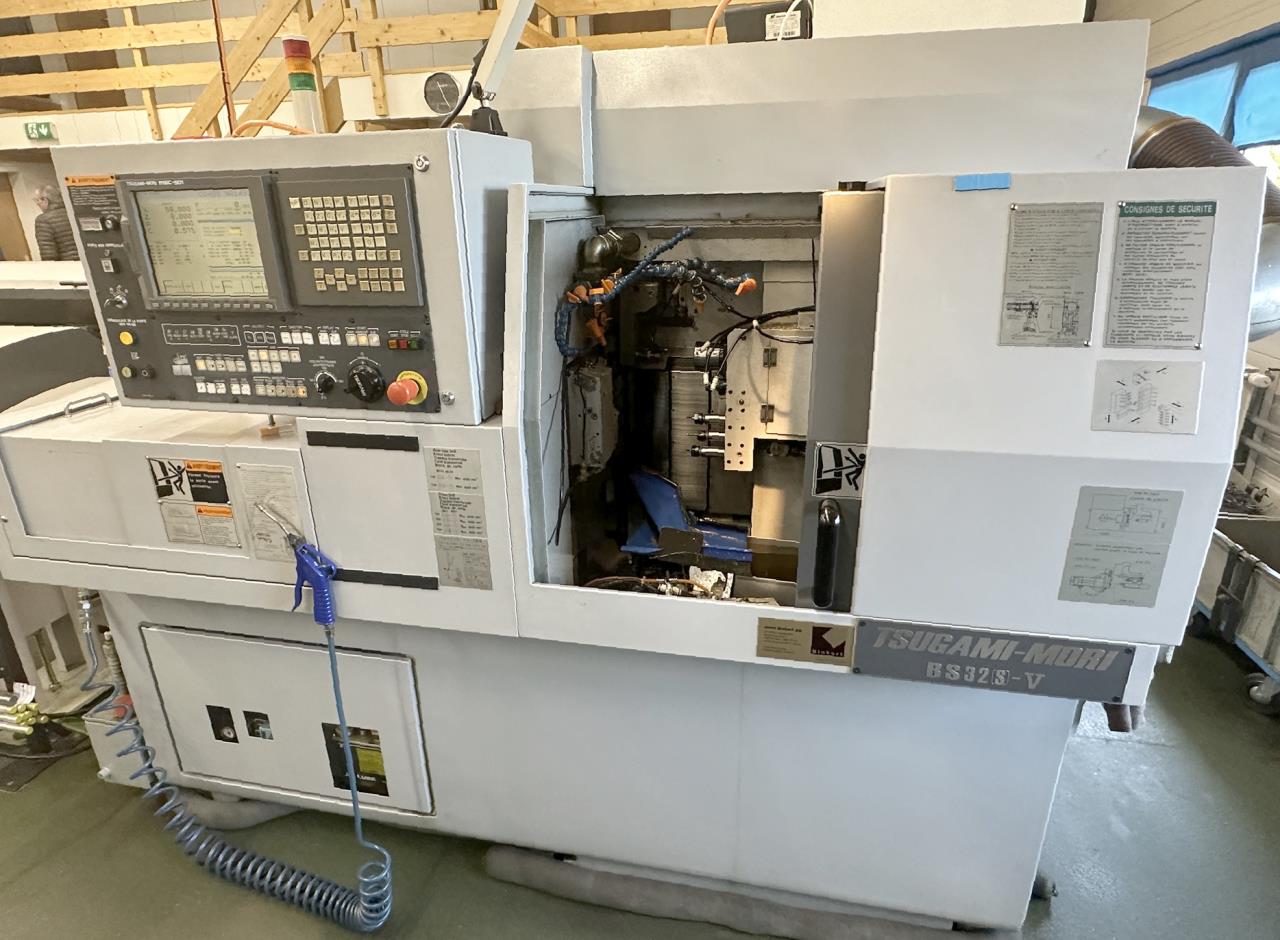

TSUGAMI-MORI BS32CE(S)-V

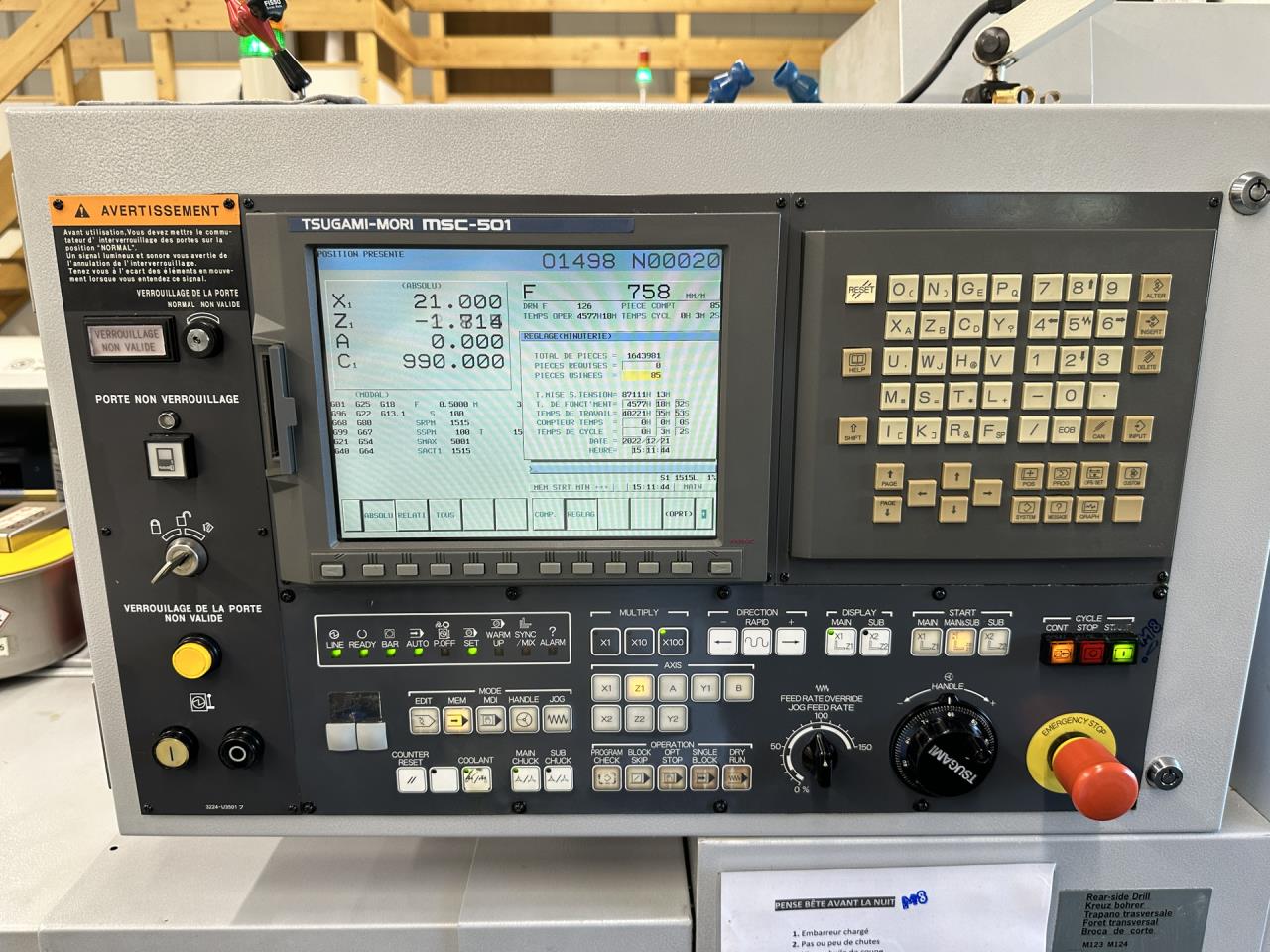

Controller :
TSUGAMI-MORI MSC-501 (FANUC)
Jahrgang :
2007
Technical data
Number of axis total
7
Number of spindles
2
Max. turning diameter
8 - 32 mm
Maximum turning length
250 mm
Max. drilling diameter
12 mm
Max. threading diameter
10 M (Metric)
Spindle speeds:
stepless
from
200 rpm
up to
7000 rpm

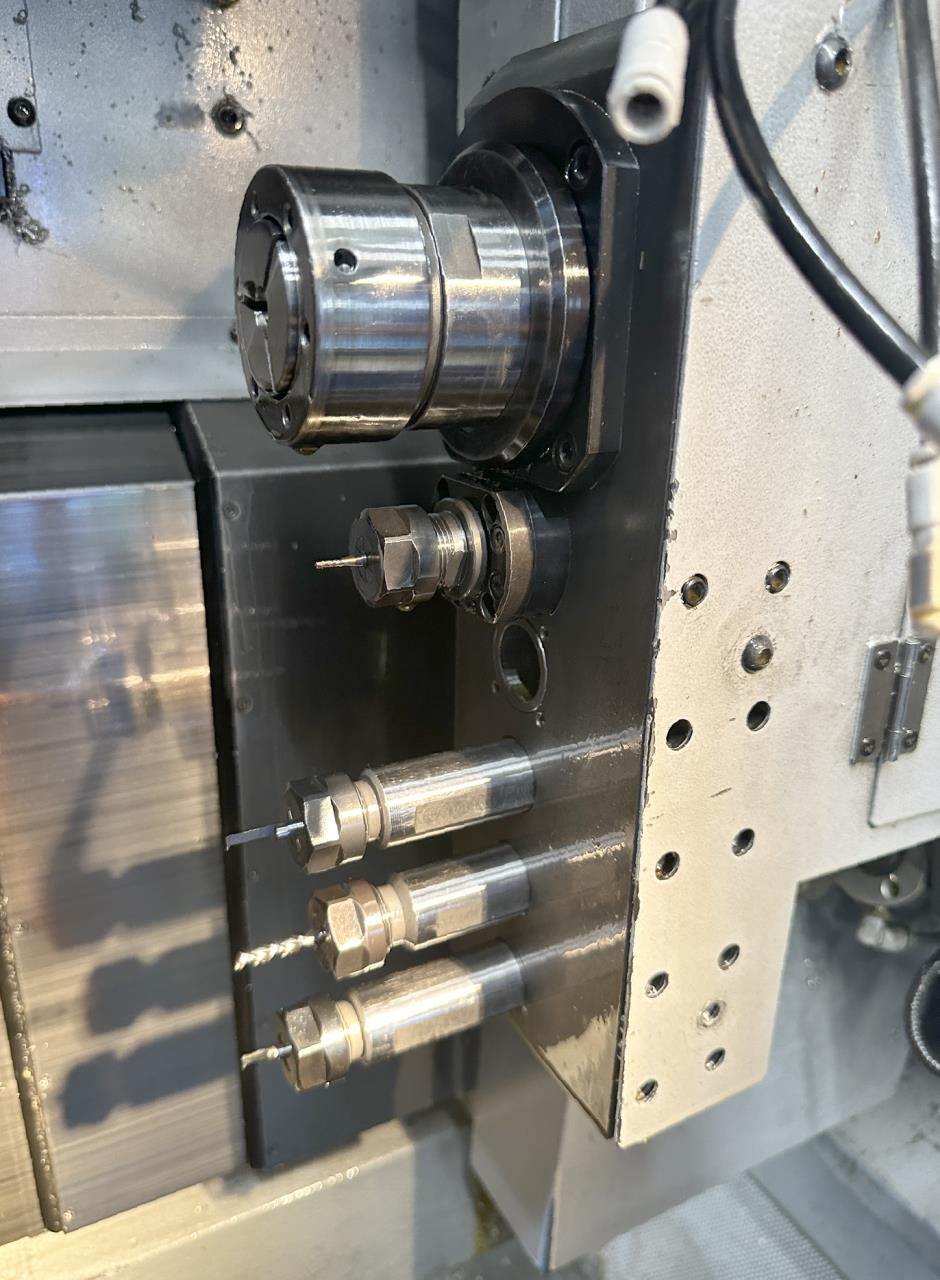

Back spindle:
speeds:
from
200 rpm
up to
6000 rpm
Inner taper type
F37

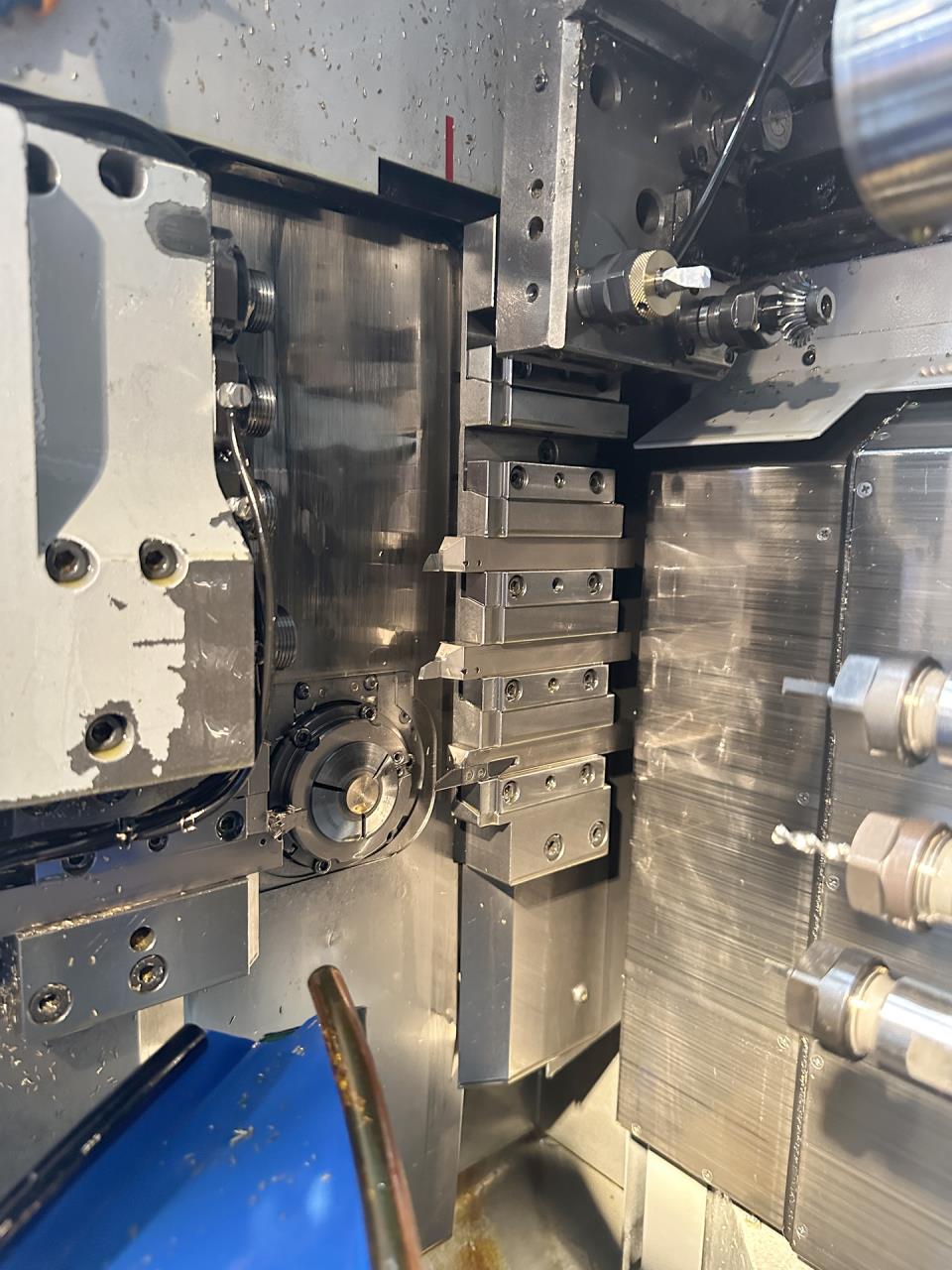

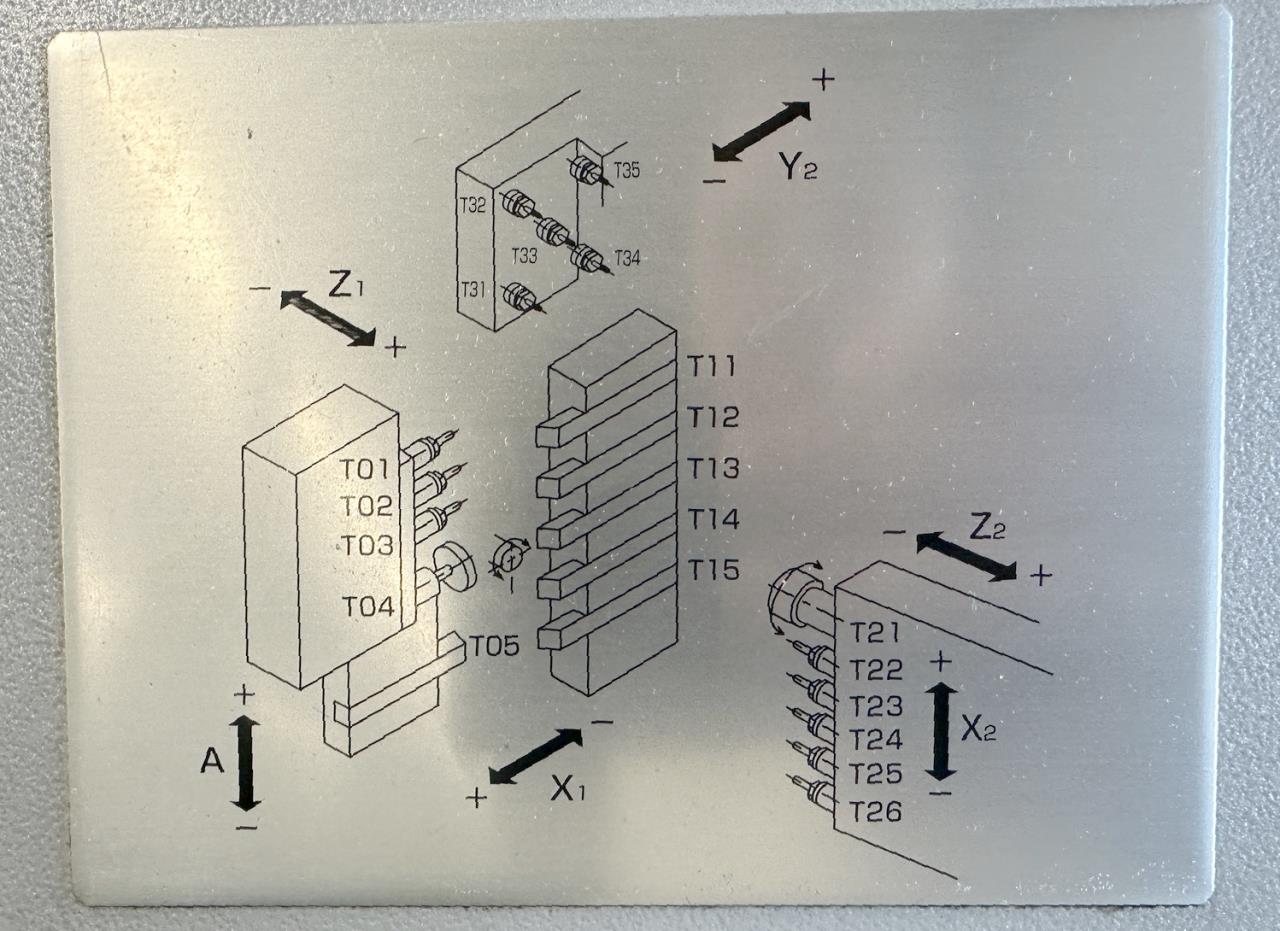

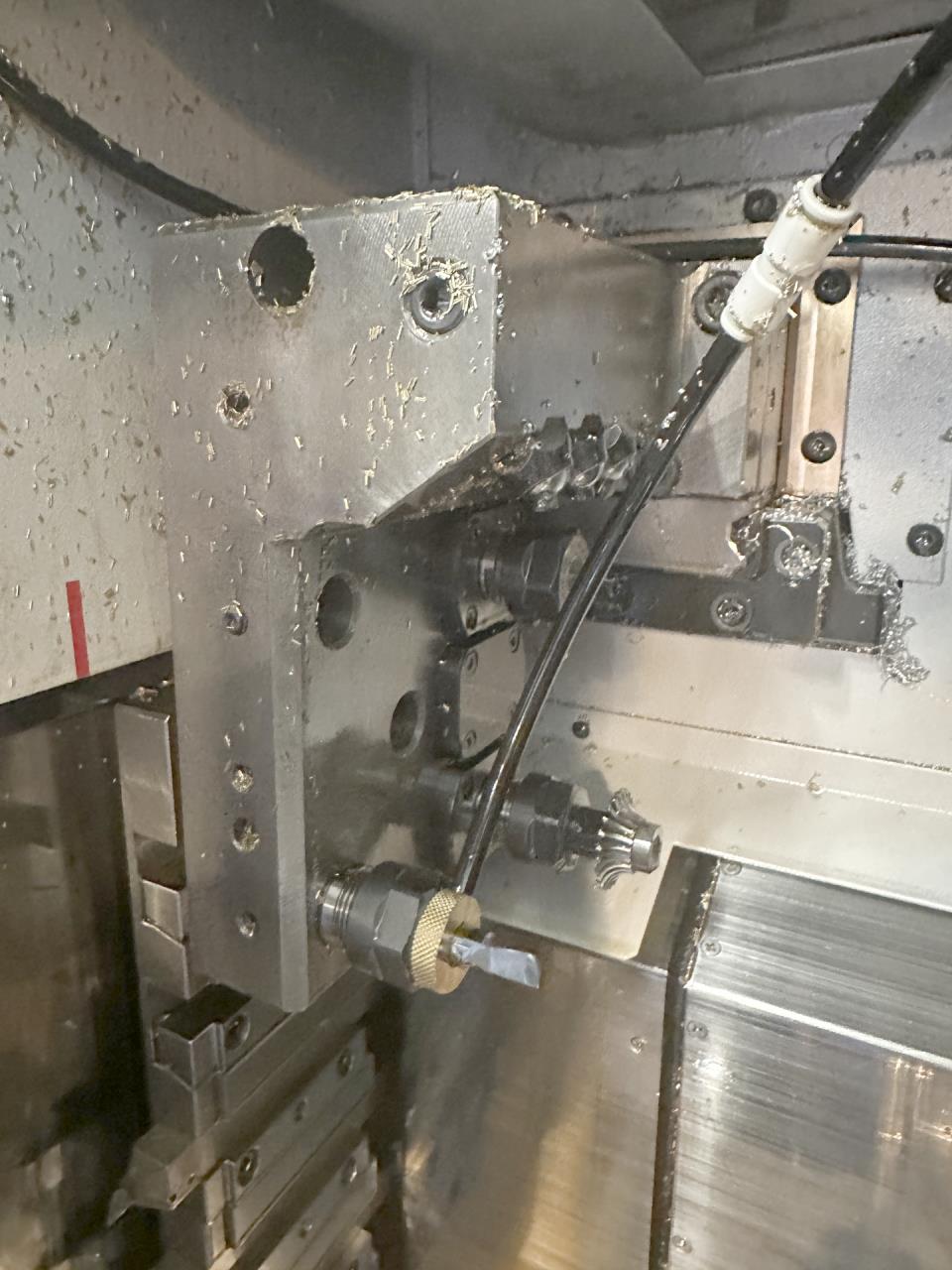

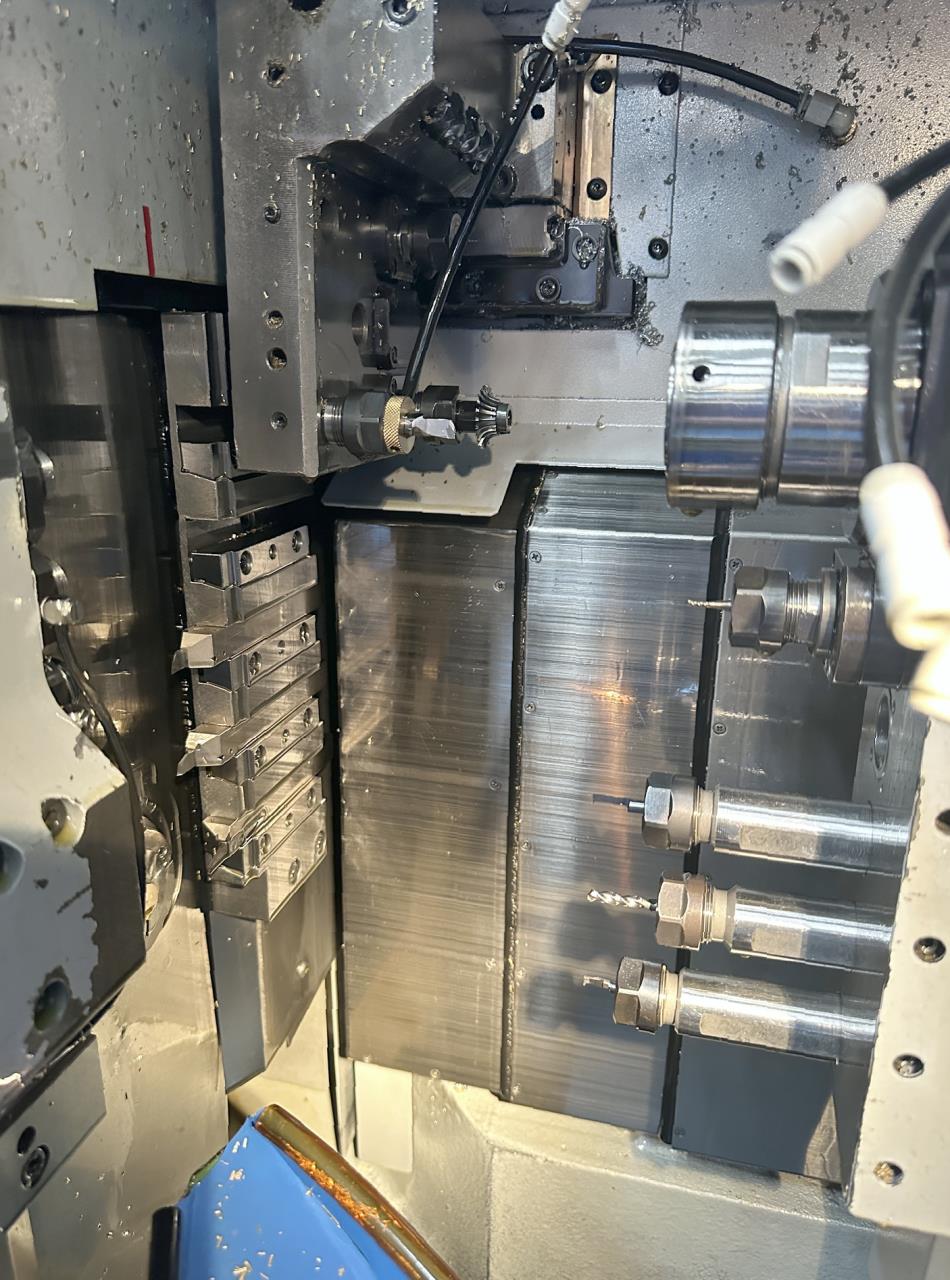

Tool-holder:
Number of stations
4
number of tools
20
number of driven tools
5
Turning tools
5 pce
Drilling tools
6 pce
Transverse processing tools
4 pce
Spindle speeds (turning tools)
200 - 5000 rpm
Power of driven tools
0.9 kW
Feeds:
stepless
from
1 mm/min
up to
6000 mm/min
Rapid traverse:
20 m/min
Spindle motor
5.5 kW
Power of back spindle
2.2 kW
Air connect
5 bar
Machine's weight about
2800 kg
Overall dimensions machine:
Length
2150 mm
Width
1500 mm
Height
1800 mm
Various accessories:

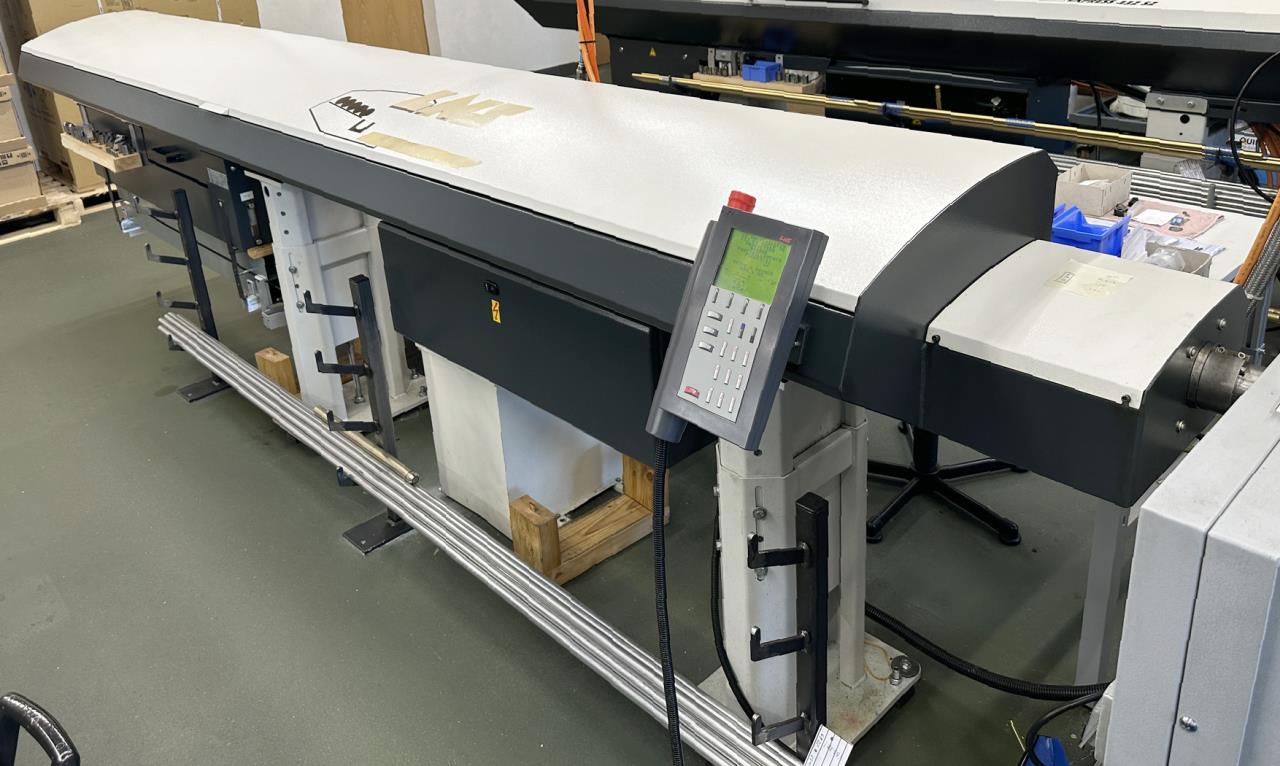

Bar loader number of bars
Manufacturer
LNS
Type
EXPRESS 332
Length of bars max.
3000 mm
Bar diameter
3 -32 mm
Parts catcher
Lamp
Oil mist extractor

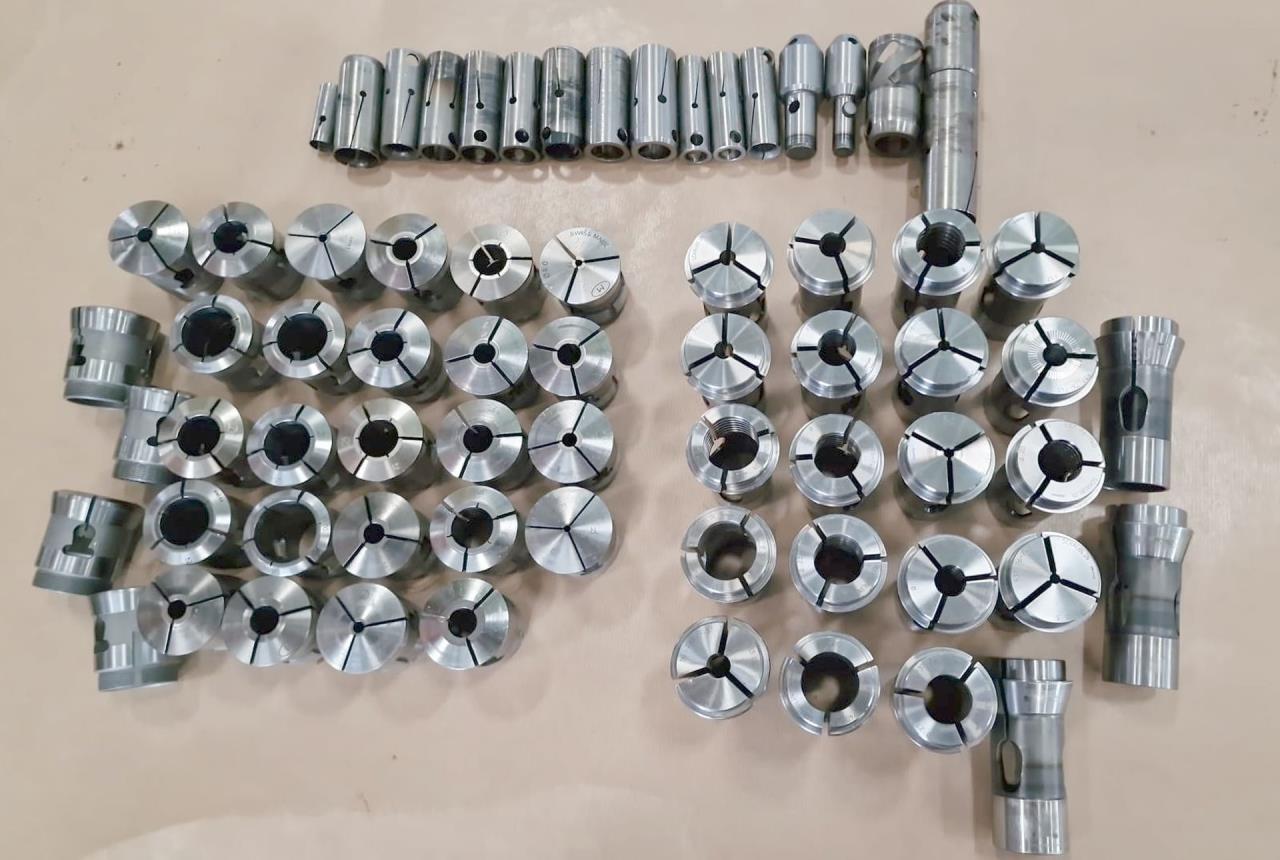

Set of collets
Interface serial port RS 232
Status light
Technical specifications and pictures without guarantee.
