stock no. :
22341
Machine's group :
Type :
GILDEMEISTER GMC 35 ISM

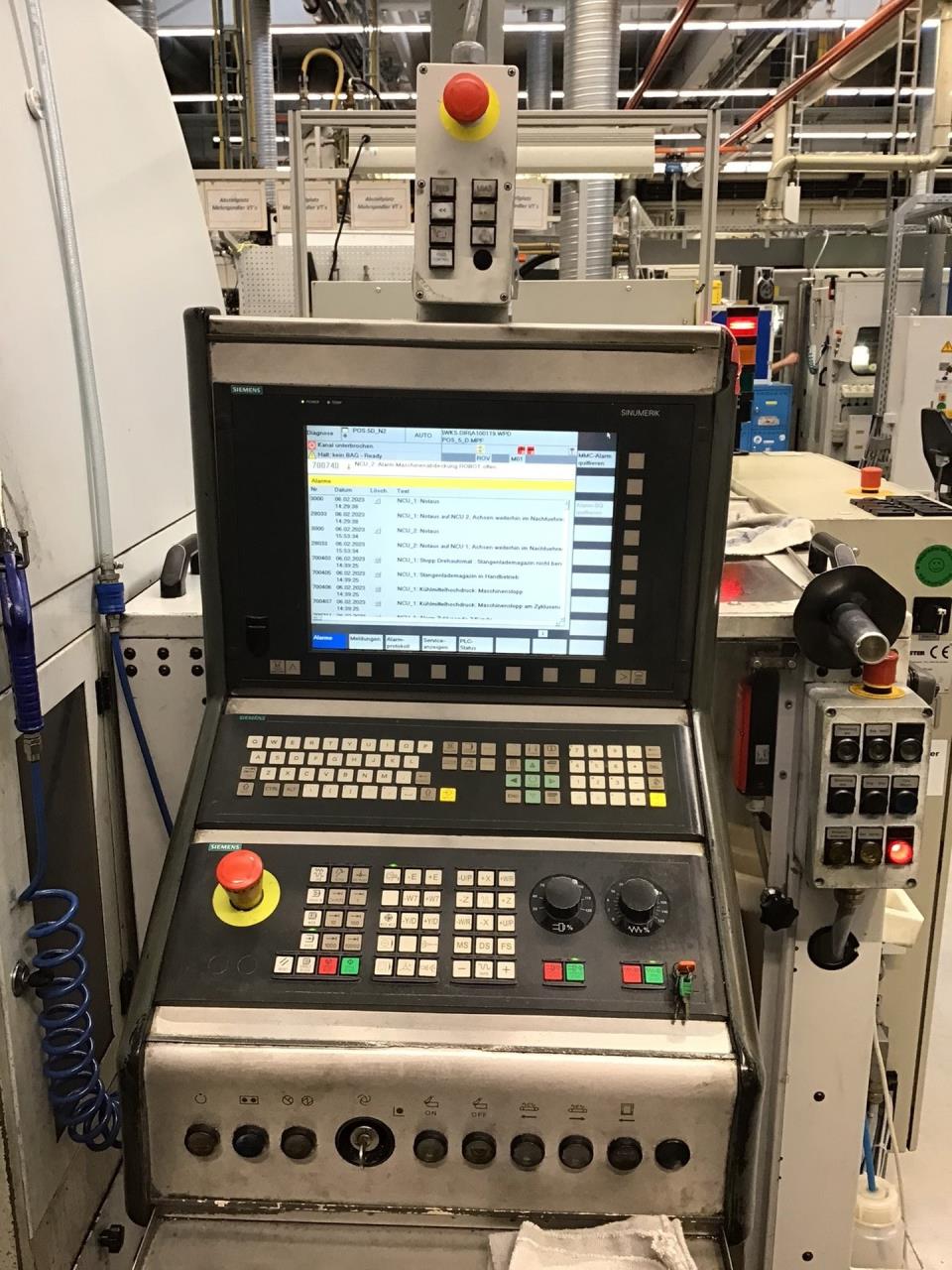

Controller :
SIEMENS SINUMERIK
Jahrgang :
2004
Technical data
Number of cross slides
5
Number of spindles
5
Number back spindle
1
Capacity round bar
35 mm
Workpiece length max.
160 mm
Spindle speeds:
stepless
from
0 rpm
up to
6000 rpm
Back spindle:
Spindle speeds
6000 rpm
Voltage 50 Hz 3x
400 Volt
Total power required
107 kVA
Machine's weight about
10000 kg
Overall dimensions machine:
Length
9000 mm
Width
3000 mm
Height
2700 mm
Various accessories:

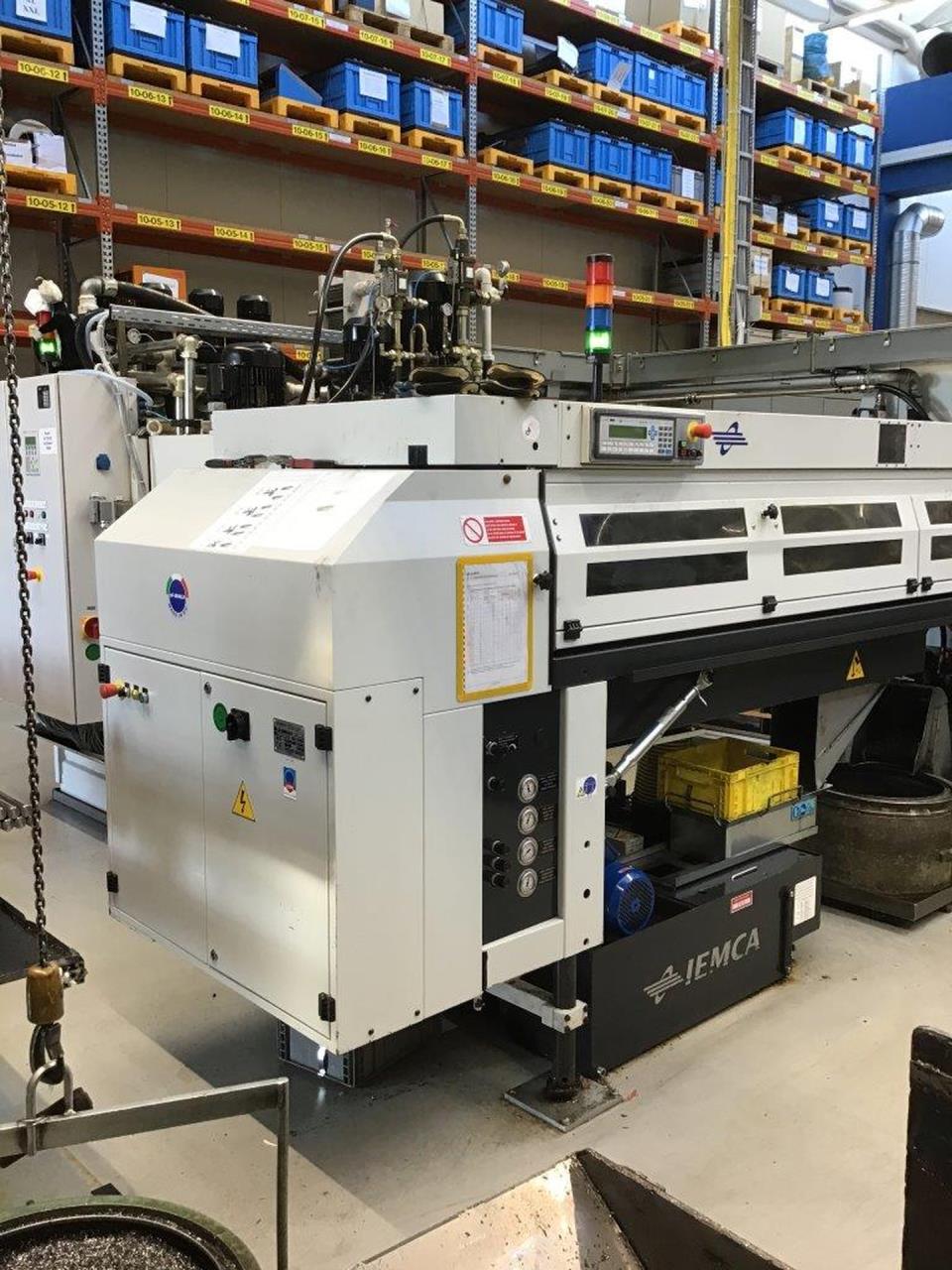

Bar loader number of bars
IEMCA SIR 36 P
Type
33 XL
Set of collets

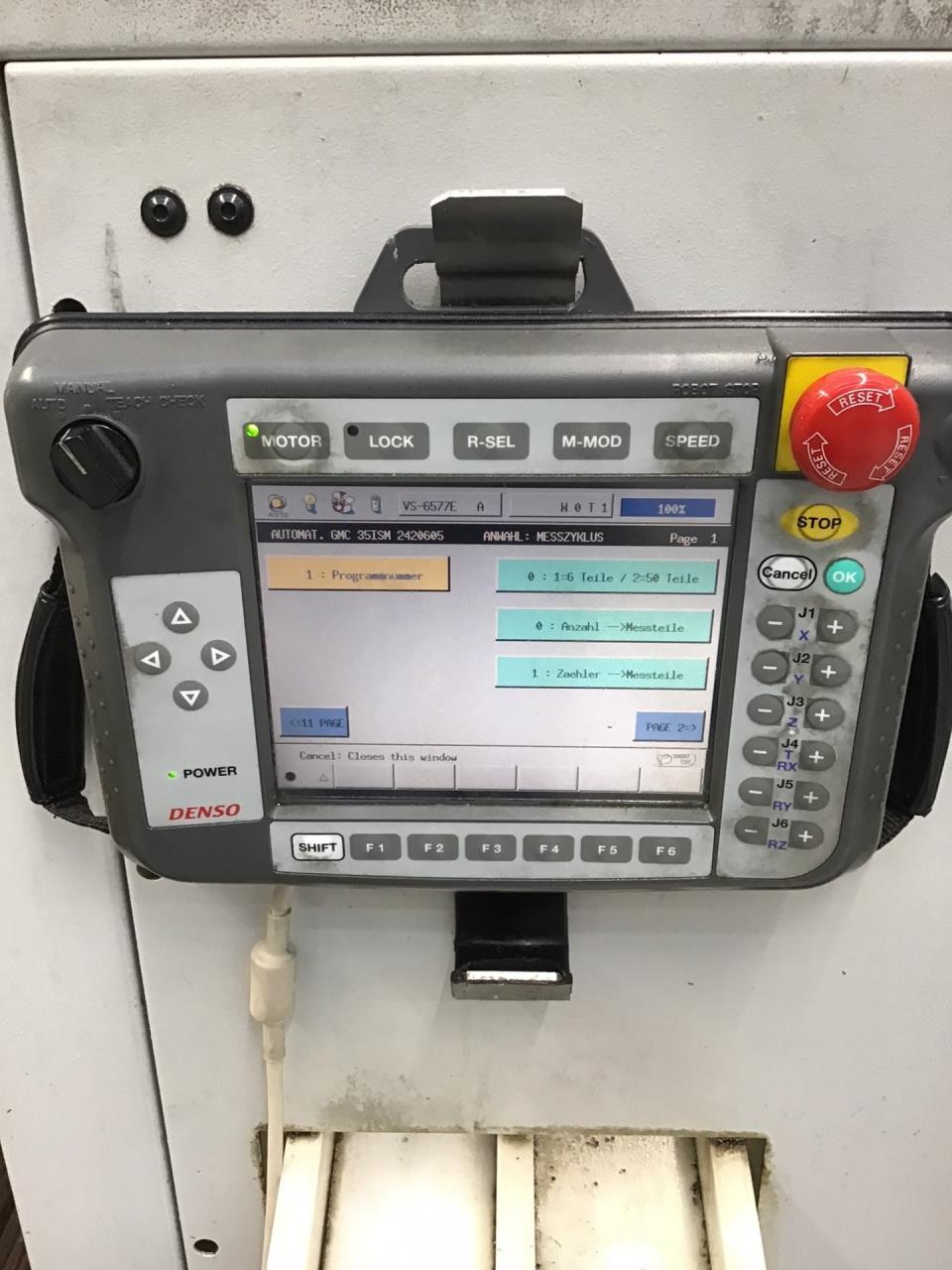

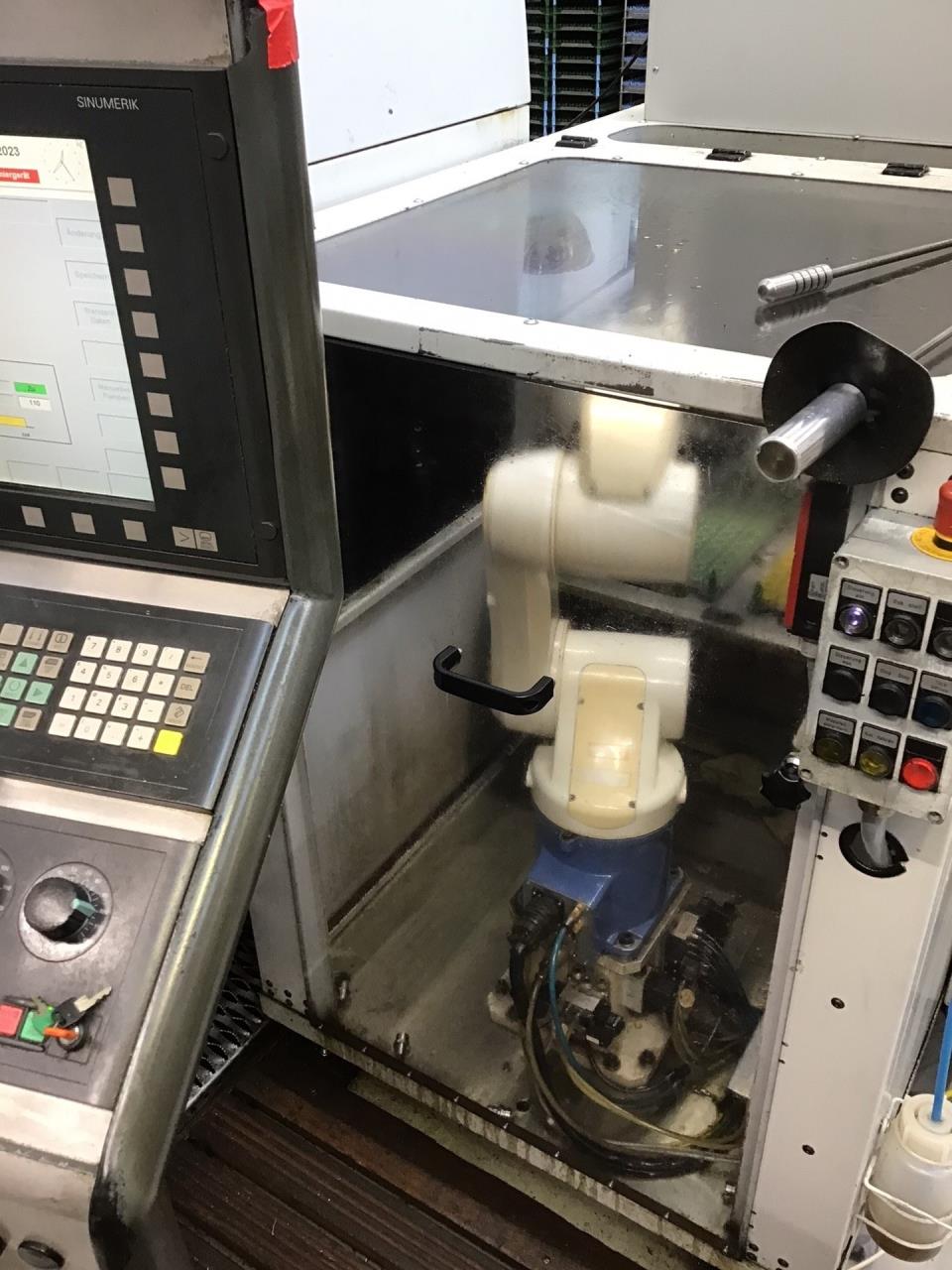

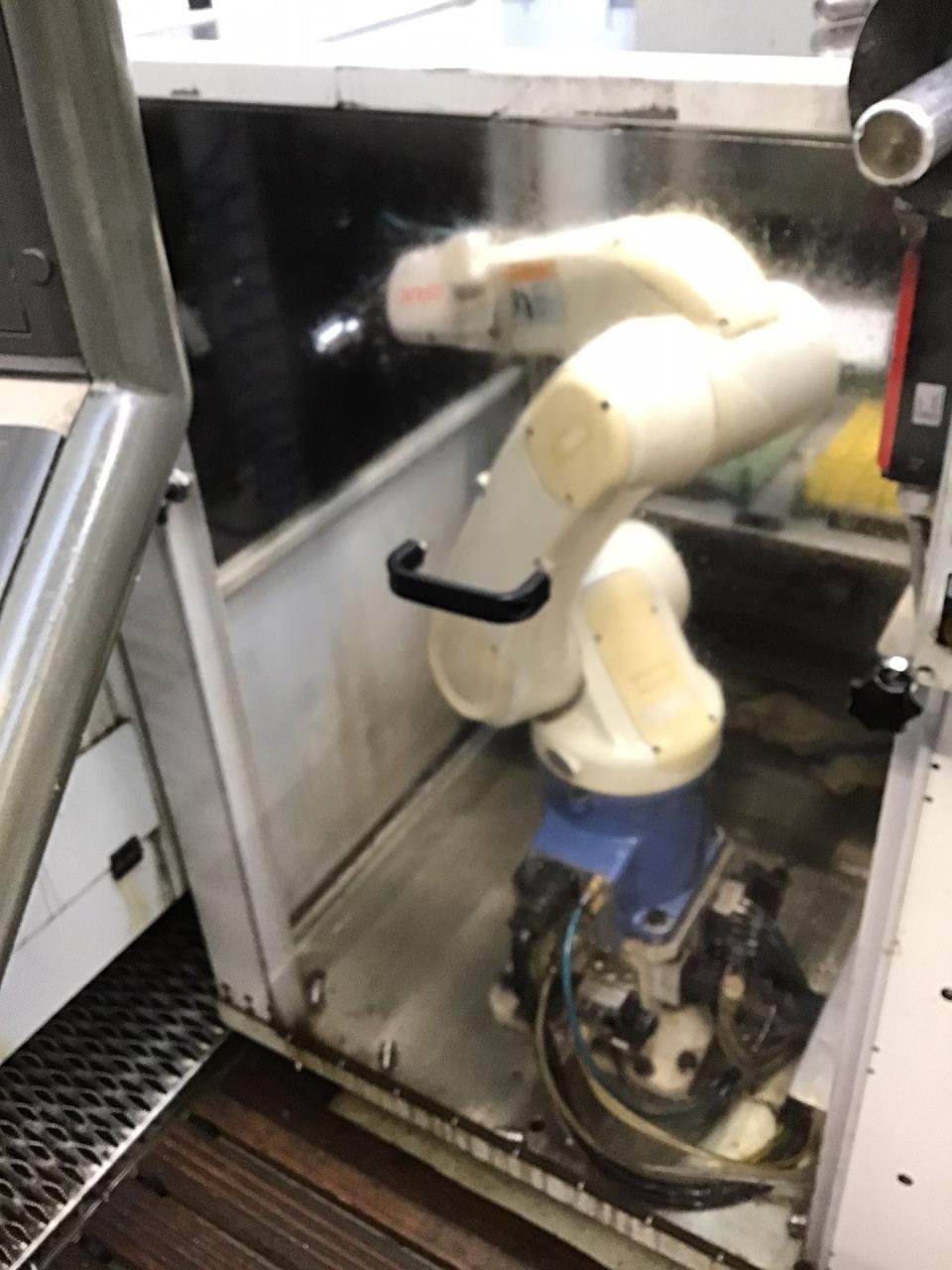

Loading roboter

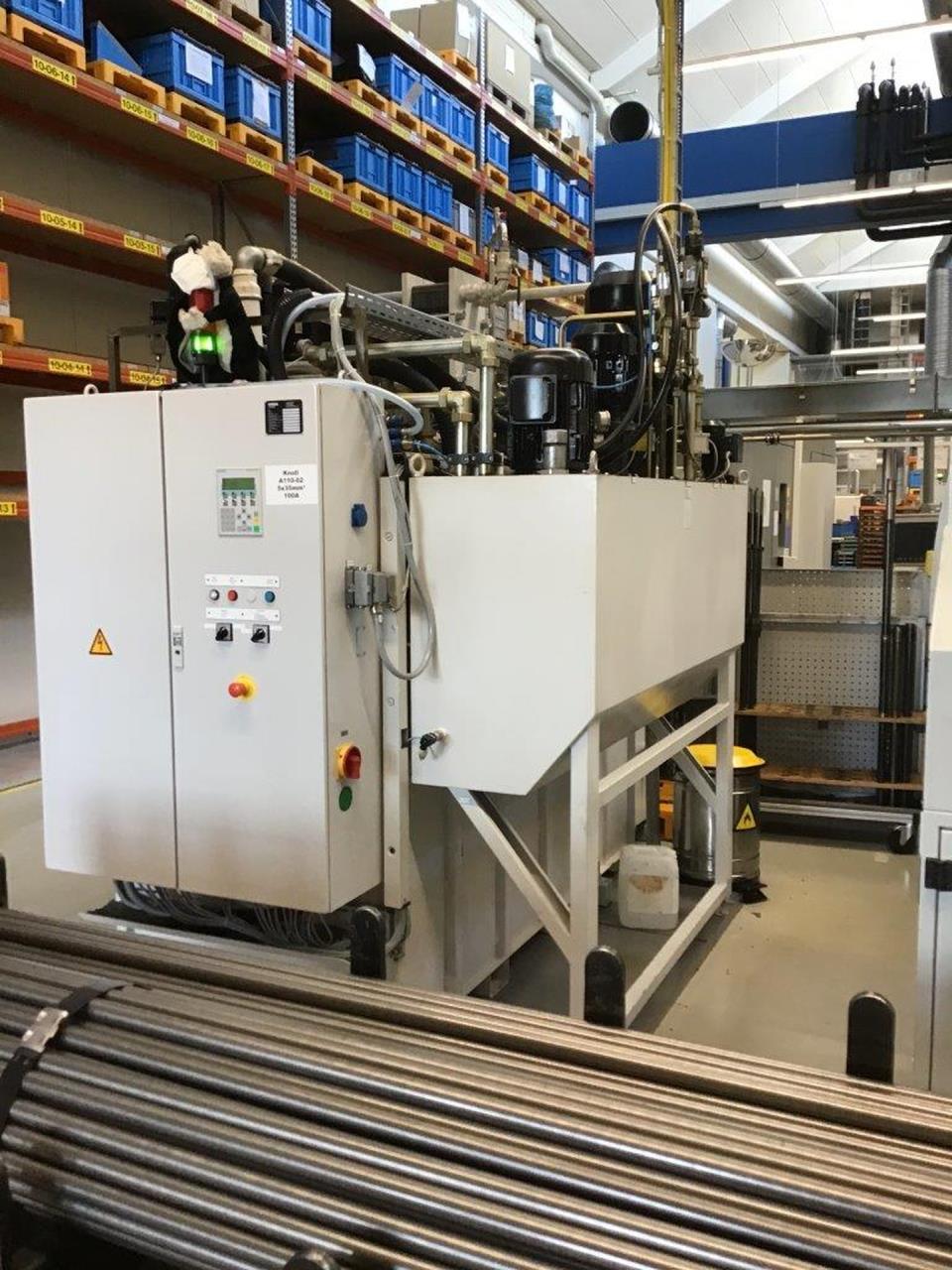

High pression colant device
KNOLL
Set of toolholders
Lamp
Chip conveyor

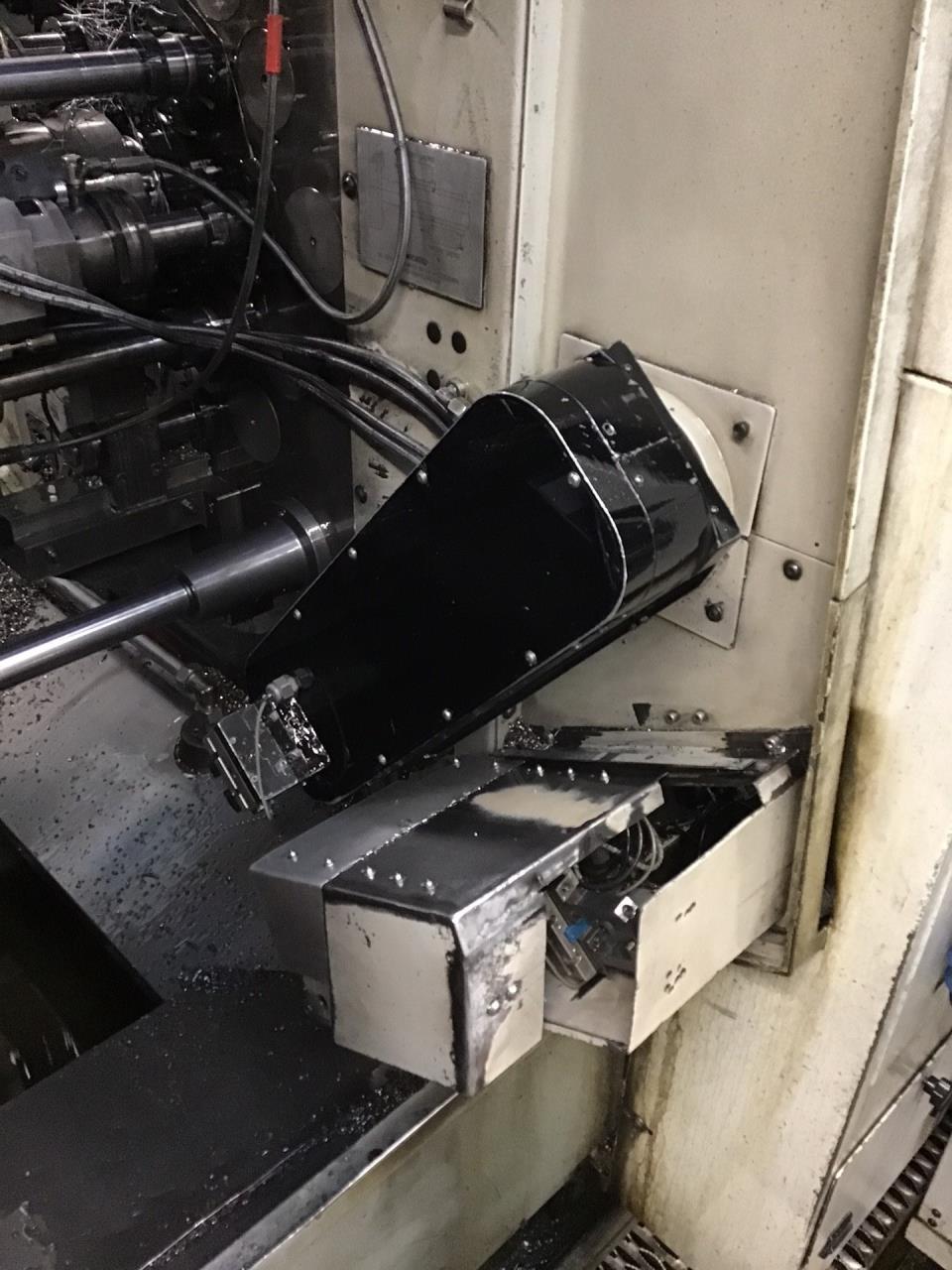

Parts catcher
Pick-up spindle
Tool break control
ARTIS
Fire extinguishing system
KRAFT & BAUER
Options and accessories :
Collets for main spindles
Collets for counter spindle
Front spindles / fixed or driven
Göltenbodt tool carrier system for cross slides
Tool carrier system Göltenbodt for front spindle
Tool carrier system Göltenbodt for rear end machining
Machine was serviced by Peter Ebert CNC-Technik in April 2015 and the slides overhauled.
Collets for main spindles
Collets for counter spindle
Front spindles / fixed or driven
Göltenbodt tool carrier system for cross slides
Tool carrier system Göltenbodt for front spindle
Tool carrier system Göltenbodt for rear end machining
Machine was serviced by Peter Ebert CNC-Technik in April 2015 and the slides overhauled.
Technical specifications and pictures without guarantee.
