Technical data
Work capacity:max. diameter
120 mm
Max. module
2
Workpiece length max.
130 mm
Pitch min.
6
max.
325
Spiral lead:
from
2 mm
up to
5000 mm
Spiral lead angle:
from
1 °
up to
89 °
Gear hob:
min. diameter
130 mm
Milling cutter speeds:
number (steps)
14
from
140 rpm
up to
1870 rpm
Feeds:
axial from
0.05 mm/r
up to
3 mm/r
Voltage 50 Hz 3x
380 Volt
Power
1.5 HP
Machine's weight about
650 kg
Overall dimensions machine:
Length
1100 mm
Width
900 mm
Height
1550 mm
Various accessories:

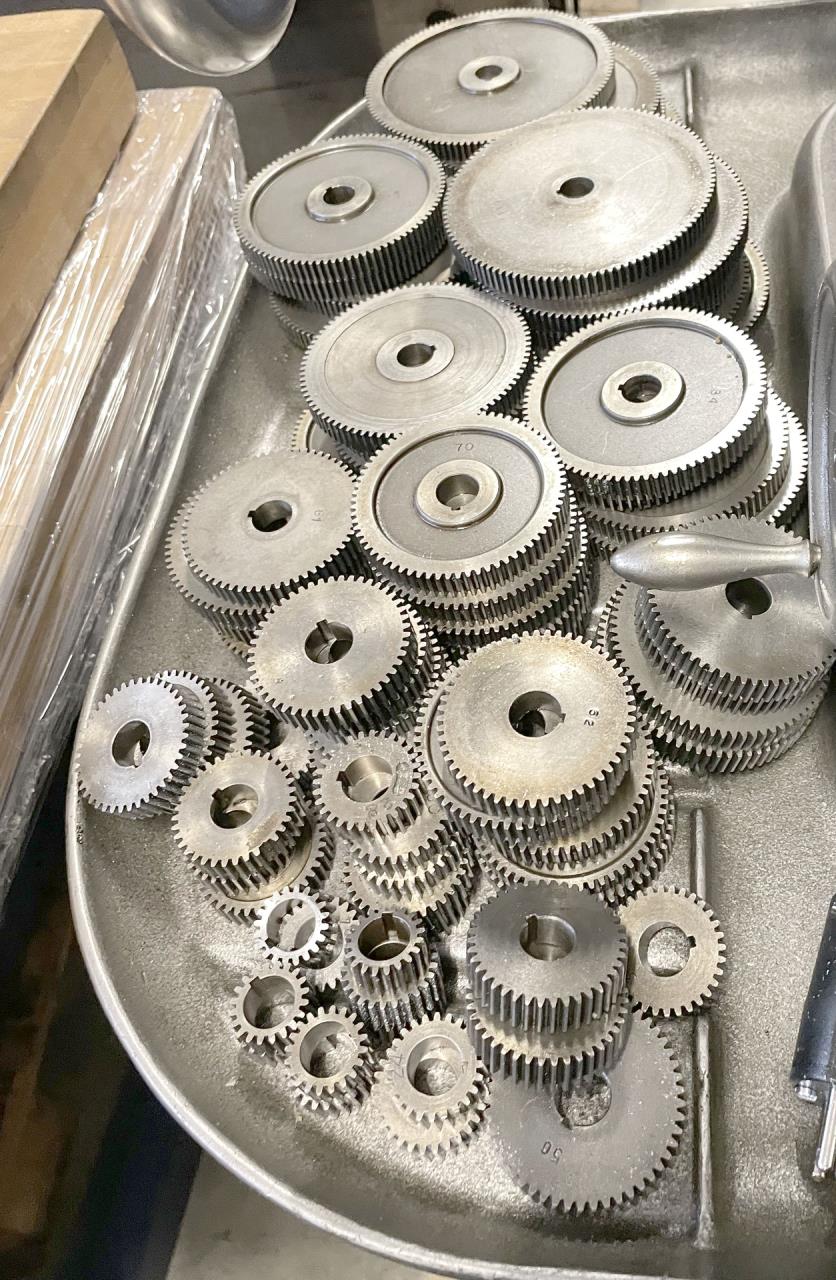

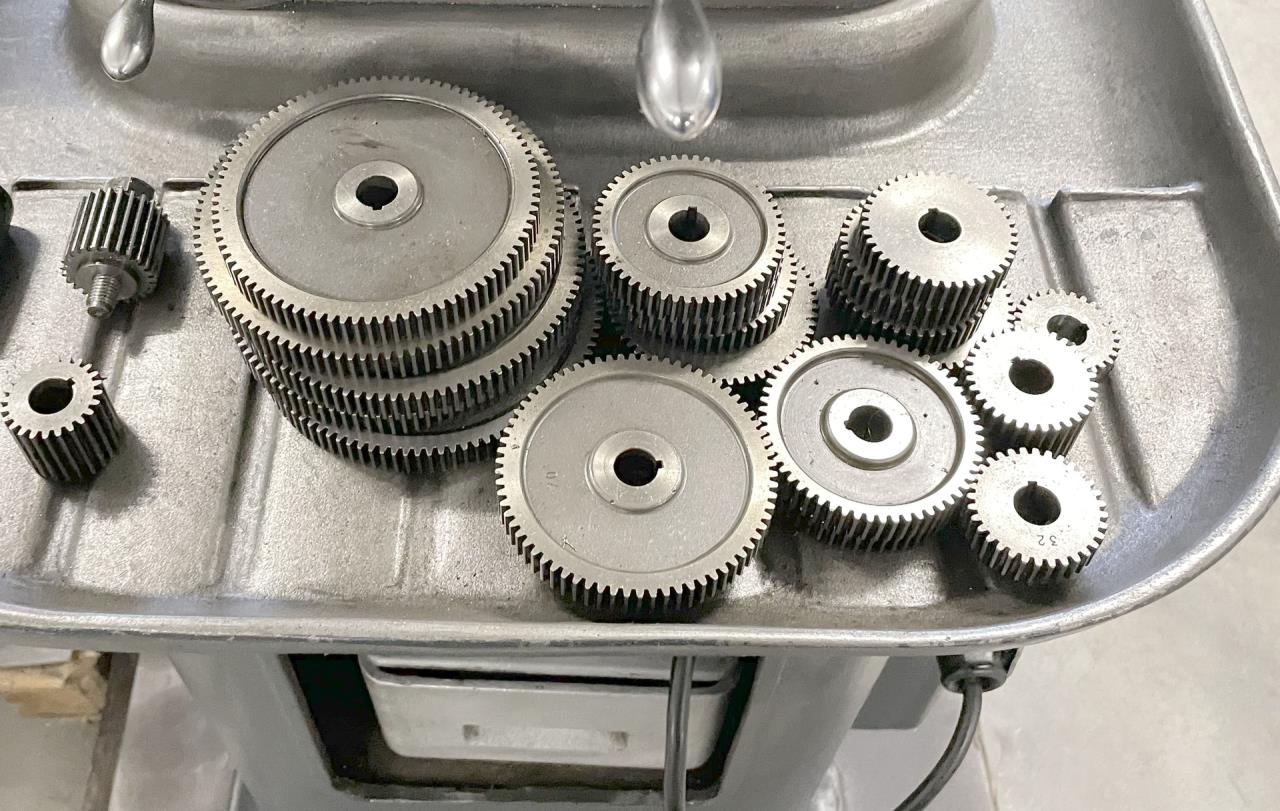

Set of gears
Fabrication de filetages:
Tangent gear cutting
Inclined gear cutting
Dentures coniques
Spiral gear cutting
External gear cutting
Internal gear cutting
Technical specifications and pictures without guarantee.
