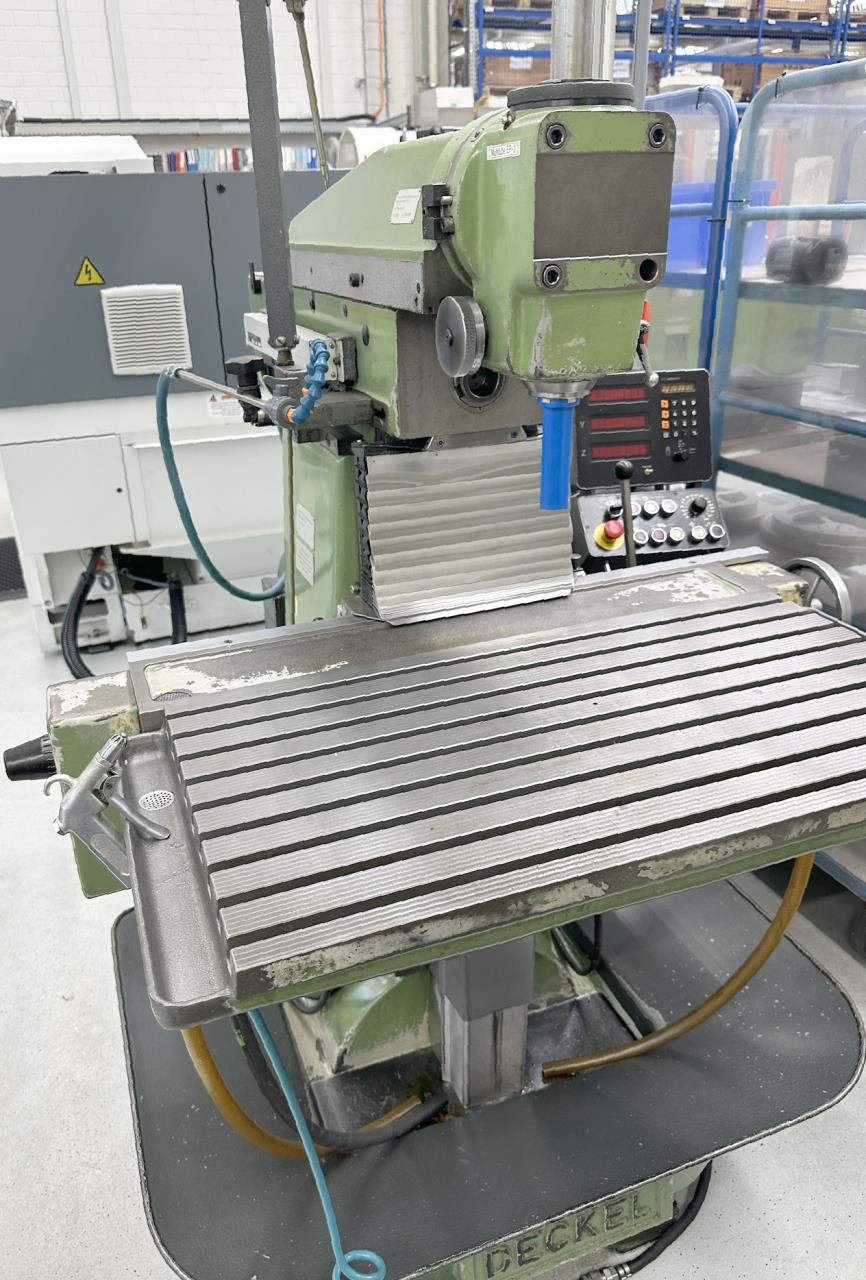

Technical data
Table length
800 mm
Table width
420 mm
Number of T-channels
9
T-channel width
12 mm
Distance of the T-slots
45 mm
Longitudinal travel (X-axis)
500 mm
Transversal travel (y axis)
300 mm
Vertical travel (z axis)
400 mm
Distance from vertical spindle to table
470 mm
Table load max.
400 kg
Spindle speeds:
number (steps)
21
from
25 rpm
up to
2500 rpm
Taper in spindle CN
40

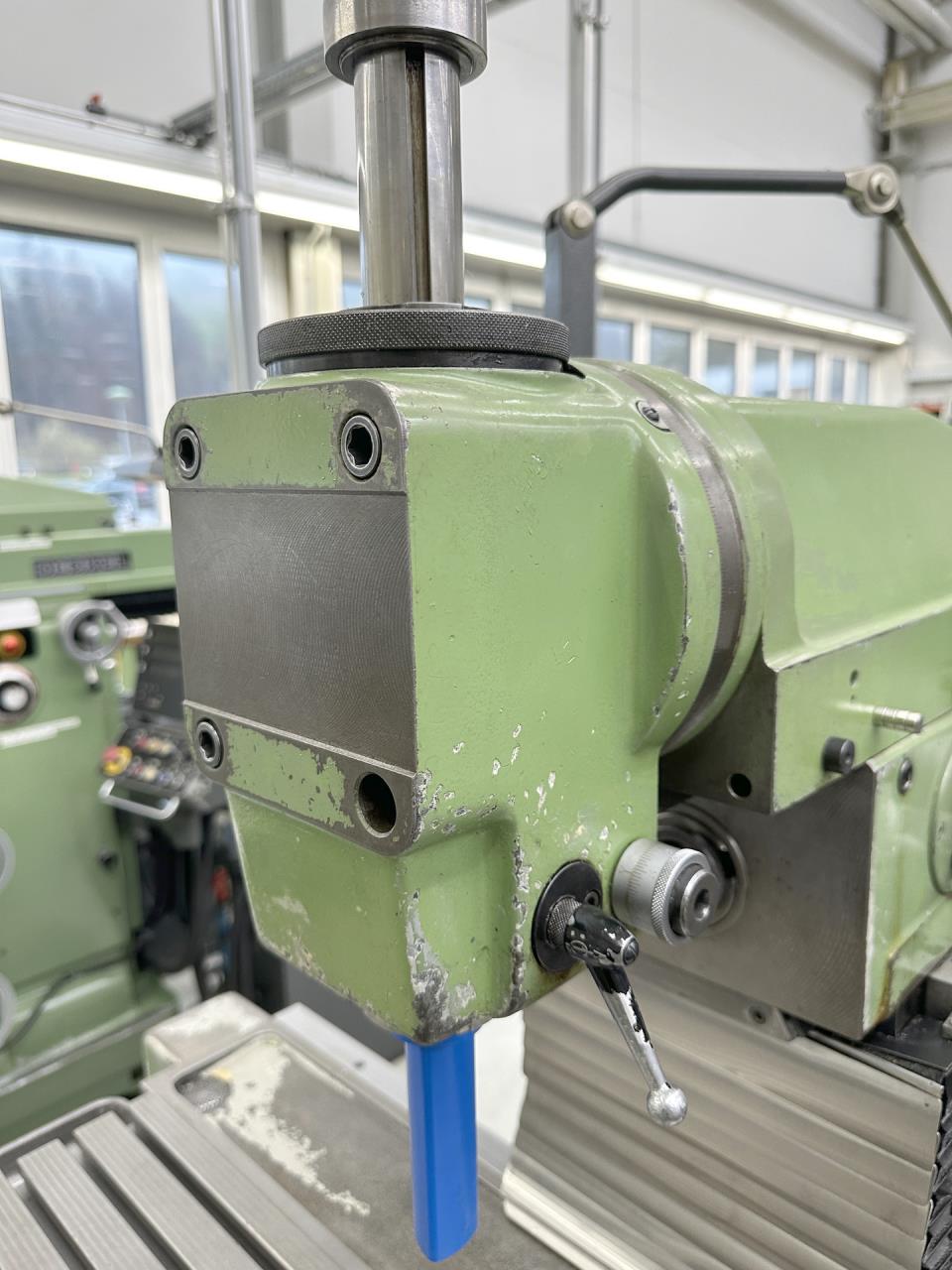

Swivel range Vertical milling head
+/-90 °
Feeds
5 - 500 mm/min
Vertical quill travel
100 mm
Rapid traverse:
longitudinal
1.5 m/min
transversal
1.5 m/min
vertical
1.5 m/min
Voltage 50 Hz 3x
380 Volt
Motor power
4 kW
Machine's weight about
1250 kg
Overall dimensions machine:
Length
2200 mm
Width
1800 mm
Height
2000 mm

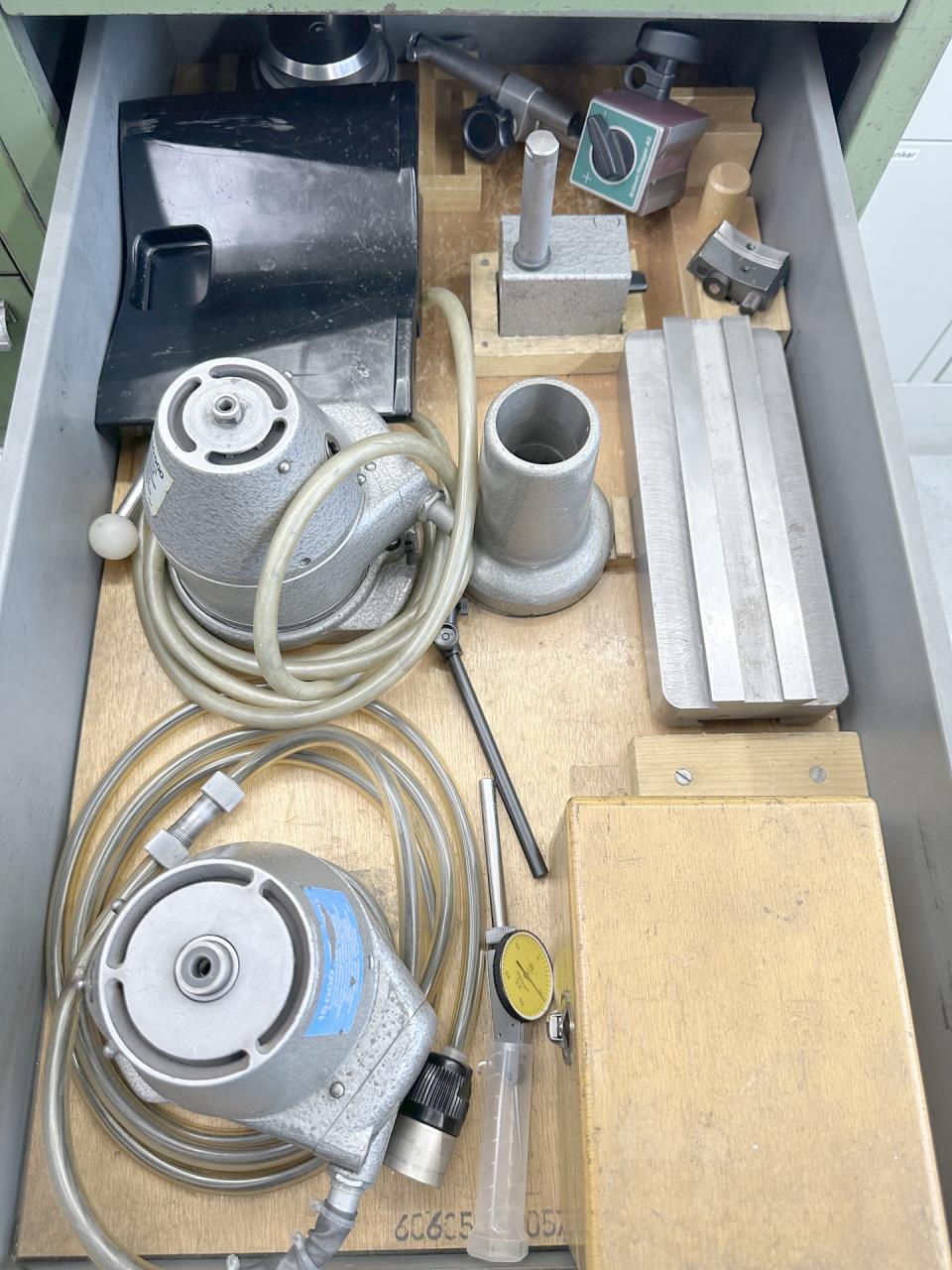

Various accessories:

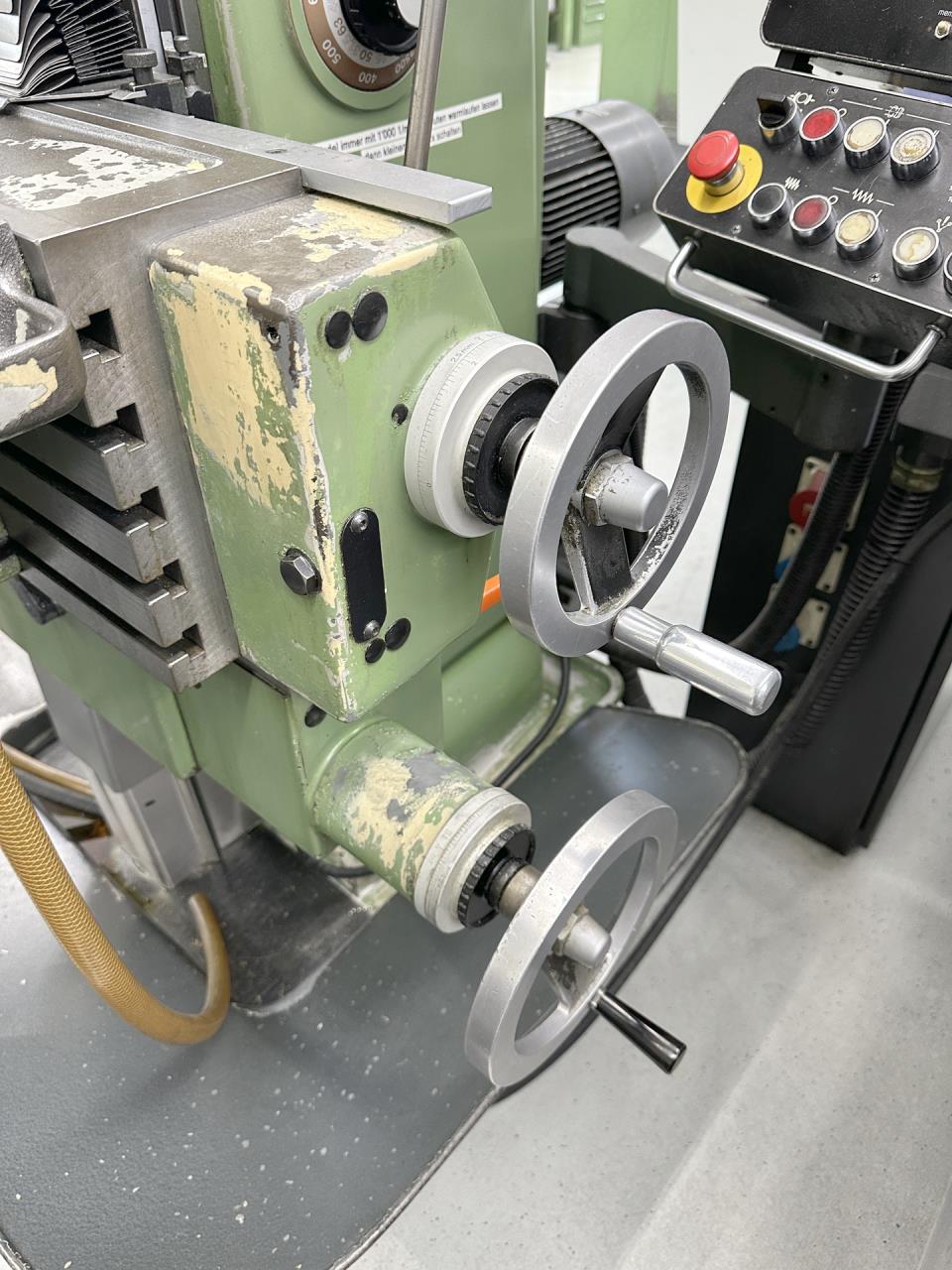

Mechanical handwheels

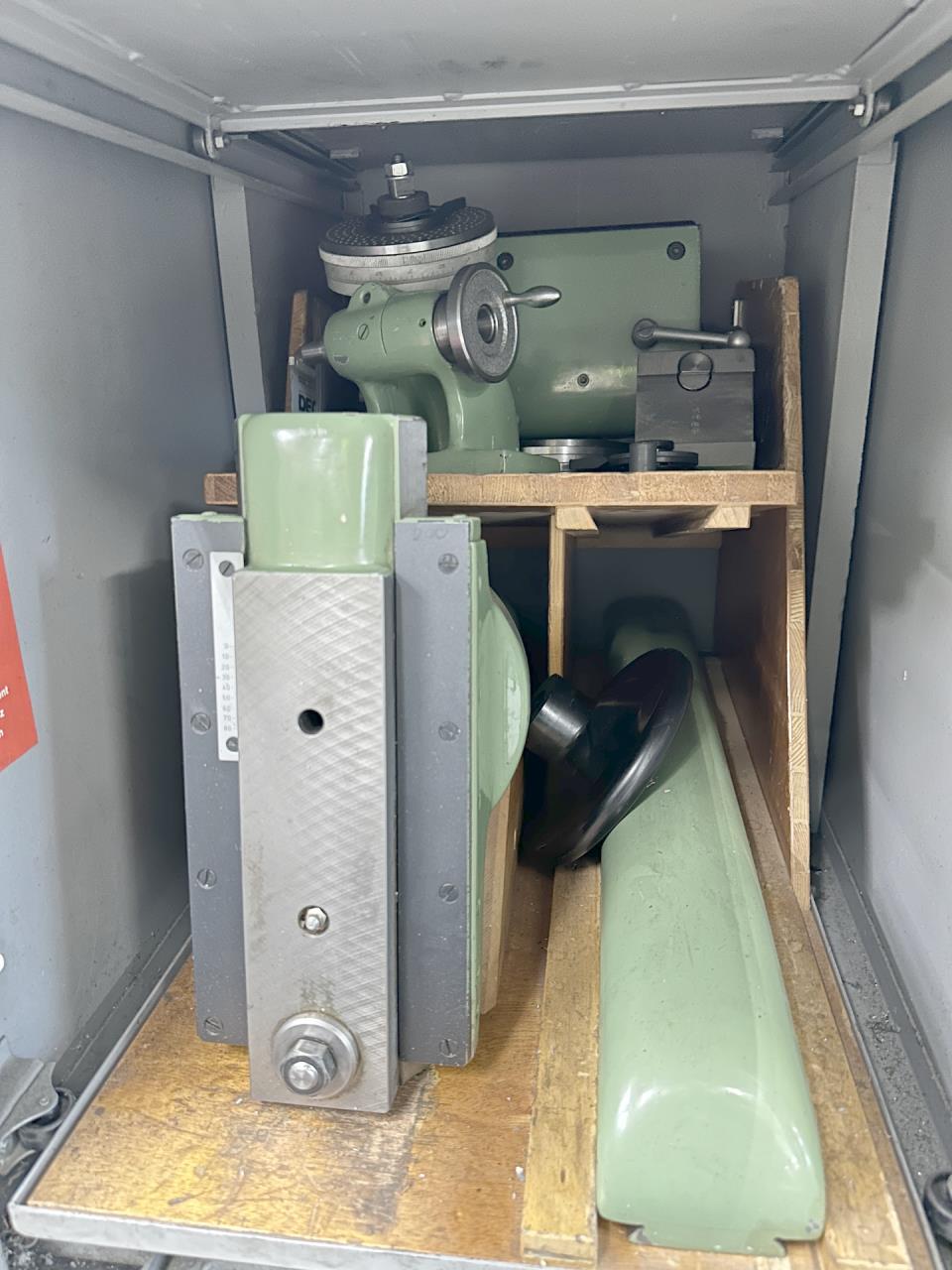

Dividing attachment
Centre height
100 mm

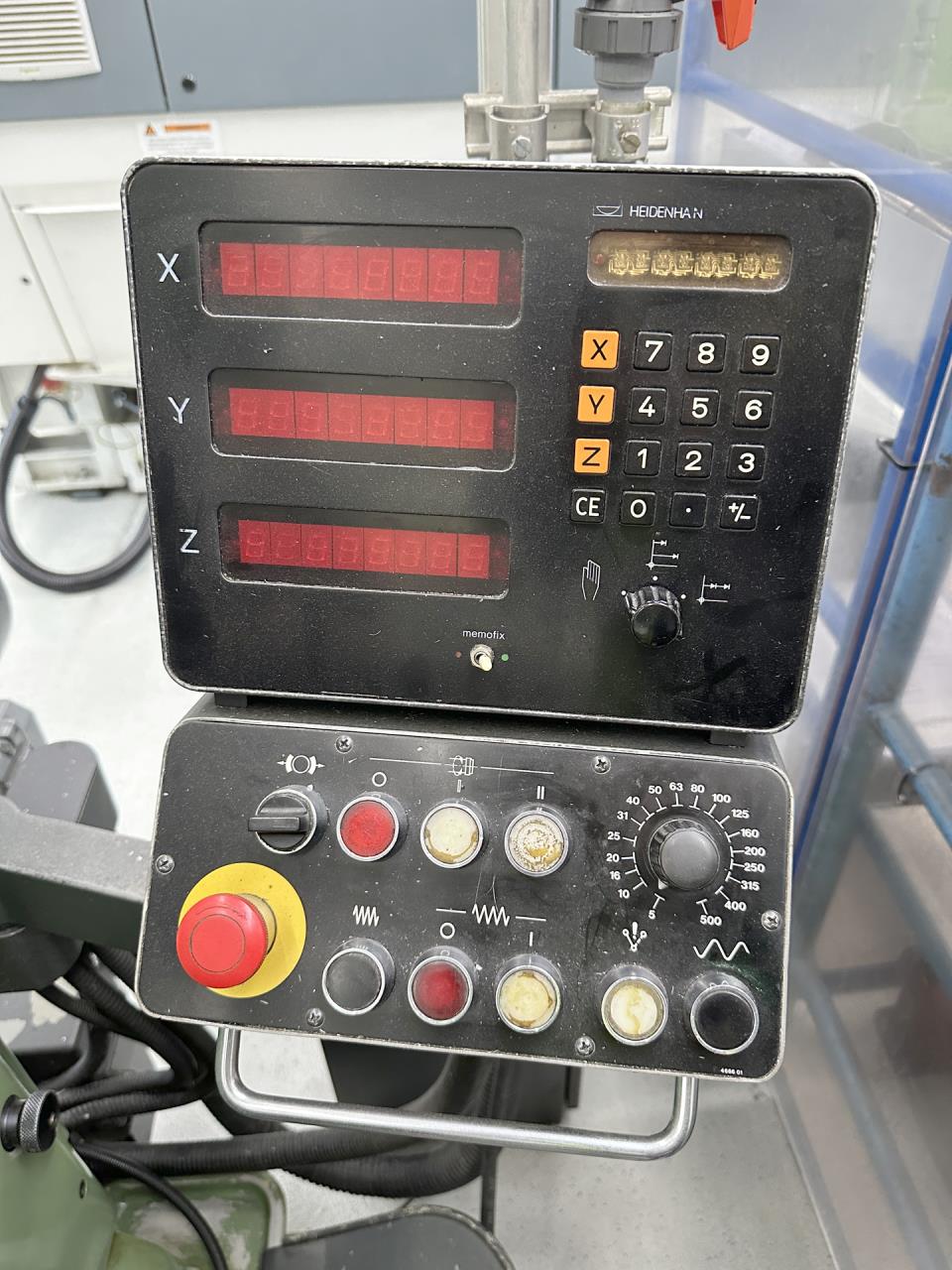

Digital readout number of axis:
3
Rigide table

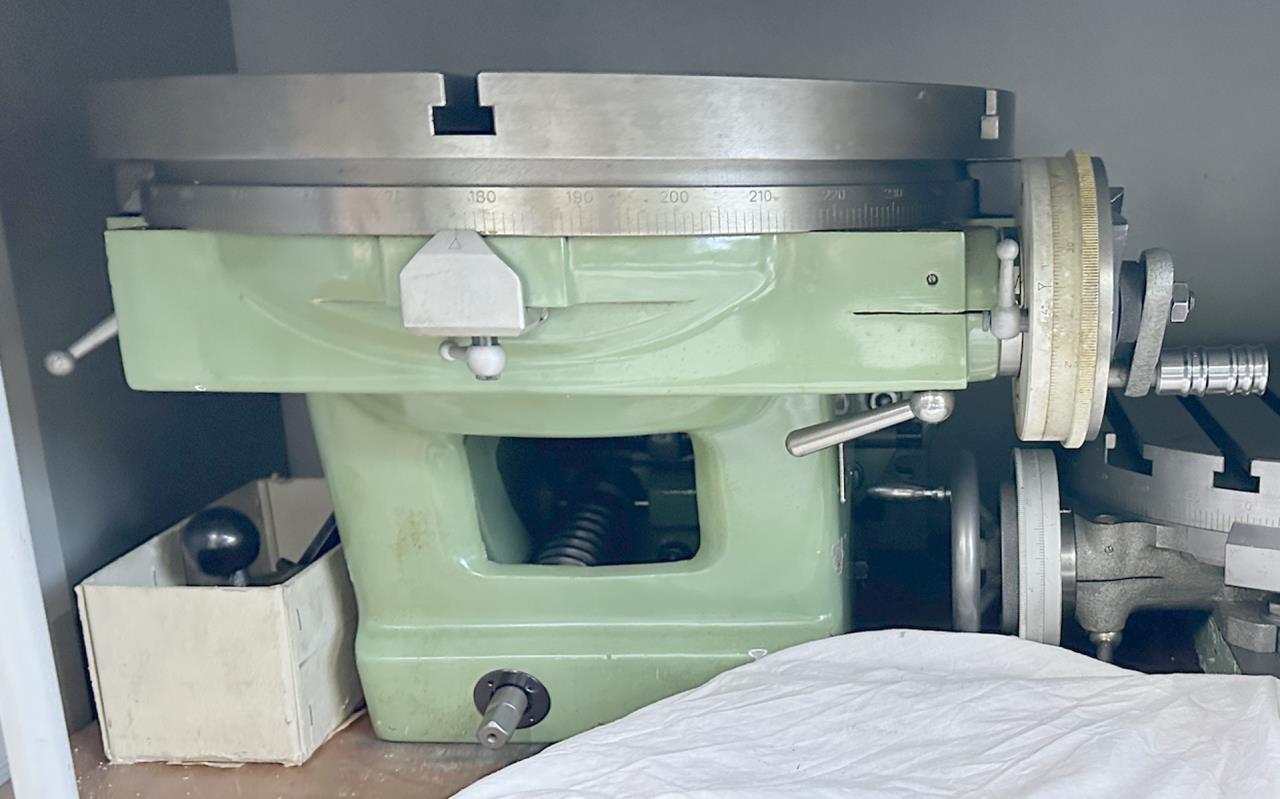

Swivelling rotary table
Diameter
450 mm
Boring head
Slotting head

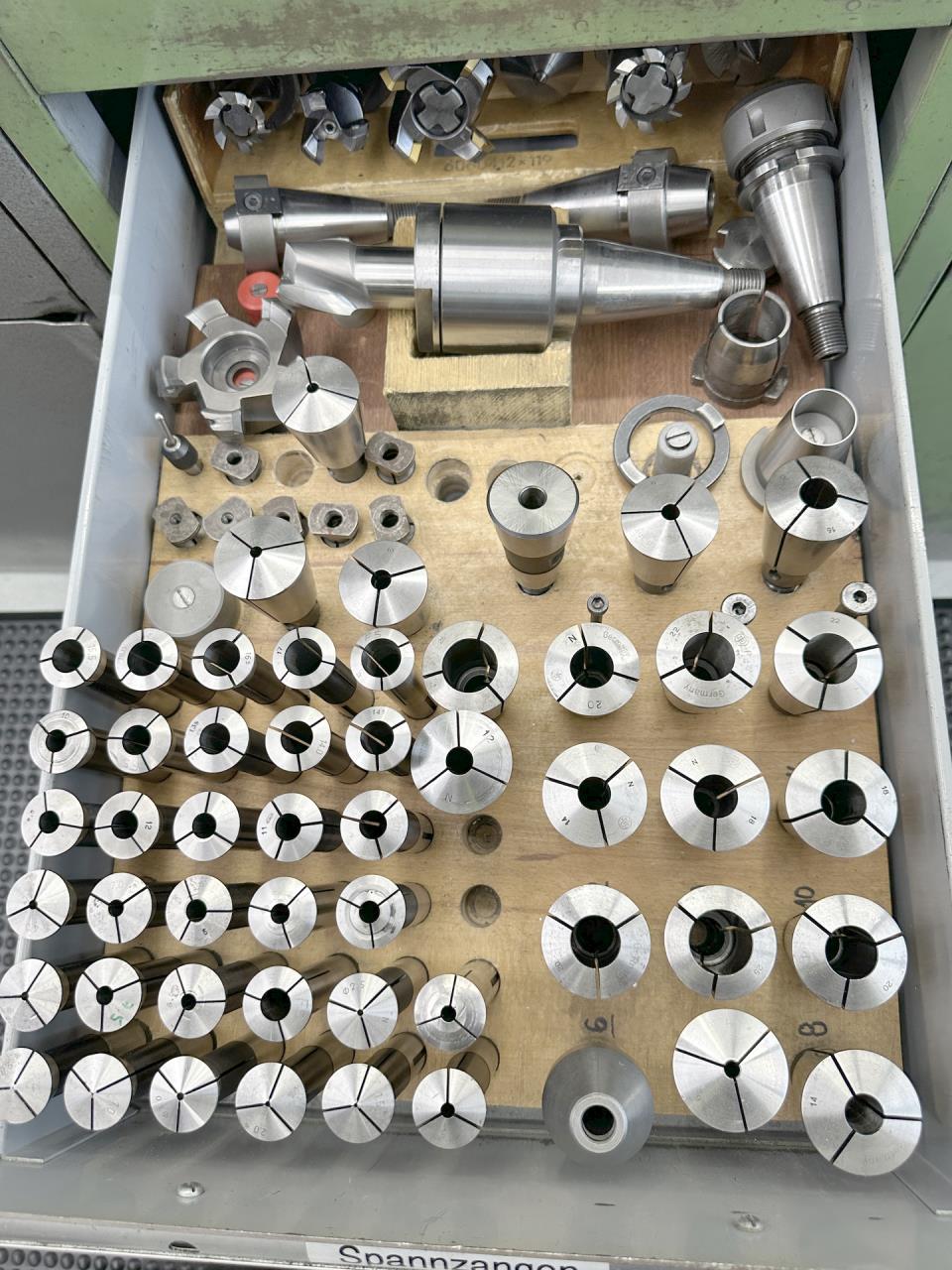

Set of toolholders

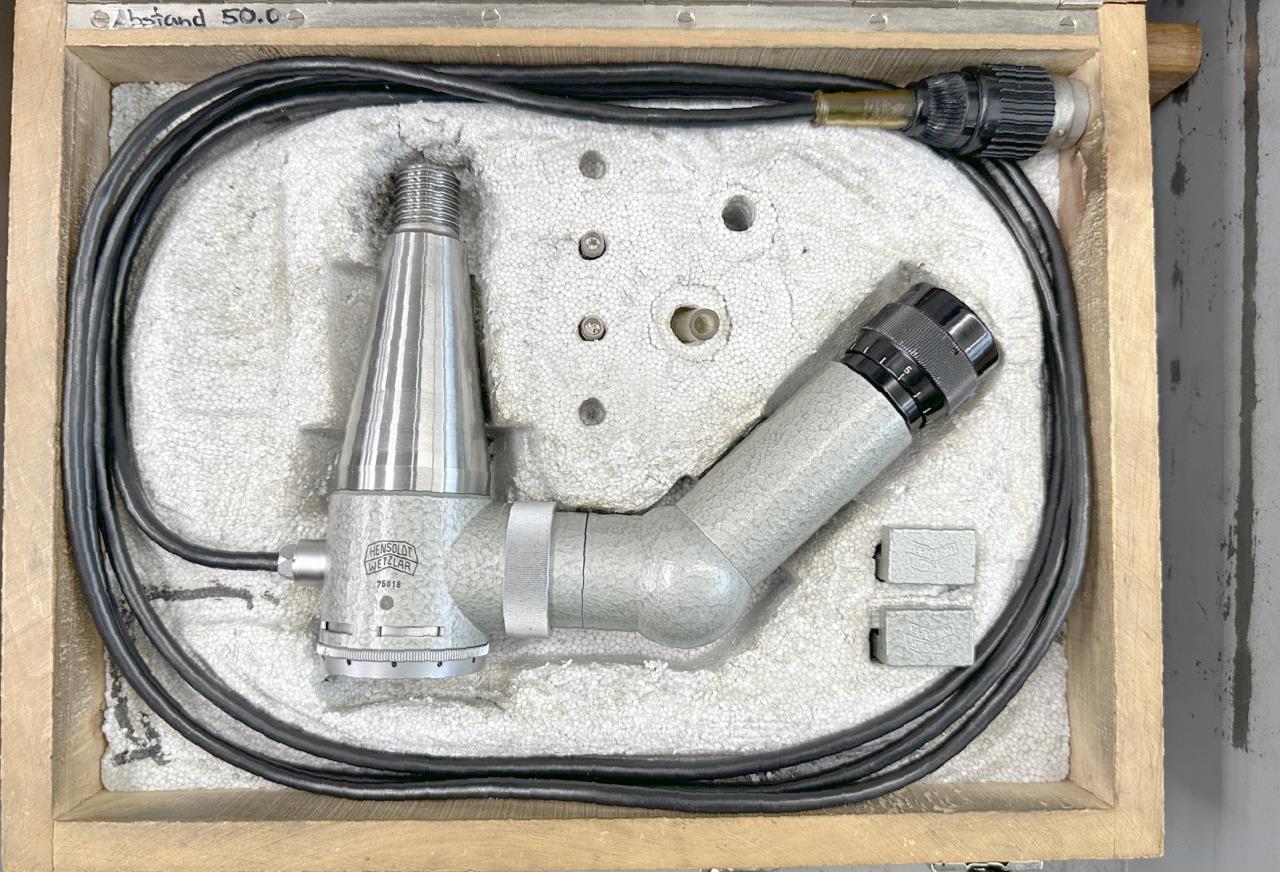

Centering microscop
Centring and testing device
Grinding head
Grinding motor
15000 - 30000 rpm
Grinding motor
30000 - 60000 rpm
Technical specifications and pictures without guarantee.
