Technical data
Spindle run time
7266 Hour
Number of axis simultaneous
5
Rotary table:diameter
405 mm
Table load max.
300 kg
Longitudinal travel (X-axis)
600 mm
Transversal travel (y-axis)
500 mm
Vertical travel (z axis)
300 mm

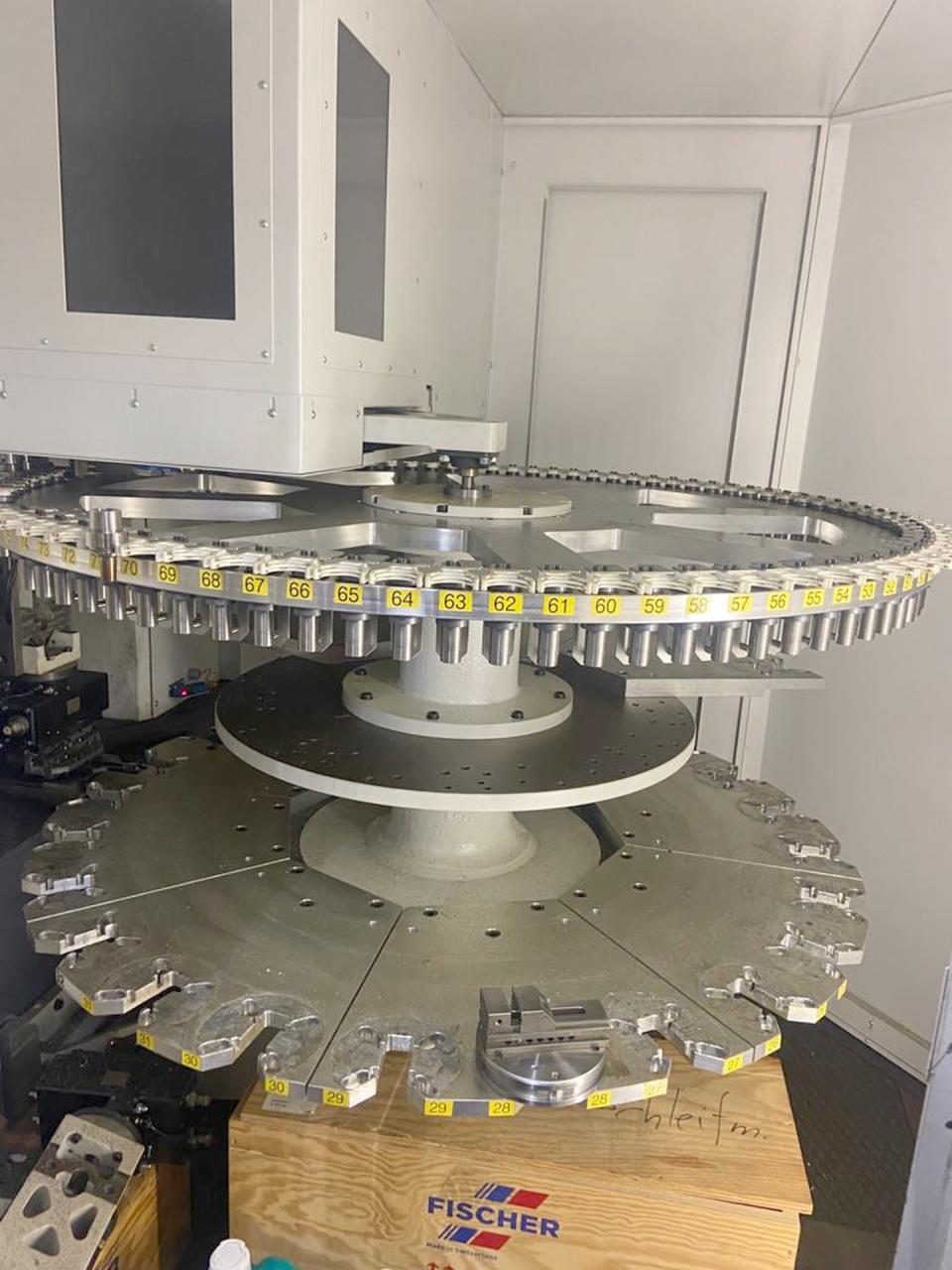

Tool magazine number of tool places
82
Spindle nose: HSK
E40
Spindle speeds:
stepless
from
0 rpm
up to
42000 rpm
Rapid traverse:
60 m/min
Voltage 50 Hz 3x
400 Volt
Total power required
25 kW
Machine's weight about
8500 kg
Overall dimensions machine:
Length
4200 mm
Width
3000 mm
Height
2700 mm
Various accessories:
Coolant system
Water cooler

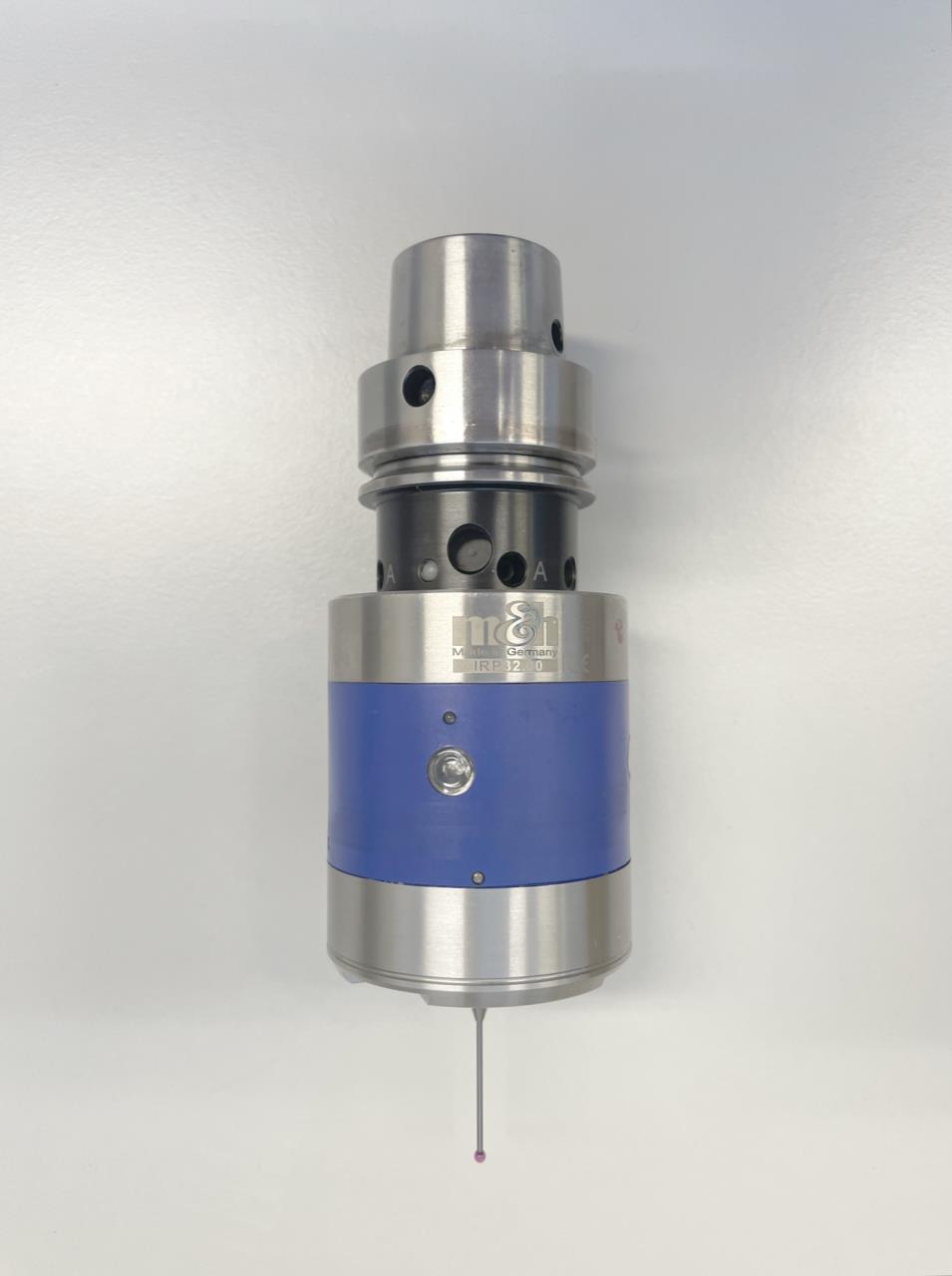

Touch Probe
Laser tool setting system

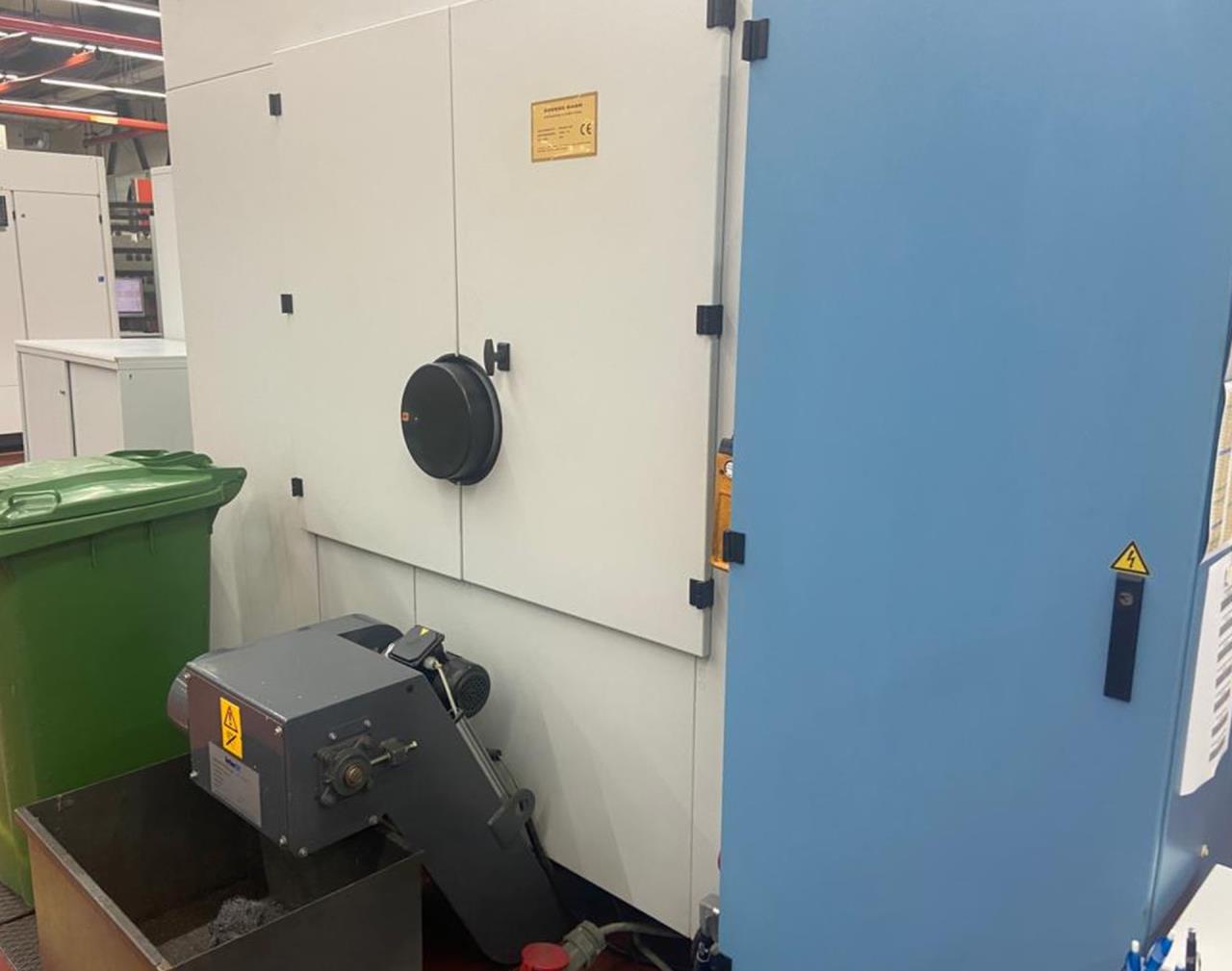

Chip conveyor
Work piece magazine
Set-up place (number)
31
Handwheel electroinic
Lamp
Spindle changed
2016
Technical specifications and pictures without guarantee.
