Technical data
Number of axis total
3
Number of spindles
1
Machining diameter max.
12 mm
Maximum turning length
140 mm
Max. drilling diameter
7 mm
Max. threading diameter
6 M (Metric)
Max. bar diameter
3 - 12 mm
Spindle speeds:
stepless
from
200 rpm
up to
12000 rpm

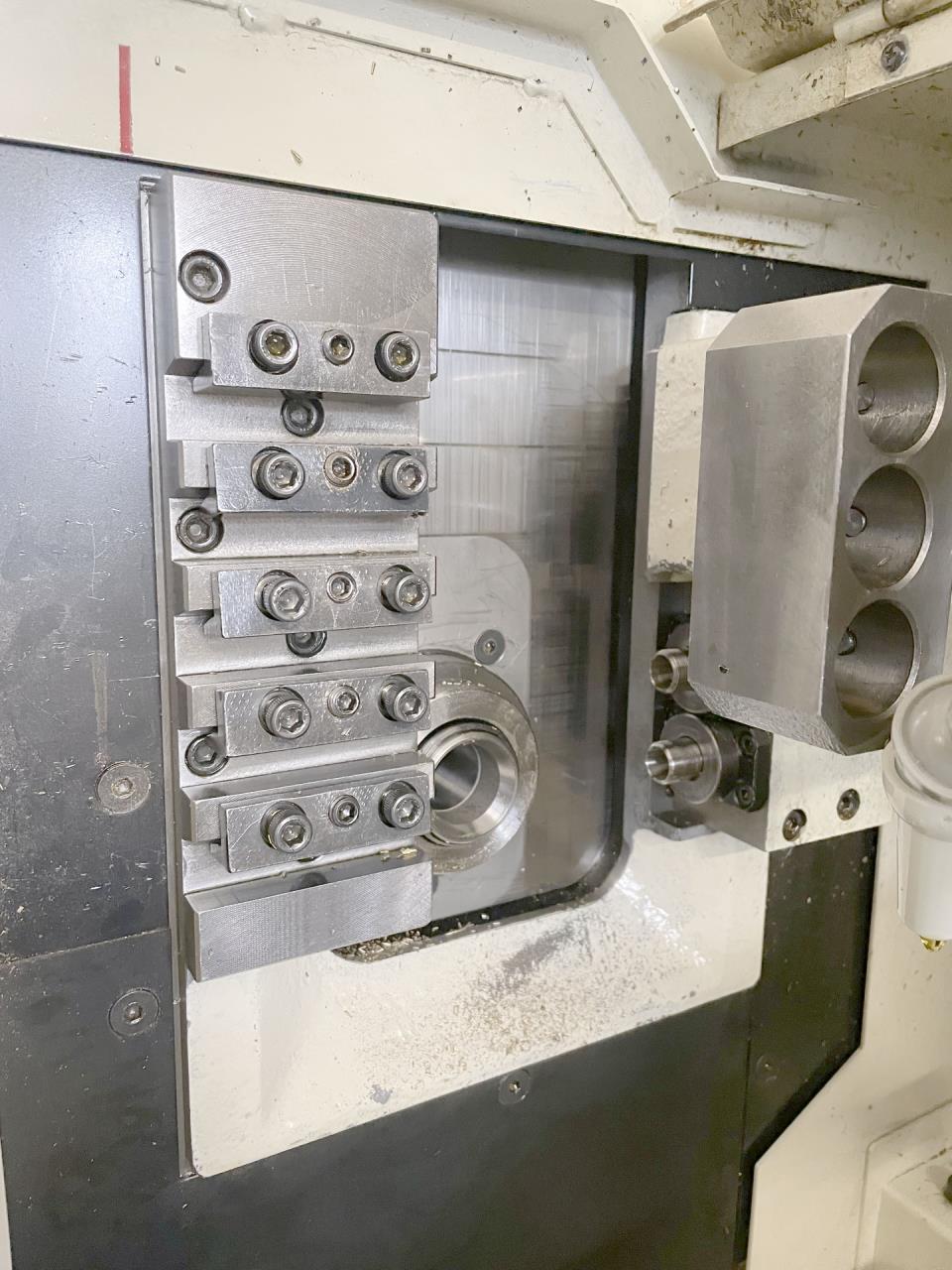

Tool-holder:
Number of stations
10
Turning tools
5 pce
Drilling tools
3 pce
Transverse processing tools
2 pce
Rapid traverse:
18 m/min
Voltage 50 Hz 3x
200 Volt
Spindle motor
1.5 / 2.2 kW
Air connect
5 bar
Total power required
7 kVA
Machine's weight about
1400 kg
Overall dimensions machine:
Length
1700 mm
Width
900 mm
Height
1660 mm
Various accessories:

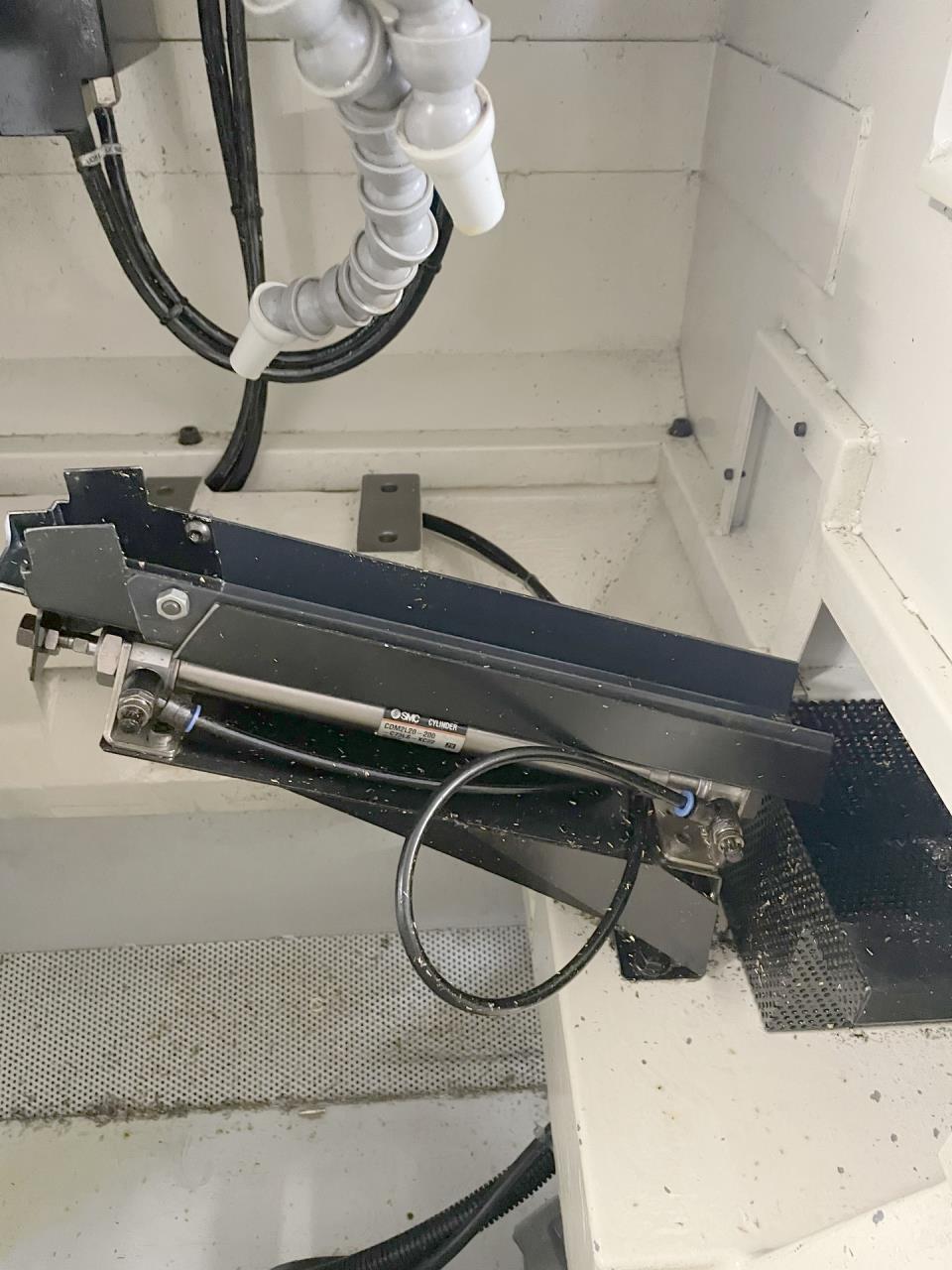

Parts catcher
Lamp
Coolant system
Technical specifications and pictures without guarantee.
