Technical data
Number of axis total
2
Centre height
200 mm
Distance between centres
1250 mm
Swing over cross-slide
246 mm
Swing over bed
400 mm
Spindle nose
D1-6
Spindle hole
54 mm
Cross slide:
Travels:
Longitudinal travel (Z-axis)
1156 mm
Transversal strocke (X axis)
240 mm
Rapid traverse X
10 m/min
Rapid traverse Z
20 m/min

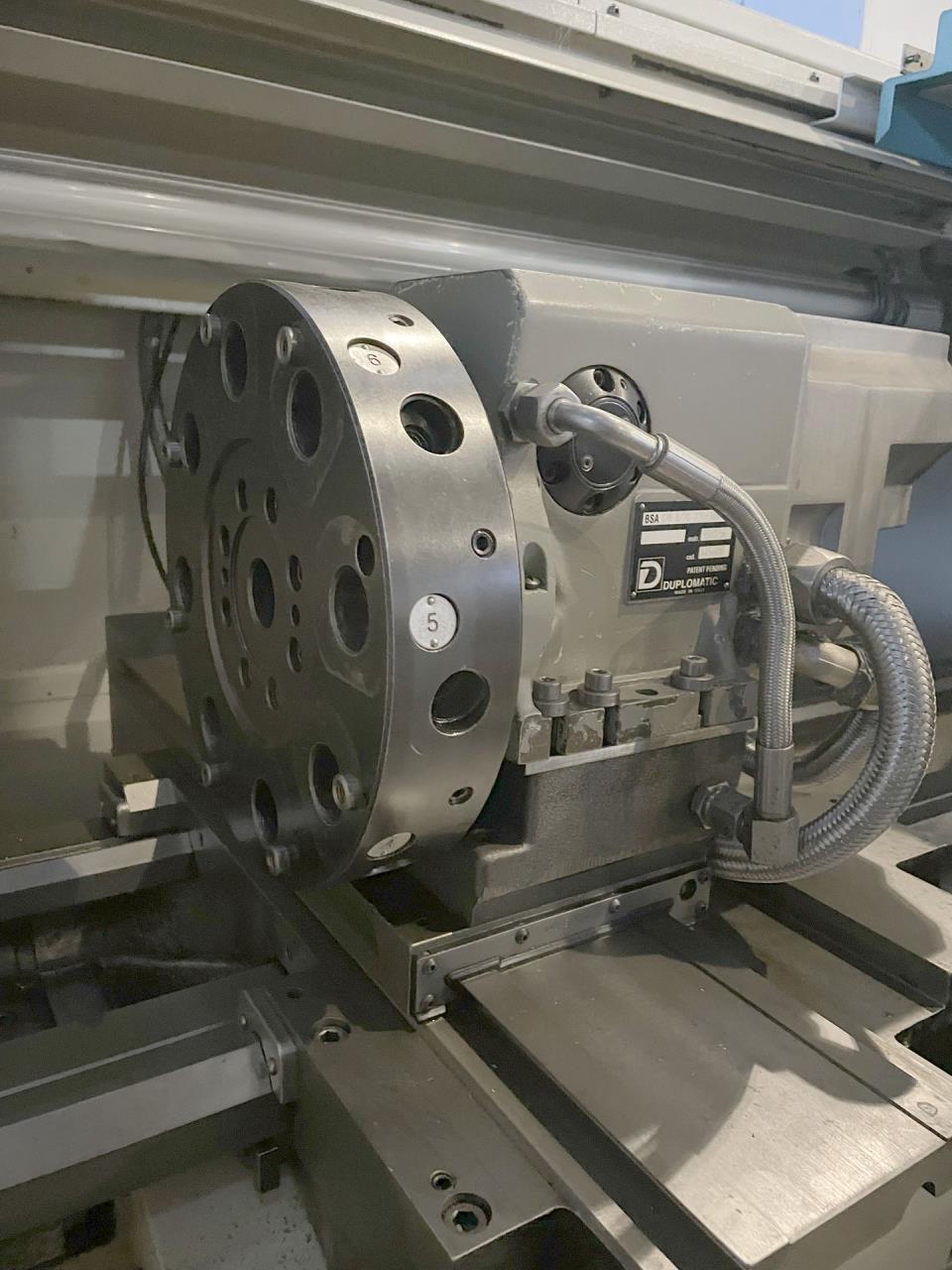

Turret slide:
Number of positions
8
Fixed tools turret
8
Type
DUPLOMATIC BSA 120
Spindle nose: VDI
30
Taper in spindle:
Camlock
D1-6 CAMLOCK
Spindle speeds:
from
12 rpm
up to
2500 rpm

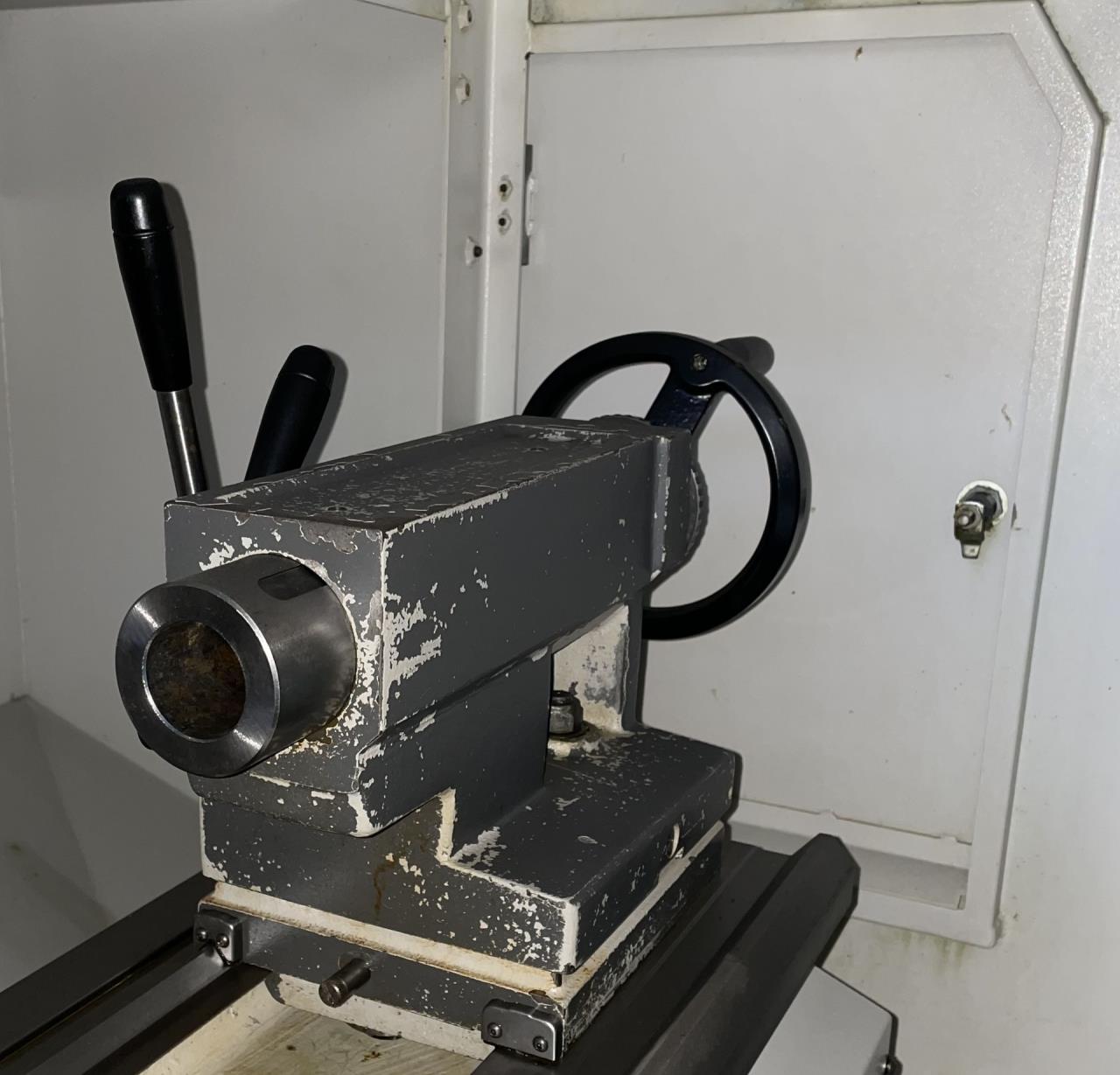

Tailstock:
Morse taper
5 MT
Spindle stroke
155 mm
Spindle diameter
73 mm
Spindle motor
7.5 kW
Voltage 50 Hz 3x
380 Volt
Various accessories:
3-jaw chuck diameter
250 mm
Lamp
Tailstock
Coolant system

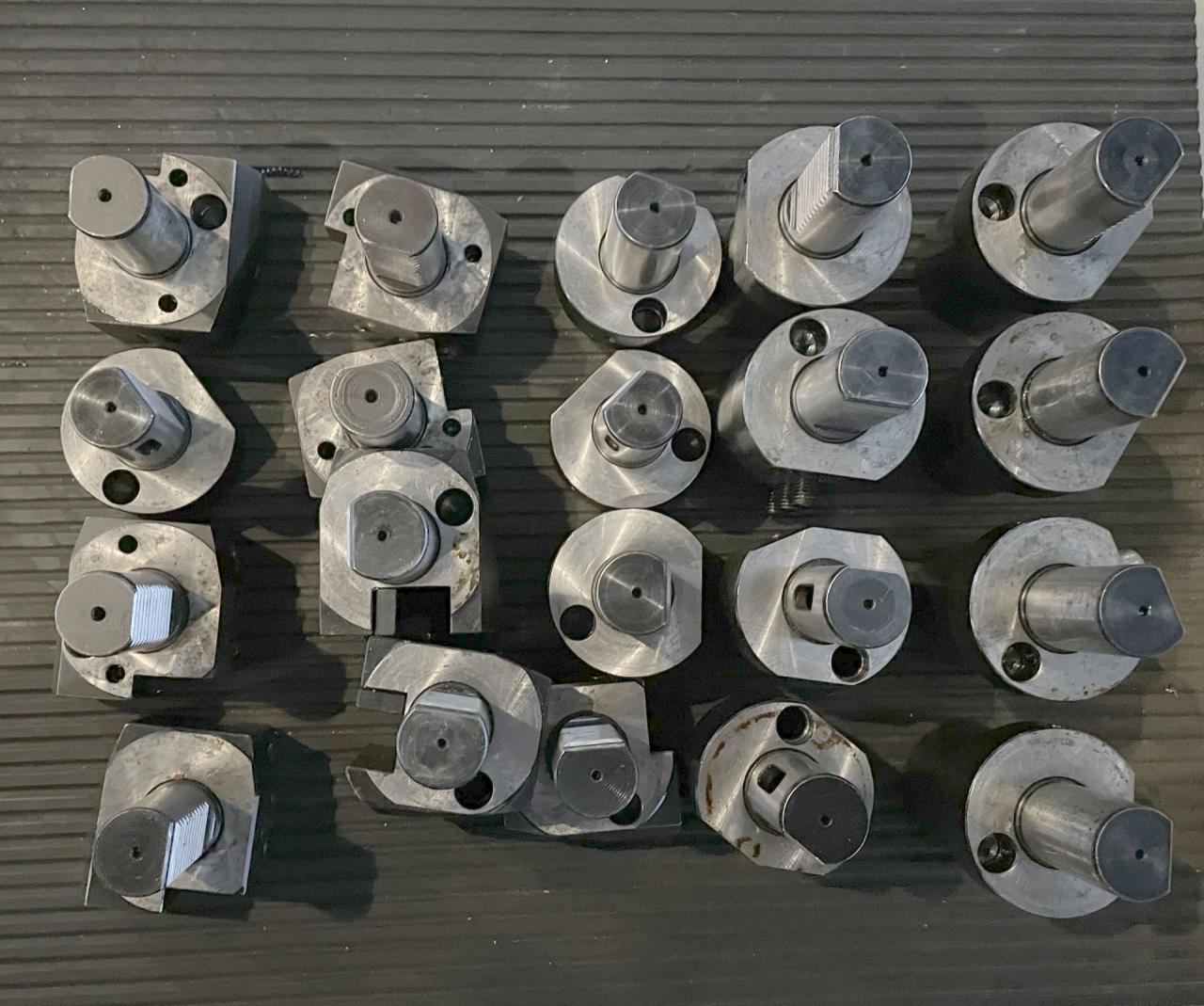

Set of toolholders
Technical specifications and pictures without guarantee.
