Technical data
Table length
2000 mm
Table width
800 mm
Grinding length
2000 mm
Grinding width
1000 mm
Table load max.
3300 kg
Max. distance from table
to spindle-centreline
900 mm
Longitudinal travel (X-axis)
2400 mm
Cross travel (z-axis)
920 mm
Vertical travel (Y-axis)
730 mm
Automatic longitudinal feeds:
stepless
from
2000 mm/min
up to
35000 mm/min
Automatic cross-feed:
stepless
from
5 mm/min
up to
5000 mm/min
Automatic Vertical feed:
stepless
from
1 mm/min
up to
3000 mm/min
Grinding wheel speeds:
stepless
from
50 rpm
up to
2500 rpm
Diameter of grinding wheel
500 mm
Width of the grinding wheel
100 mm
Drilling cap. of grind.wheel
203.2 mm
Voltage 50 Hz 3x
400 Volt
Grinding spindle motor
26 kW
Total power required
35 kW
Machine's weight about
13000 kg
Overall dimensions machine:
Length
6465 mm
Width
3770 mm
Height
3000 mm
Various accessories:
Coolant system
Vice: width
160 mm
Lamp

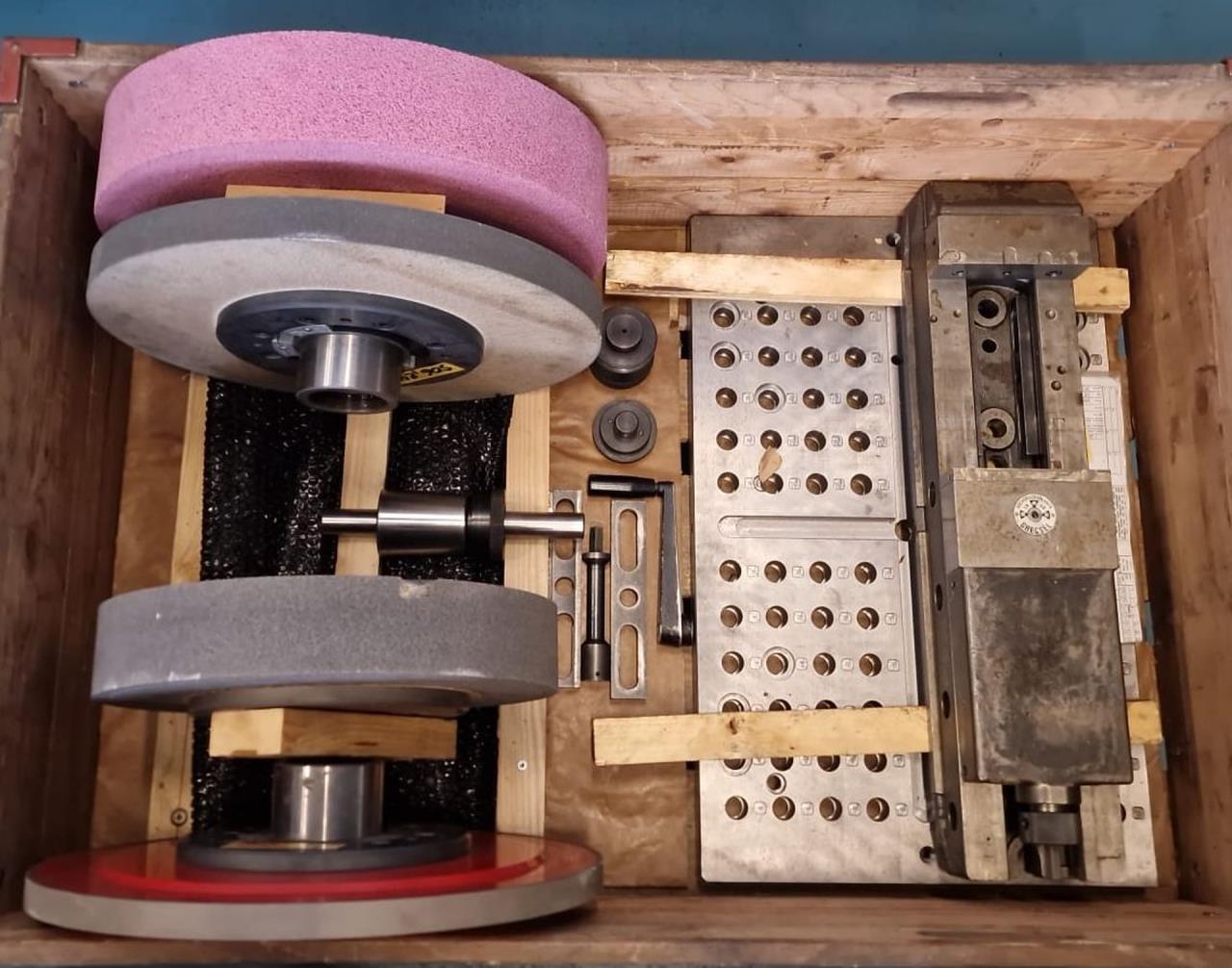

Set of grinding wheels

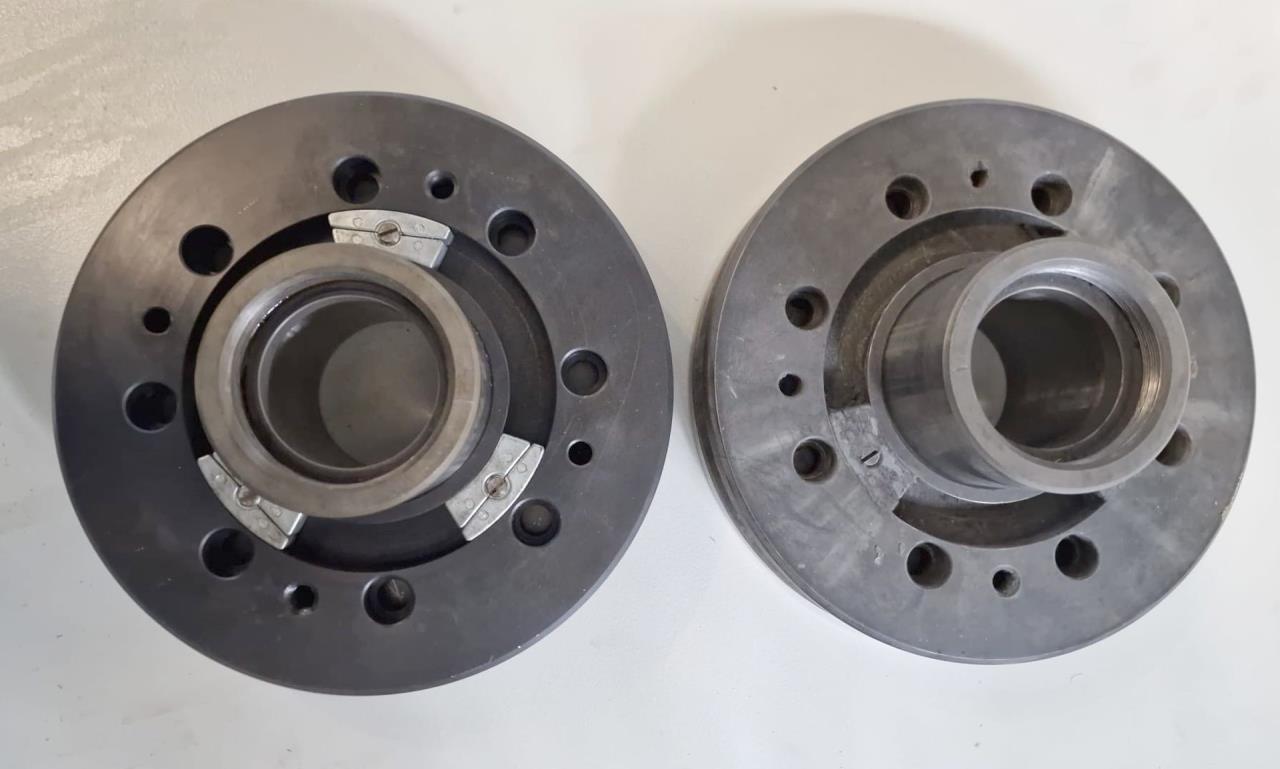

Set of flanges
Balancing arbor

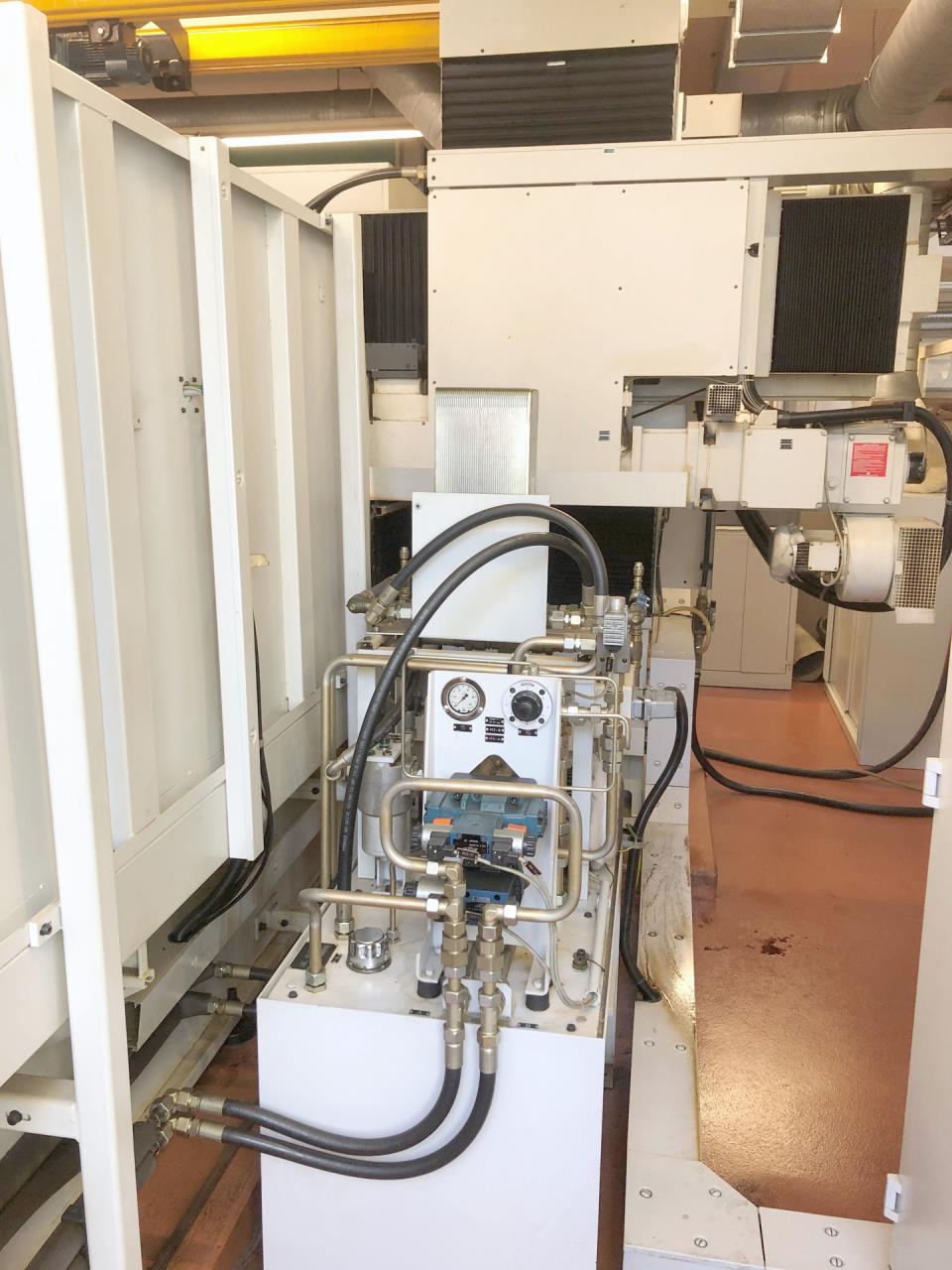

Central lubrification
Oil mist extractor

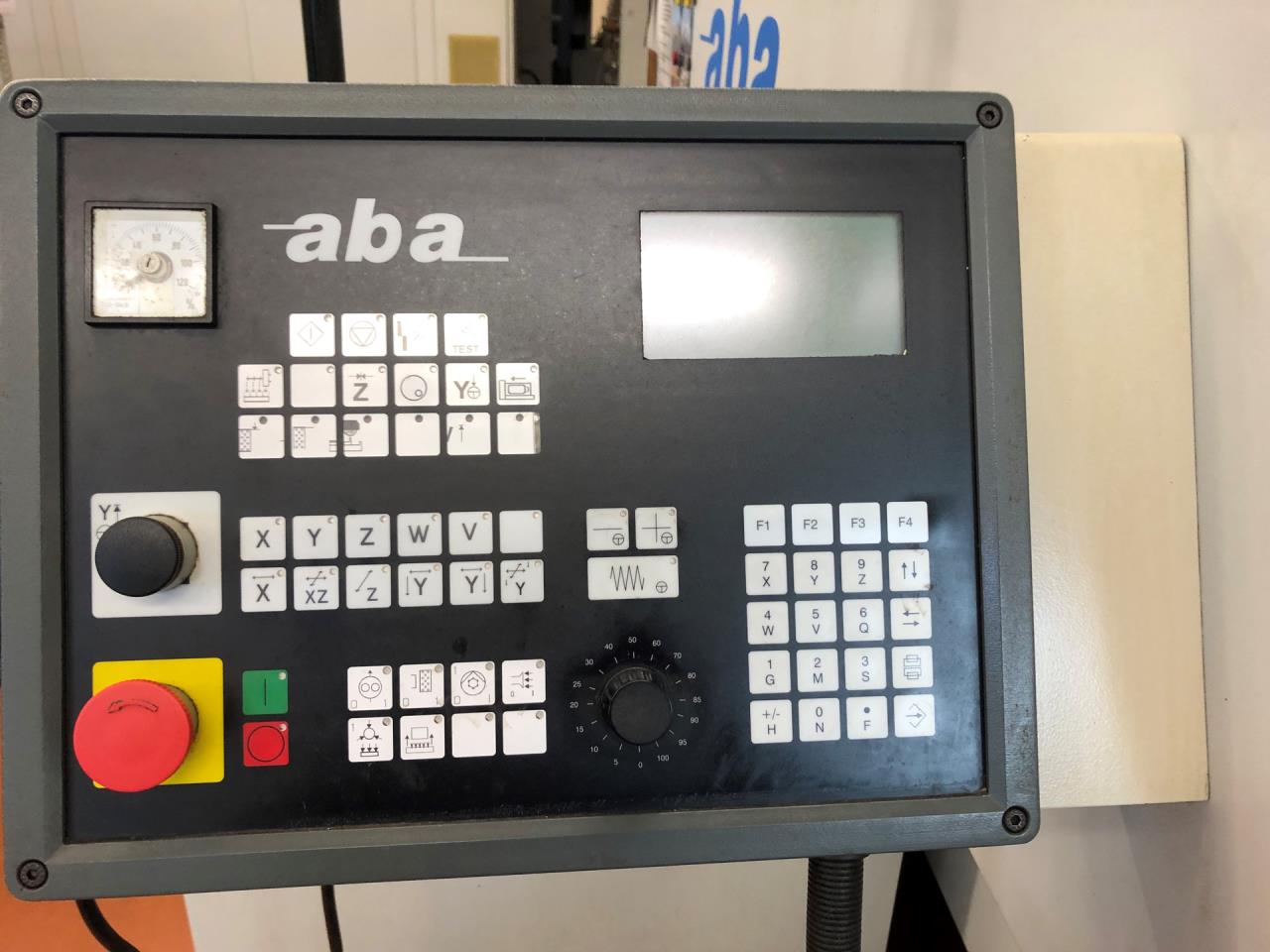

Handwheel electroinic
Technical specifications and pictures without guarantee.
