Technical data

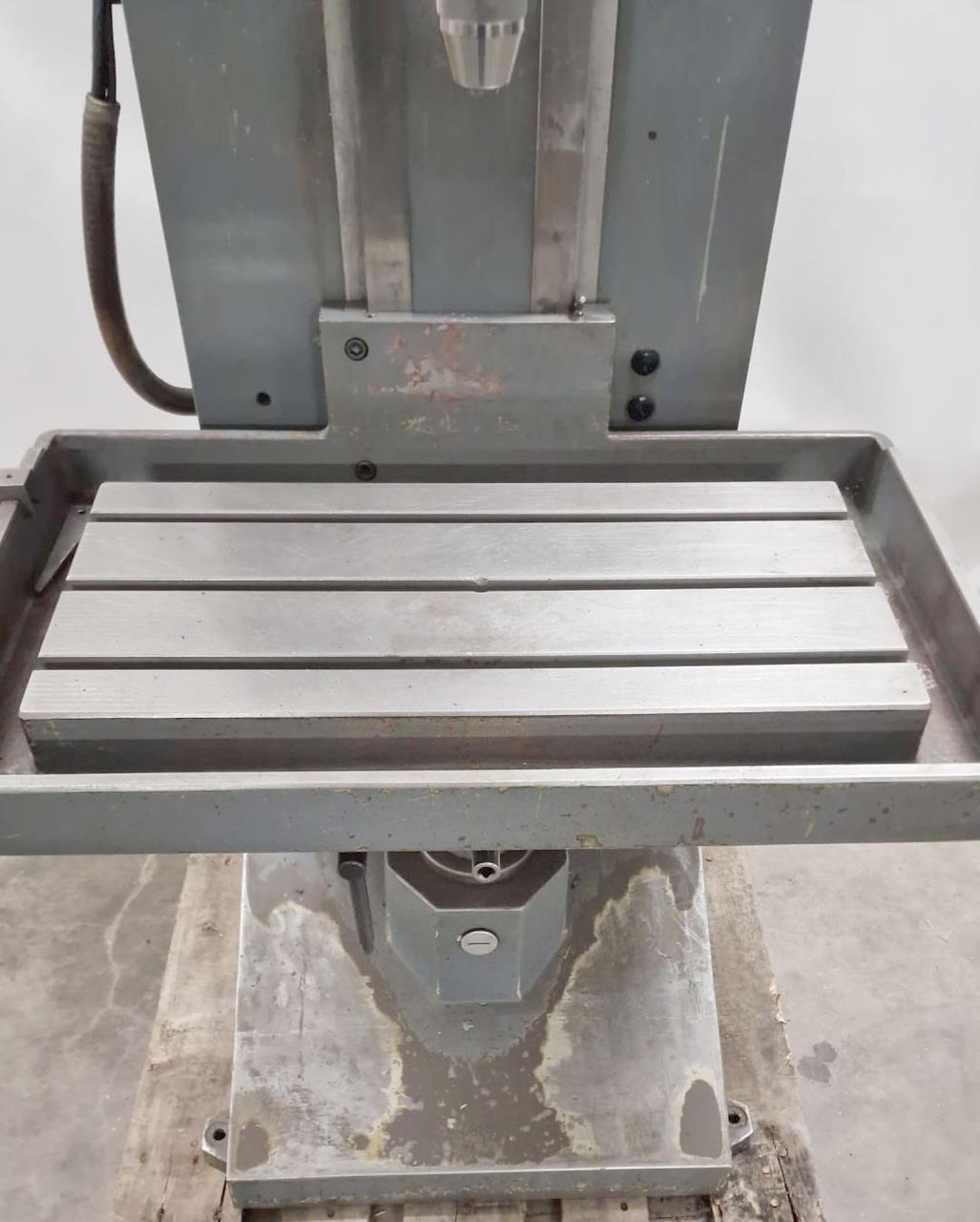

Table length
650 mm
Table width
320 mm
Drill capacity in steel
22 mm
Drill capacity in cast-iron
24 mm
Depth of throat
300 mm
Drill depth (spindle stroke)
120 mm
Spindle head adjustment
300 mm
Table travels:
Longitudinal travel (X-axis)
330 mm
Transversal travel (y-axis)
210 mm
Vertical travel (z axis)
350 mm
Spindle speeds:
stepless
from
50 rpm
up to
4000 rpm
Feeds:
from
0.12 mm/r
up to
0.6 mm/r
Voltage 50 Hz 3x
380 Volt
Spindle motor
2 HP
Machine's weight about
990 kg
Overall dimensions machine:
Length
1100 mm
Width
600 mm
Height
2100 mm
Various accessories:
Threading device

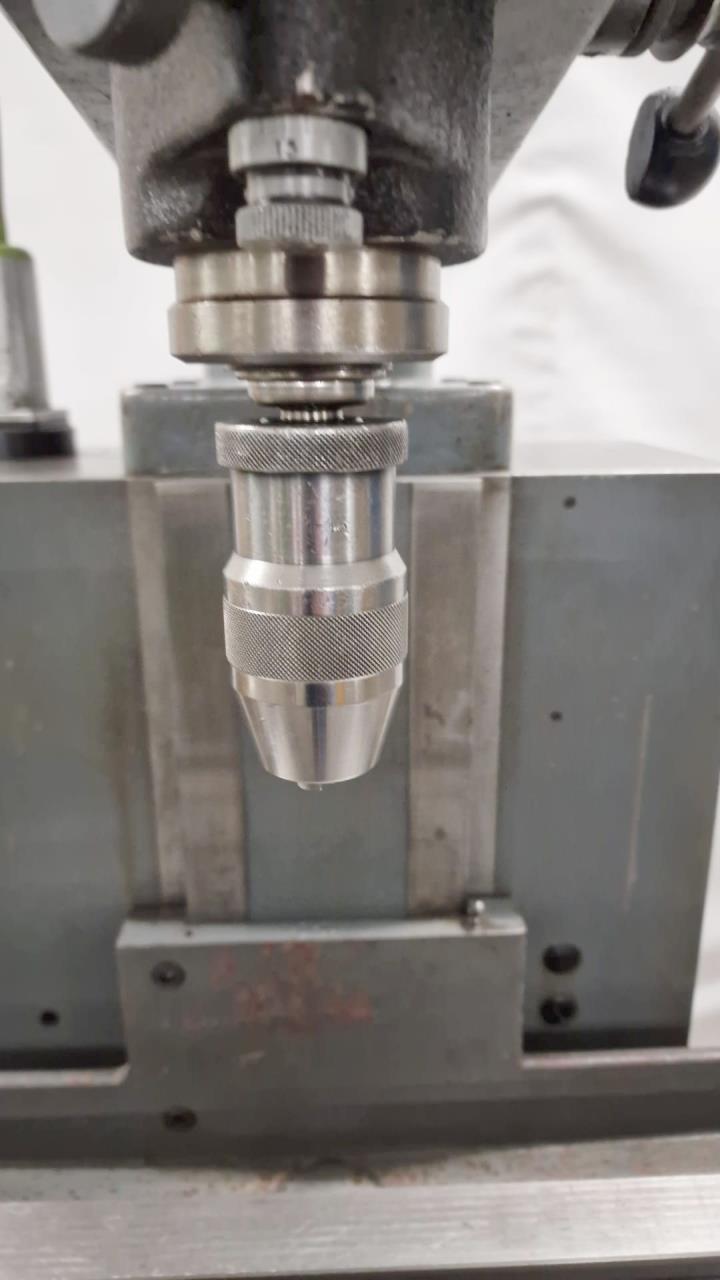

Drill chuck
1 - 13 mm
Quick change device
Technical specifications and pictures without guarantee.
